Model Electrolux 253.73185300 Room Air Conditioner (Kenmore 25373185300) – Common Parts & Diagrams
AIR HANDLING PARTS
CONTROL PARTS

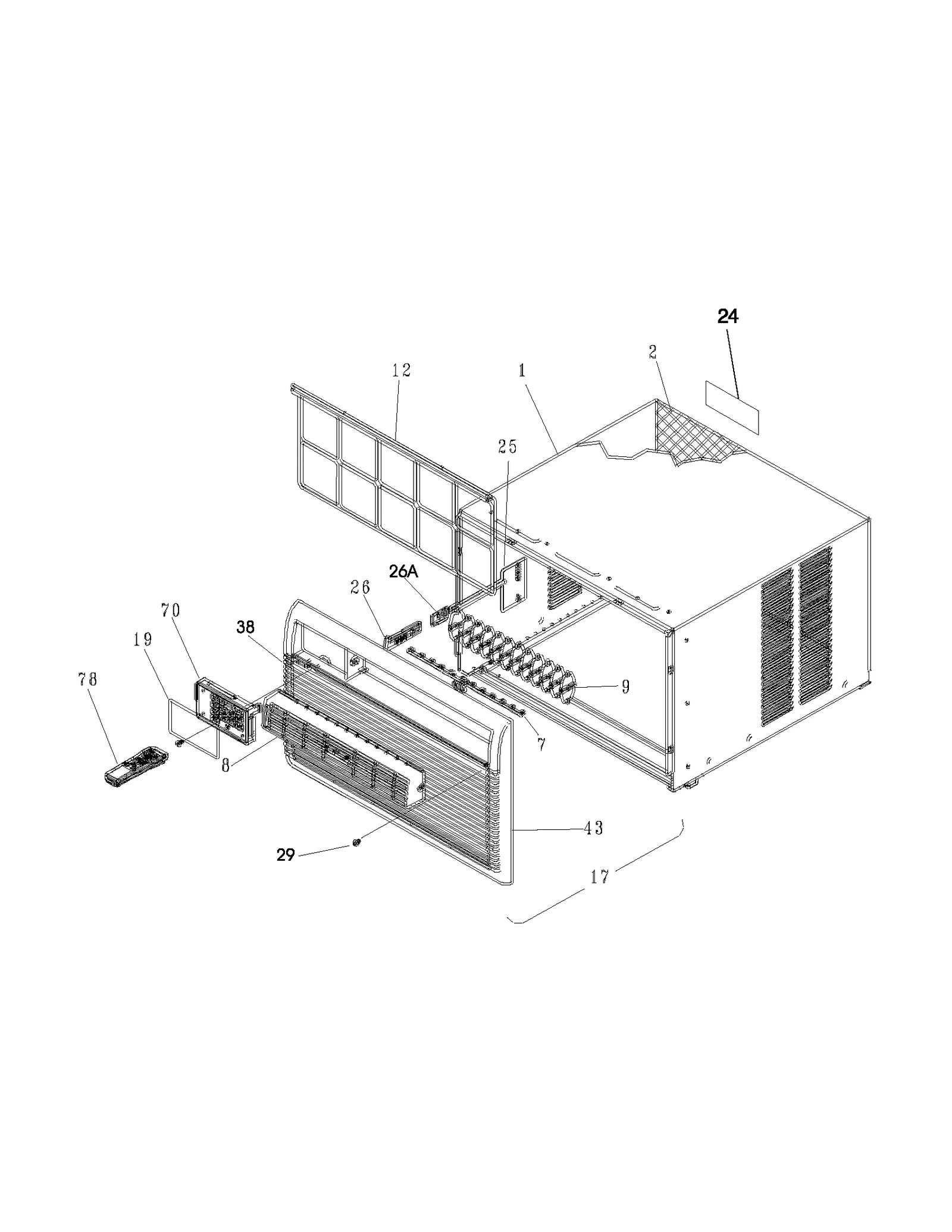

CABINET FRONT AND WRAPPER

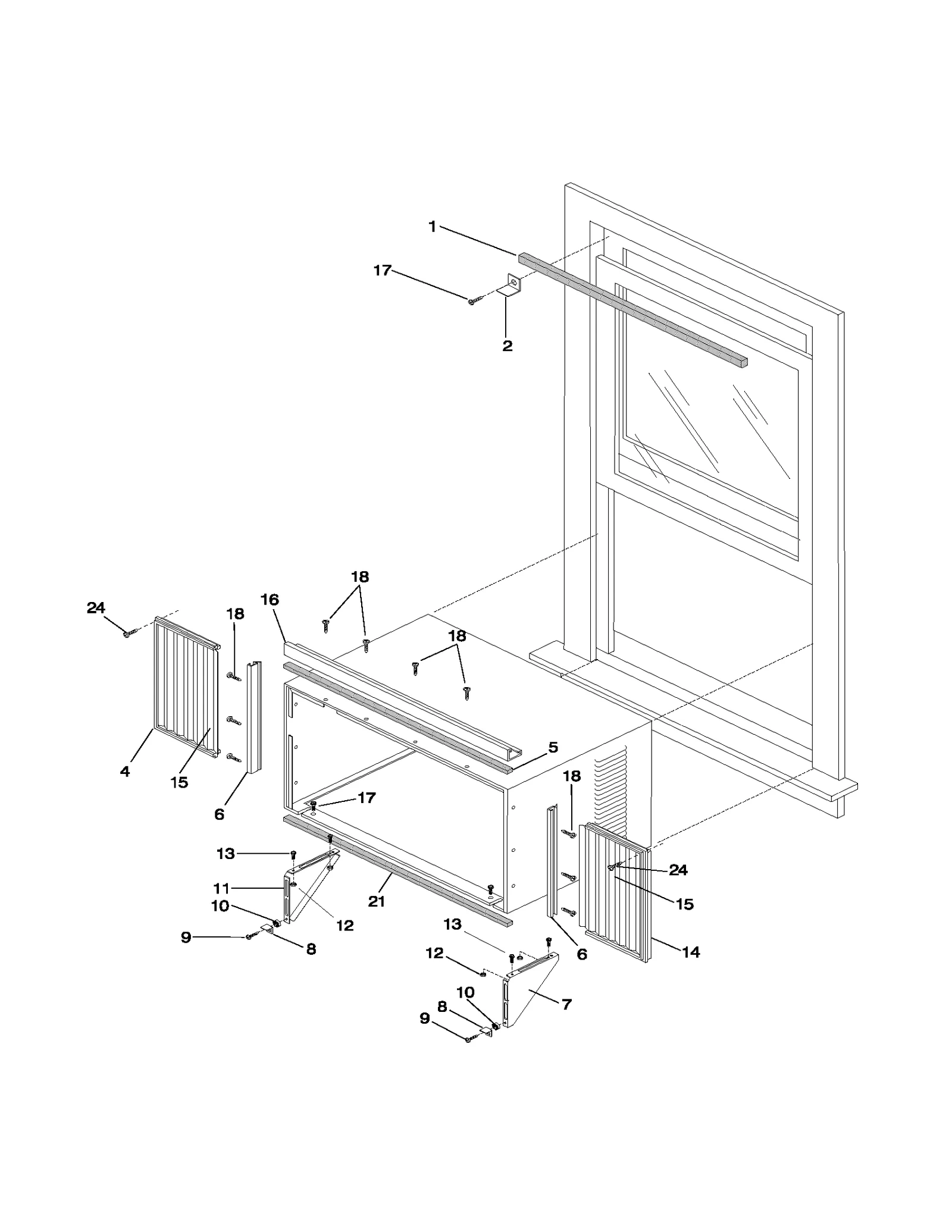

WINDOW MOUNTING PARTS

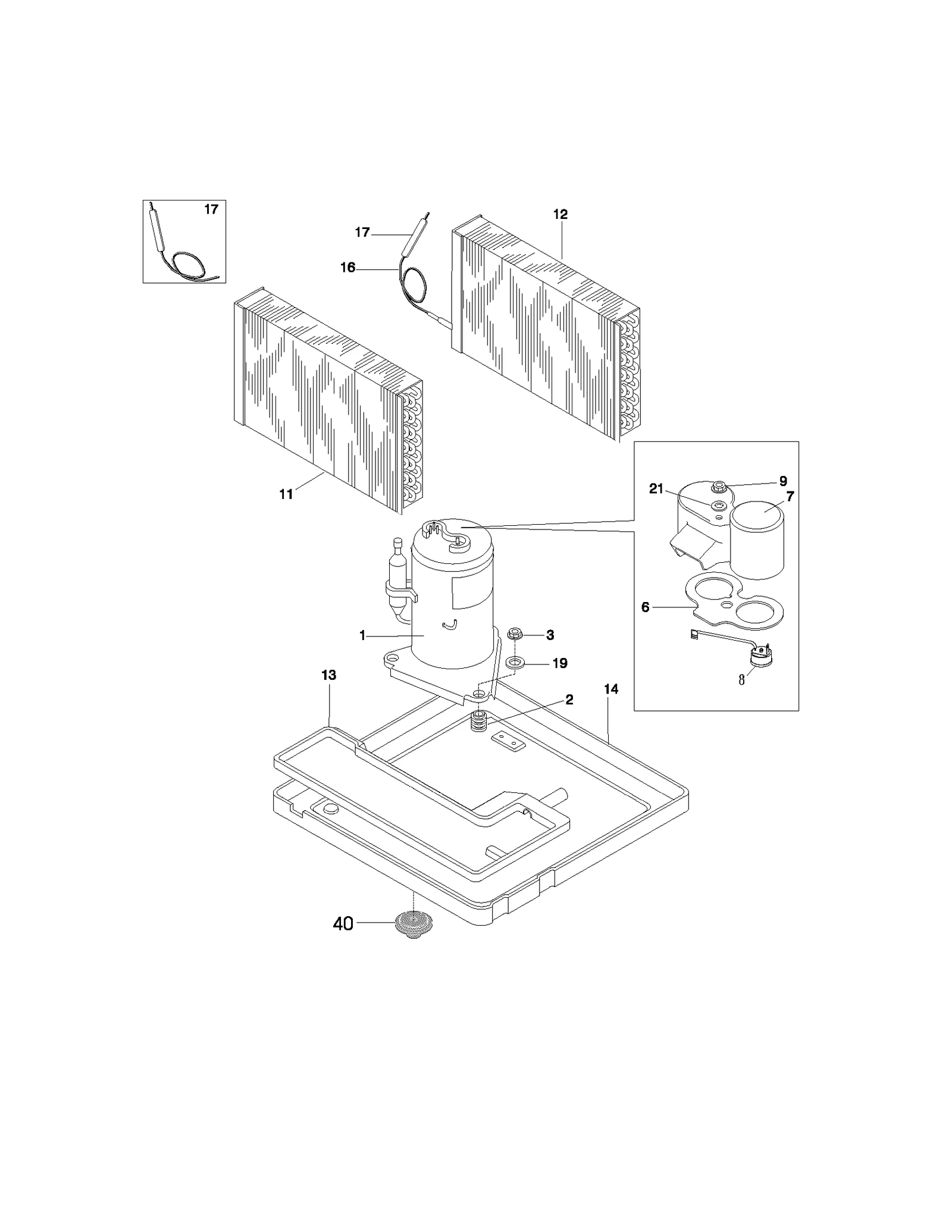

COMPRESSOR PARTS
Common parts from model Electrolux 253.73185300 Room Air Conditioner (Kenmore 25373185300)
(NI)
Tech Data Sheet,25373185300 WCI 309373201 Contact Us For Availability
1
Silver Seal WCI 309632704 Contact Us For Availability
1
Compressor WCI 309603124 Contact Us For Availability
2
Room Air Conditioner Window Stop Bracket WCI 5303211056 Contact Us For Availability
2
#grill&rr Ra WCI 309632804 Contact Us For Availability
2
Room Air Conditioner Compressor Grommet WCI 5303283877 Contact Us For Availability
3
Room Air Conditioner Compressor Mount Retaine WCI 5308006948 Contact Us For Availability
4
Rh Curtain WCI 5304426345 Contact Us For Availability
5
Seal WCI 5303015311 Contact Us For Availability
5
Rail Seal WCI 5304409250 Contact Us For Availability
6
Retainer-hds WCI 5304414933 Contact Us For Availability
6
Gasket WCI 5303291330 Contact Us For Availability
7
Control Box WCI 309630403 Contact Us For Availability
7
Handle Link WCI 309631104 Contact Us For Availability
7
Rh Support WCI 5304414105 Contact Us For Availability
7
COVER-TERMINAL, COMPRESSOR WCI 5304416126 Contact Us For Availability
8
Motor WCI 309630613 Contact Us For Availability
8
Louver Assembly WCI 309633306 Contact Us For Availability
8
Horizontal Louver WCI 309633904 Contact Us For Availability
8
Bracket Window WCI 3001815 Contact Us For Availability
8
Overload WCI 5304432854 Contact Us For Availability
9
Room Air Conditioner Louver Vertical Vane WCI 309631004 Contact Us For Availability
9
Screw WCI 3007756 Contact Us For Availability
9
Nut WCI 5303294292 Contact Us For Availability
10
Air Bulkhead WCI 309623401 Contact Us For Availability
10
Bulkhead WCI 309623602 Contact Us For Availability
10
Nut WCI 3007759 Contact Us For Availability
11
Room Air Conditioner Blower Wheel WCI 309633001 Contact Us For Availability
11
BRACKET-SUPPT-LH (NCS1403) WCI 5304414106 Contact Us For Availability
11
Evaporator WCI 309634201 Contact Us For Availability
12
Room Air Conditioner Thermistor Retainer WCI 5304413782 Contact Us For Availability
12
Filter WCI 309639001 Contact Us For Availability
12
Condenser WCI 5303306719 Contact Us For Availability
13
Cover Blower Wheel WCI 309630302 Contact Us For Availability
13
Room Air Conditioner Fan Motor Capacitor WCI 5303300180 Contact Us For Availability
13
Support Screw WCI 5303281649 Contact Us For Availability
13
Evaporator Tray WCI 309623501 Contact Us For Availability
14
Screw WCI 5303285199 Contact Us For Availability
14
Lh Curtain WCI 5304426346 Contact Us For Availability
14
Compress/std WCI 309632910 Contact Us For Availability
15
Scroll WCI 309630101 Contact Us For Availability
15
Strap WCI 5303303077 Contact Us For Availability
15
Extension WCI 309645602 Contact Us For Availability
16
Top Rail-hd WCI 5304414116 Contact Us For Availability
16
Capilary Tub WCI 5303018217 Contact Us For Availability
17
Cord WCI 309343112 Contact Us For Availability
17
Front Assembly WCI 309640502 Contact Us For Availability
17
Screw WCI 3002803 Contact Us For Availability
17
Westinghouse Room Air Conditioner Filter Drye WCI 5300265301 Contact Us For Availability
18
Screw WCI 5308012680 Contact Us For Availability
19
Overlay WCI 309360106 Contact Us For Availability
19
Washer-met WCI 309112501 Contact Us For Availability
20
Scroll Plate WCI 309630201 Contact Us For Availability
21
Bottom Seal WCI 5303212504 Contact Us For Availability
21
Washer WCI 5303293809 Contact Us For Availability
24
Logo WCI 5304414348 Contact Us For Availability
24
Screw WCI 3002801 Contact Us For Availability
25
Access Control WCI 309321401 Contact Us For Availability
26
Handle Vent WCI 309330604 Contact Us For Availability
26A
Mounting Handle WCI 309330202 Contact Us For Availability
38
Room Air Conditioner Front Panel Door WCI 309638901 Contact Us For Availability
40
Grommet Drn WCI 5303301031 Contact Us For Availability
43
Panel Frame WCI 309638802 Contact Us For Availability
61
Thermistor WCI 5304414095 Contact Us For Availability
70
Room Air Conditioner Control Panel WCI 309361501 Contact Us For Availability
71
Power Board WCI 309375702 Contact Us For Availability
72
Room Air Conditioner Main Switch Assembly WCI 309375704 Contact Us For Availability
75
Pc Board-sup WCI 5304413781 Contact Us For Availability
78
Room Air Conditioner Remote Control WCI 309342608 Contact Us For Availability
NI
Grommet Wire WCI 309111201 Contact Us For Availability
NI
Owner's Manual WCI 309000849 Contact Us For Availability
NI
Energy Guide,25373185300 WCI 309363130 Contact Us For Availability
NI
Repair Parts List,25373185300 WCI 5995387650 Contact Us For Availability
NI
Package Hardware WCI 309313204 Contact Us For Availability
NI
Mounting Hardware WCI 309313303 Contact Us For Availability
NI
Hardware WCI 5304409248 Contact Us For Availability
NI
Top Rail Seal WCI 5304409249 Contact Us For Availability
× ![]()
