Model Electrolux 253.73125301 Air Conditioner (Kenmore 25373125301) – Common Parts & Diagrams
WINDOW MOUNTING PARTS
01 - COVER

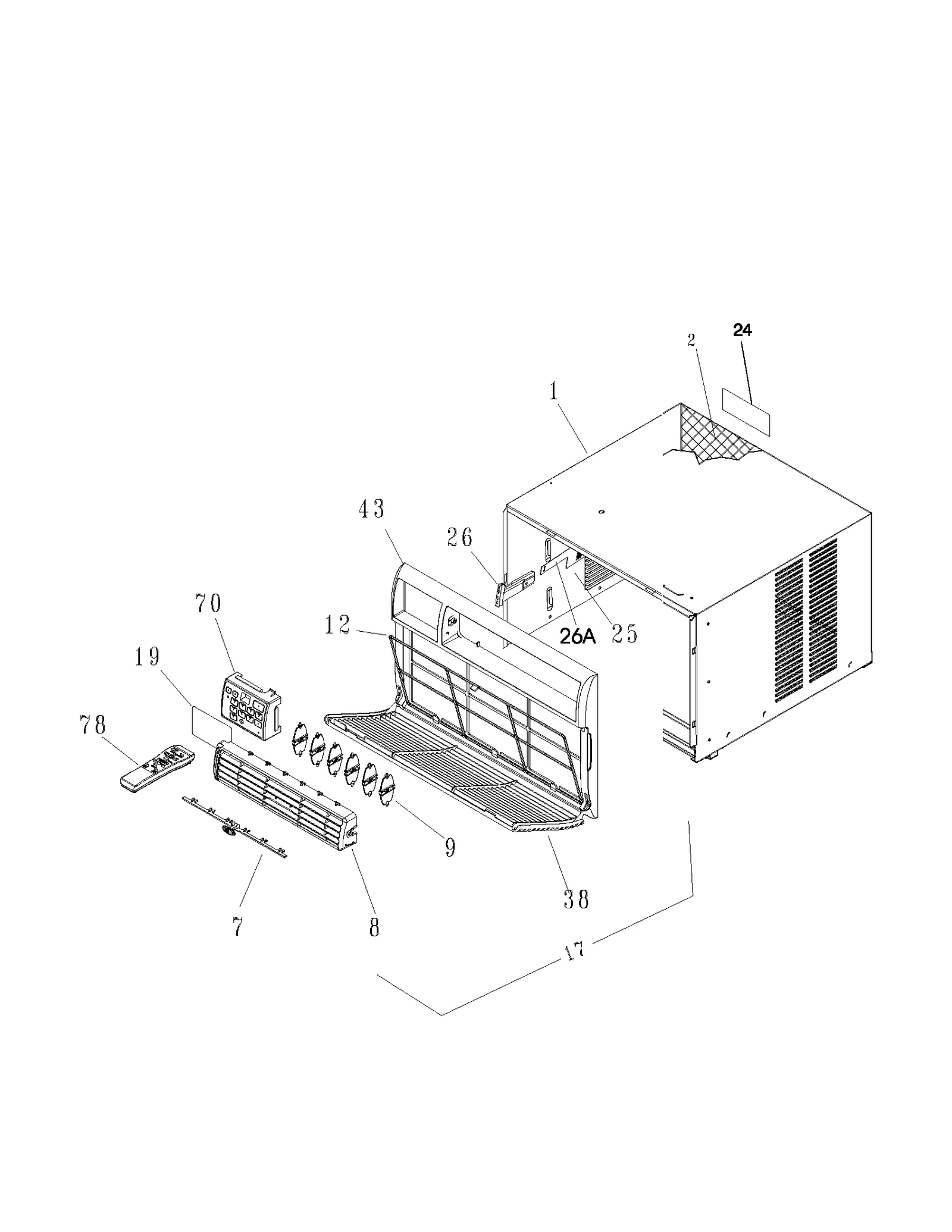

CABINET FRONT AND WRAPPER
03 - CABINET FRONT AND WRAPPER

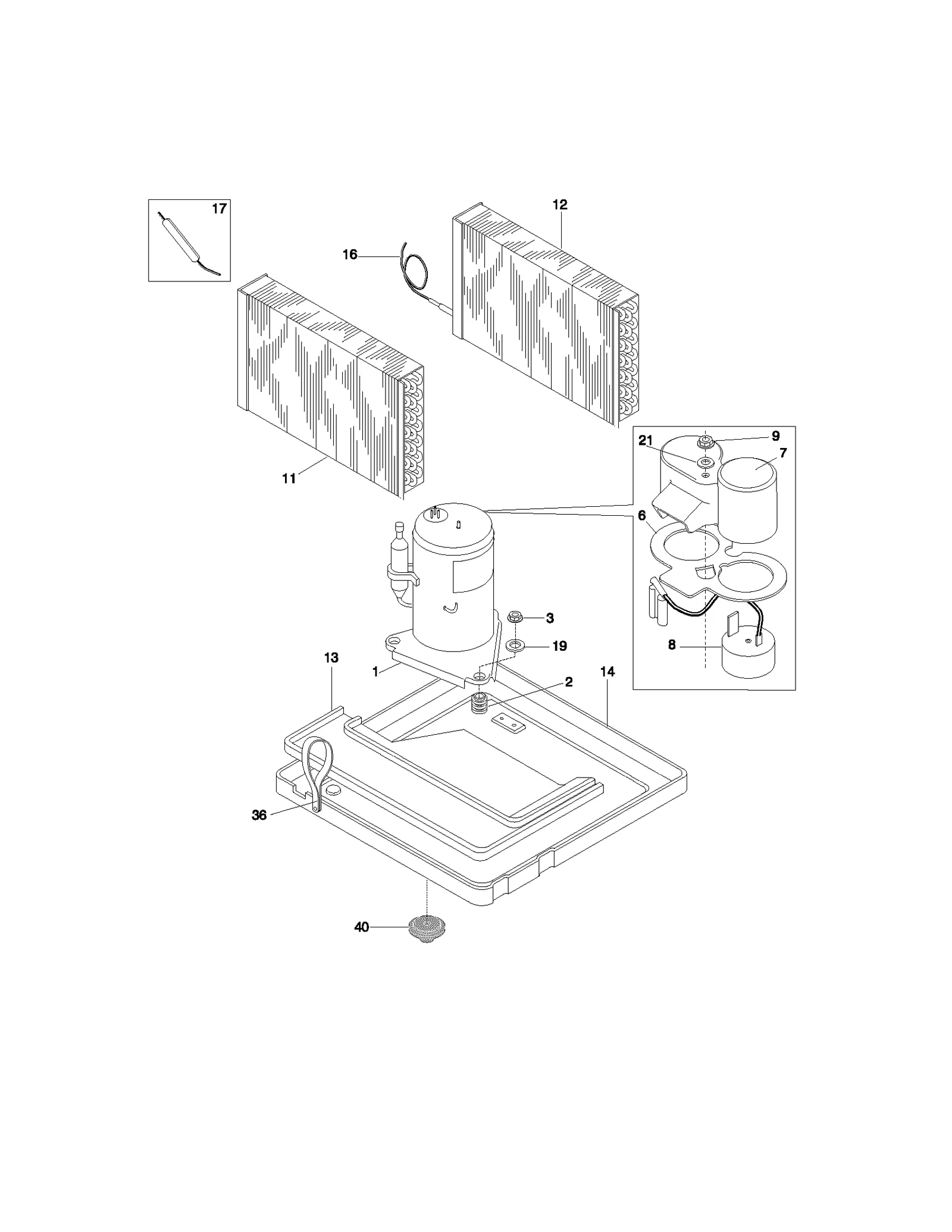

COMPRESSOR PARTS
05 - CONTROL PARTS

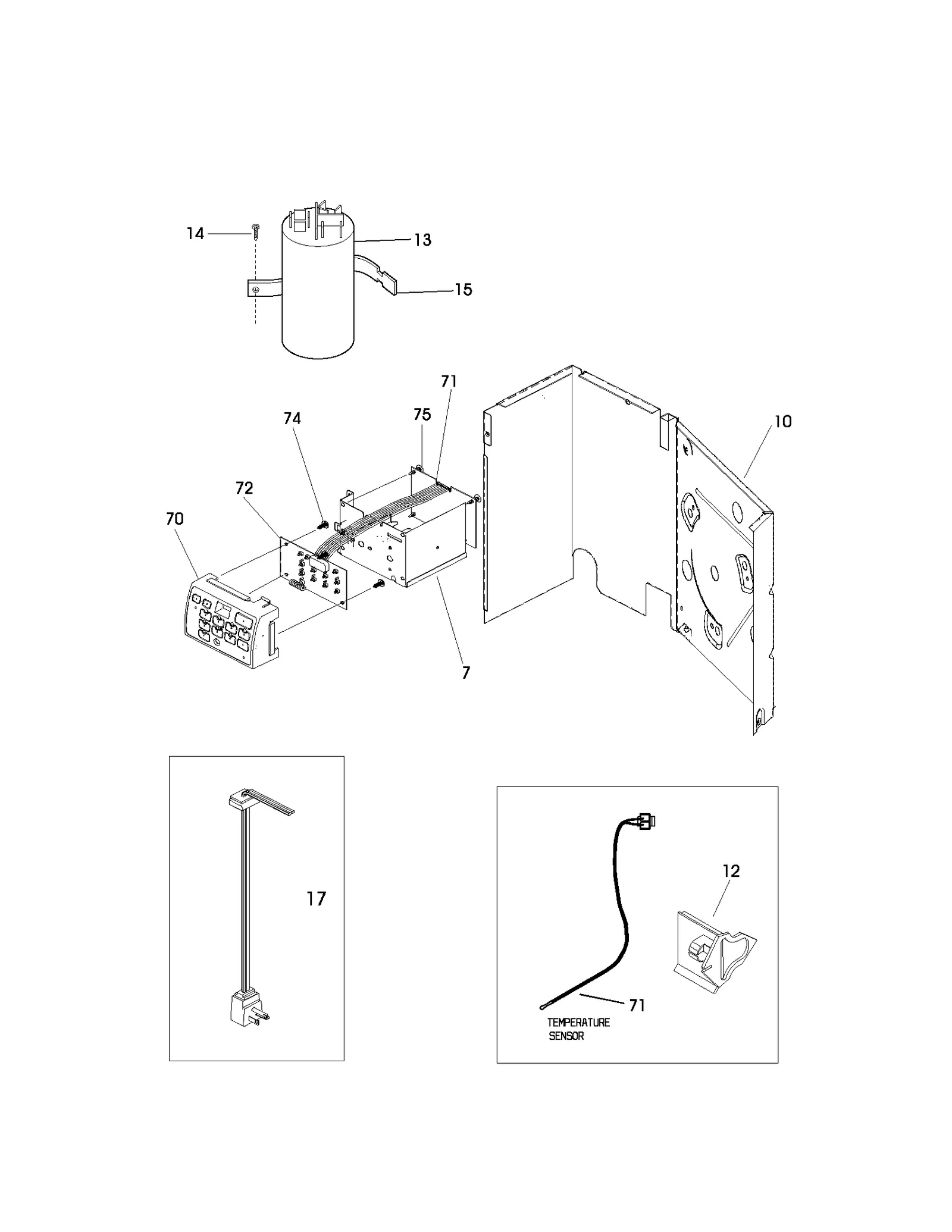

CONTROL PARTS
07 - AIR HANDLING PARTS

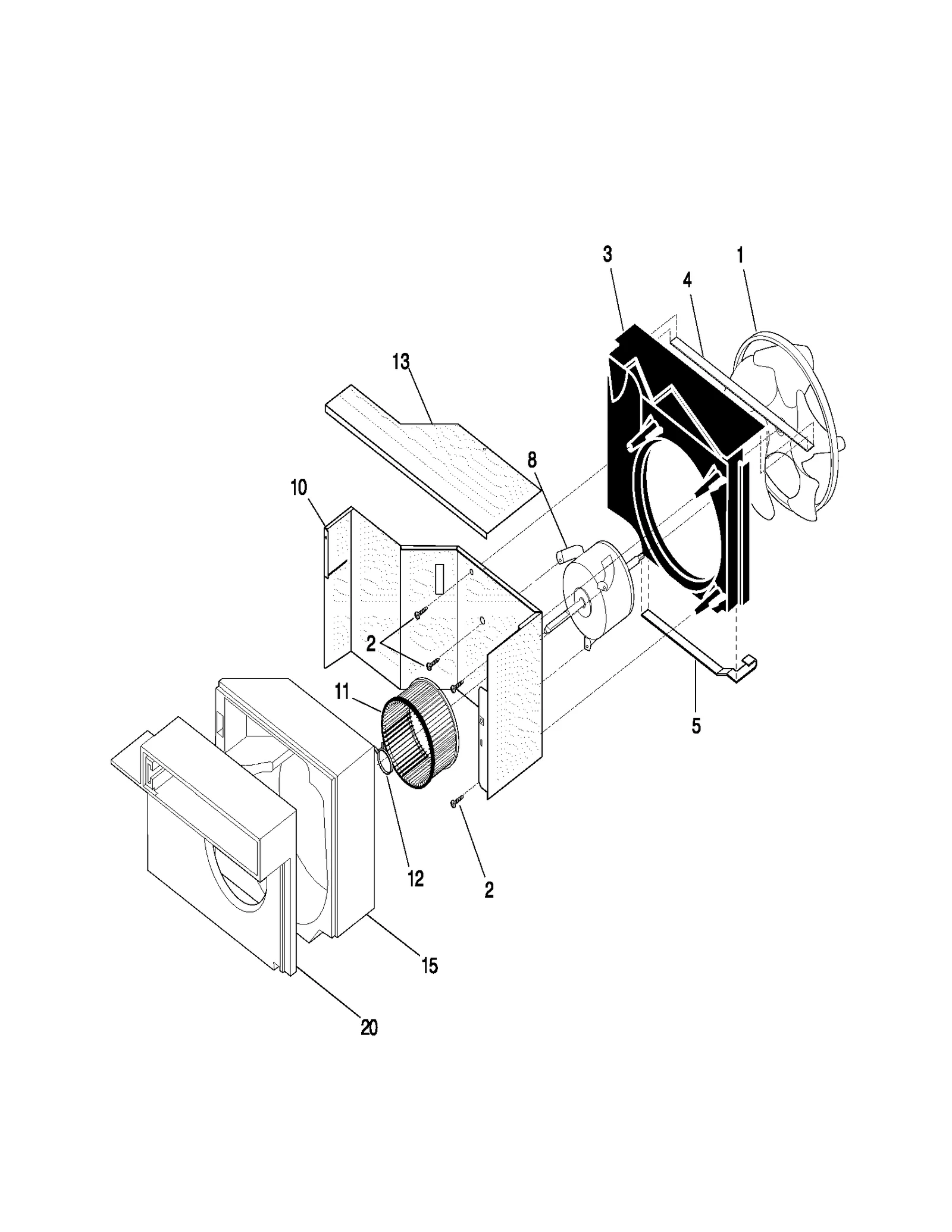

AIR HANDLING PARTS
09 - COMPRESSOR PARTS
11 - WINDOW MOUNTING PARTS
12 - WIRING DIAGRAM
Common parts from model Electrolux 253.73125301 Air Conditioner (Kenmore 25373125301)
*
Mounting Support Kit WCI 309313205 Contact Us For Availability
*
Window Mounting Kit WCI 309313304 Contact Us For Availability
*
* Nut,speed ,#8 WCI 5303301572 Contact Us For Availability
*
Hardware Kit,window mount WCI 5304426447 Contact Us For Availability
*
Use & Care Guide WCI 309000849 Contact Us For Availability
*
Tech Data Sheet,25373125301 WCI 309002012 Contact Us For Availability
*
Energy Guide,25373125301 WCI 309363127 Contact Us For Availability
*
Repair Parts List,25373125301 WCI 5995383337 Contact Us For Availability
1
Cabinet,sleeve ,complete assy WCI 309609212 Contact Us For Availability
1
Fan Blade WCI 309651002 Contact Us For Availability
1#
Compressor WCI 309603120 Contact Us For Availability
2
Room Air Conditioner Window Stop Bracket WCI 5303211056 Contact Us For Availability
2
Grille,rear WCI 5304414101 Contact Us For Availability
2
Grommet,compressor mtg ,(3) WCI 5303283877 Contact Us For Availability
3
Nut,compressor mtg ,(3) WCI 5308006948 Contact Us For Availability
3
Condenser WCI 3202950 Contact Us For Availability
3
Seal,retainer WCI 5303276728 Contact Us For Availability
4
Room Air Conditioner Accordion Filler Assembl WCI 5304426457 Contact Us For Availability
4
Seal WCI 3202953 Contact Us For Availability
5
Seal WCI 3202951 Contact Us For Availability
5
Seal,rail ,top WCI 5303207200 Contact Us For Availability
6
Gasket,terminal cover WCI 5303291330 Contact Us For Availability
6
Retainer,accordian WCI 5304414107 Contact Us For Availability
7
Link WCI 309638601 Contact Us For Availability
7
Cover,elec terminal ,compressor WCI 5304416126 Contact Us For Availability
7
Control Box WCI 309605605 Contact Us For Availability
8
Louver,horizontal WCI 309638501 Contact Us For Availability
8
Louver Assy,Includes 7,8,9 WCI 309640401 Contact Us For Availability
8
Room Air Conditioner Fan Motor WCI 309630611 Contact Us For Availability
8#
Overload Protector,mra 12053-386 WCI 5304419795 Contact Us For Availability
9
Louver,vertical ,(6) WCI 309342001 Contact Us For Availability
9
Nut,terminal cover WCI 5303294292 Contact Us For Availability
10
Bulkhead WCI 5303316617 Contact Us For Availability
11
Room Air Conditioner Blower Wheel WCI 309608902 Contact Us For Availability
11#
Evaporator WCI 309635505 Contact Us For Availability
12
Filter,framed WCI 309638701 Contact Us For Availability
12
Holder WCI 08017123 Contact Us For Availability
12
Room Air Conditioner Fan Blade Clamp WCI 5303012110 Contact Us For Availability
12#
Condenser WCI 5304426744 Contact Us For Availability
12A
Manifold WCI 5303305627 Contact Us For Availability
13
Tray,evaporator drip WCI 309606001 Contact Us For Availability
13
Room Air Conditioner Dual-Motor Run Capacitor WCI 5304430490 Contact Us For Availability
13
Cover WCI 309605902 Contact Us For Availability
14
Frame,extension ,RH WCI 5304426458 Contact Us For Availability
14
Base,compressor mtg ,with studs WCI 5304431381 Contact Us For Availability
14
Screw WCI 5303285199 Contact Us For Availability
15
Panel,accordian ,LH/RH ,window closure WCI 309645601 Contact Us For Availability
15
Strap WCI 309111901 Contact Us For Availability
15
Evaporator Scroll WCI 309605702 Contact Us For Availability
16
Rail,support ,top WCI 5304414102 Contact Us For Availability
16#
Tube,capillary ,37 inch long ,cut to length WCI 5304417693 Contact Us For Availability
17
Screw,wood, type 17 ,10-12 x 0.750 WCI 3002803 Contact Us For Availability
17
Front Assembly,cabinet ,7-8-9-12-38-43 WCI 309640301 Contact Us For Availability
17
Power Cord WCI 309343104 Contact Us For Availability
17#
Drier-filter,service kit WCI 5300265301 Contact Us For Availability
19
Overlay,control WCI 309360005 Contact Us For Availability
19
Washer,metallic WCI 309112501 Contact Us For Availability
20
Scroll Plate WCI 309605802 Contact Us For Availability
21
Seal,sleeve/chassis ,bottom WCI 5314949603 Contact Us For Availability
21
Washer,terminal cover WCI 5303293809 Contact Us For Availability
24
Screw,wood,type 17 ,8-15 x 0.500 WCI 5308002974 Contact Us For Availability
24
Nameplate,Kenmore ,rear grille WCI 5304414348 Contact Us For Availability
25
Door,fresh air vent WCI 309328602 Contact Us For Availability
26
Handle,vent door WCI 309638201 Contact Us For Availability
26A
Detent,vent WCI 309330201 Contact Us For Availability
36
Strap,chassis pull WCI 5303303558 Contact Us For Availability
38
Panel,cabinet front WCI 309638401 Contact Us For Availability
40
Grommet,drain ,kit with instr. WCI 5303301031 Contact Us For Availability
43
Frame,cabinet front WCI 309638301 Contact Us For Availability
70
Enclosure WCI 309361402 Contact Us For Availability
71
Room Air Conditioner Electronic Control Board WCI 309375701 Contact Us For Availability
72
Room Air Conditioner Electronic Control Board WCI 309375703 Contact Us For Availability
75
Pc Board-sup WCI 5304413781 Contact Us For Availability
78
Remote Control,transmitter ,var speed,with ba WCI 309342608 Contact Us For Availability
NI
Grommet Wire WCI 309111201 Contact Us For Availability
NI
Protector WCI 5304415017 Contact Us For Availability
× ![]()
