Model Kenmore 253.73055301 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
03 - CABINET FRONT AND WRAPPER

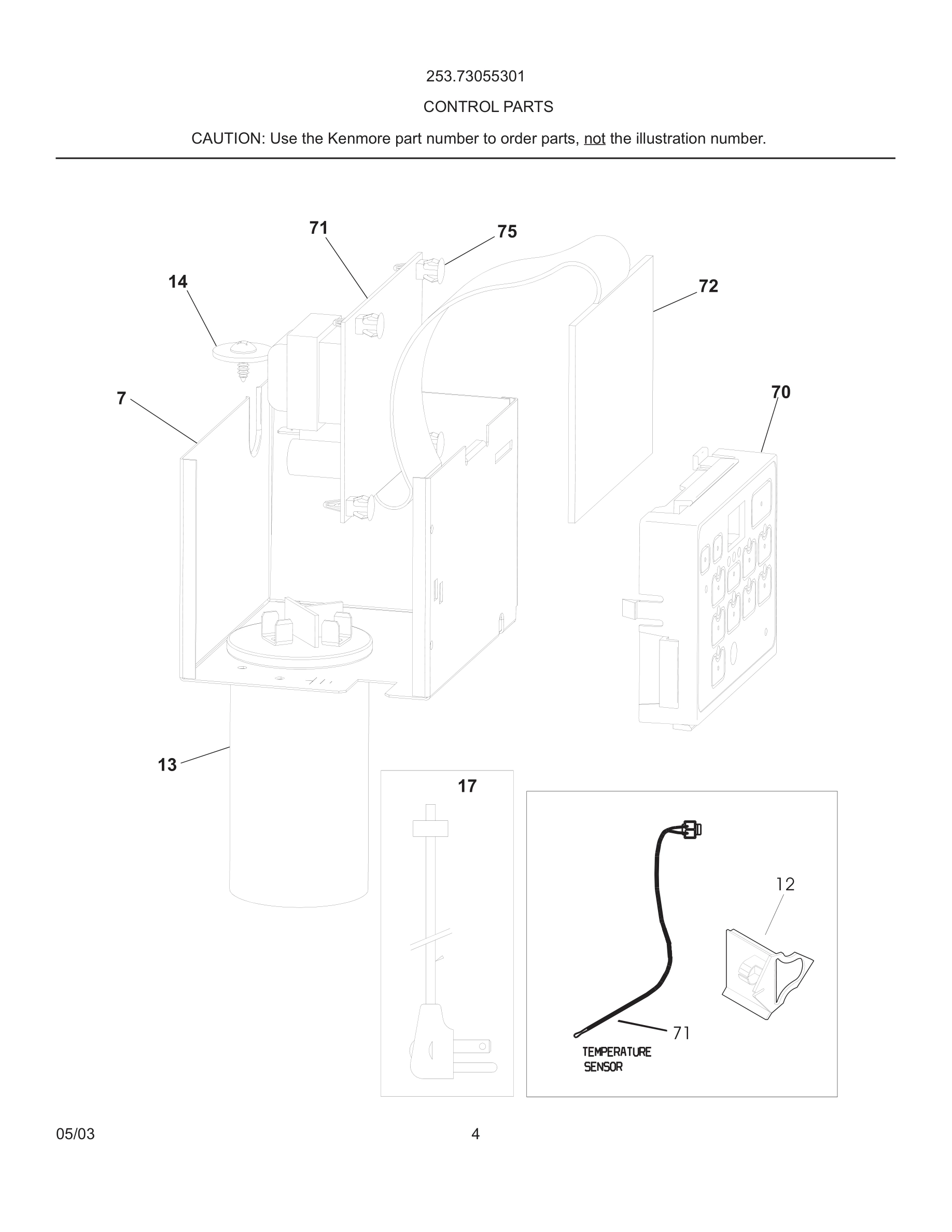

05 - CONTROL PARTS

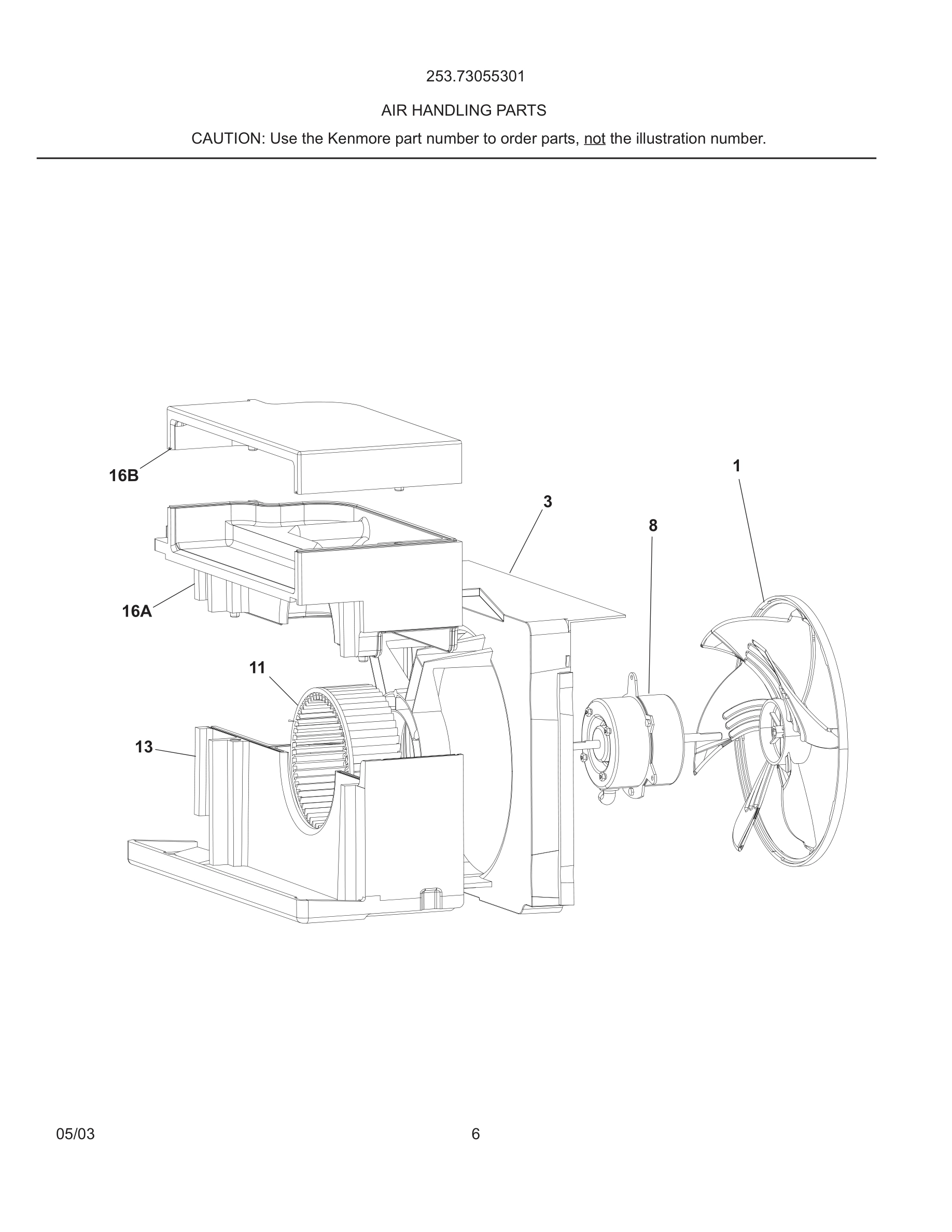

07 - AIR HANDLING PARTS

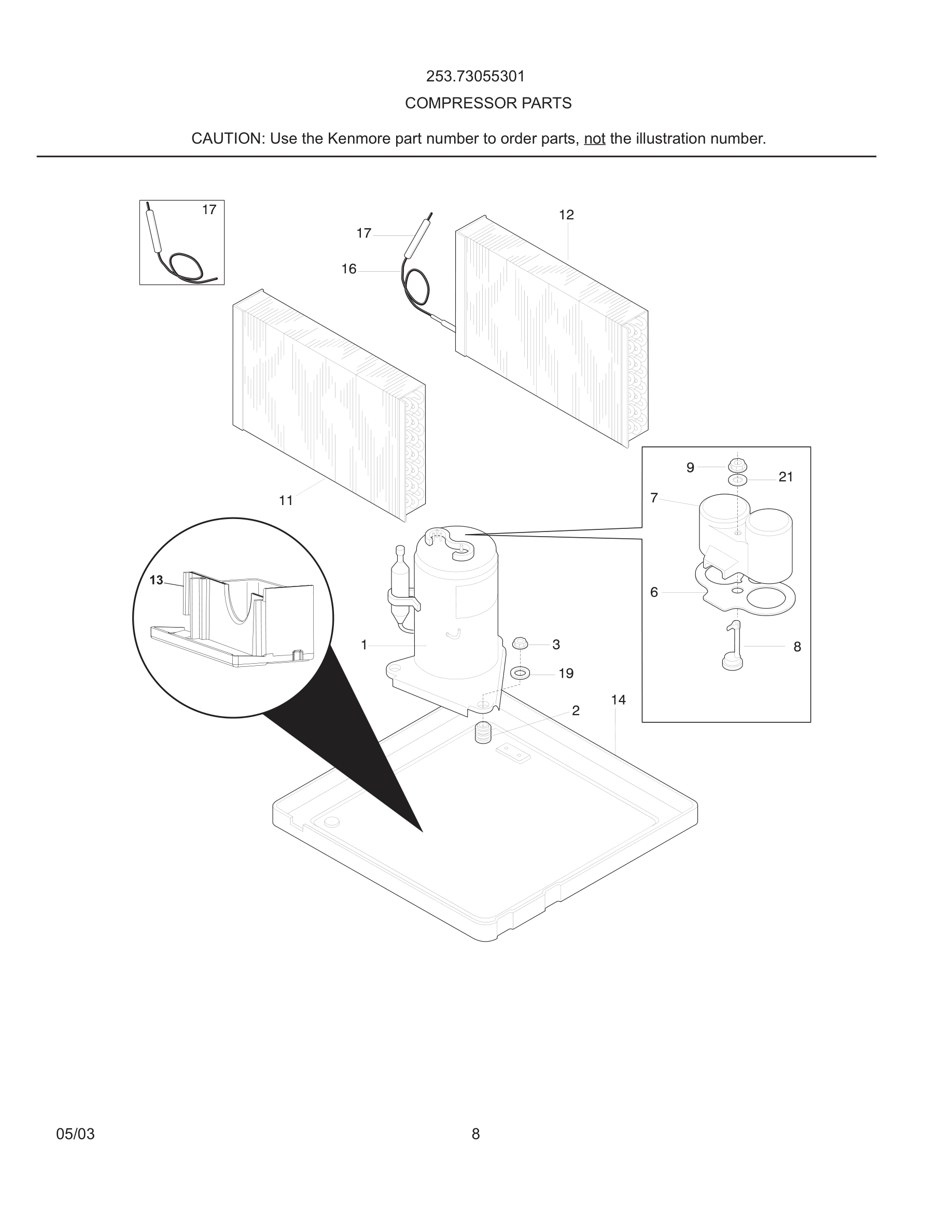

09 - COMPRESSOR PARTS

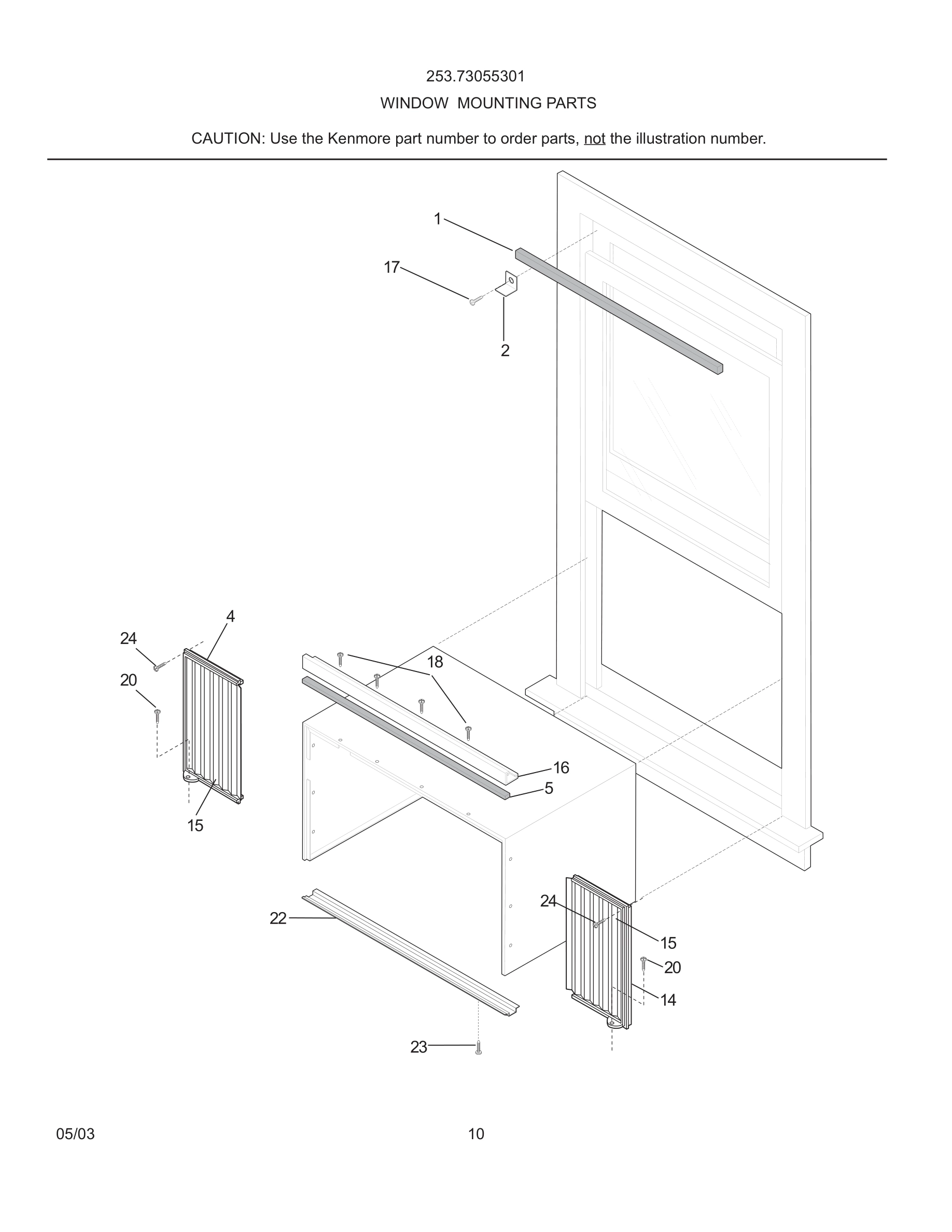

11 - WINDOW MOUNTING PARTS

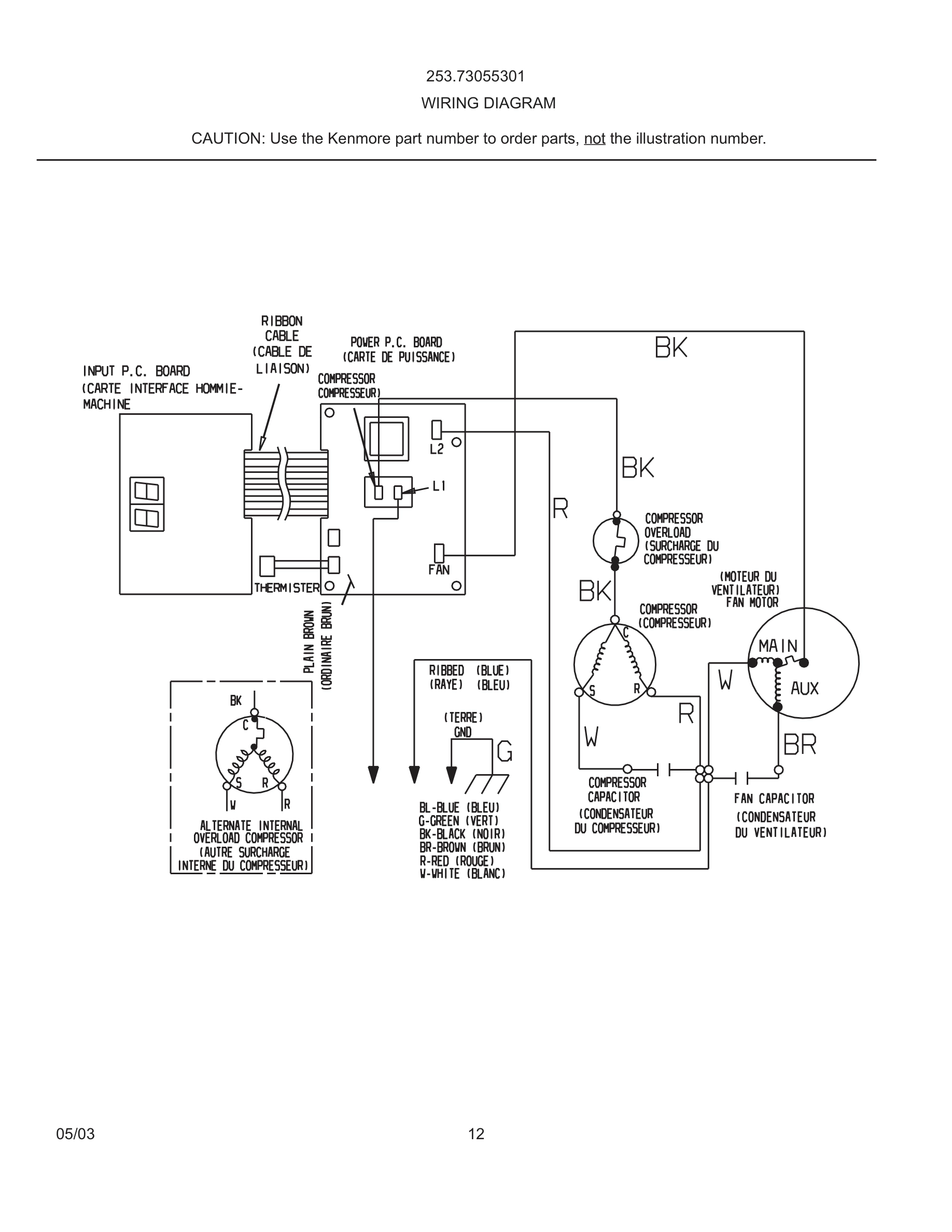

12 - WIRING DIAGRAM
Common parts from model Kenmore 253.73055301 ROOM AIR CONDITIONER
*
Energy Guide,25373055300 WCI 309363128 Contact Us For Availability
*
Screw,Ph truss hd ,8-18 x 0.38 ,grounding WCI 5303285199 Contact Us For Availability
1
Cabinet,wrapper WCI 5304430636 Contact Us For Availability
1#
Fan Blade,with clamp WCI 309646202 Contact Us For Availability
1#
Compressor WCI 5304430460 Contact Us For Availability
2
Bracket,sash lock WCI 5303211056 Contact Us For Availability
2
Grommet,compressor mtg ,(3) WCI 5304430860 Contact Us For Availability
3
Nut,compressor mtg ,(3) WCI 5308006948 Contact Us For Availability
3#
Shroud,fan housing WCI 309650701 Contact Us For Availability
4
Frame Extension Kit,accordian ,LH & RH ,incl. WCI 309644902 Contact Us For Availability
4
Extension,sliding frame ,LH cab front ,w/clos WCI 5304423372 Contact Us For Availability
5
Seal,top rail/cab WCI 08016226 Contact Us For Availability
6
Louver Assy,includes 7,8,9 WCI 309640208 Contact Us For Availability
6
Gasket,terminal cover WCI 5304431275 Contact Us For Availability
7
• Link,vertical louver ,with handle WCI 309638002 Contact Us For Availability
7
Control Box WCI 309650302 Contact Us For Availability
7
Cover,elec terminal ,compressor WCI 5304416126 Contact Us For Availability
8
(cid:127) Louver,horizontal WCI 309637903 Contact Us For Availability
8#
Motor,fan WCI 309649902 Contact Us For Availability
8#
Overload Protector WCI 5304417320 Contact Us For Availability
9
(cid:127) Louver,vertical ,(6) WCI 309342001 Contact Us For Availability
9
Nut,terminal cover WCI 5303294292 Contact Us For Availability
11#
Blower Wheel,8mm snap-on hub WCI 309649802 Contact Us For Availability
11#
Evaporator WCI 309648501 Contact Us For Availability
11*
Clamp,blower wheel mt ,compression WCI 327161302 Contact Us For Availability
12
Filter,air ,plastic frame ,antimicrobial WCI 309638102 Contact Us For Availability
12
Holder,thermistor ,w/seal WCI 5304413782 Contact Us For Availability
12#
Condenser WCI 309645301 Contact Us For Availability
13#
Capacitor,250 V ,35+5 mfd WCI 5304426449 Contact Us For Availability
13#
Scroll/Evap Tray,blower housing ,bottom WCI 309650401 Contact Us For Availability
14
Screw,8-18B x 0.500 WCI 3002801 Contact Us For Availability
14
Base,compressor mtg ,with studs WCI 309650802 Contact Us For Availability
14
Extension,sliding frame ,RH cab front ,w/clos WCI 5304423373 Contact Us For Availability
15
Panel,accordian ,RH/LH ,window closure WCI 309645501 Contact Us For Availability
16
Rail,retainer ,top WCI 5304430650 Contact Us For Availability
16#
Tube,capillary ,37 inch long ,cut to length WCI 5304417693 Contact Us For Availability
16A#
Scroll,blower housing ,top WCI 309650501 Contact Us For Availability
16B#
Cover,scroll WCI 309650601 Contact Us For Availability
17
Front Assembly,4 way panel ,w/8,9,12,38,43 WCI 309640108 Contact Us For Availability
17
Screw,wood, type 17 ,10-12 x 0.750 WCI 3002803 Contact Us For Availability
17#
Cord-electric power,18 AWG ,115 V ,w/gnd.clip WCI 309343122 Contact Us For Availability
19
Overlay,control WCI 309359905 Contact Us For Availability
19
Washer,metallic WCI 309112501 Contact Us For Availability
21
Washer,terminal cover WCI 5303293809 Contact Us For Availability
22
Rail,retainer ,bottom WCI 5304403252 Contact Us For Availability
23
Screw,23(T) ,10-32 x 0.310 WCI 3001806 Contact Us For Availability
24
Screw,wood,type 17 ,8-15 x 0.500 WCI 5308002974 Contact Us For Availability
38
Panel,cabinet front WCI 309646501 Contact Us For Availability
43
Frame,cabinet front WCI 309646601 Contact Us For Availability
70
Enclosure,control mount WCI 309361303 Contact Us For Availability
71#
PC Board,power ,vari speed ,115 V ,w/transfor WCI 309375701 Contact Us For Availability
72#
PC Board,input WCI 309375703 Contact Us For Availability
75
Hardware,PCB support WCI 5304413781 Contact Us For Availability
78
Remote Control,trans ,vari speed,with batteri WCI 309342608 Contact Us For Availability
× ![]()
