Model Kenmore 253.72259200 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
03 - CABINET FRONT AND WRAPPER

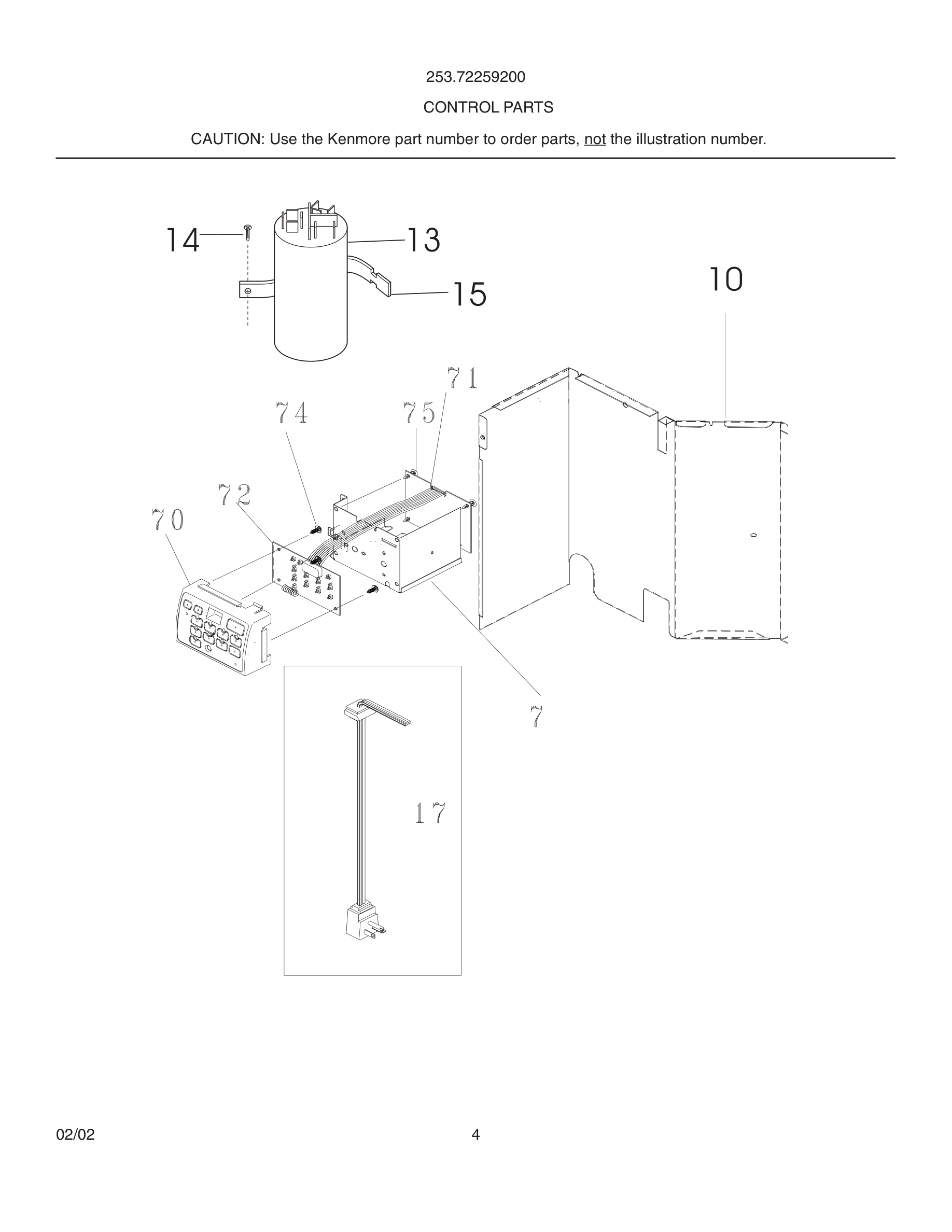

05 - CONTROL PARTS

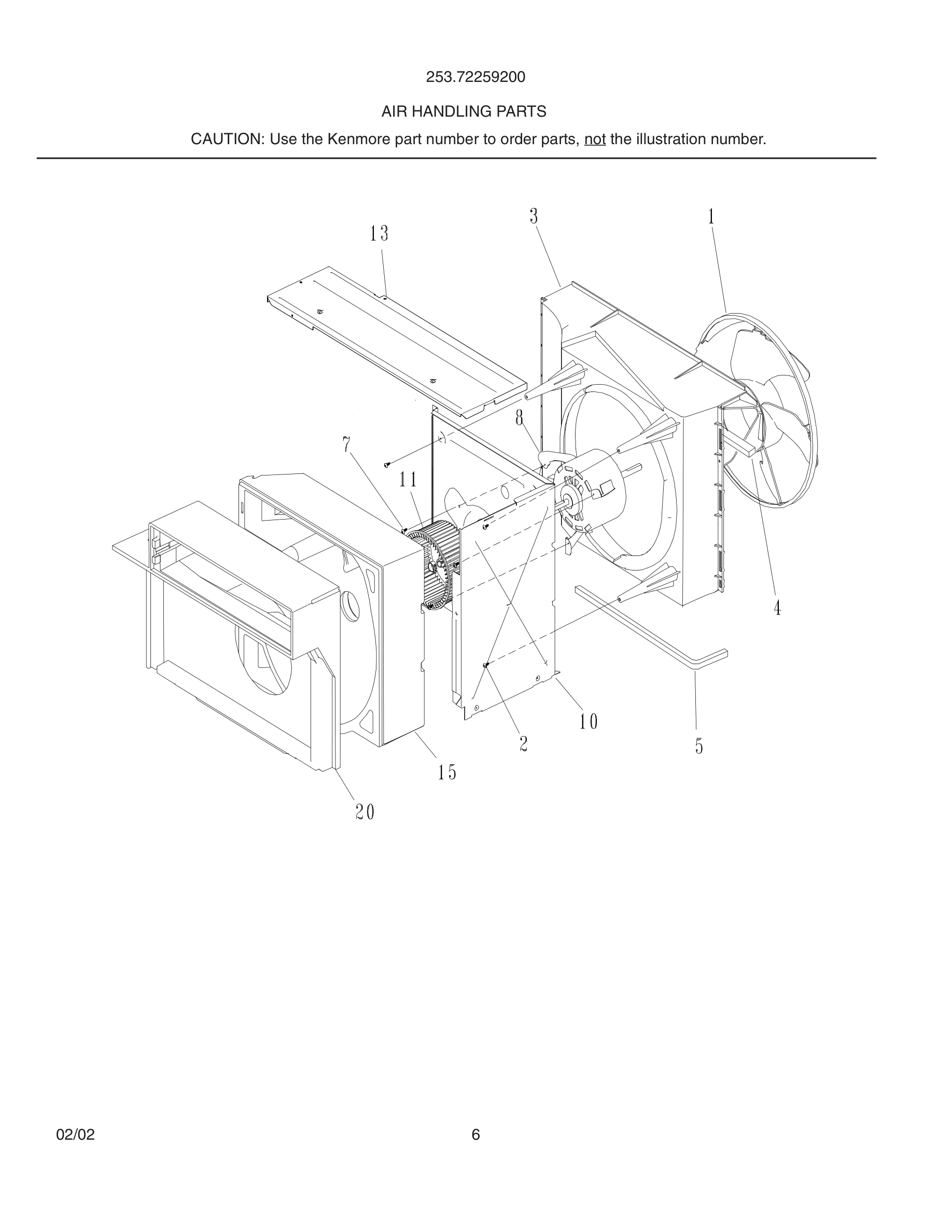

07 - AIR HANDLING PARTS

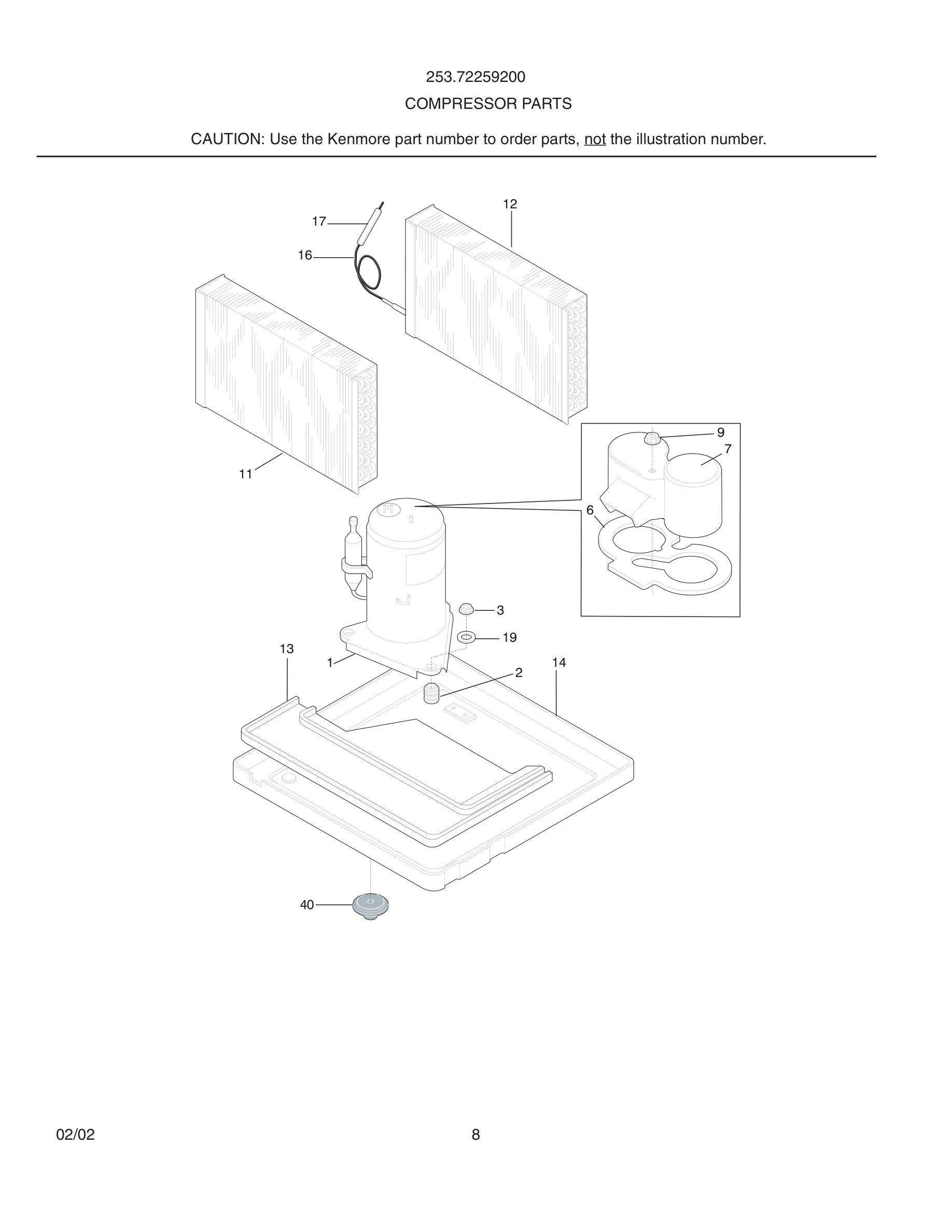

09 - COMPRESSOR PARTS

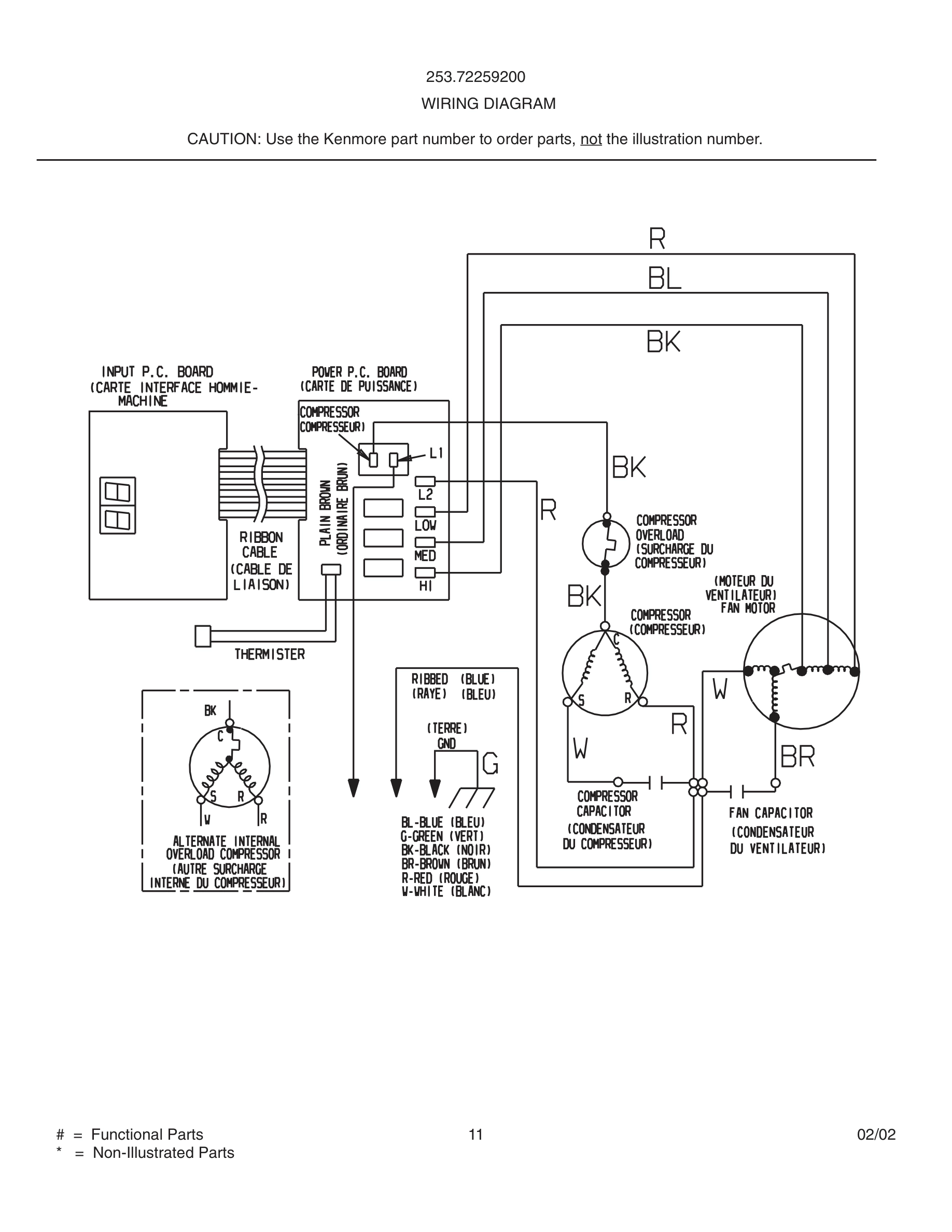

11 - WIRING DIAGRAM
Common parts from model Kenmore 253.72259200 ROOM AIR CONDITIONER
*
Energy Guide WCI 309363109 Contact Us For Availability
*
Seal-tube WCI 5304402119 Contact Us For Availability
*
Holder,temp sensor ,with seal WCI 5304413782 Contact Us For Availability
1
Cabinet,sleeve ,top louvers WCI 309632704 Contact Us For Availability
1#
Fan Blade,with clamp WCI 5304422465 Contact Us For Availability
1#
Compressor WCI 309646901 Contact Us For Availability
2
Grille,rear ,with rail WCI 309632804 Contact Us For Availability
2
Grommet,compressor mtg ,(3) WCI 5303283877 Contact Us For Availability
3
Shroud,cond fan motor WCI 309623201 Contact Us For Availability
3
Nut,compressor mtg ,(3) WCI 5308006948 Contact Us For Availability
4
Seal,sleeve/chassis ,bottom WCI 5303212504 Contact Us For Availability
5
Seal,fan housing ,lower WCI 5303015311 Contact Us For Availability
6
Gasket,terminal cover WCI 309364305 Contact Us For Availability
7
Link-handle,vertical louver WCI 309631104 Contact Us For Availability
7
Control Box WCI 309630403 Contact Us For Availability
7
Cover,compr terminal WCI 309364301 Contact Us For Availability
8
Louver Assy,horizontal WCI 309633306 Contact Us For Availability
8
Louver,horizontal WCI 309633904 Contact Us For Availability
8#
Motor,fan WCI 309630608 Contact Us For Availability
9
Louver,vertical WCI 309631004 Contact Us For Availability
9
Nut,terminal cover WCI 309364302 Contact Us For Availability
10
Bulkhead,control system WCI 309623602 Contact Us For Availability
10
Bulkhead,air system WCI 309623401 Contact Us For Availability
10*
Grommet,wire protector WCI 309111201 Contact Us For Availability
11
Blower Wheel,plastic ,with clamp WCI 309633001 Contact Us For Availability
11#
Evaporator WCI 309634203 Contact Us For Availability
12
Filter,framed micro-bi WCI 309639001 Contact Us For Availability
12#
Condenser WCI 5303306719 Contact Us For Availability
13
Cover,blower wheel ,top WCI 309630302 Contact Us For Availability
13
Tray,evap drip WCI 309623501 Contact Us For Availability
13#
Capacitor,450 V ,40+7.5 mfd WCI 5304426869 Contact Us For Availability
14
Screw,Ph truss hd ,8-18 x 0.38 ,ground WCI 5303285199 Contact Us For Availability
14
Base,compressor mtg ,with studs WCI 309632912 Contact Us For Availability
15
Strap,capacitor mtg. WCI 5303303077 Contact Us For Availability
15
Housing,blower scroll WCI 309630101 Contact Us For Availability
16#
Capillary Tube,37.50 inch long WCI 5304426870 Contact Us For Availability
17
Front Assembly,cabinet WCI 309640502 Contact Us For Availability
17#
Service-cord,type’D’12AWG WCI 309343114 Contact Us For Availability
19
Overlay,control WCI 309360102 Contact Us For Availability
19
Washer,compressor mtg WCI 5303002664 Contact Us For Availability
19*
Washer,metallic WCI 309112501 Contact Us For Availability
20
Plate,scroll cover WCI 309630201 Contact Us For Availability
25
Door,vent ,with actuator WCI 309321401 Contact Us For Availability
26
Handle,vent WCI 309330604 Contact Us For Availability
26A
Detent,vent WCI 309330202 Contact Us For Availability
38
Front panel WCI 309638901 Contact Us For Availability
40
Grommet,drain ,kit with instr. WCI 5303301031 Contact Us For Availability
43*
Frame,cabinet front WCI 309638802 Contact Us For Availability
70
Enclosure,elec control mt WCI 309361501 Contact Us For Availability
71#
PC Board,power WCI 309350405 Contact Us For Availability
72#
PC Board,input WCI 309350407 Contact Us For Availability
75
Support,PC board WCI 5304413781 Contact Us For Availability
78
Remote Control,transmitter ,with batteries WCI 309342606 Contact Us For Availability
× ![]()
