Model Kenmore 253.72229200 ROOM AIR CONDITIONER – Common Parts & Diagrams

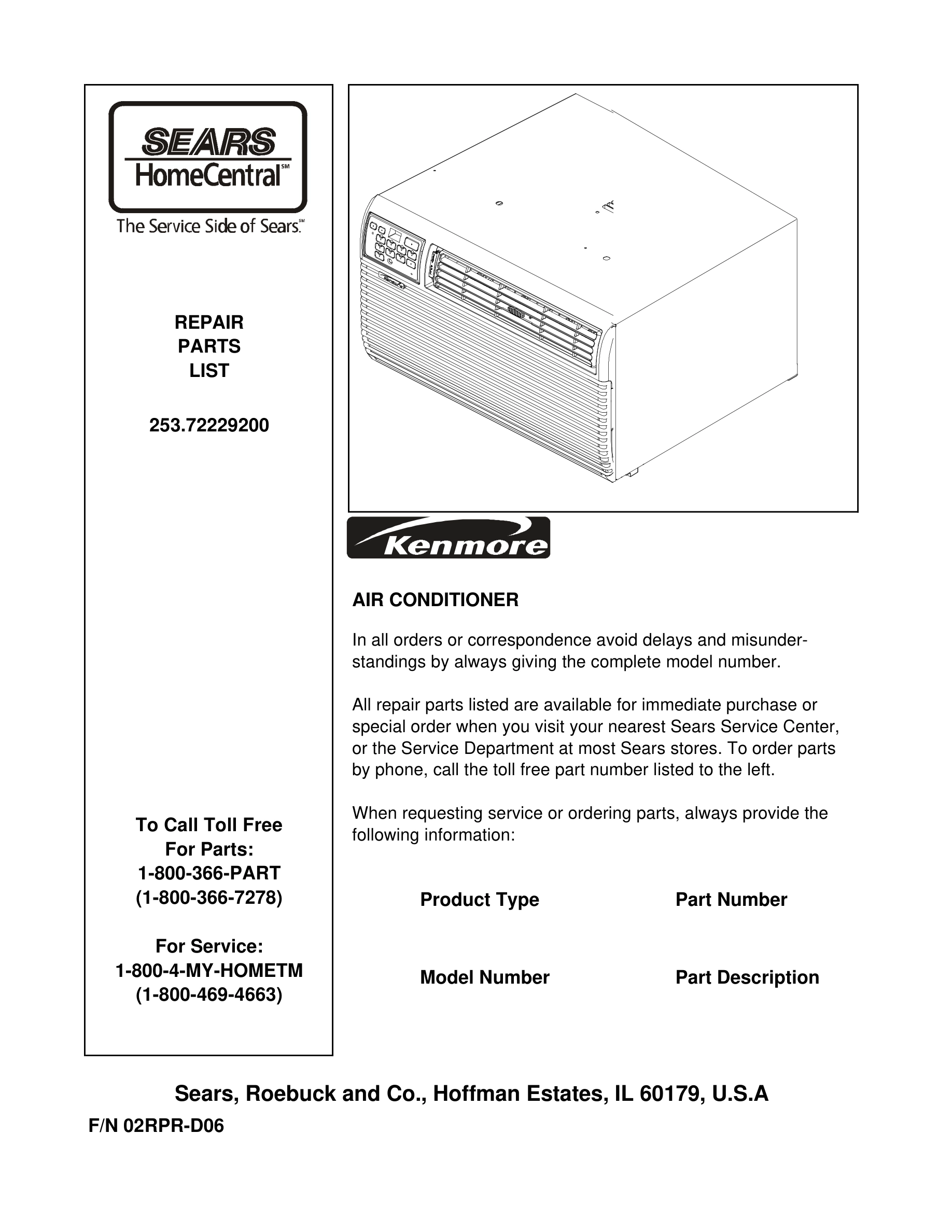

01 - COVER

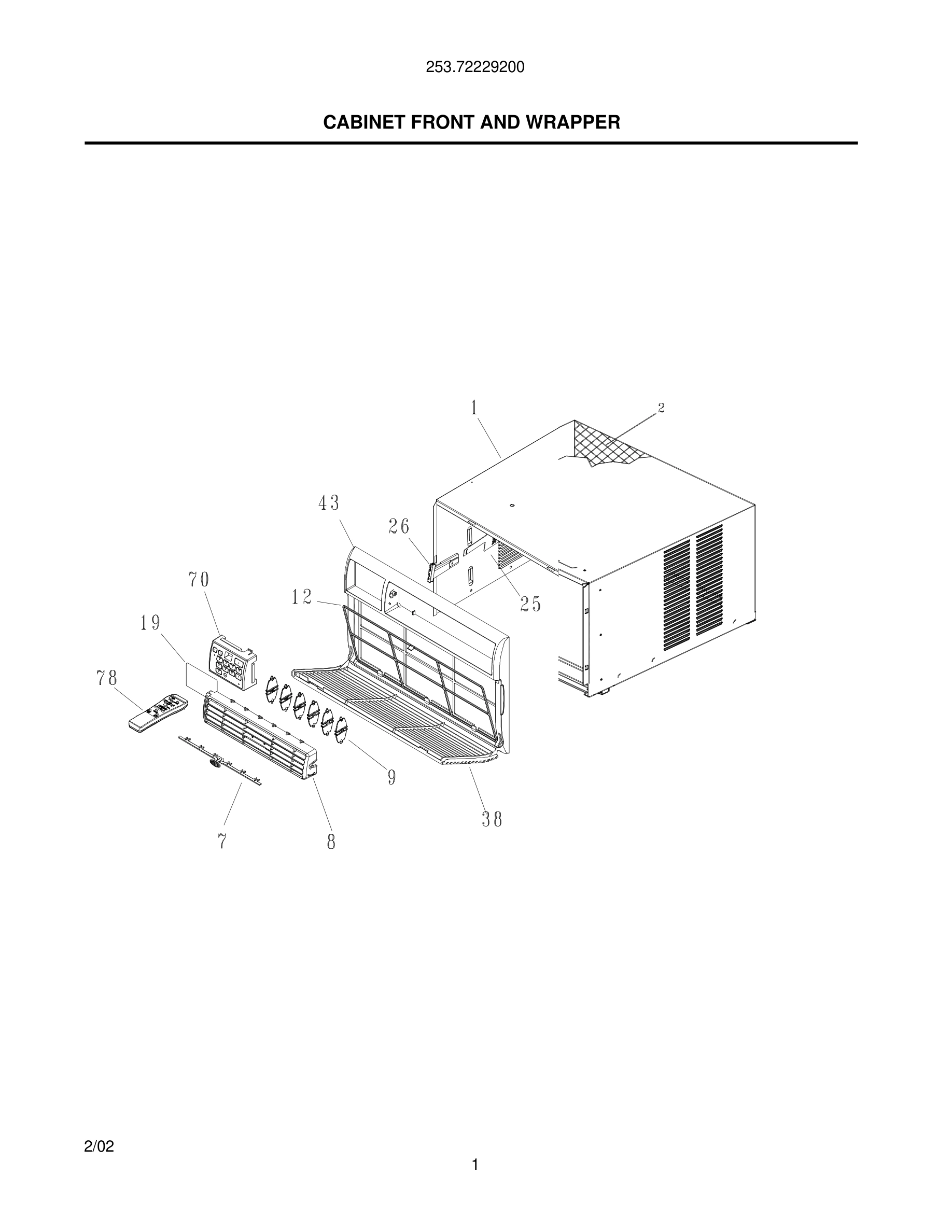

03 - CABINET FRONT AND WRAPPER

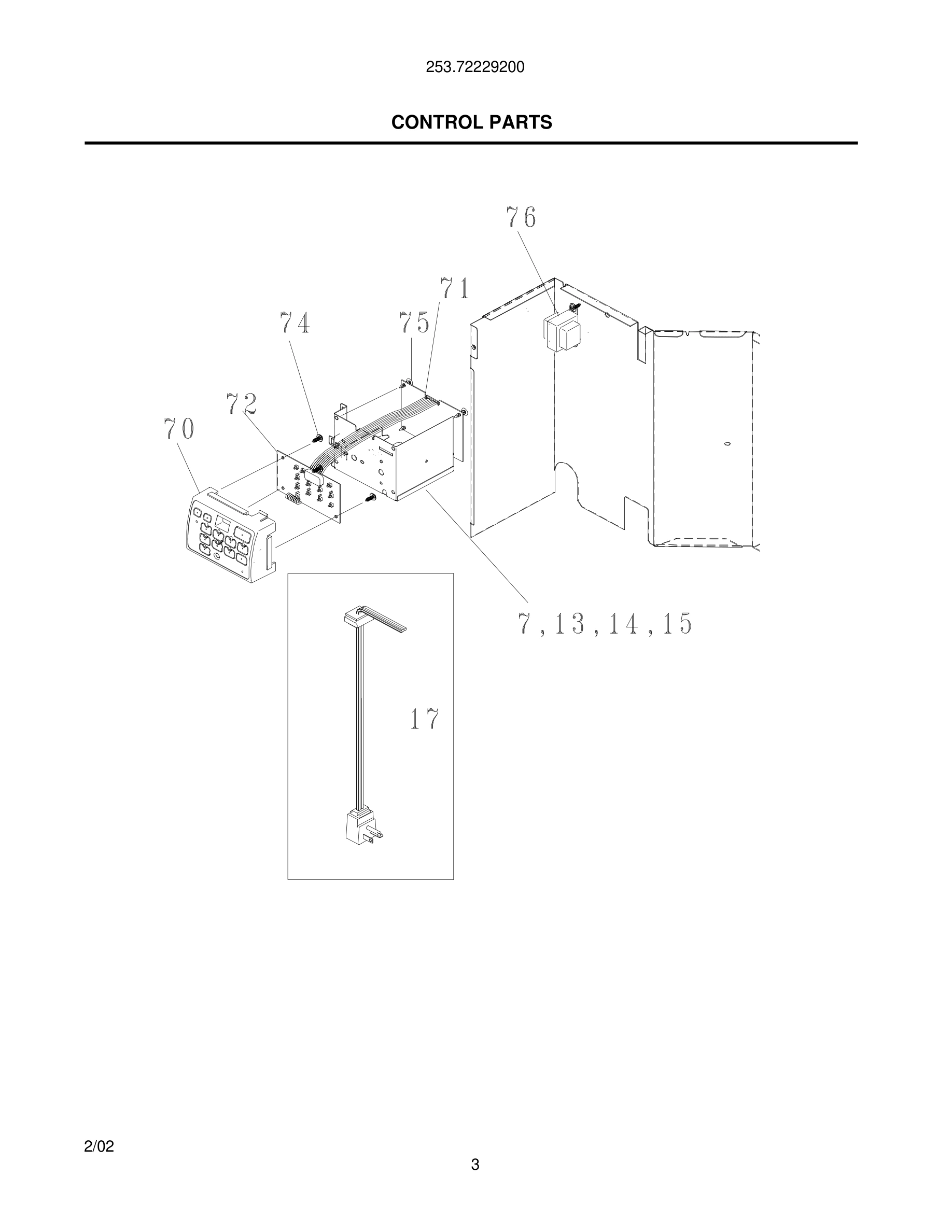

05 - CONTROL PARTS

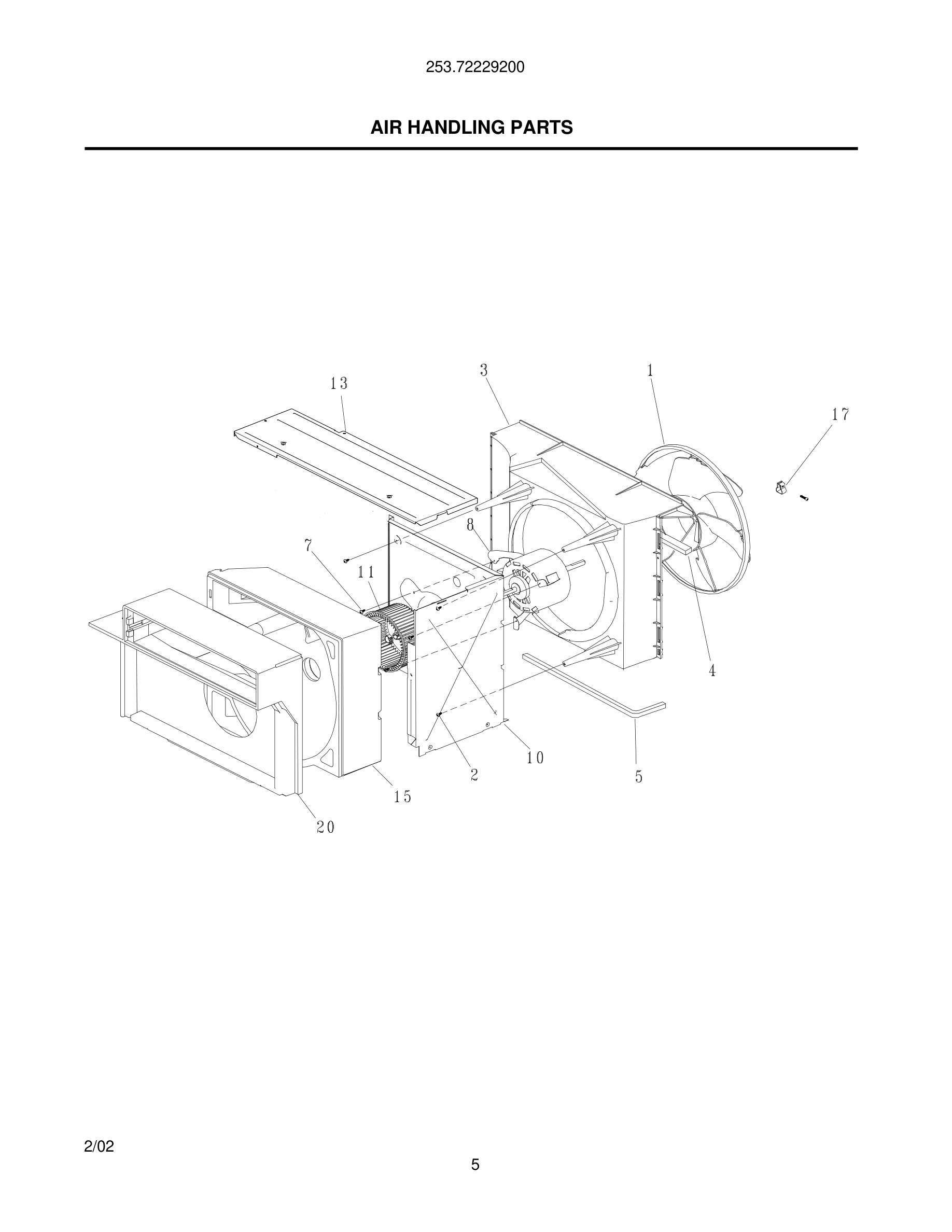

07 - AIR HANDLING PARTS

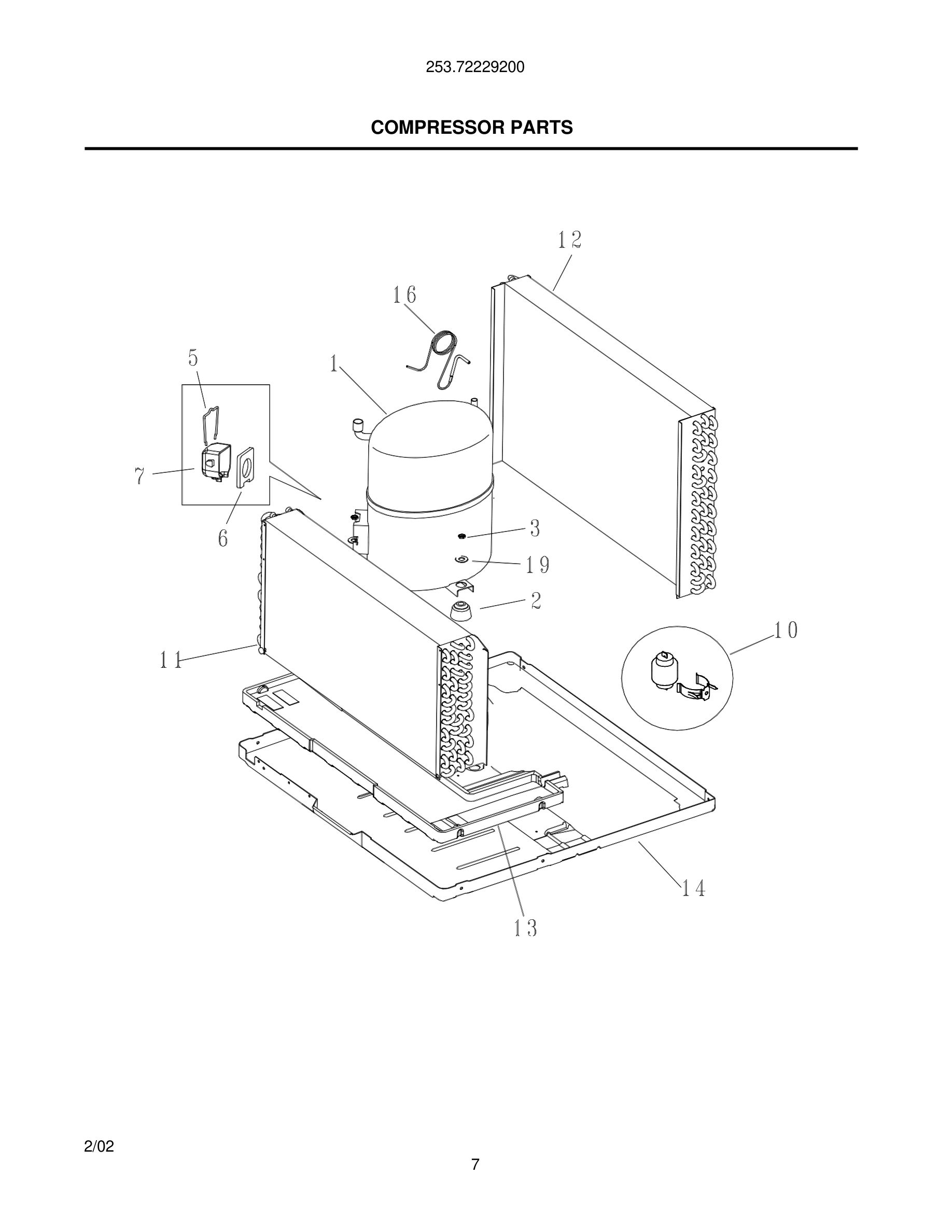

09 - COMPRESSOR PARTS

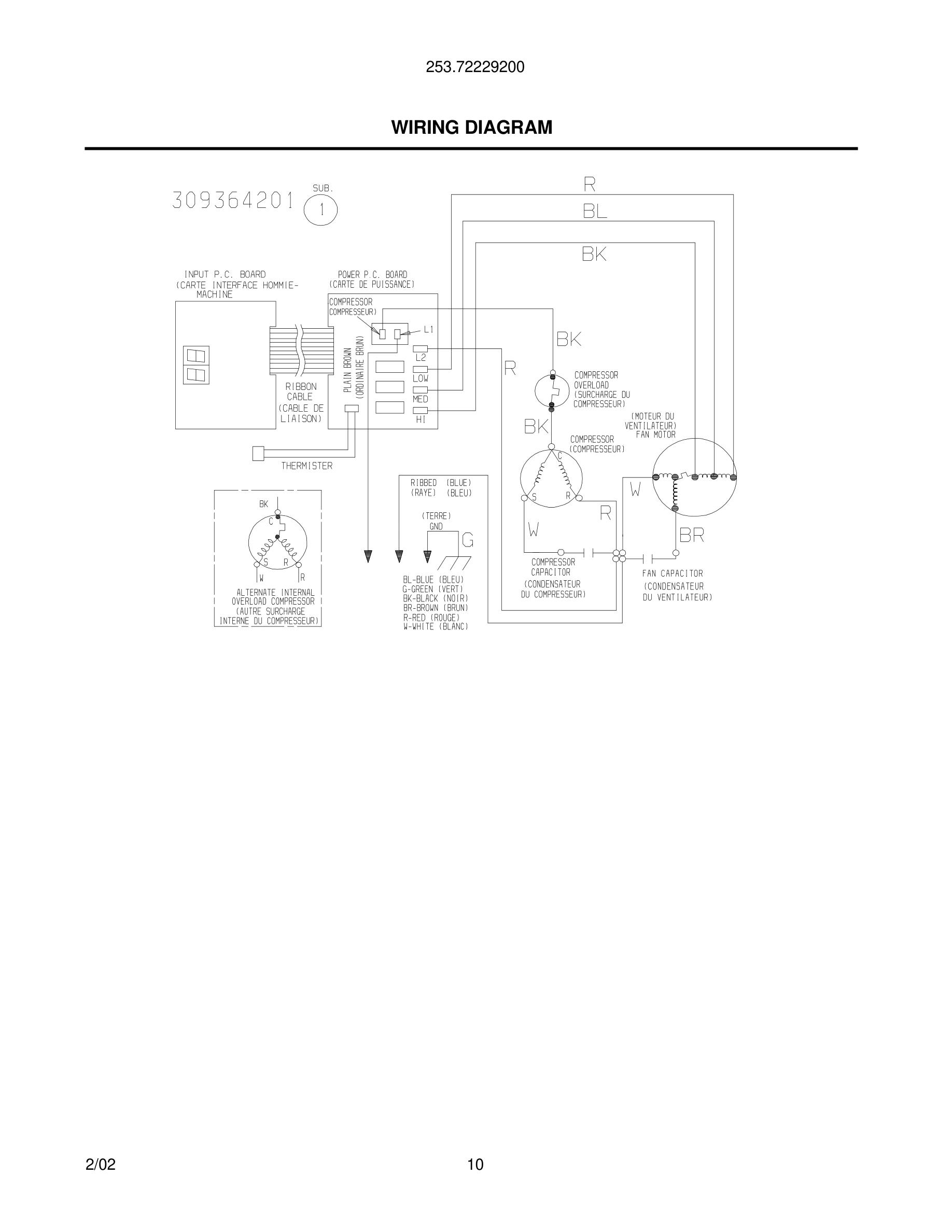

11 - WIRING DIAGRAM
Common parts from model Kenmore 253.72229200 ROOM AIR CONDITIONER
*
Defrost-thermister WCI 5304415035 Contact Us For Availability
1
Sleeve-Seal Assy Domestic WCI 309632704 Contact Us For Availability
1#
Fan Blade, with clamp WCI 5304422465 Contact Us For Availability
1#
Compressor WCI 5304408297 Contact Us For Availability
2
Grill & RR Rail ASM HDTC WCI 309632804 Contact Us For Availability
2
Grommet-compressor,3 WCI 5303286606 Contact Us For Availability
3
Condenser Shroud - One Piece WCI 309623201 Contact Us For Availability
3
Nut, compressor, 3 WCI 5308006948 Contact Us For Availability
4
Seal, housing-fan, upper WCI 3016696 Contact Us For Availability
5
Seal, housing-fan, lower WCI 5303015311 Contact Us For Availability
5
Clamp-cover WCI 5303002069 Contact Us For Availability
6
Gasket-cover WCI 5303002068 Contact Us For Availability
7
Link-Vertical Louvers WCI 309631104 Contact Us For Availability
7
Box-Control WCI 309630403 Contact Us For Availability
7
Cover,terminal WCI 5303002067 Contact Us For Availability
8
Louver-Horizontal WCI 309633904 Contact Us For Availability
8#
Motor-Fan 3SP 230/60 48Fr WCI 309630608 Contact Us For Availability
9
Louver-Vertical HDTC WCI 309631004 Contact Us For Availability
10
Bulkhead WCI 309623602 Contact Us For Availability
10
Bulkhead-Aire Side HDTA/TC WCI 309623401 Contact Us For Availability
11
Blower Whl & Clamp Assy - Plastic WCI 309633001 Contact Us For Availability
11#
Evap-Assy 2Row 19Fpi WCI 309634201 Contact Us For Availability
12
Filter-Molded BRCLN WCI 309639001 Contact Us For Availability
12#
Condenser WCI 5304408769 Contact Us For Availability
12*
Clip-thermister holder WCI 5304414108 Contact Us For Availability
13
Cover-Top HDTA/TC WCI 309630301 Contact Us For Availability
13
Tray-Evap WCI 309623501 Contact Us For Availability
13#
Capacitor, 370V, 35+7.5 mfd WCI 5303316594 Contact Us For Availability
14
Base/Compressor-Stud Assy WCI 309632906 Contact Us For Availability
15
Strap-capacitor WCI 5303303708 Contact Us For Availability
15
Scroll-Evap Cool Only HDTA/TC WCI 309630101 Contact Us For Availability
16#
Capillary Tube WCI 3018221 Contact Us For Availability
17
FrontT ASM-SRS HDTC WCI 309640501 Contact Us For Availability
17#
Cord-power 230v WCI 309343113 Contact Us For Availability
19
Overlay-Dial Plate WCI 309360102 Contact Us For Availability
19
Washer,compressor WCI 5303002664 Contact Us For Availability
20
Plate-Scroll HDTA/TC WCI 309630201 Contact Us For Availability
25
Door-Vent Actuator HDTC WCI 309321401 Contact Us For Availability
26
Handle-Vent Barcelona WCI 309330604 Contact Us For Availability
38
Panel-front WCI 309638901 Contact Us For Availability
43
Frame-Front HDTC WCI 309638801 Contact Us For Availability
70#
Enclosure WCI 309361501 Contact Us For Availability
71#
Power board WCI 309350405 Contact Us For Availability
72#
Input board WCI 309350407 Contact Us For Availability
75
Hardware, (4) WCI 5304413781 Contact Us For Availability
76#
Transformer WCI NO LONGER REQUIRED Contact Us For Availability
78
Remote- control WCI 309342606 Contact Us For Availability
× ![]()
