Model Electrolux 253.72156200 Air Conditioner (Kenmore 25372156200) – Common Parts & Diagrams

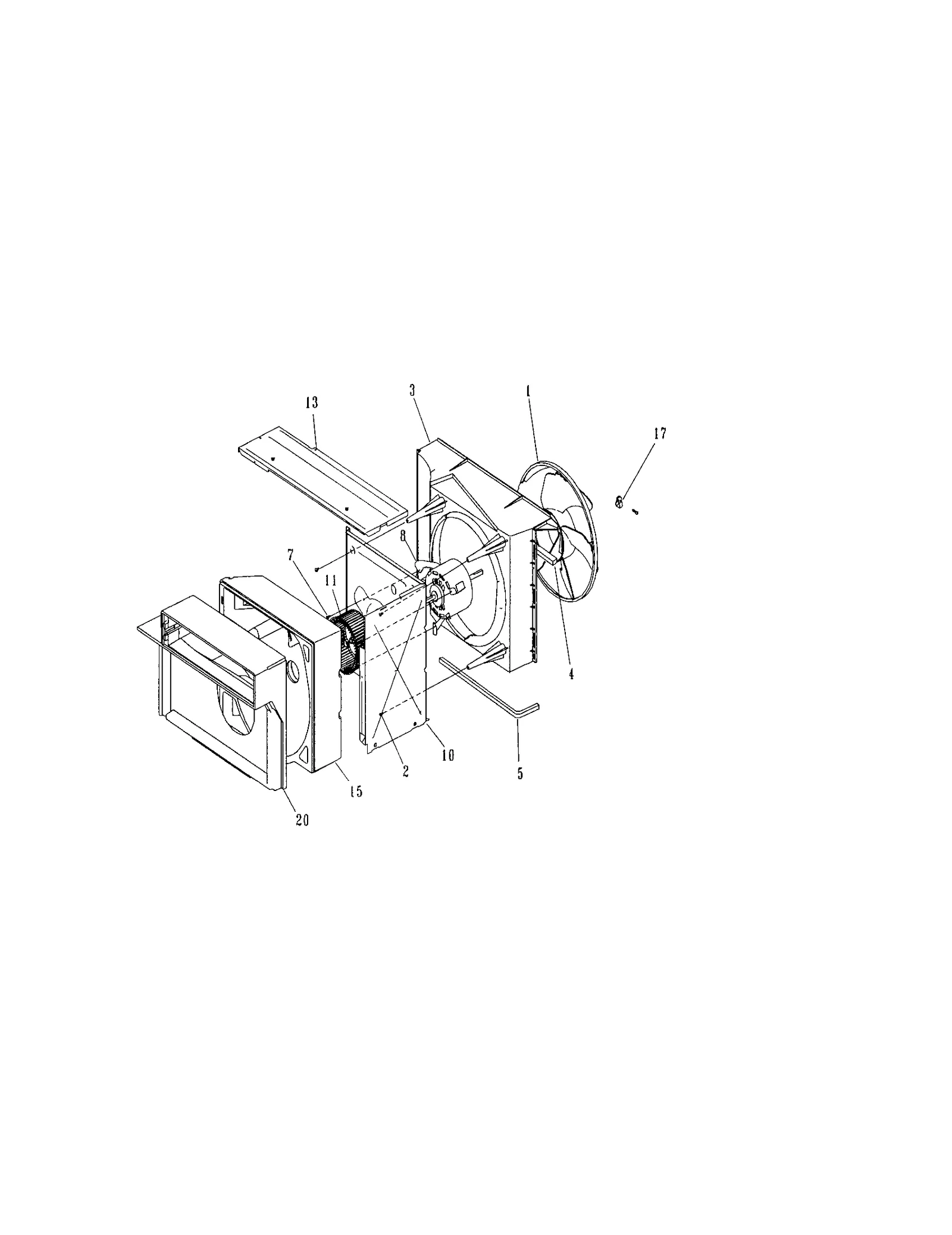

AIR HANDLING

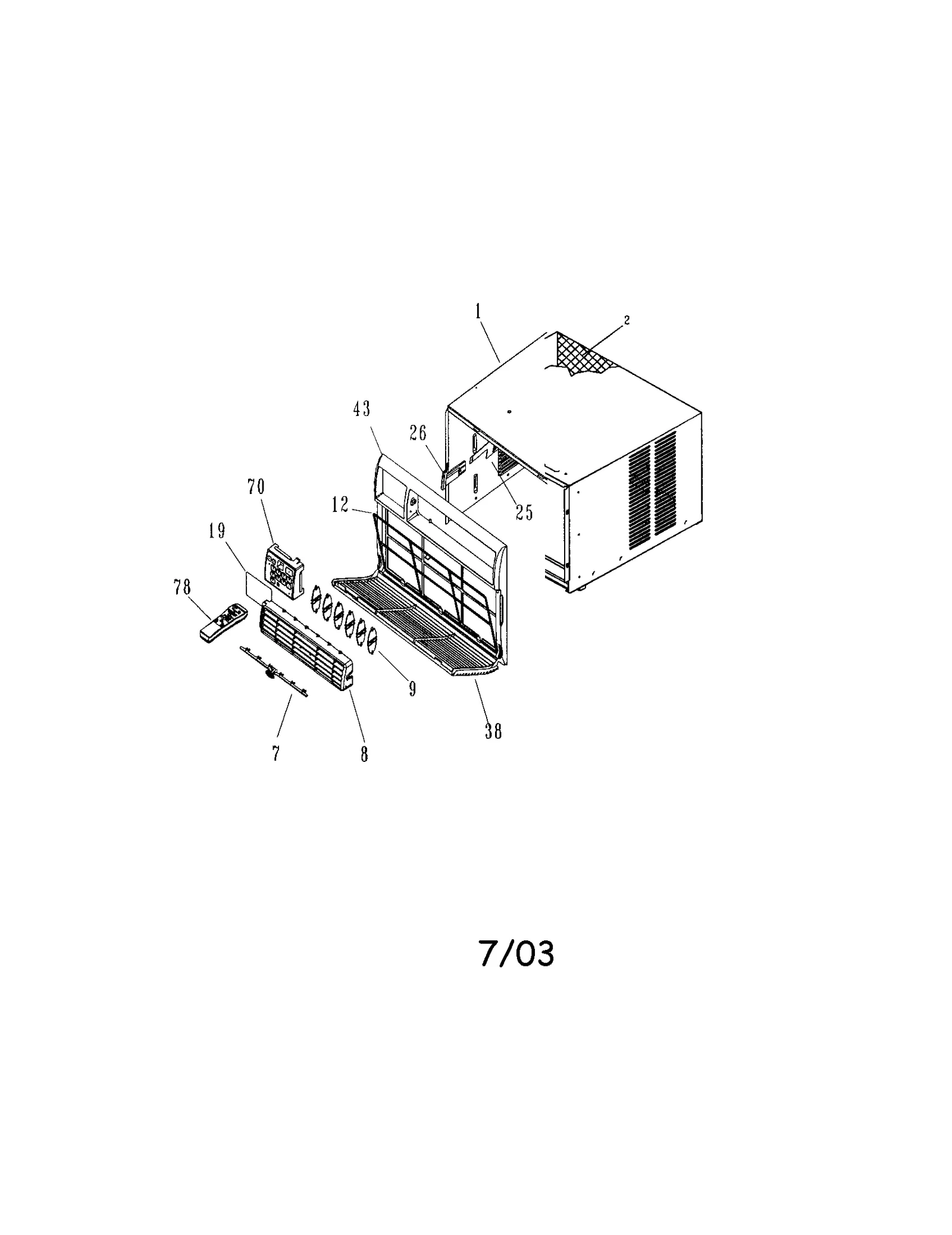

CABINET FRONT AND WRAPPER
All Parts
COMPRESSOR
CONTROL
WINDOW MOUNTING
Common parts from model Electrolux 253.72156200 Air Conditioner (Kenmore 25372156200)
1
Silver Seal WCI 309632704 Contact Us For Availability
1
Compressor WCI 5303303532 Contact Us For Availability
2
Room Air Conditioner Window Stop Bracket WCI 5303211056 Contact Us For Availability
2
#grill&rr Ra WCI 309632804 Contact Us For Availability
2
Room Air Conditioner Compressor Grommet WCI 5303283877 Contact Us For Availability
3
Room Air Conditioner Compressor Mount Retaine WCI 5308006948 Contact Us For Availability
4
Frame/ls WCI 5304414928 Contact Us For Availability
5
Rail Seal WCI 5304409250 Contact Us For Availability
6
Gasket WCI 5303272298 Contact Us For Availability
6
Retainer-hds WCI 5304414933 Contact Us For Availability
7
Handle Link WCI 309631104 Contact Us For Availability
7
Terminal Cover WCI 3206230 Contact Us For Availability
7
Control Box WCI 309630403 Contact Us For Availability
7
Support-rh WCI 5304414931 Contact Us For Availability
8
Room Air Conditioner Fan Motor WCI 309630609 Contact Us For Availability
8
Horizontal Louver WCI 309633904 Contact Us For Availability
8
Protector WCI 3016697 Contact Us For Availability
8
Bracket Window WCI 3001815 Contact Us For Availability
9
Room Air Conditioner Louver Vertical Vane WCI 309631004 Contact Us For Availability
9
Nut WCI 3211017 Contact Us For Availability
9
Screw WCI 3007756 Contact Us For Availability
10
Air Bulkhead WCI 309623401 Contact Us For Availability
10
Room Air Conditioner Compressor Start Relay K WCI 5303317601 Contact Us For Availability
10
Bulkhead WCI 309623601 Contact Us For Availability
10
Nut WCI 3007759 Contact Us For Availability
11
Room Air Conditioner Blower Wheel WCI 309633001 Contact Us For Availability
11
Evaporator WCI 309634103 Contact Us For Availability
11
Support-lh WCI 5304414932 Contact Us For Availability
12
Filter WCI 309639001 Contact Us For Availability
12
Condenser WCI 5303303600 Contact Us For Availability
12
Thermistor WCI 5304414108 Contact Us For Availability
12A
Manifold WCI 5303305627 Contact Us For Availability
13
Sleeve WCI 309630301 Contact Us For Availability
13
Evaporator Tray WCI 309623501 Contact Us For Availability
13
Capacitor WCI 5303318963 Contact Us For Availability
13
Support Screw WCI 5303281649 Contact Us For Availability
14
Pan WCI 309632907 Contact Us For Availability
14
Frame WCI 5304414929 Contact Us For Availability
15
Scroll WCI 309630101 Contact Us For Availability
15
Strap Capacitor WCI 5303303086 Contact Us For Availability
15
Acc Reteiner WCI 5304414930 Contact Us For Availability
16
Tube WCI 08017122 Contact Us For Availability
16
Top Rail-hd WCI 5304414116 Contact Us For Availability
17
Front Panel Assembly WCI 309640501 Contact Us For Availability
17
Tube WCI 5304415036 Contact Us For Availability
17
Power Cord WCI 309343111 Contact Us For Availability
17
Screw WCI 3002803 Contact Us For Availability
18
Screw WCI 8012680 Contact Us For Availability
19
Overlay WCI 309360103 Contact Us For Availability
19
Washer WCI 5303002664 Contact Us For Availability
20
Scroll Plate WCI 309630201 Contact Us For Availability
21
Bottom Seal WCI 5303212504 Contact Us For Availability
24
Screw WCI 3002801 Contact Us For Availability
25
Access Control WCI 309321401 Contact Us For Availability
26
Handle Vent WCI 309330604 Contact Us For Availability
38
Room Air Conditioner Front Panel Door WCI 309638901 Contact Us For Availability
40
Grommet Drn WCI 5303301031 Contact Us For Availability
43
Filter WCI 309638801 Contact Us For Availability
70
Room Air Conditioner Control Panel WCI 309361501 Contact Us For Availability
71
PC Board WCI 309350404 Contact Us For Availability
72
PC Board WCI 309350407 Contact Us For Availability
74
(NOT REQUIRED) SPRING, OVERLOAD WCI N/P Contact Us For Availability
75
Pc Board-sup WCI 5304413781 Contact Us For Availability
78
Room Air Conditioner Remote Control WCI 309342606 Contact Us For Availability
NI01
Louver Assembly WCI 309633306 Contact Us For Availability
NI02
TECH DATA SHEET 72156 WCI 309001286 Contact Us For Availability
NI03
Use and Care Guide WCI 309000845 Contact Us For Availability
NI04
ENERGY GUIDE TAG WCI 309363106 Contact Us For Availability
NI05
Mounting Hardware WCI 309313303 Contact Us For Availability
NI06
Hardware WCI 5304409248 Contact Us For Availability
NI07
Top Rail Seal WCI 5304409249 Contact Us For Availability
× ![]()
