Model Kenmore 253.72115200 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER

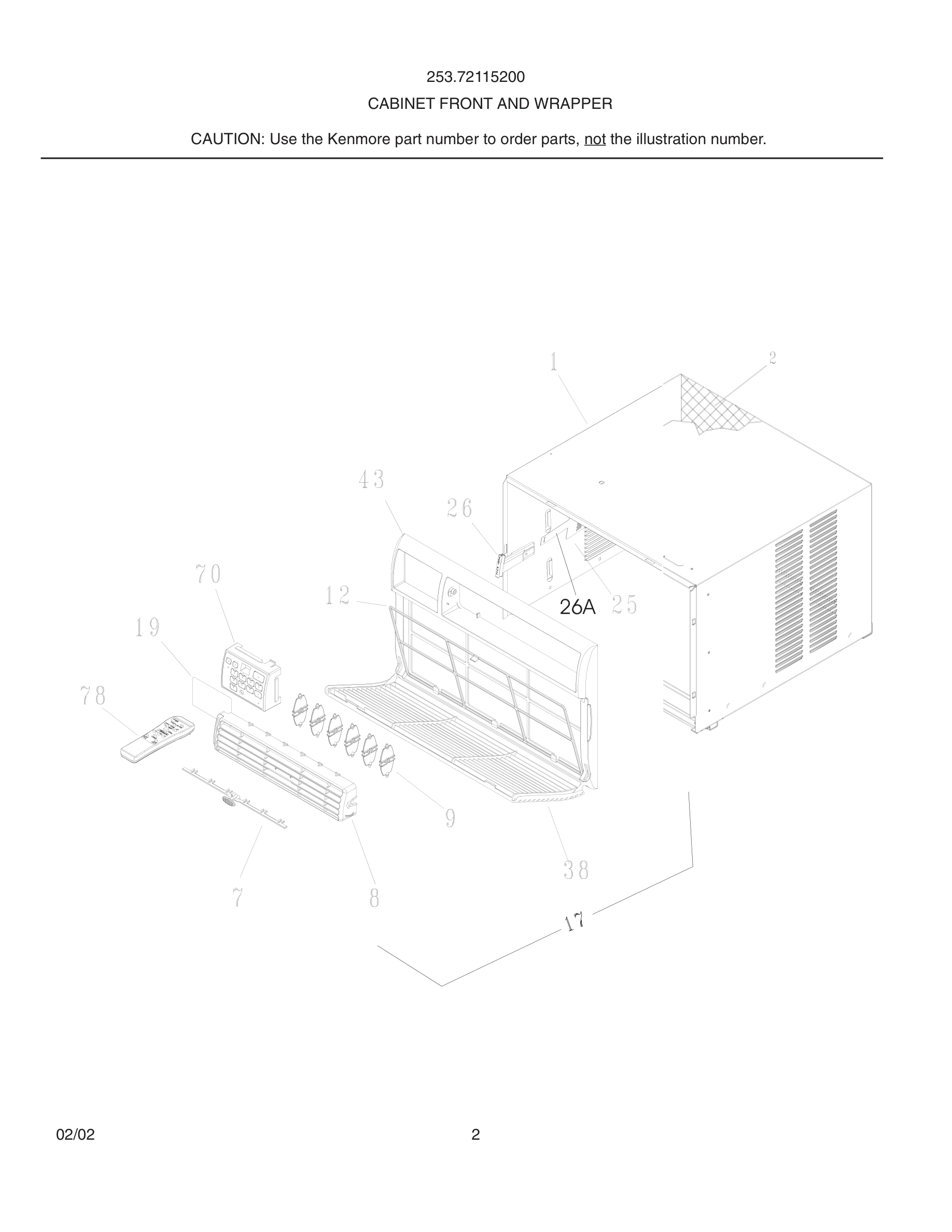

03 - CABINET FRONT AND WRAPPER
05 - CONTROL PARTS
07 - AIR HANDLING PARTS
09 - COMPRESSOR PARTS
11 - WIRING DIAGRAM
Common parts from model Kenmore 253.72115200 ROOM AIR CONDITIONER
*
Tech Data Sheet,25372115200 WCI 309001292 Contact Us For Availability
*
Energy Guide,25372115200 WCI 309363112 Contact Us For Availability
*
Seal-tube WCI 5304402119 Contact Us For Availability
*
Holder,temp sensor ,with seal WCI 08017123 Contact Us For Availability
*
Screw,Ph truss hd ,8-18 x 0.38 ,ground WCI 5303285199 Contact Us For Availability
1
Cabinet,sleeve ,complete assy WCI 309609212 Contact Us For Availability
1#
Fan Blade,with clamp WCI 5303320769 Contact Us For Availability
1#
Compressor WCI 309616920 Contact Us For Availability
2
Grille,rear WCI 5304414101 Contact Us For Availability
2
Grommet,compressor mtg ,(3) WCI 5303283877 Contact Us For Availability
3
Housing,fan shroud WCI 3202950 Contact Us For Availability
3
Nut,compressor mtg ,(3) WCI 5308006948 Contact Us For Availability
4
Seal,fan housing ,top WCI 3202953 Contact Us For Availability
5
Seal,fan housing ,bottom WCI 3202951 Contact Us For Availability
6
Gasket,terminal cover WCI 3201668 Contact Us For Availability
7
Link WCI 309638601 Contact Us For Availability
7
Box-control WCI 309605605 Contact Us For Availability
7
Cover,compr terminal WCI 5304405245 Contact Us For Availability
8
Louver Assy,Includes 7,8,9 WCI 309640401 Contact Us For Availability
8
Louver,horizontal WCI 309638501 Contact Us For Availability
8#
Motor,fan ,115 V WCI 309630602 Contact Us For Availability
8#
Overload Protector WCI 5304426743 Contact Us For Availability
9
Louver,vertical ,(6) WCI 309342001 Contact Us For Availability
9
Nut,terminal cover WCI 3201670 Contact Us For Availability
10
Bulkhead WCI 5303316617 Contact Us For Availability
10*
Grommet,wire protector WCI 309111201 Contact Us For Availability
11#
Blower Wheel,cavity 3 & 4 WCI 309608902 Contact Us For Availability
11#
Evaporator WCI 309635503 Contact Us For Availability
12
Filter,framed WCI 309638701 Contact Us For Availability
12
Clamp,blower wheel WCI 5303012110 Contact Us For Availability
12#
Condenser WCI 5304426744 Contact Us For Availability
13
Cover,top WCI 309605902 Contact Us For Availability
13
Tray,evaporator drip WCI 309606001 Contact Us For Availability
13#
Capacitor,250 V ,50+10 mfd WCI 5304426337 Contact Us For Availability
14
Base assy,22TC ,grey WCI 5304419798 Contact Us For Availability
15
Strap,capacitor mtg. WCI 309111901 Contact Us For Availability
15
Housing-blower,evap scroll WCI 309605702 Contact Us For Availability
16#
Capillary Tube,43 inch long ,cut-to-length WCI 5304423363 Contact Us For Availability
17
Front-cabinet,complete assy WCI 309640301 Contact Us For Availability
17
Cord-service WCI 309343104 Contact Us For Availability
18#
Strainer WCI 5303290357 Contact Us For Availability
19
Overlay,control WCI 309360002 Contact Us For Availability
19
Washer,compressor mtg WCI 5303002664 Contact Us For Availability
19*
Washer,metallic WCI 309112501 Contact Us For Availability
20
Plate-blower housing,scroll plate WCI 309605802 Contact Us For Availability
25
Door-vent,fresh air WCI 309328602 Contact Us For Availability
26
Handle,vent door WCI 309638201 Contact Us For Availability
26A
Detent-vent WCI 309330201 Contact Us For Availability
36
Strap-chassis pull WCI 5303303558 Contact Us For Availability
38
Front-panel WCI 309638401 Contact Us For Availability
40
Grommet,drain ,kit with instr. WCI 5303301031 Contact Us For Availability
43
Front-frame WCI 309638301 Contact Us For Availability
70
Enclosure,control mount WCI 309361401 Contact Us For Availability
71#
PC Board,power ,w/trans,sensor WCI 309350404 Contact Us For Availability
72#
PC Board,input WCI 309350406 Contact Us For Availability
72*
Protector WCI 5304415017 Contact Us For Availability
75
Support,PC board WCI 5304413781 Contact Us For Availability
78
Remote Control,transmitter ,with batteries WCI 309342606 Contact Us For Availability
× ![]()
