Model Kenmore 253.72106100 ROOM AIR CONDITIONER – Common Parts & Diagrams

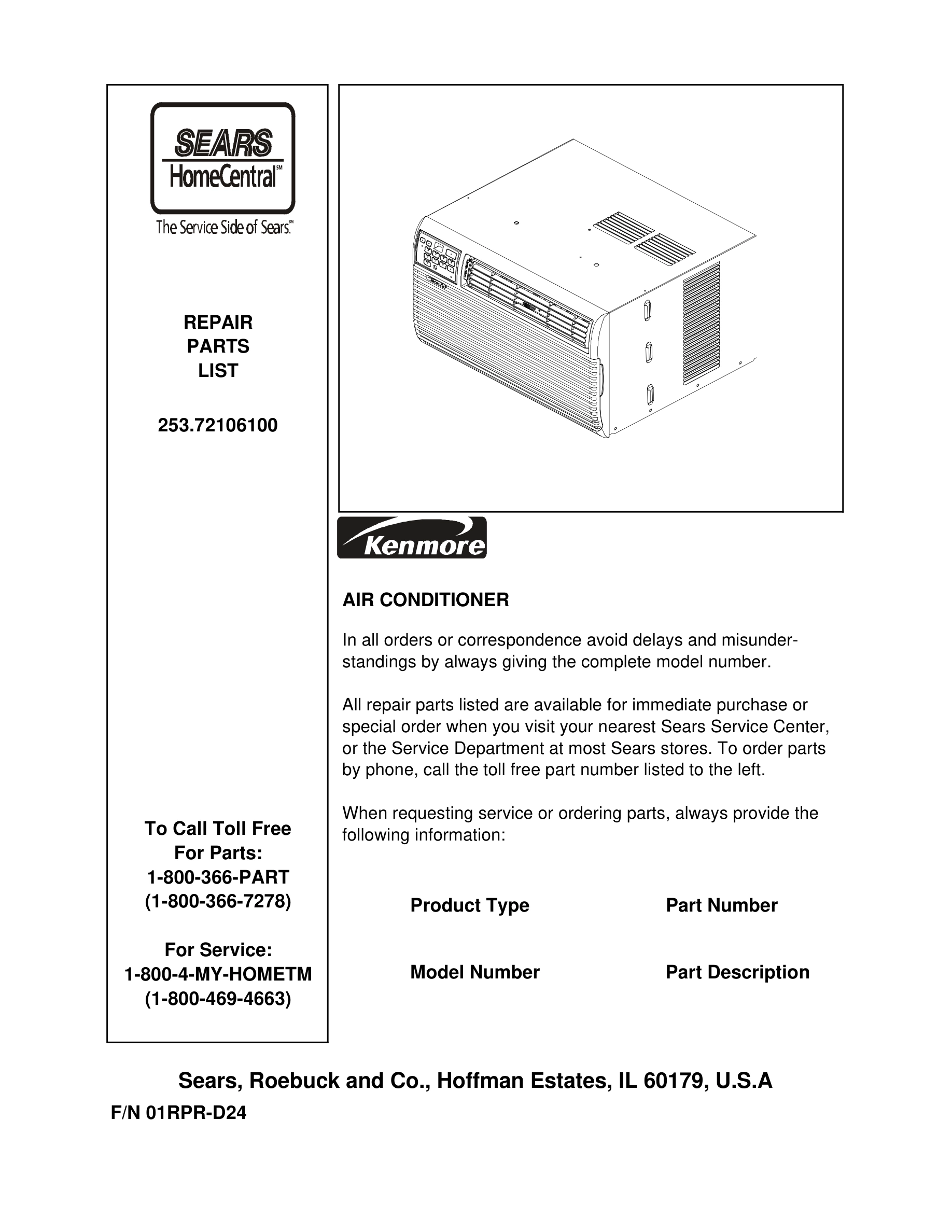

01 - COVER

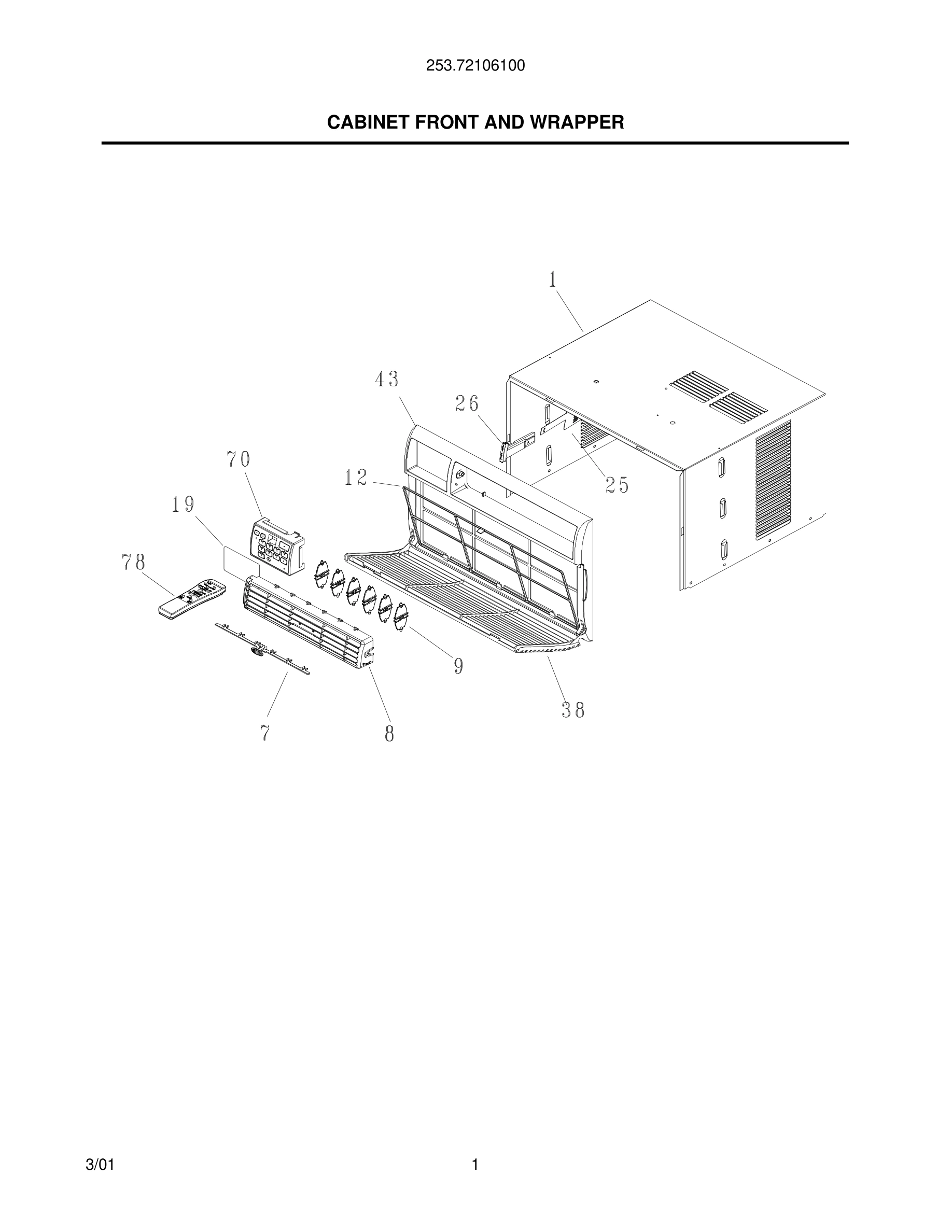

03 - CABINET FRONT AND WRAPPER

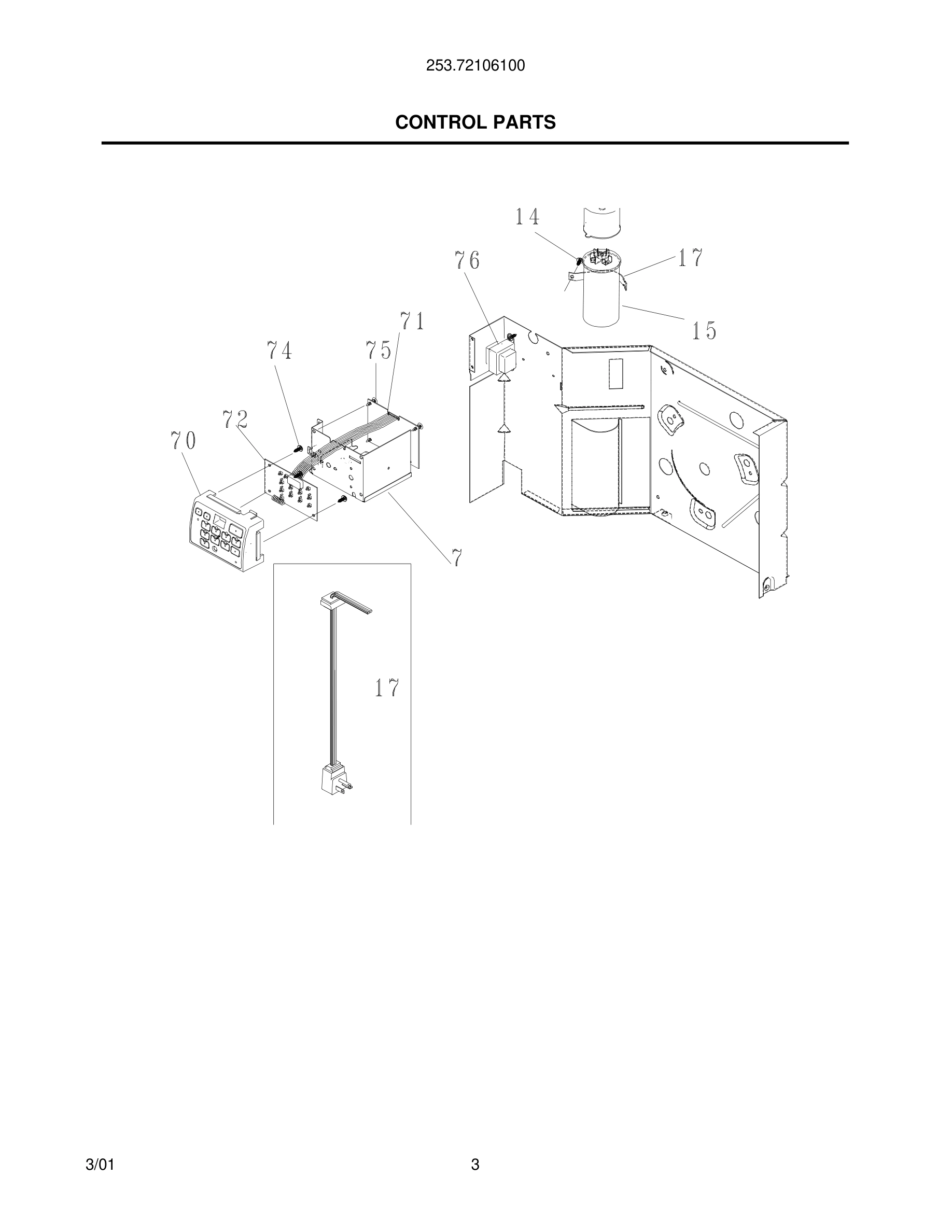

05 - CONTROL PARTS

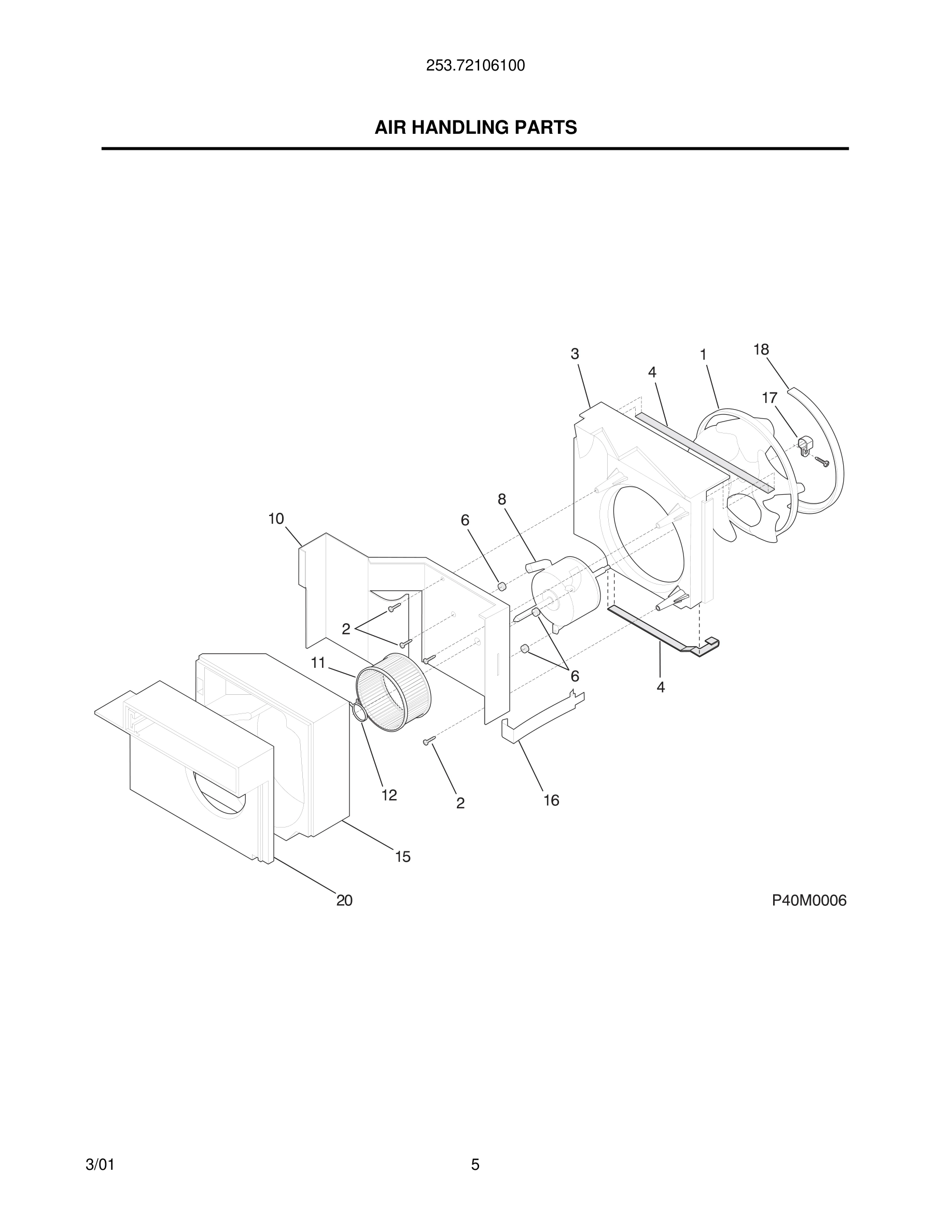

07 - AIR HANDLING PARTS

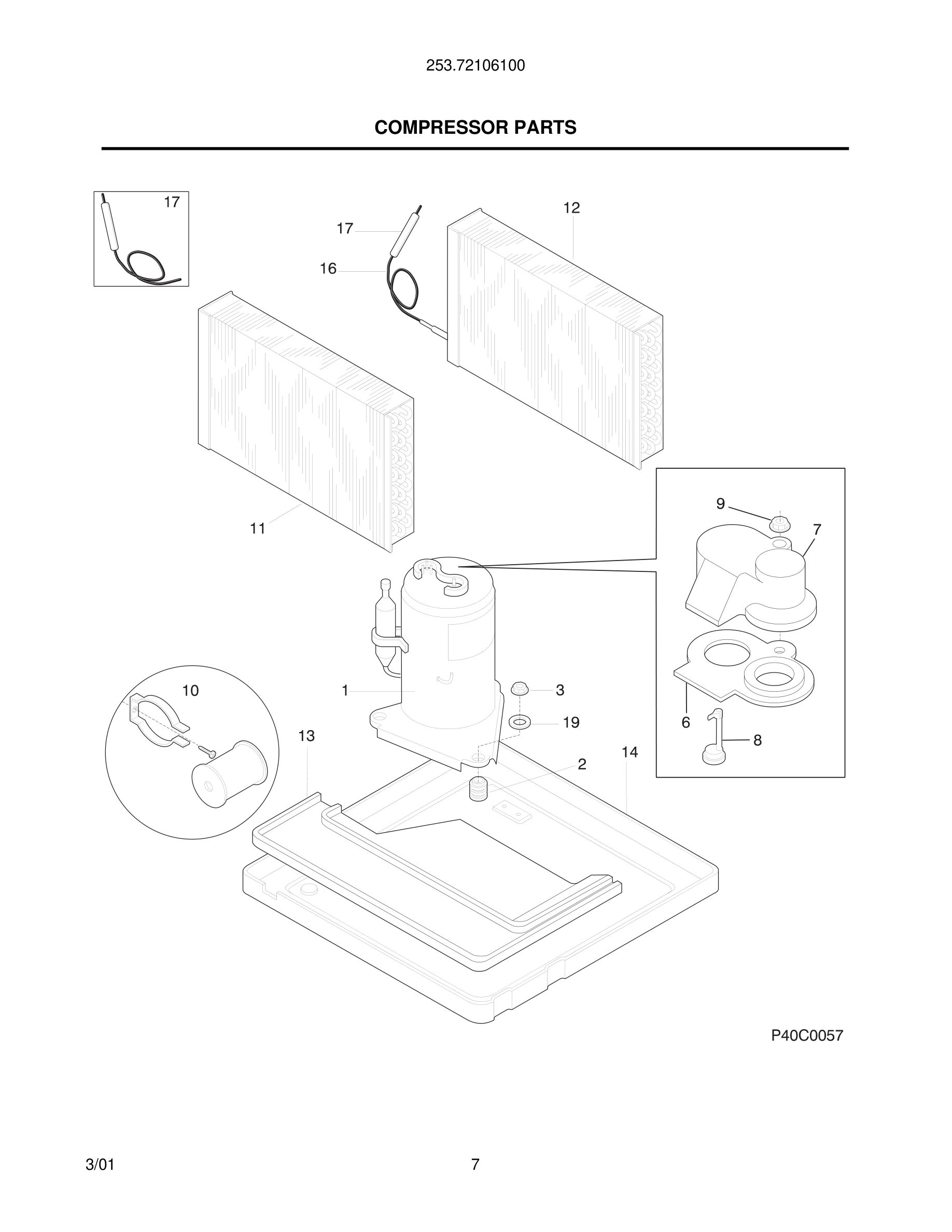

09 - COMPRESSOR PARTS

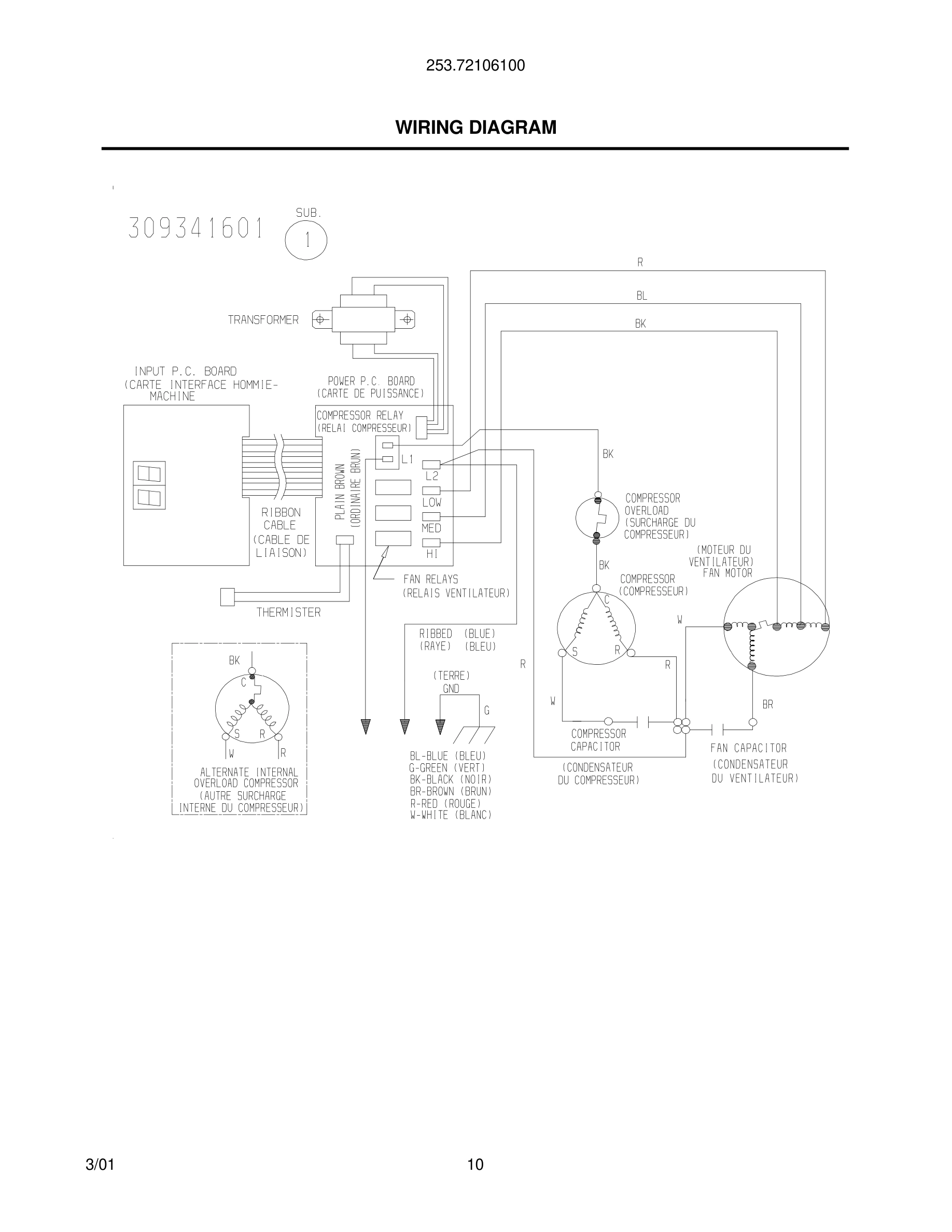

11 - WIRING DIAGRAM
Common parts from model Kenmore 253.72106100 ROOM AIR CONDITIONER
*
Owners Manual WCI 309000829 Contact Us For Availability
1
Cabinet WCI 309643602 Contact Us For Availability
1#
Fan Blade, with clamp WCI 309645702 Contact Us For Availability
1#
Compressor WCI 5304419112 Contact Us For Availability
2
Grommet-compressor,3 WCI 5303283877 Contact Us For Availability
2A
Nut, motor mtg WCI 08007481 Contact Us For Availability
3
Housing-fan WCI 309643901 Contact Us For Availability
3
Nut, compressor, 3 WCI 5308006948 Contact Us For Availability
4
Seal, condenser WCI 5304421913 Contact Us For Availability
6
Grommet-motor mounting WCI 08016225 Contact Us For Availability
6
Gasket-cover WCI 3200282 Contact Us For Availability
7
Link / handle WCI 309638001 Contact Us For Availability
7
Box-Control WCI 309643801 Contact Us For Availability
7
Cover,terminal WCI 3200281 Contact Us For Availability
8
Louver-horizontal WCI 309637901 Contact Us For Availability
8#
Motor-Fan GEHI 3SP WCI 309642404 Contact Us For Availability
8#
Overload protector WCI 5303295567 Contact Us For Availability
9
Louver, Vertical, (6) WCI 309342001 Contact Us For Availability
9
Nut, cover WCI 08009077 Contact Us For Availability
10
Bulkhead WCI 309643701 Contact Us For Availability
10
Start Assist Kit, compressor WCI 5303317601 Contact Us For Availability
11
Blower Wheel WCI 309643301 Contact Us For Availability
11#
Evap-Assy WCI 309619309 Contact Us For Availability
12
Filter-Molded WCI 309638102 Contact Us For Availability
12
Clamp-blower WCI 5303012110 Contact Us For Availability
12#
Condenser WCI 309645401 Contact Us For Availability
12*
Clip-thermister holder WCI 5304413782 Contact Us For Availability
13
Tray-Evap WCI 309642801 Contact Us For Availability
13#
Capacitor, 250V, 40+10 mfd WCI 5304421859 Contact Us For Availability
14
Base/Compressor-Stud Assy WCI 309644002 Contact Us For Availability
15
Strap-capacitor WCI 309351901 Contact Us For Availability
15
Housing-blower WCI 309642901 Contact Us For Availability
16
Clip WCI 309100201 Contact Us For Availability
16#
Capillary Tube WCI 3019025 Contact Us For Availability
17
Front, cabinet, complete WCI 309640103 Contact Us For Availability
17
Clamp (part of fan blade assy) WCI 5308011040 Contact Us For Availability
17
Drier-filter WCI 5304417604 Contact Us For Availability
17#
Cord-power 115v WCI 309343102 Contact Us For Availability
18
Deflector-housing (part of housing) WCI Not Separate Contact Us For Availability
19
Overlay-Electronic control WCI 309340801 Contact Us For Availability
19
Washer,compressor WCI 5303002664 Contact Us For Availability
20
Plate-Scroll WCI 309643002 Contact Us For Availability
25
Door-Vent Actuator WCI 309328601 Contact Us For Availability
26
Handle-Vent Barcelona WCI 309638201 Contact Us For Availability
26A*
Vent-Detent WCI 309330201 Contact Us For Availability
38
Panel-front WCI 309637801 Contact Us For Availability
43
Frame- front WCI 309637701 Contact Us For Availability
70#
Enclosure WCI 309340301 Contact Us For Availability
71#
Power board WCI 309350401 Contact Us For Availability
72#
Input board WCI 309350402 Contact Us For Availability
75
Hardware, (4) WCI 5304413781 Contact Us For Availability
76#
Transformer WCI 309111601 Contact Us For Availability
78
Remote Control WCI 309342603 Contact Us For Availability
× ![]()
