Model Kenmore 253.72055200 ROOM AIR CONDITIONER – Common Parts & Diagrams

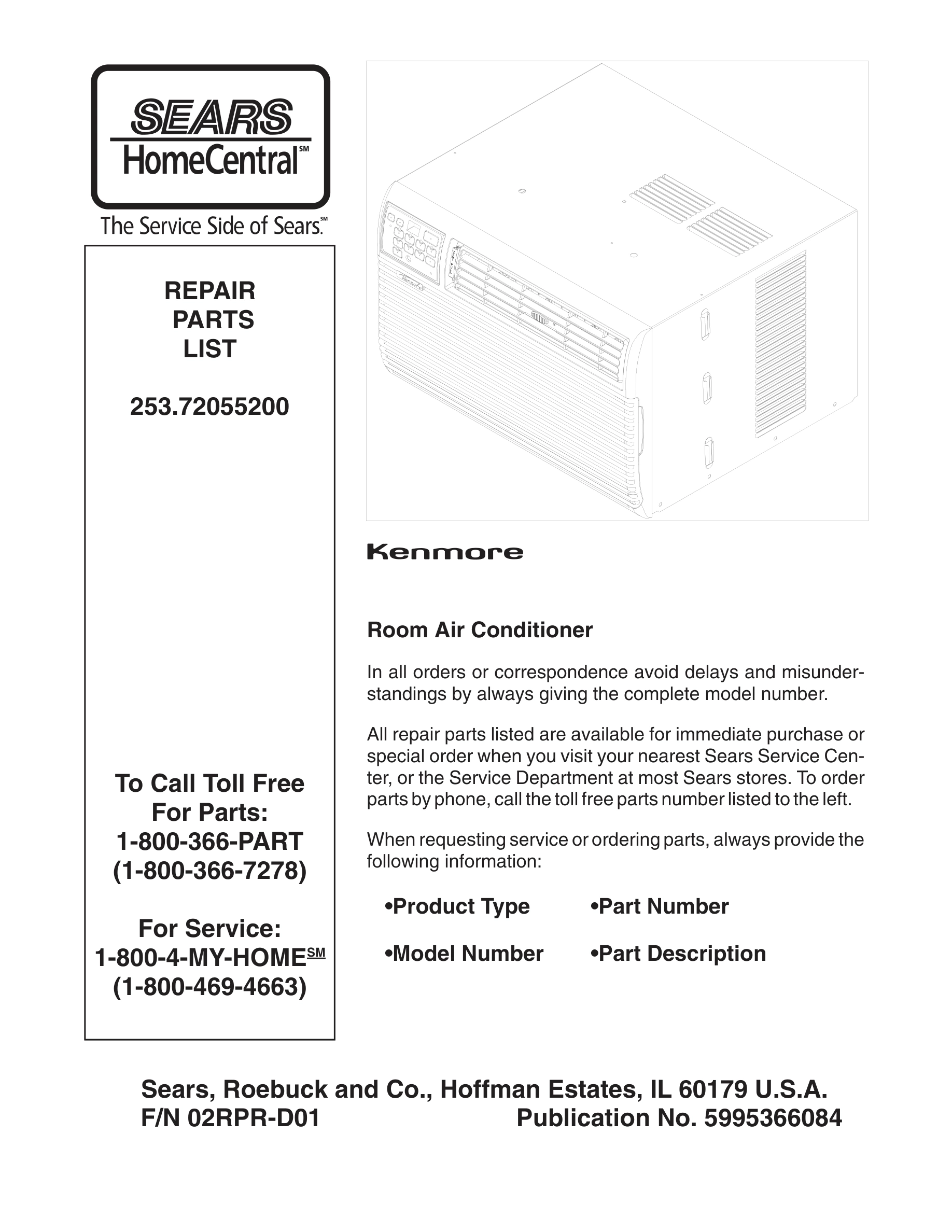

01 - COVER

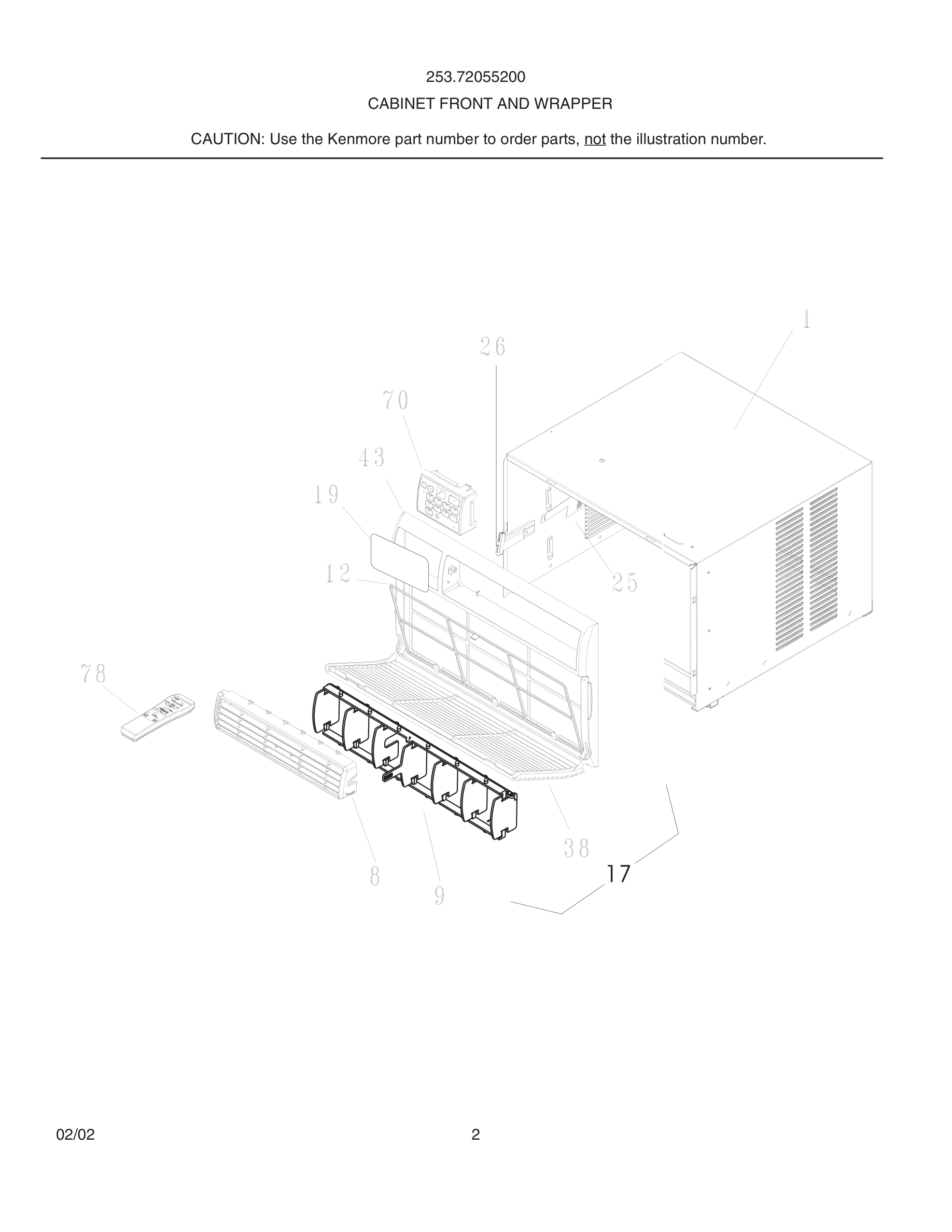

03 - CABINET FRONT AND WRAPPER

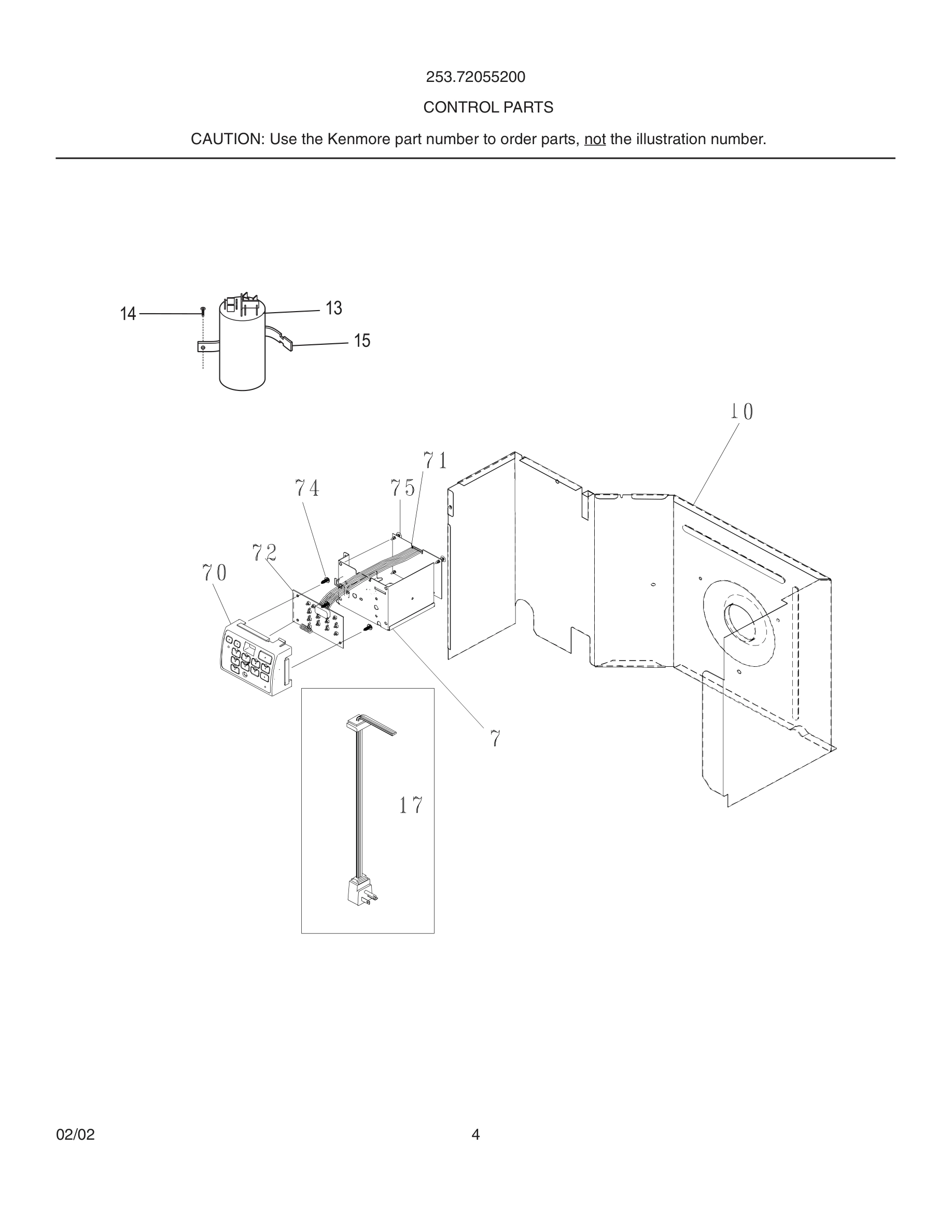

05 - CONTROL PARTS

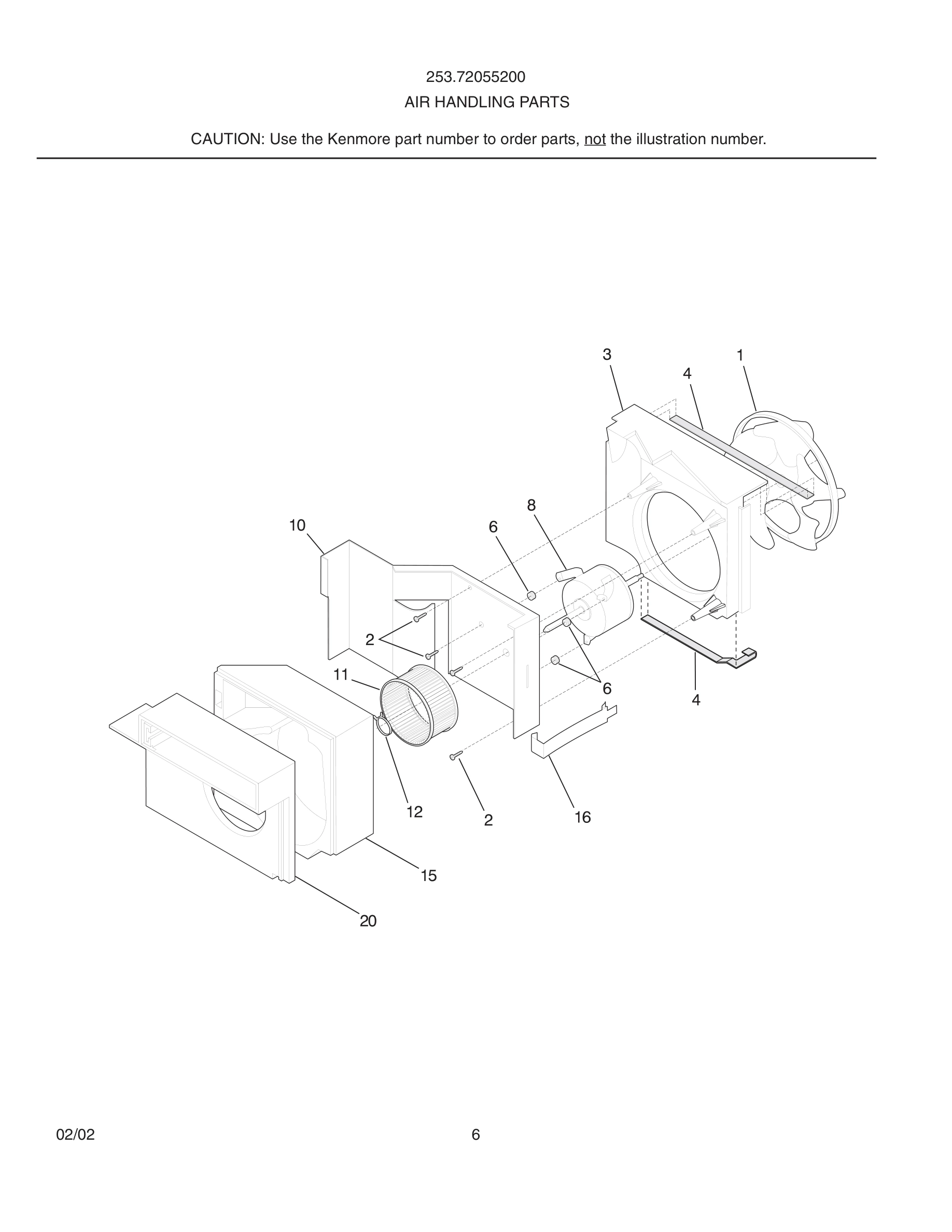

07 - AIR HANDLING PARTS

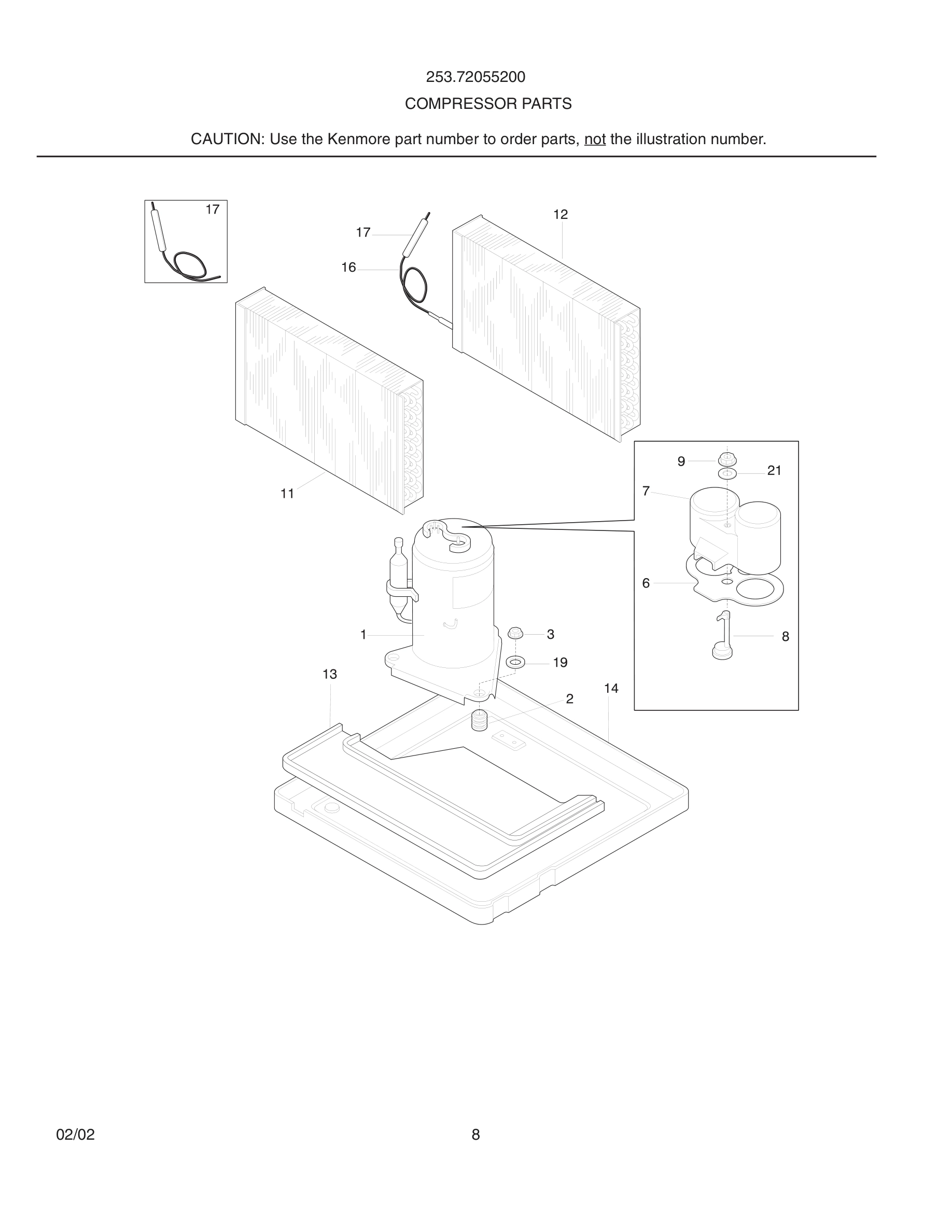

09 - COMPRESSOR PARTS

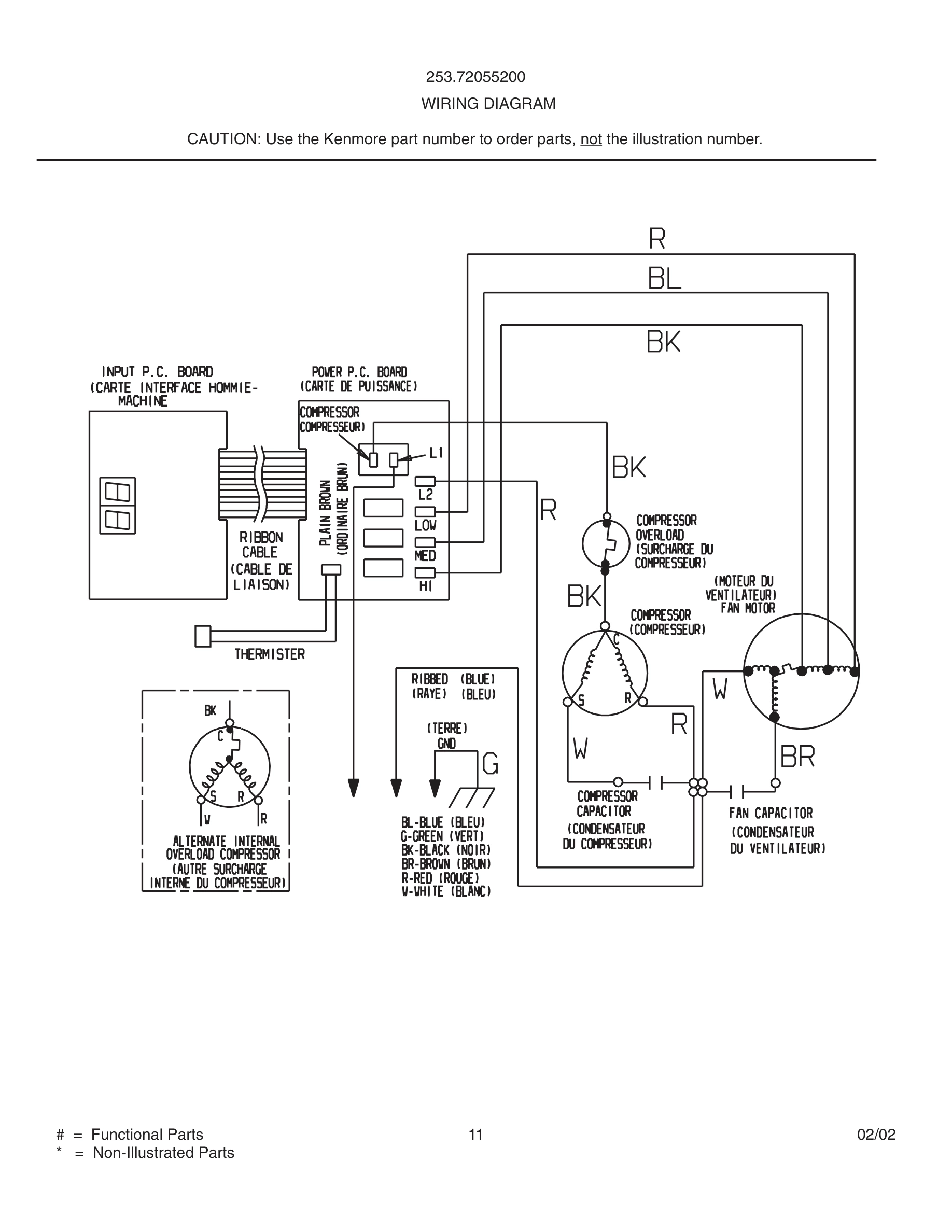

11 - WIRING DIAGRAM
Common parts from model Kenmore 253.72055200 ROOM AIR CONDITIONER
*
Repair Parts List,25372055200 WCI 5995366084 Contact Us For Availability
*
Tech Data Sheet,25372055200 WCI 309001281 Contact Us For Availability
*
Energy Guide WCI 309363101 Contact Us For Availability
*
Holder,temp sensor ,with seal WCI 5304413782 Contact Us For Availability
1
Cabinet WCI 309643602 Contact Us For Availability
1
Compressor WCI 5304426656 Contact Us For Availability
1#
Fan Blade,with clamp WCI 309646202 Contact Us For Availability
2
Grommet,compressor mtg ,(3) WCI 5303283877 Contact Us For Availability
3
Housing,fan shroud WCI 309643901 Contact Us For Availability
3
Nut,compressor mtg ,(3) WCI 5308006948 Contact Us For Availability
4
Seal,bottom WCI 5303303759 Contact Us For Availability
4
Seal,top WCI 5304421913 Contact Us For Availability
6
Nut,Keps ,motor mtg WCI 08007481 Contact Us For Availability
6
Gasket,terminal cover WCI 5303291330 Contact Us For Availability
7
Cover,elec terminal ,compressor WCI 5304416126 Contact Us For Availability
7#
Control Box WCI 309643801 Contact Us For Availability
8
Louver Assy,Includes 9 WCI 309640203 Contact Us For Availability
8
* Louver,horizontal WCI 309637902 Contact Us For Availability
8#
Motor,fan WCI 309645002 Contact Us For Availability
8#
Overload Protector WCI 5304417320 Contact Us For Availability
9
* Louver,vertical ,with link WCI 309647201 Contact Us For Availability
9
Nut,terminal cover WCI 5303294292 Contact Us For Availability
10
Bulkhead WCI 309643702 Contact Us For Availability
10*
Grommet,wire protector WCI 309111201 Contact Us For Availability
10*
Screw,Ph truss hd ,8-18 x 0.38 ,ground WCI 5303285199 Contact Us For Availability
11#
Blower Wheel,8mm hub WCI 309643302 Contact Us For Availability
11#
Evaporator WCI 309604223 Contact Us For Availability
12
Filter,air ,plastic frame ,antimicrobial WCI 309638102 Contact Us For Availability
12
Clamp-blower,compression WCI 327161302 Contact Us For Availability
12#
Condenser WCI 309645301 Contact Us For Availability
13#
Capacitor,250 V ,35+4 mfd WCI 5304426655 Contact Us For Availability
13#
Tray,evap drip WCI 309642801 Contact Us For Availability
14
Base-compressor assy WCI 309644001 Contact Us For Availability
15
Strap,capacitor mtg. WCI 309351901 Contact Us For Availability
15
Housing,blower scroll ,Extended WCI 309642901 Contact Us For Availability
16
Clip,evap/bulkhead WCI 309100201 Contact Us For Availability
16#
Capillary Tube,.099 X .049X 37 WCI 5304417693 Contact Us For Availability
17
Front-cabinet,complete assy ,w/8,9,12,38,43 WCI 309640105 Contact Us For Availability
17#
Cord-electric power,18 AWG ,115 V WCI 309343101 Contact Us For Availability
17#
Tube,cond. process WCI 5304413857 Contact Us For Availability
19
Overlay,control WCI 309359902 Contact Us For Availability
19
Washer,compressor mtg WCI 5303002664 Contact Us For Availability
19*
Washer,metallic WCI 309112501 Contact Us For Availability
20
Plate,housing/scroll WCI 309643001 Contact Us For Availability
21
Washer,terminal cover WCI 5303293809 Contact Us For Availability
25
Door-vent,fresh air WCI 309328603 Contact Us For Availability
25*
Detent-vent WCI 309330201 Contact Us For Availability
26
Handle,vent door WCI 309638201 Contact Us For Availability
38
Panel,cabinet front WCI 309646501 Contact Us For Availability
43
Frame,cabinet front WCI 309646601 Contact Us For Availability
70
Enclosure,control mount WCI 309361301 Contact Us For Availability
71#
PC Board,power ,w/trans,sensor WCI 309350404 Contact Us For Availability
72#
PC Board,input WCI 309350406 Contact Us For Availability
75
Support,PC board WCI 5304413781 Contact Us For Availability
78
Remote Control,transmitter ,with batteries WCI 309342606 Contact Us For Availability
× ![]()
