Model Kenmore 253.71124013 ROOM AIR CONDITIONER – Common Parts & Diagrams

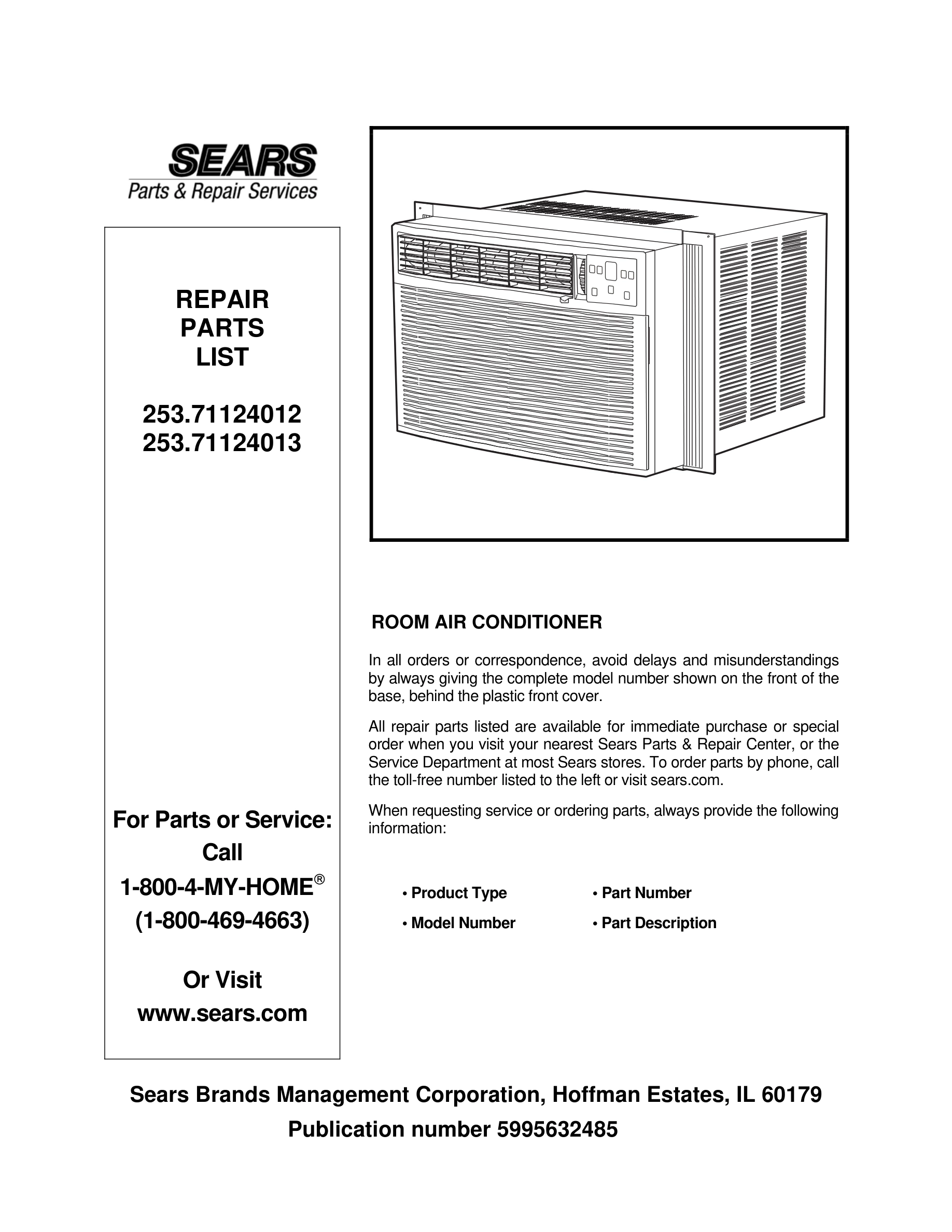

01 - COVER

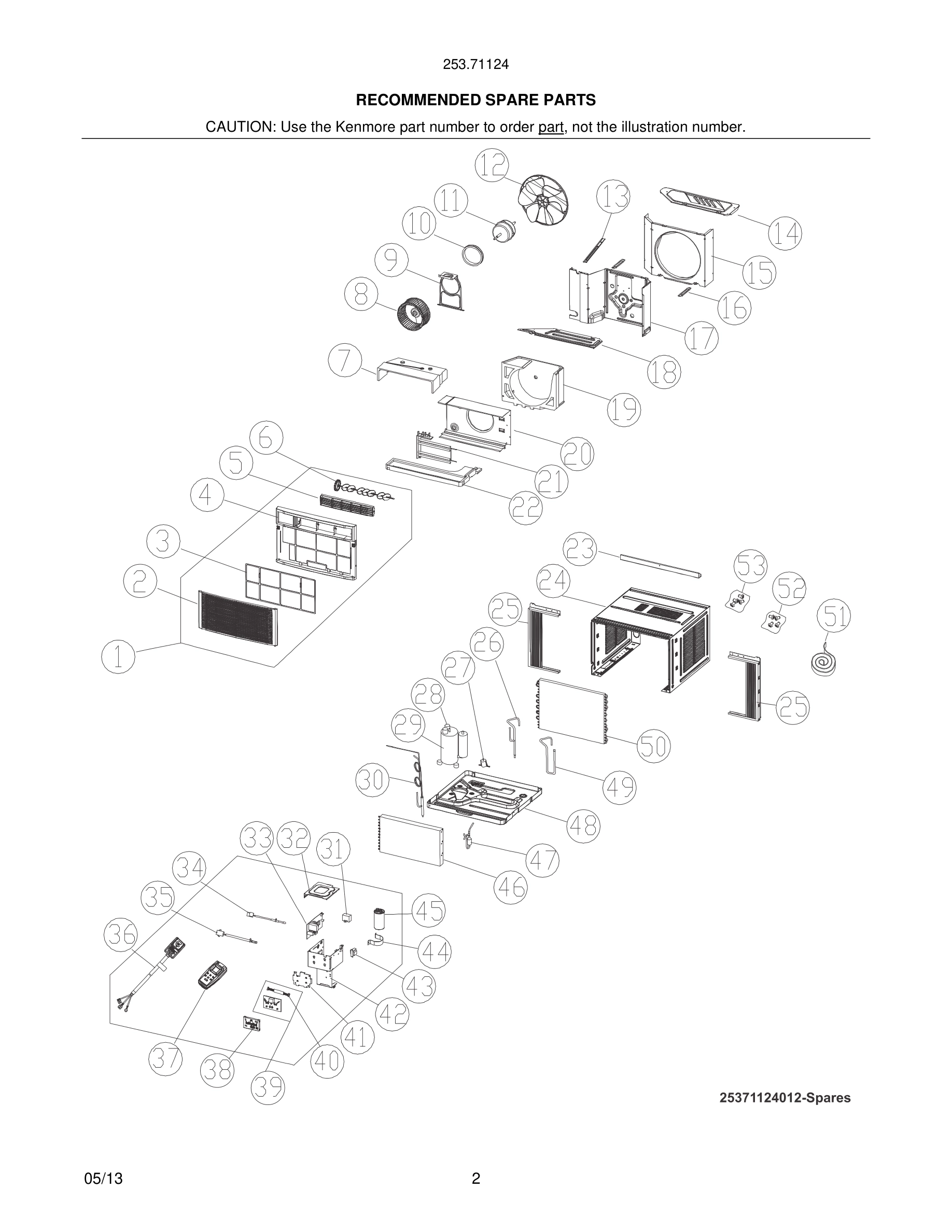

03 - RECOMMENDED SPARE PARTS
05 - RECOMMENDED SPARE PARTS
06 - WIRING DIAGRAM
Common parts from model Kenmore 253.71124013 ROOM AIR CONDITIONER
*
Use & Care Guide, en/sp WCI 5304482768 Contact Us For Availability
*
Installation Instructions WCI 5304482769 Contact Us For Availability
*
Repair Parts List WCI 5995632485 Contact Us For Availability
*
Tech Data Sheet/Wiring Dia. WCI 5304485447 Contact Us For Availability
*
Energy Guide WCI 5304491885 Contact Us For Availability
13
Brace, bulkhead, large, connector WCI 5304471254 Contact Us For Availability
14
Cover, condenser/fan, rear WCI 5304471288 Contact Us For Availability
15
Bulkhead, partition, rear WCI 5304483211 Contact Us For Availability
16
Brace, bulkhead, small, connector WCI 5304471253 Contact Us For Availability
17
Bulkhead, partition, front WCI 5304487602 Contact Us For Availability
18
Cover, blower, front WCI 5304476388 Contact Us For Availability
19
Scroll, blower housing, rear WCI 5304471301 Contact Us For Availability
20
Scroll, blower housing, front WCI 5304487603 Contact Us For Availability
22
Tray, drip pan WCI 5304471265 Contact Us For Availability
23
Rail, shutter, top channel WCI 5304476391 Contact Us For Availability
24
Cabinet, wrapper/sleeve WCI 5304487606 Contact Us For Availability
25
Window Filler Kit, slider panels, accordion WCI 5304476393 Contact Us For Availability
26#
Tube, suction WCI 5304476394 Contact Us For Availability
27#
Valve, drain WCI 5304476323 Contact Us For Availability
28#
Overload Protector, compressor WCI 5304476298 Contact Us For Availability
29#
Compressor, with overload WCI 5304475747 Contact Us For Availability
30#
Tube, capillary WCI 5304476395 Contact Us For Availability
32
Cover, control box WCI 5304476396 Contact Us For Availability
36#
Power Cord, electric, LCDI WCI 5304476247 No Longer Available
37#
Remote Control, transmitter WCI 5304476311 Contact Us For Availability
38
Control Panel, with overlay WCI 5304476398 Contact Us For Availability
40#
Wire, connector, pc boards WCI 5304482531 Contact Us For Availability
41
Cover, display board WCI 5304471271 Contact Us For Availability
42
Control Box WCI 5304487605 Contact Us For Availability
44
Strap, capacitor clamp WCI 5304476400 Contact Us For Availability
45#
Capacitor WCI 5304475748 Contact Us For Availability
46#
Evaporator, with cap tube WCI 5304476401 Contact Us For Availability
48
Base, unit chassis WCI 5304476402 Contact Us For Availability
49#
Tube, discharge WCI 5304476403 Contact Us For Availability
50#
Condenser WCI 5304490068 Contact Us For Availability
51
Seal Kit, window, foam strips WCI 5304471258 Contact Us For Availability
52
Hardware Kit, installation WCI 5304491884 Contact Us For Availability
53
Screw Kit, top rail mount WCI 5304471256 Contact Us For Availability
× ![]()
