Model Electrolux 253.71087001 Air Conditioner (Kenmore 25371087001) – Common Parts & Diagrams

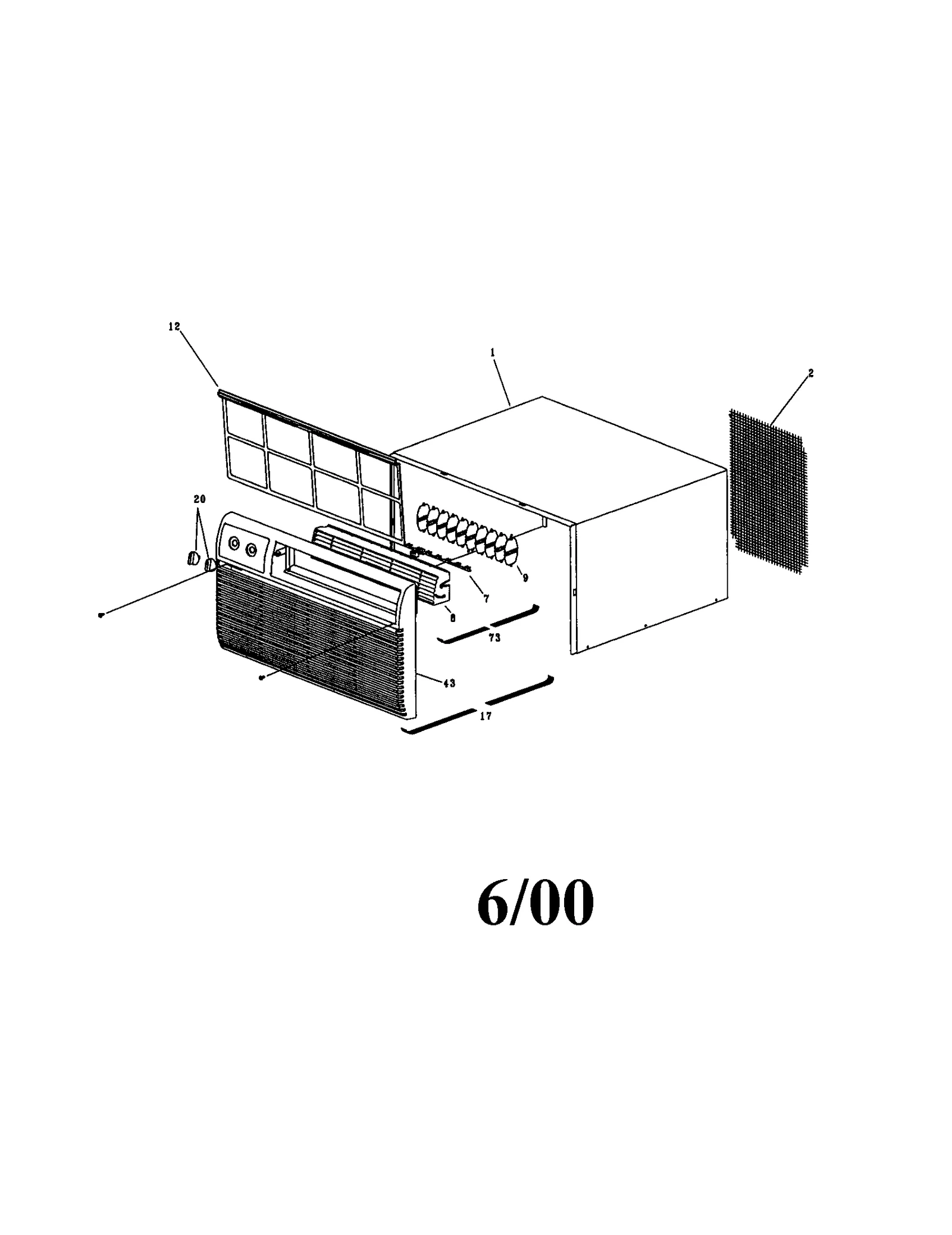

CABINET FRONT AND WRAPPER
WINDOW MOUNTING
CONTROL
AIR HANDLING
All Parts
COMPRESSOR
Common parts from model Electrolux 253.71087001 Air Conditioner (Kenmore 25371087001)
1
Trim WCI 309628603 Contact Us For Availability
1
Fan Blade WCI 309629102 Contact Us For Availability
1
Compressor WCI 5304406829 Contact Us For Availability
2
Trim Frme/tb WCI 309628604 Contact Us For Availability
2
Room Air Conditioner Compressor Grommet WCI 5303283877 Contact Us For Availability
3
Kit-groundin WCI 5304409303 Contact Us For Availability
3
Fan Housing WCI 309628901 Contact Us For Availability
3
Room Air Conditioner Compressor Mount Retaine WCI 5308006948 Contact Us For Availability
4
Block-tapere WCI 5304409304 Contact Us For Availability
5
Wrapper Seal WCI 5303301038 Contact Us For Availability
6
Seal-cond En WCI 5304409305 Contact Us For Availability
6
Cover Gasket WCI 3200282 Contact Us For Availability
7
Link WCI 309324004 Contact Us For Availability
7
Seal-cond/re WCI 5304409306 Contact Us For Availability
7
Control Box WCI 309628502 Contact Us For Availability
7
Terminal Cover WCI 3200281 Contact Us For Availability
8
Louver WCI 309628004 Contact Us For Availability
8
Seal-cond/re WCI 5304409307 Contact Us For Availability
8
On/Off Switch WCI 309329301 Contact Us For Availability
8
Fan Motor WCI 5304409513 Contact Us For Availability
8
Overload WCI 3202920 Contact Us For Availability
9
Louver WCI 309628104 Contact Us For Availability
9
Instructions WCI 5304409308 Contact Us For Availability
9
Room Air Conditioner Thermostat WCI 5304409496 Contact Us For Availability
9
Terminal Cover Nut WCI 5303211017 Contact Us For Availability
10
Seal-cond/re WCI 5304409309 Contact Us For Availability
10
#bulkhead-18 WCI 309627401 Contact Us For Availability
11
Cabinet WCI 5304409310 Contact Us For Availability
11
Air Conditioner Blower Wheel WCI 309631701 Contact Us For Availability
11
+evap Assy-1 WCI 309632303 Contact Us For Availability
12
Filter WCI 309628205 Contact Us For Availability
12
Divider WCI 309335101 Contact Us For Availability
12
Retainer Clip WCI 309329801 Contact Us For Availability
12
Room Air Conditioner Fan Blade Clamp WCI 5303012110 Contact Us For Availability
12
Condenser WCI 309641901 Contact Us For Availability
13
Capacitor-35 WCI 5303303576 Contact Us For Availability
13
Kit-grille M WCI 5304409311 Contact Us For Availability
13
COVER,CONDEN WCI 309628802 Contact Us For Availability
13
Tray Base WCI 309628702 Contact Us For Availability
14
Screw WCI 5303285199 Contact Us For Availability
14
Base Assembly WCI 309632004 Contact Us For Availability
15
Kit-mounting WCI 309636002 Contact Us For Availability
15
Strap WCI 5303303077 Contact Us For Availability
15
Scroll-18.5 WCI 309622802 Contact Us For Availability
15
Heat Shield WCI 309629501 Contact Us For Availability
16
Room Air Conditioner Capillary Line WCI 5303209547 Contact Us For Availability
17
Front Grille WCI 309629408 Contact Us For Availability
17
Power Cord WCI 309343104 Contact Us For Availability
18
Screw WCI 5303007754 Contact Us For Availability
19
Washer WCI 5303002664 Contact Us For Availability
20
Control Knob WCI 309307012 Contact Us For Availability
20
Scroll Plate WCI 309625501 Contact Us For Availability
20
Spring WCI 5303002036 Contact Us For Availability
21
Gasket WCI 5303295516 Contact Us For Availability
25
Air Baffle WCI 309335201 Contact Us For Availability
27
Heat Asm W/ WCI 309627004 Contact Us For Availability
30
Partition WCI 309629001 Contact Us For Availability
30
Valve WCI 3017804 Contact Us For Availability
32
Nut WCI 3018695 Contact Us For Availability
35
Spacer WCI 3200761 Contact Us For Availability
35
Baffle Condenser WCI 309335001 Contact Us For Availability
36
Heat Shield WCI 309633401 Contact Us For Availability
37
Harness WCI 5304409500 Contact Us For Availability
43
Fr Cnt Label WCI 309631808 Contact Us For Availability
73
Room Air Conditioner Louver WCI 309629304 Contact Us For Availability
NI
Owner's Manual WCI 309000827 Contact Us For Availability
NI
Service Data Sheet WCI 309001245 Contact Us For Availability
NI
Grommet Wire WCI 309111201 Contact Us For Availability
NI
Panel-rear P WCI 5304408740 Contact Us For Availability
× ![]()
