Model Kenmore 253.71063010 ROOM AIR CONDITIONER – Common Parts & Diagrams

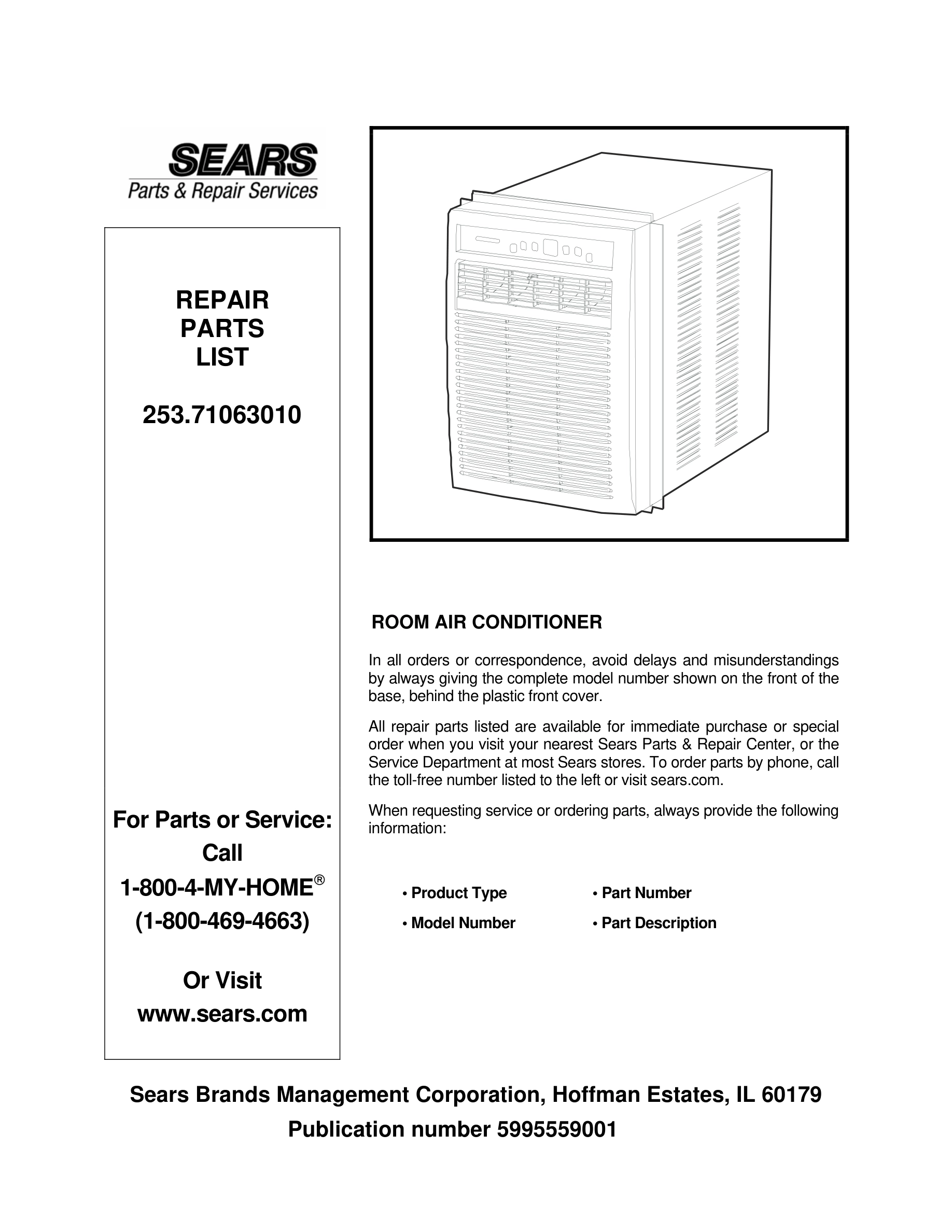

01 - COVER

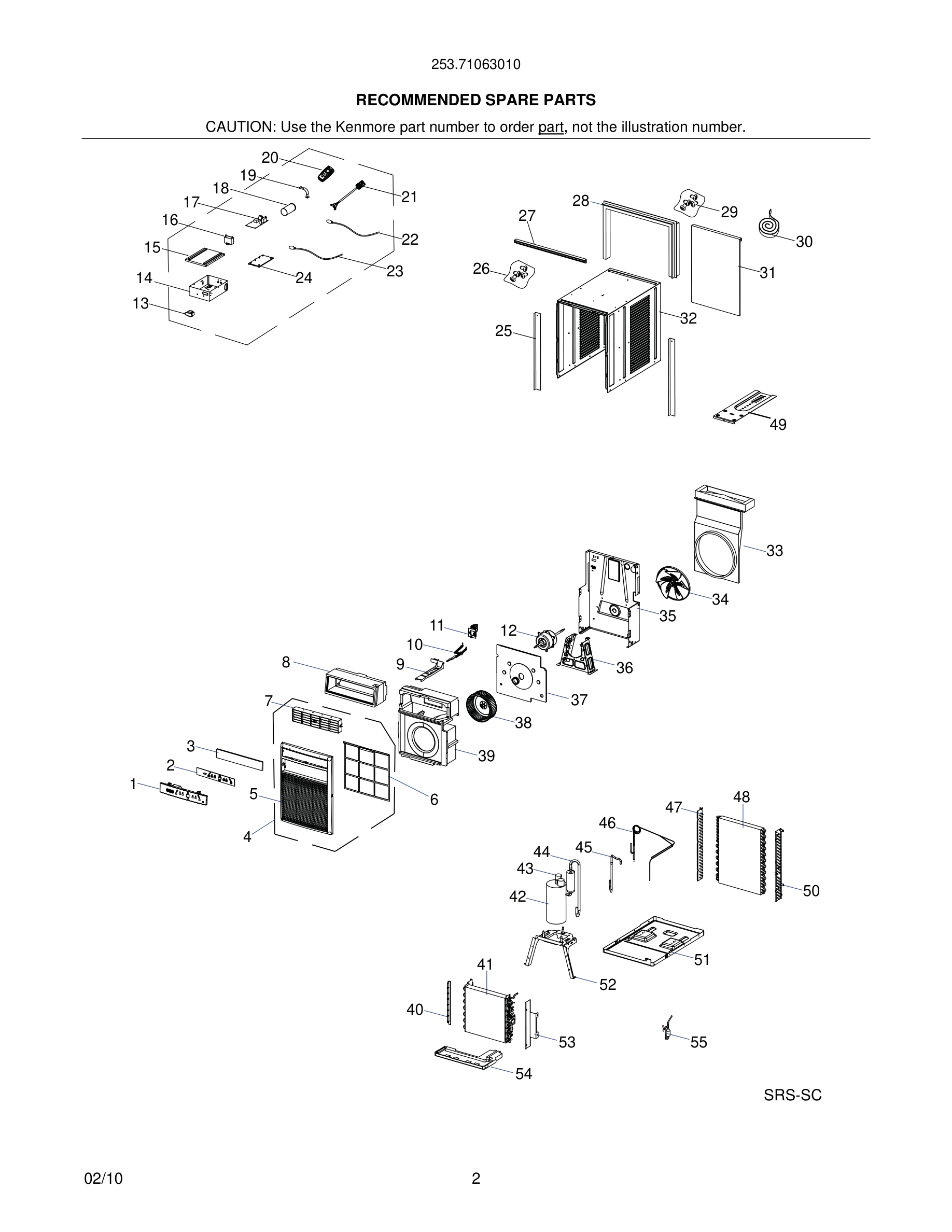

03 - RECOMMENDED SPARE PARTS
05 - RECOMMENDED SPARE PARTS
06 - WIRING DIAGRAM
Common parts from model Kenmore 253.71063010 ROOM AIR CONDITIONER
*
Use & Care Guide, English WCI 5304476677 Contact Us For Availability
*
Use & Care Guide, Spanish WCI 5304476678 Contact Us For Availability
*
Tech Data Sheet/Wiring Dia. WCI 5304475759 Contact Us For Availability
*
Energy Guide WCI 5304476730 Contact Us For Availability
12#
Motor, fan WCI 5304475754 Contact Us For Availability
14
Control Box WCI 5304476468 Contact Us For Availability
15
Cover, control box WCI 5304476469 Contact Us For Availability
16#
Capacitor WCI 5304473971 Contact Us For Availability
18#
Capacitor WCI 5304471195 Contact Us For Availability
19
Strap, capacitor clamp WCI 5304476471 Contact Us For Availability
21#
Power Cord, electric, LCDI WCI 5304476472 Contact Us For Availability
22#
Thermistor, temp sensor, indoor WCI 5304475757 Contact Us For Availability
23#
Thermistor, evaporator, sensor WCI 5304476473 Contact Us For Availability
24
Holder, mounting plate, control WCI 5304476251 Contact Us For Availability
25
Channel, side mount, slide WCI 5304476474 Contact Us For Availability
27
Rail, shutter track, top channel WCI 5304476475 Contact Us For Availability
28
Frame, window panel, seal WCI 5304476476 Contact Us For Availability
30
Seal Kit, window, foam strips WCI 5304471646 Contact Us For Availability
31
Grille, rear WCI 5304476477 Contact Us For Availability
32
Cabinet, wrapper/sleeve WCI 5304476478 Contact Us For Availability
33
Shroud, fan housing, condenser WCI 5304471367 Contact Us For Availability
34#
Fan Blade WCI 5304475756 Contact Us For Availability
35
Bulkhead, partition, front WCI 5304476479 Contact Us For Availability
36
Support, fan motor mount WCI 5304476480 Contact Us For Availability
37
Panel, scroll, rear WCI 5304471361 Contact Us For Availability
38#
Blower Wheel, centrifugal WCI 5304475755 Contact Us For Availability
39
Scroll, blower housing WCI 5304471359 Contact Us For Availability
40
Bracket, evaporator, left WCI 5304476481 Contact Us For Availability
41#
Evaporator WCI 5304476482 Contact Us For Availability
42#
Compressor, with overload WCI 5304475753 Contact Us For Availability
43#
Overload Protector, compressor WCI 5304476300 Contact Us For Availability
44#
Tube, suction WCI 5304476489 Contact Us For Availability
45#
Tube, discharge WCI 5304476490 Contact Us For Availability
46#
Tube, capillary WCI 5304476491 Contact Us For Availability
47
Bracket, condenser, left WCI 5304476492 Contact Us For Availability
48#
Condenser WCI 5304476493 Contact Us For Availability
49
Platform, unit support WCI 5304476494 Contact Us For Availability
50
Bracket, condenser, right WCI 5304476495 Contact Us For Availability
51
Base, unit chassis WCI 5304476496 Contact Us For Availability
52
Base, compressor WCI 5304476497 Contact Us For Availability
53
Bracket, evaporator, right WCI 5304476498 Contact Us For Availability
54
Tray, drain pan WCI 5304471379 Contact Us For Availability
× ![]()
