Model Electrolux 253.71055000 Air Conditioner (Kenmore 25371055000) – Common Parts & Diagrams
COMPRESSOR
WINDOW MOUNTING
All Parts

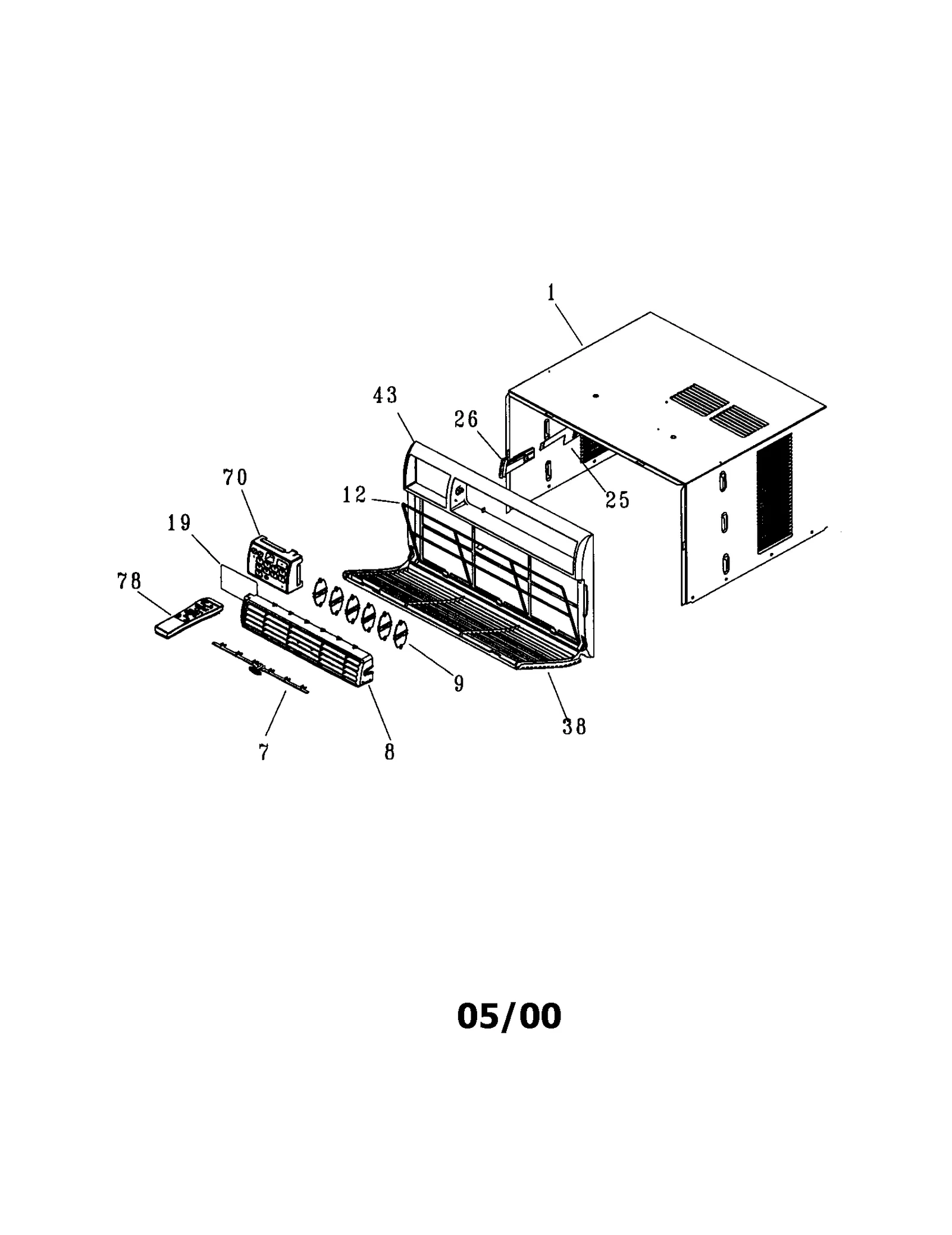

CABINET FRONT AND WRAPPER

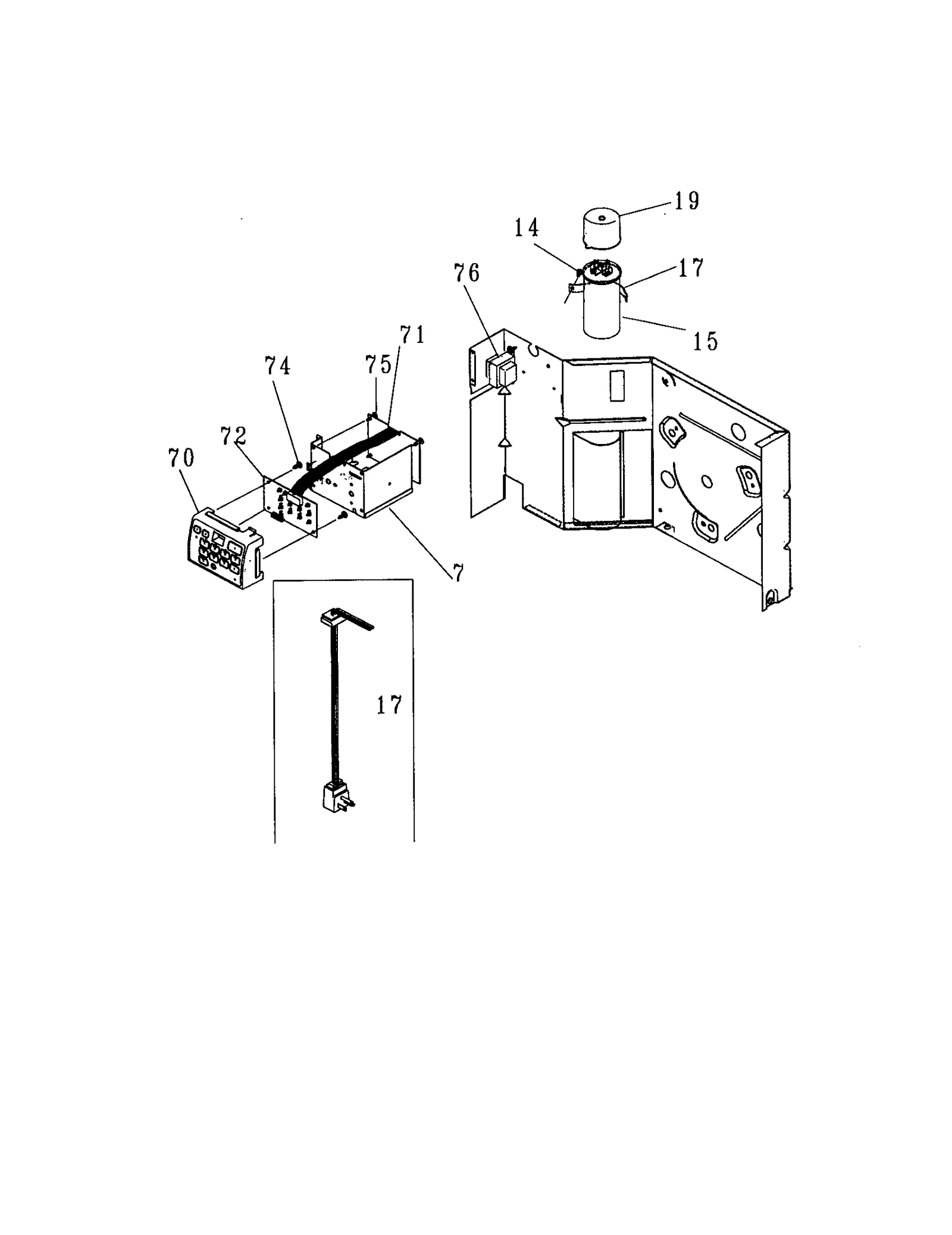

CONTROL

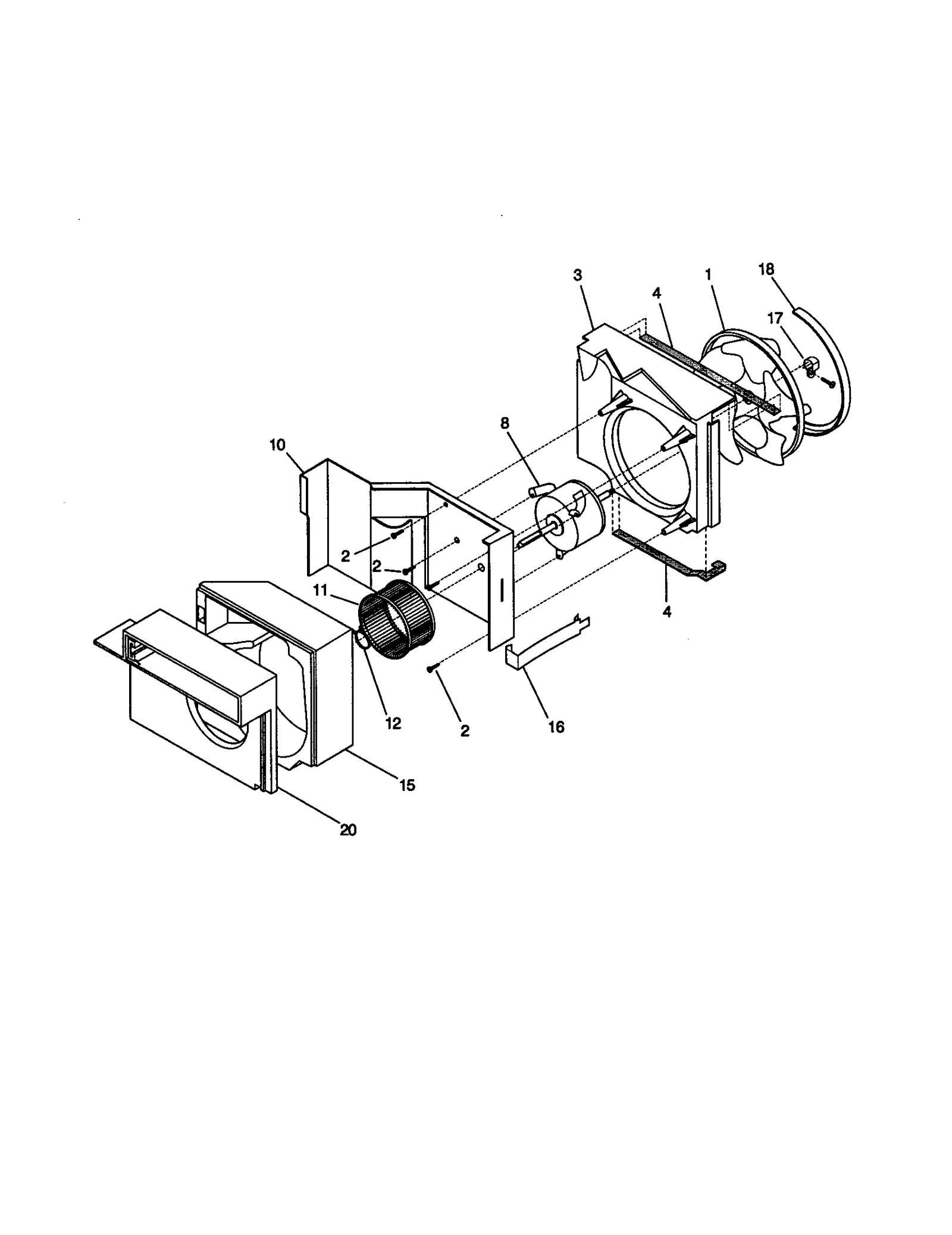

AIR HANDLING
Common parts from model Electrolux 253.71055000 Air Conditioner (Kenmore 25371055000)
1
Wrapper WCI 5304413783 Contact Us For Availability
1
Room Air Conditioner Condenser Fan Blade WCI 309624502 Contact Us For Availability
2
Room Air Conditioner Window Stop Bracket WCI 5303211056 Contact Us For Availability
2A
Kelvinator Room Air Conditioner Lock Nut WCI 08007481 Contact Us For Availability
3
Fan Housing WCI 309624201 Contact Us For Availability
4
Lh Frame WCI 5304413847 Contact Us For Availability
4
Seal WCI 5303270043 Contact Us For Availability
5
Tp Rail Seal WCI 0806226 Contact Us For Availability
6
Overload WCI 5303002035 Contact Us For Availability
7
Terminal Cover WCI 5303002034 Contact Us For Availability
7
Vent Link WCI 309638001 Contact Us For Availability
7
#CONTROL BOX-ELECT COMP WCI 309340402 Contact Us For Availability
8
Overload Protect WCI 5304413778 Contact Us For Availability
8
Horizontal Louver WCI 309637901 Contact Us For Availability
8
Fan Motor WCI 309631506 Contact Us For Availability
9
Cover Nut WCI 5303301734 Contact Us For Availability
9
Room Air Conditioner Vertical Louver Vane WCI 309342001 Contact Us For Availability
10
Room Air Conditioner Compressor Start Relay K WCI 5303317601 Contact Us For Availability
10
Bulkhead WCI 309602403 Contact Us For Availability
11
Evaporator WCI 309604207 Contact Us For Availability
11
Air Conditioner Blower Wheel WCI 309603301 Contact Us For Availability
12
Room Air Conditioner Air Filter WCI 309638102 Contact Us For Availability
12
Condenser WCI 5303307226 Contact Us For Availability
12
Room Air Conditioner Thermistor Retainer WCI 5304413782 Contact Us For Availability
12
Room Air Conditioner Fan Blade Clamp WCI 5303012110 Contact Us For Availability
13
Evaporator Tray WCI 5303302849 Contact Us For Availability
13
Capacitor WCI 5304413779 Contact Us For Availability
14
Base WCI 5304413780 Contact Us For Availability
14
Rh Frame WCI 5304413848 Contact Us For Availability
15
Accordion Closure WCI 309626504 Contact Us For Availability
15
Strap Capacitor WCI 5303303086 Contact Us For Availability
15
Blowr Housng WCI 5304407653 Contact Us For Availability
16
Tube-.099 X WCI 5304408716 Contact Us For Availability
16
Rail WCI 5304413784 Contact Us For Availability
16
Clip Scroll WCI 309100201 Contact Us For Availability
17
Tube WCI 5304413857 Contact Us For Availability
17
Screw WCI 3002803 Contact Us For Availability
17
Grille WCI 309640103 Contact Us For Availability
17
Power Cord WCI 309343101 Contact Us For Availability
17
Clamp-blade WCI 5308011040 Contact Us For Availability
18
(NOT REQUIRED) SPRING, OVERLOAD WCI N/P Contact Us For Availability
19
Washer WCI 5303002664 Contact Us For Availability
19
Overlay WCI 309340801 Contact Us For Availability
19
Cover Capacitor WCI 5303302855 Contact Us For Availability
20
Spring WCI 5303002036 Contact Us For Availability
20
Screw WCI 5303295750 Contact Us For Availability
20
Scroll Plate WCI 5304407654 Contact Us For Availability
21
Gasket WCI 5303295516 Contact Us For Availability
22
Room Air Conditioner Window Support Bracket WCI 5304403252 Contact Us For Availability
23
Screw WCI 3001806 Contact Us For Availability
24
Screw WCI 530802974 Contact Us For Availability
25
Vent Cover WCI 309328601 Contact Us For Availability
26
Hndle-vent WCI 309638201 Contact Us For Availability
26A
Vent Detent WCI 309330201 Contact Us For Availability
38
Panel WCI 309637801 Contact Us For Availability
43
Air Conditioner Grille Front WCI 309637701 Contact Us For Availability
70
Cover WCI 309340301 Contact Us For Availability
71
Power Board WCI 309340503 Contact Us For Availability
72
Input Board WCI 309340505 Contact Us For Availability
75
Pc Board-sup WCI 5304413781 Contact Us For Availability
76
Room Air Conditioner Transformer WCI 309111601 Contact Us For Availability
78
Room Air Conditioner Remote Control WCI 309342603 Contact Us For Availability
NI
Owner's Manual WCI 309000829 Contact Us For Availability
NI
Service Data Sheet WCI 309001227 Contact Us For Availability
NI
Louver WCI 309640201 Contact Us For Availability
× ![]()
