Model Kenmore 253.7042341A REFRIGERATOR – Common Parts & Diagrams

11
Drawer, stainless, freezer
Drawer, stainless, freezer WCI 241987947 Contact Us For Availability
View on Model
11

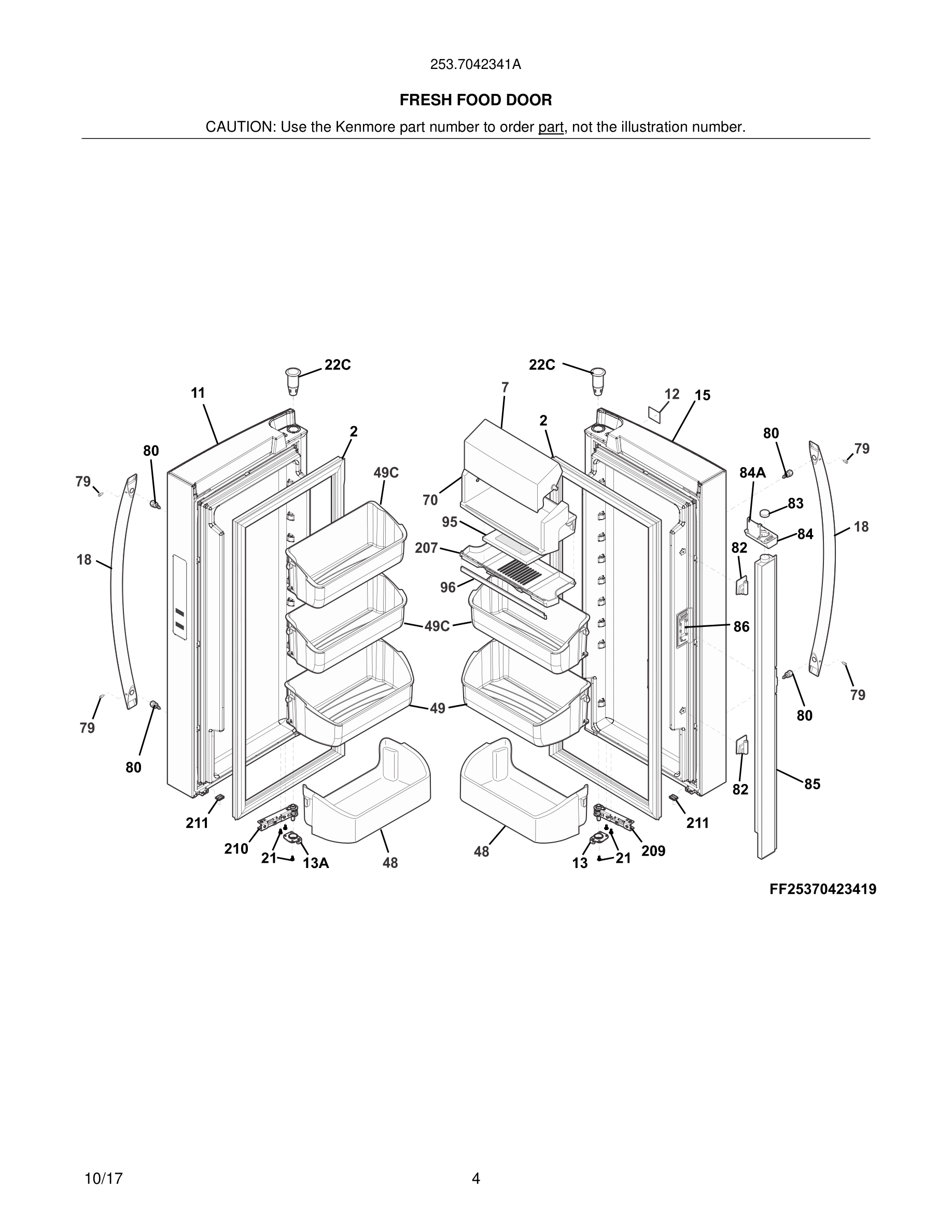

Door-refr, stainless, LH, non dispenser
Door-refr, stainless, LH, non dispenser WCI 242185680 Contact Us For Availability
View on Model
38#

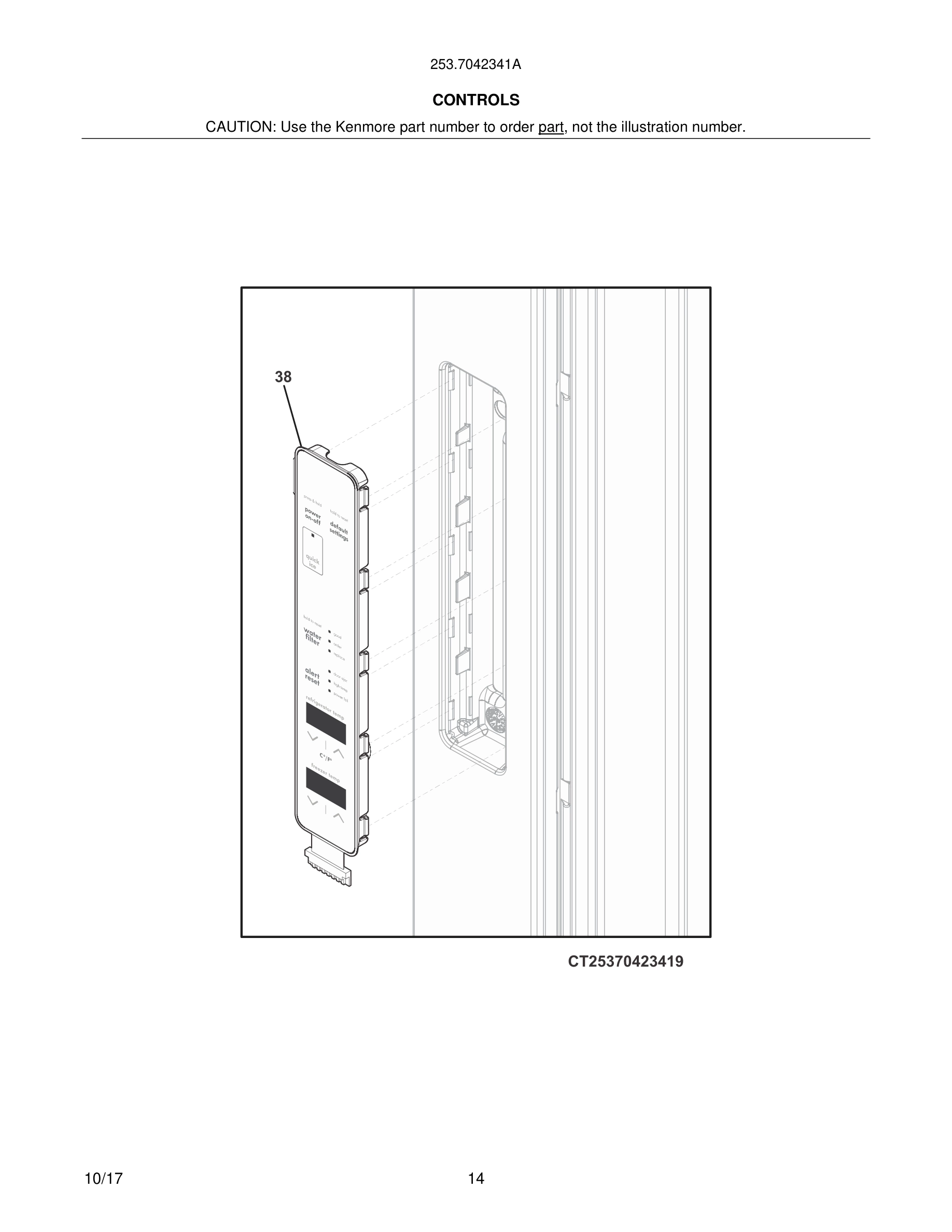

Board Assembly, user interface, black
Board Assembly, user interface, black WCI 5304508117 Contact Us For Availability
View on Model
40

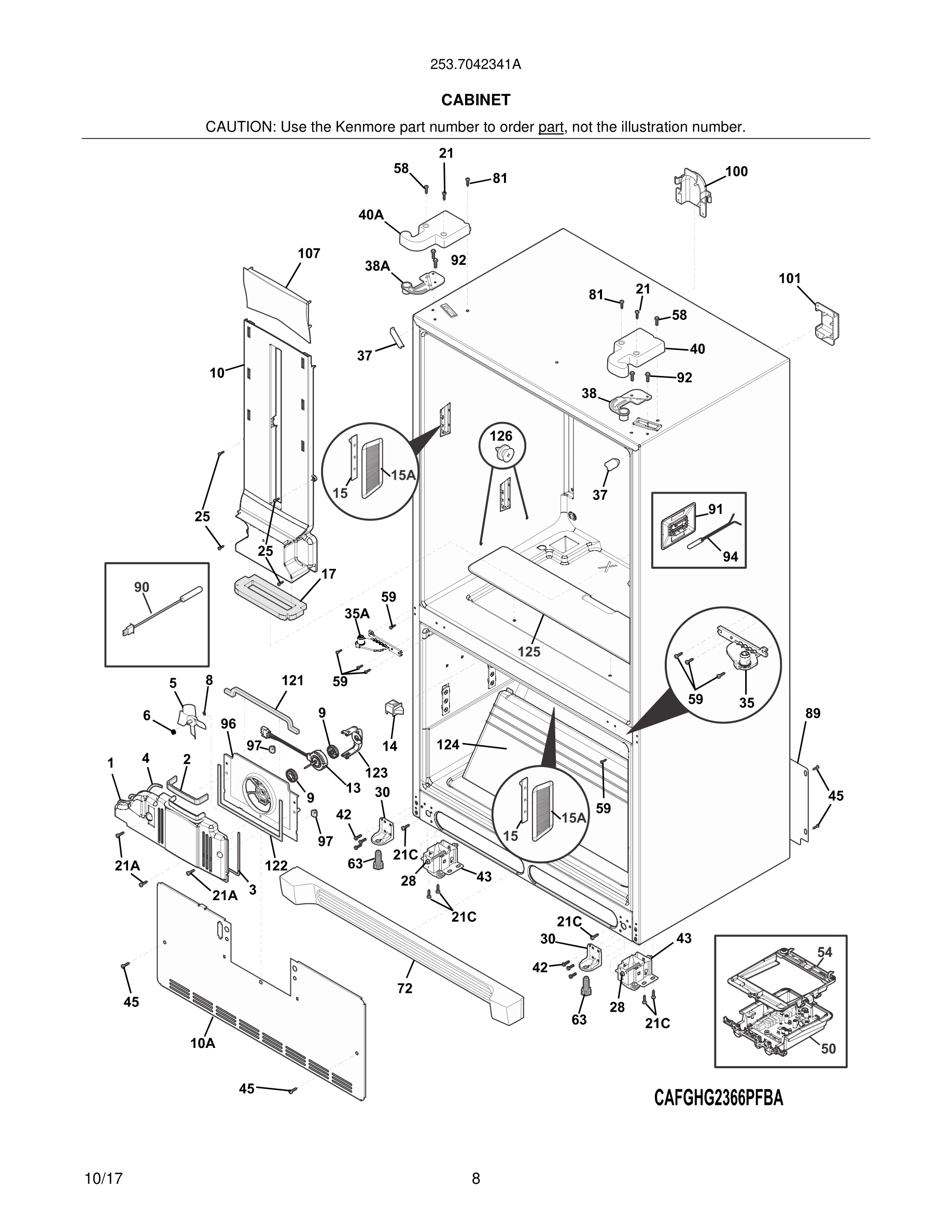

Cover-upper hinge, gray, RH
Cover-upper hinge, gray, RH WCI 242099809 Contact Us For Availability
View on Model
54
Support, housing, main board
Support, housing, main board WCI 807854301 Contact Us For Availability
View on Model
87

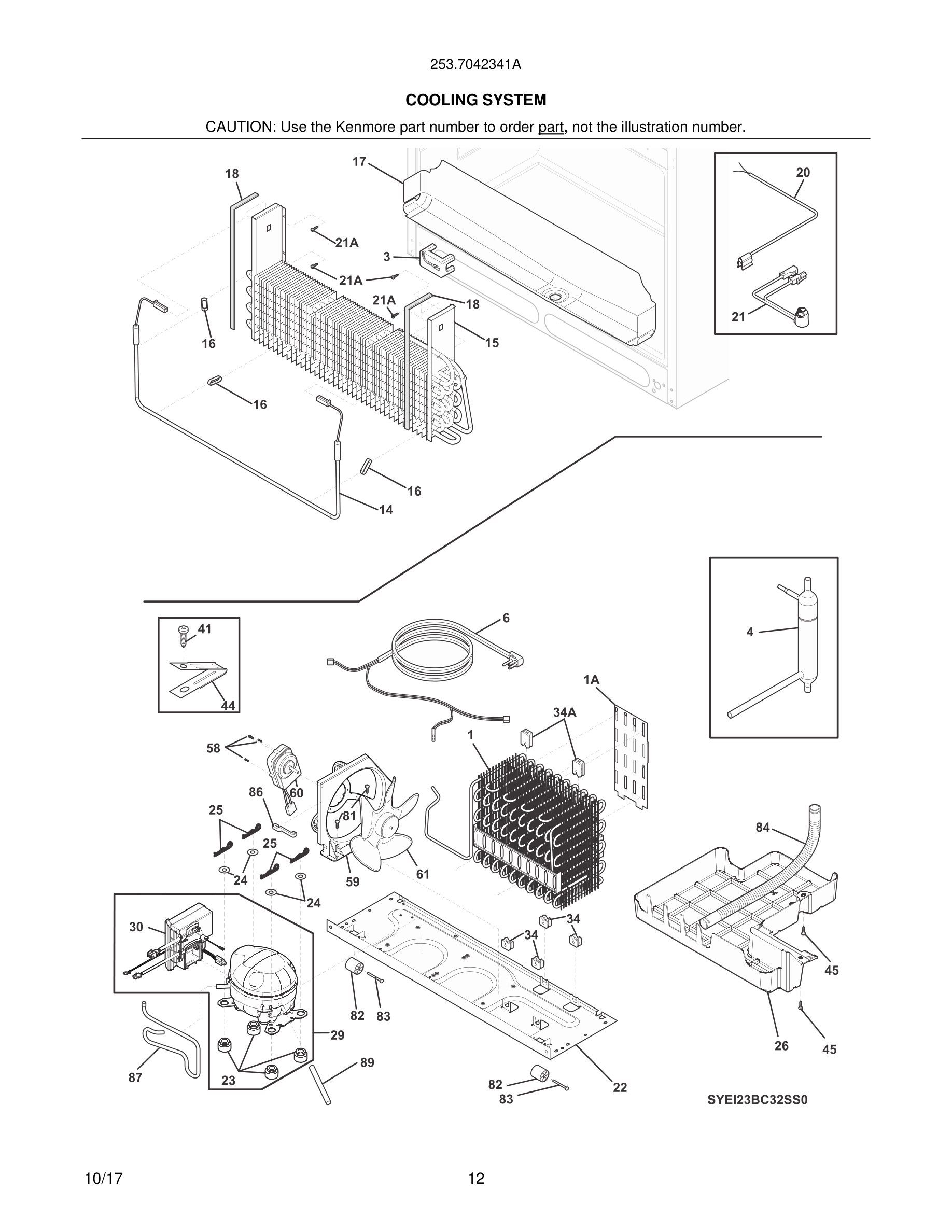

Tube-connector, suction
Tube-connector, suction WCI 5304502967 Contact Us For Availability
View on Model
89
Tube-process
Tube-process WCI 215346900 Contact Us For Availability
View on Model
