Model Electrolux 253.70417412 FRENCH DOOR BOTTOM FREEZER/REFRIGERATOR – Common Parts &amp; Diagrams

*

240494001 Frigidaire Refrigerator Plug Button In Stock WCI 240494001 $10.85

*

241510904 Frigidaire Refrigerator Dispenser H Backorder WCI 241510904 $38.53

*

241947701 Frigidaire Refrigerator Spacer Backorder WCI 241947701 $59.15

*

242146401 Frigidaire Refrigerator Screw In Stock WCI 242146401 $9.12

*

5303918445 Frigidaire Refrigerator Heat Excha Backorder WCI 5303918445 $260.79

1

241862903 Frigidaire Refrigerator Condenser In Stock WCI 241862903 $80.65

1

242220204 Frigidaire Water Inlet Tube In Stock WCI 242220204 $23.11

1

5304503130 Frigidaire Refrigerator Cover Backorder WCI 5304503130 $45.55

1

5304537408 Frigidaire Gasket In Stock WCI 5304537408 $51.94

2

241778315 Frigidaire Door Gasket In Stock WCI 241778315 $62.39

3

241860111 Frigidaire Refrigerator Evaporator Backorder WCI 241860111 $7.67

4

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $16.79

5

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

6

241516904 Frigidaire Refrigerator Service Cor In Stock WCI 241516904 $23.09

6

5304521778 Frigidaire Refrigerator Wiring Har Backorder WCI 5304521778 $68.13

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

9

5304508006 Frigidaire Refrigerator Bushing Backorder WCI 5304508006 $7.67

10

5304508009 Frigidaire Refrigerator Air Tower Backorder WCI 5304508009 $137.33

10A

241860104 Frigidaire Refrigerator Coil Cover Backorder WCI 241860104 $19.03

10A

241860105 Frigidaire Refrigerator Coil Cover Backorder WCI 241860105 $10.85

10A

241860402 Frigidaire Refrigerator Evaporator In Stock WCI 241860402 $78.78

13

5304508039 Frigidaire Refrigerator Door Stop Backorder WCI 5304508039 $13.61

13

809069206 Frigidaire Refrigerator Motor In Stock WCI 809069206 $67.69

13A

5304508038 Frigidaire Refrigerator Door Stop Backorder WCI 5304508038 $13.57

14

242060202 Frigidaire Refrigerator Light Switc In Stock WCI 242060202 $25.81

14

5303918410 Frigidaire Refrigerator Defrost He In Stock WCI 5303918410 $67.51

15

242044504 Frigidaire Refrigerator Evaporator Backorder WCI 242044504 $68.77

15

5304525264 Frigidaire LED Light Backorder WCI 5304525264 $33.52

15A

242202701 Frigidaire Refrigerator Lens In Stock WCI 242202701 $19.45

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

17

241791201 Frigidaire Refrigerator Drain Troug Backorder WCI 241791201 $69.03

17

5304508008 Frigidaire Refrigerator Gasket In Stock WCI 5304508008 $18.67

18

241860101 Frigidaire Refrigerator Gasket Backorder WCI 241860101 $11.32

18

242198301 Frigidaire Refrigerator Door Handle In Stock WCI 242198301 $92.45

18

242198501 Frigidaire Refrigerator Drawer Hand Backorder WCI 242198501 $113.59

20

5303918776 Frigidaire Refrigerator Thermistor In Stock WCI 5303918776 $13.16

21

241732101 Frigidaire Refrigerator Screw Backorder WCI 241732101 $9.97

21

5304521781 Frigidaire Refrigerator Thermostat In Stock WCI 5304521781 $27.92

21A

242015001 Frigidaire Refrigerator Screw Backorder WCI 242015001 $10.41

22

218252201 Frigidaire Refrigerator Screw Backorder WCI 218252201 $9.04

22C

241760401 Frigidaire Refrigerator Bearing Backorder WCI 241760401 $12.20

23

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

23

5304501541 Frigidaire Refrigerator Gasket Backorder WCI 5304501541 $10.41

24

241812301 Frigidaire Refrigerator Compressor Backorder WCI 241812301 $7.71

24

242068718 Frigidaire Refrigerator Shelf Backorder WCI 242068718 $96.80

24

5304515677 Frigidaire Package of 4 Screws In Stock WCI 5304515677 $5.40

24A

240383412 Frigidaire Refrigerator Screw In Stock WCI 240383412 $7.30

24B

5304508067 Frigidaire Refrigerator Crisper Co In Stock WCI 5304508067 $84.48

25

240383407 Frigidaire Refrigerator Screw Backorder WCI 240383407 $8.15

25

242037702 Frigidaire Refrigerator Spring Clip Backorder WCI 242037702 $5.42

25

5304508025 Frigidaire Refrigerator Cover In Stock WCI 5304508025 $90.69

26

241695904 Frigidaire Refrigerator Screw Backorder WCI 241695904 $8.60

26

241920609 Frigidaire Side-by-Side Defrost Pan Backorder WCI 241920609 $80.76

26

5304508854 Frigidaire Crisper Drawer In Stock WCI 5304508854 $118.37

29

241706201 Frigidaire Refrigerator Compressor In Stock WCI 241706201 $590.27

30

241778702 Frigidaire Refrigerator Anti-Tip Br Backorder WCI 241778702 $12.18

30

808364727 Frigidaire Refrigerator Inverter Co In Stock WCI 808364727 $220.62

35

5304508044 Frigidaire Refrigerator Hinge Asse Backorder WCI 5304508044 $25.81

35A

5304508045 Frigidaire Refrigerator Hinge Asse Backorder WCI 5304508045 $28.81

37

Trim-cabinet corner, black, (2) WCI 242161202 Contact Us For Availability

38

241761301 Frigidaire Upper Bracket Hinge Backorder WCI 241761301 $41.88

38A

241761302 Frigidaire Refrigerator Upper Hinge Backorder WCI 241761302 $40.78

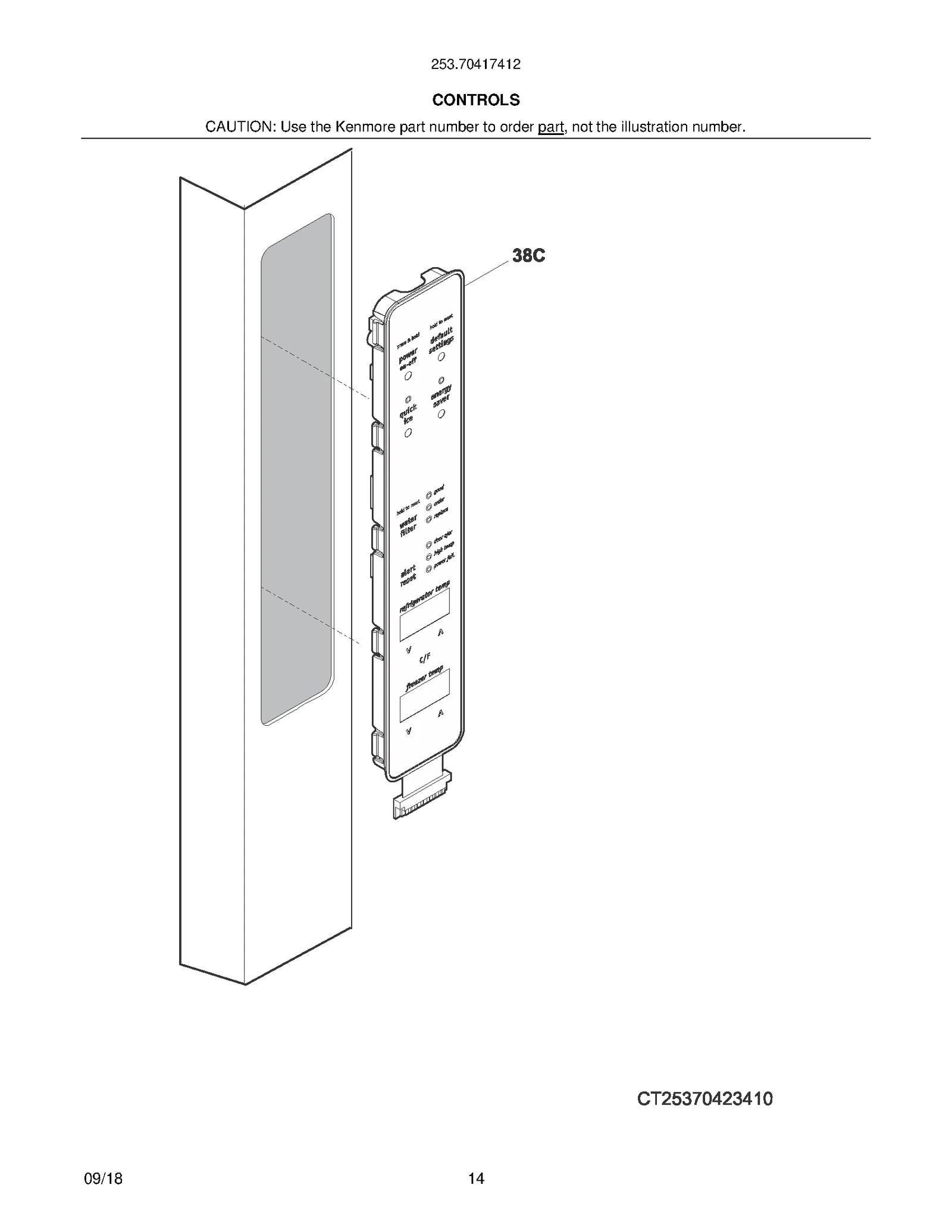

38C

Board Assembly, user interface, black WCI 5304508117 Contact Us For Availability

40A

242099804 Frigidaire Refrigerator Upper Hinge Backorder WCI 242099804 $26.27

41

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

42

240578902 Frigidaire Screw Mounting Hinge Backorder WCI 240578902 $9.04

42

5304508034 Frigidaire Shelf Support Rail Backorder WCI 5304508034 $51.54

42A

5304508033 Frigidaire Shelf Support Rail In Stock WCI 5304508033 $51.10

45

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $2.72

45

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

48

242071401 Frigidaire Refrigerator White Door Backorder WCI 242071401 $55.34

48

242122101 Frigidaire Refrigerator Channel She Backorder WCI 242122101 $50.66

49

242079701 Frigidaire Refrigerator Door Bin In Stock WCI 242079701 $63.85

49

242122202 Frigidaire Refrigerator Channel Backorder WCI 242122202 $42.57

49

5304525892 Frigidaire Refrigerator Freezer Ba Backorder WCI 5304525892 $108.95

49A

Basket-frzr, upper WCI 241780810 Contact Us For Availability

49B

242122301 Frigidaire Refrigerator Shelf Mount Backorder WCI 242122301 $49.31

49C

242079901 Frigidaire Refrigerator Door Bin In Stock WCI 242079901 $55.34

50

5304501271 Frigidaire Shelf Clip In Stock WCI 5304501271 $9.95

50

5304508093 Frigidaire Refrigerator Electronic In Stock WCI 5304508093 $162.74

51

242197901 Frigidaire Refrigerator Slide Backorder WCI 242197901 $82.43

51

5304507978 Frigidaire Refrigerator Slide Asse In Stock WCI 5304507978 $143.26

51A

242039701 Frigidaire Refrigerator Screw Backorder WCI 242039701 $8.60

51A

5304508096 Frigidaire Refrigerator Slide Asse Backorder WCI 5304508096 $80.67

52

5304507979 Frigidaire Refrigerator Slide Asse In Stock WCI 5304507979 $142.83

52A

5304508097 Frigidaire Refrigerator Slide Asse Backorder WCI 5304508097 $82.41

54

Support, housing, main board WCI 807854301 Contact Us For Availability

55

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $8.14

55

242252702 Frigidaire Refrigerator Water Inlet In Stock WCI 242252702 $45.74

58

240569202 Frigidaire Refrigerator Screw In Stock WCI 240569202 $1.35

58

241500305 Frigidaire Refrigerator Screw In Stock WCI 241500305 $1.83

59

240346701 Frigidaire Refrigerator Foam Seal T Backorder WCI 240346701 $19.01

59

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $4.97

59

241946106 Frigidaire Refrigerator Condenser F Backorder WCI 241946106 $28.97

60

218362501 Frigidaire Refrigerator Screw Backorder WCI 218362501 $7.71

60

242018301 Frigidaire Refrigerator Condenser F In Stock WCI 242018301 $92.28

61

241639502 Frigidaire Refrigerator Condenser F In Stock WCI 241639502 $11.41

62

Pan-deli WCI 242096808 Contact Us For Availability

63

216396900 Frigidaire Dryer Adjustable Levelin In Stock WCI 216396900 $14.92

64

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $12.24

70

242041701 Frigidaire Refrigerator Ice Maker B Backorder WCI 242041701 $44.80

72

242054802 Frigidaire Refrigerator Black Kickp Backorder WCI 242054802 $51.54

74

5304504277 Frigidaire Refrigerator Ice Contai Backorder WCI 5304504277 $81.14

80

218755504 Frigidaire Refrigerator Shoulder Sc In Stock WCI 218755504 $8.60

81

134154100 Frigidaire Screw 10-32 x 0.375 Co Backorder WCI 134154100 $8.62

81

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.26

82

240335202 Frigidaire Refrigerator Roller Backorder WCI 240335202 $13.59

82

241779401 Frigidaire Refrigerator Flipper Hin In Stock WCI 241779401 $11.43

82

5304503705 Frigidaire Refrigerator Divider Backorder WCI 5304503705 $74.84

83

241812202 Frigidaire Refrigerator Magnet Backorder WCI 241812202 $45.70

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

84

241830904 Frigidaire Refrigerator Drain Tube In Stock WCI 241830904 $14.94

84

242036801 Frigidaire Refrigerator Plastic Cli In Stock WCI 242036801 $60.94

84

808274201 Frigidaire Door Guide Assembly Backorder WCI 808274201 $21.74

84A

242190501 Frigidaire Refrigerator Mullion Ass Backorder WCI 242190501 $16.75

240451503 Frigidaire Refrigerator Screw Backorder WCI 240451503 $2.26

242036308 Frigidaire Refrigerator Mullion Fli Backorder WCI 242036308 $120.39

242068601 Frigidaire Refrigerator Bumper Backorder WCI 242068601 $8.60

242130901 Frigidaire Refrigerator Divider Backorder WCI 242130901 $54.24

5304520993 Frigidaire Refrigerator Mullion Ha Backorder WCI 5304520993 $25.07

85A

242139301 Frigidaire Refrigerator Support Bea Backorder WCI 242139301 $46.62

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $39.88

241779802 Frigidaire Door Hinge Mullion Flipp In Stock WCI 241779802 $22.06

242011101 Frigidaire Refrigerator Pin Lock Backorder WCI 242011101 $9.06

5304507340 Frigidaire Refrigerator Trim Backorder WCI 5304507340 $28.53

87

5304507999 Frigidaire Refrigerator Pinion Backorder WCI 5304507999 $6.32

87

Tube-connector, suction WCI 5304502967 Contact Us For Availability

89

5304509676 Frigidaire Refrigerator Bracket In Stock WCI 5304509676 $45.72

89

5304520905 Frigidaire Assembly Cover Refriger Backorder WCI 5304520905 $44.58

89

Tube-process WCI 215346900 Contact Us For Availability

240597220 Frigidaire Sensor In Stock WCI 240597220 $3.05

241770705 Frigidaire Bar Backorder WCI 241770705 $30.23

241842301 Frigidaire Refrigerator Thermistor Backorder WCI 241842301 $21.73

241953902 Frigidaire Refrigerator Screw In Stock WCI 241953902 $10.93

91

5304508041 Frigidaire Refrigerator Cover Backorder WCI 5304508041 $7.25

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.60

94

5303918775 Frigidaire Refrigerator Thermistor In Stock WCI 5303918775 $11.89

95

EAFCBF Frigidaire Refrigerator PureAdvantage In Stock WCI EAFCBF $12.54

96

241860601 Frigidaire Refrigerator Evaporator Backorder WCI 241860601 $81.10

100

242157601 Frigidaire Refrigerator Cover Backorder WCI 242157601 $7.23

101

242157801 Frigidaire Refrigerator Cover Backorder WCI 242157801 $14.50

105

242116801 Frigidaire Refrigerator Basket Trim Backorder WCI 242116801 $11.32

107

Duct-air, top WCI 241963102 Contact Us For Availability

122

241860117 Frigidaire Gasket Backorder WCI 241860117 $6.82

123

5304508007 Frigidaire Refrigerator Bracket Backorder WCI 5304508007 $8.58

124

242006903 Frigidaire Refrigerator Air Duct Backorder WCI 242006903 $37.65

125

242071201 Frigidaire Refrigerator Cover Backorder WCI 242071201 $72.59

139

BASE-WATER FILTER In Stock WCI 242009604 $20.15

145

5304508017 Frigidaire Refrigerator Support Backorder WCI 5304508017 $51.10

145A

5304508018 Frigidaire Refrigerator Support Backorder WCI 5304508018 $47.53

151

242069701 Frigidaire Refrigerator Water Filte Backorder WCI 242069701 $37.45

207

242047901 Frigidaire Refrigerator Air Filter Backorder WCI 242047901 $47.49

209

5304526201 Frigidaire Refrigerator Right Hand Backorder WCI 5304526201 $34.76

210

241983816 Frigidaire Refrigerator Water Filte In Stock WCI 241983816 $46.63

210

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $9.50

210

5304526202 Frigidaire Refrigerator Left Hand Backorder WCI 5304526202 $56.92

210A

241998303 Frigidaire Refrigerator Water Filte In Stock WCI 241998303 $6.51

211

5304508077 Frigidaire Refrigerator Bumper Backorder WCI 5304508077 $7.25

212

5304508016 Frigidaire Refrigerator Roller In Stock WCI 5304508016 $3.44

213

242010901 Frigidaire Refrigerator Assembly Ro Backorder WCI 242010901 $31.71
