Model Kenmore 253.70349413 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
03 - FREEZER DRAWER, BASKETS

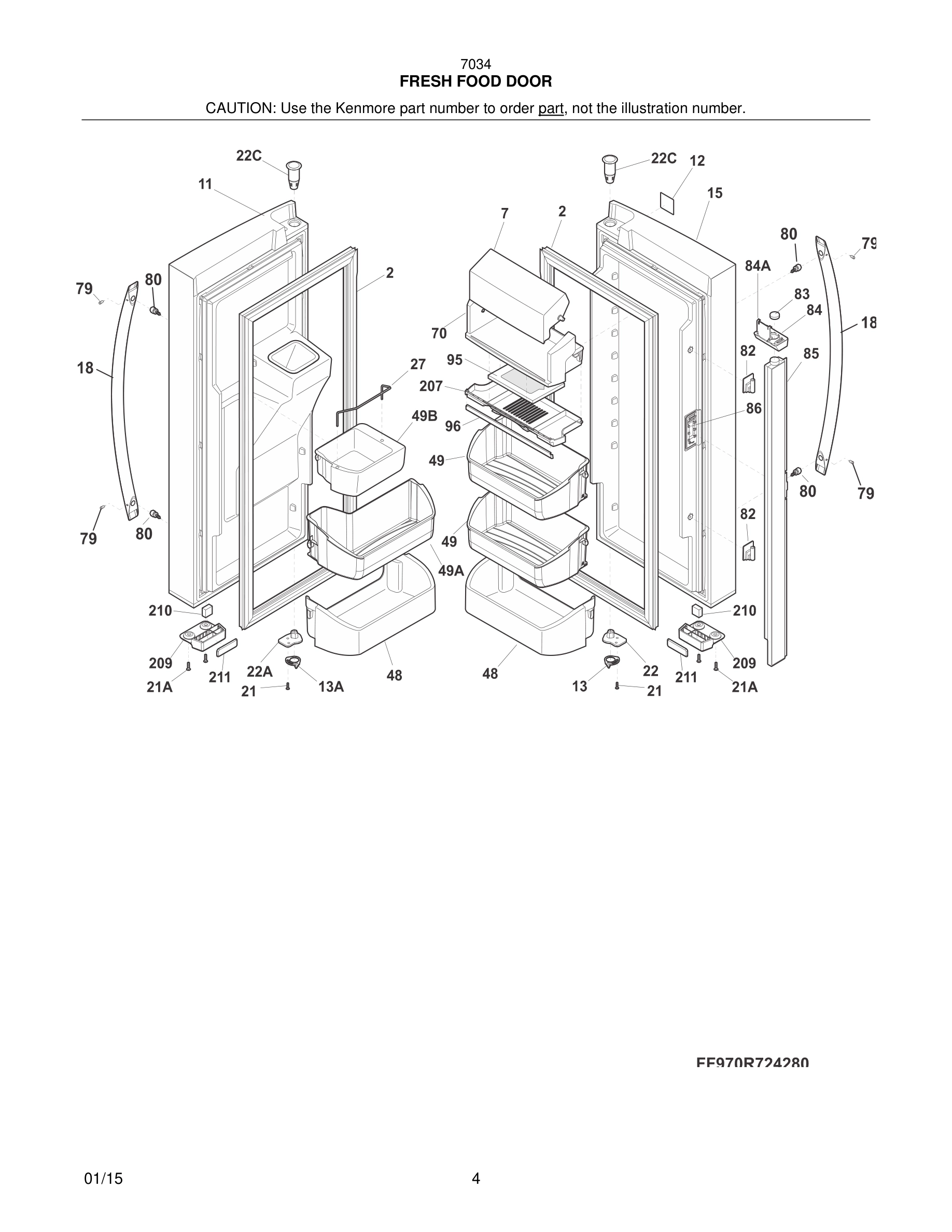

05 - FRESH FOOD DOOR

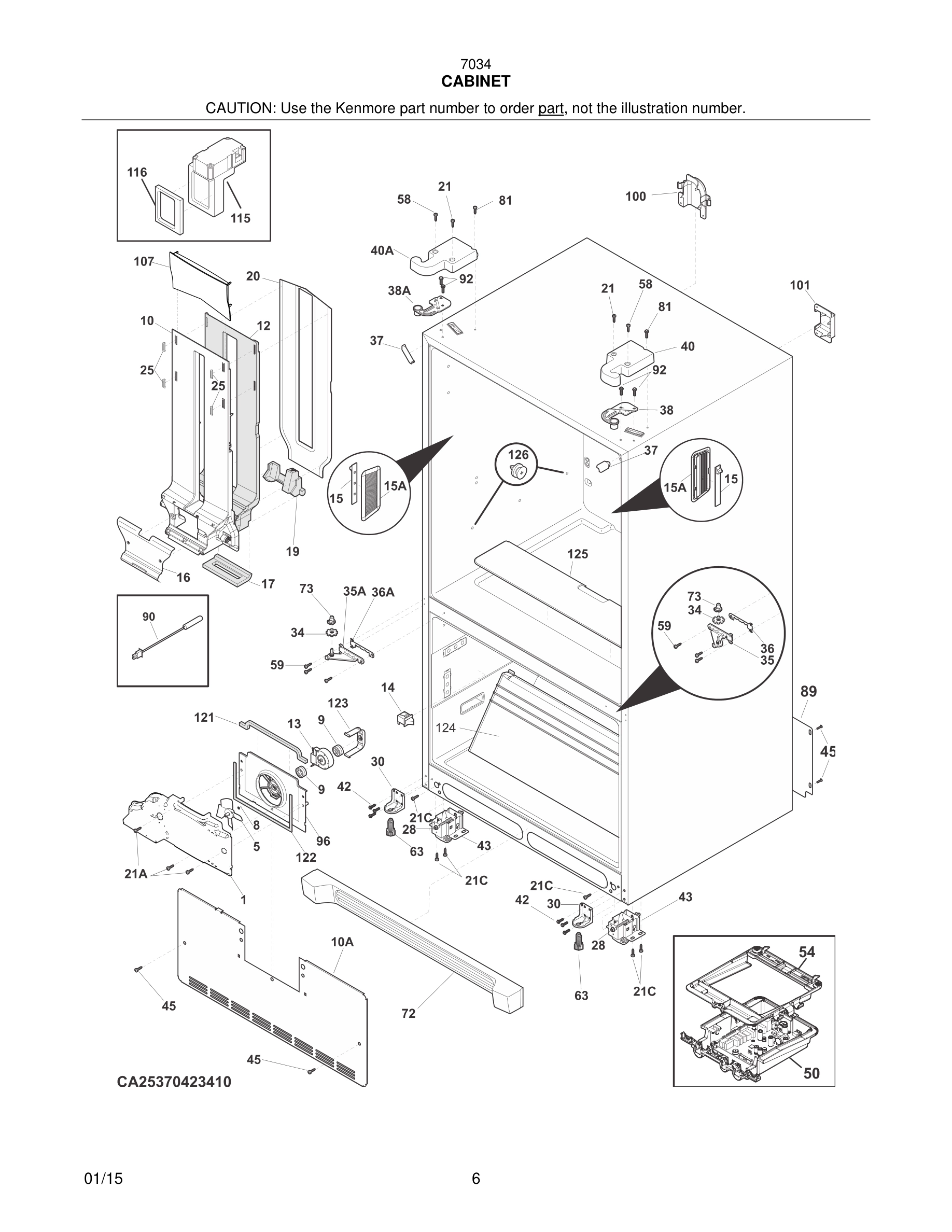

07 - CABINET
09 - CABINET

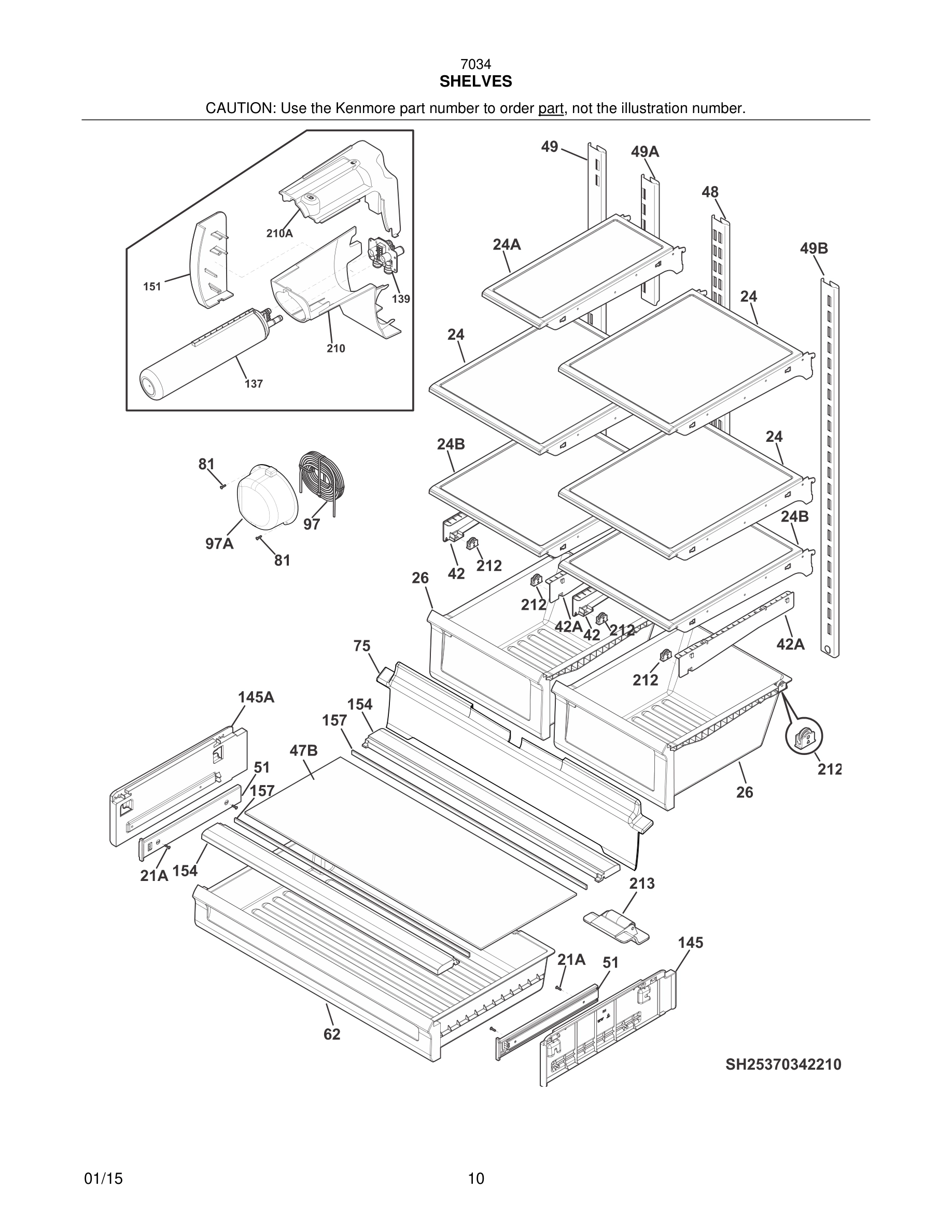

11 - SHELVES

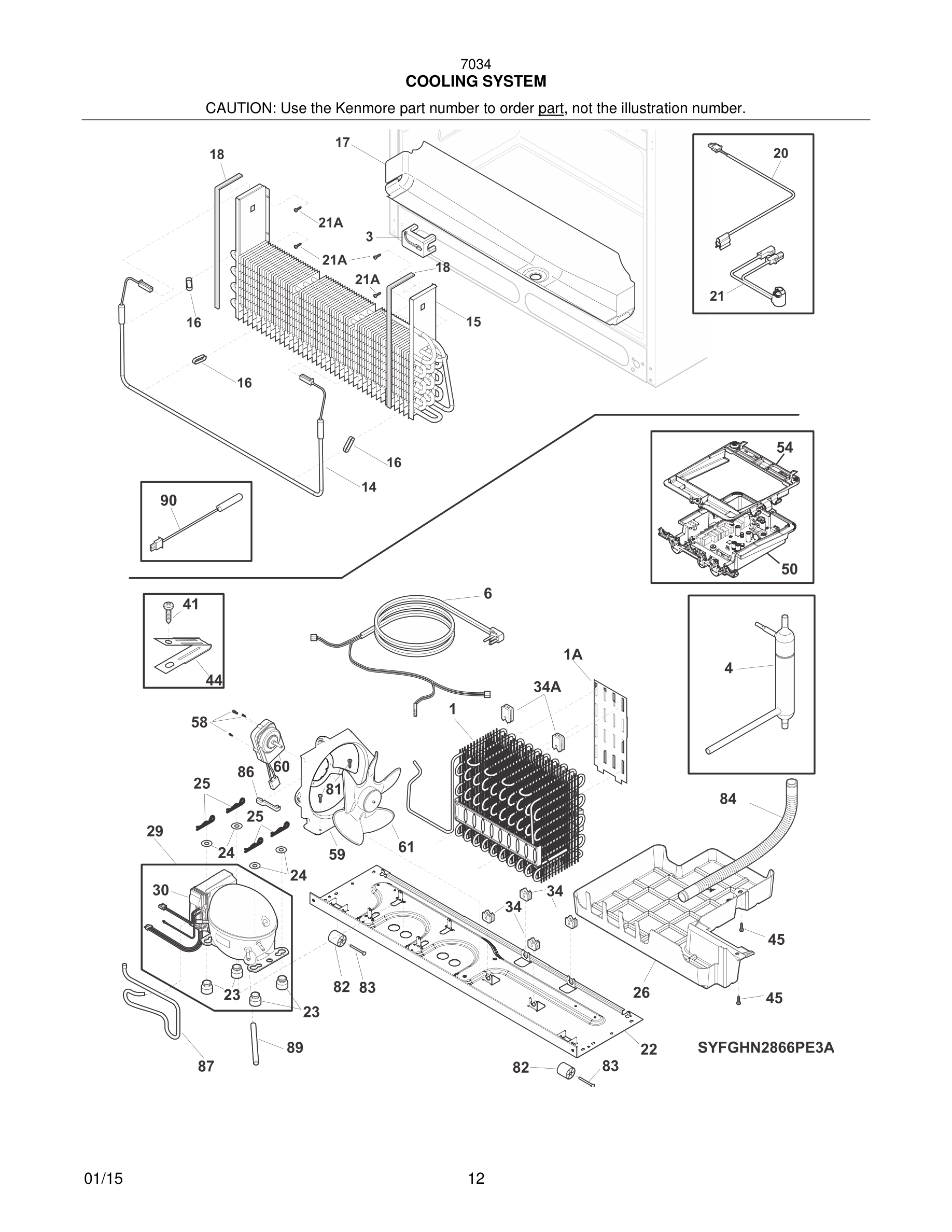

13 - COOLING SYSTEM

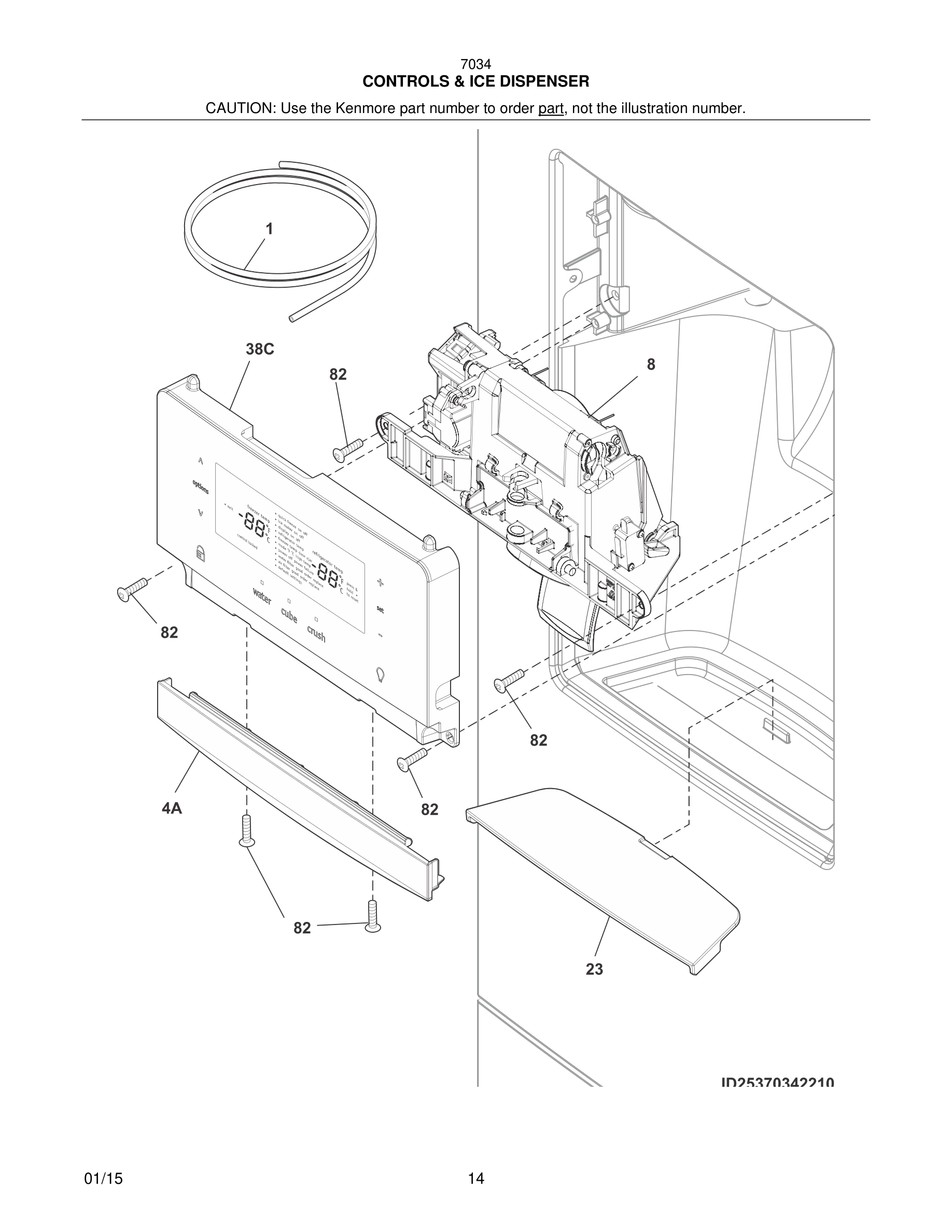

15 - CONTROLS & ICE DISPENSER

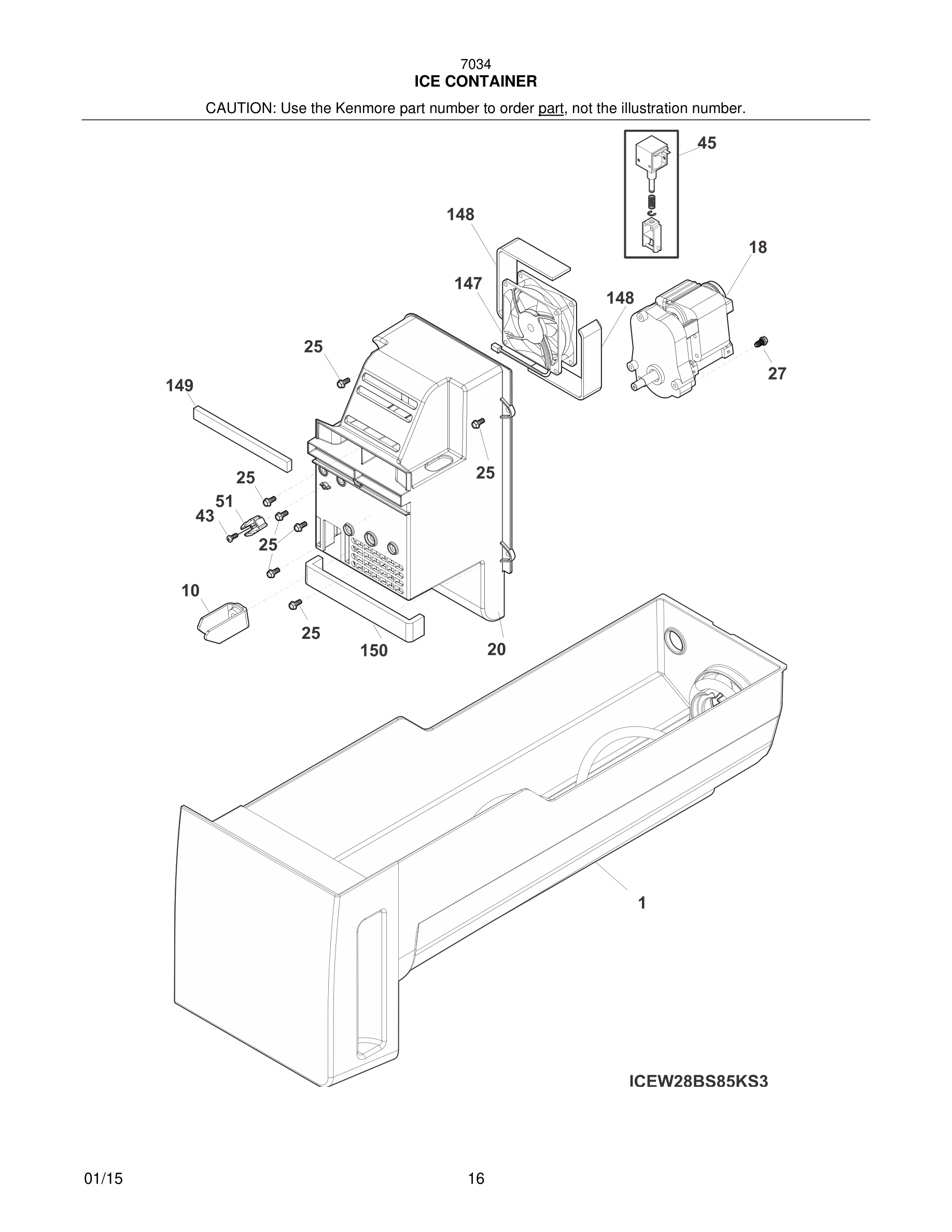

17 - ICE CONTAINER

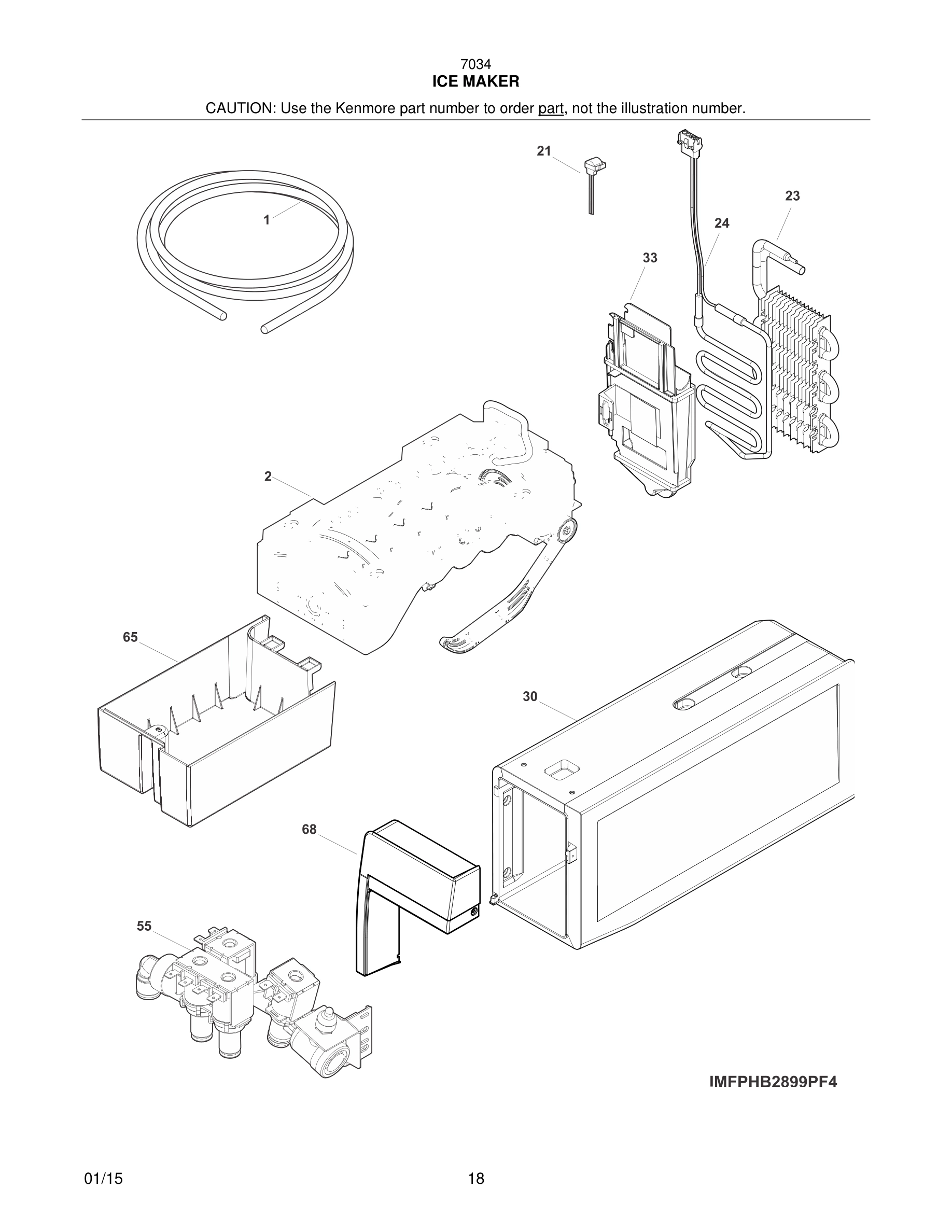

19 - ICE MAKER
20 - WIRING DIAGRAM

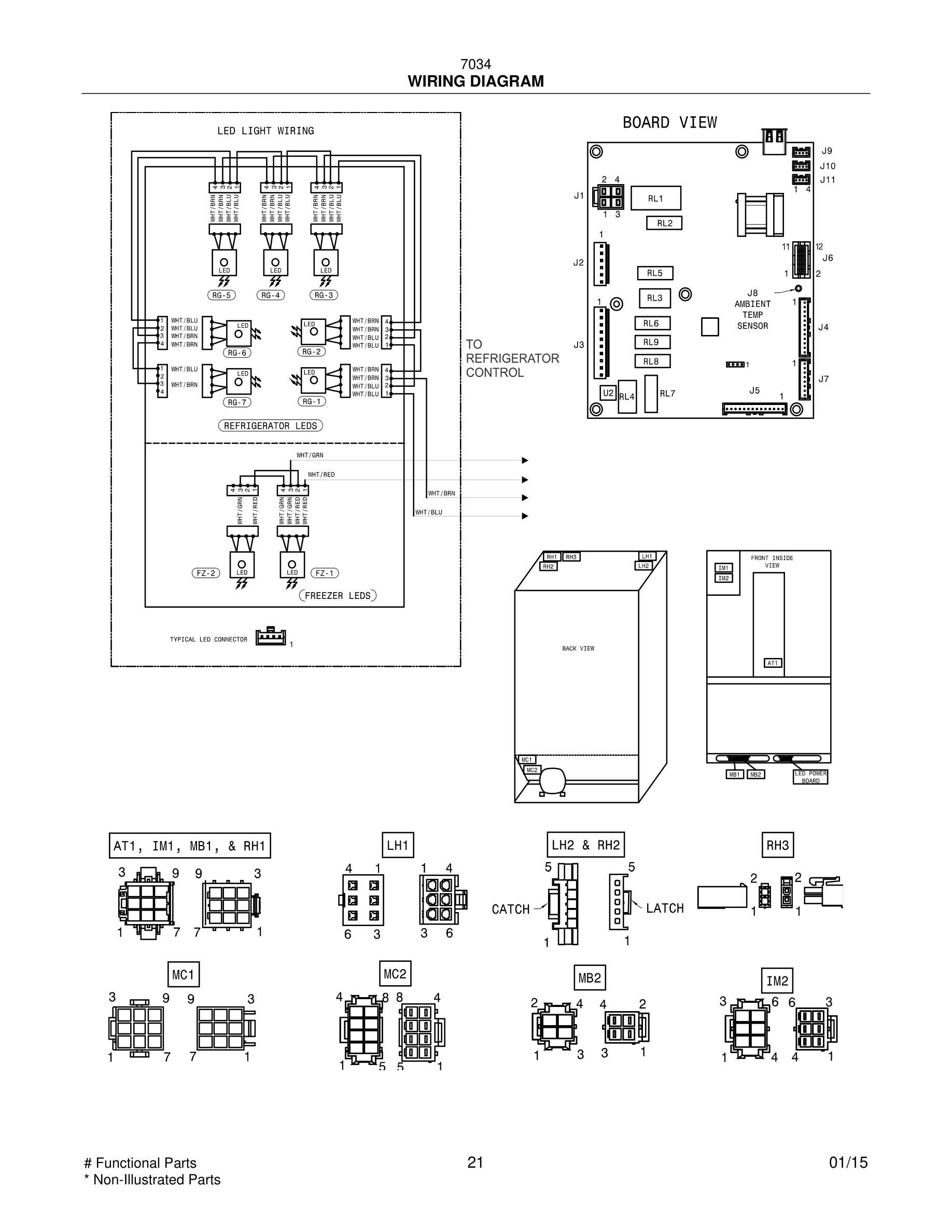

21 - WIRING DIAGRAM
Common parts from model Kenmore 253.70349413 REFRIGERATOR
10
Cover-air duct WCI 242072002 No Longer Available
12
Insulation-air duct WCI 242072401 Contact Us For Availability
12
Nameplate, black, Kenmore WCI 242052402 Contact Us For Availability
18
Handle-door, FF, black, w/set screws WCI 242198303 Contact Us For Availability
22
Cam, upper hinge, RH WCI 242075601 Contact Us For Availability
33
Housing-evaporator WCI 242094401 Contact Us For Availability
37
Trim-cabinet corner, black, (2) WCI 240337610 Contact Us For Availability
49A
Basket-frzr, upper WCI 241780810 Contact Us For Availability
51
Slide Assembly, basket, RH, freezer drawer WCI 242130518 Contact Us For Availability
52
Slide Assembly, basket, LH, freezer drawer WCI 242130517 Contact Us For Availability
54
Support, housing, main board WCI 807854301 Contact Us For Availability
62
Pan-deli WCI 242096808 Contact Us For Availability
87
Tube-connector, suction WCI 241871501 Contact Us For Availability
89
Tube-process WCI 215346900 Contact Us For Availability
90
Bar-timing WCI 242136901 Contact Us For Availability
97A
Cover-water tank WCI 242117301 Contact Us For Availability
154
Support WCI 242082401 Contact Us For Availability
157
Beam-crisper cover WCI 241872201 No Longer Available
× ![]()
