Model Kenmore 253.70349210 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
03 - FREEZER DRAWER, BASKETS
05 - FRESH FOOD DOOR

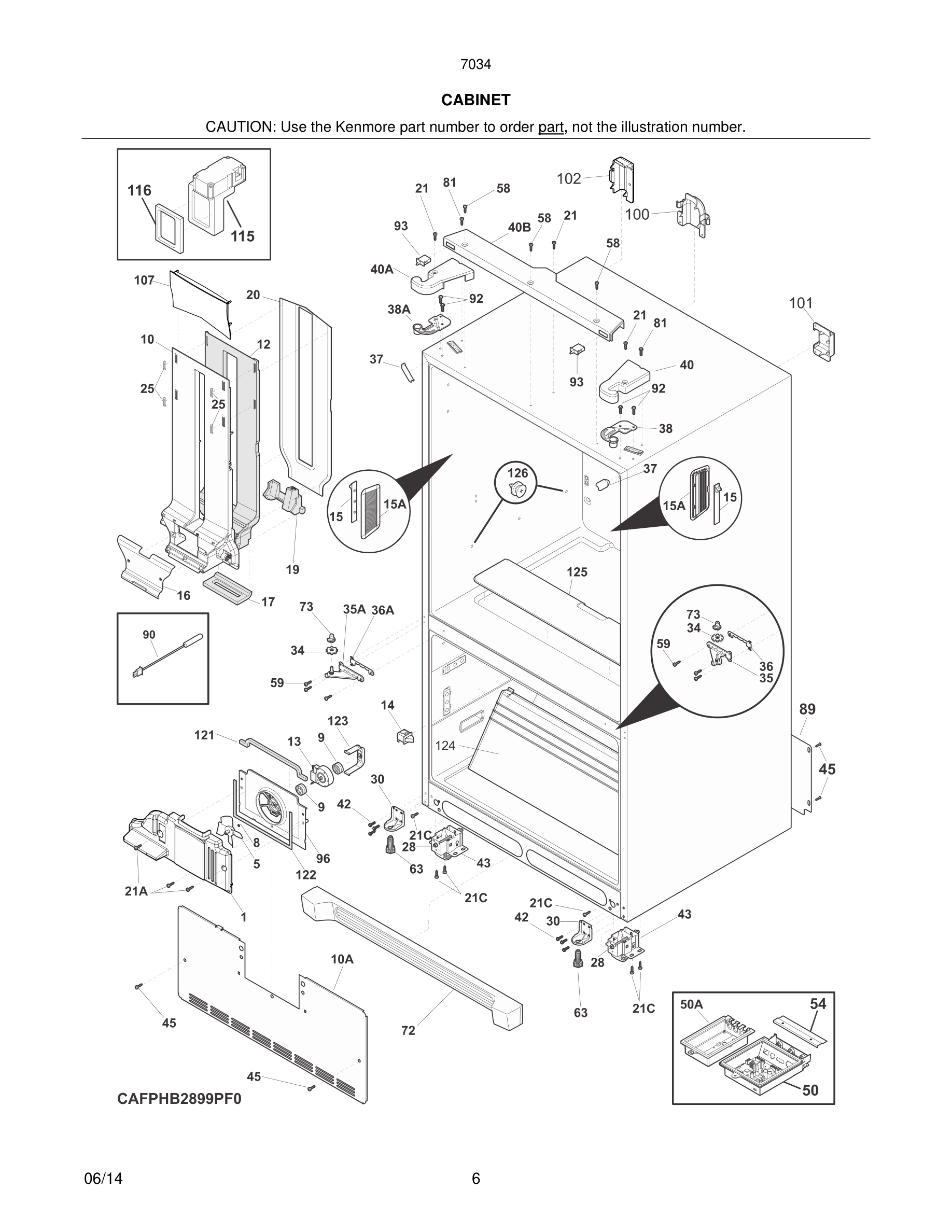

07 - CABINET
09 - CABINET

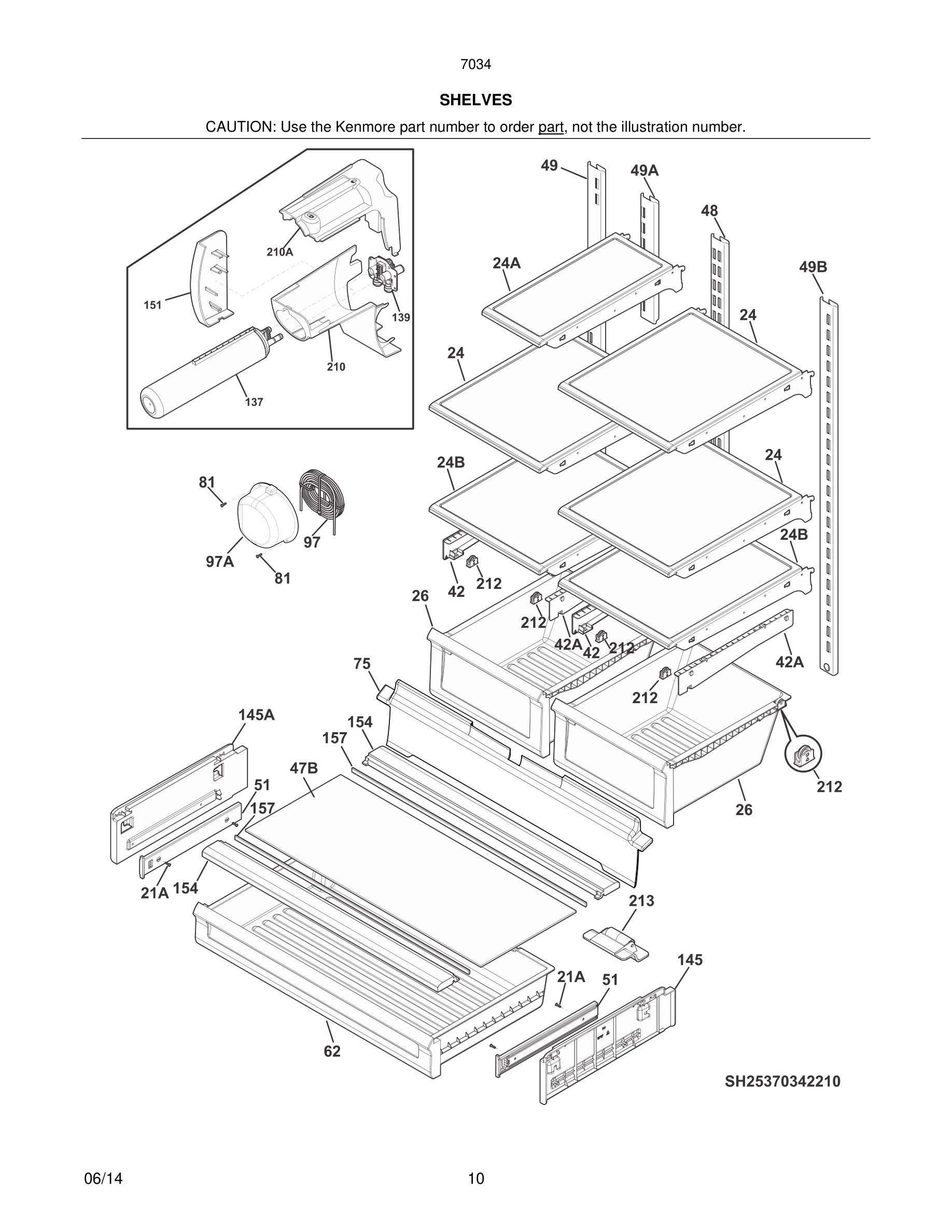

11 - SHELVES

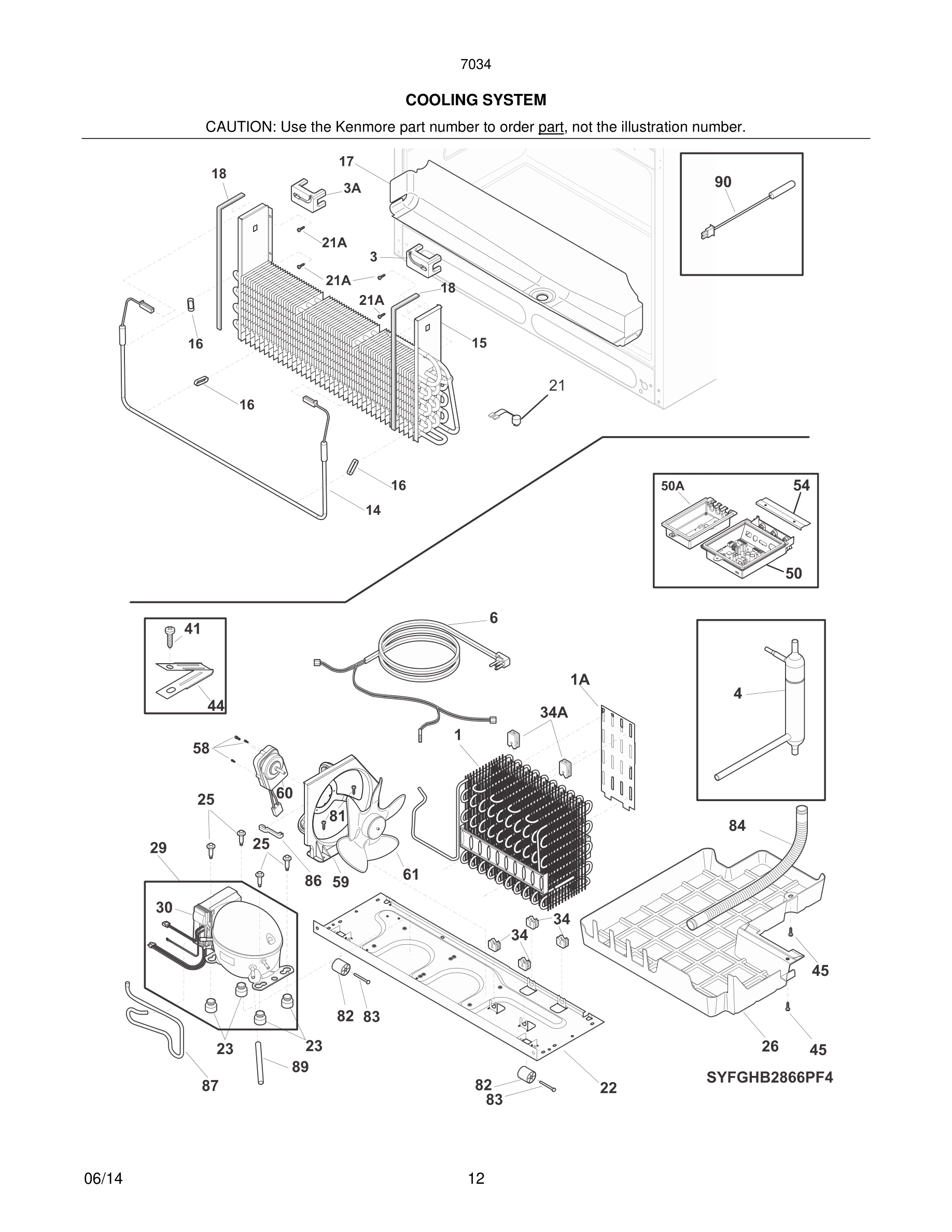

13 - COOLING SYSTEM

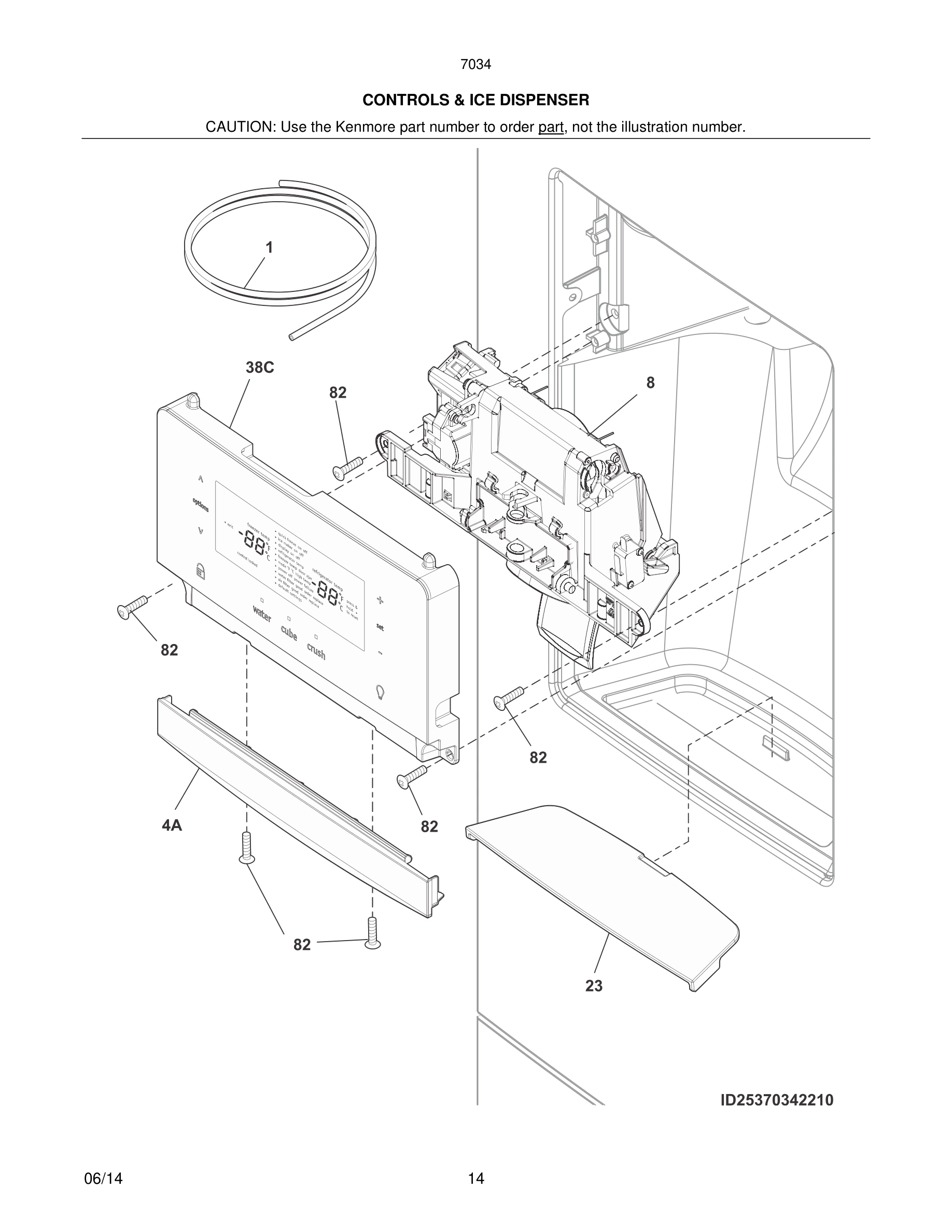

15 - CONTROLS & ICE DISPENSER

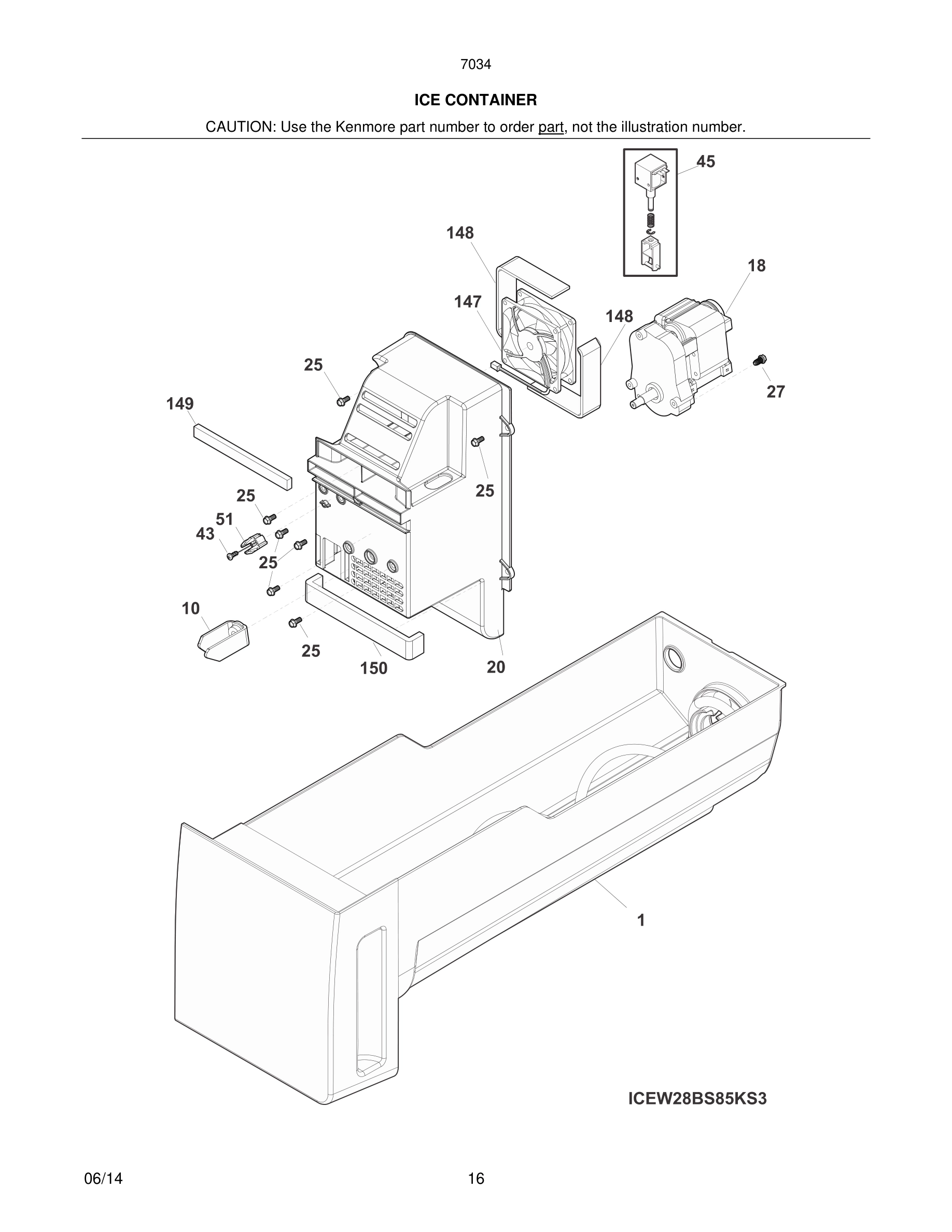

17 - ICE CONTAINER

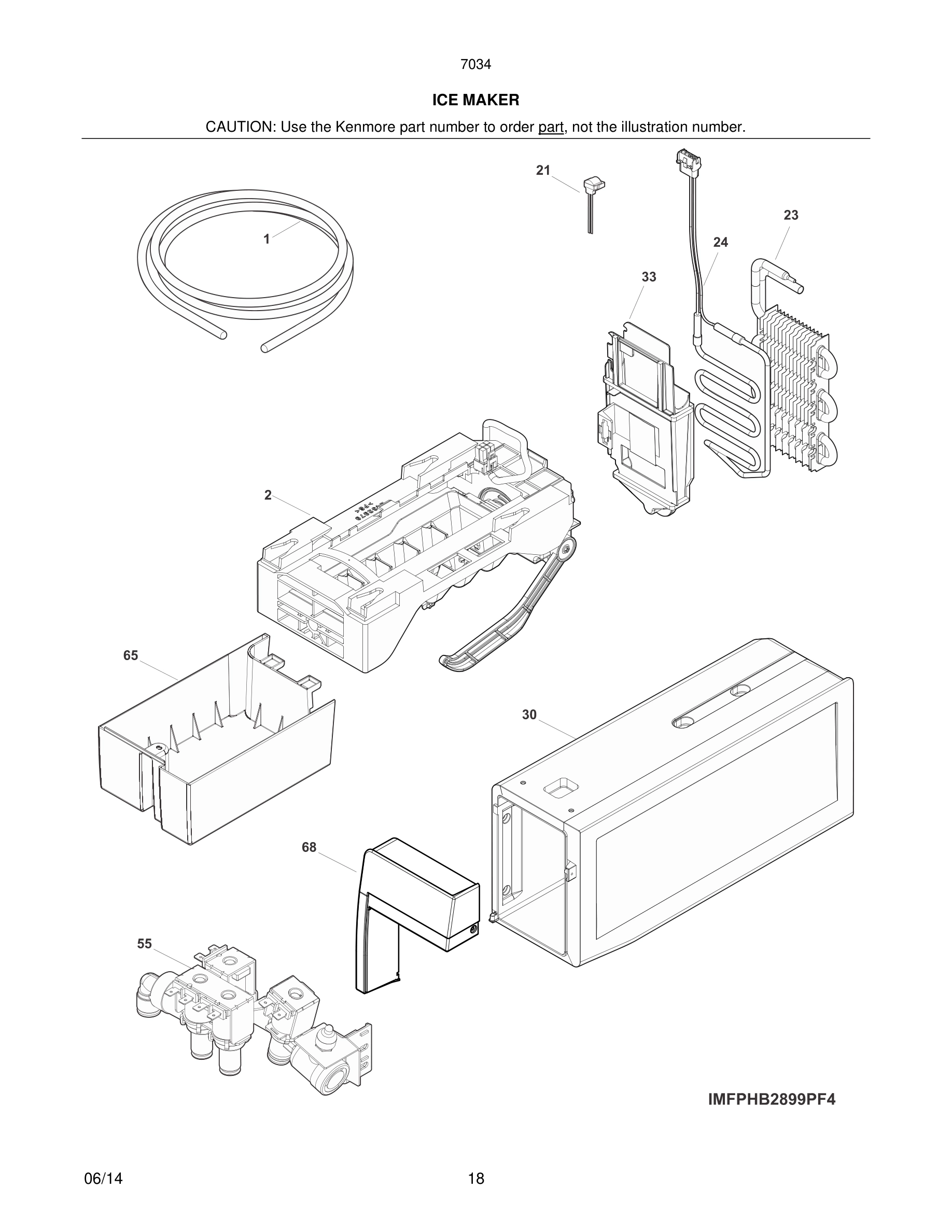

19 - ICE MAKER

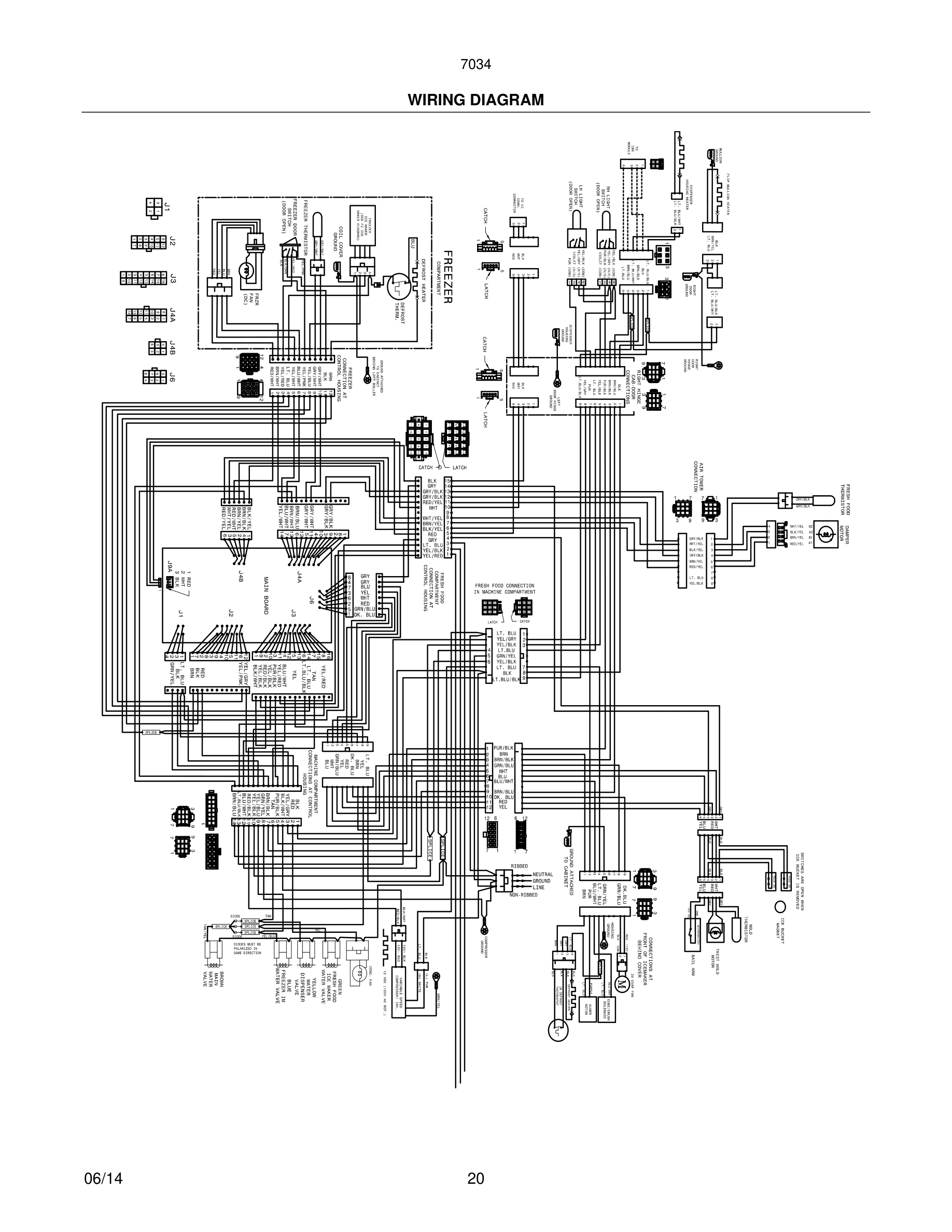

20 - WIRING DIAGRAM

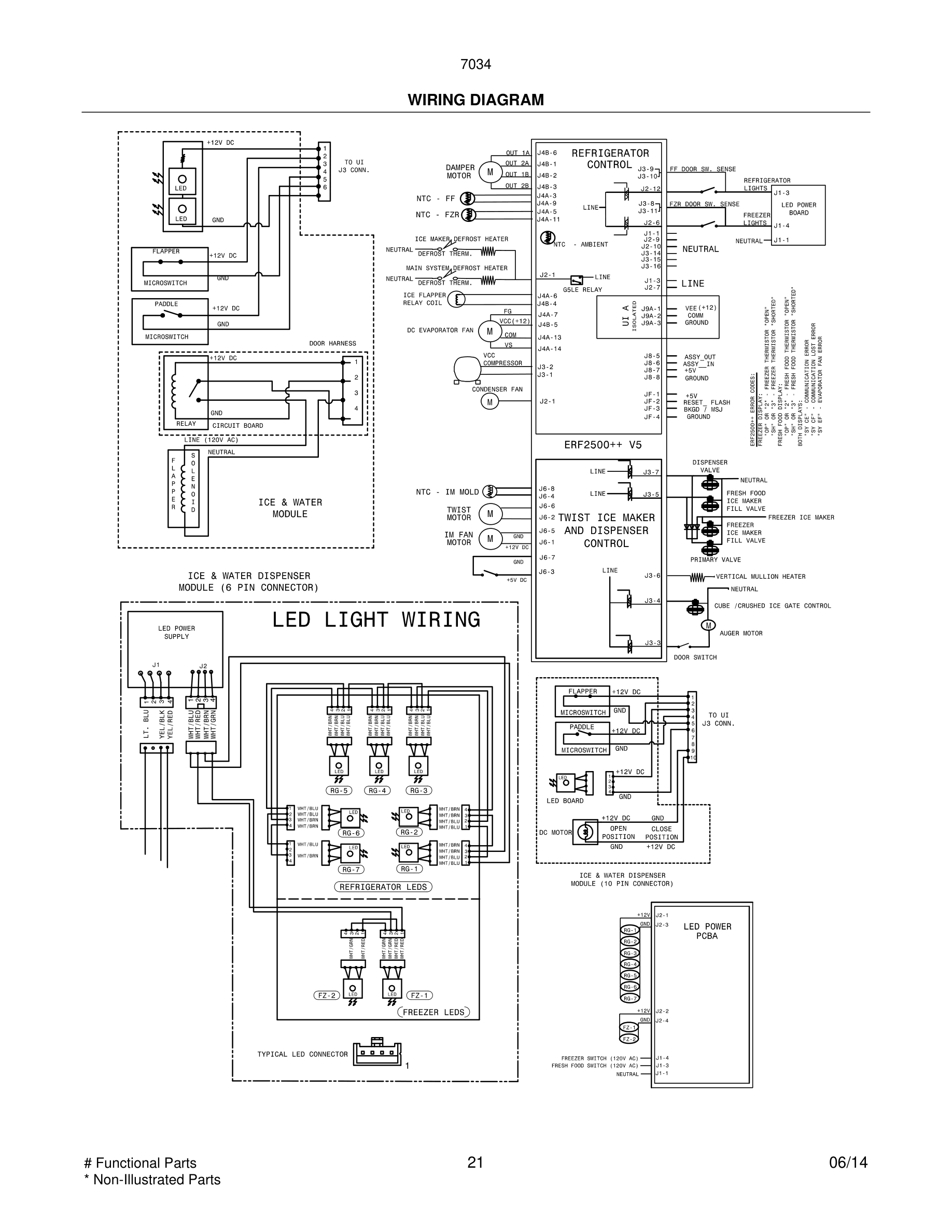

21 - WIRING DIAGRAM
Common parts from model Kenmore 253.70349210 REFRIGERATOR
10
Cover-air duct WCI 242072002 No Longer Available
12
Insulation-air duct WCI 242072401 Contact Us For Availability
12
Nameplate, black, Kenmore WCI 242052402 Contact Us For Availability
18
Handle-door, FF, black, w/set screws WCI 242198303 Contact Us For Availability
22
Cam, upper hinge, RH WCI 242075601 Contact Us For Availability
25
Screw-compressor mtg, 1/4-28 x 1.16, (4) WCI 240491503 Contact Us For Availability
33
Housing-evaporator WCI 242094401 Contact Us For Availability
37
Trim-cabinet corner, black, (2) WCI 240337610 Contact Us For Availability
49A
Basket-frzr, upper WCI 241780810 Contact Us For Availability
54
Channel WCI 241532401 No Longer Available
62
Pan-deli WCI 242096808 Contact Us For Availability
87
Tube-connector, suction WCI 241871501 Contact Us For Availability
89
Tube-process WCI 215346900 Contact Us For Availability
90
Bar-timing WCI 242136901 Contact Us For Availability
97A
Cover-water tank WCI 242117301 Contact Us For Availability
154
Support WCI 242082401 Contact Us For Availability
157
Beam-crisper cover WCI 241872201 No Longer Available
× ![]()
