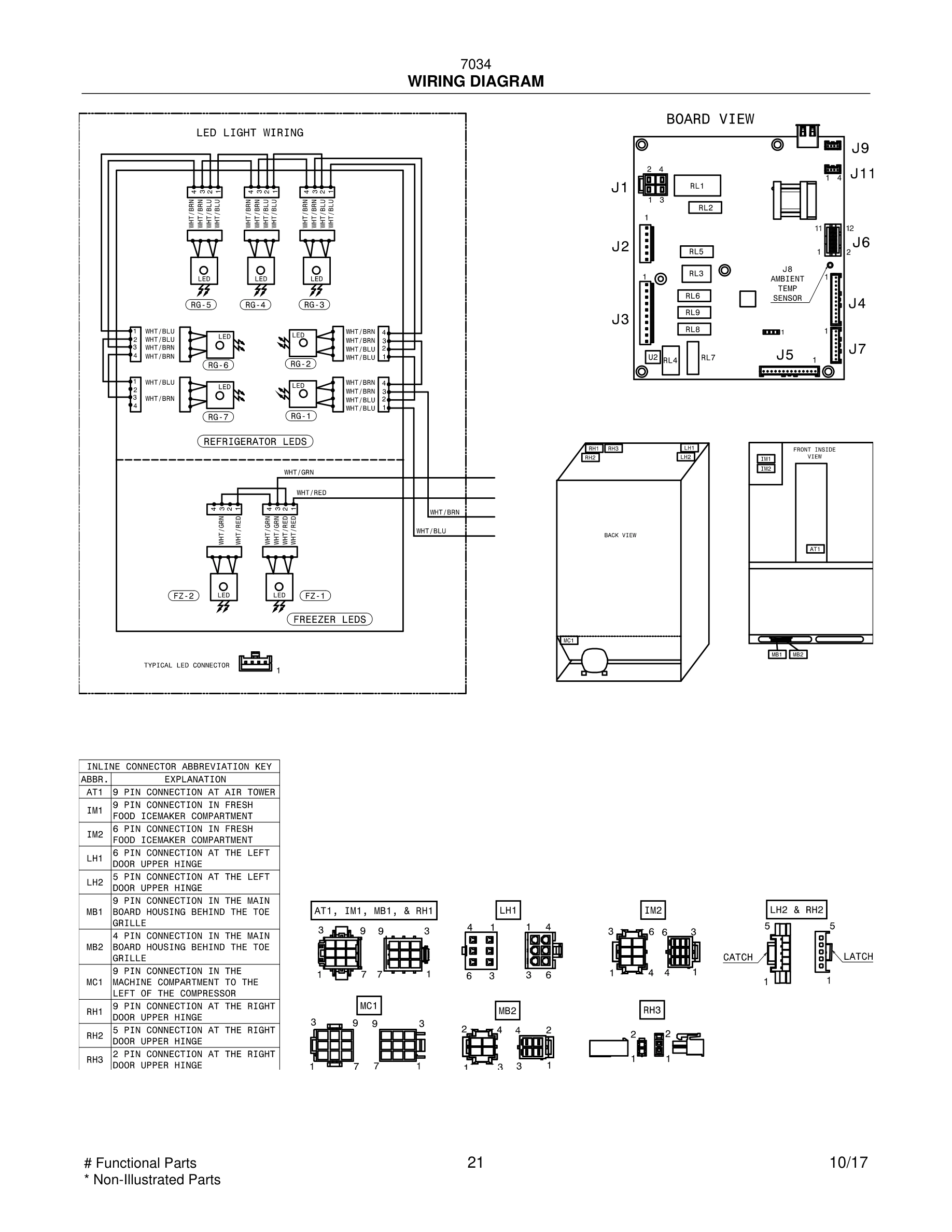

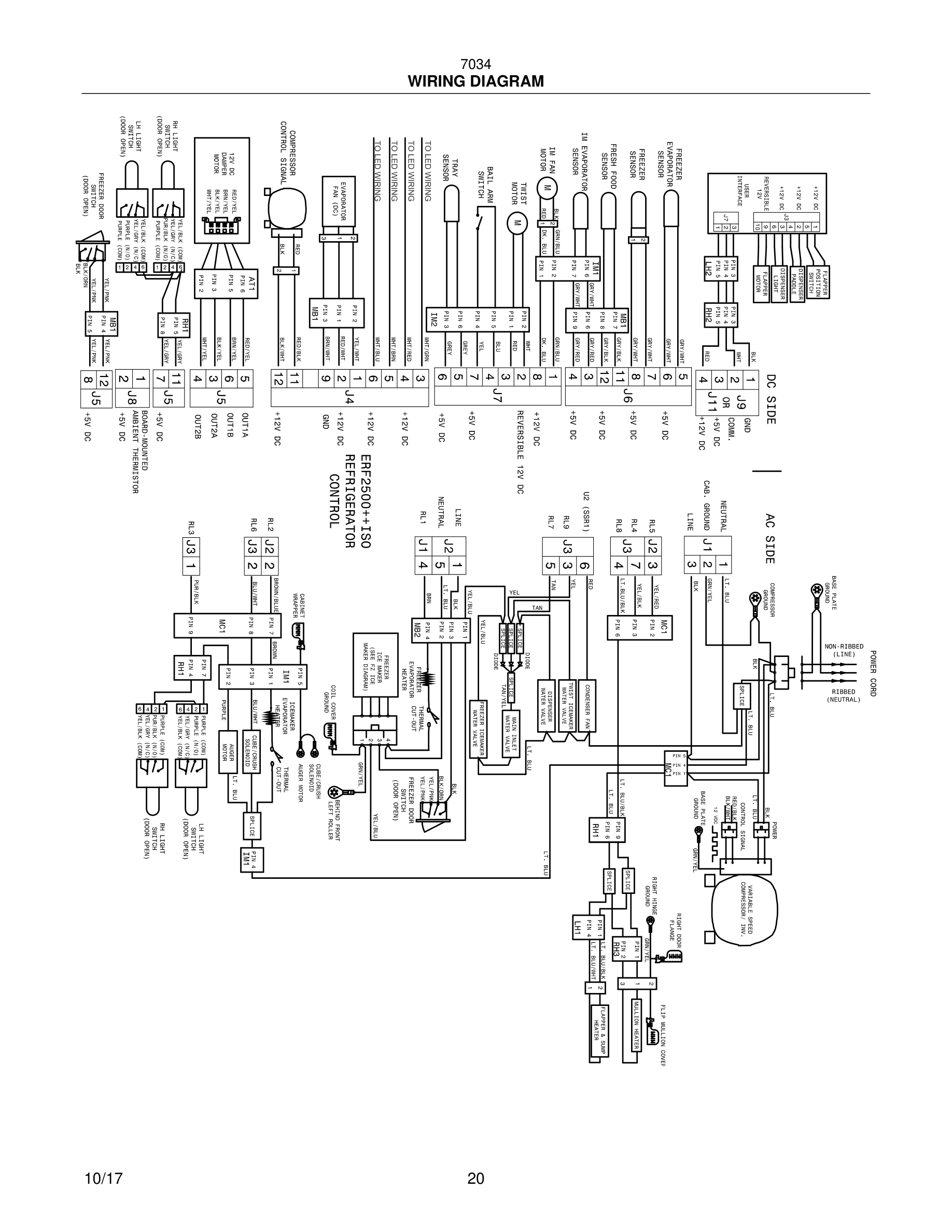

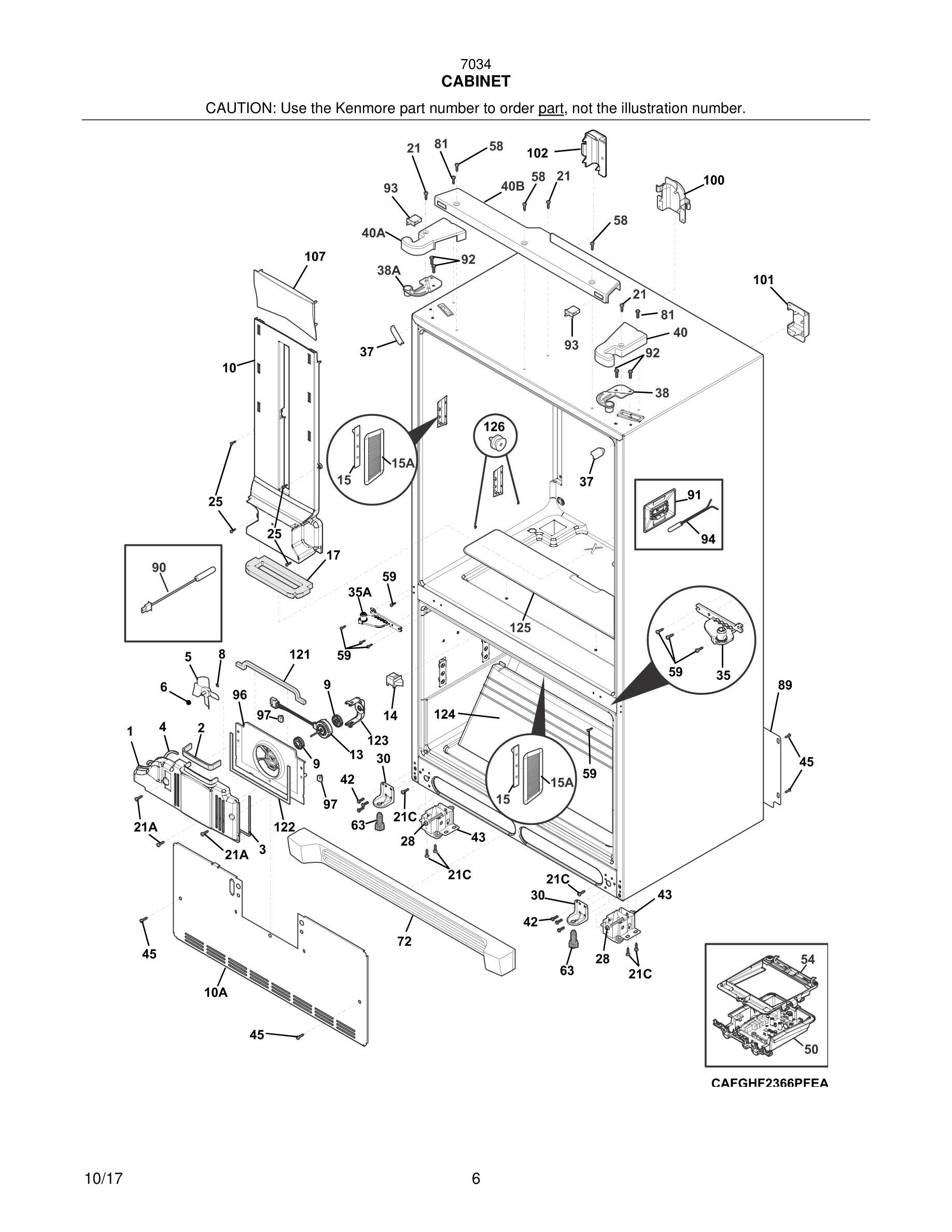

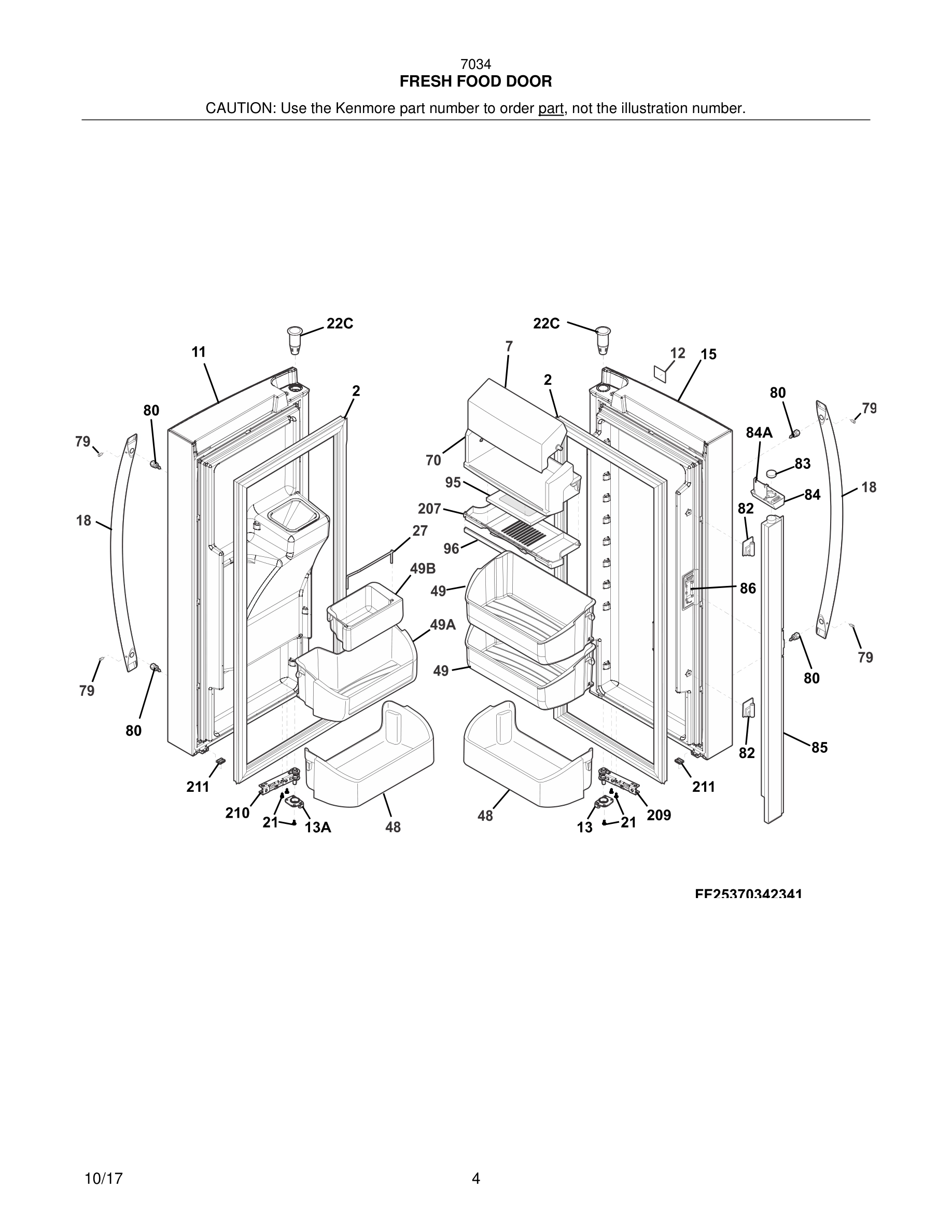

Model Kenmore 253.7034341E REFRIGERATOR – Common Parts &amp; Diagrams

*

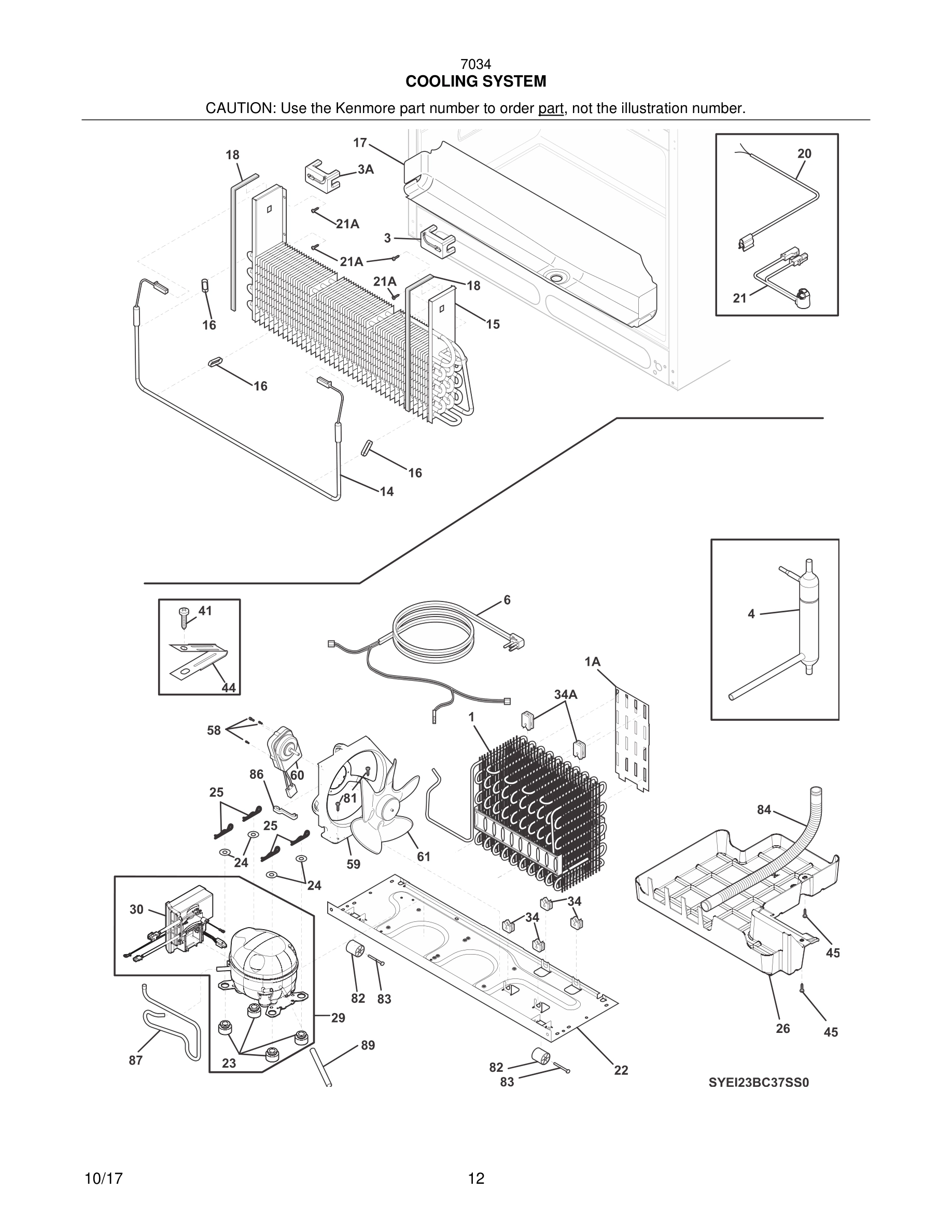

241503901 Frigidaire Refrigerator P-1 Tube Ad In Stock WCI 241503901 $32.75

*

241947701 Frigidaire Refrigerator Spacer Backorder WCI 241947701 $59.15

*

242146401 Frigidaire Refrigerator Screw In Stock WCI 242146401 $9.12

*

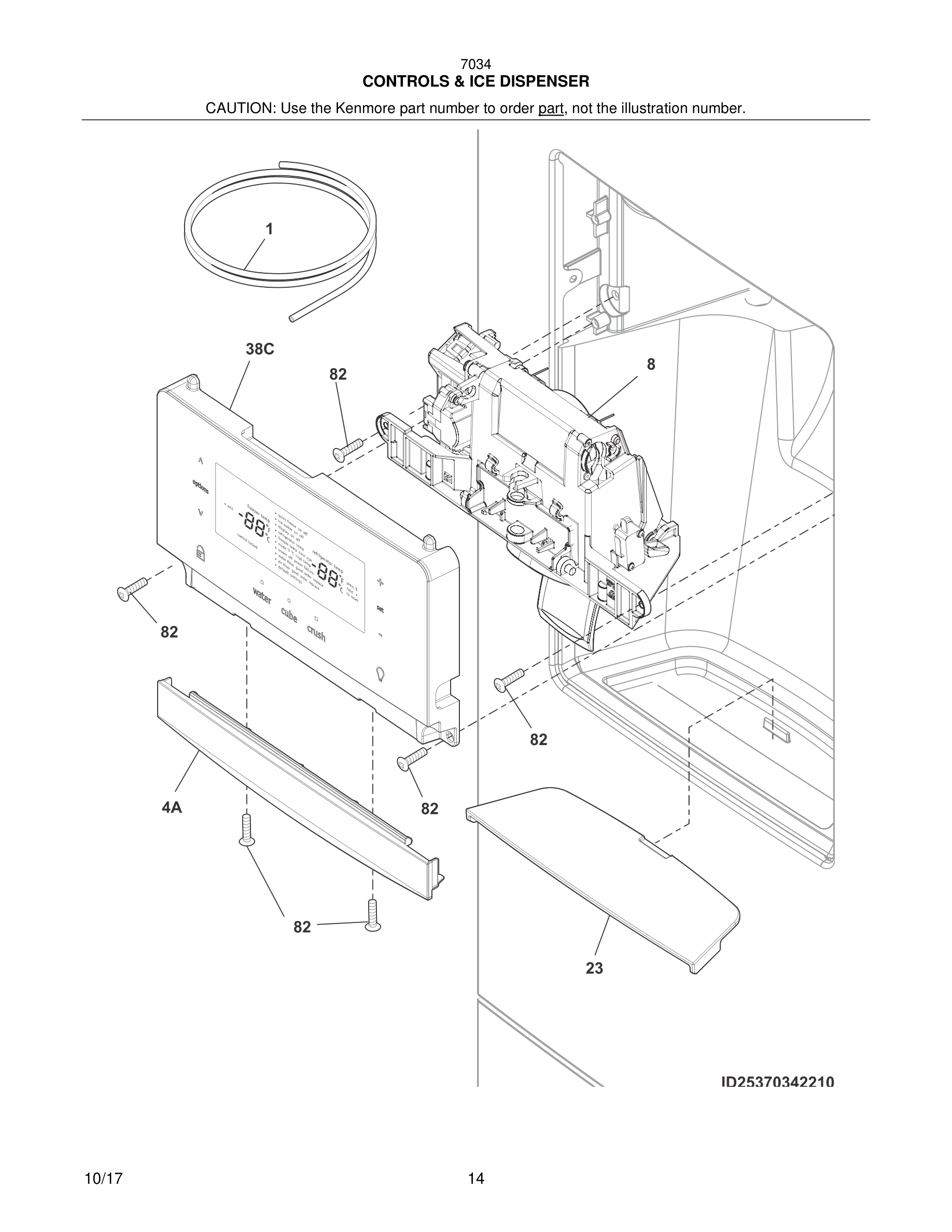

5303918596 Frigidaire Refrigerator Dispenser In Stock WCI 5303918596 $201.65

*#

241510904 Frigidaire Refrigerator Dispenser H Backorder WCI 241510904 $38.53

*#

5303918445 Frigidaire Refrigerator Heat Excha Backorder WCI 5303918445 $260.79

*#

5304521784 Frigidaire Refrigerator Harness Backorder WCI 5304521784 $36.68

1

218976436 Frigidaire Refrigerator Water Inlet In Stock WCI 218976436 $5.42

1

5304503130 Frigidaire Refrigerator Cover In Stock WCI 5304503130 $45.55

1#

241862903 Frigidaire Refrigerator Condenser In Stock WCI 241862903 $80.65

1#

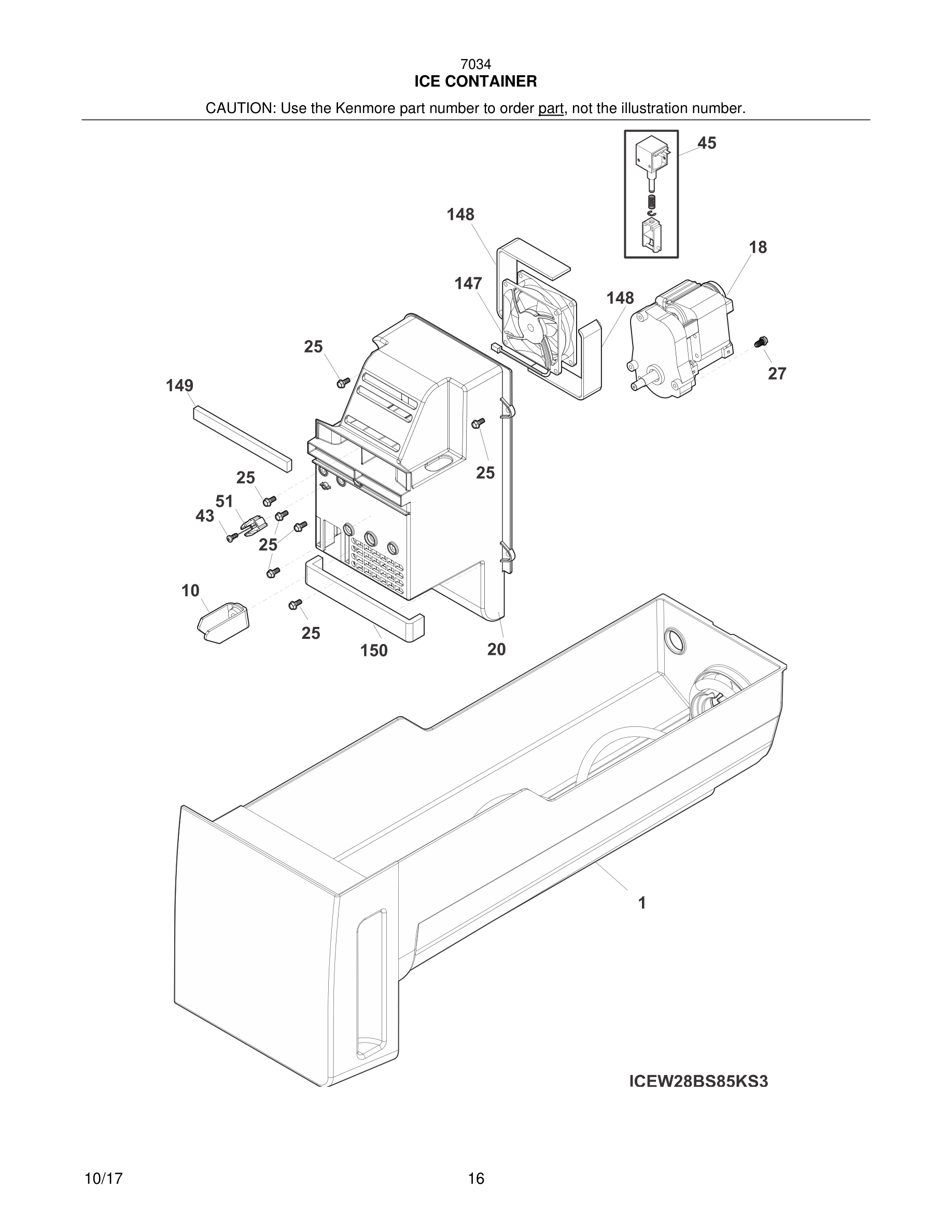

242093005 Frigidaire Refrigerator Ice Contain Backorder WCI 242093005 $172.07

1#

5304537408 Frigidaire Gasket In Stock WCI 5304537408 $51.94

241844403 Frigidaire Refrigerator Tube Backorder WCI 241844403 $14.92

241964707 Frigidaire Refrigerator Water Tube In Stock WCI 241964707 $11.76

241965906 Frigidaire Refrigerator Water Tube Backorder WCI 241965906 $15.38

242220202 Frigidaire Refrigerator Water Inlet Backorder WCI 242220202 $18.58

242220204 Frigidaire Water Inlet Tube In Stock WCI 242220204 $23.11

2#

241778315 Frigidaire Door Gasket In Stock WCI 241778315 $62.39

2#

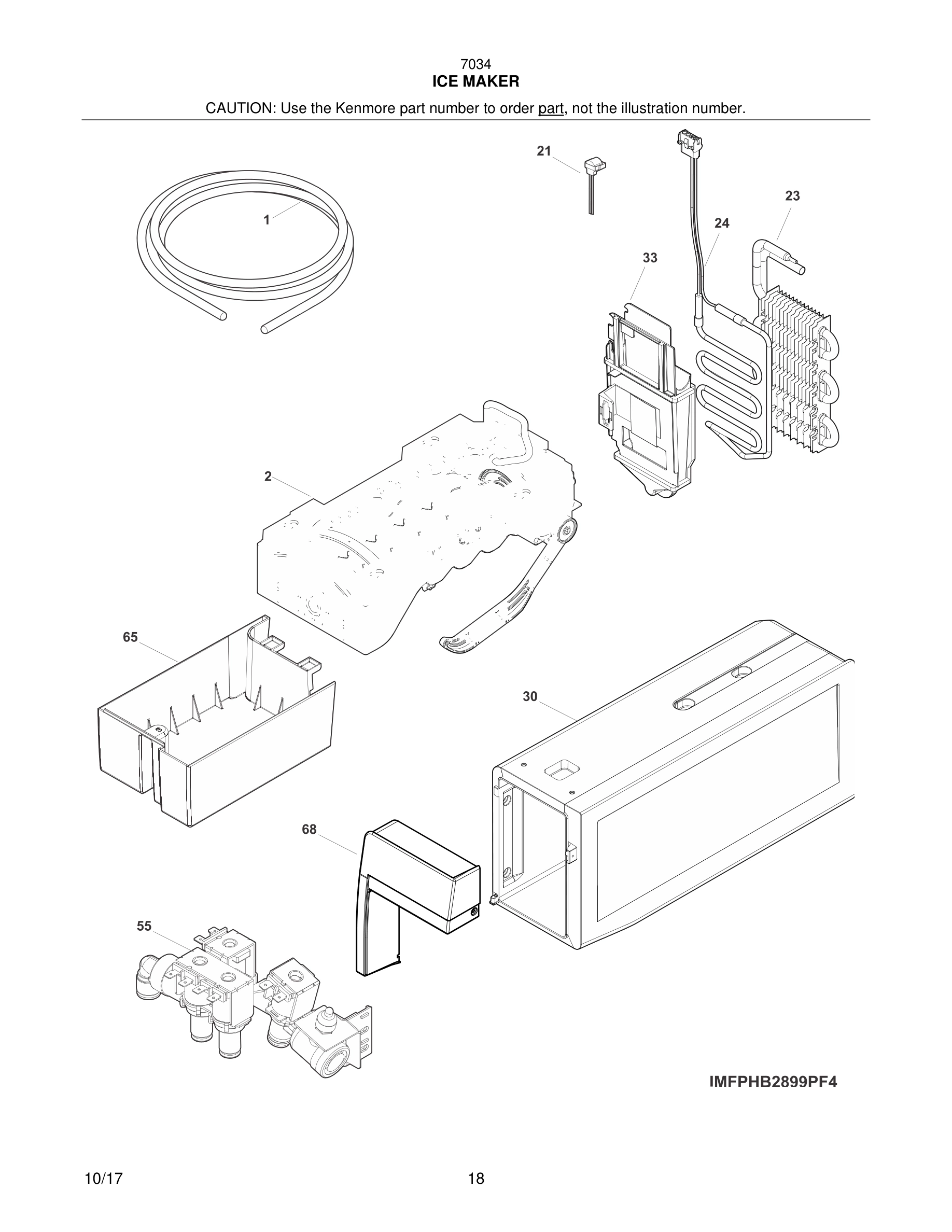

243297613 Frigidaire Refrigerator Ice Maker In Stock WCI 243297613 $83.30

3

241860111 Frigidaire Refrigerator Evaporator Backorder WCI 241860111 $7.67

4#

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $8.86

4A

242194301 Frigidaire Refrigerator Trim Backorder WCI 242194301 $65.29

5#

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

6#

241516904 Frigidaire Refrigerator Service Cor In Stock WCI 241516904 $23.09

6*#

808165201 Frigidaire Refrigerator Harness Backorder WCI 808165201 $109.86

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

8#

242270104 Frigidaire Refrigerator Module Backorder WCI 242270104 $152.14

9

5304508006 Frigidaire Refrigerator Bushing Backorder WCI 5304508006 $7.67

10

241829001 Frigidaire Refrigerator Bar Drive In Stock WCI 241829001 $36.99

10#

5304508741 Frigidaire Refrigerator Air Tower Backorder WCI 5304508741 $133.07

10*

242004802 Frigidaire Refrigerator Foam Strip Backorder WCI 242004802 $3.61

10A

241860402 Frigidaire Refrigerator Evaporator Backorder WCI 241860402 $78.78

10A*

241860104 Frigidaire Refrigerator Coil Cover Backorder WCI 241860104 $19.03

10A*

241860105 Frigidaire Refrigerator Coil Cover Backorder WCI 241860105 $10.85

11

Drawer, stainless, freezer WCI 241987947 Contact Us For Availability

13

5304508039 Frigidaire Refrigerator Door Stop Backorder WCI 5304508039 $13.61

13#

809069206 Frigidaire Refrigerator Motor In Stock WCI 809069206 $81.79

13A

5304508038 Frigidaire Refrigerator Door Stop Backorder WCI 5304508038 $13.57

14#

242060202 Frigidaire Refrigerator Light Switc Backorder WCI 242060202 $25.81

14#

5303918410 Frigidaire Refrigerator Defrost He In Stock WCI 5303918410 $67.51

15

5304525264 Frigidaire LED Light In Stock WCI 5304525264 $33.52

15#

5303918569 Frigidaire Refrigerator Evaporator In Stock WCI 5303918569 $161.98

15*#

807999001 Frigidaire Refrigerator Harness Backorder WCI 807999001 $88.95

15A

242202701 Frigidaire Refrigerator Lens In Stock WCI 242202701 $17.12

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

17

241791201 Frigidaire Refrigerator Drain Troug Backorder WCI 241791201 $69.03

17

5304508008 Frigidaire Refrigerator Gasket In Stock WCI 5304508008 $18.67

18

241860101 Frigidaire Refrigerator Gasket Backorder WCI 241860101 $11.32

18

242198301 Frigidaire Refrigerator Door Handle In Stock WCI 242198301 $92.45

18

242198501 Frigidaire Refrigerator Drawer Hand In Stock WCI 242198501 $89.32

18#

241816602 Frigidaire Refrigerator Auger Motor In Stock WCI 241816602 $117.28

18*#

Harness-wiring, air handler WCI 242095806 Contact Us For Availability

20

5304508036 Frigidaire Refrigerator Housing Backorder WCI 5304508036 $54.68

20#

5303918776 Frigidaire Refrigerator Thermistor In Stock WCI 5303918776 $13.16

21

241690602 Frigidaire Refrigerator Screw In Stock WCI 241690602 $5.64

21

241732101 Frigidaire Refrigerator Screw Backorder WCI 241732101 $9.97

21

242017501 Frigidaire Refrigerator Screw Backorder WCI 242017501 $9.95

21#

5303918568 Frigidaire Thermostat Defrost In Stock WCI 5303918568 $57.81

21#

5304521781 Frigidaire Refrigerator Thermostat In Stock WCI 5304521781 $27.92

21A

218362501 Frigidaire Refrigerator Screw Backorder WCI 218362501 $7.71

21A

242015001 Frigidaire Refrigerator Screw Backorder WCI 242015001 $10.41

22*

218252201 Frigidaire Refrigerator Screw In Stock WCI 218252201 $9.04

22C

241760401 Frigidaire Refrigerator Bearing In Stock WCI 241760401 $12.20

23

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

23

242176503 Frigidaire Refrigerator Sump In Stock WCI 242176503 $72.16

23

5304501541 Frigidaire Refrigerator Gasket Backorder WCI 5304501541 $10.41

23#

242094701 Frigidaire Refrigerator Evaporator In Stock WCI 242094701 $33.50

240383412 Frigidaire Refrigerator Screw In Stock WCI 240383412 $7.30

241812301 Frigidaire Refrigerator Compressor Backorder WCI 241812301 $7.71

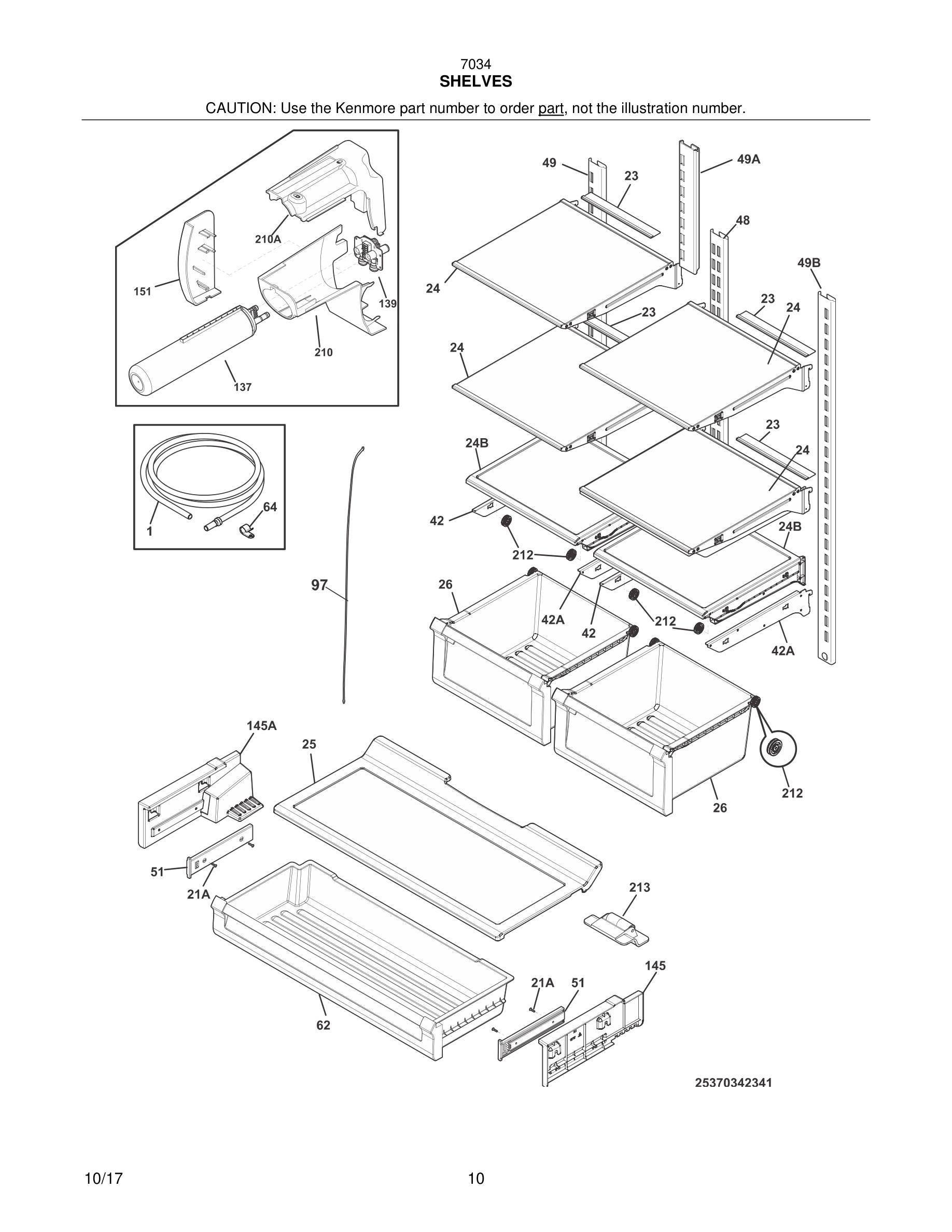

242068718 Frigidaire Refrigerator Shelf Backorder WCI 242068718 $96.80

242094804 Frigidaire Refrigerator Defrost Hea In Stock WCI 242094804 $62.29

24B

5304508067 Frigidaire Refrigerator Crisper Co In Stock WCI 5304508067 $97.22

25

241949502 Frigidaire Refrigerator Clip Backorder WCI 241949502 $12.20

25

242037702 Frigidaire Refrigerator Spring Clip Backorder WCI 242037702 $5.42

25

5304508025 Frigidaire Refrigerator Cover In Stock WCI 5304508025 $90.69

26

241920609 Frigidaire Side-by-Side Defrost Pan Backorder WCI 241920609 $80.76

26

5304508854 Frigidaire Crisper Drawer In Stock WCI 5304508854 $118.37

26*

241695904 Frigidaire Refrigerator Screw Backorder WCI 241695904 $8.60

27

241752703 Frigidaire Refrigerator Retainer Backorder WCI 241752703 $33.06

29#

241706201 Frigidaire Refrigerator Compressor In Stock WCI 241706201 $577.71

30

241778702 Frigidaire Refrigerator Anti-Tip Br Backorder WCI 241778702 $12.18

30

242142203 Frigidaire Refrigerator Cover Backorder WCI 242142203 $122.80

30#

241577505 Frigidaire Refrigerator Inverter In Stock WCI 241577505 $195.55

30*

5303918784 Frigidaire Refrigerator Air Handle In Stock WCI 5303918784 $70.55

33

Housing-evaporator WCI 242094401 Contact Us For Availability

33*

242095425 Frigidaire Gasket Backorder WCI 242095425 $6.47

35

5304508044 Frigidaire Refrigerator Hinge Asse Backorder WCI 5304508044 $25.81

35A

5304508045 Frigidaire Refrigerator Hinge Asse Backorder WCI 5304508045 $28.81

37

242161206 Frigidaire Refrigerator Cabinet Cor Backorder WCI 242161206 $6.32

38

241761301 Frigidaire Upper Bracket Hinge Backorder WCI 241761301 $41.88

38A

241761302 Frigidaire Refrigerator Upper Hinge In Stock WCI 241761302 $40.78

38C#

5304508772 Frigidaire Refrigerator Control As Backorder WCI 5304508772 $171.24

40B

241862405 Frigidaire Refrigerator Upper Hinge Backorder WCI 241862405 $63.01

40B*

218515401 Frigidaire Refrigerator Clip In Stock WCI 218515401 $11.32

41

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

42

240578902 Frigidaire Screw Mounting Hinge In Stock WCI 240578902 $9.04

42

5304508034 Frigidaire Shelf Support Rail In Stock WCI 5304508034 $51.54

42A

5304508033 Frigidaire Shelf Support Rail Backorder WCI 5304508033 $51.10

43

241641502 Frigidaire Refrigerator Screw Backorder WCI 241641502 $5.40

45

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $2.72

45

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

48

242071401 Frigidaire Refrigerator White Door Backorder WCI 242071401 $55.34

48

242122101 Frigidaire Refrigerator Channel She Backorder WCI 242122101 $50.66

49

242079701 Frigidaire Refrigerator Door Bin In Stock WCI 242079701 $63.85

49

5304508035 Frigidaire Refrigerator Shelf Moun Backorder WCI 5304508035 $57.83

49

5304525892 Frigidaire Refrigerator Freezer Ba Backorder WCI 5304525892 $108.95

49A

241780810 Frigidaire Refrigerator Basket Backorder WCI 241780810 $128.44

49A

242071301 Frigidaire Refrigerator Clear Door In Stock WCI 242071301 $57.50

49A

242122001 Frigidaire Refrigerator Shelf Mount Backorder WCI 242122001 $28.07

49B

242011701 Frigidaire Bin Shelf Door Backorder WCI 242011701 $31.25

49B

242122301 Frigidaire Refrigerator Shelf Mount Backorder WCI 242122301 $49.31

50

5304501271 Frigidaire Shelf Clip In Stock WCI 5304501271 $9.95

50#

5304508862 Frigidaire Refrigerator Board Asse In Stock WCI 5304508862 $188.53

51

242095501 Frigidaire Refrigerator Anti-Twist Backorder WCI 242095501 $13.13

51

242197901 Frigidaire Refrigerator Slide Backorder WCI 242197901 $82.43

51

5304507978 Frigidaire Refrigerator Slide Asse In Stock WCI 5304507978 $143.26

51A

5304508096 Frigidaire Refrigerator Slide Asse Backorder WCI 5304508096 $80.67

51A*

242039701 Frigidaire Refrigerator Screw Backorder WCI 242039701 $8.60

52

5304507979 Frigidaire Refrigerator Slide Asse In Stock WCI 5304507979 $142.83

52A

5304508097 Frigidaire Refrigerator Slide Asse Backorder WCI 5304508097 $82.41

54

807854301 Frigidaire Refrigerator Support Backorder WCI 807854301 $29.01

55#

242253002 Frigidaire Refrigerator Water Valve In Stock WCI 242253002 $117.64

55*

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $8.14

58

241853202 Frigidaire Refrigerator Screw Backorder WCI 241853202 $6.32

59

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $4.97

59

241946106 Frigidaire Refrigerator Condenser F Backorder WCI 241946106 $28.97

59*

240346701 Frigidaire Refrigerator Foam Seal T In Stock WCI 240346701 $19.01

60#

242018301 Frigidaire Refrigerator Condenser F In Stock WCI 242018301 $80.30

61

241639502 Frigidaire Refrigerator Condenser F In Stock WCI 241639502 $11.41

62

Pan-deli WCI 242096808 Contact Us For Availability

63

216396900 Frigidaire Dryer Adjustable Levelin In Stock WCI 216396900 $14.92

64

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $12.24

65

808456301 Frigidaire Refrigerator Cover Backorder WCI 808456301 $47.66

68

242095002 Frigidaire Refrigerator Cover In Stock WCI 242095002 $57.06

68*

242096001 Frigidaire Refrigerator Insulation Backorder WCI 242096001 $11.78

72

242054804 Frigidaire Refrigerator Kickplate G Backorder WCI 242054804 $52.87

80

218755504 Frigidaire Refrigerator Shoulder Sc In Stock WCI 218755504 $8.60

81

134154100 Frigidaire Screw 10-32 x 0.375 Co In Stock WCI 134154100 $8.62

81

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.26

82

240335202 Frigidaire Refrigerator Roller Backorder WCI 240335202 $13.59

82

241779401 Frigidaire Refrigerator Flipper Hin In Stock WCI 241779401 $11.43

82

5304503705 Frigidaire Refrigerator Divider Backorder WCI 5304503705 $74.84

83

241812202 Frigidaire Refrigerator Magnet Backorder WCI 241812202 $45.70

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

84

241830904 Frigidaire Refrigerator Drain Tube In Stock WCI 241830904 $14.94

84

808274201 Frigidaire Door Guide Assembly In Stock WCI 808274201 $21.74

84*

242036801 Frigidaire Refrigerator Plastic Cli In Stock WCI 242036801 $60.94

84A

242190501 Frigidaire Refrigerator Mullion Ass Backorder WCI 242190501 $16.75

85

242130901 Frigidaire Refrigerator Divider Backorder WCI 242130901 $54.24

85

Flipper mullion assembly, white, w/heater WCI 242036301 Contact Us For Availability

85*

242068601 Frigidaire Refrigerator Bumper Backorder WCI 242068601 $8.60

85*#

5304520993 Frigidaire Refrigerator Mullion Ha Backorder WCI 5304520993 $25.07

85A

242139301 Frigidaire Refrigerator Support Bea Backorder WCI 242139301 $46.62

85B

241872203 Frigidaire Refrigerator Beam Suppor Backorder WCI 241872203 $32.17

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $39.88

86

241779802 Frigidaire Door Hinge Mullion Flipp In Stock WCI 241779802 $22.06

86

5304507340 Frigidaire Refrigerator Trim Backorder WCI 5304507340 $28.53

86*

242011101 Frigidaire Refrigerator Pin Lock Backorder WCI 242011101 $9.06

87

5304507999 Frigidaire Refrigerator Pinion Backorder WCI 5304507999 $6.32

87

Tube-connector, suction WCI 5304502967 Contact Us For Availability

89

5304509676 Frigidaire Refrigerator Bracket Backorder WCI 5304509676 $45.72

89

5304520905 Frigidaire Assembly Cover Refriger In Stock WCI 5304520905 $44.58

89

Tube-process WCI 215346900 Contact Us For Availability

90

240597220 Frigidaire Sensor In Stock WCI 240597220 $3.05

90

241770705 Frigidaire Bar Backorder WCI 241770705 $30.23

90*

241842301 Frigidaire Refrigerator Thermistor Backorder WCI 241842301 $21.73

90*

241953902 Frigidaire Refrigerator Screw In Stock WCI 241953902 $10.93

90*

241953908 Frigidaire Refrigerator Screw Backorder WCI 241953908 $2.72

91

5304508041 Frigidaire Refrigerator Cover Backorder WCI 5304508041 $7.25

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.60

93#

241835505 Frigidaire Refrigerator Light Switc In Stock WCI 241835505 $44.38

93*#

5304521649 Frigidaire Refrigerator Wiring Har Backorder WCI 5304521649 $60.03

94#

5303918775 Frigidaire Refrigerator Thermistor In Stock WCI 5303918775 $11.89

95

EAFCBF Frigidaire Refrigerator PureAdvantage In Stock WCI EAFCBF $12.54

96

241860601 Frigidaire Refrigerator Evaporator Backorder WCI 241860601 $81.10

96

242048006 Frigidaire Air Filter-Door Trim Backorder WCI 242048006 $9.95

100

242157601 Frigidaire Refrigerator Cover Backorder WCI 242157601 $7.23

101

242157801 Frigidaire Refrigerator Cover Backorder WCI 242157801 $14.50

102

242157501 Frigidaire Refrigerator Cover Backorder WCI 242157501 $14.50

105

242116801 Frigidaire Refrigerator Basket Trim Backorder WCI 242116801 $11.32

107

241963102 Frigidaire Refrigerator Air Duct Backorder WCI 241963102 $21.74

122

241860117 Frigidaire Gasket Backorder WCI 241860117 $6.82

123

5304508007 Frigidaire Refrigerator Bracket Backorder WCI 5304508007 $8.58

124

242006903 Frigidaire Refrigerator Air Duct Backorder WCI 242006903 $37.65

125

242071201 Frigidaire Refrigerator Cover Backorder WCI 242071201 $72.59

139

242009602 Frigidaire Refrigerator Water Filte In Stock WCI 242009602 $37.50

145

5304508017 Frigidaire Refrigerator Support Backorder WCI 5304508017 $51.10

145A

5304508018 Frigidaire Refrigerator Support Backorder WCI 5304508018 $47.53

147#

5304493604 Frigidaire Refrigerator Gasket & F In Stock WCI 5304493604 $55.76

148

5304508063 Frigidaire Refrigerator Grommet Backorder WCI 5304508063 $9.50

149

Gasket WCI 242095415 Contact Us For Availability

150

Gasket WCI 242095423 No Longer Available

151

242069701 Frigidaire Refrigerator Water Filte Backorder WCI 242069701 $37.45

207

242047901 Frigidaire Refrigerator Air Filter Backorder WCI 242047901 $47.49

209

5304526201 Frigidaire Refrigerator Right Hand Backorder WCI 5304526201 $56.92

210

241983816 Frigidaire Refrigerator Water Filte Backorder WCI 241983816 $46.63

210

5304526202 Frigidaire Refrigerator Left Hand Backorder WCI 5304526202 $56.92

210*

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $9.50

210A

241998303 Frigidaire Refrigerator Water Filte In Stock WCI 241998303 $6.51

211

5304508077 Frigidaire Refrigerator Bumper Backorder WCI 5304508077 $7.25

212

5304508016 Frigidaire Refrigerator Roller In Stock WCI 5304508016 $2.18

213

242010901 Frigidaire Refrigerator Assembly Ro Backorder WCI 242010901 $31.71
