Model Electrolux 253.70299000 Air Conditioner (Kenmore 25370299000) – Common Parts & Diagrams
CABINET
CABINET
AIR HANDLING

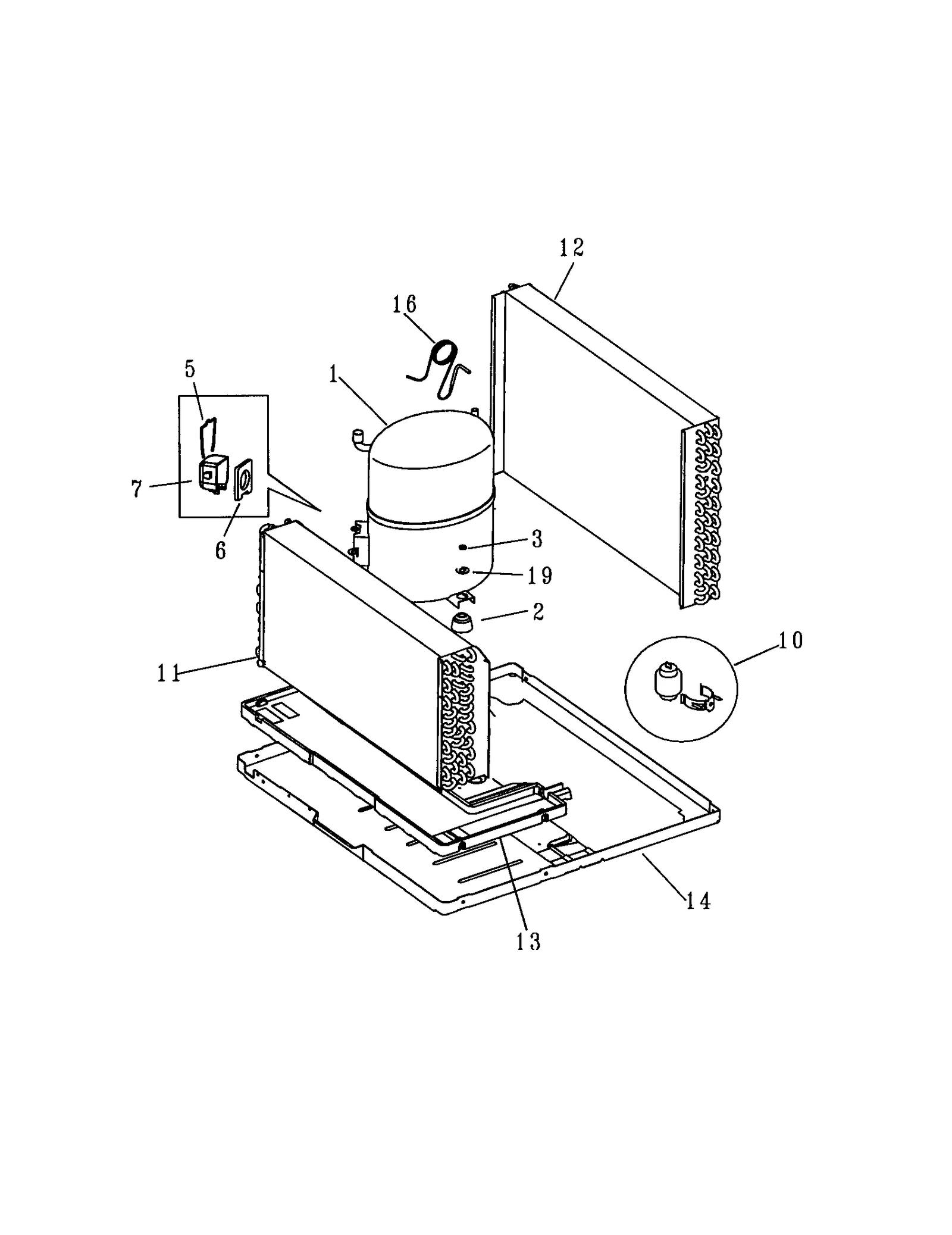

COMPRESSOR
All Parts

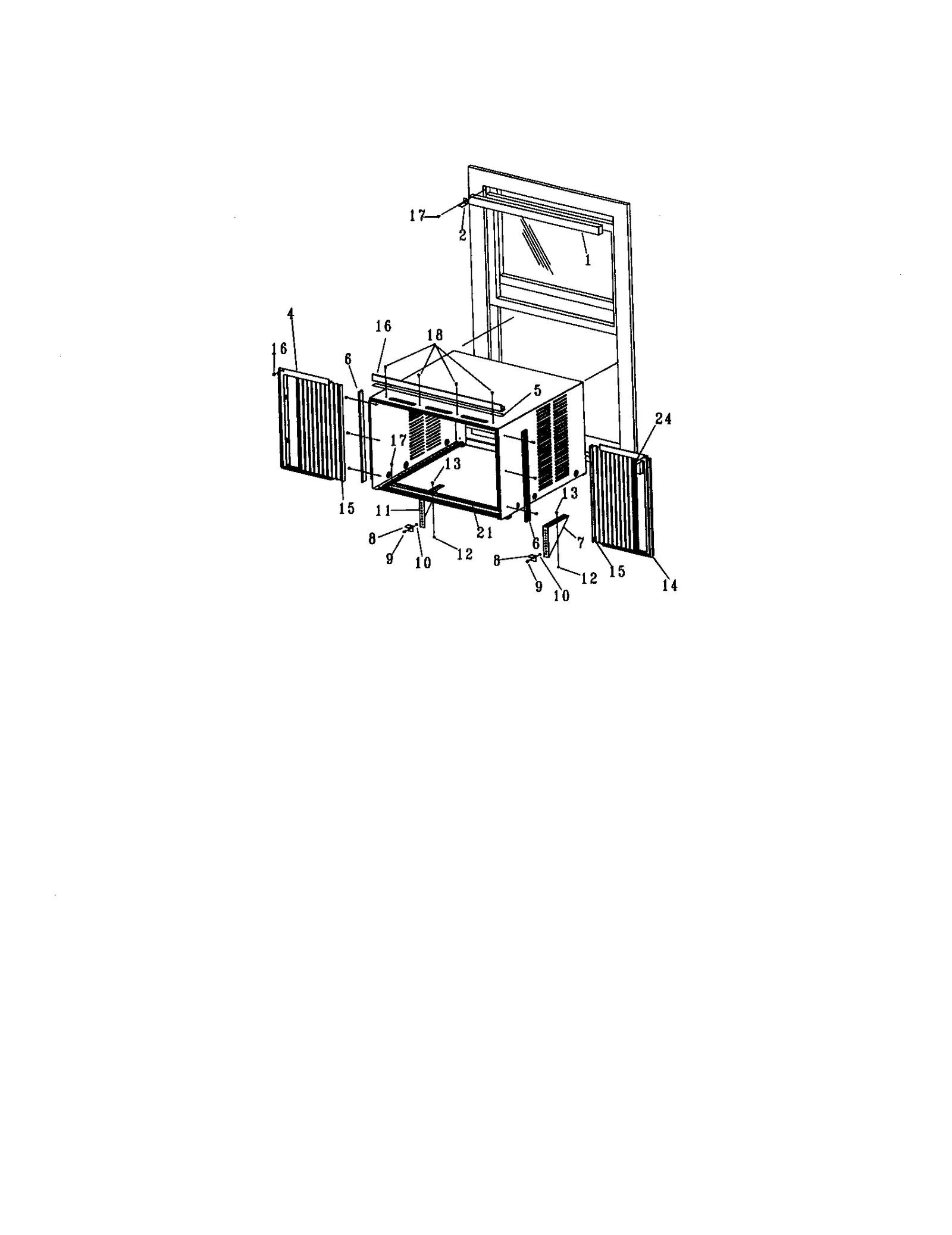

WINDOW MOUNTING
CONTROLS
Common parts from model Electrolux 253.70299000 Air Conditioner (Kenmore 25370299000)
1
Silver Seal WCI 309632704 Contact Us For Availability
1
Fan Blade WCI 5303321440 Contact Us For Availability
1
Compressor WCI 5304404739 Contact Us For Availability
2
Room Air Conditioner Window Stop Bracket WCI 5303211056 Contact Us For Availability
2
#grill&rr Ra WCI 309632804 Contact Us For Availability
2
Grommet WCI 5303286606 Contact Us For Availability
3
Shroud Condenser WCI 309623201 Contact Us For Availability
3
Room Air Conditioner Compressor Mount Retaine WCI 5308006948 Contact Us For Availability
4
Seal WCI 3016696 Contact Us For Availability
4
Frame/ls WCI 5304414928 Contact Us For Availability
5
Seal WCI 5303015311 Contact Us For Availability
5
Clamp WCI 5303002069 Contact Us For Availability
5
Rail Seal WCI 5304409250 Contact Us For Availability
6
Gasket WCI 5303002068 Contact Us For Availability
6
Retainer-hds WCI 5304414933 Contact Us For Availability
7
Handle Link WCI 309631104 Contact Us For Availability
7
Universal/Multiflex (Frigidaire) Cover WCI 5303002067 Contact Us For Availability
7
Support-rh WCI 5304414931 Contact Us For Availability
7
Control Box WCI 309630403 Contact Us For Availability
8
Horizontal Louver WCI 309633904 Contact Us For Availability
8
Motor WCI 5304414796 Contact Us For Availability
8
Bracket Window WCI 3001815 Contact Us For Availability
9
Room Air Conditioner Louver Vertical Vane WCI 309631004 Contact Us For Availability
9
Screw WCI 3007756 Contact Us For Availability
10
Air Bulkhead WCI 309623401 Contact Us For Availability
10
Nut WCI 3007759 Contact Us For Availability
10
Bulkhead WCI 309623601 Contact Us For Availability
11
Room Air Conditioner Blower Wheel WCI 309633001 Contact Us For Availability
11
Evaporator WCI 309642001 Contact Us For Availability
11
Support-lh WCI 5304414932 Contact Us For Availability
12
Filter WCI 309639001 Contact Us For Availability
12
Condenser WCI 5303306719 Contact Us For Availability
12
Thermistor WCI 5304414108 Contact Us For Availability
13
Sleeve WCI 309630301 Contact Us For Availability
13
Evaporator Tray WCI 309623501 Contact Us For Availability
13
Support Screw WCI 5303281649 Contact Us For Availability
13
Capacitor WCI 5303320002 Contact Us For Availability
14
Base WCI 309632906 Contact Us For Availability
14
Frame WCI 5304414929 Contact Us For Availability
15
Scroll WCI 309630101 Contact Us For Availability
15
Acc Reteiner WCI 5304414930 Contact Us For Availability
15
Strap Capacitor WCI 5303303086 Contact Us For Availability
16
Tube WCI 3018221 Contact Us For Availability
16
Top Rail-hd WCI 5304414116 Contact Us For Availability
17
Front Panel Assembly WCI 309640501 Contact Us For Availability
17
Kenmore Wrench WCI 5304415114 Contact Us For Availability
17
Screw WCI 3002803 Contact Us For Availability
17
Electronic Cord WCI 309343120 Contact Us For Availability
18
Screw WCI 8012680 Contact Us For Availability
19
Room Air Conditioner Control Panel Overlay WCI 309341001 Contact Us For Availability
19
Washer WCI 5303002664 Contact Us For Availability
20
Scroll Plate WCI 309630201 Contact Us For Availability
21
Bottom Seal WCI 5303212504 Contact Us For Availability
24
Screw WCI 3002801 Contact Us For Availability
25
Access Control WCI 309321401 Contact Us For Availability
26
Handle Vent WCI 309330604 Contact Us For Availability
38
Room Air Conditioner Front Panel Door WCI 309638901 Contact Us For Availability
43
Filter WCI 309638801 Contact Us For Availability
70
Enclosure WCI 309341201 Contact Us For Availability
71
Power Board WCI 309340503 Contact Us For Availability
72
Input Board WCI 309340701 Contact Us For Availability
75
Pc Board-sup WCI 5304413781 Contact Us For Availability
76
Transformer WCI 309111602 Contact Us For Availability
78
Room Air Conditioner Remote Control WCI 309342603 Contact Us For Availability
NI
Owner's Manual WCI 309000829 Contact Us For Availability
NI
Service Data Sheet WCI 309001238 Contact Us For Availability
NI
Relay WCI 309102201 Contact Us For Availability
NI
Mounting Hardware WCI 309313303 Contact Us For Availability
NI
Louver Assembly WCI 309633306 Contact Us For Availability
NI
Harness-3s WCI 5304408753 Contact Us For Availability
NI
h WCI 5304409248 Contact Us For Availability
NI
Hardware WCI 5304409249 Contact Us For Availability
NI
Top Rail Seal WCI 5304415035 Contact Us For Availability
× ![]()
