Model Electrolux 253.70187000 Air Conditioner (Kenmore 25370187000) – Common Parts & Diagrams

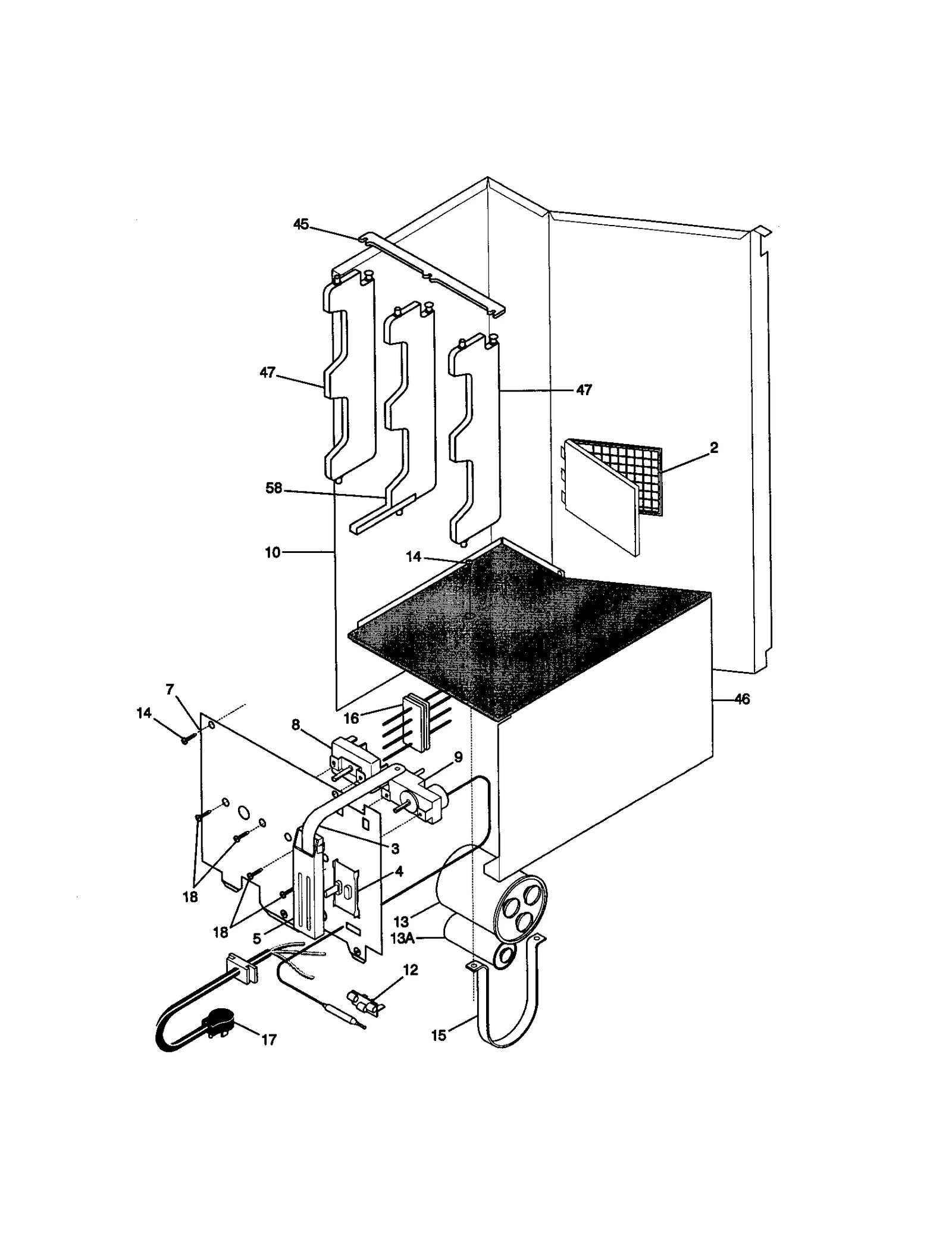

CONTROL
All Parts
AIR HANDLING
COMPRESSOR
WINDOW MOUNTING
CABINET FRONT AND WRAPPER
Common parts from model Electrolux 253.70187000 Air Conditioner (Kenmore 25370187000)
(NI)
Room Air Conditioner Owner's Manual WCI 309000817 Contact Us For Availability
1
Fan Blade WCI 5303311048 Contact Us For Availability
1
Compressor WCI 5304403268 Contact Us For Availability
1
Sleeve Seal WCI 309632706 Contact Us For Availability
2
Room Air Conditioner Window Stop Bracket WCI 5303211056 Contact Us For Availability
2
Grommet WCI 5303286606 Contact Us For Availability
2
#grill&rr Ra WCI 309632804 Contact Us For Availability
3
Strap WCI 5303201820 Contact Us For Availability
3
Shroud Condenser WCI 309623201 Contact Us For Availability
3
Room Air Conditioner Compressor Mount Retaine WCI 5308006948 Contact Us For Availability
4
Actuator WCI 5303201821 Contact Us For Availability
4
Seal WCI 3016696 Contact Us For Availability
4
Frame/ls WCI 5304414928 Contact Us For Availability
5
Bracket WCI 5303209200 Contact Us For Availability
5
Seal WCI 5303015311 Contact Us For Availability
5
Clamp WCI 5303002069 Contact Us For Availability
5
Rail Seal WCI 5304409250 Contact Us For Availability
6
Gasket WCI 5303002068 Contact Us For Availability
6
Retainer-hds WCI 5304414933 Contact Us For Availability
7
Panel WCI 5304415410 Contact Us For Availability
7
Universal/Multiflex (Frigidaire) Cover WCI 5303002067 Contact Us For Availability
7
Support-rh WCI 5304414931 Contact Us For Availability
7
Louver Link WCI 309634803 Contact Us For Availability
8
Switch WCI 5308017262 Contact Us For Availability
8
Fan Motor WCI 5304408296 Contact Us For Availability
8
Bracket Window WCI 3001815 Contact Us For Availability
8
Horizontal Louver WCI 309634903 Contact Us For Availability
8A
Louvr W/hndl WCI 309635003 Contact Us For Availability
9
Thermostat WCI 5304411842 Contact Us For Availability
9
Screw WCI 3007756 Contact Us For Availability
10
Partition WCI 5303296868 Contact Us For Availability
10
#BULKHEAD-AIR SIDE HD S/A WCI 309623402 Contact Us For Availability
10
Room Air Conditioner Compressor Start Relay K WCI 5303317601 Contact Us For Availability
10
Nut WCI 3007759 Contact Us For Availability
11
Air Conditioner Blower Wheel WCI 5303016832 Contact Us For Availability
11
Evaporator WCI 5303317606 Contact Us For Availability
11
Support-lh WCI 5304414932 Contact Us For Availability
12
Spacer WCI 5303211009 Contact Us For Availability
12
Condenser WCI 5303306719 Contact Us For Availability
12
Room Air Conditioner Air Filter WCI 309634503 Contact Us For Availability
13
Capacitor WCI 5303316906 Contact Us For Availability
13
Seal WCI 5303015313 Contact Us For Availability
13
Tray WCI 5303208221 Contact Us For Availability
13
Support Screw WCI 5303281649 Contact Us For Availability
13
SEAL, FRONT, DISCHARGE AREA WCI 5304415320 Contact Us For Availability
13A
Capacitor WCI 5303012032 Contact Us For Availability
14
INSULATION, COVER WCI 5304415411 Contact Us For Availability
14
Base WCI 309632908 Contact Us For Availability
14
Frame WCI 5304414929 Contact Us For Availability
15
Strap WCI 3201973 Contact Us For Availability
15
Scroll WCI 5304415382 Contact Us For Availability
15
Shield WCI 3201969 Contact Us For Availability
15
Acc Reteiner WCI 5304414930 Contact Us For Availability
16
Harness WCI 5303201971 Contact Us For Availability
16
Capillary Tube WCI 5304409399 Contact Us For Availability
16
Top Rail-hd WCI 5304414116 Contact Us For Availability
17
Power Cord WCI 309343121 Contact Us For Availability
17
Screw WCI 3002803 Contact Us For Availability
17
Front Grille WCI 309637006 Contact Us For Availability
18
Screw WCI 5303007754 Contact Us For Availability
18
(NOT REQUIRED) SPRING, OVERLOAD WCI N/P Contact Us For Availability
18
Screw WCI 8012680 Contact Us For Availability
19
Washer WCI 5303002664 Contact Us For Availability
19
Dial Plate WCI 309636815 Contact Us For Availability
20
Control Knob WCI 309307012 Contact Us For Availability
21
Bottom Seal WCI 5303212504 Contact Us For Availability
21
Dial Switch WCI 5304415177 Contact Us For Availability
22
Spacer WCI 5303001775 Contact Us For Availability
23
Seal WCI 3201953 Contact Us For Availability
24
Screw WCI 3002801 Contact Us For Availability
25
Screen WCI 5303302933 Contact Us For Availability
27
Room Air Conditioner Heater Assembly WCI 5304408301 Contact Us For Availability
28
Thermostat WCI 5303018574 Contact Us For Availability
29
Harness-he WCI 5304409398 Contact Us For Availability
30
Valve WCI 3017804 Contact Us For Availability
31
Screw-drain WCI 5303209503 Contact Us For Availability
32
Nut WCI 3018695 Contact Us For Availability
36
Strap Base WCI 5303303558 Contact Us For Availability
39
Screw WCI 5303271346 Contact Us For Availability
40
Spacer, Louver WCI 3202810 Contact Us For Availability
40
Grommet Drn WCI 5303301031 Contact Us For Availability
41
Link WCI 5300517130 Contact Us For Availability
43
Front Frame WCI 309634403 Contact Us For Availability
44
Retainer WCI 5303201843 Contact Us For Availability
45
Retainer WCI 5303201847 Contact Us For Availability
46
Control Cover WCI 5303300232 Contact Us For Availability
47
Louver-vertical WCI 5303299318 Contact Us For Availability
58
Louver WCI 5303300230 Contact Us For Availability
59
NUT (2) WCI 8010928 Contact Us For Availability
66
Filter Track WCI 309636601 Contact Us For Availability
NI
Service Data Sheet WCI 309001237 Contact Us For Availability
NI
Mounting Hardware WCI 309313303 Contact Us For Availability
NI
Hardware WCI 5304409248 Contact Us For Availability
NI
Top Rail Seal WCI 5304409249 Contact Us For Availability
NI
SEAL, FRONT, DISCHARGE AREA WCI 5304415321 Contact Us For Availability
NI
SEAL, FRONT, DISCHARGE AREA WCI 5304415322 Contact Us For Availability
× ![]()
