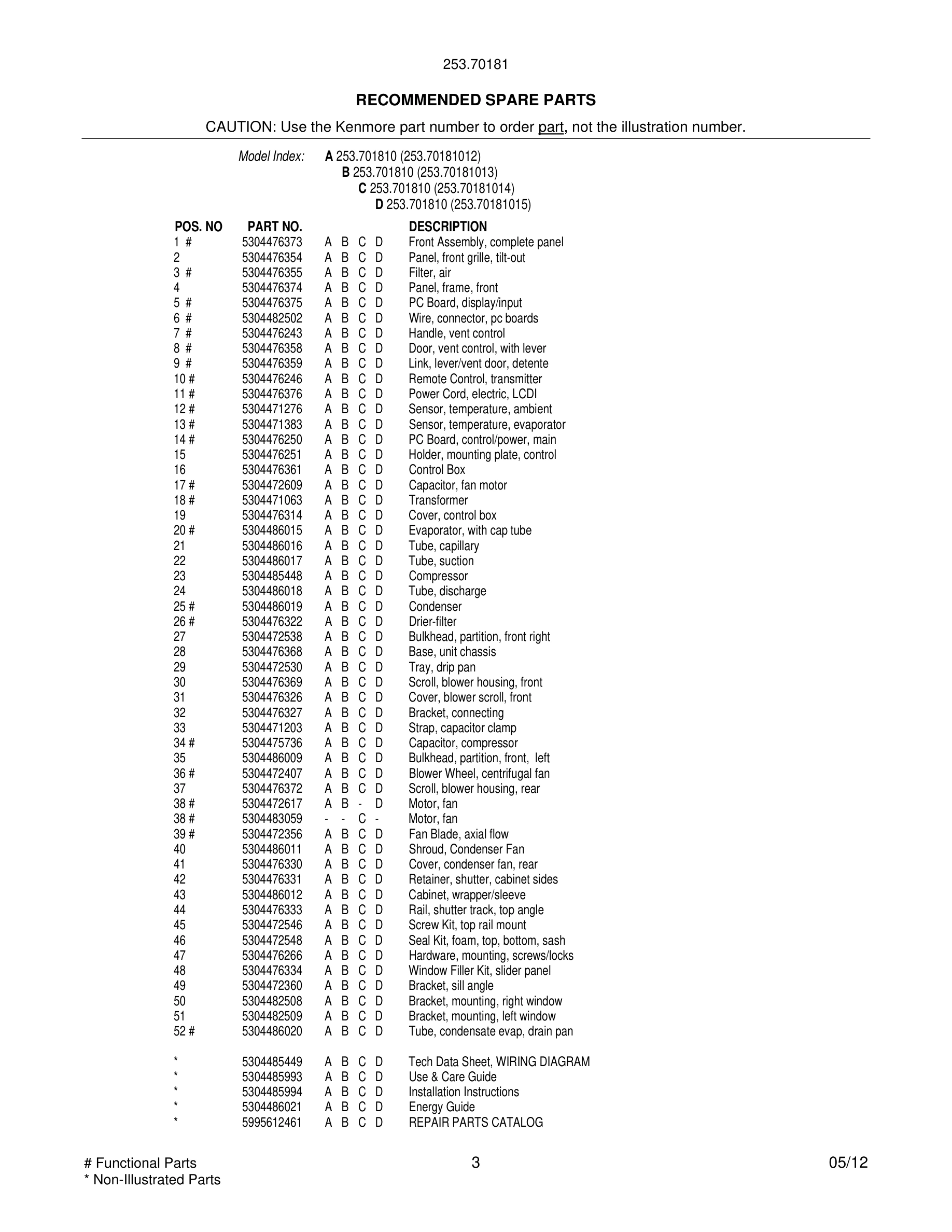

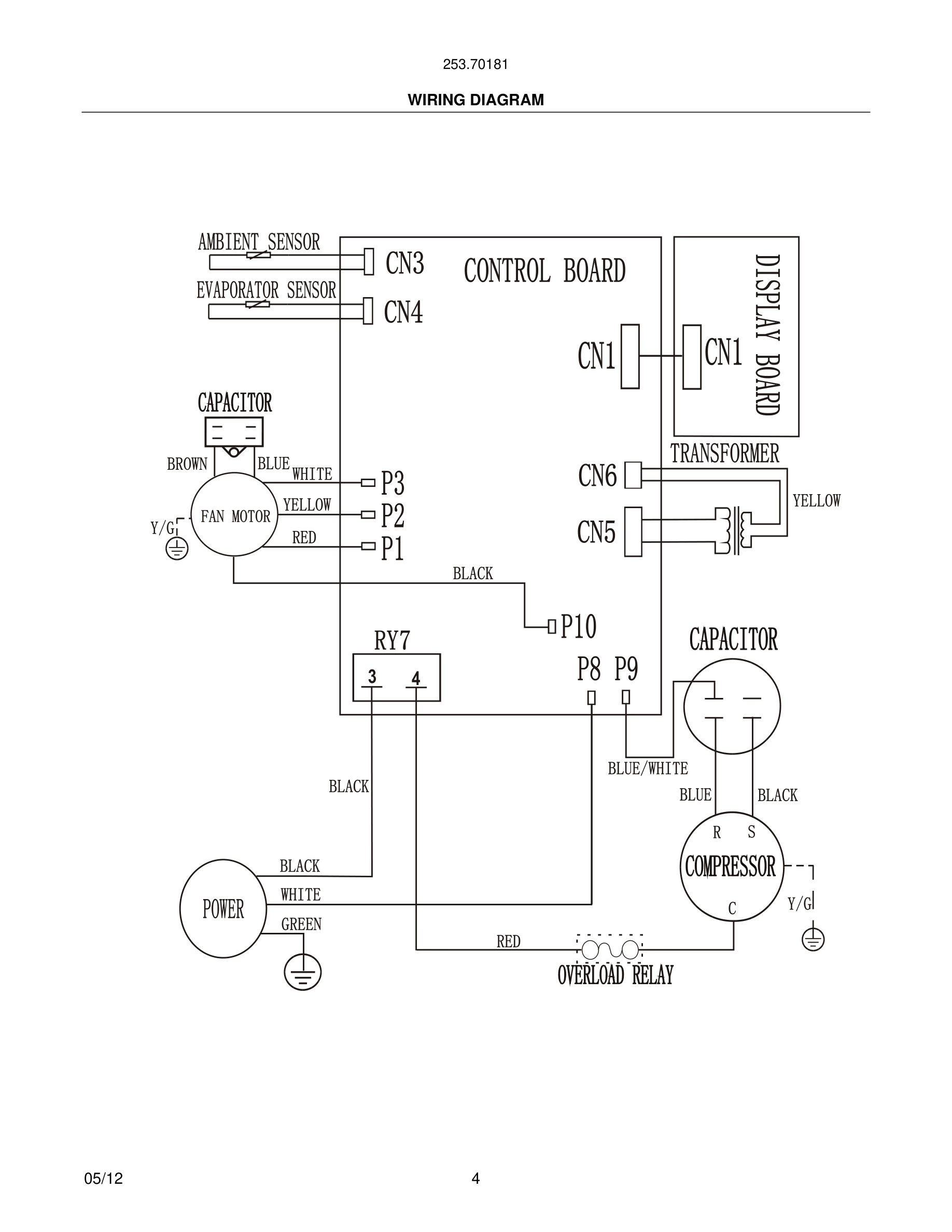

Model Kenmore 253.70181012 ROOM AIR CONDITIONER – Common Parts & Diagrams

7#
Handle, vent control
Handle, vent control WCI 5304476243 Contact Us For Availability
View on Model
10#
Remote Control, transmitter
Remote Control, transmitter WCI 5304476246 Contact Us For Availability
View on Model
11#
Power Cord, electric, LCDI
Power Cord, electric, LCDI WCI 5304476376 Contact Us For Availability
View on Model
12#
Sensor, temperature, ambient
Sensor, temperature, ambient WCI 5304471276 Contact Us For Availability
View on Model
20#
Evaporator, with cap tube
Evaporator, with cap tube WCI 5304486015 Contact Us For Availability
View on Model
21
Tube, capillary
Tube, capillary WCI 5304486016 Contact Us For Availability
View on Model
23
Compressor
Compressor WCI 5304485448 Contact Us For Availability
View on Model
25#
Condenser
Condenser WCI 5304486019 Contact Us For Availability
View on Model
30
Scroll, blower housing, front
Scroll, blower housing, front WCI 5304476369 Contact Us For Availability
View on Model
31
Cover, blower scroll, front
Cover, blower scroll, front WCI 5304476326 Contact Us For Availability
View on Model
32
Bracket, connecting
Bracket, connecting WCI 5304476327 Contact Us For Availability
View on Model
33
Strap, capacitor clamp
Strap, capacitor clamp WCI 5304471203 Contact Us For Availability
View on Model
34#
Capacitor, compressor
Capacitor, compressor WCI 5304475736 Contact Us For Availability
View on Model
35
Bulkhead, partition, front, left
Bulkhead, partition, front, left WCI 5304486009 Contact Us For Availability
View on Model
37
Scroll, blower housing, rear
Scroll, blower housing, rear WCI 5304476372 Contact Us For Availability
View on Model
40
Shroud, Condenser Fan
Shroud, Condenser Fan WCI 5304486011 Contact Us For Availability
View on Model
41
Cover, condenser fan, rear
Cover, condenser fan, rear WCI 5304476330 Contact Us For Availability
View on Model
42
Retainer, shutter, cabinet sides
Retainer, shutter, cabinet sides WCI 5304476331 Contact Us For Availability
View on Model
43
Cabinet, wrapper/sleeve
Cabinet, wrapper/sleeve WCI 5304486012 Contact Us For Availability
View on Model
44
Rail, shutter track, top angle
Rail, shutter track, top angle WCI 5304476333 Contact Us For Availability
View on Model
45
Screw Kit, top rail mount
Screw Kit, top rail mount WCI 5304472546 Contact Us For Availability
View on Model
46
Seal Kit, foam, top, bottom, sash
Seal Kit, foam, top, bottom, sash WCI 5304472548 Contact Us For Availability
View on Model
47
Hardware, mounting, screws/locks
Hardware, mounting, screws/locks WCI 5304476266 Contact Us For Availability
View on Model
48
Window Filler Kit, slider panel
Window Filler Kit, slider panel WCI 5304476334 Contact Us For Availability
View on Model
49
Bracket, sill angle
Bracket, sill angle WCI 5304472360 Contact Us For Availability
View on Model
50
Bracket, mounting, right window
Bracket, mounting, right window WCI 5304482508 Contact Us For Availability
View on Model
51
Bracket, mounting, left window
Bracket, mounting, left window WCI 5304482509 Contact Us For Availability
View on Model
52#
Tube, condensate evap, drain pan
Tube, condensate evap, drain pan WCI 5304486020 Contact Us For Availability
View on Model
