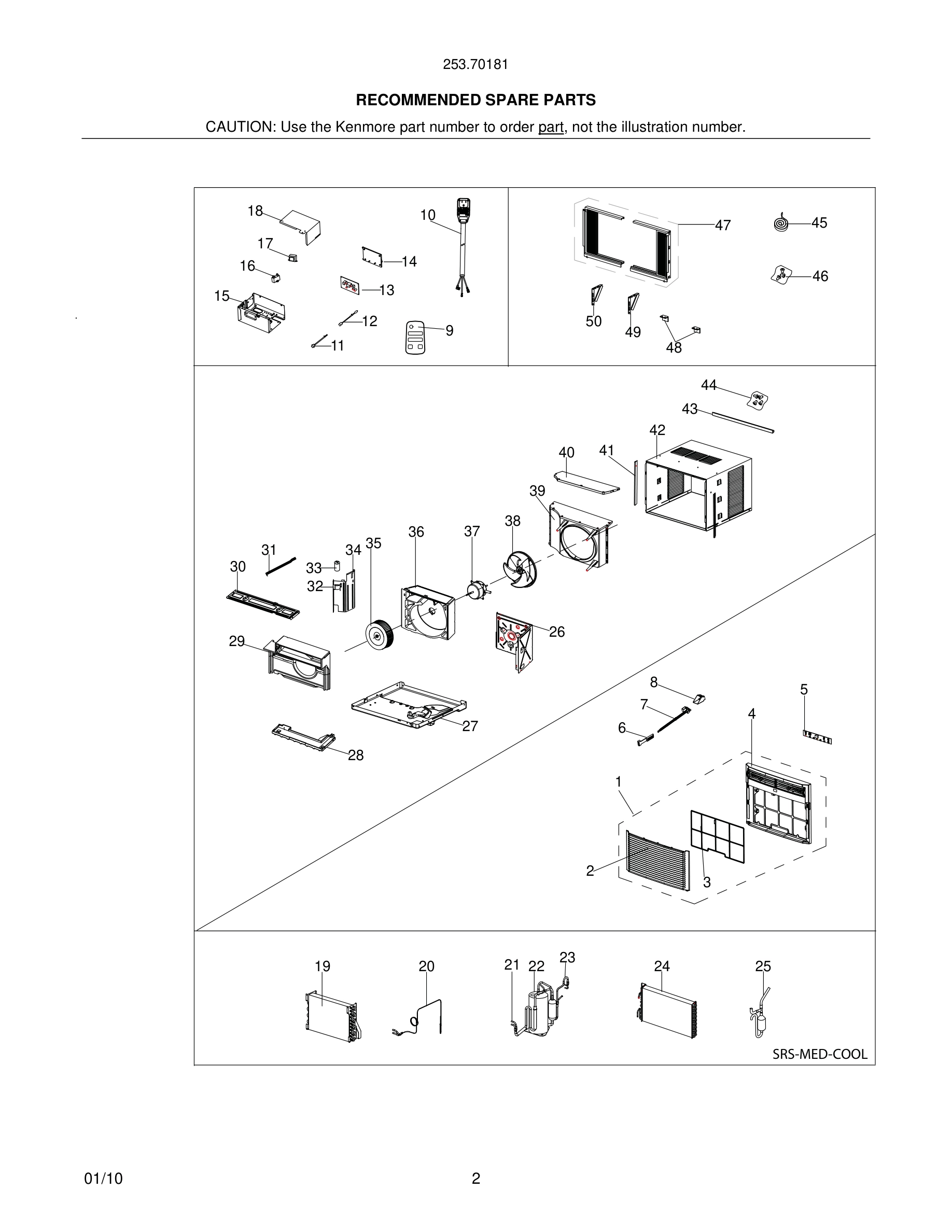

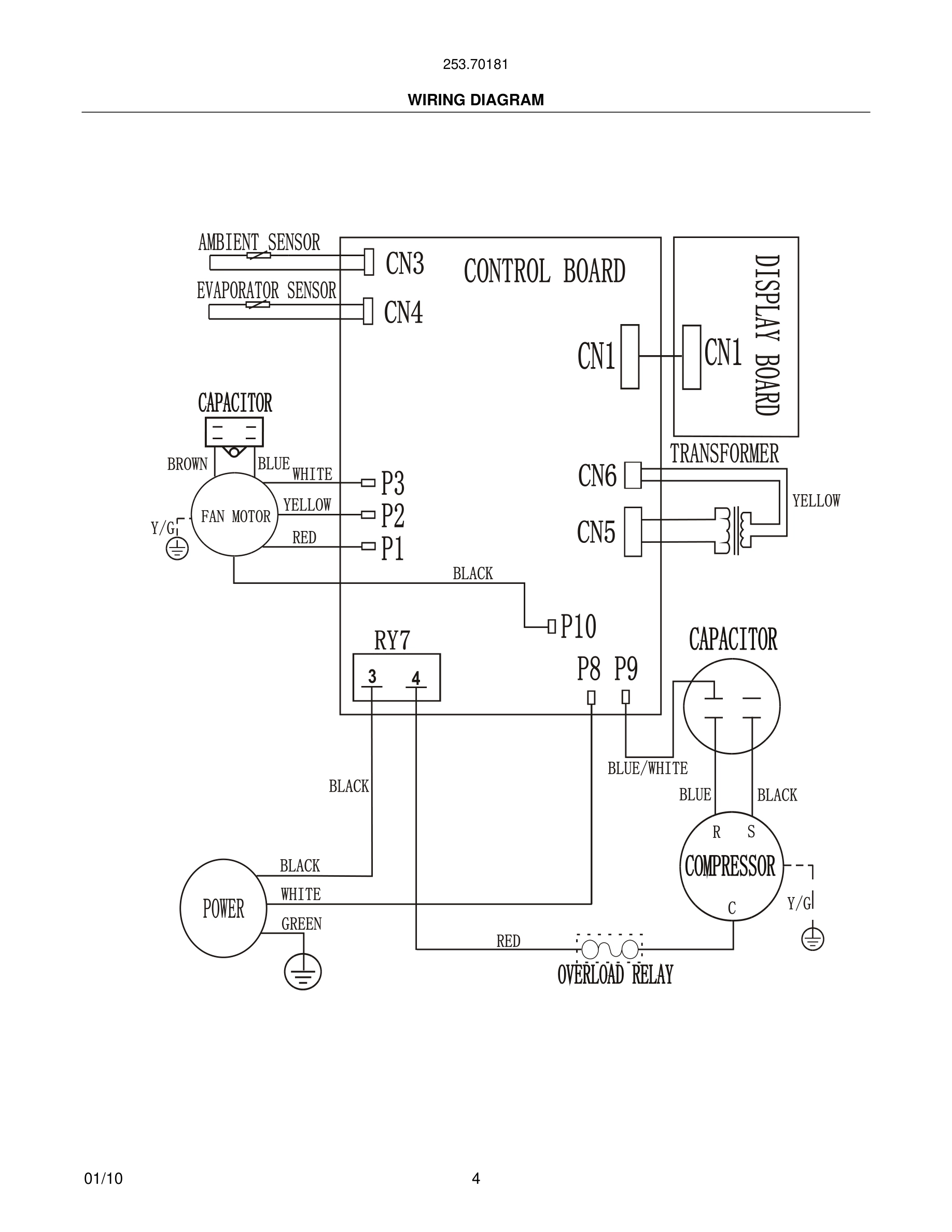

Model Kenmore 253.70181010 ROOM AIR CONDITIONER – Common Parts & Diagrams

6#
Handle, vent control
Handle, vent control WCI 5304476243 Contact Us For Availability
View on Model
9#
Remote Control, transmitter
Remote Control, transmitter WCI 5304476246 Contact Us For Availability
View on Model
10#
Power Cord, electric, LCDI
Power Cord, electric, LCDI WCI 5304476376 Contact Us For Availability
View on Model
11#
Thermistor, temp sensor, indoor
Thermistor, temp sensor, indoor WCI 5304471276 Contact Us For Availability
View on Model
20#
Tube, capillary
Tube, capillary WCI 5304476378 Contact Us For Availability
View on Model
22#
Compressor
Compressor WCI 5304475740 Contact Us For Availability
View on Model
23#
Tube, discharge
Tube, discharge WCI 5304476379 Contact Us For Availability
View on Model
24#
Condenser
Condenser WCI 5304476380 Contact Us For Availability
View on Model
26
Bulkhead, partition, front right
Bulkhead, partition, front right WCI 5304472538 Contact Us For Availability
View on Model
27
Base, unit chassis
Base, unit chassis WCI 5304476368 Contact Us For Availability
View on Model
28
Tray, drip pan
Tray, drip pan WCI 5304472530 Contact Us For Availability
View on Model
29
Scroll, blower housing, front
Scroll, blower housing, front WCI 5304476369 Contact Us For Availability
View on Model
30
Cover, blower scroll, front
Cover, blower scroll, front WCI 5304476326 Contact Us For Availability
View on Model
31
Bracket, connecting
Bracket, connecting WCI 5304476327 Contact Us For Availability
View on Model
32
Strap, capacitor clamp
Strap, capacitor clamp WCI 5304471203 Contact Us For Availability
View on Model
33#
Capacitor, compressor
Capacitor, compressor WCI 5304475736 Contact Us For Availability
View on Model
34
Bulkhead, partition, front/left
Bulkhead, partition, front/left WCI 5304476371 Contact Us For Availability
View on Model
36
Scroll, blower housing, rear
Scroll, blower housing, rear WCI 5304476372 Contact Us For Availability
View on Model
39
Shroud, condenser fan
Shroud, condenser fan WCI 5304476329 Contact Us For Availability
View on Model
40
Cover, condenser fan, rear
Cover, condenser fan, rear WCI 5304476330 Contact Us For Availability
View on Model
41
Retainer, shutter, cabinet sides
Retainer, shutter, cabinet sides WCI 5304476331 Contact Us For Availability
View on Model
42
Cabinet, wrapper/sleeve
Cabinet, wrapper/sleeve WCI 5304476332 Contact Us For Availability
View on Model
43
Rail, shutter track, top angle
Rail, shutter track, top angle WCI 5304476333 Contact Us For Availability
View on Model
44
Screw Kit, top rail mount
Screw Kit, top rail mount WCI 5304472546 Contact Us For Availability
View on Model
45
Seal Kit, foam, top, bottom, sash
Seal Kit, foam, top, bottom, sash WCI 5304472548 Contact Us For Availability
View on Model
46
Hardware, mounting, screws/locks
Hardware, mounting, screws/locks WCI 5304476266 Contact Us For Availability
View on Model
47
Window Filler Kit, slider panel
Window Filler Kit, slider panel WCI 5304476334 Contact Us For Availability
View on Model
48
Bracket, sill angle
Bracket, sill angle WCI 5304472360 Contact Us For Availability
View on Model
49
Bracket, mounting, right, window
Bracket, mounting, right, window WCI 5304476268 Contact Us For Availability
View on Model
50
Bracket, mounting, left, window
Bracket, mounting, left, window WCI 5304476269 Contact Us For Availability
View on Model
