Model Kenmore 253.70128110 ROOM AIR CONDITIONER – Common Parts & Diagrams

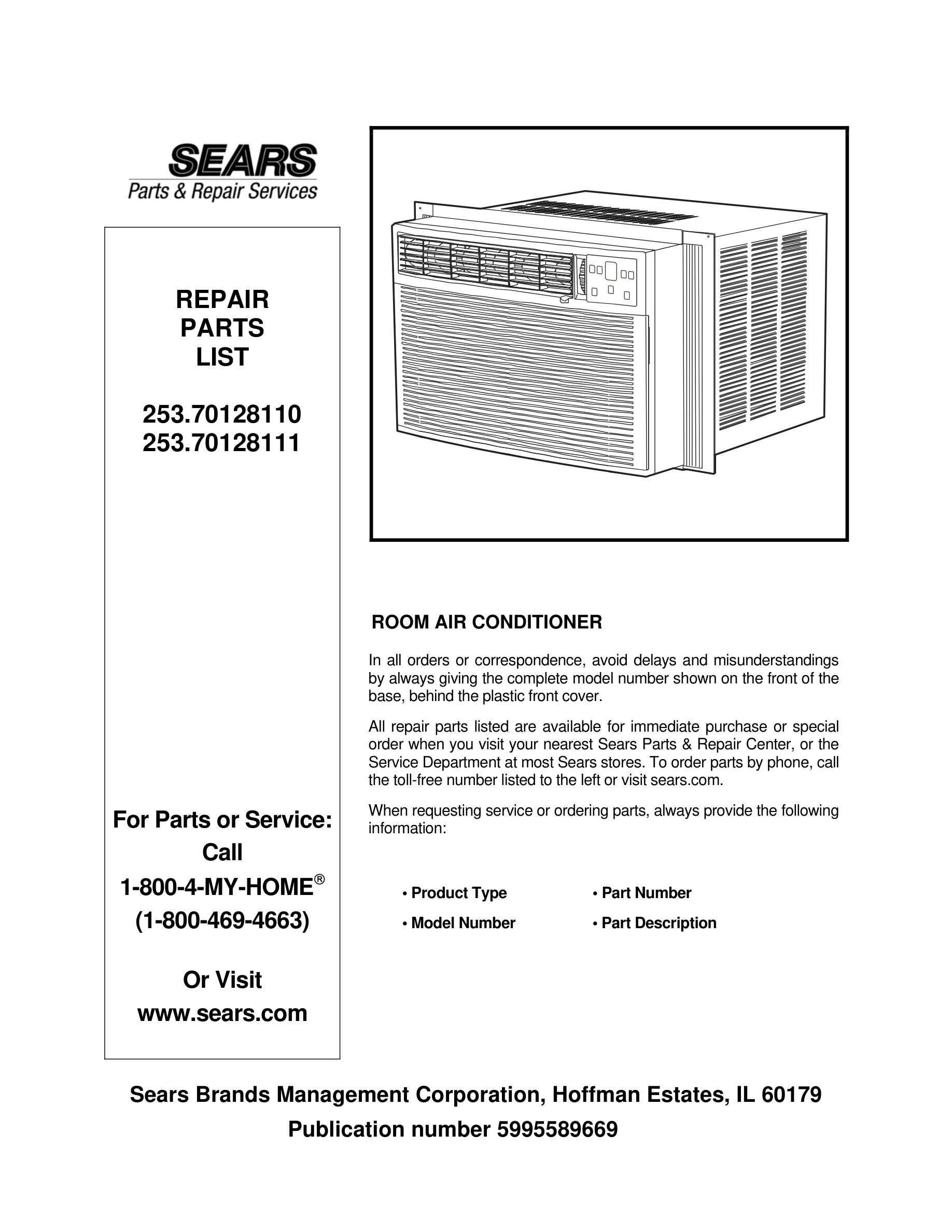

01 - COVER

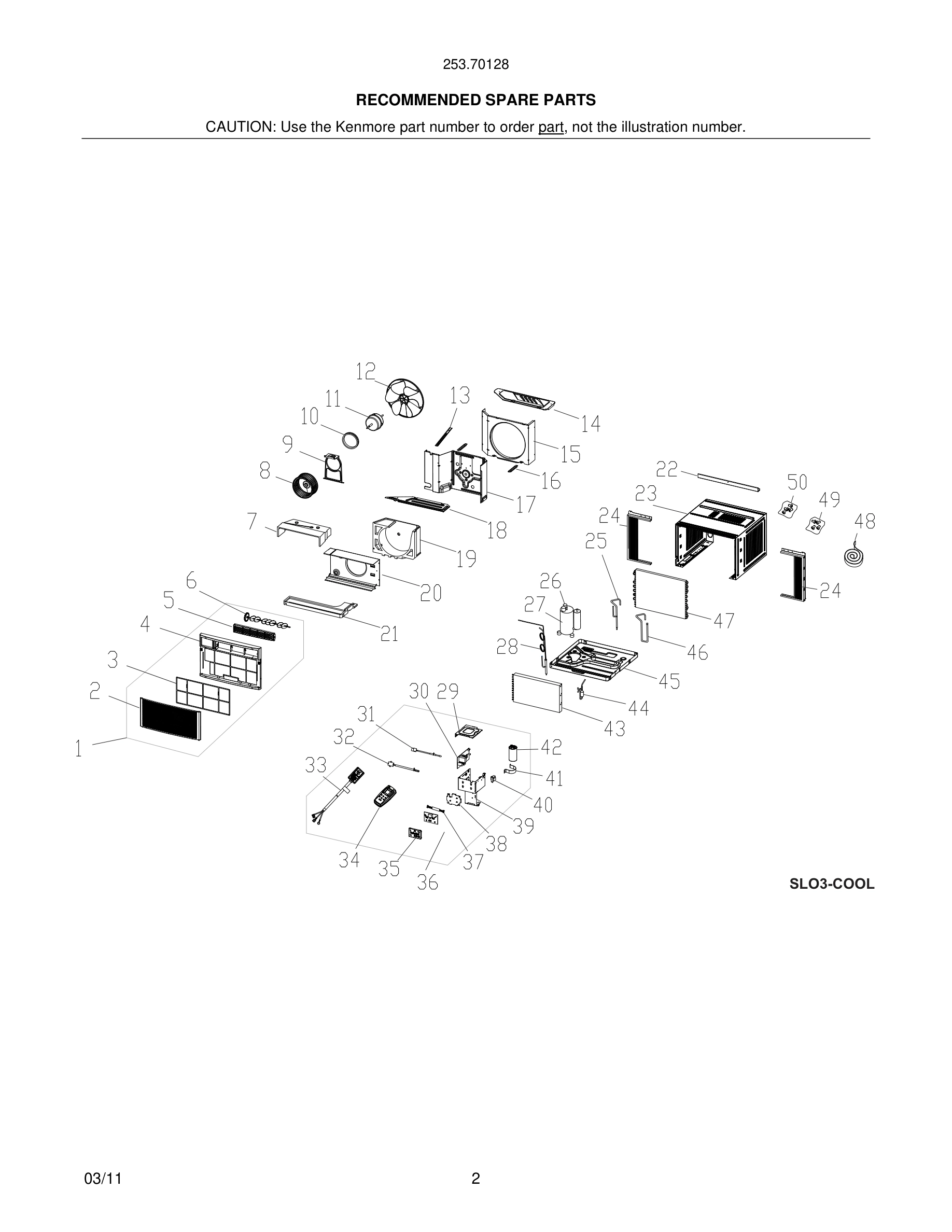

03 - RECOMMENDED SPARE PARTS

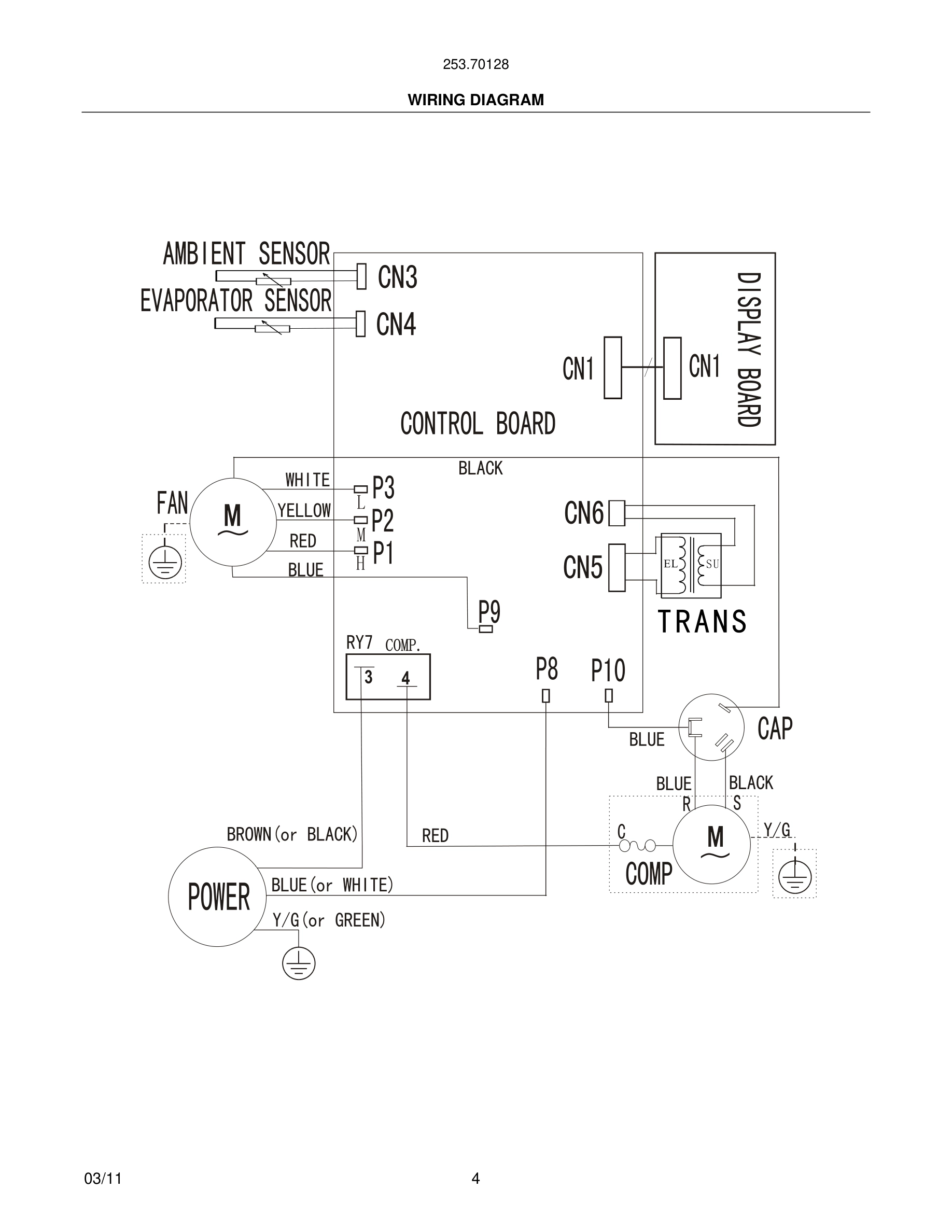

04 - WIRING DIAGRAM
Common parts from model Kenmore 253.70128110 ROOM AIR CONDITIONER
7
Cover, scroll, top WCI 5304471281 Contact Us For Availability
8#
Blower Wheel, centrifugal fan WCI 5304471283 Contact Us For Availability
9
Bracket, support, fan motor WCI 5304471285 Contact Us For Availability
10
Washer, motor mount, anti-vibe WCI 5304471286 Contact Us For Availability
11#
Motor, fan WCI 5304471284 Contact Us For Availability
13
Brace, bulkhead, large, connector WCI 5304471254 Contact Us For Availability
14
Cover, condenser/fan, rear WCI 5304471288 Contact Us For Availability
15
Bulkhead, partition, rear WCI 5304476387 Contact Us For Availability
16
Brace, bulkhead, small, connector WCI 5304471253 Contact Us For Availability
17
Bulkhead, partition, front WCI 5304471248 Contact Us For Availability
18
Cover, blower, front WCI 5304476388 Contact Us For Availability
19
Scroll, blower housing, rear WCI 5304471247 Contact Us For Availability
20
Scroll, blower housing, front WCI 5304476389 Contact Us For Availability
21
Tray, drip pan WCI 5304471265 Contact Us For Availability
22
Rail, shutter track, top channel WCI 5304482525 Contact Us For Availability
23
Cabinet, wrapper/sleeve WCI 5304482526 Contact Us For Availability
24
Window Filler Kit, slider panels, accordion WCI 5304476393 Contact Us For Availability
25#
Tube, suction WCI 5304482527 Contact Us For Availability
26#
Overload Protector, compressor WCI 5304476296 Contact Us For Availability
27#
Compressor, with overload WCI 5304476069 Contact Us For Availability
28#
Tube, capillary WCI 5304482528 Contact Us For Availability
29
Cover, control box WCI 5304476396 Contact Us For Availability
30#
PC Board, control/power, main WCI 5304482529 Contact Us For Availability
31#
Thermistor, temp sensor, indoor WCI 5304471276 Contact Us For Availability
33#
Power Cord, electric, LCDI WCI 5304476451 Contact Us For Availability
35#
Control Panel, with overlay WCI 5304482754 Contact Us For Availability
36#
PC Board, display/input WCI 5304471270 Contact Us For Availability
37#
Wire, connector, pc boards WCI 5304482531 Contact Us For Availability
38
Cover, display board WCI 5304471271 Contact Us For Availability
39
Control Box WCI 5304476399 Contact Us For Availability
41
Strap, capacitor clamp WCI 5304477345 Contact Us For Availability
43#
Evaporator, with cap tube WCI 5304482532 Contact Us For Availability
45
Base, unit chassis WCI 5304482533 Contact Us For Availability
46#
Tube, discharge WCI 5304482534 Contact Us For Availability
47#
Condenser WCI 5304482535 Contact Us For Availability
48
Seal Kit, window, foam strips WCI 5304471258 Contact Us For Availability
49
Hardware Kit, installation WCI 5304471257 Contact Us For Availability
50
Screw Kit, top rail mount WCI 5304471256 Contact Us For Availability
× ![]()
