Model Electrolux 253.70127990 Air Conditioner (Kenmore 25370127990) – Common Parts & Diagrams
CONTROL
CABINET FRONT AND WRAPPER

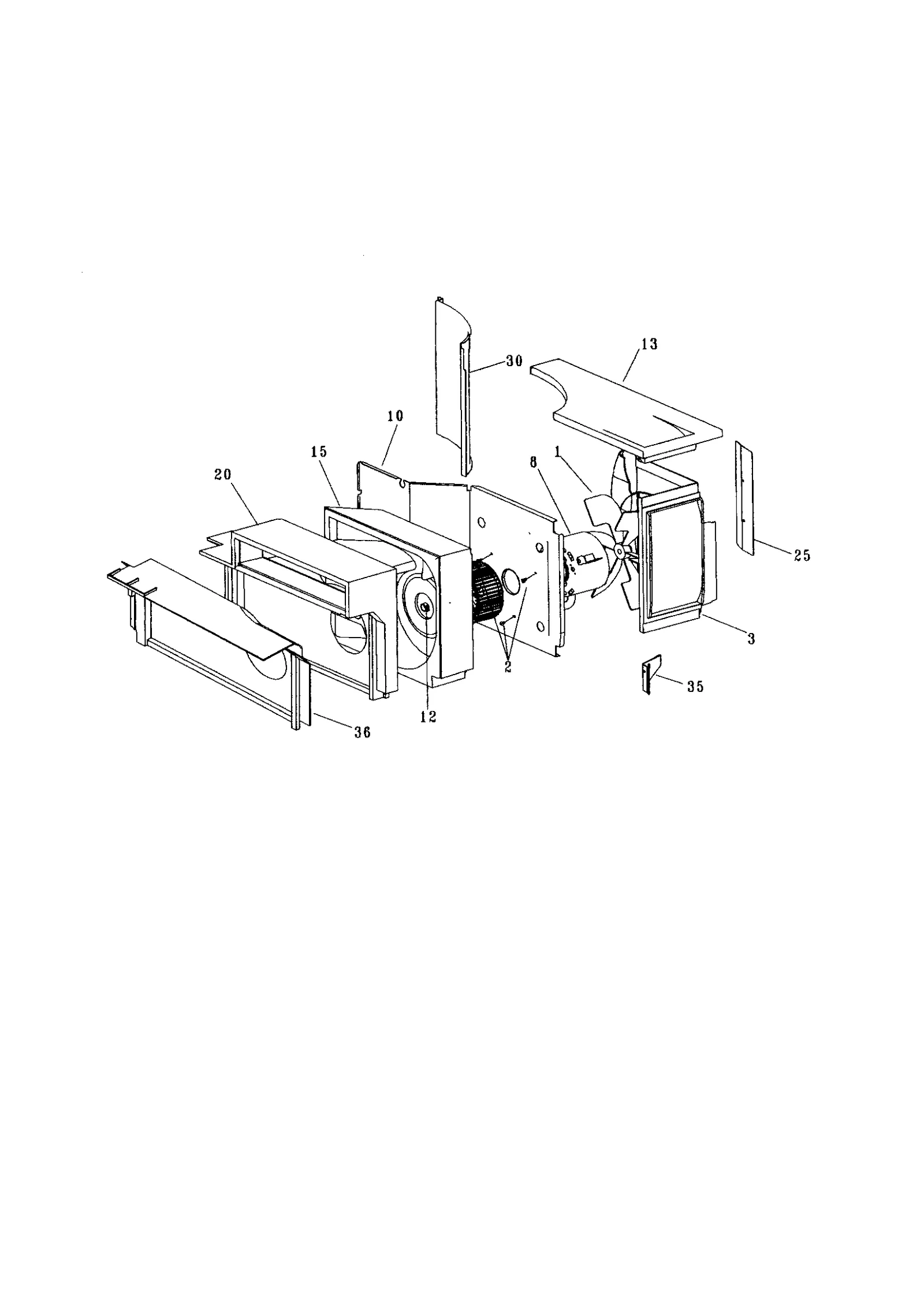

AIR HANDLING

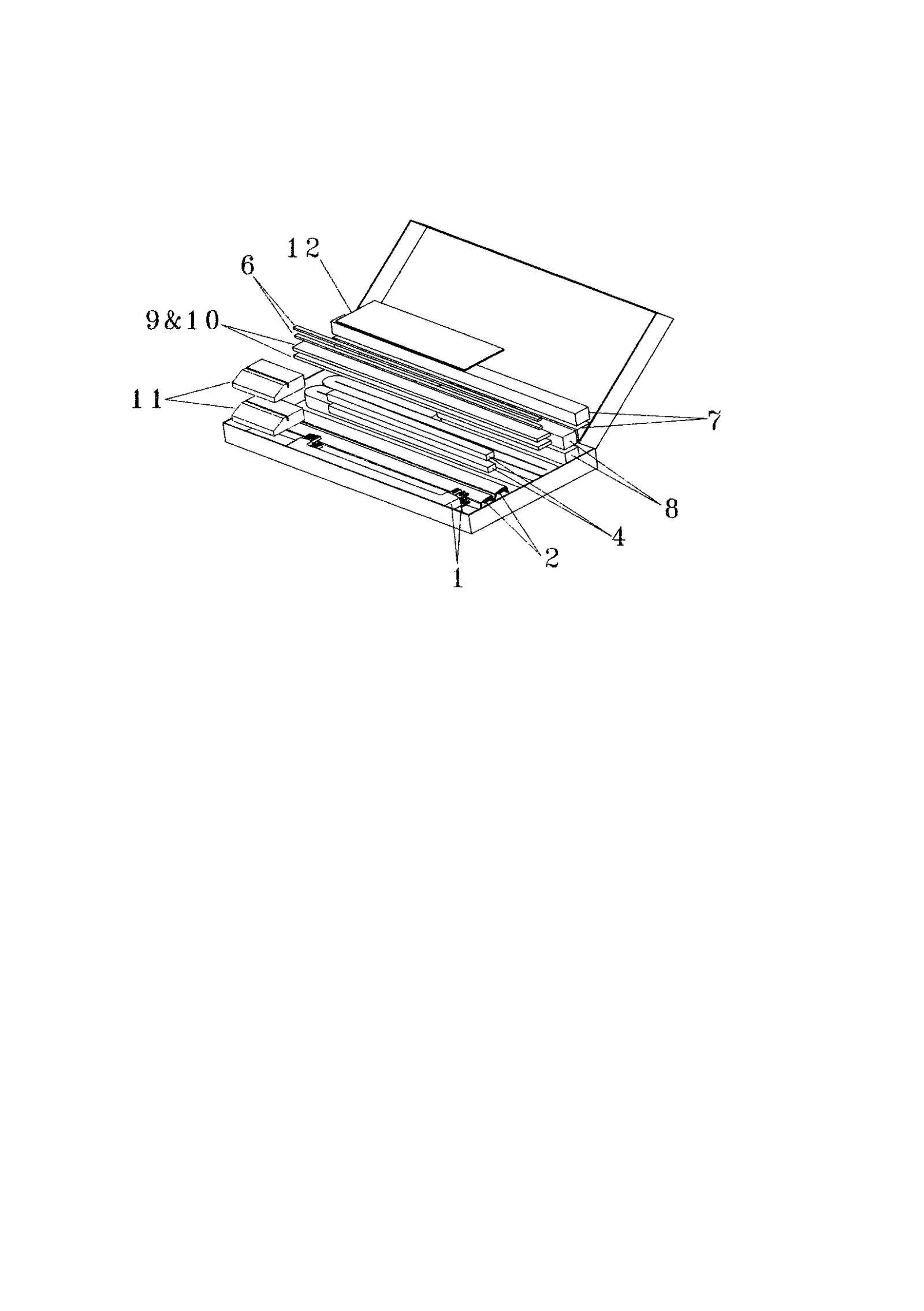

WINDOW MOUNTING

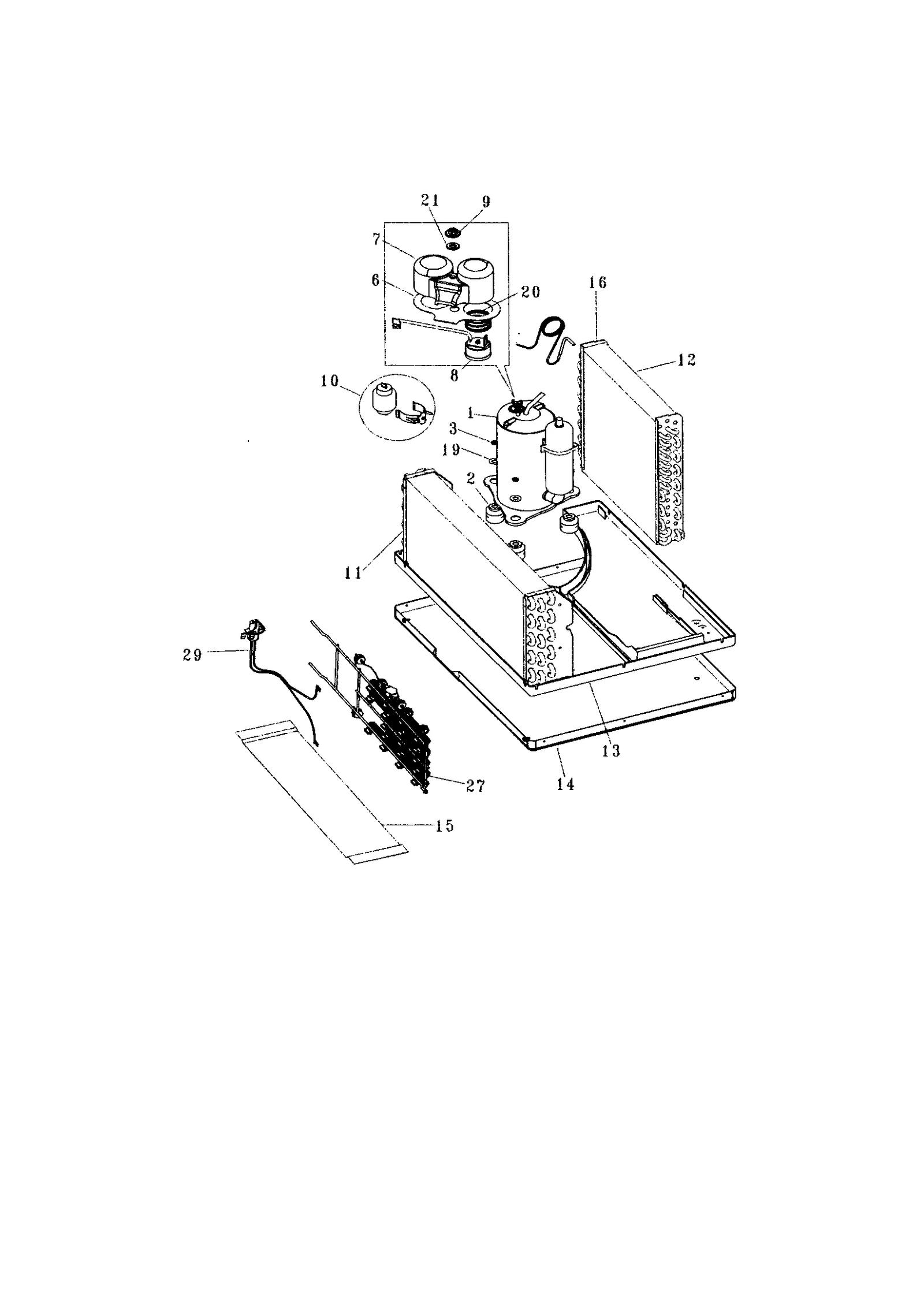

COMPRESSOR
All Parts
Common parts from model Electrolux 253.70127990 Air Conditioner (Kenmore 25370127990)
1
Sleeve WCI 309627502 Contact Us For Availability
1
Fan Blade WCI 309629102 Contact Us For Availability
1
Trim WCI 309628601 Contact Us For Availability
1
Compressor WCI 5304408198 Contact Us For Availability
2
Safety Scren WCI 309636101 Contact Us For Availability
2
Frame-top/bm WCI 309628602 Contact Us For Availability
2
Room Air Conditioner Compressor Grommet WCI 5303283877 Contact Us For Availability
3
Fan Housing WCI 309628901 Contact Us For Availability
3
Kit-groundin WCI 5304409303 Contact Us For Availability
3
Room Air Conditioner Compressor Mount Retaine WCI 5308006948 Contact Us For Availability
4
Block-tapere WCI 5304409304 Contact Us For Availability
5
Wrapper Seal WCI 5303301038 Contact Us For Availability
6
Seal-cond En WCI 5304409305 Contact Us For Availability
6
Overload WCI 5303002035 Contact Us For Availability
7
Control Box WCI 309628502 Contact Us For Availability
7
Louver Link WCI 309324003 Contact Us For Availability
7
Seal-cond/re WCI 5304409306 Contact Us For Availability
7
Cover WCI 5303211011 Contact Us For Availability
8
On/Off Switch WCI 309329301 Contact Us For Availability
8
LOUVERS-HORIZ 0060 WCI 309328003 Contact Us For Availability
8
Fan Motor WCI 5304409514 Contact Us For Availability
8
Seal-cond/re WCI 5304409307 Contact Us For Availability
8
Room Air Conditioner Compressor Overload Prot WCI 5304408199 Contact Us For Availability
9
Room Air Conditioner Thermostat WCI 5304409496 Contact Us For Availability
9
Louver WCI 309628102 Contact Us For Availability
9
Instructions WCI 5304409308 Contact Us For Availability
9
Cover Nut WCI 5303301734 Contact Us For Availability
10
#bulkhead-18 WCI 309627401 Contact Us For Availability
10
Seal-cond/re WCI 5304409309 Contact Us For Availability
11
Air Conditioner Blower Wheel WCI 309631701 Contact Us For Availability
11
Cabinet WCI 5304409310 Contact Us For Availability
11
Evaporator WCI 309632401 Contact Us For Availability
12
Retainer Clip WCI 309329801 Contact Us For Availability
12
Filter WCI 309628203 Contact Us For Availability
12
Room Air Conditioner Fan Blade Clamp WCI 5303012110 Contact Us For Availability
12
Divider WCI 309335101 Contact Us For Availability
12
Condenser WCI 309632505 Contact Us For Availability
13
Capacitor WCI 5303319112 Contact Us For Availability
13
Condenser WCI 309628801 Contact Us For Availability
13
Kit-grille M WCI 5304409311 Contact Us For Availability
13
Tray Base WCI 309628702 Contact Us For Availability
14
Screw WCI 5303285199 Contact Us For Availability
14
#base/stud A WCI 309632001 Contact Us For Availability
15
Strap WCI 5303303077 Contact Us For Availability
15
Scroll-18.5 WCI 309622802 Contact Us For Availability
15
Accessory Ki WCI 309636001 Contact Us For Availability
15
Heat Shield WCI 309629501 Contact Us For Availability
16
Room Air Conditioner Capillary Line WCI 3203179 Contact Us For Availability
17
Service Type Cord WCI 5304409515 Contact Us For Availability
17
Grille WCI 309629404 Contact Us For Availability
18
Screw WCI 5303007754 Contact Us For Availability
19
Washer WCI 5303002664 Contact Us For Availability
20
Control Knob WCI 309307007 Contact Us For Availability
20
Scroll Plate WCI 309625501 Contact Us For Availability
20
Spring WCI 5303002036 Contact Us For Availability
21
Gasket WCI 5303295516 Contact Us For Availability
25
Air Baffle WCI 309335201 Contact Us For Availability
27
Heater Assembly WCI 309627002 Contact Us For Availability
30
Partition WCI 309629001 Contact Us For Availability
30
Valve WCI 3017804 Contact Us For Availability
32
Nut WCI 3018695 Contact Us For Availability
35
Spacer WCI 3200761 Contact Us For Availability
35
Baffle Condenser WCI 309335001 Contact Us For Availability
36
Heat Shield WCI 309633401 Contact Us For Availability
37
Harness WCI 5304409509 Contact Us For Availability
43
#fnt/ctrl Lb WCI 309631804 Contact Us For Availability
73
Louver Assembly WCI 309629303 Contact Us For Availability
NI
+sheet-tec WCI 309001218 Contact Us For Availability
NI
Grommet Wire WCI 309111201 Contact Us For Availability
NI
Panel-rear P WCI 5304408740 Contact Us For Availability
× ![]()
