Model Electrolux 253.70125003 Room Air Conditioner (Kenmore 25370125003) – Common Parts & Diagrams
COMPRESSOR
All Parts

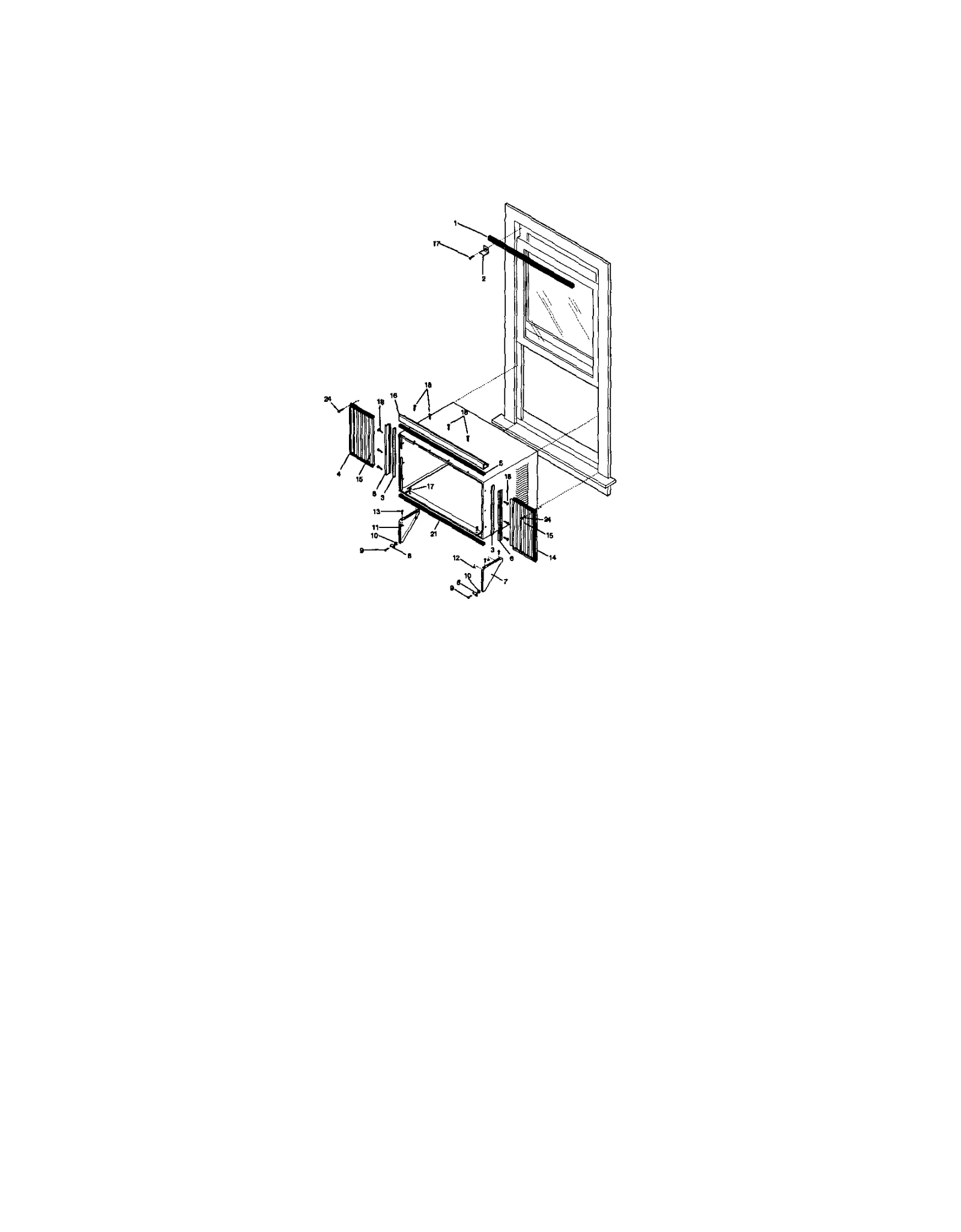

WINDOW MOUNTING

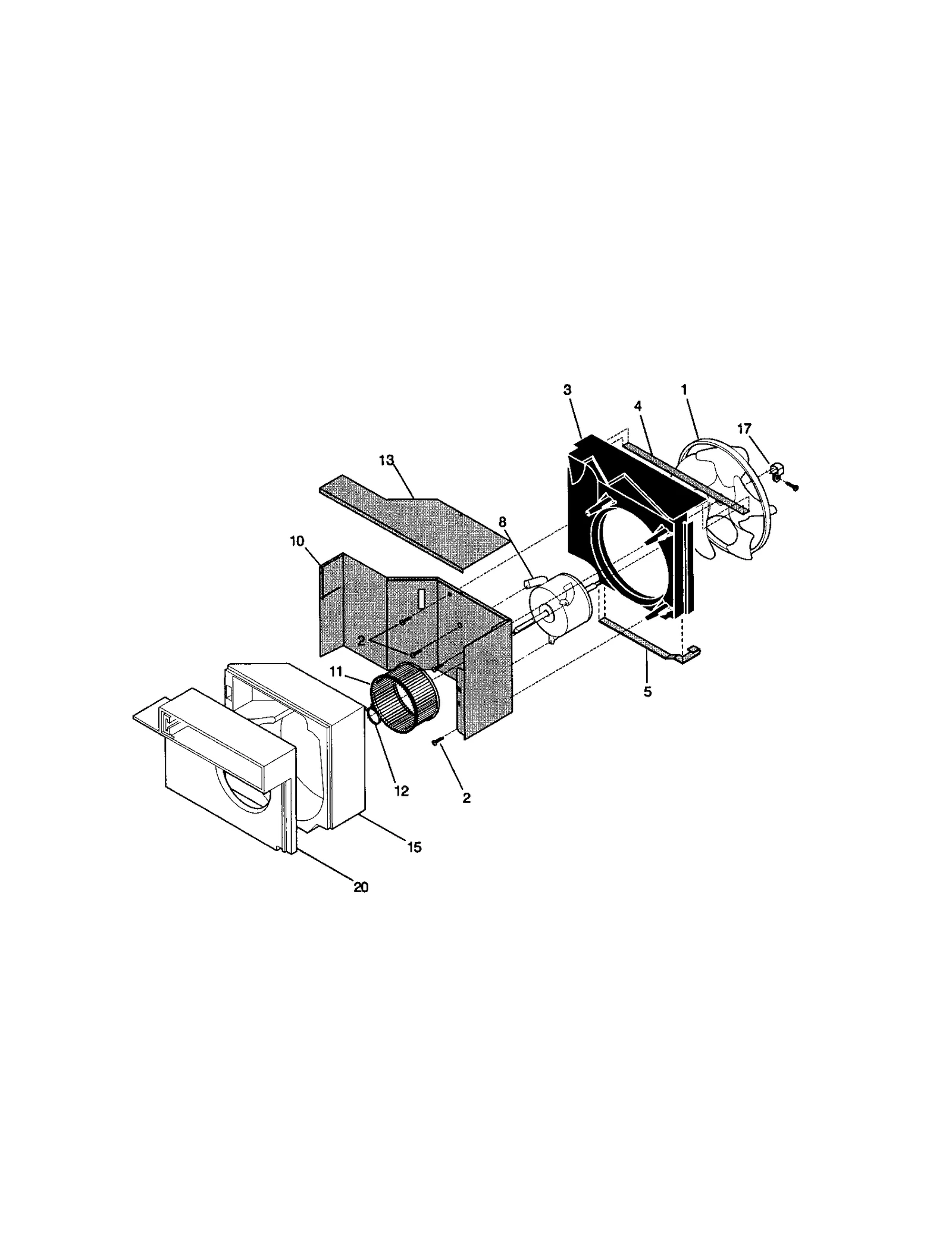

AIR HANDLING

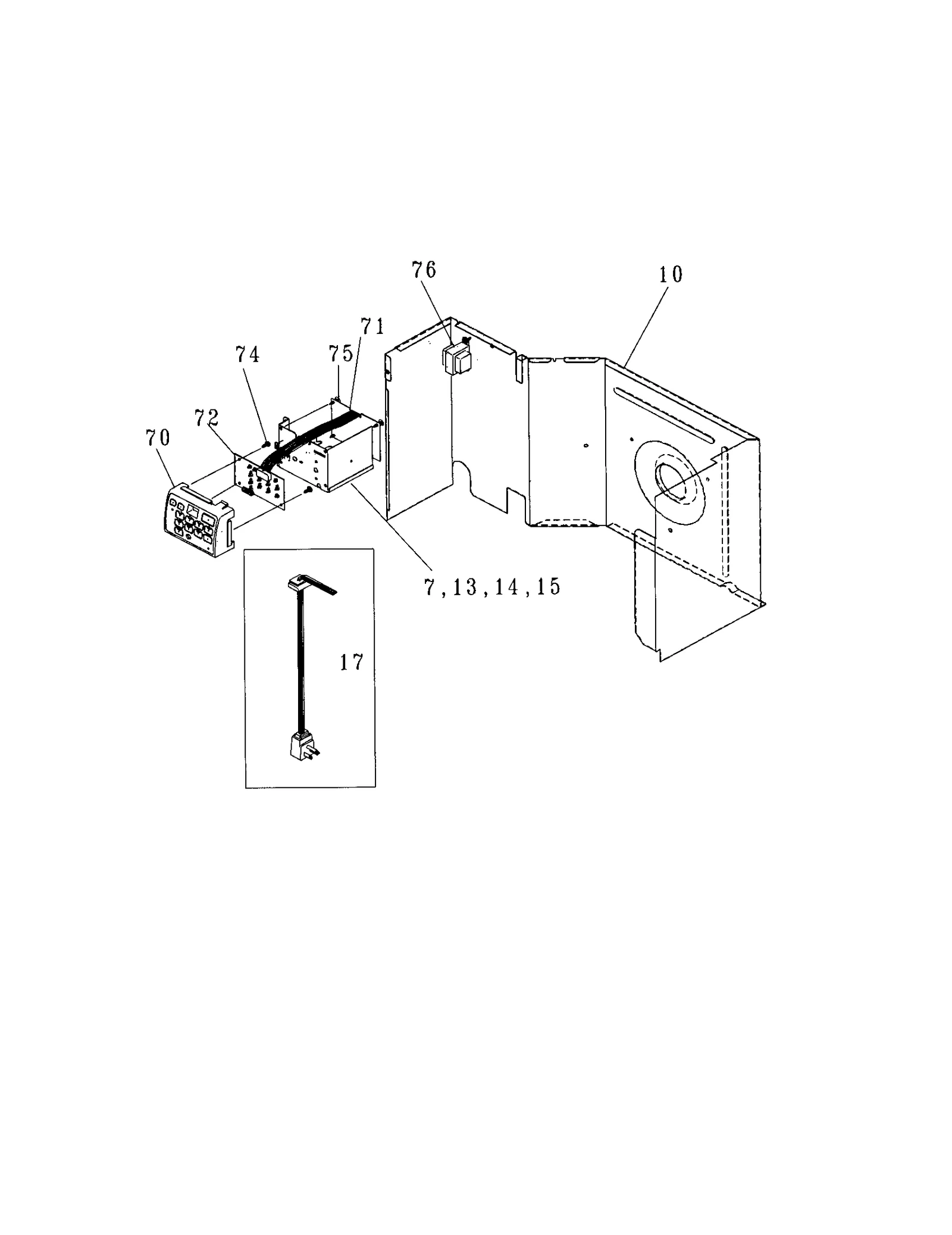

CONTROL

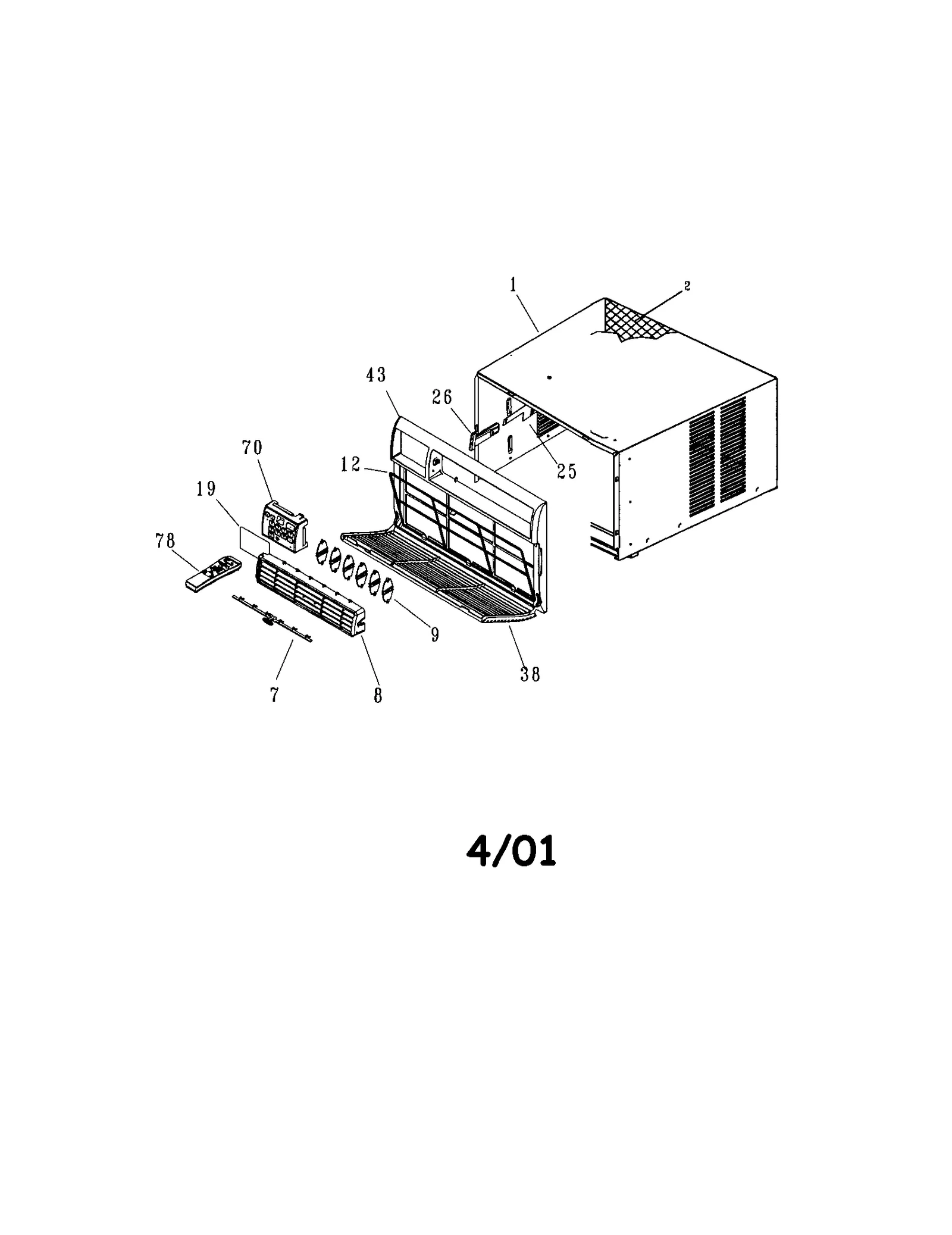

CABINET FRONT AND WRAPPER
Common parts from model Electrolux 253.70125003 Room Air Conditioner (Kenmore 25370125003)
1
Fan Blade WCI 5303322082 Contact Us For Availability
1
Sleeve WCI 309609212 Contact Us For Availability
2
Room Air Conditioner Window Stop Bracket WCI 5303211056 Contact Us For Availability
2
Grille WCI 5304415070 Contact Us For Availability
3
Room Air Conditioner Compressor Mount Retaine WCI 5308006948 Contact Us For Availability
3
Seal WCI 5303276728 Contact Us For Availability
3
Condenser WCI 3202950 Contact Us For Availability
4
Lh Frame WCI 5304415073 Contact Us For Availability
4
Seal WCI 3202953 Contact Us For Availability
5
Seal WCI 5303207200 Contact Us For Availability
5
Seal WCI 3202951 Contact Us For Availability
6
Gasket WCI 5303272298 Contact Us For Availability
6
Retainer WCI 5304415075 Contact Us For Availability
7
Terminal Cover WCI 3206230 Contact Us For Availability
7
Support-rh WCI 5304414931 Contact Us For Availability
7
Control Box WCI 309605605 Contact Us For Availability
7
Room Air Conditioner Front Louver Link WCI 309638601 Contact Us For Availability
8
Room Air Conditioner Compressor Overload Prot WCI 5303016697 Contact Us For Availability
8
Bracket Window WCI 3001815 Contact Us For Availability
8
Fan Motor WCI 309630606 Contact Us For Availability
8
Horizontal Louver WCI 309638501 Contact Us For Availability
9
Terminal Cover Nut WCI 5303211017 Contact Us For Availability
9
Screw WCI 3007756 Contact Us For Availability
9
Room Air Conditioner Vertical Louver Vane WCI 309342001 Contact Us For Availability
10
Room Air Conditioner Compressor Start Relay K WCI 5303317601 Contact Us For Availability
10
Nut WCI 3007759 Contact Us For Availability
10
Bulkhead WCI 5303316617 Contact Us For Availability
11
#evap Assy-2 WCI 309635501 Contact Us For Availability
11
Support-lh WCI 5304414932 Contact Us For Availability
11
Air Conditioner Blower Wheel WCI 309608901 Contact Us For Availability
12
Condenser WCI 5304407866 Contact Us For Availability
12
Room Air Conditioner Fan Blade Clamp WCI 5303012110 Contact Us For Availability
12
Holder WCI 3204838 Contact Us For Availability
12
Room Air Conditioner Air Filter WCI 309638701 Contact Us For Availability
13
Evaporator Tray WCI 309606001 Contact Us For Availability
13
Support Screw WCI 5303281649 Contact Us For Availability
13
Cover WCI 309605902 Contact Us For Availability
13
Room Air Conditioner Fan Motor Capacitor WCI 5304414729 Contact Us For Availability
14
Base WCI 5304415071 Contact Us For Availability
14
Rh Frame WCI 5304415074 Contact Us For Availability
15
Accordion Closure WCI 5304415072 Contact Us For Availability
15
Evaporator Scroll WCI 309605702 Contact Us For Availability
15
Strap Capacitor WCI 5303303086 Contact Us For Availability
16
Tube WCI 5303286538 Contact Us For Availability
16
Rail WCI 5304415076 Contact Us For Availability
17
Screw WCI 3002803 Contact Us For Availability
17
Power Cord WCI 309343104 Contact Us For Availability
17
Front WCI 309640301 Contact Us For Availability
19
Washer WCI 5303002664 Contact Us For Availability
19
Room Air Conditioner Control Panel Overlay WCI 309340901 Contact Us For Availability
20
Scroll Plate WCI 309605802 Contact Us For Availability
24
Screw WCI 3002801 Contact Us For Availability
25
Door-vent/fr WCI 309328602 Contact Us For Availability
26
Hndle-vent WCI 309638201 Contact Us For Availability
36
Strap Base WCI 5303303558 Contact Us For Availability
38
Front Panel WCI 309638401 Contact Us For Availability
40
Grommet Drn WCI 5303301031 Contact Us For Availability
43
Frame WCI 309638301 Contact Us For Availability
70
Enclosure WCI 309341101 Contact Us For Availability
71
Power Board WCI 309350401 Contact Us For Availability
72
Room Air Conditioner Power Control Board WCI 309350402 Contact Us For Availability
75
Pc Board-sup WCI 5304413781 Contact Us For Availability
76
Room Air Conditioner Transformer WCI 309111601 Contact Us For Availability
78
Room Air Conditioner Remote Control WCI 309342603 Contact Us For Availability
NI
Owner's Manual WCI 309000829 Contact Us For Availability
NI
Service Data WCI 309001261 Contact Us For Availability
NI
Horiz. Lvr A WCI 309640401 Contact Us For Availability
× ![]()
