Model Electrolux 253.70124000 Air Conditioner (Kenmore 25370124000) – Common Parts & Diagrams
COMPRESSOR
WINDOW MOUNTING
All Parts

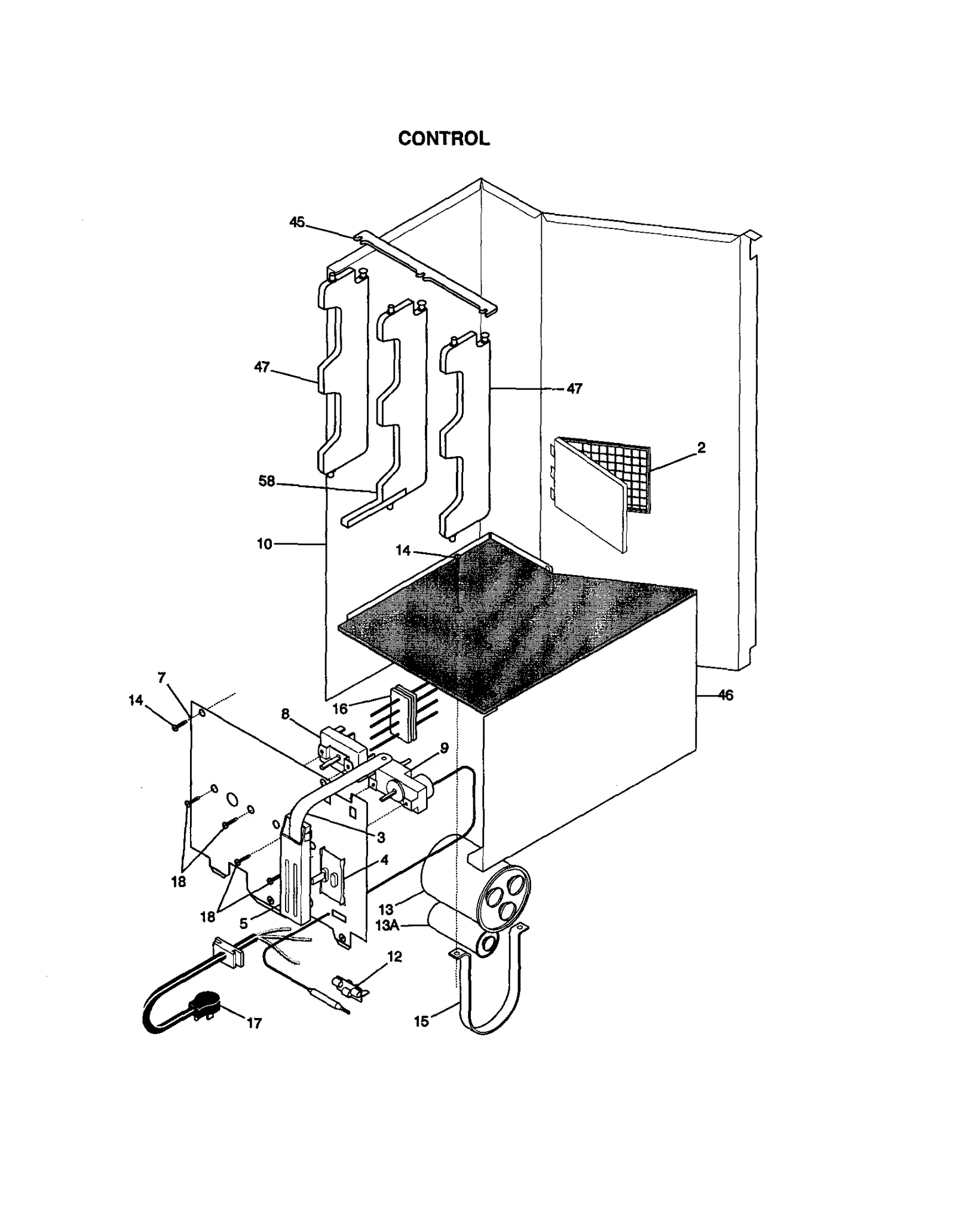

CONTROL

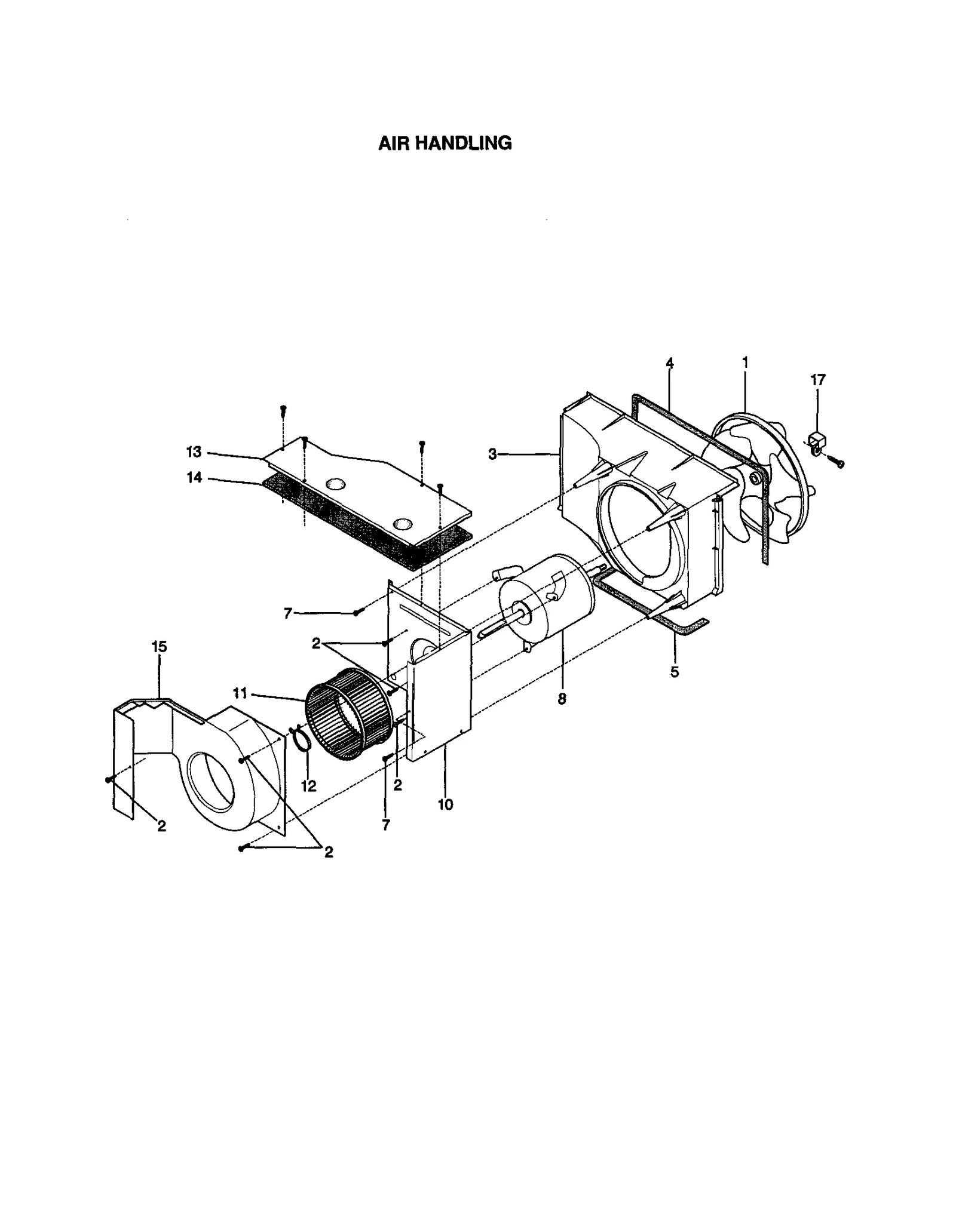

AIR HANDLING

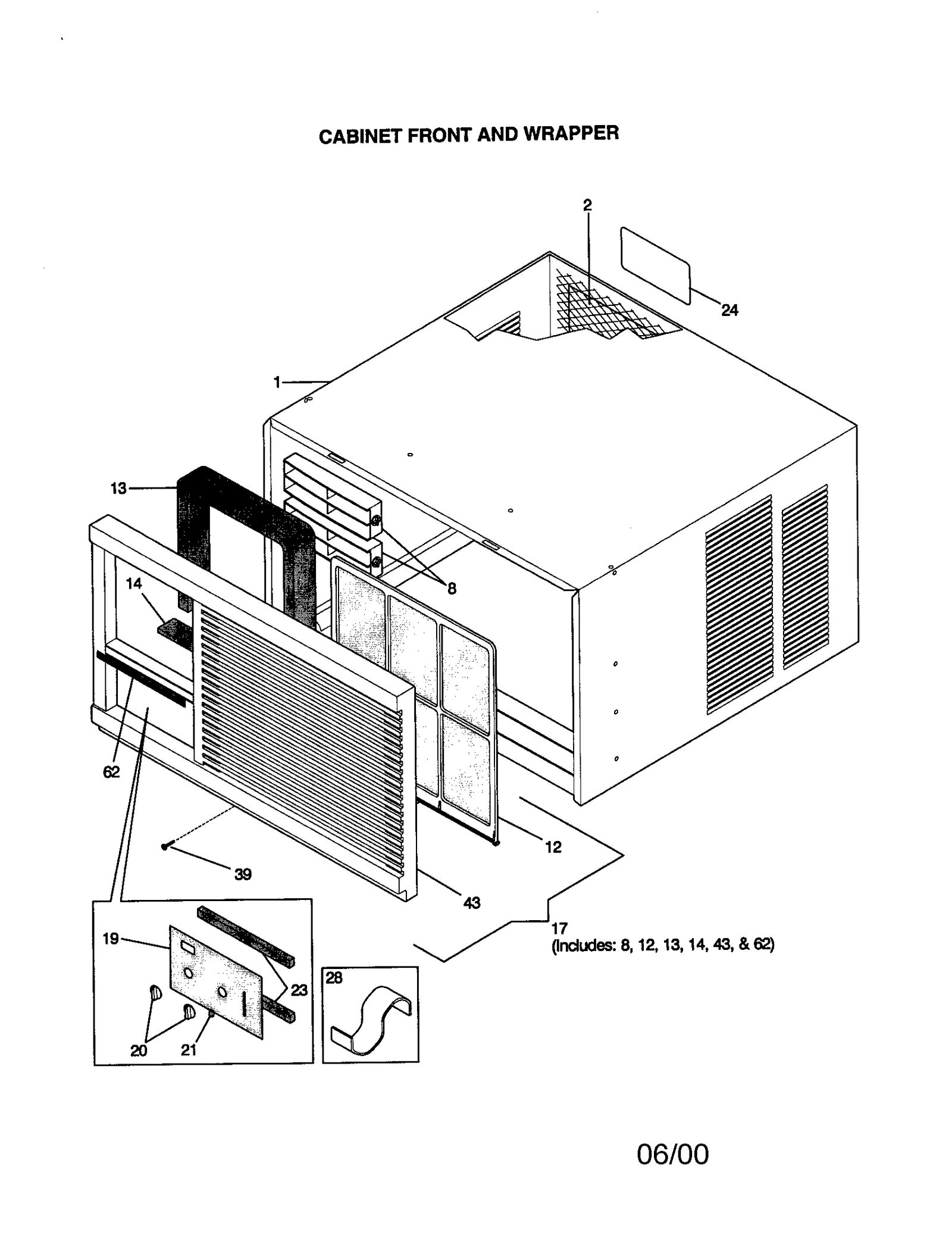

CABINET FRONT AND WRAPPER
Common parts from model Electrolux 253.70124000 Air Conditioner (Kenmore 25370124000)
1
Fan Blade WCI 5303320769 Contact Us For Availability
1
Sleeve WCI 309609212 Contact Us For Availability
2
Room Air Conditioner Window Stop Bracket WCI 5303211056 Contact Us For Availability
2
Door WCI 5303295752 Contact Us For Availability
2
Grille WCI 5304415070 Contact Us For Availability
3
Room Air Conditioner Compressor Mount Retaine WCI 5308006948 Contact Us For Availability
3
Seal WCI 5303276728 Contact Us For Availability
3
Strap-vent D WCI 5303306422 Contact Us For Availability
3
Condenser WCI 3202950 Contact Us For Availability
4
Lh Frame WCI 5304415073 Contact Us For Availability
4
Actuator WCI 5303201821 Contact Us For Availability
4
Seal WCI 3202953 Contact Us For Availability
5
Seal WCI 5303207200 Contact Us For Availability
5
Retainer-act WCI 5303306431 Contact Us For Availability
5
Seal WCI 3202951 Contact Us For Availability
6
Overload WCI 5303002035 Contact Us For Availability
6
Retainer WCI 5304415075 Contact Us For Availability
7
Cover WCI 5303211011 Contact Us For Availability
7
Support-rh WCI 5304414931 Contact Us For Availability
7
Mounting Panel WCI 5303320012 Contact Us For Availability
8
Room Air Conditioner Compressor Overload Prot WCI 5304408199 Contact Us For Availability
8
Bracket Window WCI 3001815 Contact Us For Availability
8
Select Switch WCI 5303307038 Contact Us For Availability
8
Motor WCI 5303302660 Contact Us For Availability
8
Louver WCI 5304415182 Contact Us For Availability
9
Cover Nut WCI 5303301734 Contact Us For Availability
9
Screw WCI 3007756 Contact Us For Availability
9
Room Air Conditioner Thermostat WCI 5304409496 Contact Us For Availability
10
Room Air Conditioner Compressor Start Relay K WCI 5303317601 Contact Us For Availability
10
Nut WCI 3007759 Contact Us For Availability
10
Bulkhead WCI 5303306446 Contact Us For Availability
10
Bulkhead WCI 5303307057 Contact Us For Availability
11
Evaporator WCI 309610103 Contact Us For Availability
11
Support-lh WCI 5304414932 Contact Us For Availability
11
Air Conditioner Blower Wheel WCI 309608901 Contact Us For Availability
12
Air Condenser WCI 5304408658 Contact Us For Availability
12
Spacer WCI 5303211009 Contact Us For Availability
12
Room Air Conditioner Fan Blade Clamp WCI 5303012110 Contact Us For Availability
12
Air Filter WCI 5304415180 Contact Us For Availability
13
Evaporator Tray WCI 5303306447 Contact Us For Availability
13
Support Screw WCI 5303281649 Contact Us For Availability
13
Capacitor WCI 5303316906 Contact Us For Availability
13
Cover WCI 5303321514 Contact Us For Availability
13
Seal Mullion WCI 5303306435 Contact Us For Availability
13A
Capacitor WCI 5308009152 Contact Us For Availability
14
Base WCI 5304415175 Contact Us For Availability
14
Rh Frame WCI 5304415074 Contact Us For Availability
14
Insulation WCI 309608201 Contact Us For Availability
14
Seal-front P WCI 5303306434 Contact Us For Availability
15
Shield-heate WCI 309612301 Contact Us For Availability
15
Accordion Closure WCI 5304415072 Contact Us For Availability
15
Strap WCI 3201973 Contact Us For Availability
15
Scroll WCI 5303306450 Contact Us For Availability
16
Tube WCI 3203561 Contact Us For Availability
16
Rail WCI 5304415076 Contact Us For Availability
16
Harness WCI 5303322209 Contact Us For Availability
17
Screw WCI 3002803 Contact Us For Availability
17
Power Cord WCI 309343121 Contact Us For Availability
17
Front Asm. WCI 309610320 Contact Us For Availability
18
Strainer WCI 5303290357 Contact Us For Availability
18
Screw WCI 5303007754 Contact Us For Availability
19
Washer WCI 5303002664 Contact Us For Availability
19
Dial Plate WCI 309346501 Contact Us For Availability
20
Spring WCI 5303002036 Contact Us For Availability
20
Control Knob WCI 309307012 Contact Us For Availability
21
Gasket WCI 5303295516 Contact Us For Availability
21
Gasket WCI 5314949603 Contact Us For Availability
21
Dial Switch WCI 5304415177 Contact Us For Availability
23
Seal-dial Pl WCI 5303307039 Contact Us For Availability
24
Screw WCI 3002801 Contact Us For Availability
27
Room Air Conditioner Heater Assembly WCI 309611802 Contact Us For Availability
28
Room Air Conditioner Heater High-Limit Thermo WCI 5303016865 Contact Us For Availability
28
Front Clip WCI 309100401 Contact Us For Availability
29
Harness WCI 5303307048 Contact Us For Availability
30
Valve WCI 3017804 Contact Us For Availability
31
Screw-drain WCI 5303209503 Contact Us For Availability
32
Nut WCI 3018695 Contact Us For Availability
36
Strap Base WCI 5303303558 Contact Us For Availability
40
DRAIN GROMMT WCI 530331031 Contact Us For Availability
43
Front Rack WCI 5304415181 Contact Us For Availability
45
Link WCI 5304415176 Contact Us For Availability
46
Cover WCI 5303320011 Contact Us For Availability
47
Vertical Louver WCI 5304415178 Contact Us For Availability
58
Louver WCI 5304415179 Contact Us For Availability
62
Name Insert WCI 309609015 Contact Us For Availability
NI
Owner's Manual WCI 309000828 Contact Us For Availability
NI
Technical Sheet WCI 309001220 Contact Us For Availability
× ![]()
