Model Electrolux 253.70106001 Room Air Conditioner (Kenmore 25370106001) – Common Parts & Diagrams
AIR HANDLING
All Parts

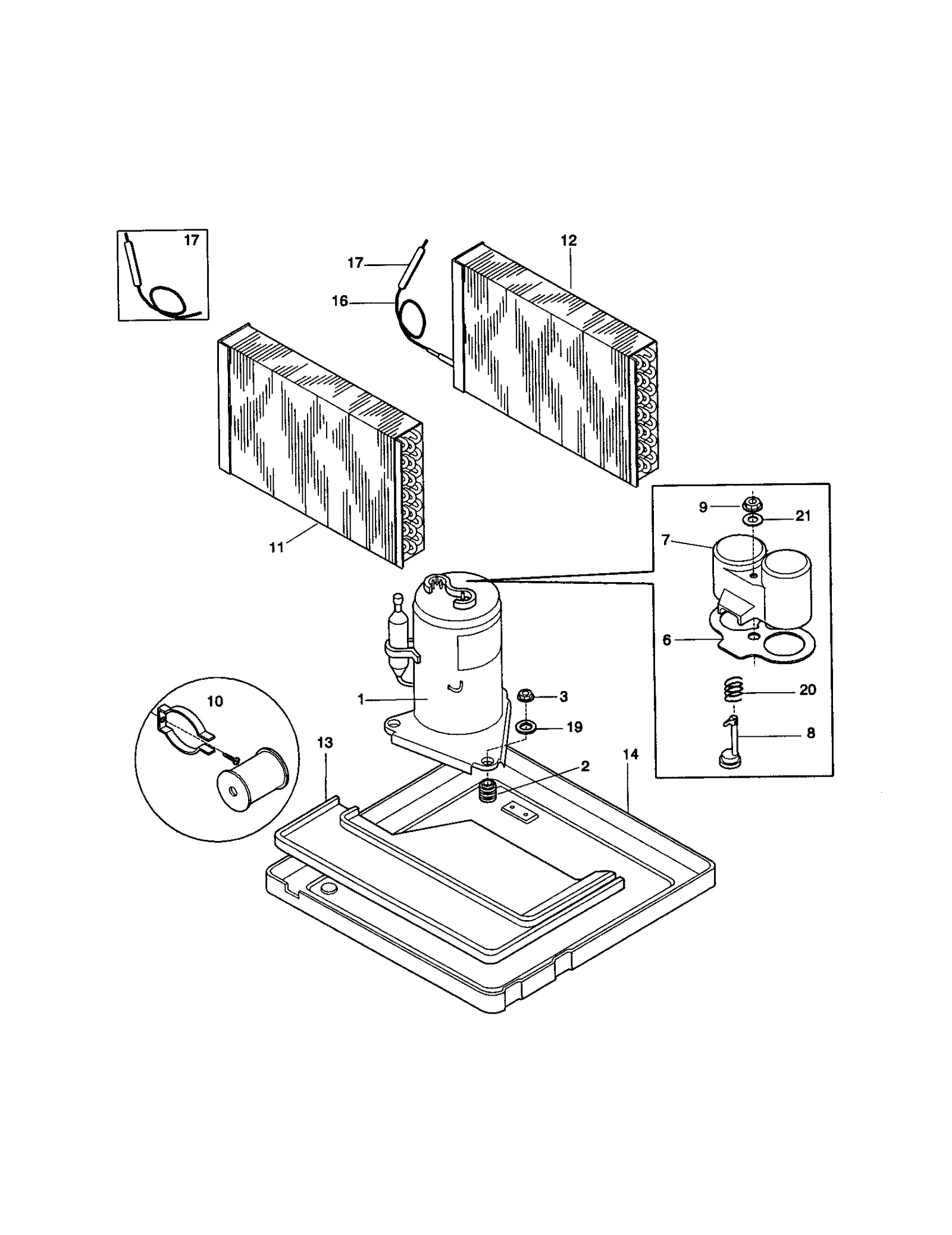

COMPRESSOR

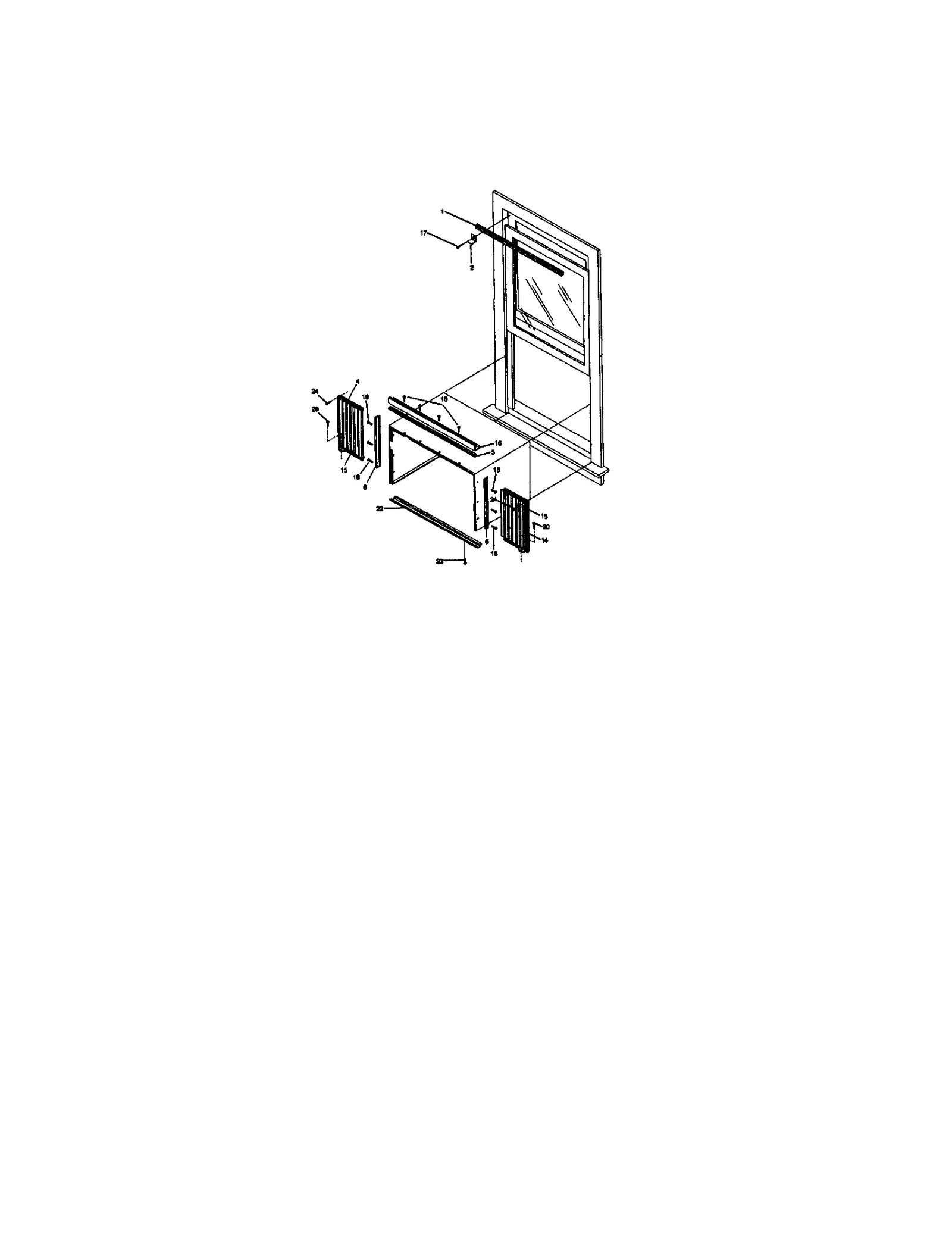

WINDOW MOUNTING

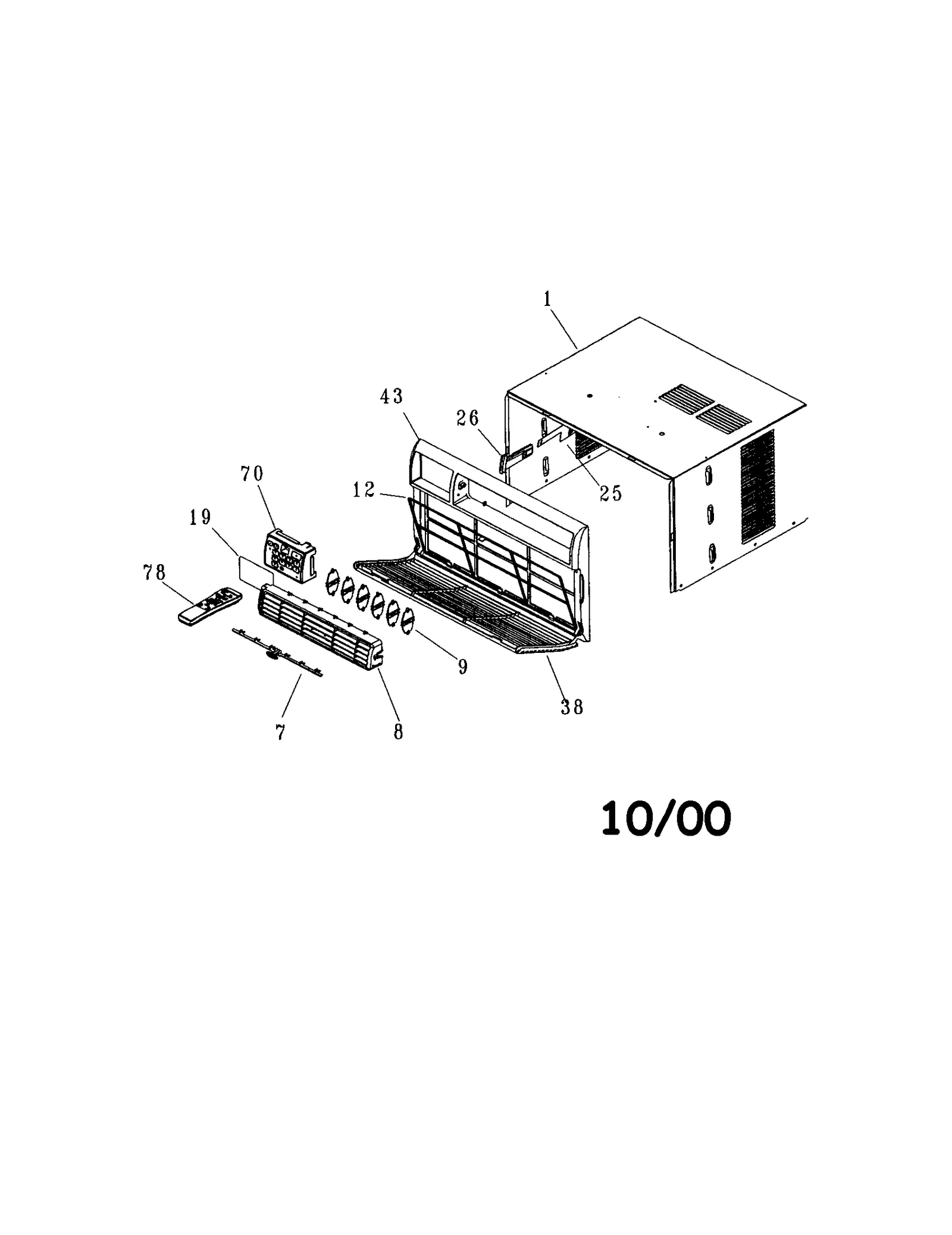

CABINET FRONT AND WRAPPER

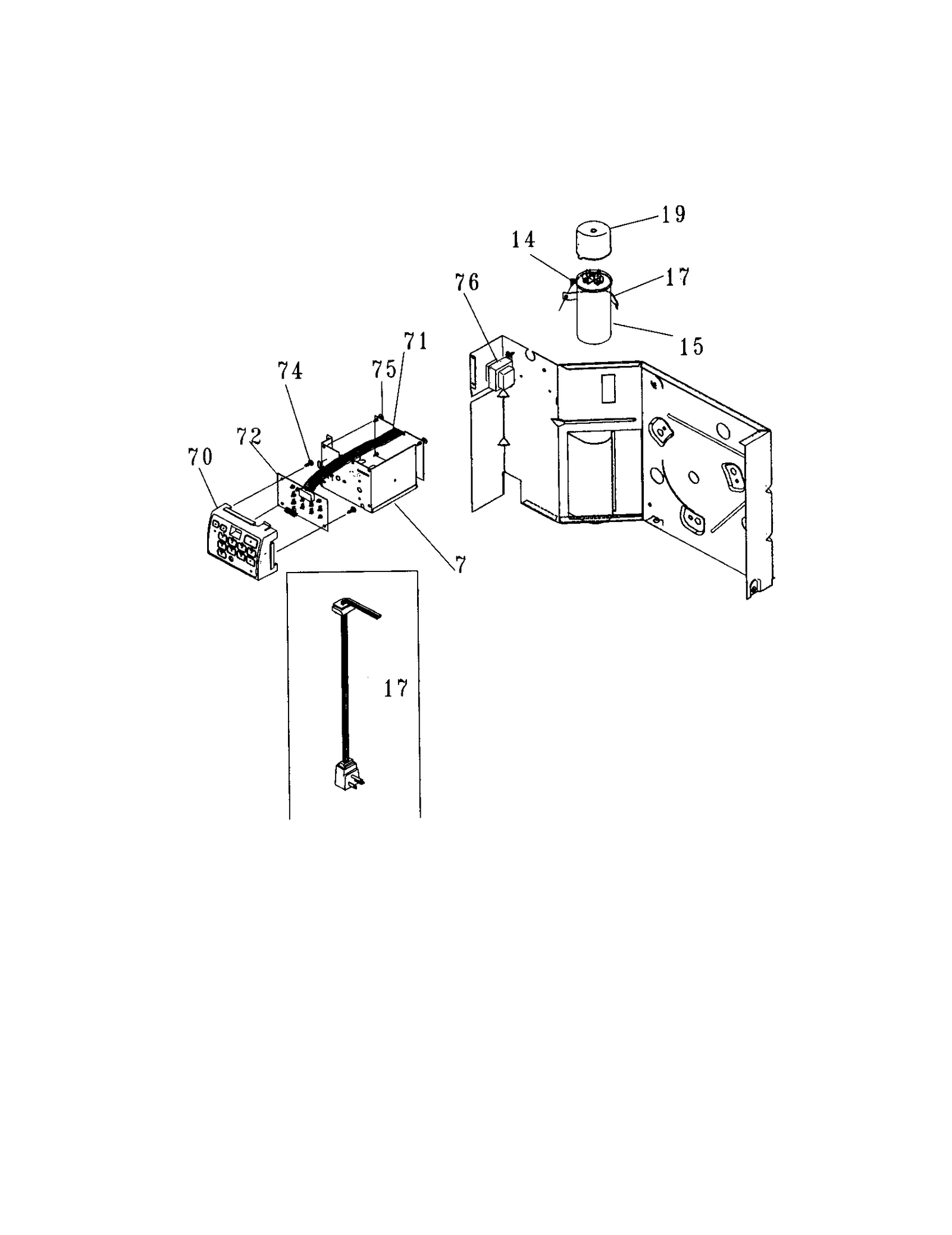

CONTROL
Common parts from model Electrolux 253.70106001 Room Air Conditioner (Kenmore 25370106001)
1
Compressor WCI 309603103 Contact Us For Availability
1
Wrapper WCI 5304413783 Contact Us For Availability
2
Room Air Conditioner Window Stop Bracket WCI 5303211056 Contact Us For Availability
2
Room Air Conditioner Compressor Grommet WCI 5303283877 Contact Us For Availability
3
Fan Housing WCI 309624201 Contact Us For Availability
3
Room Air Conditioner Compressor Mount Retaine WCI 5308006948 Contact Us For Availability
4
Seal WCI 5303270043 Contact Us For Availability
4
Lh Frame WCI 5304413847 Contact Us For Availability
5
Tp Rail Seal WCI 0806226 Contact Us For Availability
6
Grommet WCI 08016225 Contact Us For Availability
6
Gasket WCI 5303291330 Contact Us For Availability
7
Control Cover WCI 5303291329 Contact Us For Availability
7
Vent Link WCI 309638001 Contact Us For Availability
7
#CONTROL BOX-ELECT COMP WCI 309340402 Contact Us For Availability
8
Mtr-fan 4pl WCI 309627307 Contact Us For Availability
8
Overload Protector WCI 5304403166 Contact Us For Availability
8
Horizontal Louver WCI 309637901 Contact Us For Availability
9
Nut WCI 5303294292 Contact Us For Availability
9
Room Air Conditioner Vertical Louver Vane WCI 309342001 Contact Us For Availability
10
Bulkhead WCI 309602403 Contact Us For Availability
10
Room Air Conditioner Compressor Start Relay K WCI 5303317601 Contact Us For Availability
11
Bulkhead WCI 309617101 Contact Us For Availability
11
Evaporator WCI 309619303 Contact Us For Availability
12
Room Air Conditioner Air Filter WCI 309638102 Contact Us For Availability
12
Air Conditioner Blower Wheel WCI 5303012110 Contact Us For Availability
12
Condenser WCI 5303303195 Contact Us For Availability
12
Room Air Conditioner Thermistor Retainer WCI 5304413782 Contact Us For Availability
13
Evaporator Tray WCI 5303302849 Contact Us For Availability
13
Capacitor WCI 5303318963 Contact Us For Availability
14
Base WCI 5304414893 Contact Us For Availability
14
Rh Frame WCI 5304413848 Contact Us For Availability
15
Room Air Conditioner Fan Blade Clamp WCI 5304407653 Contact Us For Availability
15
Accordion Closure WCI 309626504 Contact Us For Availability
15
Strap Capacitor WCI 5303303086 Contact Us For Availability
16
Blowr Housng WCI 309100201 Contact Us For Availability
16
Capillary Tube WCI 5304408281 Contact Us For Availability
16
Rail WCI 5304413784 Contact Us For Availability
17
Clip Scroll WCI 5308011040 Contact Us For Availability
17
Filter Drier WCI 5304413933 Contact Us For Availability
17
Screw WCI 3002803 Contact Us For Availability
17
Grille WCI 309640103 Contact Us For Availability
17
Power Cord WCI 309343102 Contact Us For Availability
19
Washer WCI 5303002664 Contact Us For Availability
19
Overlay WCI 309340801 Contact Us For Availability
19
Cover Capacitor WCI 5303302855 Contact Us For Availability
20
Clamp-blade WCI 5304407654 Contact Us For Availability
20
Spring Overlay WCI 5303291328 Contact Us For Availability
20
Screw WCI 5303295750 Contact Us For Availability
21
Washer WCI 5303293809 Contact Us For Availability
22
Room Air Conditioner Window Support Bracket WCI 5304403252 Contact Us For Availability
23
Screw WCI 3001806 Contact Us For Availability
24
Screw WCI 530802974 Contact Us For Availability
25
Vent Cover WCI 309328601 Contact Us For Availability
26
Hndle-vent WCI 309638201 Contact Us For Availability
26A
Vent Detent WCI 309330201 Contact Us For Availability
38
Panel WCI 309637801 Contact Us For Availability
43
Air Conditioner Grille Front WCI 309637701 Contact Us For Availability
70
Cover WCI 309340301 Contact Us For Availability
71
Power Board WCI 309350401 Contact Us For Availability
72
Room Air Conditioner Power Control Board WCI 309350402 Contact Us For Availability
75
Pc Board-sup WCI 5304413781 Contact Us For Availability
76
Room Air Conditioner Transformer WCI 309111601 Contact Us For Availability
78
Room Air Conditioner Remote Control WCI 309342603 Contact Us For Availability
NI
Owner's Manual WCI 309000829 Contact Us For Availability
NI
SHEET-TECH DATA 70106001 WCI 309001251 Contact Us For Availability
NI
Louver WCI 309640201 Contact Us For Availability
× ![]()
