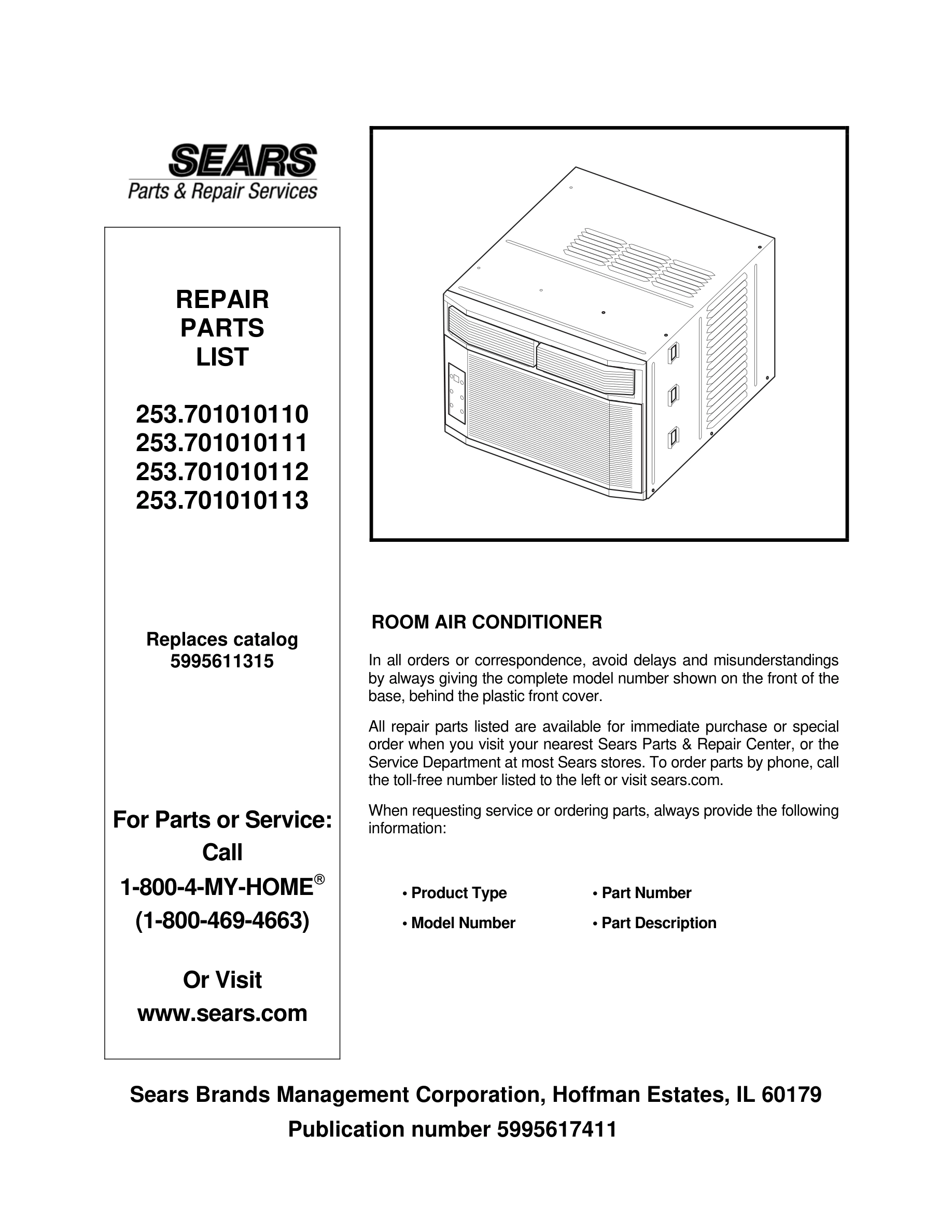

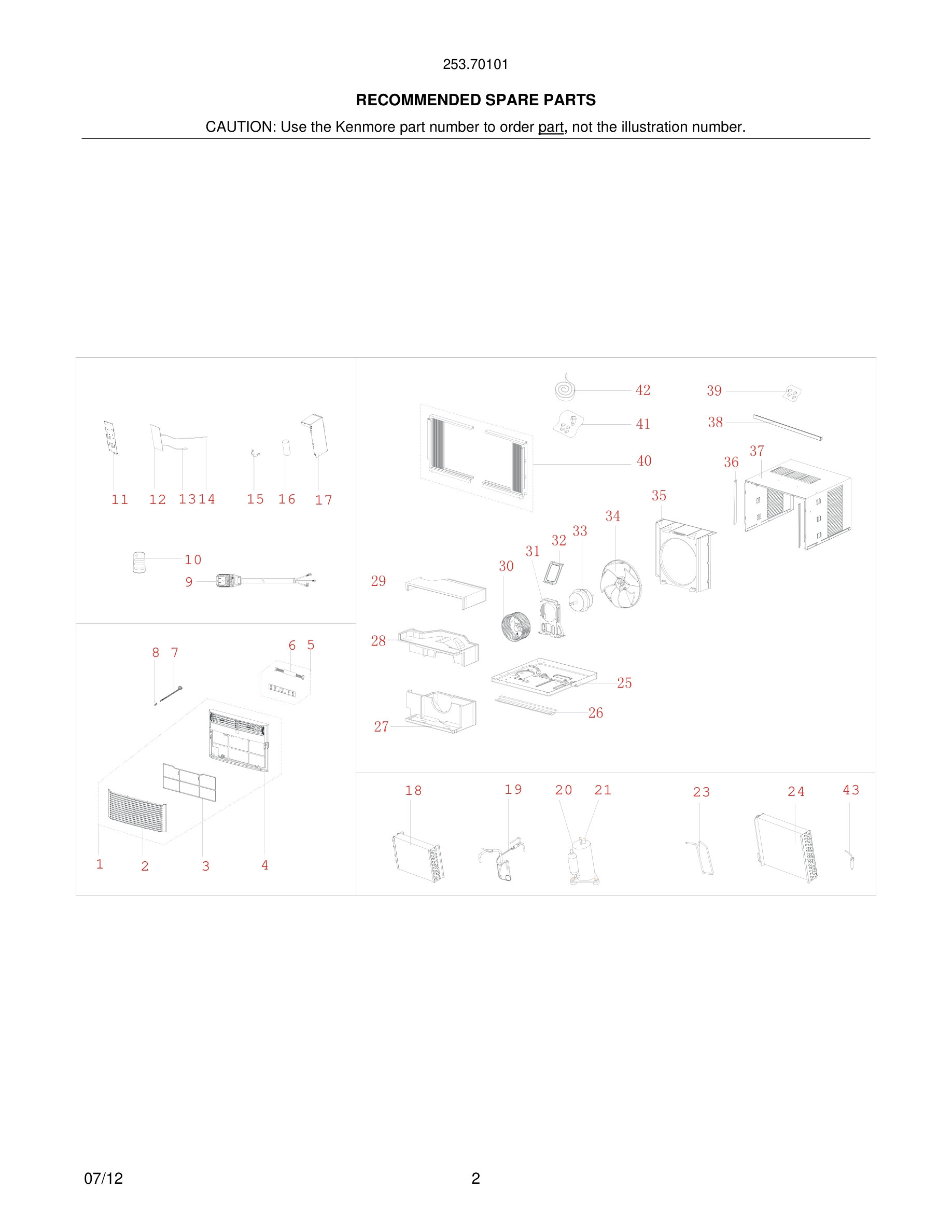

Model Kenmore 253.701010110 ROOM AIR CONDITIONER – Common Parts & Diagrams

3#
Filter, air, plastic frame
Filter, air, plastic frame WCI 5304476175 Contact Us For Availability
View on Model
14#
Sensor, ambient temp, thermistor
Sensor, ambient temp, thermistor WCI 5304476053 Contact Us For Availability
View on Model
18
Evaporator, with capillary tube
Evaporator, with capillary tube WCI 5304485974 Contact Us For Availability
View on Model
19
Tube, capillary
Tube, capillary WCI 5304485965 Contact Us For Availability
View on Model
20#
Compressor, with overload
Compressor, with overload WCI 5304482634 Contact Us For Availability
View on Model
21#
Overload Protector, compressor
Overload Protector, compressor WCI 5304476293 Contact Us For Availability
View on Model
23#
Tube, discharge
Tube, discharge WCI 5304476187 Contact Us For Availability
View on Model
24#
Condenser
Condenser WCI 5304476233 Contact Us For Availability
View on Model
25
Base, unit chassis
Base, unit chassis WCI 5304485966 Contact Us For Availability
View on Model
26
Rail, shutter track, bottom
Rail, shutter track, bottom WCI 5304476190 Contact Us For Availability
View on Model
27
Scroll, blower housing, bottom
Scroll, blower housing, bottom WCI 5304485967 Contact Us For Availability
View on Model
28
Scroll, blower housing, middle
Scroll, blower housing, middle WCI 5304485968 Contact Us For Availability
View on Model
29
Scroll, blower housing, top
Scroll, blower housing, top WCI 5304485969 Contact Us For Availability
View on Model
31
Support, motor mount, left
Support, motor mount, left WCI 5304476194 Contact Us For Availability
View on Model
32
Support, motor mount, right
Support, motor mount, right WCI 5304476195 Contact Us For Availability
View on Model
33#
Motor, fan
Motor, fan WCI 5304485973 Contact Us For Availability
View on Model
33*
Motor, fan
Motor, fan WCI 5304485442 Contact Us For Availability
View on Model
35
Shroud, condenser/fan
Shroud, condenser/fan WCI 5304476196 Contact Us For Availability
View on Model
36
Retainer, shutter, cabinet sides
Retainer, shutter, cabinet sides WCI 5304476197 Contact Us For Availability
View on Model
37
Cabinet, wrapper/sleeve
Cabinet, wrapper/sleeve WCI 5304476198 Contact Us For Availability
View on Model
38
Rail, shutter track, top angle
Rail, shutter track, top angle WCI 5304476199 Contact Us For Availability
View on Model
39
Screw Kit, top rail mount
Screw Kit, top rail mount WCI 5304472191 Contact Us For Availability
View on Model
41
Hardware, mounting, screws/locks
Hardware, mounting, screws/locks WCI 5304472192 Contact Us For Availability
View on Model
42
Seal Kit, foam, sash filler
Seal Kit, foam, sash filler WCI 5304472211 Contact Us For Availability
