Model Electrolux 253.70093001 Room Air Conditioner (Kenmore 25370093001) – Common Parts & Diagrams
WINDOW MOUNTING
COMPRESSOR
CABINET FRONT

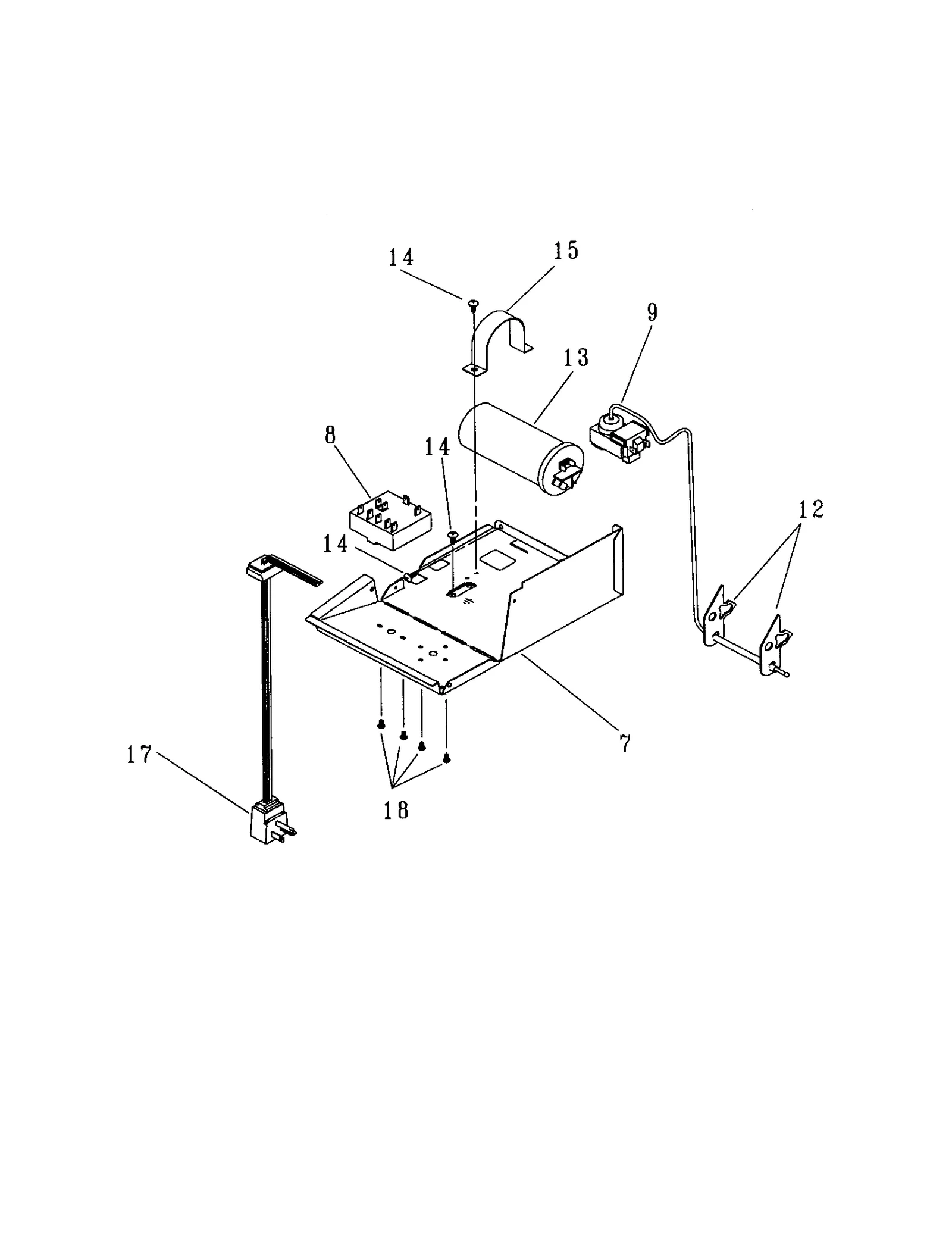

CONTROLS
All Parts

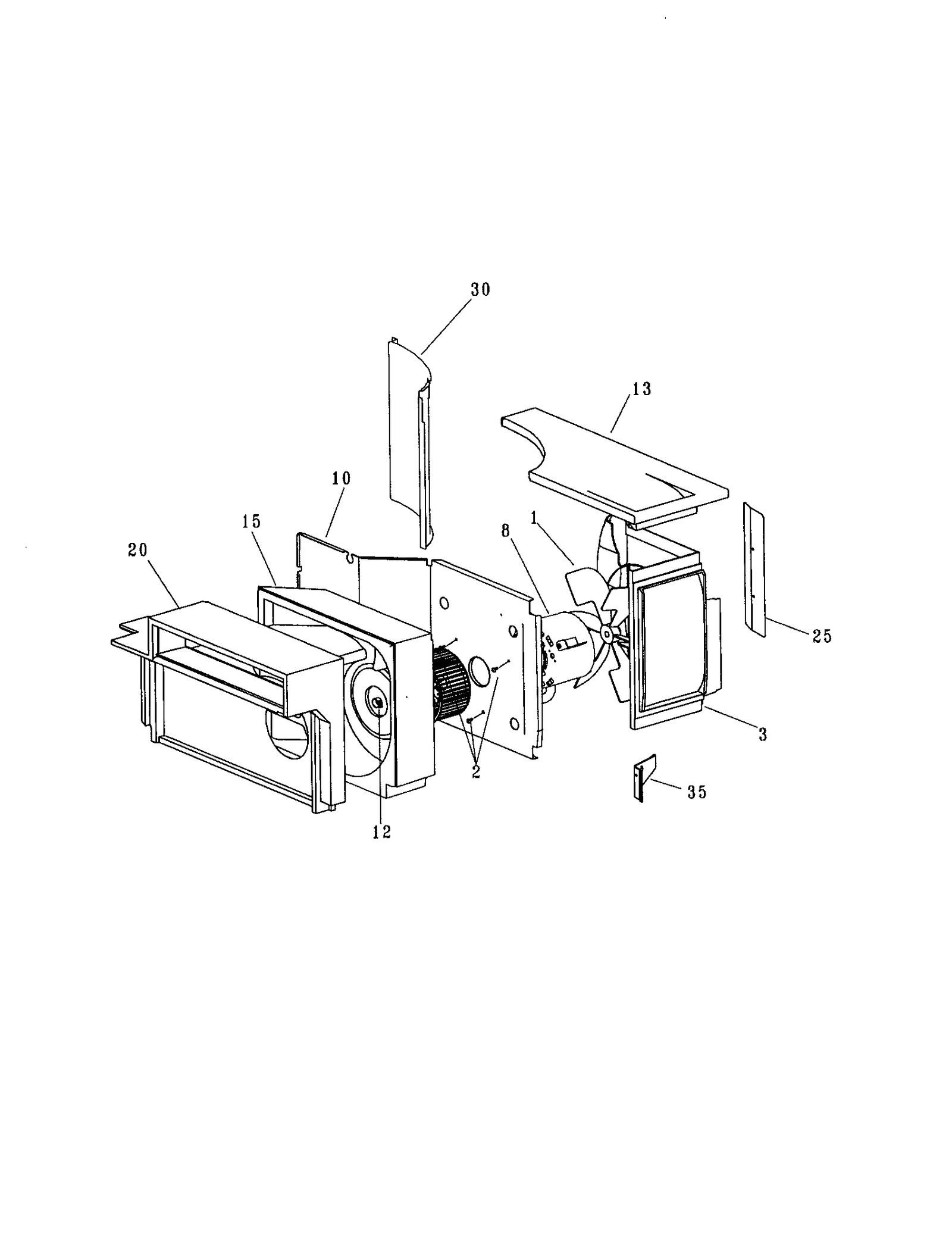

AIR HANDLING
Common parts from model Electrolux 253.70093001 Room Air Conditioner (Kenmore 25370093001)
1
Compressor WCI 309603106 Contact Us For Availability
1
#wrapper-u-b WCI 309627504 Contact Us For Availability
1
Fan Blade WCI 309629102 Contact Us For Availability
2
Trim Frme/tb WCI 309628604 Contact Us For Availability
2
Room Air Conditioner Compressor Grommet WCI 5303283877 Contact Us For Availability
2
Safety Scren WCI 309636101 Contact Us For Availability
3
Kit-groundin WCI 5304409303 Contact Us For Availability
3
Room Air Conditioner Compressor Mount Retaine WCI 5308006948 Contact Us For Availability
3
Fan Housing WCI 309628901 Contact Us For Availability
4
Block-tapere WCI 5304409304 Contact Us For Availability
5
Wrapper Seal WCI 5303301038 Contact Us For Availability
6
Seal-cond En WCI 5304409305 Contact Us For Availability
6
Gasket WCI 5303291330 Contact Us For Availability
7
Seal-cond/re WCI 5304409306 Contact Us For Availability
7
Control Cover WCI 5303291329 Contact Us For Availability
7
Link WCI 309324004 Contact Us For Availability
7
Control Box WCI 309628501 Contact Us For Availability
8
Seal-cond/re WCI 5304409307 Contact Us For Availability
8
OVERLOAD-MRA12017-12026 WCI 5304415403 Contact Us For Availability
8
Louver WCI 309628004 Contact Us For Availability
8
Select Switch WCI 5304408739 Contact Us For Availability
8
Fan Motor WCI 5304408763 Contact Us For Availability
9
Temperature Control WCI 5304408746 Contact Us For Availability
9
Instructions WCI 5304409308 Contact Us For Availability
9
Nut WCI 5303294292 Contact Us For Availability
9
Louver WCI 309628104 Contact Us For Availability
10
Seal-cond/re WCI 5304409309 Contact Us For Availability
10
#bulkhead-18 WCI 309627401 Contact Us For Availability
11
Cabinet WCI 5304409310 Contact Us For Availability
11
Evaporator WCI 309632305 Contact Us For Availability
11
Air Conditioner Blower Wheel WCI 309631701 Contact Us For Availability
12
Divider WCI 309335101 Contact Us For Availability
12
Condenser WCI 309641901 Contact Us For Availability
12
Filter WCI 309628205 Contact Us For Availability
12
Retainer Clip WCI 309329801 Contact Us For Availability
12
Room Air Conditioner Fan Blade Clamp WCI 5303012110 Contact Us For Availability
13
Kit-grille M WCI 5304409311 Contact Us For Availability
13
#TRAY-BASE EL HT WCI 309628703 Contact Us For Availability
13
Capacitor WCI 5303316710 Contact Us For Availability
13
COVER,CONDEN WCI 309628802 Contact Us For Availability
14
Base Assembly WCI 309632004 Contact Us For Availability
14
Screw WCI 5303285199 Contact Us For Availability
15
Kit-mounting WCI 309636002 Contact Us For Availability
15
Strap WCI 5303303077 Contact Us For Availability
15
Scroll-18.5 WCI 309622801 Contact Us For Availability
16
Tube WCI 3018217 Contact Us For Availability
17
Front Assembly WCI 309629407 Contact Us For Availability
17
Cord-srv 230 WCI 309343109 Contact Us For Availability
18
Screw WCI 5303007754 Contact Us For Availability
19
WASHER, COMPRESSOR WCI 530300664 Contact Us For Availability
20
(NOT REQUIRED) SPRING, OVERLOAD WCI N/P Contact Us For Availability
20
Control Knob WCI 309307012 Contact Us For Availability
20
Scroll Plate WCI 309622901 Contact Us For Availability
21
Washer WCI 5303293809 Contact Us For Availability
25
Air Baffle WCI 309335201 Contact Us For Availability
30
Partition WCI 309629001 Contact Us For Availability
35
Spacer WCI 3200761 Contact Us For Availability
35
Baffle Condenser WCI 309335001 Contact Us For Availability
43
Frt Pln Asy WCI 309631807 Contact Us For Availability
73
Room Air Conditioner Louver WCI 309629304 Contact Us For Availability
NI
Owner's Manual WCI 309000827 Contact Us For Availability
NI
Service Data Sheet WCI 309001243 Contact Us For Availability
NI
Panel-rear P WCI 5304408740 Contact Us For Availability
× ![]()
