Model Electrolux 253.70088001 Room Air Conditioner (Kenmore 25370088001) – Common Parts & Diagrams
CABINET FRONT AND WRAPPER
AIR HANDLING

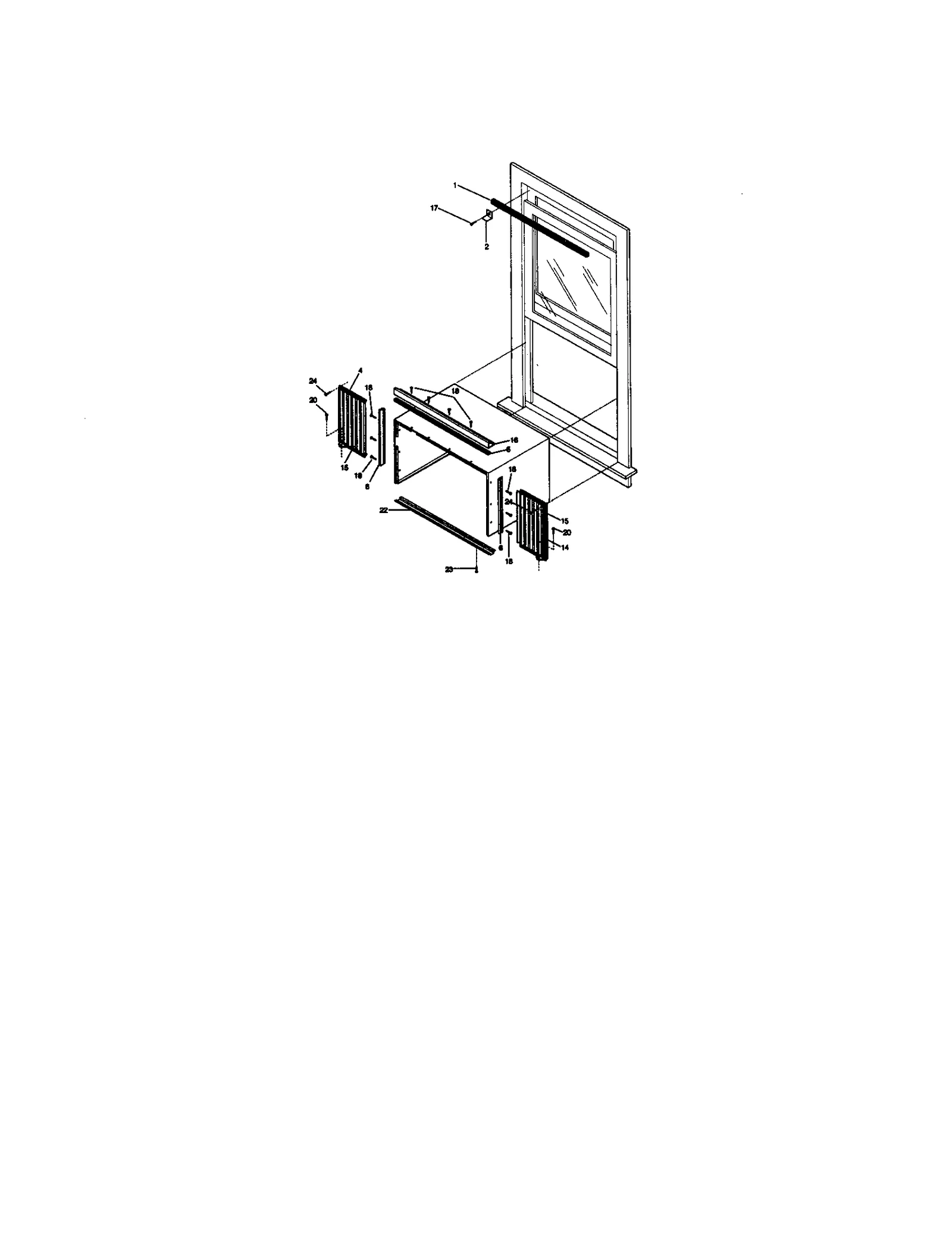

WINDOW MOUNTING
All Parts

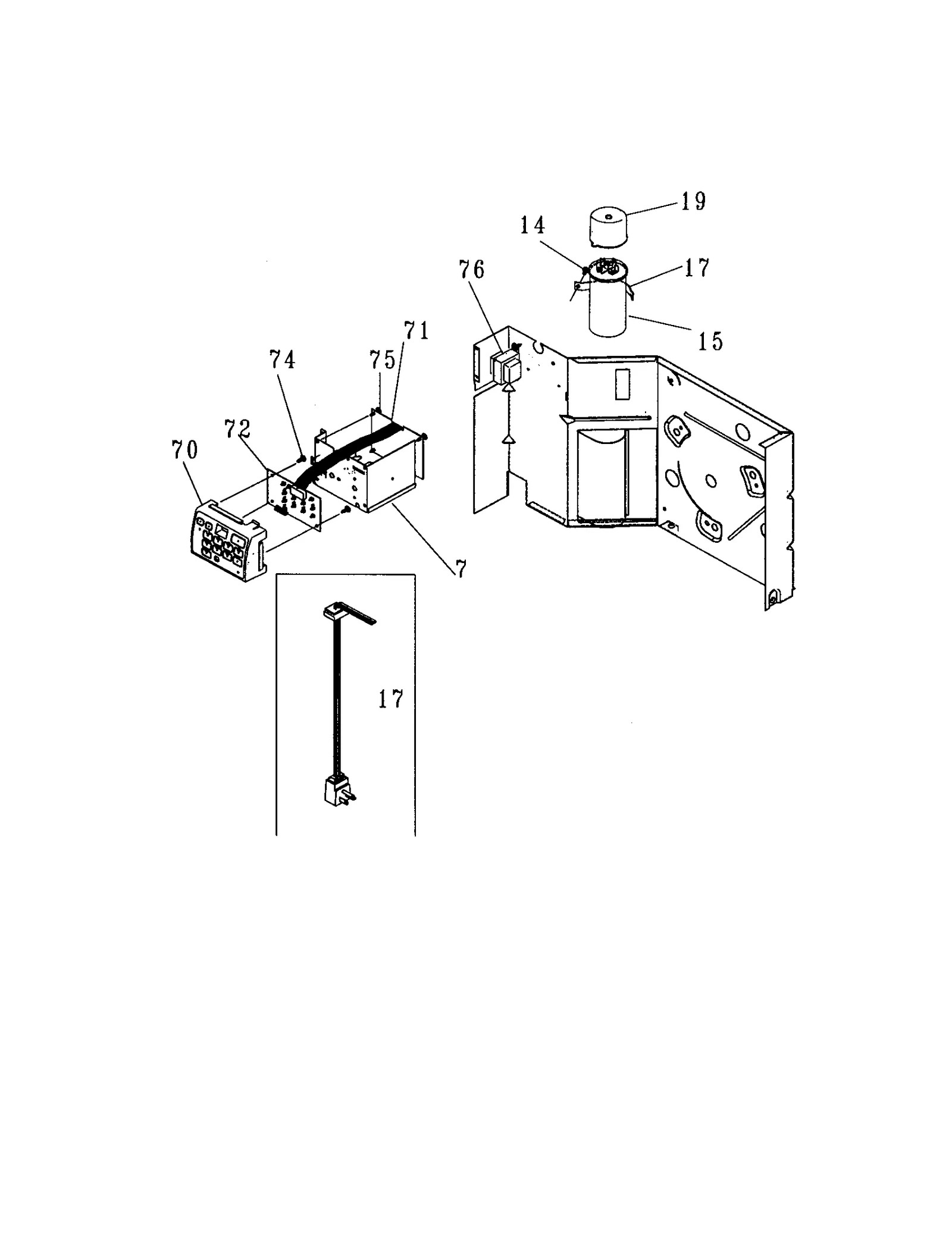

CONTROL

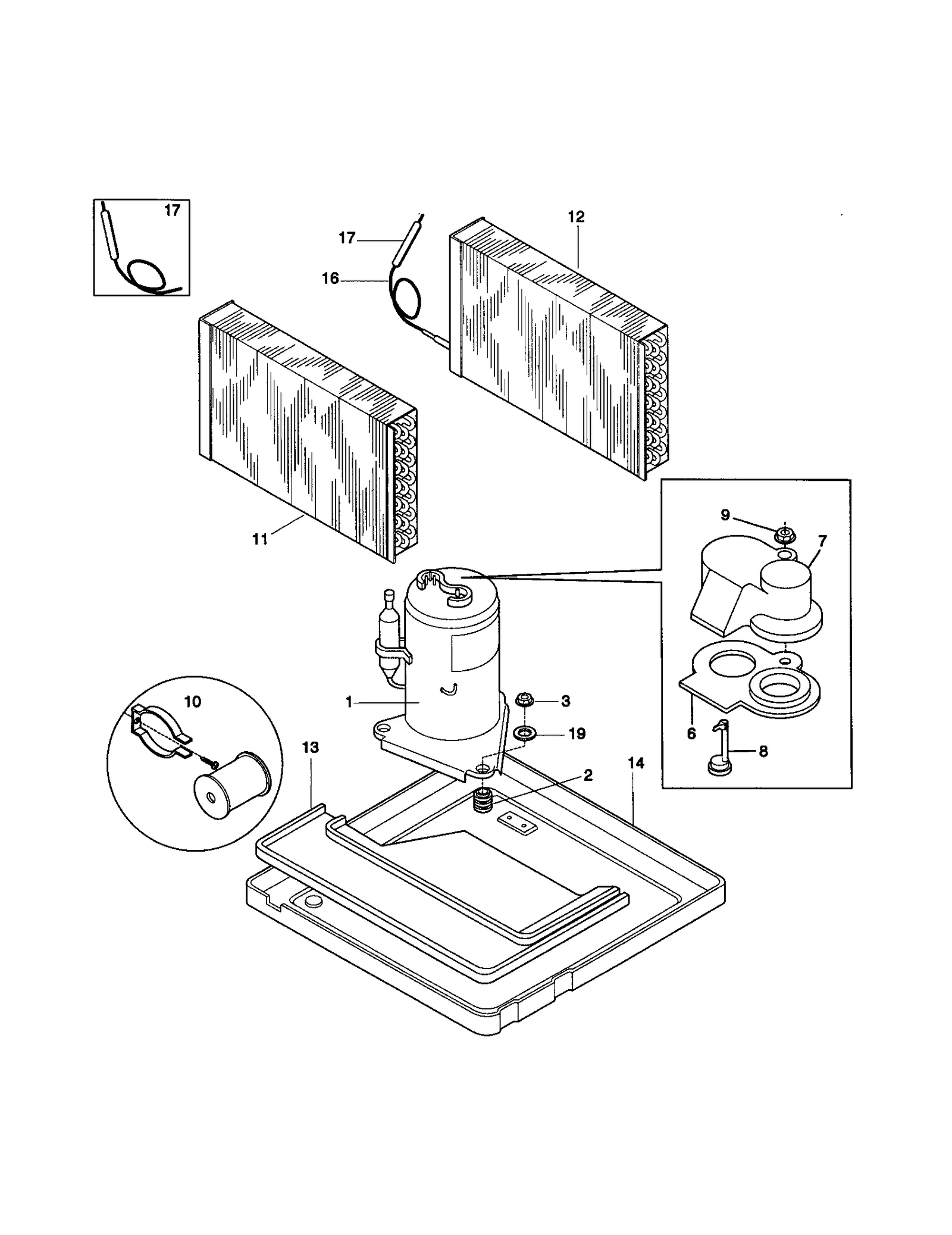

COMPRESSOR
Common parts from model Electrolux 253.70088001 Room Air Conditioner (Kenmore 25370088001)
1
Room Air Conditioner Condenser Fan Blade WCI 309624502 Contact Us For Availability
1
Compressor WCI 5304406829 Contact Us For Availability
2
Room Air Conditioner Window Stop Bracket WCI 5303211056 Contact Us For Availability
2
Room Air Conditioner Compressor Grommet WCI 5303283877 Contact Us For Availability
2A
Kelvinator Room Air Conditioner Lock Nut WCI 08007481 Contact Us For Availability
3
Fan Housing WCI 309624201 Contact Us For Availability
3
Room Air Conditioner Compressor Mount Retaine WCI 5308006948 Contact Us For Availability
4
Seal WCI 5303270043 Contact Us For Availability
4
Lh Frame WCI 5304413847 Contact Us For Availability
5
Tp Rail Seal WCI 0806226 Contact Us For Availability
6
Grommet WCI 08016225 Contact Us For Availability
6
(NOT REQUIRED) SPRING, OVERLOAD WCI N/P Contact Us For Availability
6
Cover Gasket WCI 3200282 Contact Us For Availability
7
#CONTROL BOX-ELECT COMP WCI 309340402 Contact Us For Availability
7
Terminal Cover WCI 3200281 Contact Us For Availability
8
Fan Motor WCI 309627301 Contact Us For Availability
8
Overload WCI 3202920 Contact Us For Availability
9
Nut WCI 08009077 Contact Us For Availability
10
Bulkhead WCI 309602403 Contact Us For Availability
10
Room Air Conditioner Compressor Start Relay K WCI 5303317601 Contact Us For Availability
11
Air Conditioner Blower Wheel WCI 309603301 Contact Us For Availability
11
Evaporator WCI 309619305 Contact Us For Availability
12
Room Air Conditioner Air Filter WCI 309638102 Contact Us For Availability
12
Room Air Conditioner Fan Blade Clamp WCI 5303012110 Contact Us For Availability
12
Room Air Conditioner Thermistor Retainer WCI 5304413782 Contact Us For Availability
12
Condenser WCI 5303303195 Contact Us For Availability
13
Capacitor-35 WCI 5303303576 Contact Us For Availability
13
Evaporator Tray WCI 5303302849 Contact Us For Availability
14
Rh Frame WCI 5304413848 Contact Us For Availability
14
#BASE-COMPR STK STD ASSY(1403) WCI 5304413932 Contact Us For Availability
15
Blowr Housng WCI 5304407653 Contact Us For Availability
15
Accordion Closure WCI 309626504 Contact Us For Availability
15
Strap Capacitor WCI 5303303086 Contact Us For Availability
16
Clip Scroll WCI 309100201 Contact Us For Availability
16
Rail WCI 5304413784 Contact Us For Availability
16
Tube WCI 3019025 Contact Us For Availability
17
Grille WCI 309640103 Contact Us For Availability
17
Clamp-blade WCI 5308011040 Contact Us For Availability
17
Screw WCI 3002803 Contact Us For Availability
17
Power Cord WCI 309343101 Contact Us For Availability
17
Filter Drier WCI 5304413933 Contact Us For Availability
19
Overlay WCI 309340801 Contact Us For Availability
19
Cover Capacitor WCI 5303302855 Contact Us For Availability
19
Washer WCI 5303002664 Contact Us For Availability
20
Scroll Plate WCI 5304407654 Contact Us For Availability
20
Screw WCI 5303295750 Contact Us For Availability
22
Room Air Conditioner Window Support Bracket WCI 5304403252 Contact Us For Availability
23
Screw WCI 3001806 Contact Us For Availability
24
Screw WCI 530802974 Contact Us For Availability
25
Vent Cover WCI 309328601 Contact Us For Availability
26
Hndle-vent WCI 309638201 Contact Us For Availability
26A
Vent Detent WCI 309330201 Contact Us For Availability
38
Panel WCI 309637801 Contact Us For Availability
43
Air Conditioner Grille Front WCI 309637701 Contact Us For Availability
70
Cover WCI 309340301 Contact Us For Availability
71
Power Board WCI 309350401 Contact Us For Availability
72
Room Air Conditioner Power Control Board WCI 309350402 Contact Us For Availability
75
Pc Board-sup WCI 5304413781 Contact Us For Availability
76
Room Air Conditioner Transformer WCI 309111601 Contact Us For Availability
78
Room Air Conditioner Remote Control WCI 309342603 Contact Us For Availability
NI
Owner's Manual WCI 309000829 Contact Us For Availability
NI
Service Data Sheet WCI 309001248 Contact Us For Availability
NI
Louver WCI 309640201 Contact Us For Availability
× ![]()
