Model Kenmore 253.70062011 ROOM AIR CONDITIONER – Common Parts & Diagrams

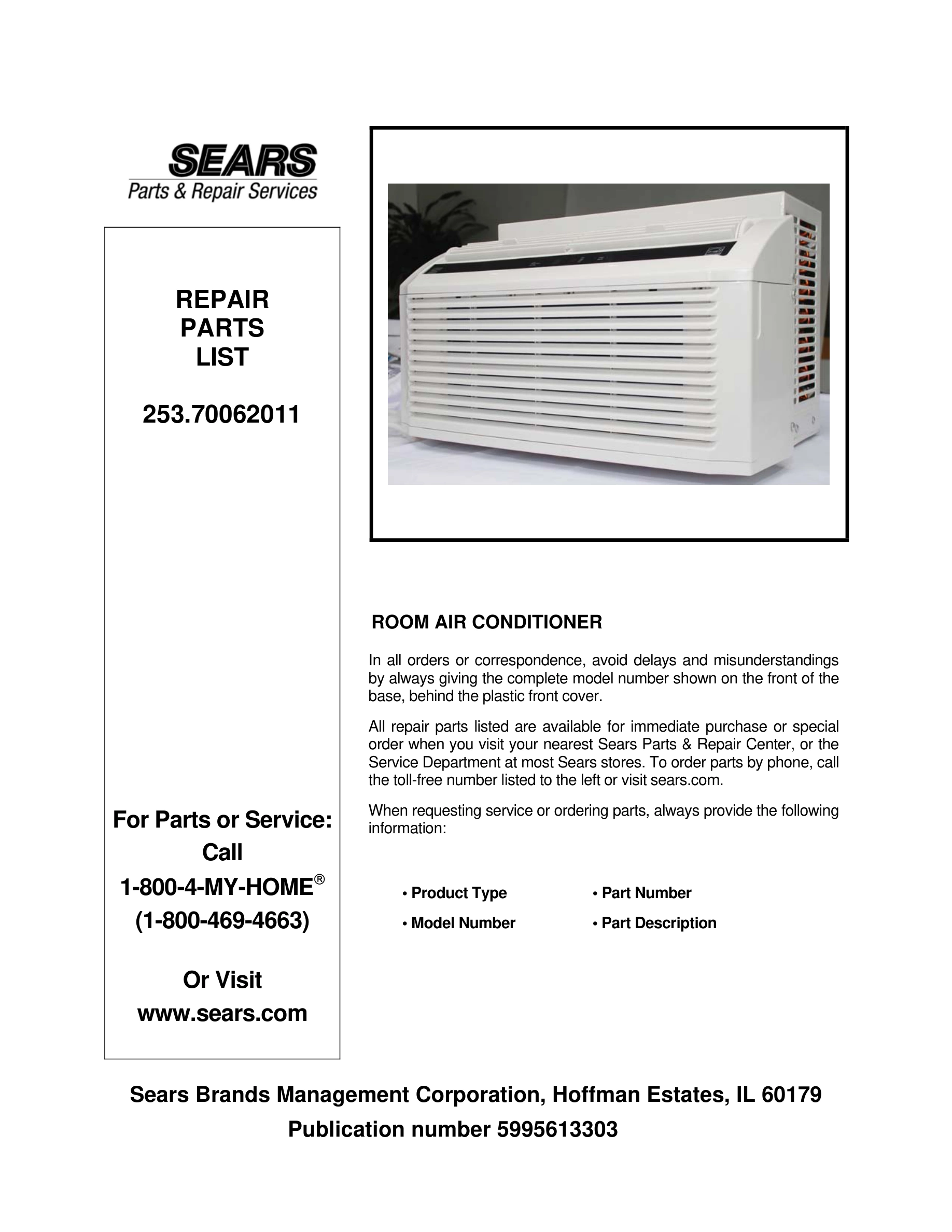

01 - COVER

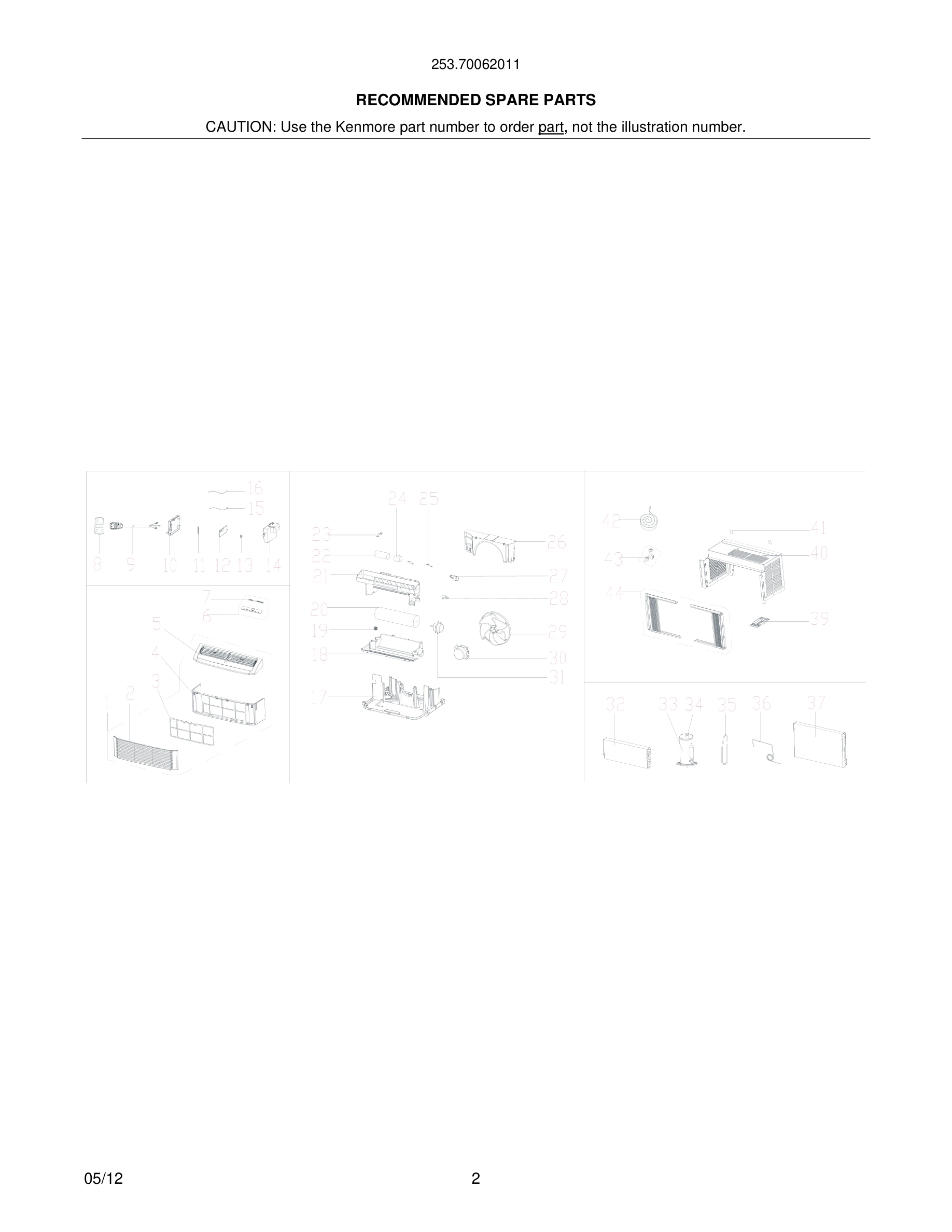

03 - RECOMMENDED SPARE PARTS

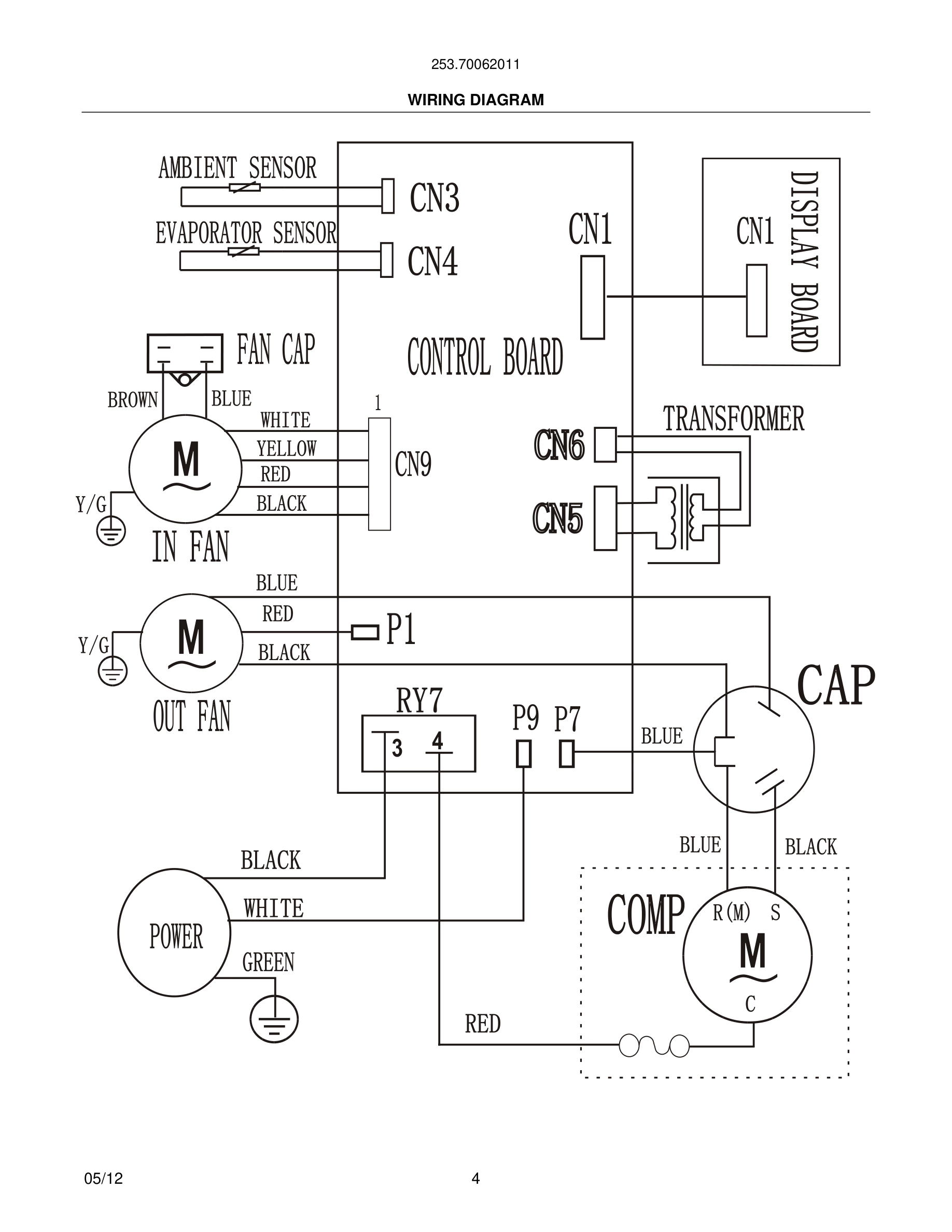

04 - WIRING DIAGRAM
Common parts from model Kenmore 253.70062011 ROOM AIR CONDITIONER
1#
Front Assembly, complete panel WCI 5304476513 Contact Us For Availability
2
Panel, front grille WCI 5304476526 Contact Us For Availability
3#
Filter, air WCI 5304476514 Contact Us For Availability
4
Panel, frame, bottom WCI 5304476527 Contact Us For Availability
5#
Panel, frame, top, with louvers WCI 5304476528 Contact Us For Availability
6#
PC Board, display/input WCI 5304476529 Contact Us For Availability
7#
Wire, connector, pc boards WCI 5304485996 Contact Us For Availability
9#
Power Cord, electric, LCDI WCI 5304476515 Contact Us For Availability
10
Cover, control box WCI 5304485997 Contact Us For Availability
11#
Terminal, ground wire, link WCI 5304476531 Contact Us For Availability
12#
PC Board, control, main WCI 5304476532 Contact Us For Availability
14
Box, control WCI 5304485998 Contact Us For Availability
17
Base, unit chassis WCI 5304476534 Contact Us For Availability
18
Scroll, blower housing, bottom WCI 5304476535 Contact Us For Availability
19
Holder, bearing WCI 5304476536 Contact Us For Availability
20#
Blower Wheel, centrifugal fan WCI 5304476077 Contact Us For Availability
21
Scroll, blower housing, top WCI 5304476537 Contact Us For Availability
22#
Capacitor, compressor WCI 5304476074 Contact Us For Availability
23
Strap, capacitor clamp WCI 5304476538 Contact Us For Availability
24
Cap, capacitor, compressor WCI 5304476539 Contact Us For Availability
25
Bracket, motor mount, scroll top WCI 5304476540 Contact Us For Availability
26
Shroud, condenser/fan WCI 5304476541 Contact Us For Availability
27
Cap, capacitor, fan motor WCI 5304476542 Contact Us For Availability
28#
Capacitor WCI 5304473967 Contact Us For Availability
29#
Fan Blade, axial WCI 5304476078 Contact Us For Availability
30#
Motor, fan WCI 5304476076 Contact Us For Availability
31#
Motor, blower WCI 5304476075 Contact Us For Availability
32#
Evaporator, with cap tube WCI 5304485999 Contact Us For Availability
33#
Compressor, with overload WCI 5304476073 Contact Us For Availability
34#
Overload Protector, compressor WCI 5304476301 Contact Us For Availability
35#
Tube, discharge WCI 5304476544 Contact Us For Availability
36#
Tube, capillary WCI 5304483023 Contact Us For Availability
37
Condenser WCI 5304486000 Contact Us For Availability
39
Platform, unit support, bracket WCI 5304476583 Contact Us For Availability
40
Cabinet, wrapper/sleeve WCI 5304486001 Contact Us For Availability
41
Guide, filler panel, right/left WCI 5304476584 Contact Us For Availability
42
Seal Kit, foam, sash filler WCI 5304472211 Contact Us For Availability
43
Hardware, mounting, screws/locks WCI 5304476516 Contact Us For Availability
44
Window Filler Kit, slider panels, accordion WCI 5304476517 Contact Us For Availability
× ![]()
