Model Kenmore 253.70062010 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
03 - RECOMMENDED SPARE PARTS

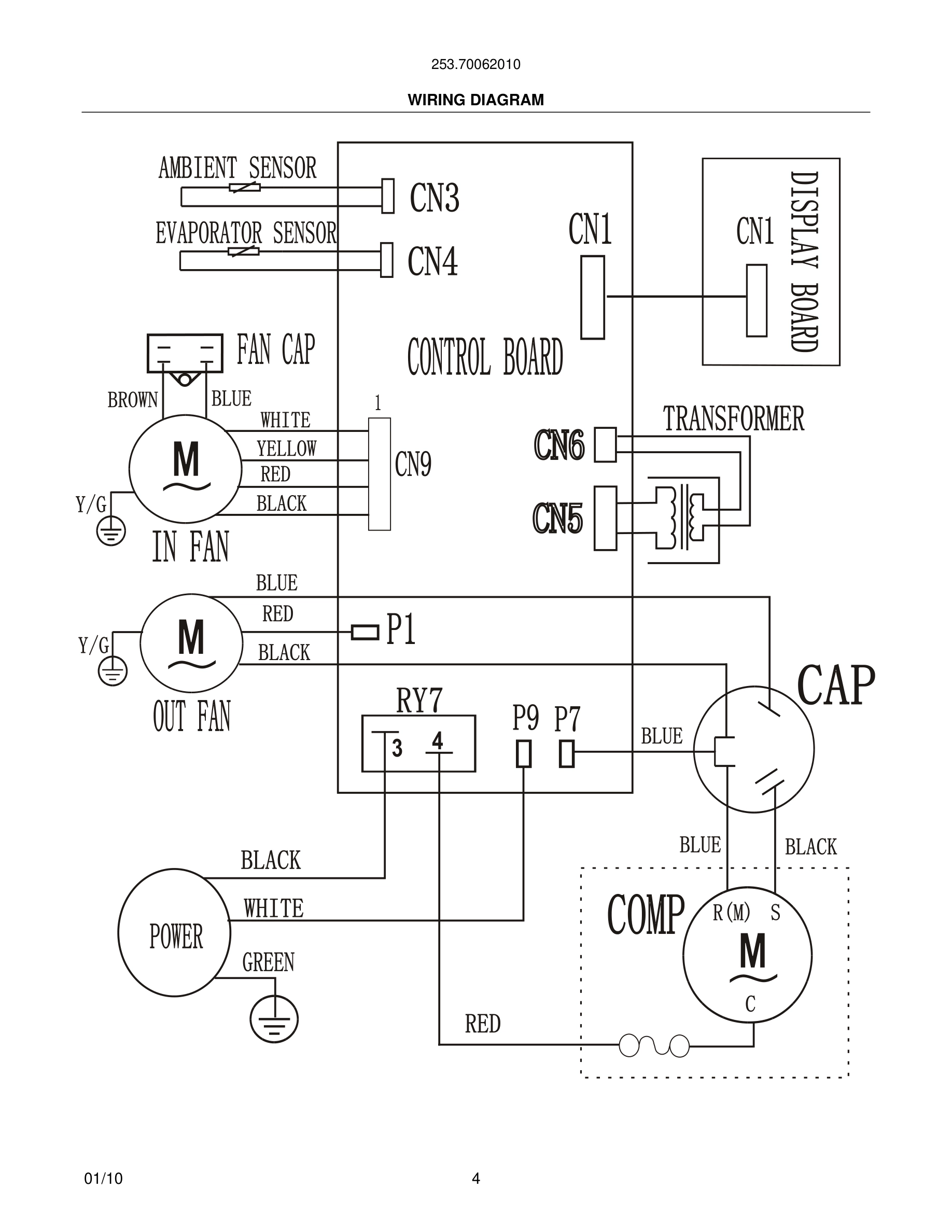

04 - WIRING DIAGRAM
Common parts from model Kenmore 253.70062010 ROOM AIR CONDITIONER
*
Repair Parts List WCI 5995558565 Contact Us For Availability
*
Energy Guide WCI 5304476719 Contact Us For Availability
1#
Front Assembly, complete panel WCI 5304476513 Contact Us For Availability
2
Panel, front grille WCI 5304476526 Contact Us For Availability
3#
Filter, air WCI 5304476514 Contact Us For Availability
4
Panel, frame, bottom WCI 5304476527 Contact Us For Availability
5#
Panel, frame, top, with louvers WCI 5304476528 Contact Us For Availability
6#
PC Board, display/input WCI 5304476529 Contact Us For Availability
8#
Power Cord, electric, LCDI WCI 5304476515 Contact Us For Availability
9
Cover, control box WCI 5304476530 Contact Us For Availability
10#
Terminal, ground wire, link WCI 5304476531 Contact Us For Availability
11#
PC Board, control, main WCI 5304476532 Contact Us For Availability
13
Control Box WCI 5304476533 Contact Us For Availability
16
Base, unit chassis WCI 5304476534 Contact Us For Availability
17
Scroll, blower housing, bottom WCI 5304476535 Contact Us For Availability
18
Holder, bearing WCI 5304476536 Contact Us For Availability
19#
Blower Wheel, centrifugal fan WCI 5304476077 Contact Us For Availability
20
Scroll, blower housing, top WCI 5304476537 Contact Us For Availability
21#
Capacitor, compressor WCI 5304476074 Contact Us For Availability
22
Strap, capacitor clamp WCI 5304476538 Contact Us For Availability
23
Cap, capacitor, compressor WCI 5304476539 Contact Us For Availability
24
Bracket, motor mount, scroll top WCI 5304476540 Contact Us For Availability
25
Shroud, condenser/fan WCI 5304476541 Contact Us For Availability
26
Cap, capacitor, fan motor WCI 5304476542 Contact Us For Availability
27#
Capacitor WCI 5304473967 Contact Us For Availability
28#
Fan Blade, axial WCI 5304476078 Contact Us For Availability
29#
Motor, fan WCI 5304476076 Contact Us For Availability
30#
Motor, blower WCI 5304476075 Contact Us For Availability
31#
Evaporator, with cap tube WCI 5304476543 Contact Us For Availability
32#
Compressor, with overload WCI 5304476073 Contact Us For Availability
33#
Overload Protector, compressor WCI 5304476301 Contact Us For Availability
34#
Tube, discharge WCI 5304476544 Contact Us For Availability
35#
Tube, capillary WCI 5304476545 Contact Us For Availability
36#
Condenser, with cap tube WCI 5304476546 Contact Us For Availability
37
Stop, filler panel, top rail WCI 5304476582 Contact Us For Availability
38
Platform, unit support, bracket WCI 5304476583 Contact Us For Availability
39
Cabinet, wrapper/sleeve WCI 5304476547 Contact Us For Availability
40
Guide, filler panel, right/left WCI 5304476584 Contact Us For Availability
41
Seal Kit, foam, sash filler WCI 5304472211 Contact Us For Availability
42
Hardware, mounting, screws/locks WCI 5304476516 Contact Us For Availability
43
Window Filler Kit, slider panels, accordion WCI 5304476517 Contact Us For Availability
× ![]()
