  • Kenmore 253.70013810 Parts List

Model Kenmore 253.70013810 REFRIGERATOR – Common Parts & Diagrams

*
Repair Parts Catalog
Repair Parts Catalog WCI 5995706792 Contact Us For Availability
View on Model
*
Owners Manual, en/sp
Owners Manual, en/sp WCI 5304518851 Contact Us For Availability
View on Model
*

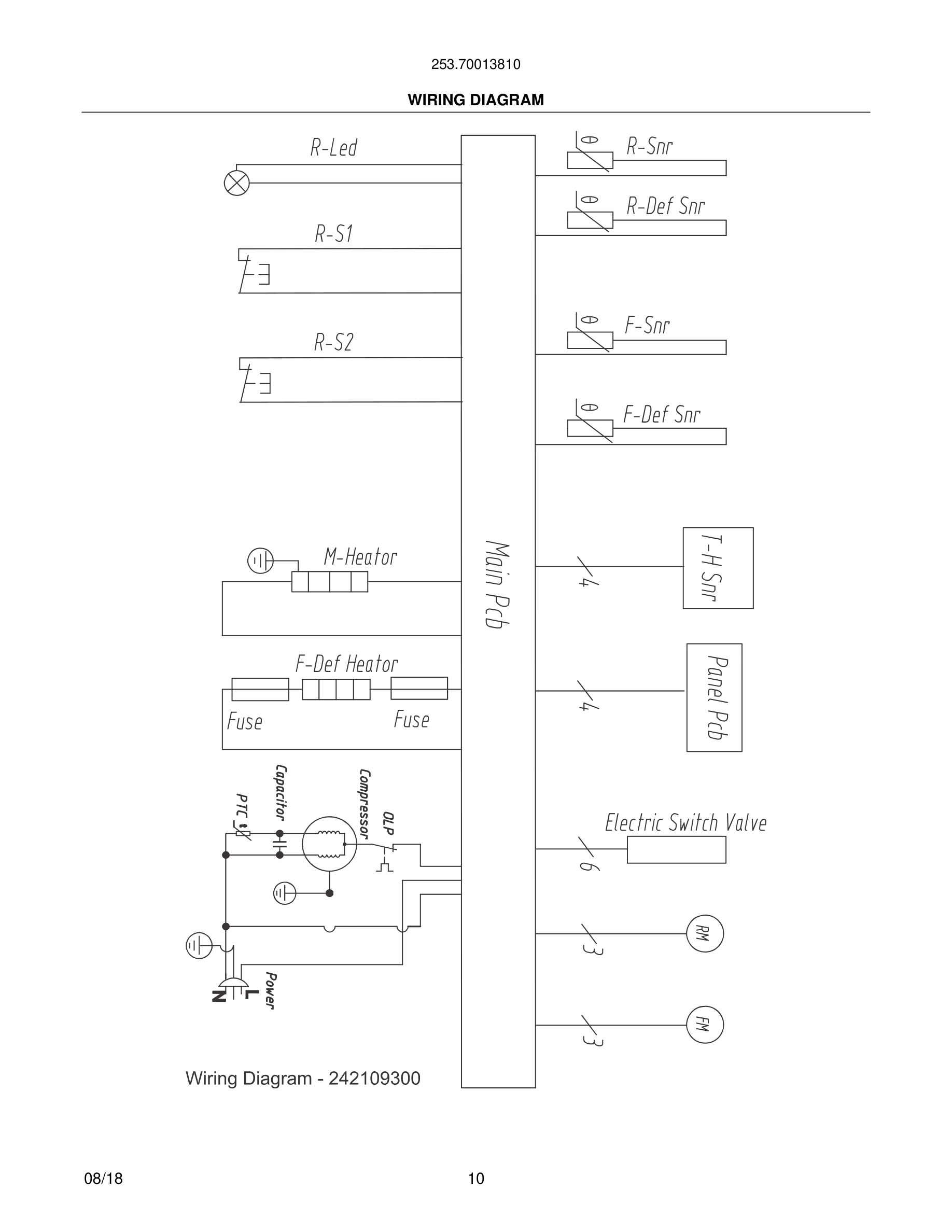

Service Data Sheet, wiring diagram
Service Data Sheet, wiring diagram WCI 242109300 Contact Us For Availability
View on Model
12

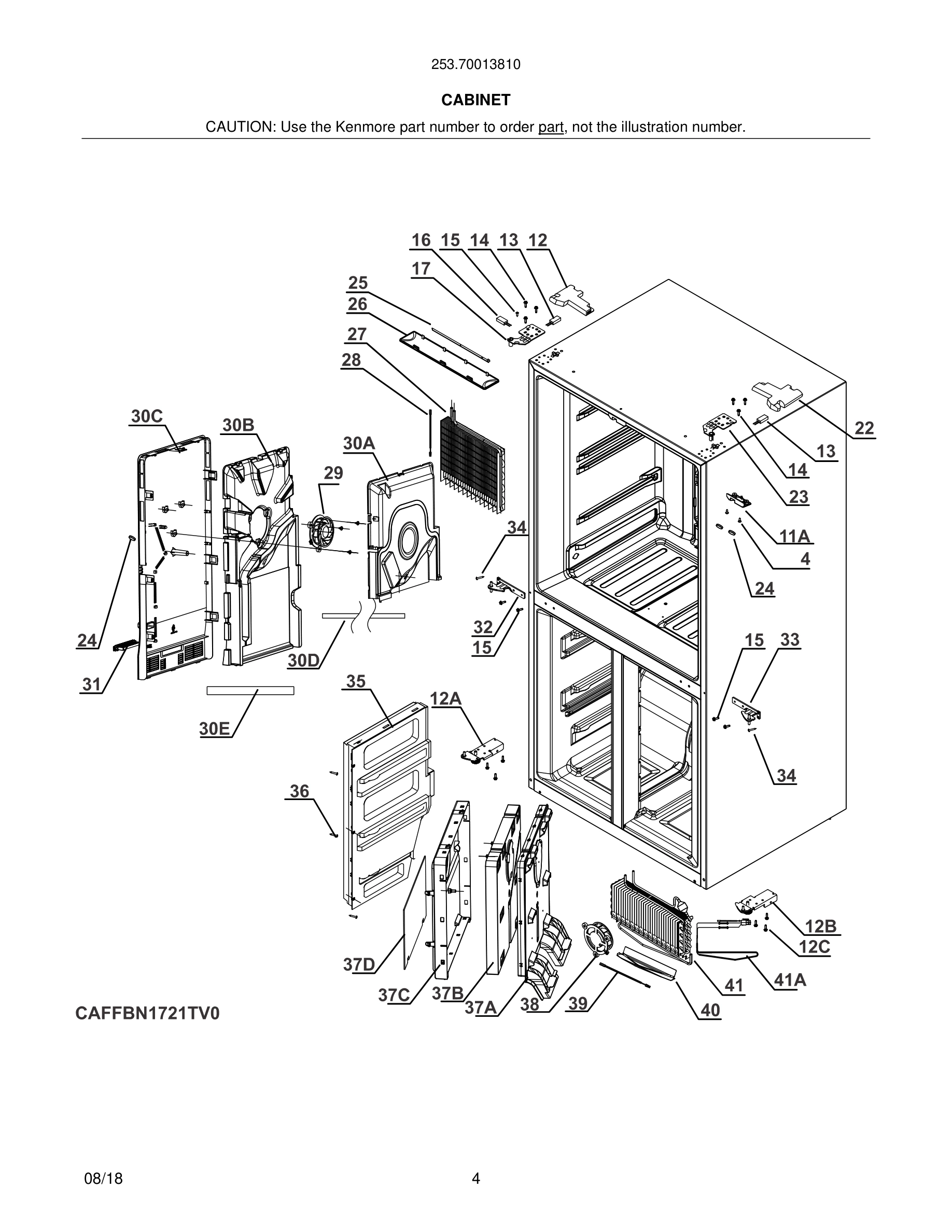

Cover, hinge, LH upper
Cover, hinge, LH upper WCI 5304513754 Contact Us For Availability
View on Model
15
Screw, assembly, (5)
Screw, assembly, (5) WCI 5304492671 Contact Us For Availability
View on Model
18
Cover, control box
Cover, control box WCI 5304513795 Contact Us For Availability
View on Model
19
Screw, tapping, (20)
Screw, tapping, (20) WCI 5304513796 Contact Us For Availability
View on Model
21
Box, mounting, main control
Box, mounting, main control WCI 5304513798 Contact Us For Availability
View on Model
22
Cover, hinge, RH upper
Cover, hinge, RH upper WCI 5304513761 Contact Us For Availability
View on Model
23
Hinge, RH upper, refrigerator
Hinge, RH upper, refrigerator WCI 5304513762 Contact Us For Availability
View on Model
24
Cap, screw, (3)
Cap, screw, (3) WCI 5304513763 Contact Us For Availability
View on Model
26
Cover, LED lamp
Cover, LED lamp WCI 5304513765 Contact Us For Availability
View on Model
30C
Air duct, front plate, refrigerator
Air duct, front plate, refrigerator WCI 5304518849 Contact Us For Availability
View on Model
31
Deodorizer, assembly
Deodorizer, assembly WCI 5304513774 Contact Us For Availability
View on Model
32
Hinge, LH middle, doors
Hinge, LH middle, doors WCI 5304513775 Contact Us For Availability
View on Model
34
Screw, middle hinge, (2)
Screw, middle hinge, (2) WCI 5304513777 Contact Us For Availability
View on Model
35
Divider Assembly, freezer compt.
Divider Assembly, freezer compt. WCI 5304513778 Contact Us For Availability
View on Model
36
Screw, tapping, (8)
Screw, tapping, (8) WCI 5304512553 Contact Us For Availability
View on Model
37A
Air duct, front plate, freezer
Air duct, front plate, freezer WCI 5304513779 Contact Us For Availability
View on Model
37B
Insulation, air duct, freezer
Insulation, air duct, freezer WCI 5304513780 Contact Us For Availability
View on Model
37C
Air duct, back plate, freezer
Air duct, back plate, freezer WCI 5304513781 Contact Us For Availability
View on Model
37D
Foil Sponge, aluminum, freezer duct
Foil Sponge, aluminum, freezer duct WCI 5304513782 Contact Us For Availability
View on Model
40
Drip Tray, defrost, freezer
Drip Tray, defrost, freezer WCI 5304513785 Contact Us For Availability
View on Model
42

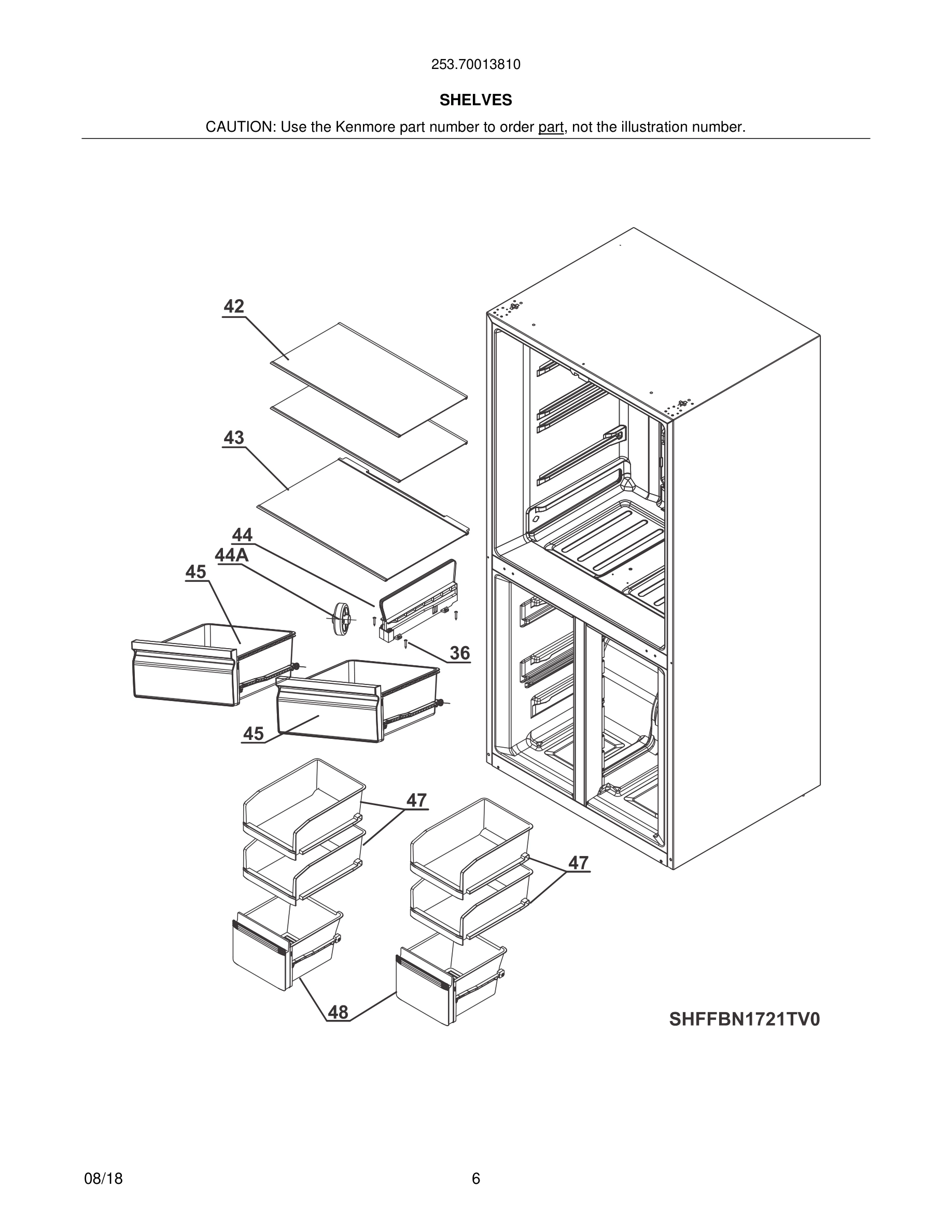

Shelf Assembly, glass, refrigerator, (2)
Shelf Assembly, glass, refrigerator, (2) WCI 5304513788 Contact Us For Availability
View on Model
44
Guide, drawer, refrigerator, center
Guide, drawer, refrigerator, center WCI 5304513790 Contact Us For Availability
View on Model
44A
Roller, drawers
Roller, drawers WCI 5304513791 Contact Us For Availability
View on Model
45
Drawer Assembly, refrigerator, (2)
Drawer Assembly, refrigerator, (2) WCI 5304518850 Contact Us For Availability
View on Model
48
Drawer Assembly, freezer, bottom, (2)
Drawer Assembly, freezer, bottom, (2) WCI 5304513794 Contact Us For Availability
View on Model
55#
Tube, connector
Tube, connector WCI 5304513804 Contact Us For Availability
View on Model
57B#

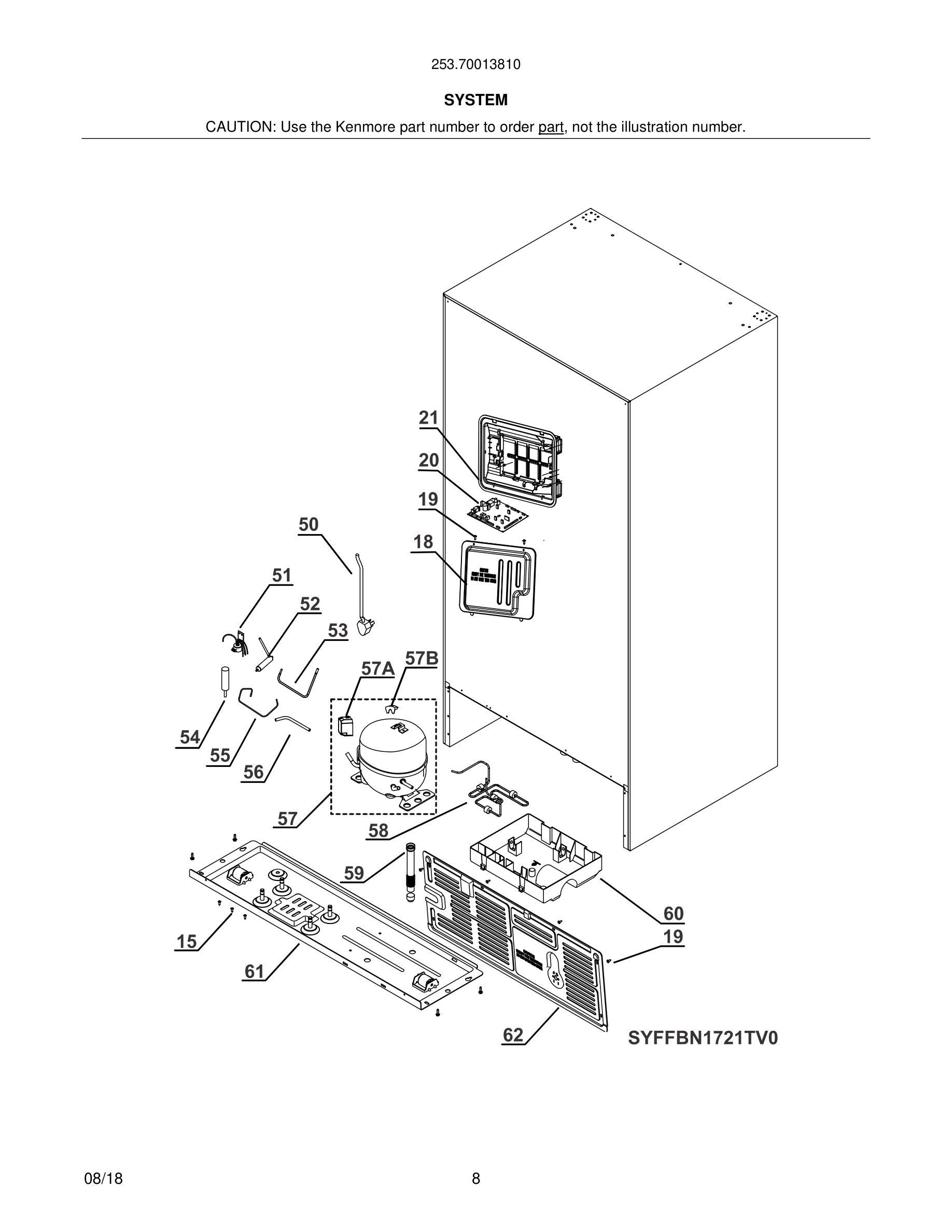

Relay/Overload, assembly
Relay/Overload, assembly WCI 5304515287 Contact Us For Availability
View on Model
60
Tray, drain
Tray, drain WCI 5304513809 No Longer Available
View on Model
61
Base Assembly, compressor mtg.
Base Assembly, compressor mtg. WCI 5304513810 Contact Us For Availability
View on Model
62
Cover, machine compt.
Cover, machine compt. WCI 5304513811 Contact Us For Availability
View on Model
