Model Kenmore 253.6880201E REFRIGERATOR – Common Parts & Diagrams

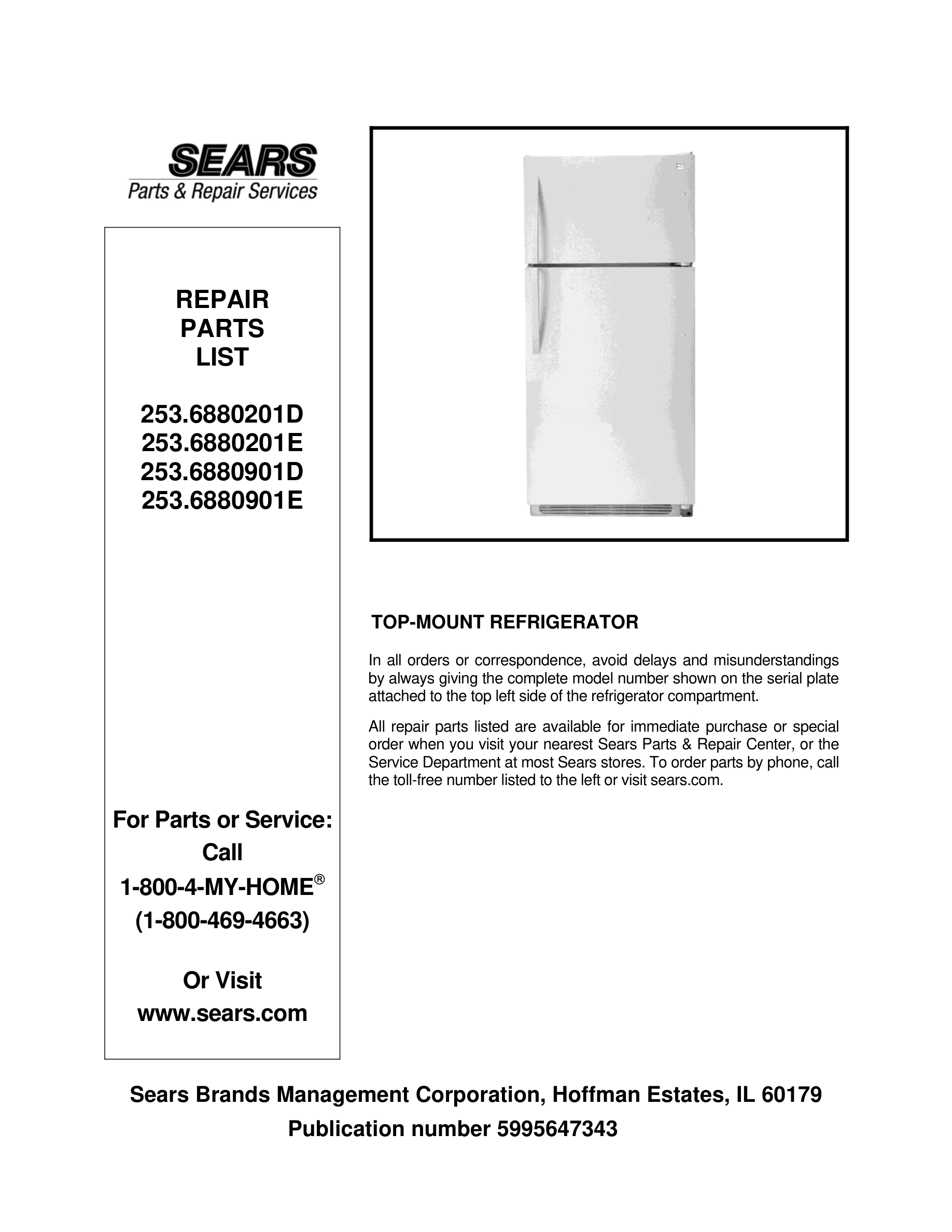

01 - COVER
03 - DOOR
05 - CABINET
07 - SHELVES
09 - SYSTEM
10 - WIRING SCHEMATIC
11 - WIRING DIAGRAM
Common parts from model Kenmore 253.6880201E REFRIGERATOR
*
Paint, touch-up, white WCI 5303321319 Contact Us For Availability
*
Hot Tube Repair Kit, service WCI 5303918222 Contact Us For Availability
*
Clamp, tube/wiring, nylon, black/natural WCI 240396801 Contact Us For Availability
*#
Heat Exchanger Kit, suction line WCI 5303918263 Contact Us For Availability
1
Gasket-frzr door, white, magnetic WCI 242193203 Contact Us For Availability
1#
Condenser, dynamic WCI 241785404 Contact Us For Availability
2
Gasket-refr door, white, magnetic WCI 242193206 Contact Us For Availability
2
Knob-damper control WCI 240367001 Contact Us For Availability
4
Rack-door WCI 240534901 Contact Us For Availability
4
Damper-fan cover WCI 241523701 Contact Us For Availability
4B
Rack-door, 4B WCI 240534701 Contact Us For Availability
5
Fan Blade, red, evaporator fan WCI 5308000010 Contact Us For Availability
7
Door-dairy WCI 240337712 Contact Us For Availability
8
Rack-door WCI 240534801 Contact Us For Availability
9
Bracket-motor mtg, front WCI 5303292396 Contact Us For Availability
10
Tray, ice cube, plastic WCI 215667501 Contact Us For Availability
10
Plug-button, white, hinge brg hole, (2) WCI 240381301 Contact Us For Availability
10
Cover-evap coil WCI 241652217 Contact Us For Availability
11
Shelf, freezer WCI 240358008 Contact Us For Availability
11
Plug-hole, factory test WCI 5303208309 Contact Us For Availability
11
Door, frzr, white, complete assy WCI 240412501 Contact Us For Availability
12
Diffuser, air, top WCI 241542001 Contact Us For Availability
12
Plug-hole, icemaker WCI 242193602 Contact Us For Availability
12
Nameplate, white, Kenmore WCI 242052401 Contact Us For Availability
12A
Plug-wtr inlet tube, round, 1" WCI 240374401 Contact Us For Availability
12A*
Plug-foam-wtr-inlet, round WCI 241586701 Contact Us For Availability
13
Diffuser, air, bottom WCI 240362601 Contact Us For Availability
13#
Motor-fan, w/frzr harness WCI 241854301 Contact Us For Availability
13*
Washer, "slinger", nylon, evap fan shaft WCI 215474201 Contact Us For Availability
13*
Clip-grille WCI 218515401 Contact Us For Availability
13A
Door Stop, white, frzr WCI 240312414 Contact Us For Availability
14
Plug-button, white, cab liner holes WCI 240494001 Contact Us For Availability
14#
Switch-light/lamp WCI 241554901 Contact Us For Availability
15
Door, refr, white, complete assy WCI 240412601 Contact Us For Availability
16
Strap-evap/heater, aluminum, (2) WCI 5308000110 Contact Us For Availability
16#
Socket-light WCI 241559801 Contact Us For Availability
17
Trough-drain WCI 241801301 Contact Us For Availability
17
Control Box WCI 240352703 Contact Us For Availability
17*#
Wiring Harness, control box WCI 240388701 Contact Us For Availability
18
Handle-door, white, refr-RH/frzr-LH WCI 242110509 Contact Us For Availability
18
Knob, temp control WCI 240360801 Contact Us For Availability
18A
Handle-door, white, refr-LH/frzr-RH WCI 242110512 Contact Us For Availability
19
Shield, heat, evap block WCI 242320401 Contact Us For Availability
21#
Thermostat Kit, defrost, w/connector WCI 5303918634 Contact Us For Availability
21A
Screw, #10-16 x 1/2 WCI 240521303 Contact Us For Availability
21C
Screw, #8 truss hd, 10-32CA x 0.500 WCI 218252201 Contact Us For Availability
22
Plug-button, white, upr hinge holes WCI 215774901 Contact Us For Availability
22
Base-compressor WCI 241665606 Contact Us For Availability
23
Grommet-compr mtg, (4) WCI 218513300 Contact Us For Availability
24
Shelf, sliding, wire WCI 240360908 Contact Us For Availability
24
Washer-compr mtg WCI 241812301 Contact Us For Availability
25
Cover-crisper pan WCI 240364793 Contact Us For Availability
25
Clip-compressor mtg WCI 242037701 Contact Us For Availability
25C
Control-humidity, LH WCI 241613502 Contact Us For Availability
26
Pan-defrost WCI 241920605 Contact Us For Availability
30
Bracket-lower hinge, zinc WCI 240314011 Contact Us For Availability
30#
Controller, compressor WCI 297259503 Contact Us For Availability
34
Washer, hinge, nylon, (2) WCI 240311303 Contact Us For Availability
34
Grommet, rubber, black, cond tube/wire WCI 240405201 Contact Us For Availability
35
Bracket-ctr hinge, zinc WCI 240313806 Contact Us For Availability
35A
Spacer-hinge, center, white WCI 240336802 Contact Us For Availability
37
Trim-cabinet corner, white, (2) WCI 242161201 Contact Us For Availability
38
Bracket-upper hinge WCI 240313703 Contact Us For Availability
40
Cover-upper hinge, white WCI 240354401 Contact Us For Availability
42
Screw, hex head, 1/4-20 x 5/8 WCI 240578902 Contact Us For Availability
43
Roller Assy, front LH, (2) WCI 241889002 Contact Us For Availability
43*
Roller Assy, front RH, (2) WCI 241889001 Contact Us For Availability
47
Insert-pan cover, 23.82" x 15.50", glass WCI 240350608 Contact Us For Availability
55#
Capacitor, run, 12 MF WCI 216985010 Contact Us For Availability
56
Pin-lower hinge WCI 240516502 Contact Us For Availability
59*
Tape-foam seal, shroud WCI 240346701 Contact Us For Availability
59*
Screw-fan shroud, (2) WCI 240359403 Contact Us For Availability
60#
Motor-condenser fan WCI 242018404 Contact Us For Availability
61#
Fan Blade, condenser fan WCI 240524102 Contact Us For Availability
72
Grille/Kickplate, white WCI 241839405 Contact Us For Availability
73
Block-handle mtg, dovetail WCI 242116001 Contact Us For Availability
74
Screw, cr pan hd, 10-16 WCI 215503204 No Longer Available
81
Screw, hex washer head, 8-15A x 0.625, Low Pr WCI 5304455650 Contact Us For Availability
82
Roller, compressor base, rear, (2) WCI 5304418225 Contact Us For Availability
83
Rivet, flat head, 1/4 OD x 1-3/4, roller pin WCI 5304455655 Contact Us For Availability
84
Tube-drain, rubber, lower WCI 240500801 Contact Us For Availability
92
Screw, hex washer hd, 1/4 x 7/8, hinge mtg WCI 241710601 Contact Us For Availability
× ![]()
