Model Kenmore 253.57194600 REFRIGERATOR – Common Parts &amp; Diagrams

*

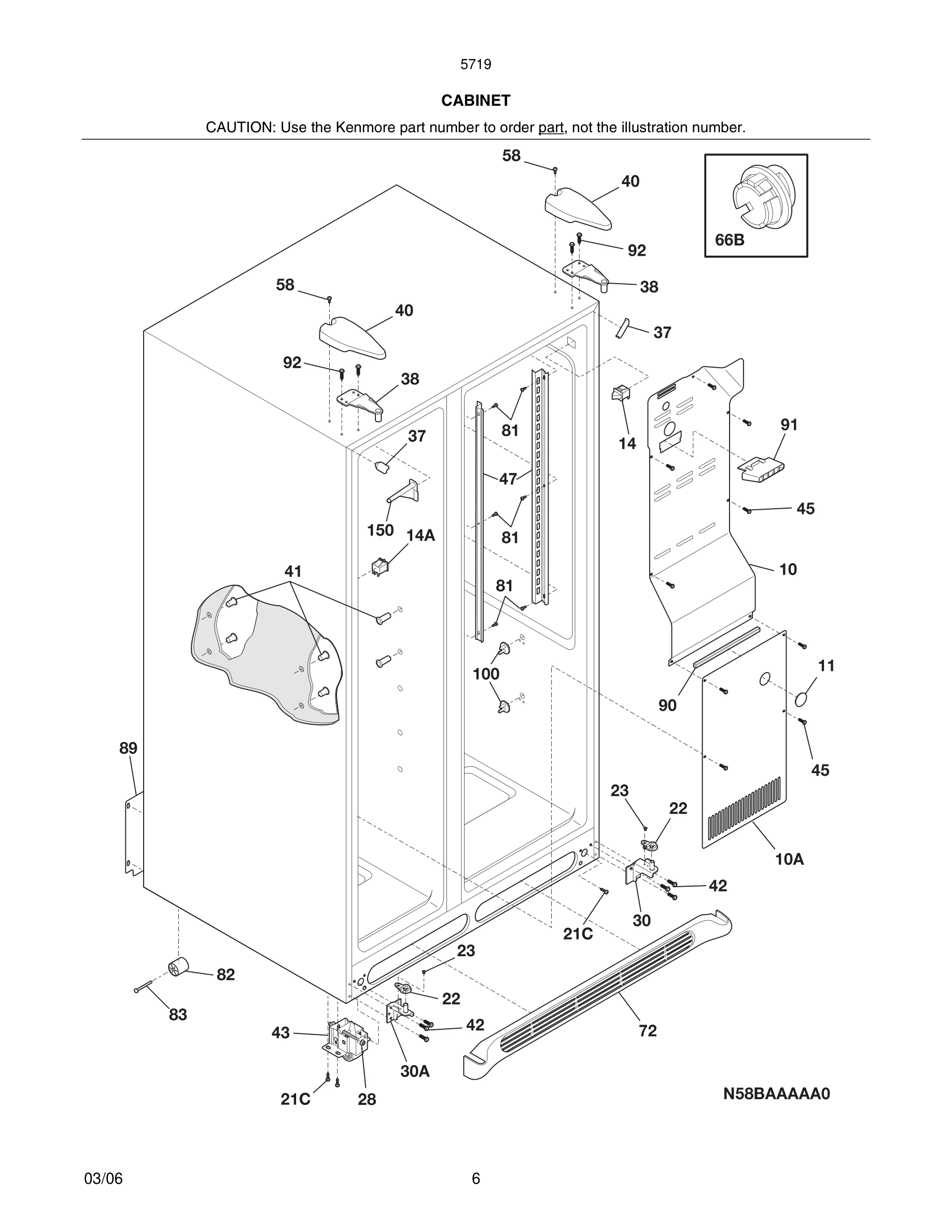

240507202 Frigidaire Refrigerator Deflector Backorder WCI 240507202 $39.43

*

241860803 Frigidaire Refrigerator Ice Contain In Stock WCI 241860803 $66.80

*

5303918256 Frigidaire Refrigerator Heater Kit In Stock WCI 5303918256 $342.79

*

5304414035 Frigidaire Refrigerator Touch Up P Backorder WCI 5304414035 $9.00

*

5304458371 Frigidaire Refrigerator Ice Maker In Stock WCI 5304458371 $101.39

*

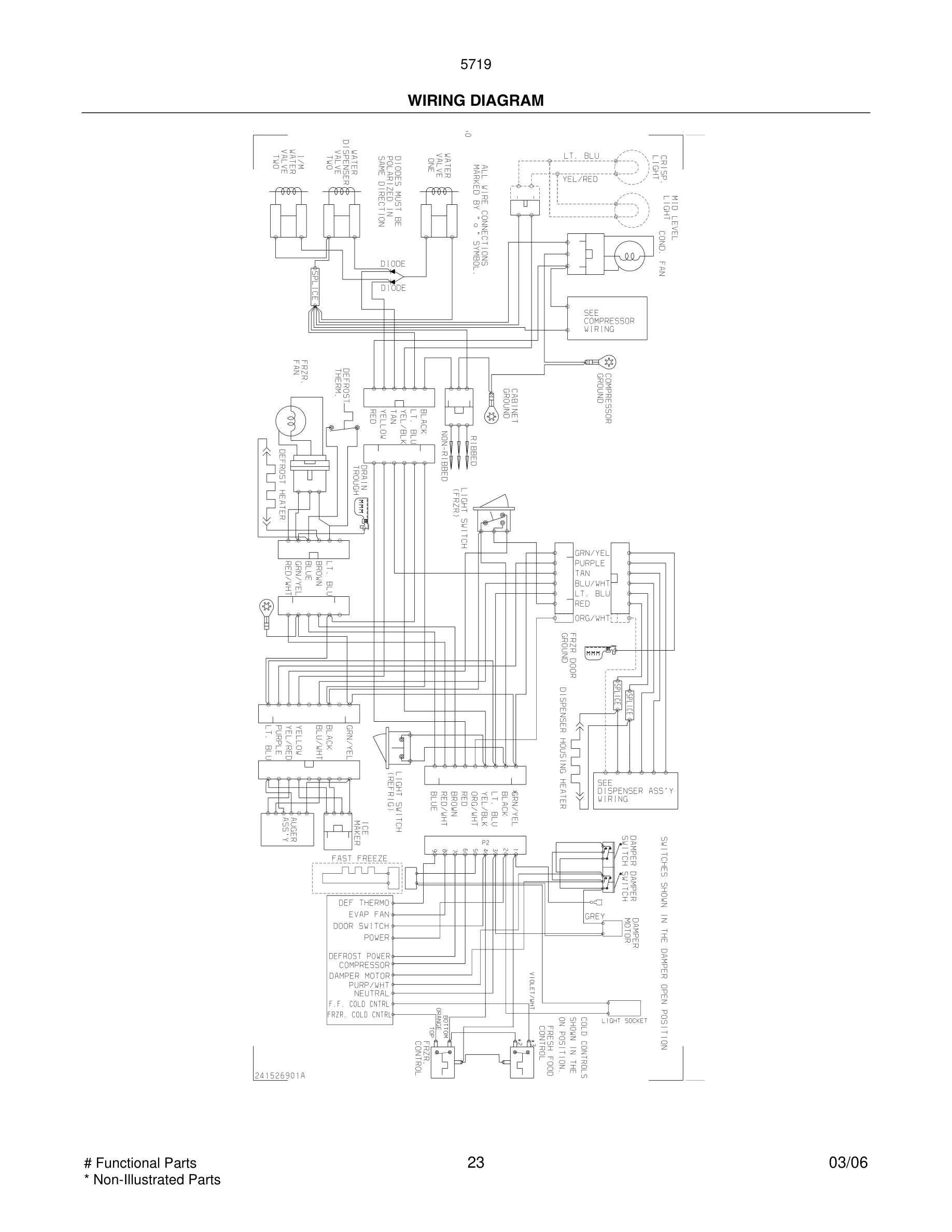

5304521763 Frigidaire Refrigerator Wiring Har Backorder WCI 5304521763 $50.64

*

Hot Tube Repair Kit, service WCI 5303918222 Contact Us For Availability

*#

5303918328 Frigidaire Refrigerator OS1 Heat E In Stock WCI 5303918328 $213.23

1

218976409 Frigidaire Refrigerator Water Tube In Stock WCI 218976409 $38.09

218976901 Frigidaire Refrigerator P1 Water In Backorder WCI 218976901 $51.52

218976904 Frigidaire Refrigerator Water Inlet Backorder WCI 218976904 $69.91

240561701 Frigidaire Refrigerator Seal Backorder WCI 240561701 $13.13

Tube-water inlet, valve to door WCI 218976907 Contact Us For Availability

2

241716101 Frigidaire Refrigerator Ice Auger Backorder WCI 241716101 $74.17

2

Spring, shut-off arm WCI 5304420650 Contact Us For Availability

3

241685201 Frigidaire Refrigerator Drive Cam Backorder WCI 241685201 $26.72

3

Label, ID plate WCI 3206299 Contact Us For Availability

4

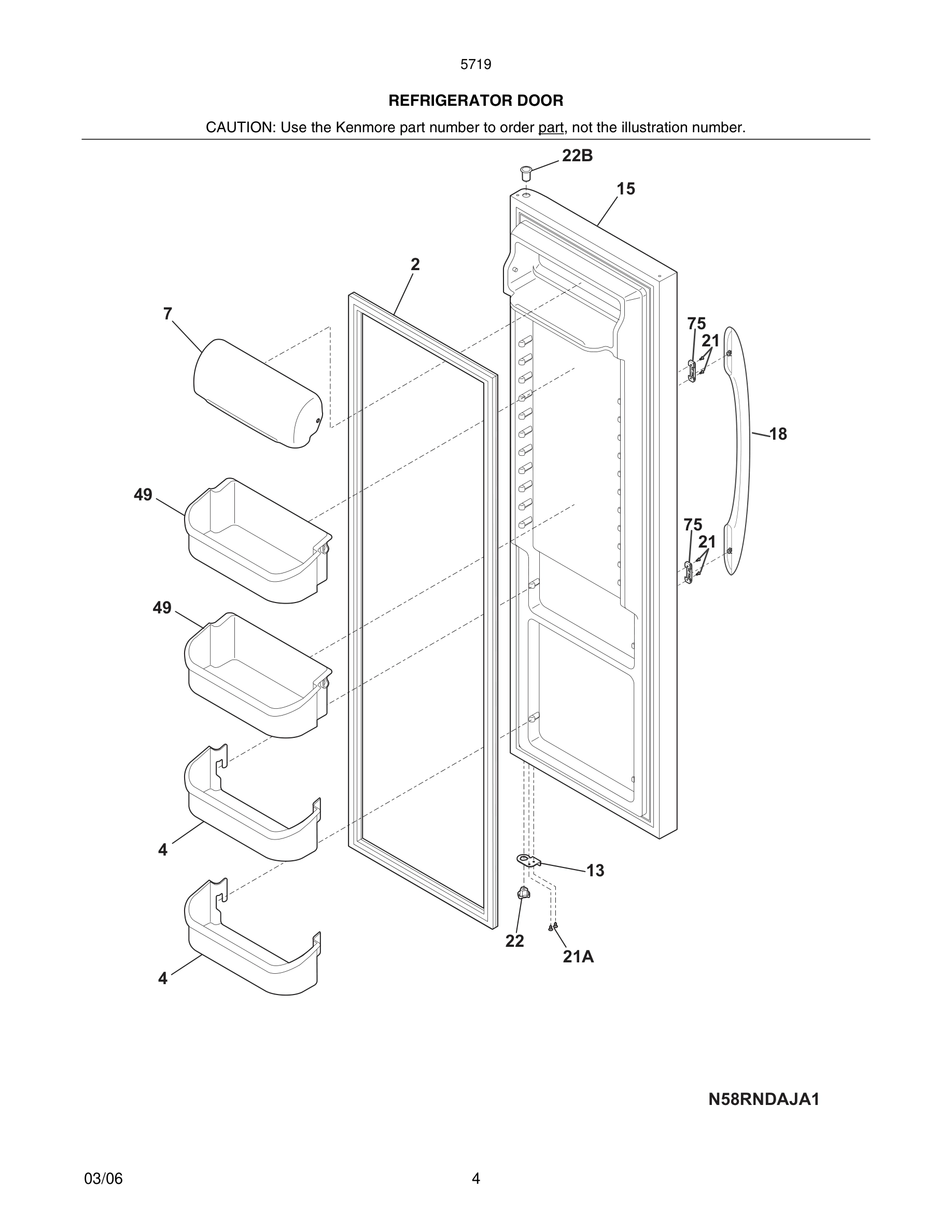

240363701 Frigidaire 2 Liter Door Shelf Bin In Stock WCI 240363701 $36.15

4

241734001 Frigidaire Refrigerator Ice Bucket In Stock WCI 241734001 $76.32

4

5304469403 Frigidaire Gear Backorder WCI 5304469403 $12.74

4A

240367301 Frigidaire Refrigerator Door Bin Backorder WCI 240367301 $27.18

4B

240359001 Frigidaire Refrigerator White Door In Stock WCI 240359001 $27.00

5

Plate-mounting WCI 3206303 Contact Us For Availability

5#

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

6

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $6.79

6

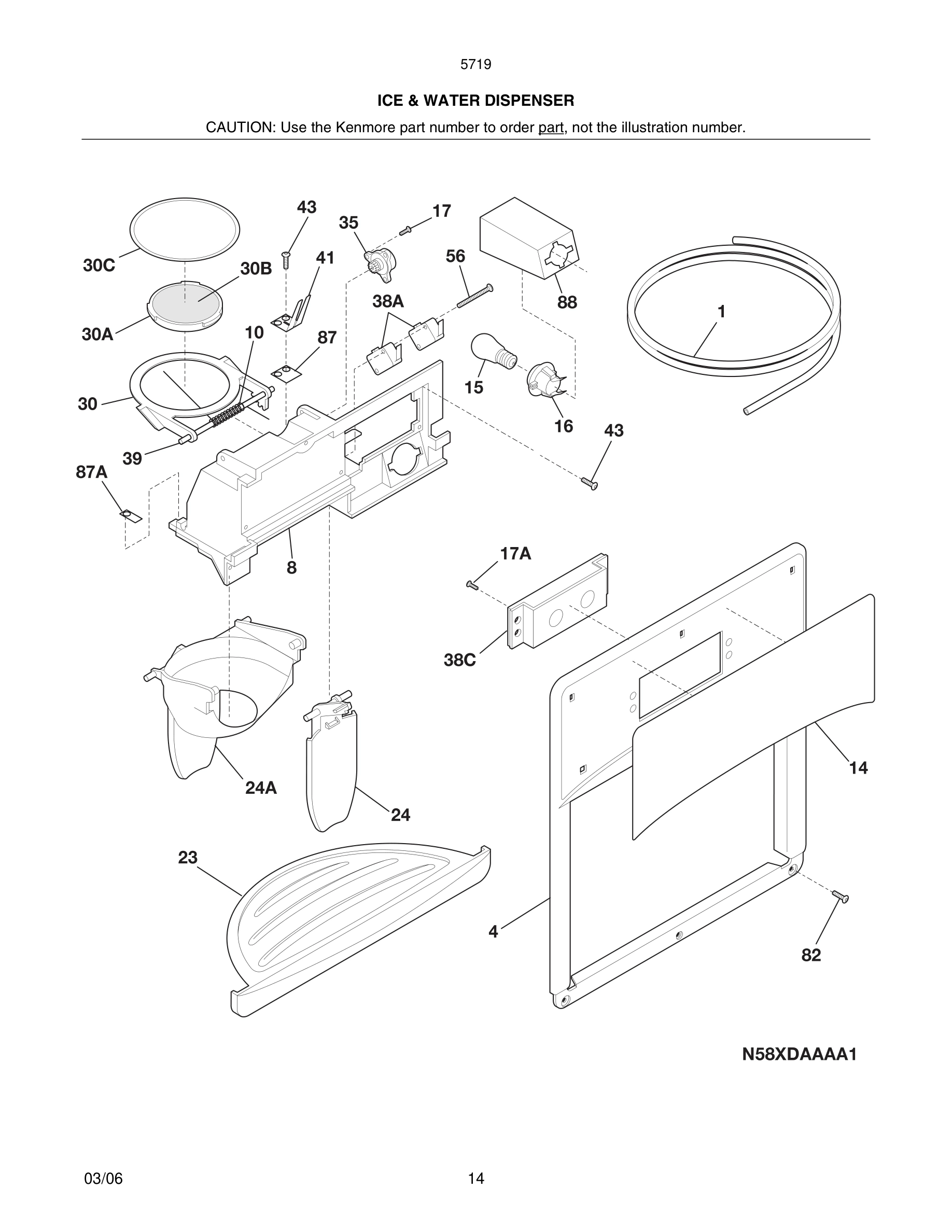

241685101 Frigidaire Refrigerator Ice Dispens In Stock WCI 241685101 $33.06

6#

Harness-wiring, machine compt WCI 241586801 Contact Us For Availability

6*#

Harness-wiring WCI 241651601 Contact Us For Availability

7

241734201 Frigidaire Refrigerator Front Ice C In Stock WCI 241734201 $55.03

7#

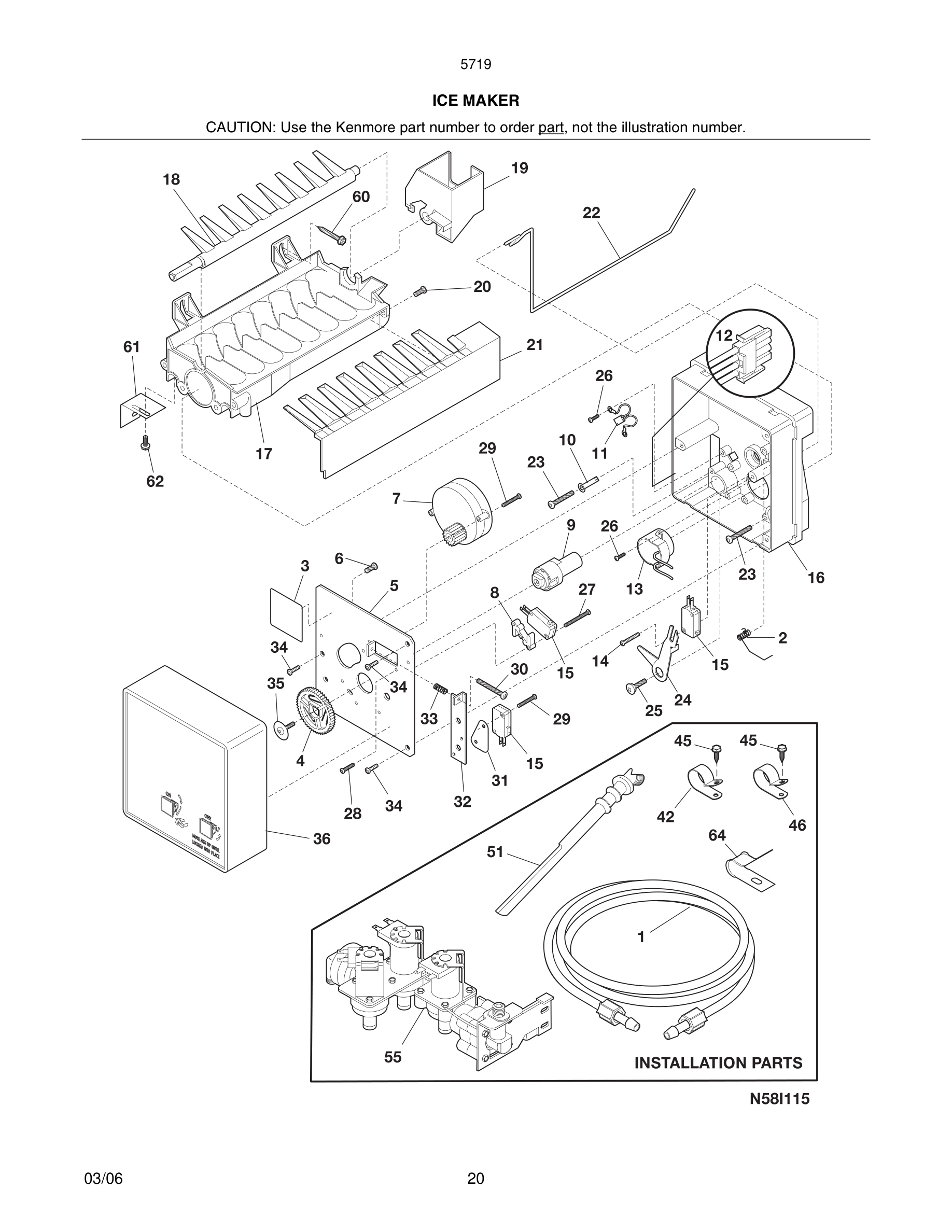

5303918277 Frigidaire Refrigerator Ice Maker In Stock WCI 5303918277 $55.75

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

8

Spacer-hold switch WCI 3206312 Contact Us For Availability

9

241563601 Frigidaire Refrigerator Motor Mount Backorder WCI 241563601 $11.32

9

Cam WCI 3206313 Contact Us For Availability

10

Clamp WCI 3206315 Contact Us For Availability

11

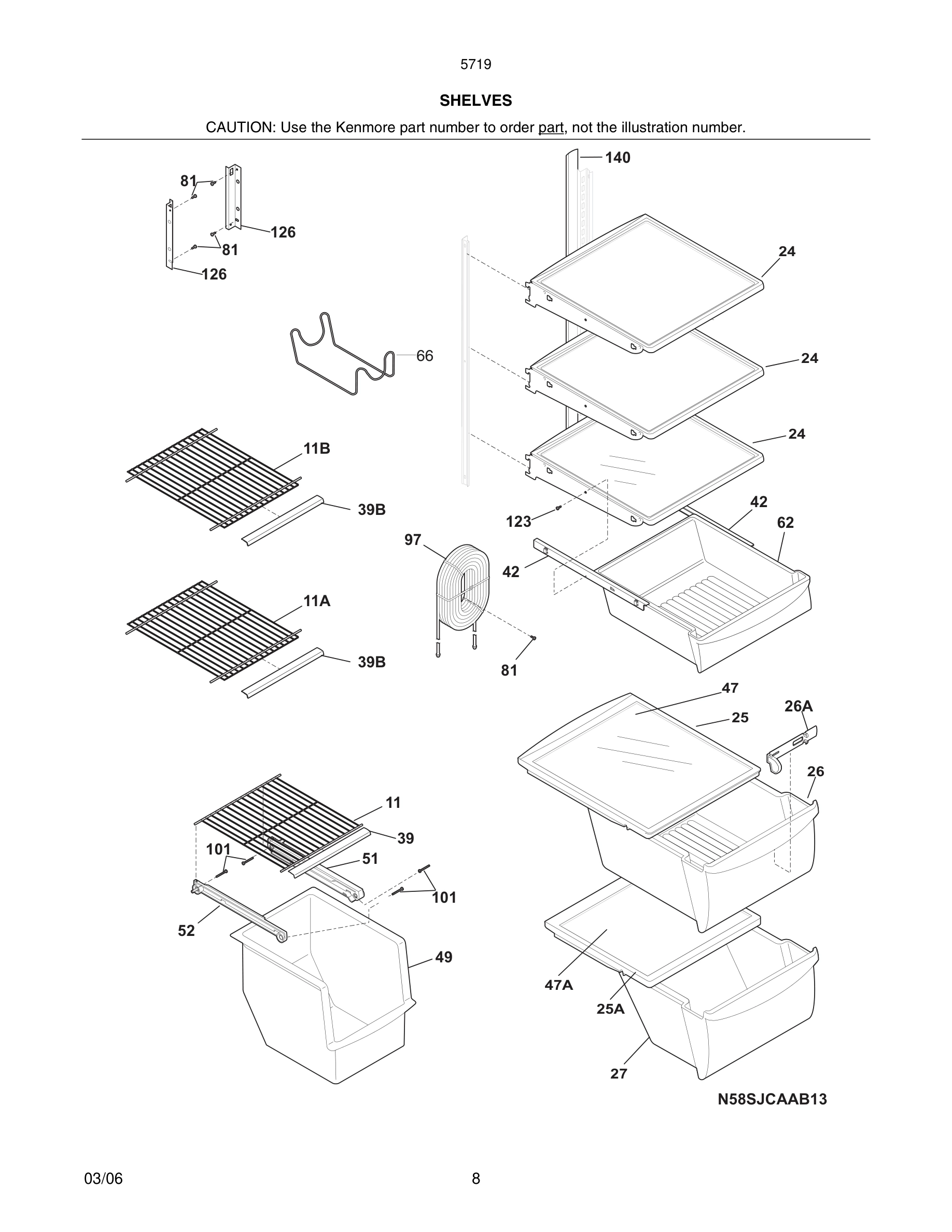

241657601 Frigidaire Refrigerator Shelf Backorder WCI 241657601 $50.26

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

11#

3206319 Frigidaire Refrigerator Thermal Cut-O Backorder WCI 3206319 $31.29

11A

5304532465 Frigidaire Refrigerator Shelf and Backorder WCI 5304532465 $32.28

11B

5304532464 Frigidaire Refrigerator Shelf and Backorder WCI 5304532464 $32.80

12#

Wiring Harness, internal, with plug WCI 240352601 Contact Us For Availability

13

Door Stop, bisque, ref WCI 240581903 Contact Us For Availability

13#

Thermostat Assy, ICE MAKER WCI 3206322 Contact Us For Availability

13A

Door Stop, bisque, frzr WCI 240581904 Contact Us For Availability

14

Label-module cover, bisque WCI 240570105 Contact Us For Availability

14

Screw, 4 x 0.750, switch mtg. WCI 5304420652 Contact Us For Availability

14#

240505801 Frigidaire Light Switch In Stock WCI 240505801 $42.13

14A

241547902 Frigidaire Refrigerator Light Switc In Stock WCI 241547902 $10.86

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

15

Light Bulb WCI 5304421616 Contact Us For Availability

15#

5303918286 Frigidaire Refrigerator Evaporator In Stock WCI 5303918286 $185.71

15#

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $54.68

240548901 Frigidaire Refrigerator P-1 Socket In Stock WCI 240548901 $37.63

241559801 Frigidaire Light Socket Refrigerato Backorder WCI 241559801 $45.94

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

Support, phenolic WCI 5304420653 Contact Us For Availability

17

241684503 Frigidaire Ice Crusher Blade In Stock WCI 241684503 $10.39

17#

241798231 Frigidaire Refrigerator Ice Maker A In Stock WCI 241798231 $49.65

18

5304462594 Frigidaire Refrigerator Auger Moto Backorder WCI 5304462594 $182.46

18

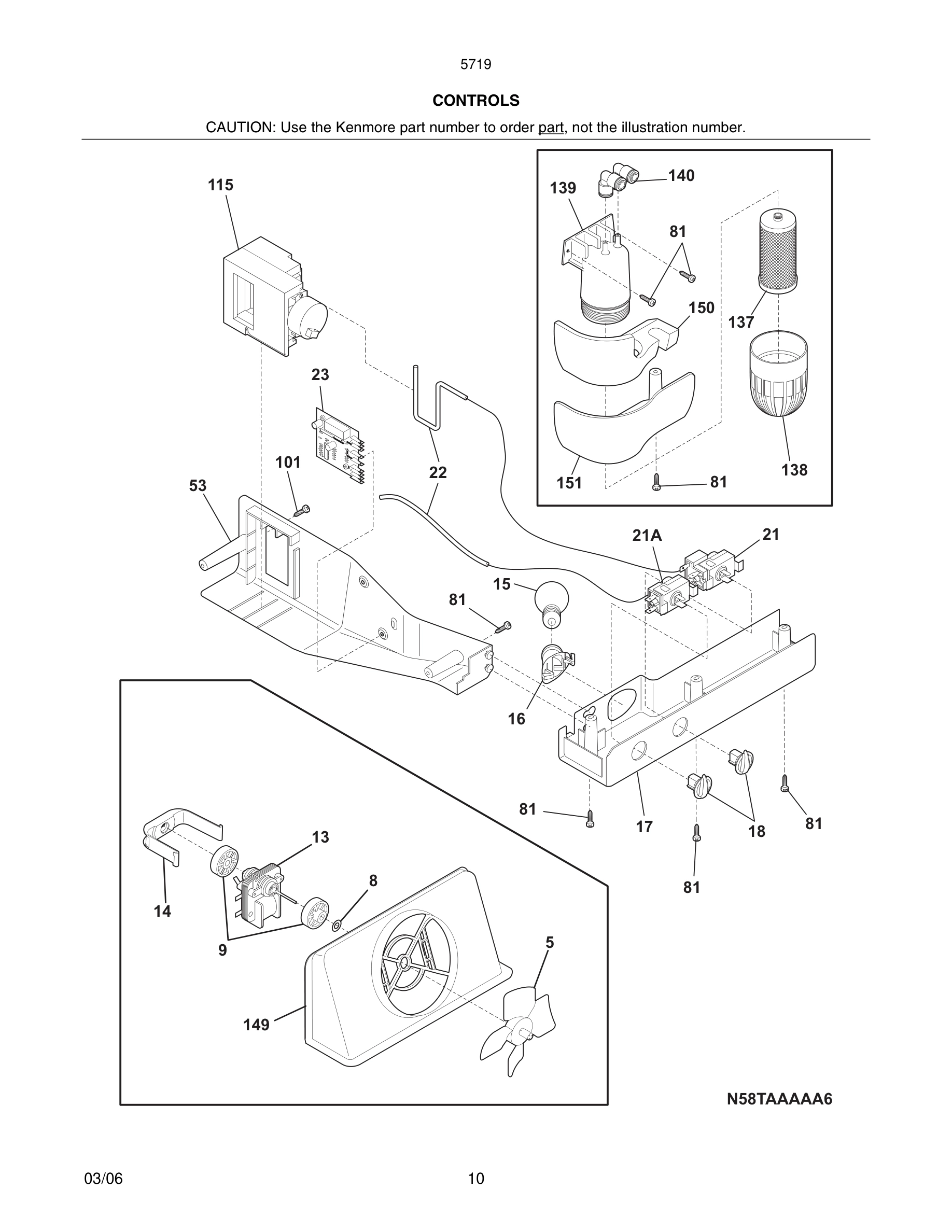

Knob, temp control WCI 240360801 Contact Us For Availability

18

Ejector-ice WCI 3206328 Contact Us For Availability

19

Bearing & Inlet WCI 3206330 Contact Us For Availability

20

Cover-motor WCI 5304404332 Contact Us For Availability

20

Screw, 8-32 x 0.375 WCI 5304408581 Contact Us For Availability

21

241726501 Frigidaire Refrigerator Drive Bar In Stock WCI 241726501 $37.18

21

Ice Stripper WCI 3206332 Contact Us For Availability

21#

5303918214 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918214 $14.53

21A

240598402 Frigidaire Refrigerator Screw Backorder WCI 240598402 $2.26

22

240328201 Frigidaire Refrigerator Hinge Beari In Stock WCI 240328201 $11.32

22

240457701 Frigidaire Refrigerator Freezer Doo In Stock WCI 240457701 $36.22

22

Shut-off Arm WCI 3206333 Contact Us For Availability

22C

240328402 Frigidaire Refrigerator Bearing Hin Backorder WCI 240328402 $12.67

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

241684001 Frigidaire Refrigerator Front Plate Backorder WCI 241684001 $92.01

Screw-#10-32 x 1/4 flat hd WCI 240402701 Contact Us For Availability

Drip Tray, bisque WCI 241659102 Contact Us For Availability

Screw, 8-32 x 0.875, mold-to-support, (3) WCI 5304408582 Contact Us For Availability

24

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $42.12

25

240354502 Frigidaire Refrigerator Crisper Pan In Stock WCI 240354502 $38.18

25

Screw, 8-18 x 0.562, lever arm/sprt WCI 3206336 Contact Us For Availability

25*

240362101 Frigidaire Refrigerator Crisper Cov In Stock WCI 240362101 $28.07

25A

240354602 Frigidaire Lower Crisper Cover Fram In Stock WCI 240354602 $53.20

26

215503203 Frigidaire Refrigerator Door Handle In Stock WCI 215503203 $4.51

26

Screw-thermo/sprt, 4-24 x 0.375, (4) WCI 5304420654 Contact Us For Availability

26*

240349801 Frigidaire Refrigerator Clip In Stock WCI 240349801 $12.24

26A

240351101 Frigidaire Refrigerator Air Flow Co Backorder WCI 240351101 $28.07

27

Screw, 4-40 x 1.000, hold switch mtg, (2) WCI 3206338 Contact Us For Availability

28

Screw-timing stop, 4-40 x 0.375 WCI 3206339 Contact Us For Availability

29

Screw, 4-24 x 0.750, (6) WCI 3206323 Contact Us For Availability

30

Screw-timing adj, 8-32 x 1.000 WCI 3206341 Contact Us For Availability

31

Insulator WCI 3206342 Contact Us For Availability

32

218973501 Frigidaire Refrigerator Clamp Backorder WCI 218973501 $14.05

32

Plate-valve switch WCI 3206343 Contact Us For Availability

33

241684802 Frigidaire Refrigerator Spacer Backorder WCI 241684802 $5.40

33

Spring-timing adj WCI 5304408583 Contact Us For Availability

34

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.67

34

241689802 Frigidaire Refrigerator Spacer Backorder WCI 241689802 $4.97

34

Screw, plazscrew, 8-10, (3) WCI 5304420655 Contact Us For Availability

35

Screw WCI 5304408585 Contact Us For Availability

35A

241684303 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684303 $10.39

35B

241684203 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684203 $10.85

36

Cover-ice maker WCI 3206347 Contact Us For Availability

37A

241684107 Frigidaire Refrigerator Ice Crusher Backorder WCI 241684107 $13.13

37B

241684108 Frigidaire Refrigerator Ice Crusher In Stock WCI 241684108 $13.13

37C

241684109 Frigidaire Ice Crusher Blade In Stock WCI 241684109 $13.13

38C*

218515401 Frigidaire Refrigerator Clip In Stock WCI 218515401 $11.32

39

241690501 Frigidaire Refrigerator Screw Backorder WCI 241690501 $10.41

39

Trim-shelf, front WCI 240430705 Contact Us For Availability

39B

Trim-shelf, front WCI 240430701 Contact Us For Availability

40

Cover-upper hinge, bisque WCI 240327006 Contact Us For Availability

41

241550801 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550801 $37.63

41

241885001 Frigidaire Refrigerator Ice Crusher In Stock WCI 241885001 $47.97

41*

241550701 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550701 $10.85

42

240356501 Frigidaire Tray Hanger Pan In Stock WCI 240356501 $36.26

42

240365401 Frigidaire Refrigerator Left-Hand M In Stock WCI 240365401 $36.77

42

5303001199 Frigidaire Refrigerator Wiring Har Backorder WCI 5303001199 $41.66

42*

Clip, (2), tube mtg. WCI 218515402 Contact Us For Availability

44

Screw, pan head, 8-32 x 0.250 WCI 218359200 Contact Us For Availability

45

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

45#

241675704 Frigidaire Refrigerator Solenoid As In Stock WCI 241675704 $27.19

45*

5304455651 Frigidaire Refrigerator Screw In Stock WCI 5304455651 $8.58

45A

241675902 Frigidaire Refrigerator Solenoid Sp Backorder WCI 241675902 $4.07

45B

241676001 Frigidaire Refrigerator E-Ring Sole Backorder WCI 241676001 $44.35

45C

241676101 Frigidaire Refrigerator Solenoid-Ac In Stock WCI 241676101 $40.78

46

5303001193 Frigidaire Refrigerator Clamp Backorder WCI 5303001193 $10.41

46

Control Rod WCI 5304404341 Contact Us For Availability

46*

5308000133 Frigidaire Refrigerator Clamp Backorder WCI 5308000133 $7.25

47

Spring-control rod WCI 5304404342 Contact Us For Availability

47A

240350614 Frigidaire Refrigerator Insert Backorder WCI 240350614 $83.71

48

241684602 Frigidaire Refrigerator Control Rod Backorder WCI 241684602 $67.69

48*

Screw-bracket WCI 5304404364 Contact Us For Availability

49

240324501 Frigidaire Bin Door Shelf In Stock WCI 240324501 $47.27

49

240564301 Frigidaire Refrigerator Sliding Bas Backorder WCI 240564301 $81.20

49

Rail Assy WCI 5304404880 Contact Us For Availability

50

241675601 Frigidaire Refrigerator Solenoid Gu Backorder WCI 241675601 $50.64

51

240343002 Frigidaire Hanger Basket Backorder WCI 240343002 $38.55

51

241796405 Frigidaire Refrigerator Fill Water In Stock WCI 241796405 $11.76

51

Rotation Stop WCI 5304404336 Contact Us For Availability

52

240343102 Frigidaire Basket Hanger In Stock WCI 240343102 $41.24

52

241684901 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684901 $18.12

53

240369501 Frigidaire Refrigerator Control Box Backorder WCI 240369501 $46.30

53

241690402 Frigidaire Refrigerator Spiral Pin Backorder WCI 241690402 $12.20

54

241685001 Frigidaire Auger Nut Backorder WCI 241685001 $12.67

55

241690306 Frigidaire Refrigerator Washer Backorder WCI 241690306 $31.71

55#

242252702 Frigidaire Refrigerator Water Inlet In Stock WCI 242252702 $33.24

55*

218709101 Frigidaire Refrigerator Handle Moun Backorder WCI 218709101 $4.09

55*

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $8.14

55*

240542901 Frigidaire Water Valve Cap Backorder WCI 240542901 $11.33

56

241690201 Frigidaire Refrigerator E-Ring Backorder WCI 241690201 $12.22

56

Screw-micro switch, pan head WCI 5304421830 Contact Us For Availability

57

241734101 Frigidaire Refrigerator Front Acces Backorder WCI 241734101 $32.34

58

Screw-solenoid WCI 5304404331 Contact Us For Availability

59*

240346701 Frigidaire Refrigerator Foam Seal T Backorder WCI 240346701 $19.01

60

5304455852 Frigidaire Refrigerator Screw Backorder WCI 5304455852 $8.14

61

218721500 Frigidaire Refrigerator Leveling Br Backorder WCI 218721500 $46.16

62

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

66B

Diffuser-air WCI 240374301 Contact Us For Availability

66B*

240518802 Frigidaire Refrigerator Push Pin Backorder WCI 240518802 $10.41

68

241525101 Frigidaire Refrigerator Ice Chute Backorder WCI 241525101 $48.59

75

Clip-handle, (2) WCI 241696101 Contact Us For Availability

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $30.80

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

91

240380101 Frigidaire Refrigerator Ice Maker D Backorder WCI 240380101 $44.37

97

240545302 Frigidaire Water Reservoir Assembly Backorder WCI 240545302 $167.84

115

241600902 Frigidaire Refrigerator Damper Cont In Stock WCI 241600902 $109.16

126

241674401 Frigidaire Refrigerator Channel Backorder WCI 241674401 $30.36

126

241674402 Frigidaire Refrigerator Channel Backorder WCI 241674402 $27.62

137

Frigidaire WFCB PureSource Plus Refrigerator In Stock WCI WFCB $33.29

137*

218710300 Frigidaire Refrigerator Water Filte In Stock WCI 218710300 $2.94

138

240434401 Frigidaire Refrigerator Primary Wat In Stock WCI 240434401 $47.95

138*

218904301 Frigidaire Refrigerator O-Ring Cup In Stock WCI 218904301 $8.27

139

240434301 Frigidaire Water Filter Housing In Stock WCI 240434301 $47.04

140

240430501 Frigidaire Refrigerator Channel Backorder WCI 240430501 $61.86

140

240545201 Frigidaire Refrigerator Elbow P-1 In Stock WCI 240545201 $43.45

150

Insulation-water filter cover WCI 240394102 Contact Us For Availability

151

Cover-water filter WCI 240376002 Contact Us For Availability
