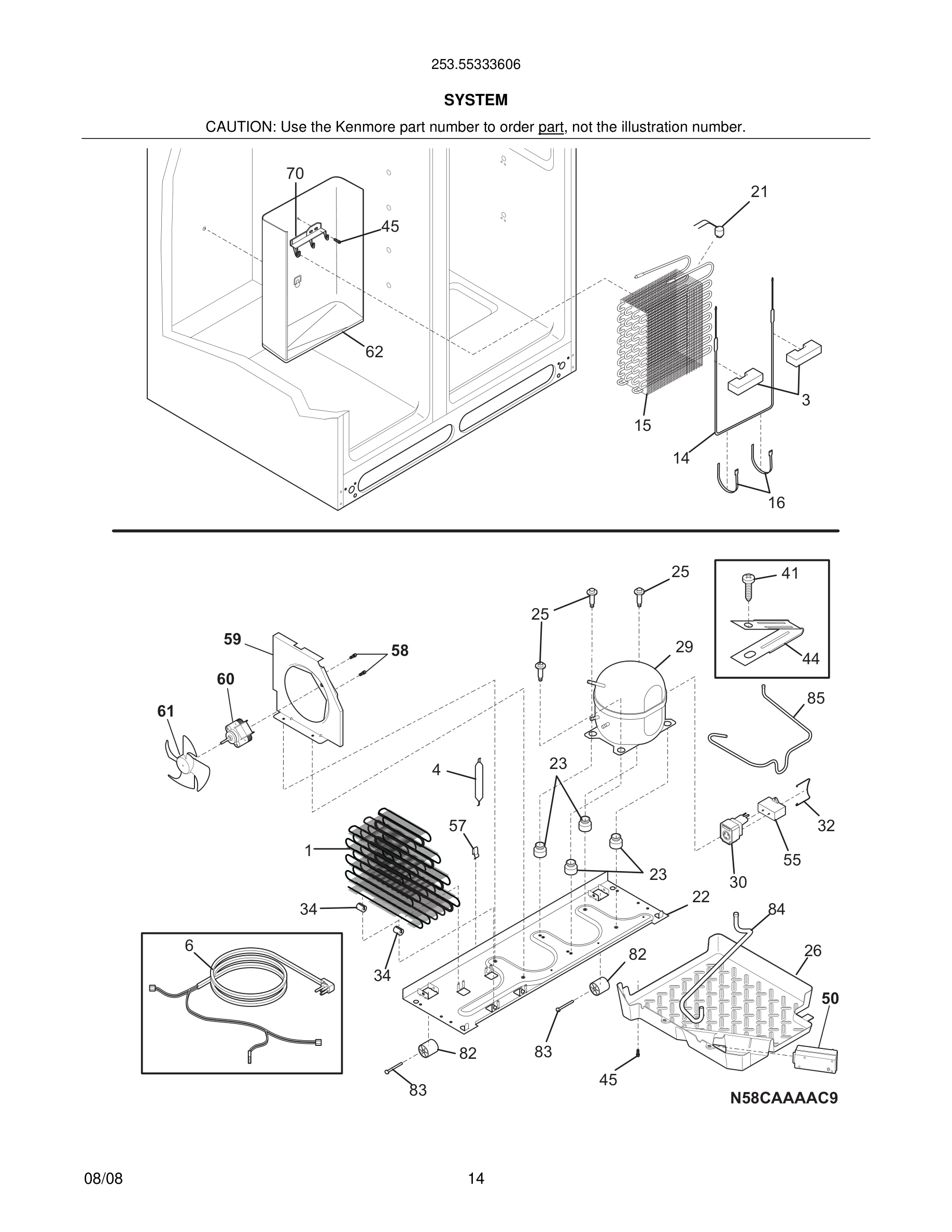

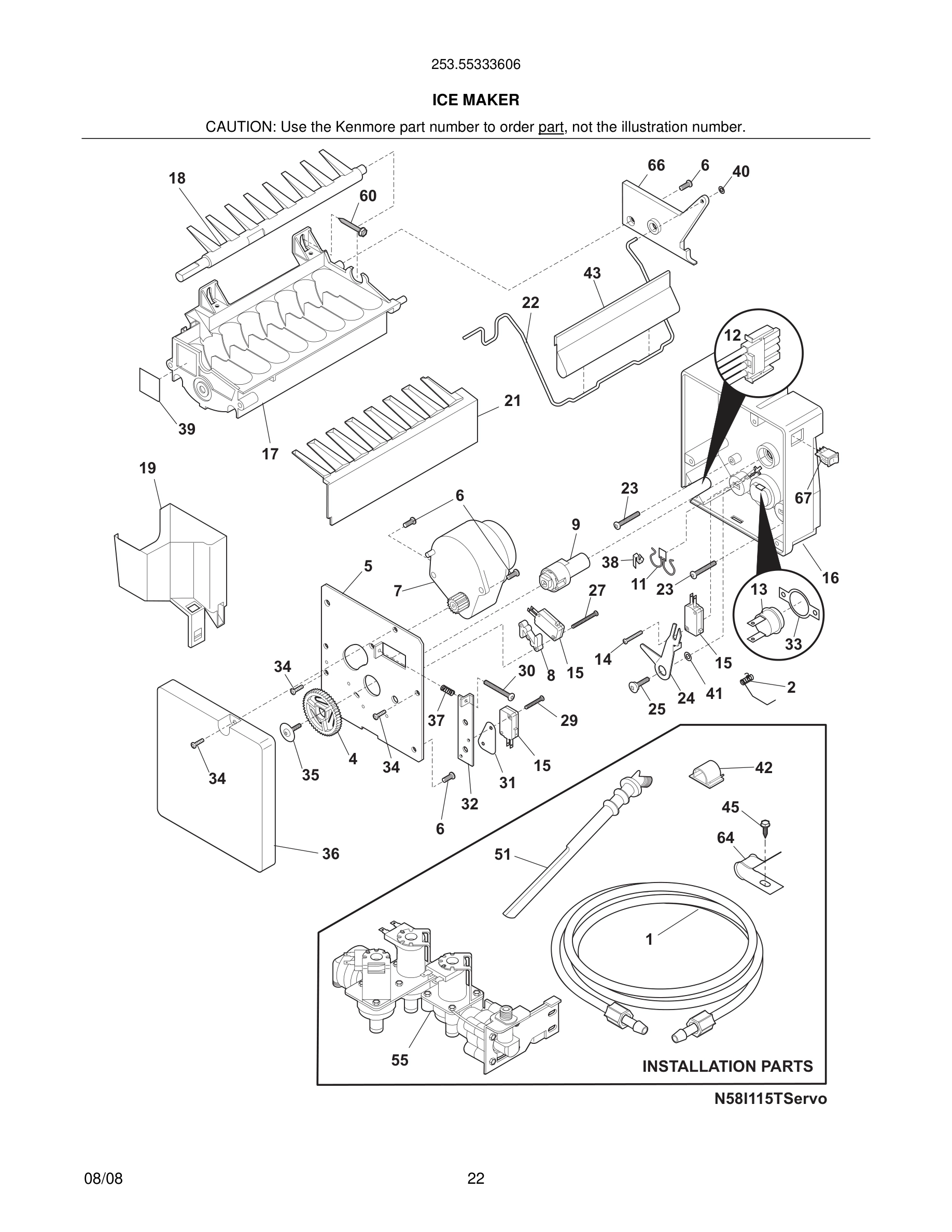

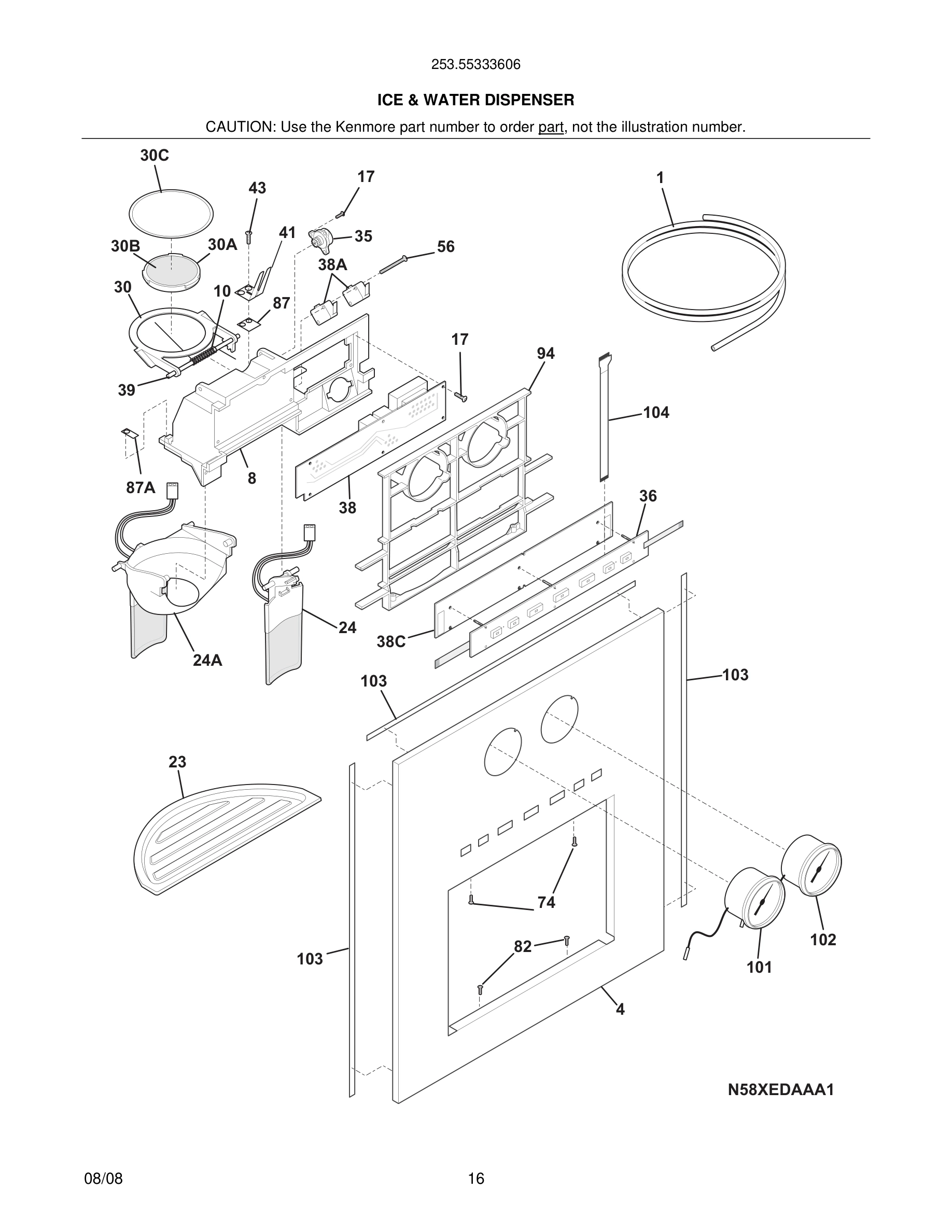

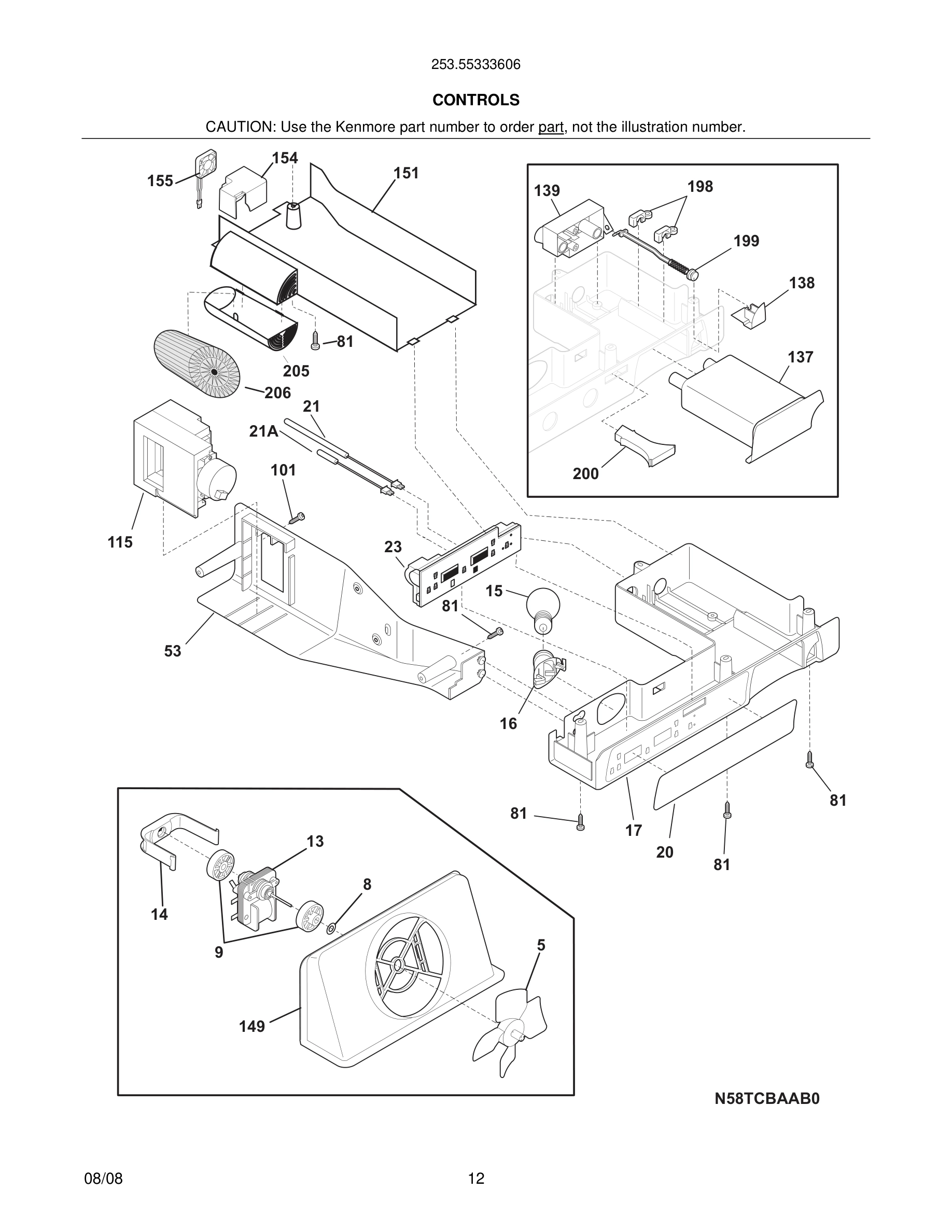

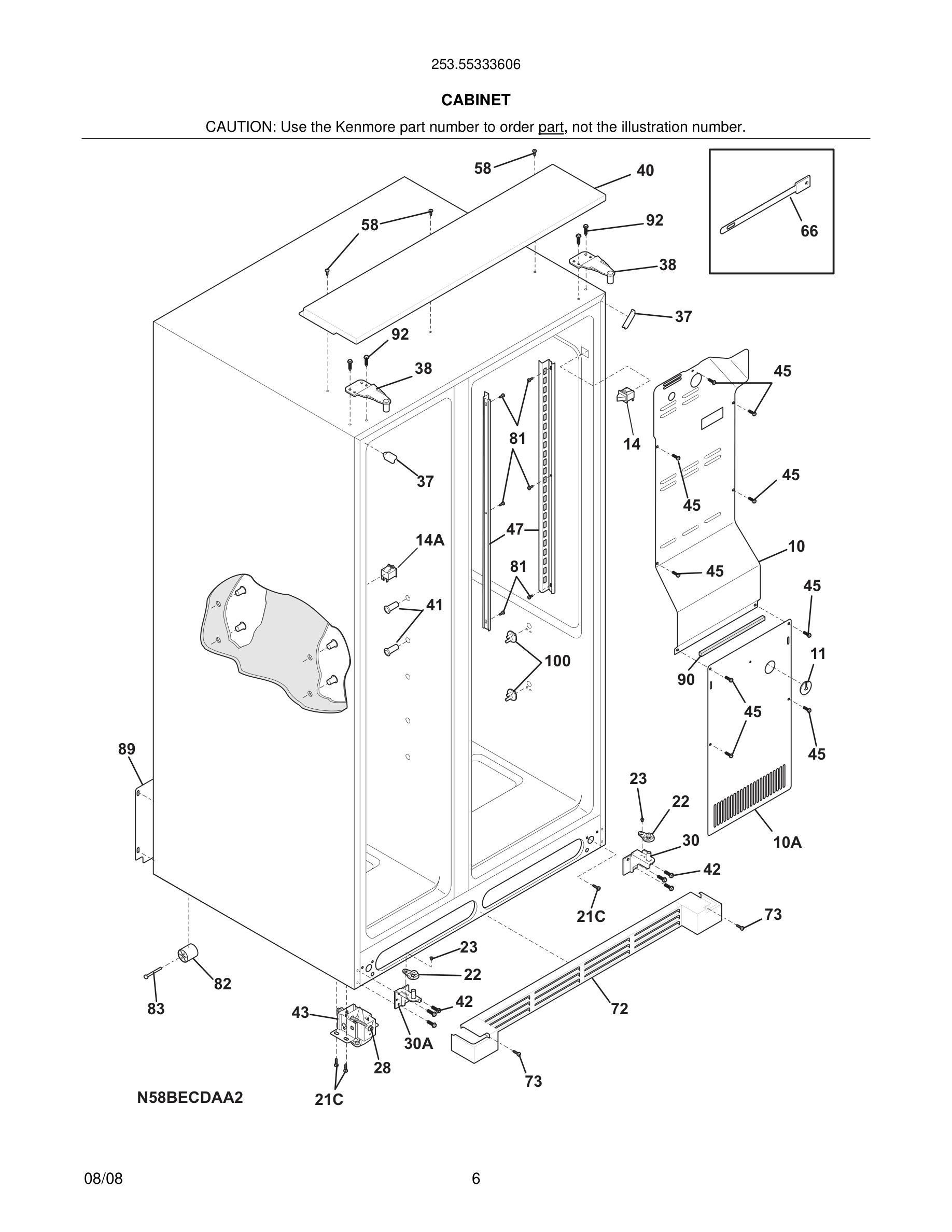

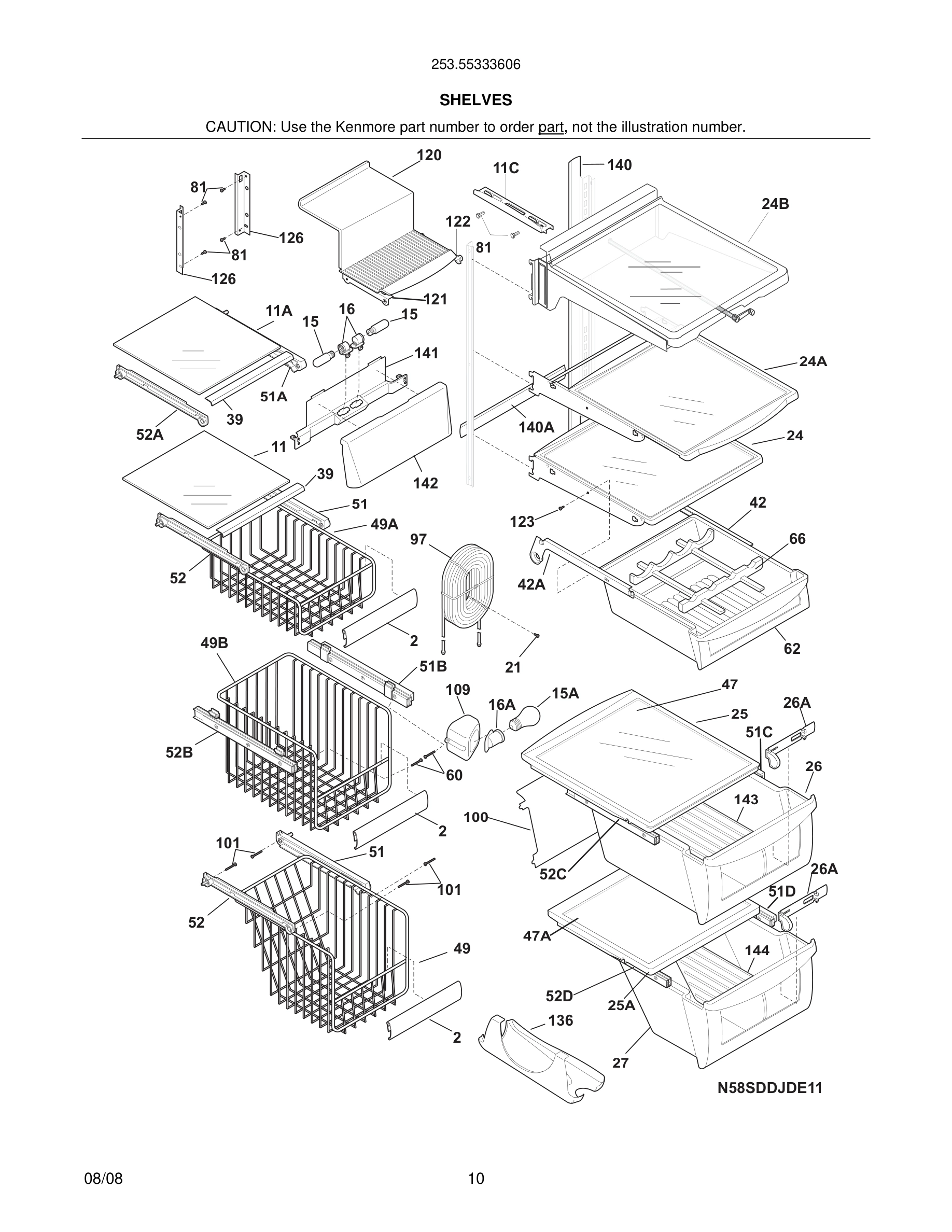

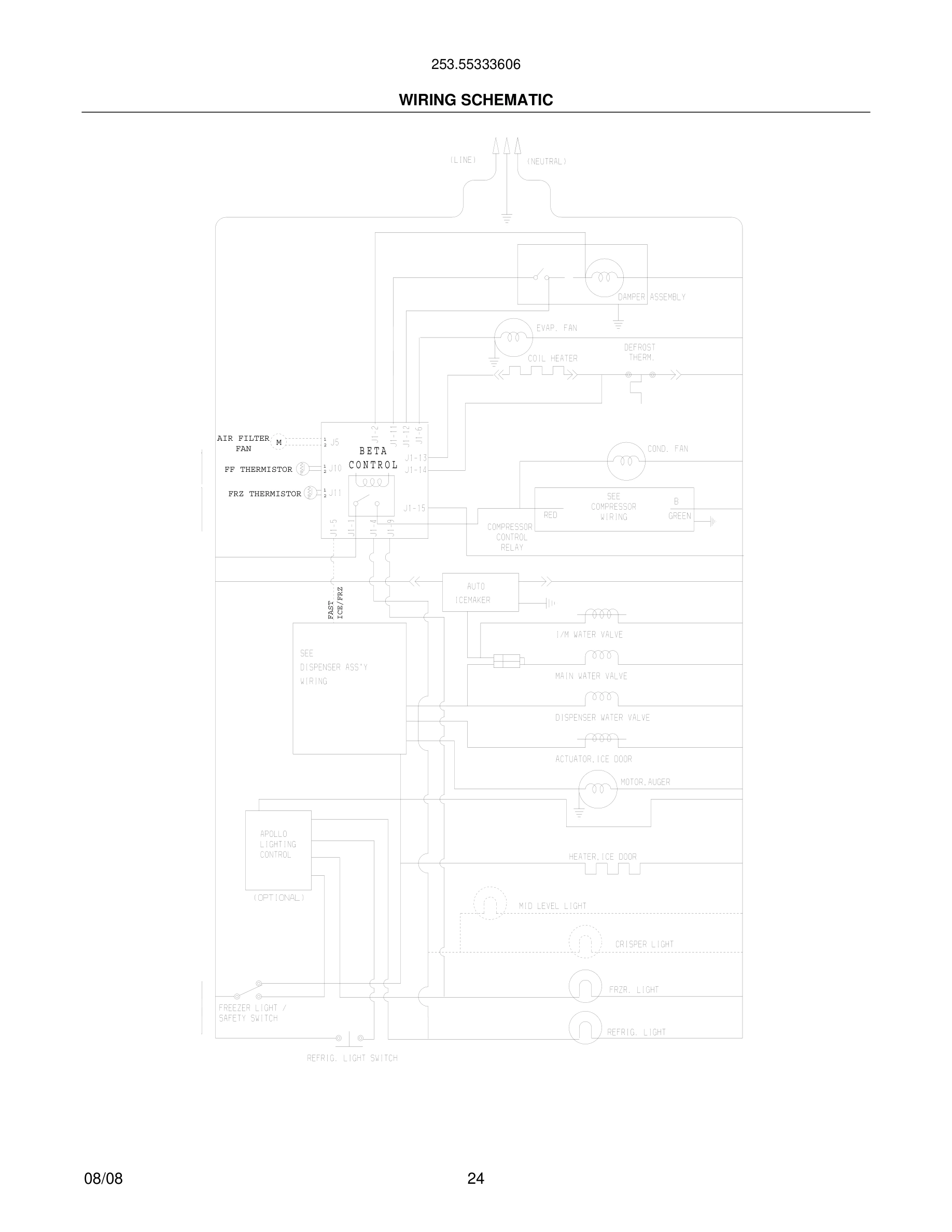

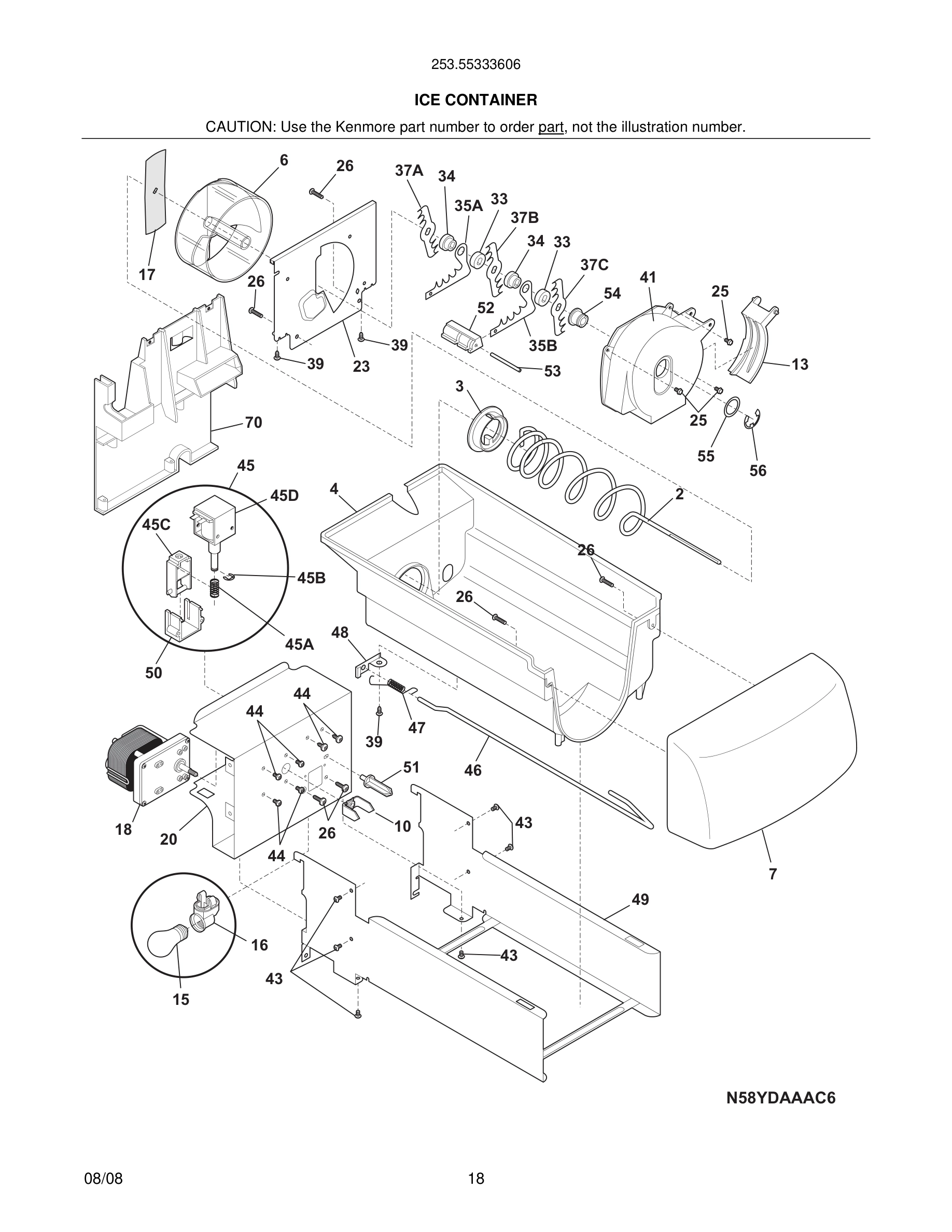

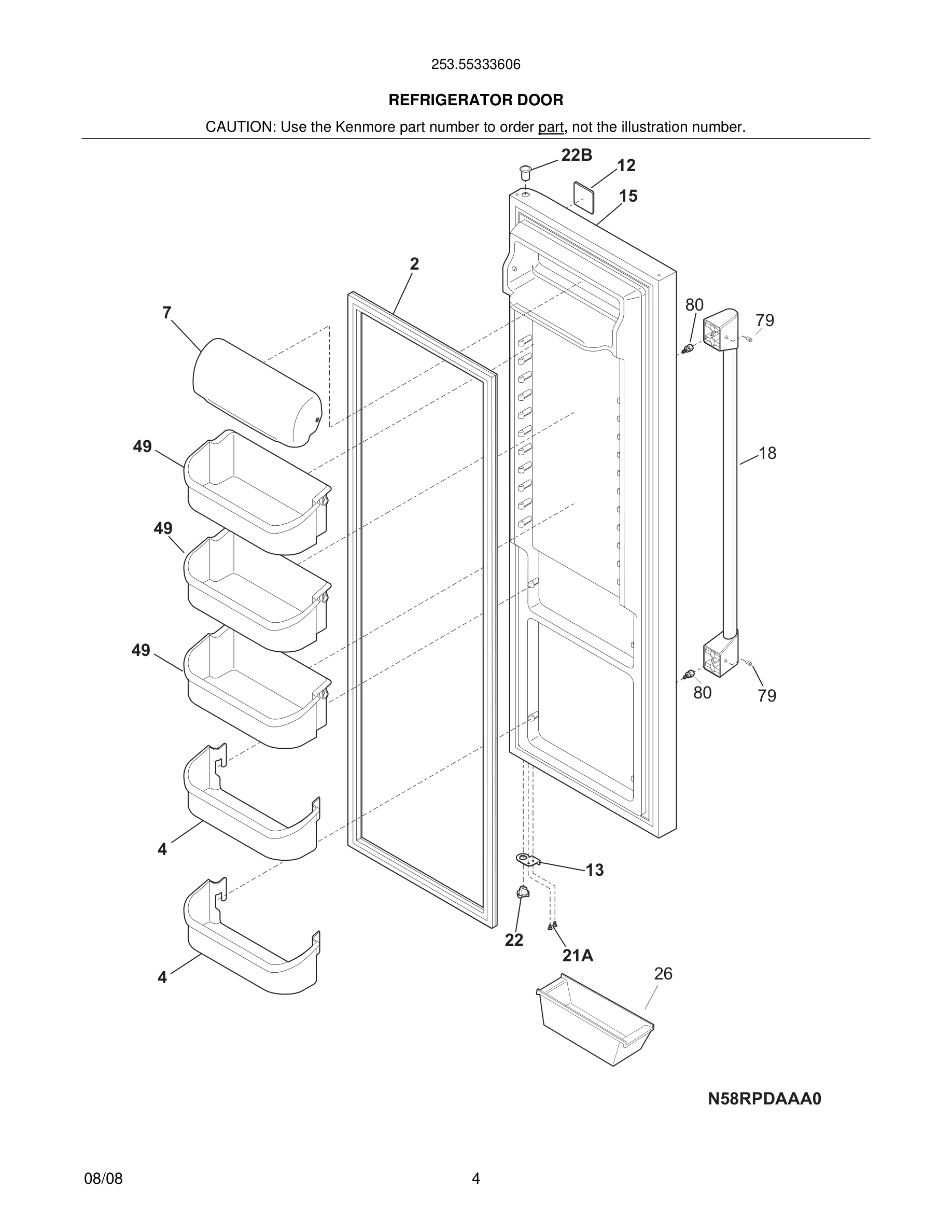

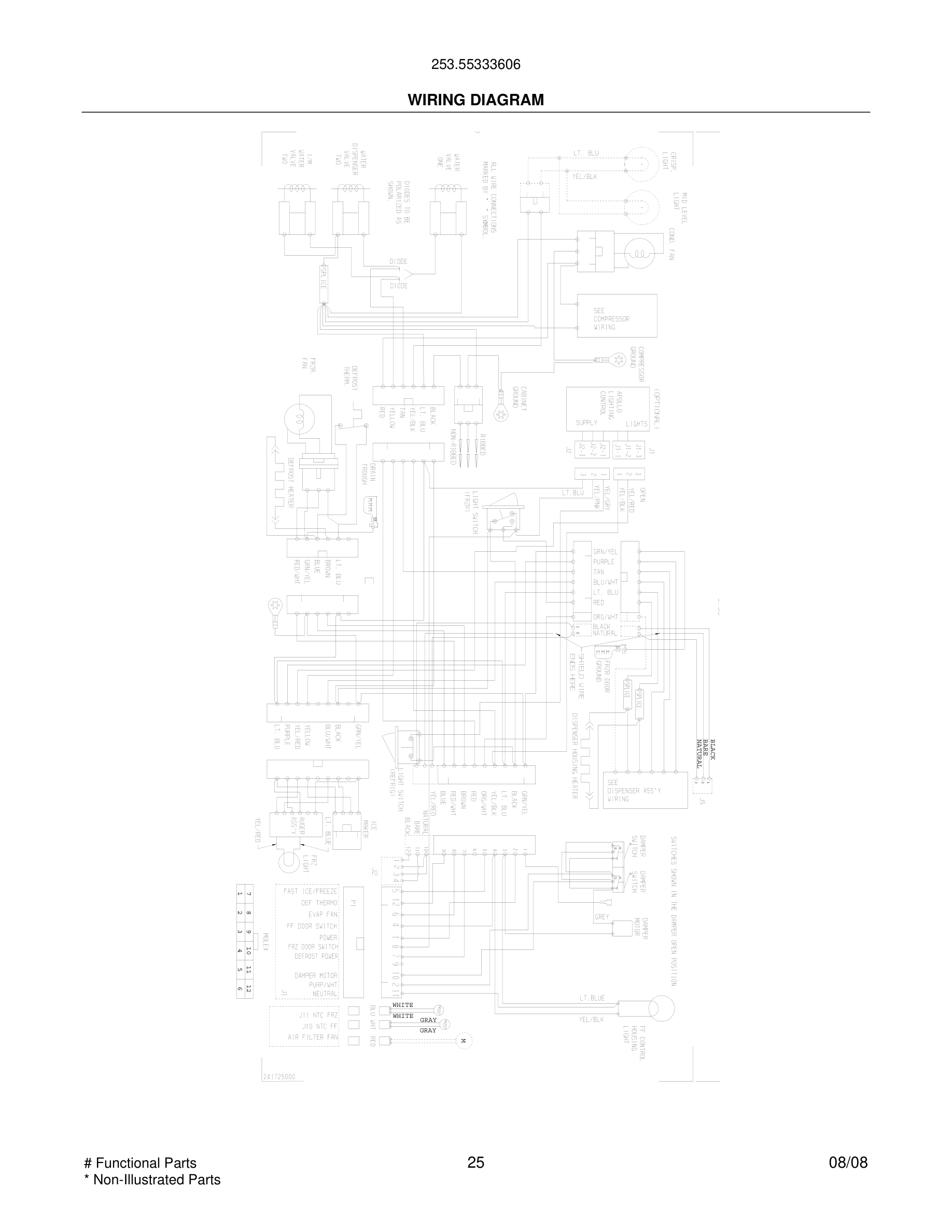

Model Kenmore 253.55333606 REFRIGERATOR – Common Parts &amp; Diagrams

*

240451503 Frigidaire Refrigerator Screw Backorder WCI 240451503 $2.26

*

241510904 Frigidaire Refrigerator Dispenser H Backorder WCI 241510904 $38.53

*

241583301 Frigidaire Refrigerator Air Deflect Backorder WCI 241583301 $29.88

*

241587402 Frigidaire Refrigerator Ice Deflect Backorder WCI 241587402 $13.13

*

241806601 Frigidaire Refrigerator Water Conne In Stock WCI 241806601 $43.45

*

241860804 Frigidaire Refrigerator Ice Contain Backorder WCI 241860804 $158.09

*

5303918256 Frigidaire Refrigerator Heater Kit In Stock WCI 5303918256 $342.79

*

Hot Tube Repair Kit, service WCI 5303918222 Contact Us For Availability

*#

5303918328 Frigidaire Refrigerator OS1 Heat E In Stock WCI 5303918328 $213.23

1

218976409 Frigidaire Refrigerator Water Tube In Stock WCI 218976409 $38.09

1

241786014 Frigidaire Refrigerator Door Gasket In Stock WCI 241786014 $57.30

218976418 Frigidaire Refrigerator Water Inlet Backorder WCI 218976418 $40.80

218976419 Frigidaire Refrigerator Tube Backorder WCI 218976419 $14.50

240561701 Frigidaire Refrigerator Seal Backorder WCI 240561701 $13.13

241850615 Frigidaire Ice Maker Fill Tube Asse In Stock WCI 241850615 $22.19

2

241716101 Frigidaire Refrigerator Ice Auger Backorder WCI 241716101 $74.17

2

241786001 Frigidaire Door Gasket In Stock WCI 241786001 $128.44

3

241685201 Frigidaire Refrigerator Drive Cam In Stock WCI 241685201 $26.72

4

240323002 Frigidaire Bottom Clear Door Bin In Stock WCI 240323002 $38.71

4

241561302 Frigidaire Refrigerator Container Backorder WCI 241561302 $64.11

4B

240334202 Frigidaire Refrigerator Door Bin Up In Stock WCI 240334202 $40.45

5

241545005 Frigidaire Refrigerator Tilt-Out Bi Backorder WCI 241545005 $80.37

5#

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

6

241685101 Frigidaire Refrigerator Ice Dispens In Stock WCI 241685101 $33.06

7

241561402 Frigidaire Refrigerator Front Ice C Backorder WCI 241561402 $50.64

7

Door-dairy WCI 240326203 Contact Us For Availability

7#

Motor-ice maker Svo WCI 5304458382 Contact Us For Availability

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

8

Module-dispenser WCI 241680504 Contact Us For Availability

9

241563601 Frigidaire Refrigerator Motor Mount Backorder WCI 241563601 $11.32

10

241688901 Frigidaire Refrigerator Torsion Spr Backorder WCI 241688901 $13.57

10

241726501 Frigidaire Refrigerator Drive Bar In Stock WCI 241726501 $37.18

10A

241719711 Frigidaire Refrigerator Evaporator Backorder WCI 241719711 $65.55

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

11#

5304458400 Frigidaire Refrigerator Thermal Cu Backorder WCI 5304458400 $39.00

11C

240324101 Frigidaire Refrigerator Pizza Shelf Backorder WCI 240324101 $35.78

13

240581905 Frigidaire Refrigerator Door Stop In Stock WCI 240581905 $35.33

13

5304456665 Frigidaire Refrigerator Thermostat Backorder WCI 5304456665 $79.31

13*#

Harness-wiring, evaporator WCI 241651601 Contact Us For Availability

13A

240581906 Frigidaire Refrigerator Door Stop In Stock WCI 240581906 $46.16

14

240505801 Frigidaire Light Switch In Stock WCI 240505801 $42.13

14A

241547902 Frigidaire Refrigerator Light Switc In Stock WCI 241547902 $15.92

15#

5303918284 Frigidaire Refrigerator Evaporator In Stock WCI 5303918284 $330.62

15#

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $54.68

15A

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

16

241559801 Frigidaire Light Socket Refrigerato In Stock WCI 241559801 $45.94

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

17

241679801 Frigidaire Screw Backorder WCI 241679801 $9.06

17

241684503 Frigidaire Ice Crusher Blade In Stock WCI 241684503 $10.39

18*

Wiring Harness, auger motor WCI 241578401 Contact Us For Availability

19

Cup-water inlet WCI 5304458378 Contact Us For Availability

21

5304458390 Frigidaire Refrigerator Ice Stripp Backorder WCI 5304458390 $34.32

21#

241608401 Frigidaire Refrigerator Thermistor Backorder WCI 241608401 $49.29

21#

5303918214 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918214 $14.53

21A

240598402 Frigidaire Refrigerator Screw Backorder WCI 240598402 $2.26

21A#

241608501 Frigidaire Refrigerator Freezer The In Stock WCI 241608501 $32.15

22

240328201 Frigidaire Refrigerator Hinge Beari In Stock WCI 240328201 $11.32

22

240457701 Frigidaire Refrigerator Freezer Doo In Stock WCI 240457701 $36.22

22

Shut-off Arm WCI 5304458375 Contact Us For Availability

22*

218252201 Frigidaire Refrigerator Screw In Stock WCI 218252201 $9.04

22C

240328404 Frigidaire Refrigerator Upper Door In Stock WCI 240328404 $14.61

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

241684001 Frigidaire Refrigerator Front Plate Backorder WCI 241684001 $92.01

Drip Tray, grey WCI 241692901 Contact Us For Availability

Screw-#10-32 x 1/4 flat hd WCI 240402702 Contact Us For Availability

24

Actuator-water, stainless WCI 241721603 Contact Us For Availability

24A

Actuator-ice, stainless WCI 241721703 Contact Us For Availability

25

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

25

Cover-crisper pan, upper WCI 241565002 Contact Us For Availability

25

Screw-compressor mtg, 1/4-28 x 1.16, (4) WCI 240491503 Contact Us For Availability

26

215503203 Frigidaire Refrigerator Door Handle In Stock WCI 215503203 $4.51

26

241697603 Frigidaire Defrost Pan Backorder WCI 241697603 $47.70

26*

241595202 Frigidaire Refrigerator Clip Backorder WCI 241595202 $10.85

27

Pan-crisper, lower WCI 241724202 Contact Us For Availability

30

241688401 Frigidaire Ice Door Bracket In Stock WCI 241688401 $31.71

30A

241688501 Frigidaire Refrigerator Door Center In Stock WCI 241688501 $33.84

30B

241688601 Frigidaire Refrigerator Door Insula In Stock WCI 241688601 $39.94

30C

241688701 Frigidaire Refrigerator Door Seal In Stock WCI 241688701 $24.59

33

241684802 Frigidaire Refrigerator Spacer Backorder WCI 241684802 $5.40

34

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.67

34

241689802 Frigidaire Refrigerator Spacer Backorder WCI 241689802 $4.97

35

241689301 Frigidaire Refrigerator Rotary Damp Backorder WCI 241689301 $41.66

35A

241684303 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684303 $10.39

35B

241684203 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684203 $10.85

36#

Keypad WCI 241693201 Contact Us For Availability

37A

241684107 Frigidaire Refrigerator Ice Crusher Backorder WCI 241684107 $13.13

37B

241684108 Frigidaire Refrigerator Ice Crusher In Stock WCI 241684108 $13.13

37C

241684109 Frigidaire Ice Crusher Blade In Stock WCI 241684109 $13.13

38

240327207 Frigidaire Refrigerator Upper Hinge In Stock WCI 240327207 $36.72

38#

Board-power WCI 241527607 Contact Us For Availability

38*

Insulator-electrical WCI 241686201 Contact Us For Availability

38A#

241689106 Frigidaire Refrigerator Micro Switc In Stock WCI 241689106 $5.10

38C#

Board-control WCI 241720202 Contact Us For Availability

39

240367602 Frigidaire Refrigerator Shelf Trim In Stock WCI 240367602 $28.99

39

241688801 Frigidaire Refrigerator Hinge Pin In Stock WCI 241688801 $27.62

40

Clip-retainer WCI 5304458401 Contact Us For Availability

41

241550801 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550801 $37.63

41

241689001 Frigidaire Refrigerator Actuator Sp In Stock WCI 241689001 $14.03

41*

241550701 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550701 $10.85

42

218515403 Frigidaire Refrigerator Grille Clip Backorder WCI 218515403 $18.56

42

240356501 Frigidaire Tray Hanger Pan In Stock WCI 240356501 $33.78

42

240578902 Frigidaire Screw Mounting Hinge In Stock WCI 240578902 $9.04

42A

240349701 Frigidaire Refrigerator Left Hand M In Stock WCI 240349701 $36.75

43

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $6.79

43

241720601 Frigidaire Refrigerator Extension In Stock WCI 241720601 $13.11

43

5304499445 Frigidaire Refrigerator Roller Ass Backorder WCI 5304499445 $19.99

45

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $2.72

45B

241676001 Frigidaire Refrigerator E-Ring Sole Backorder WCI 241676001 $44.35

45C

241676101 Frigidaire Refrigerator Solenoid-Ac In Stock WCI 241676101 $40.78

46

241716002 Frigidaire Refrigerator Control Rod Backorder WCI 241716002 $28.07

47

241731801 Frigidaire Refrigerator Control Rod Backorder WCI 241731801 $9.06

47

Channel-shelf mtg, side, (2) WCI 240349402 Contact Us For Availability

47A

240350603 Frigidaire Glass Shelf In Stock WCI 240350603 $73.07

48

241684602 Frigidaire Refrigerator Control Rod Backorder WCI 241684602 $67.69

49

241734501 Frigidaire Refrigerator Rail Backorder WCI 241734501 $113.81

49B

Basket-sliding, upper, full WCI 240530504 Contact Us For Availability

50

241675601 Frigidaire Refrigerator Solenoid Gu Backorder WCI 241675601 $50.64

50

Housing-control, apollo lighting WCI 241635501 Contact Us For Availability

51

240343002 Frigidaire Hanger Basket In Stock WCI 240343002 $38.55

51

Rotation Stop WCI 241676301 Contact Us For Availability

51A

240395502 Frigidaire Refrigerator Basket Hang Backorder WCI 240395502 $46.16

51C

240579821 Frigidaire Refrigerator Basket Hang Backorder WCI 240579821 $79.31

51D

240579822 Frigidaire Refrigerator Basket Hang Backorder WCI 240579822 $64.53

52

240343102 Frigidaire Basket Hanger In Stock WCI 240343102 $41.24

52

241684901 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684901 $18.12

52A

240395602 Frigidaire Refrigerator Basket Hang Backorder WCI 240395602 $38.97

53

241690402 Frigidaire Refrigerator Spiral Pin Backorder WCI 241690402 $12.20

54

241685001 Frigidaire Auger Nut Backorder WCI 241685001 $12.67

55

241690306 Frigidaire Refrigerator Washer Backorder WCI 241690306 $31.71

55*

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $8.14

55*

240542901 Frigidaire Water Valve Cap Backorder WCI 240542901 $11.33

56

241689201 Frigidaire Refrigerator Micro Switc Backorder WCI 241689201 $8.58

56

241690201 Frigidaire Refrigerator E-Ring Backorder WCI 241690201 $12.22

58

241548003 Frigidaire Refrigerator Screw In Stock WCI 241548003 $1.79

59*

240346701 Frigidaire Refrigerator Foam Seal T In Stock WCI 240346701 $19.01

59*

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.26

60

218362501 Frigidaire Refrigerator Screw Backorder WCI 218362501 $7.71

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

66*

240518802 Frigidaire Refrigerator Push Pin In Stock WCI 240518802 $10.41

68

241525101 Frigidaire Refrigerator Ice Chute Backorder WCI 241525101 $48.59

73

241732101 Frigidaire Refrigerator Screw Backorder WCI 241732101 $9.97

80

218755504 Frigidaire Refrigerator Shoulder Sc In Stock WCI 218755504 $8.60

81

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $30.80

82

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $9.50

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

85

241856901 Frigidaire Refrigerator Connector T Backorder WCI 241856901 $46.16

87

241688302 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688302 $12.67

87A

241688301 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688301 $12.67

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.60

97

240545308 Frigidaire Refrigerator Tank Backorder WCI 240545308 $72.16

100

240326304 Frigidaire Refrigerator Cover Backorder WCI 240326304 $44.31

101

218493101 Frigidaire Refrigerator Screw In Stock WCI 218493101 $8.58

101

241637202 Frigidaire Refrigerator Screw Backorder WCI 241637202 $3.16

120

241691901 Frigidaire Refrigerator Ice Cream S Backorder WCI 241691901 $47.05

121

241561001 Frigidaire Refrigerator Ice Cream S Backorder WCI 241561001 $60.06

122

241692001 Frigidaire Refrigerator Ice Cream S Backorder WCI 241692001 $50.62

123

215005101 Frigidaire Refrigerator Screw In Stock WCI 215005101 $9.50

126

241674401 Frigidaire Refrigerator Channel Backorder WCI 241674401 $30.36

126

241674402 Frigidaire Refrigerator Channel Backorder WCI 241674402 $27.62

136

241657702 Frigidaire Refrigerator Rack Backorder WCI 241657702 $47.20

137#

Frigidaire WF2CB PureSource Water Filter In Stock WCI WF2CB $42.87

138

Button-filter release WCI 240397301 Contact Us For Availability

139

240396002 Frigidaire Refrigerator Primary Bas In Stock WCI 240396002 $81.14

140

240430501 Frigidaire Refrigerator Channel Backorder WCI 240430501 $61.86

151

Filter housing WCI 241526001 Contact Us For Availability

155#

Motor-air filter WCI 241526102 Contact Us For Availability

198

240397401 Frigidaire Refrigerator Retainer As Backorder WCI 240397401 $37.63

199

Rod WCI 240397501 Contact Us For Availability

199*

240398401 Frigidaire Refrigerator Filter Rele Backorder WCI 240398401 $35.32

205

Air Filter Door WCI 241525901 Contact Us For Availability

206

AFCB Frigidaire Refrigerator Air Filter In Stock WCI AFCB $16.18
