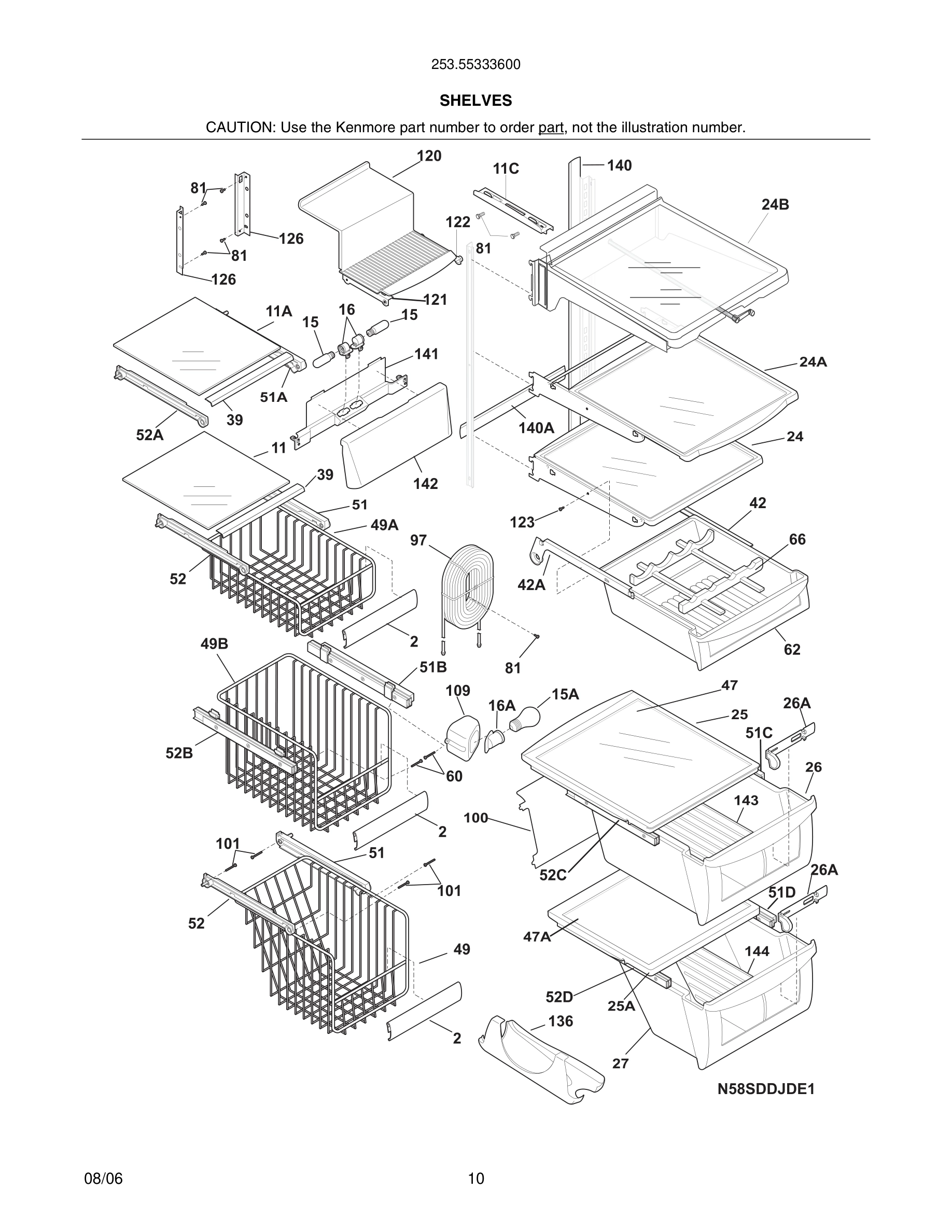

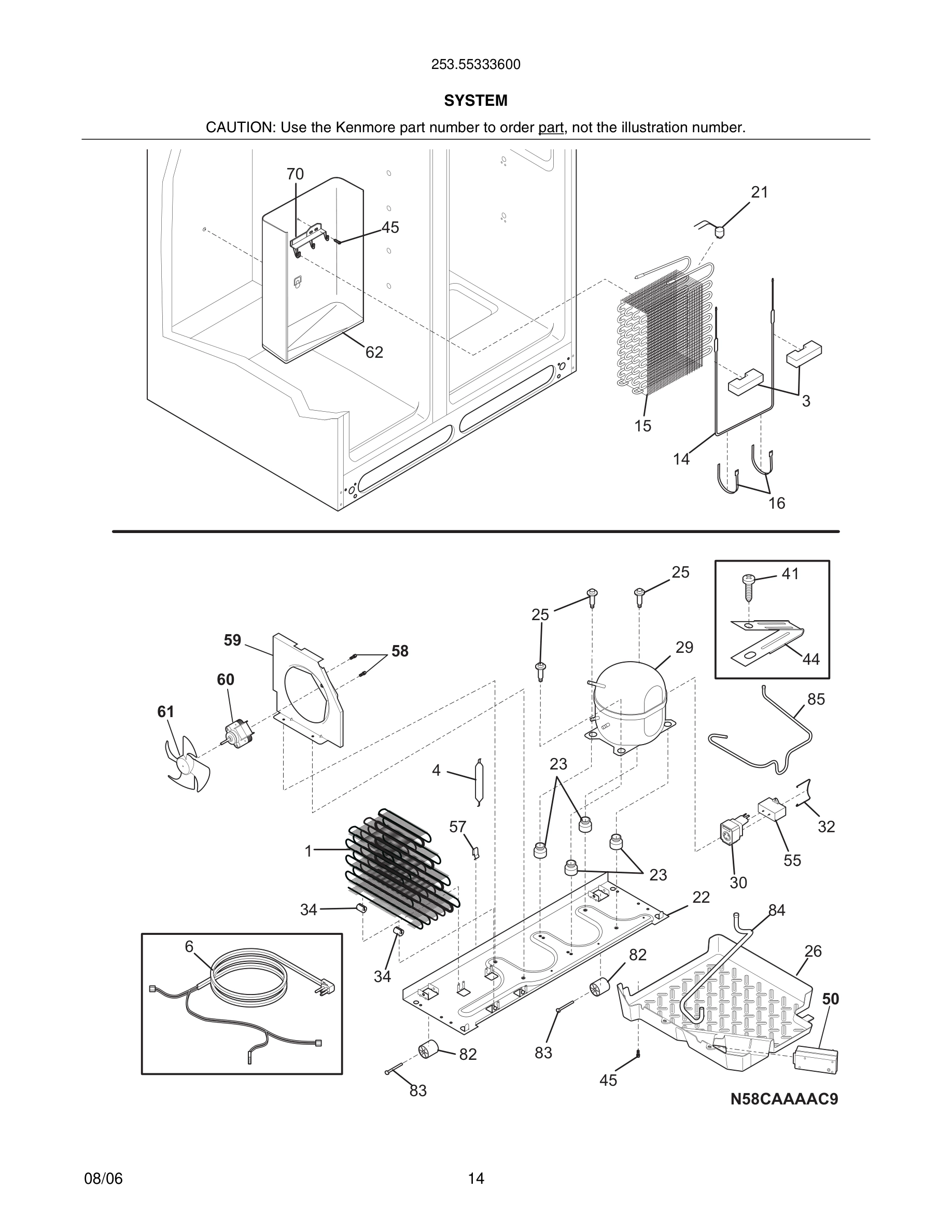

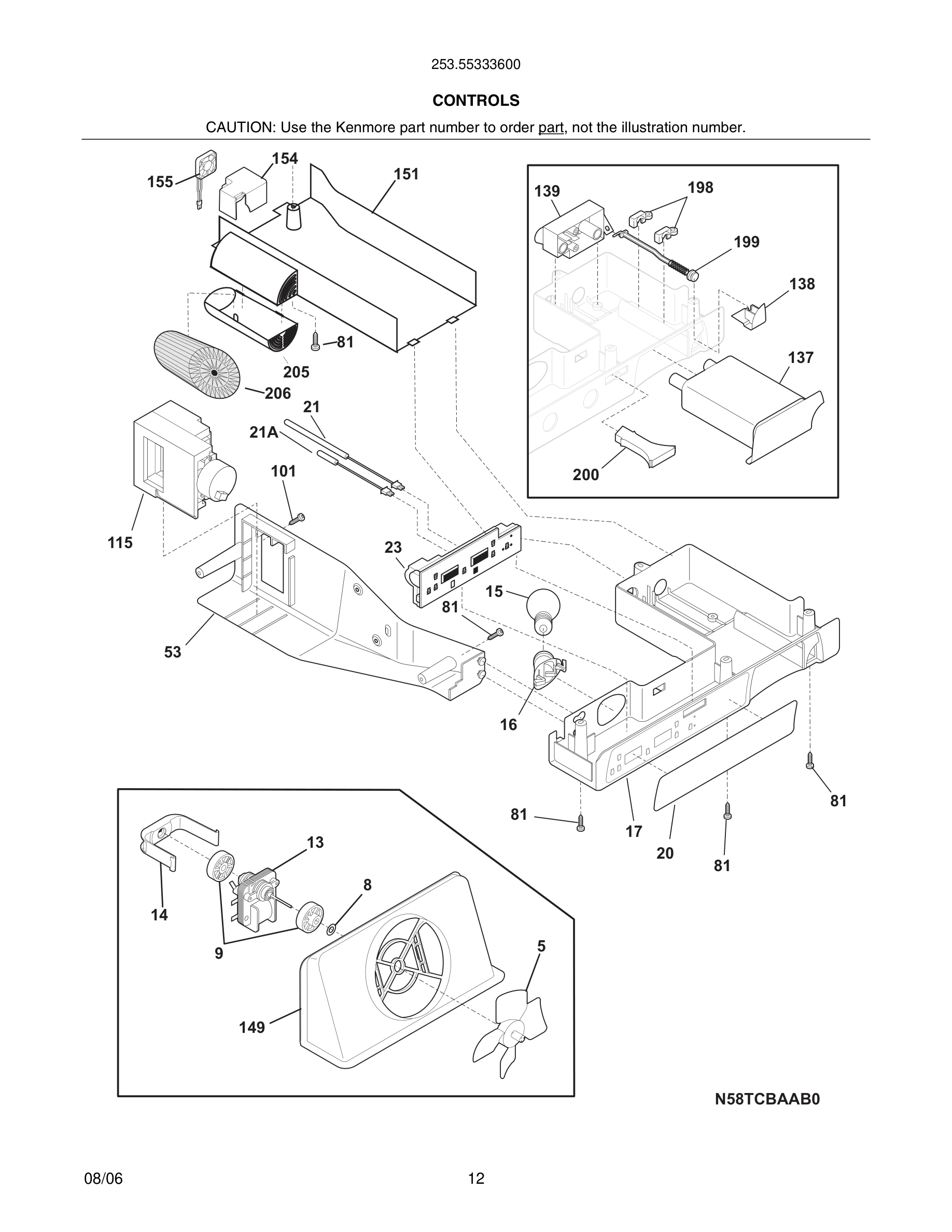

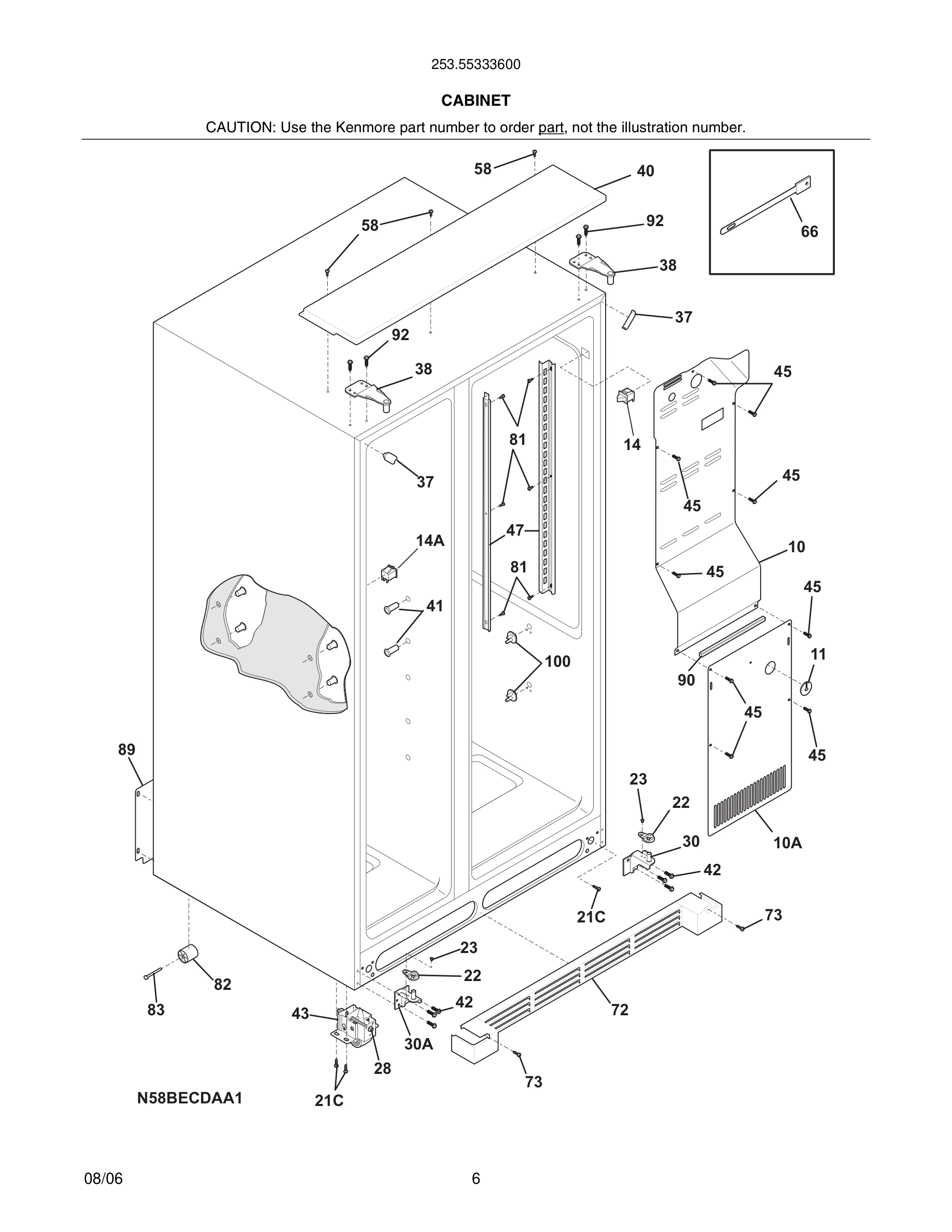

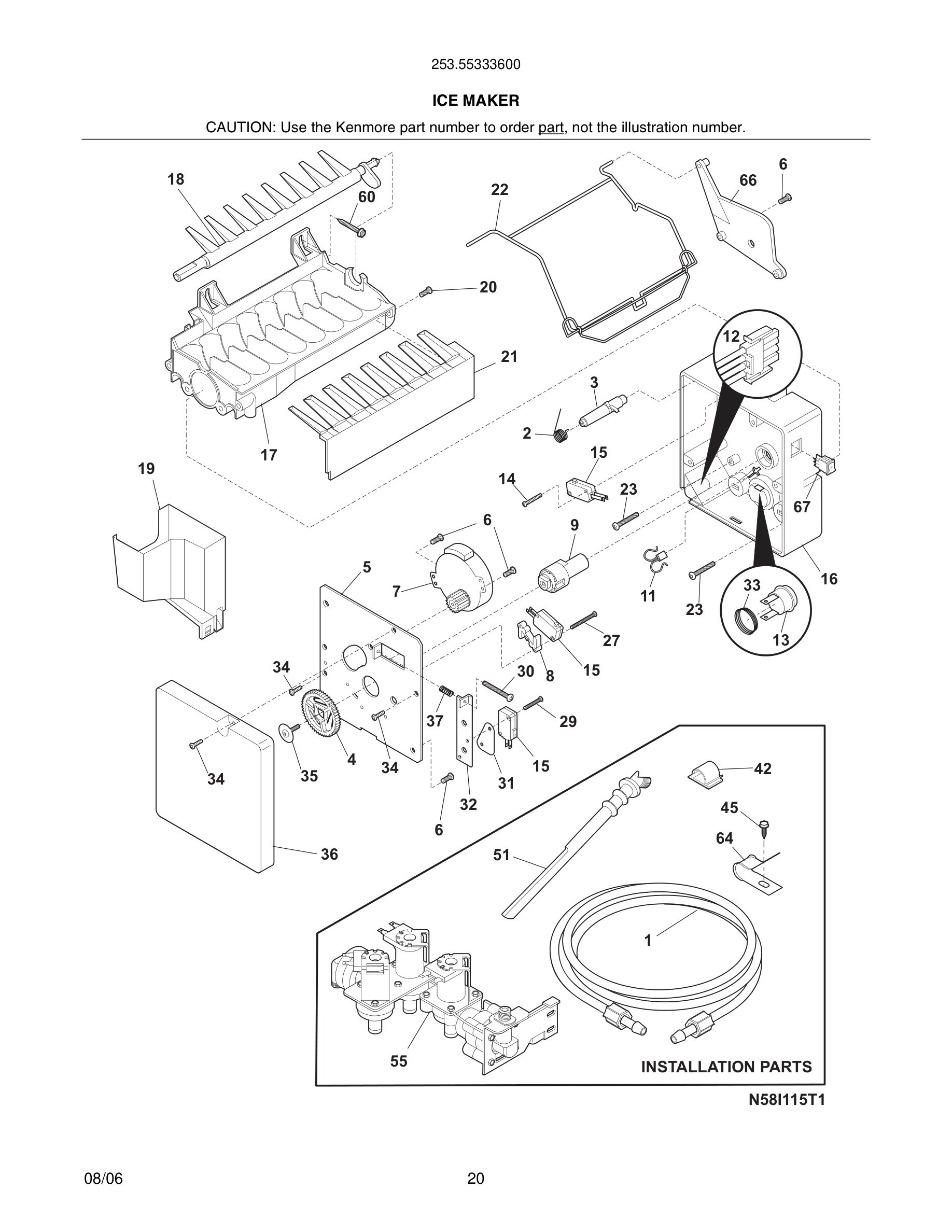

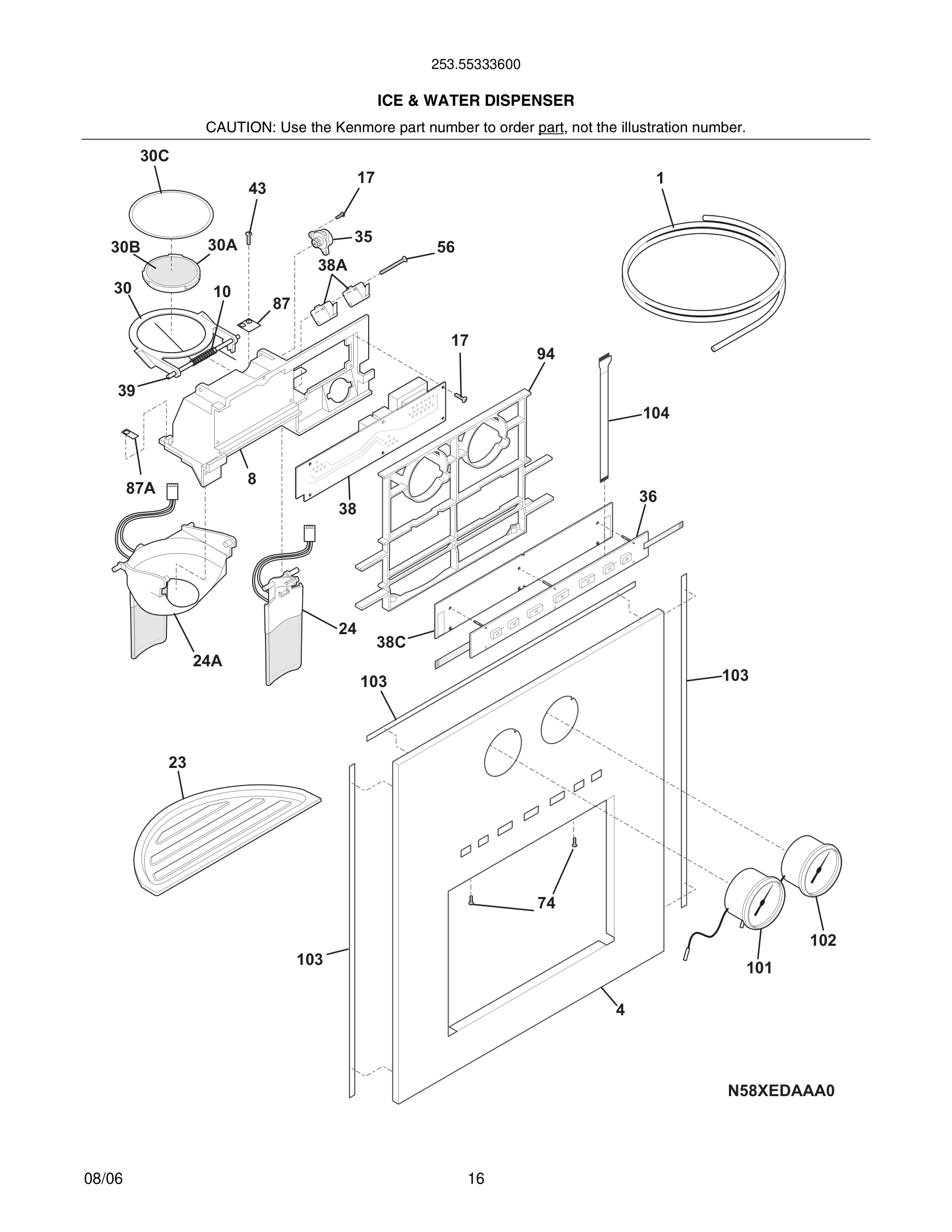

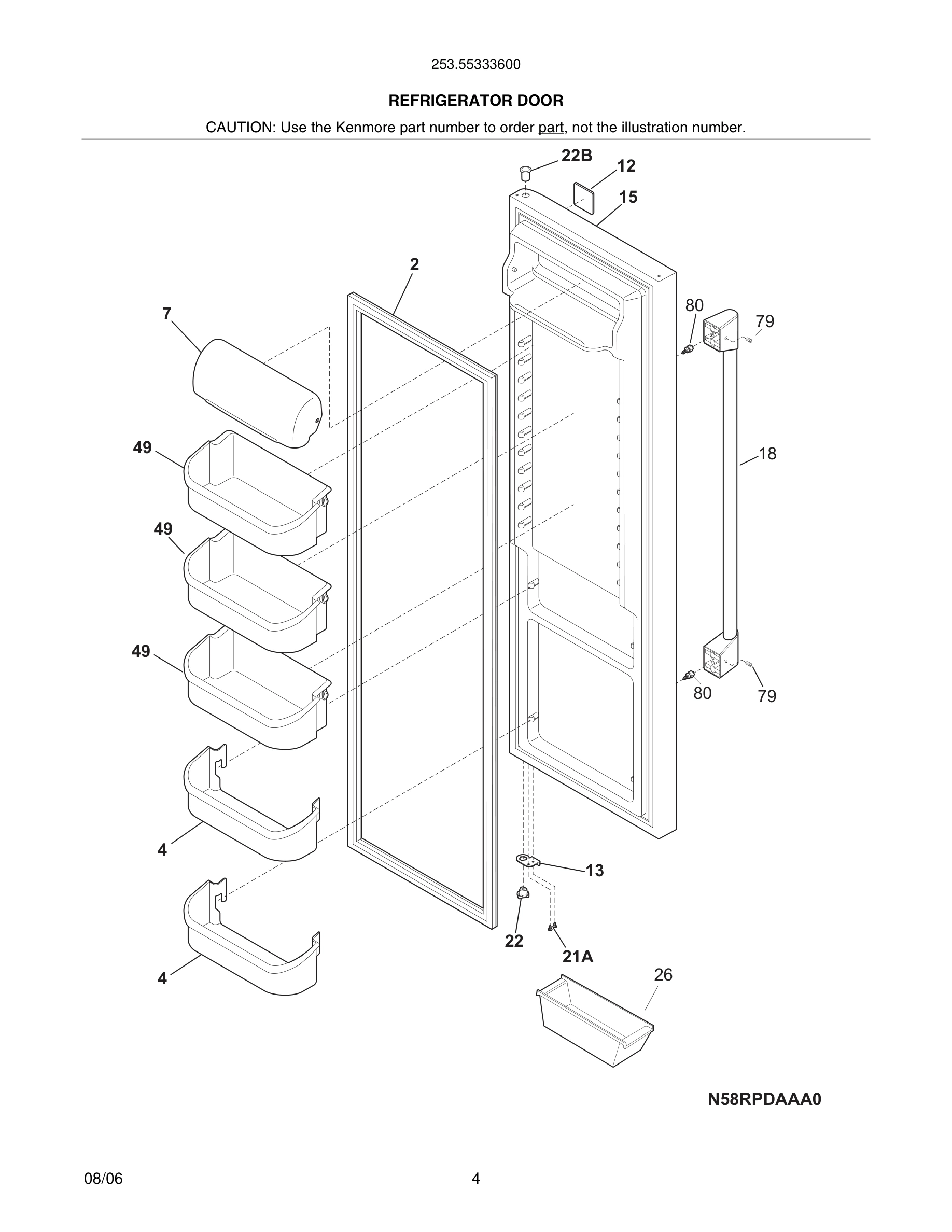

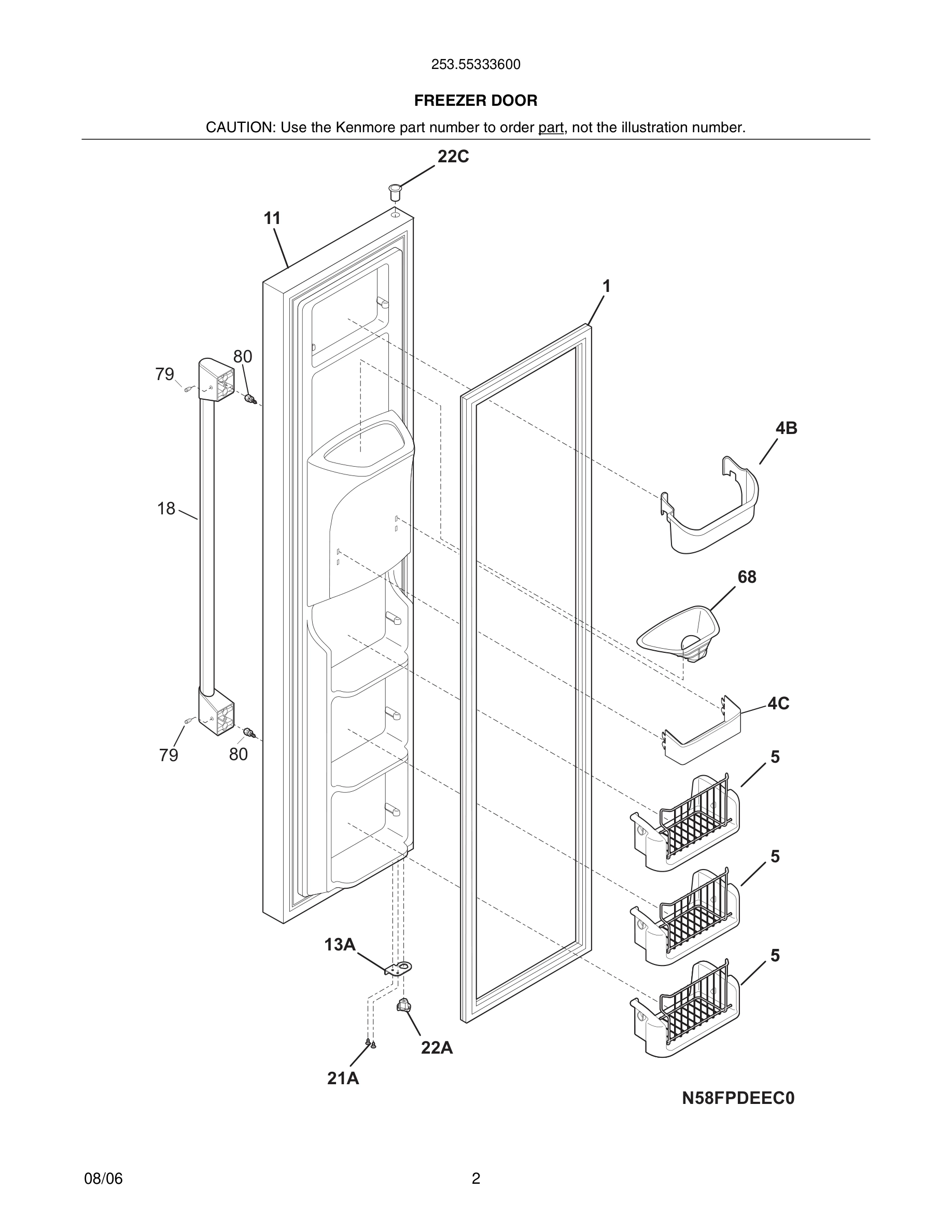

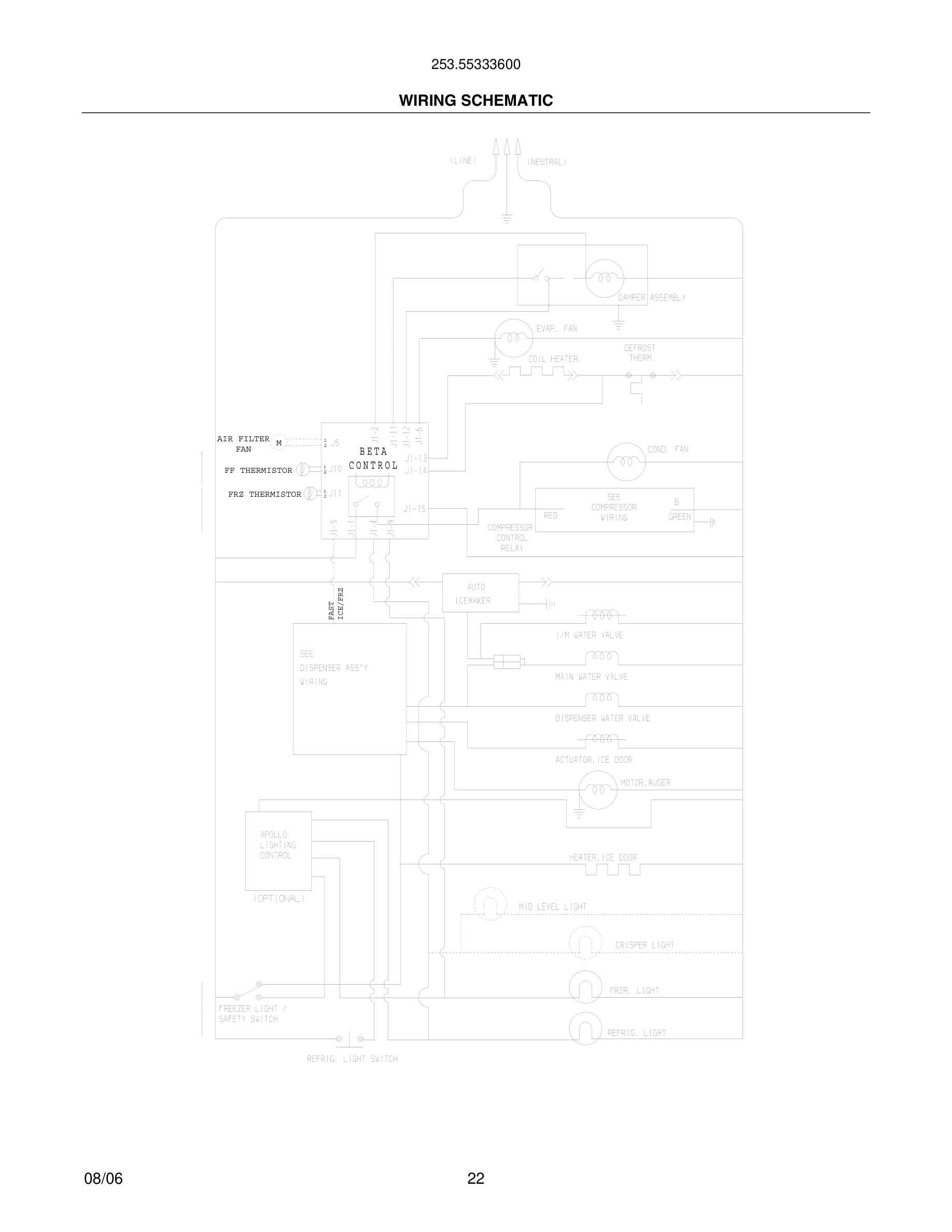

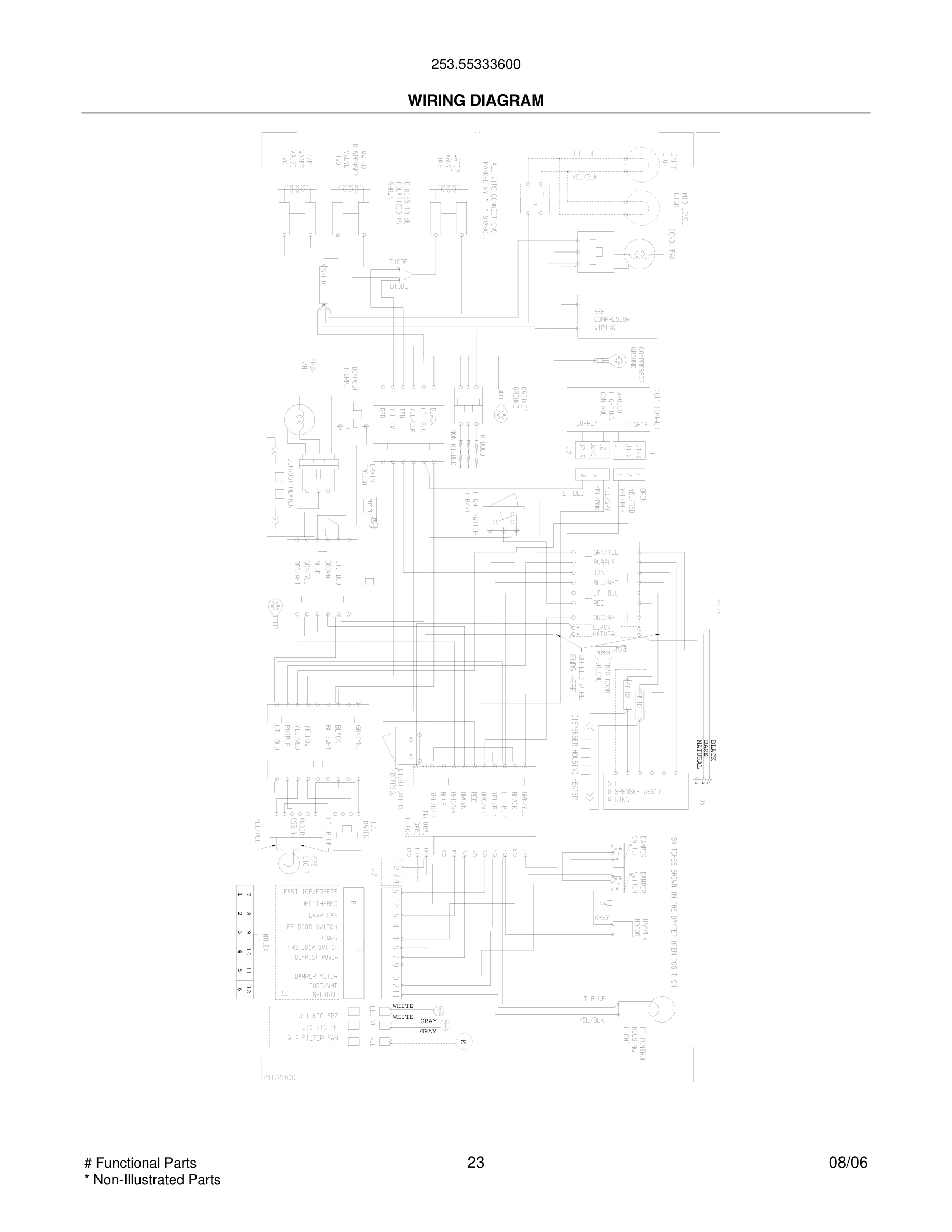

Model Kenmore 253.55333600 REFRIGERATOR – Common Parts &amp; Diagrams

*

240562101 Frigidaire Refrigerator P-1 Insulat Backorder WCI 240562101 $30.79

*

241583301 Frigidaire Refrigerator Air Deflect Backorder WCI 241583301 $29.88

*

241587402 Frigidaire Refrigerator Ice Deflect Backorder WCI 241587402 $13.13

*

241860804 Frigidaire Refrigerator Ice Contain Backorder WCI 241860804 $158.09

*

5303918256 Frigidaire Refrigerator Heater Kit In Stock WCI 5303918256 $342.79

*

Hot Tube Repair Kit, service WCI 5303918222 Contact Us For Availability

*#

5303918328 Frigidaire Refrigerator OS1 Heat E In Stock WCI 5303918328 $213.23

*#

5303918344 Frigidaire Refrigerator Kit Ice Ma In Stock WCI 5303918344 $89.34

1

218976409 Frigidaire Refrigerator Water Tube In Stock WCI 218976409 $38.09

218976901 Frigidaire Refrigerator P1 Water In Backorder WCI 218976901 $51.52

218976903 Frigidaire Refrigerator Water Inlet In Stock WCI 218976903 $44.38

240561701 Frigidaire Refrigerator Seal Backorder WCI 240561701 $13.13

Tube-water inlet, valve to door WCI 218976907 Contact Us For Availability

2

241716101 Frigidaire Refrigerator Ice Auger Backorder WCI 241716101 $74.17

2

Spring, torsion WCI 5304436616 Contact Us For Availability

3

241685201 Frigidaire Refrigerator Drive Cam In Stock WCI 241685201 $26.72

3

Detent WCI 5304436610 Contact Us For Availability

4

240323002 Frigidaire Bottom Clear Door Bin In Stock WCI 240323002 $38.71

4

241561302 Frigidaire Refrigerator Container Backorder WCI 241561302 $64.11

4

5304469403 Frigidaire Gear Backorder WCI 5304469403 $12.74

4B

240334202 Frigidaire Refrigerator Door Bin Up In Stock WCI 240334202 $40.45

5

241545005 Frigidaire Refrigerator Tilt-Out Bi Backorder WCI 241545005 $80.37

5

Plate-mounting WCI 5304436604 Contact Us For Availability

5#

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

6

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $6.79

6

241685101 Frigidaire Refrigerator Ice Dispens In Stock WCI 241685101 $33.06

6*#

Harness-wiring WCI 241651601 Contact Us For Availability

7

241561402 Frigidaire Refrigerator Front Ice C Backorder WCI 241561402 $50.64

7

Door-dairy WCI 240326203 Contact Us For Availability

7#

5304469407 Frigidaire Refrigerator Ice Maker Backorder WCI 5304469407 $97.46

8

Spacer-hold switch WCI 3206312 Contact Us For Availability

9

241563601 Frigidaire Refrigerator Motor Mount Backorder WCI 241563601 $11.32

9

Cam WCI 3206313 Contact Us For Availability

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

11#

Thermal Cutoff, ICE MAKER, complete assy WCI 5304436618 Contact Us For Availability

11C

240324101 Frigidaire Refrigerator Pizza Shelf Backorder WCI 240324101 $35.78

12

Harness-wiring WCI 5304436614 Contact Us For Availability

13

240581905 Frigidaire Refrigerator Door Stop In Stock WCI 240581905 $35.33

13

Thermostat, ICE MAKER WCI 5304436613 Contact Us For Availability

13*

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

13A

240581906 Frigidaire Refrigerator Door Stop In Stock WCI 240581906 $46.16

14

240505801 Frigidaire Light Switch In Stock WCI 240505801 $42.13

14

Screw, plask, 4-14 x 3/4 WCI 5304455676 Contact Us For Availability

14A

241547902 Frigidaire Refrigerator Light Switc In Stock WCI 241547902 $15.92

15#

5303918284 Frigidaire Refrigerator Evaporator In Stock WCI 5303918284 $330.62

15#

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $54.68

15A

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

16

241559801 Frigidaire Light Socket Refrigerato In Stock WCI 241559801 $45.94

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

16

Housing, control WCI 5304436609 Contact Us For Availability

17

241684503 Frigidaire Ice Crusher Blade In Stock WCI 241684503 $10.39

18

Ejector-ice WCI 5304436607 Contact Us For Availability

18#

5304462594 Frigidaire Refrigerator Auger Moto Backorder WCI 5304462594 $182.46

18*

Harness-wiring WCI 5304455843 Contact Us For Availability

19

Cup-water inlet WCI 5304436606 Contact Us For Availability

20

5304455677 Frigidaire Screw Backorder WCI 5304455677 $7.69

20

Cover-motor WCI 5304404332 Contact Us For Availability

21

241726501 Frigidaire Refrigerator Drive Bar In Stock WCI 241726501 $37.18

21

5303918214 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918214 $14.53

21

5304473031 Frigidaire Refrigerator Ice Stripp Backorder WCI 5304473031 $17.68

21#

241608401 Frigidaire Refrigerator Thermistor Backorder WCI 241608401 $49.29

21A

240598402 Frigidaire Refrigerator Screw Backorder WCI 240598402 $2.26

21A#

241608501 Frigidaire Refrigerator Freezer The In Stock WCI 241608501 $32.15

240328201 Frigidaire Refrigerator Hinge Beari In Stock WCI 240328201 $11.32

240457701 Frigidaire Refrigerator Freezer Doo In Stock WCI 240457701 $36.22

240597220 Frigidaire Sensor In Stock WCI 240597220 $3.05

Shut-off Arm WCI 5304436602 Contact Us For Availability

22*

218252201 Frigidaire Refrigerator Screw In Stock WCI 218252201 $9.04

22C

240328404 Frigidaire Refrigerator Upper Door In Stock WCI 240328404 $14.61

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

241684001 Frigidaire Refrigerator Front Plate Backorder WCI 241684001 $92.01

Drip Tray, grey WCI 241692901 Contact Us For Availability

Screw-#10-32 x 1/4 flat hd WCI 240402702 Contact Us For Availability

Screw, 8-32 x 7/8, mold-to-support WCI 5304455678 Contact Us For Availability

25

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

25

Cover-crisper pan, upper WCI 241565002 Contact Us For Availability

25

Screw-compressor mtg, 1/4-28 x 1.16, (4) WCI 240491503 Contact Us For Availability

26

5304455680 Frigidaire Refrigerator Screw Backorder WCI 5304455680 $8.62

26*

241595202 Frigidaire Refrigerator Clip Backorder WCI 241595202 $10.85

27

Pan-crisper, lower WCI 241724202 Contact Us For Availability

27

Screw, taptite, 4-40 x 1.000, hold switch mtg WCI 5304455681 Contact Us For Availability

29

Screw, 4-24 x 0.750, (6) WCI 5304455845 Contact Us For Availability

30

Screw, type 23, 8-32 x 1.00 WCI 5304455682 Contact Us For Availability

31

Insulator WCI 3206342 Contact Us For Availability

32

Plate-valve switch WCI 5304455683 Contact Us For Availability

33

241684802 Frigidaire Refrigerator Spacer Backorder WCI 241684802 $5.40

33

Spring-thermostat WCI 5304436615 Contact Us For Availability

34

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.67

34

241689802 Frigidaire Refrigerator Spacer Backorder WCI 241689802 $4.97

34

Screw, plazscrew, 8-10 x 1/2, (3) WCI 5304455684 Contact Us For Availability

35

Screw WCI 5304455685 Contact Us For Availability

35A

241684303 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684303 $10.39

35B

241684203 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684203 $10.85

36

Cover-ice maker WCI 5304436605 Contact Us For Availability

36#

Keypad WCI 241693201 Contact Us For Availability

37

Spring-timing adj WCI 5304408583 Contact Us For Availability

37A

241684107 Frigidaire Refrigerator Ice Crusher Backorder WCI 241684107 $13.13

37B

241684108 Frigidaire Refrigerator Ice Crusher In Stock WCI 241684108 $13.13

37C

241684109 Frigidaire Ice Crusher Blade In Stock WCI 241684109 $13.13

38

240327207 Frigidaire Refrigerator Upper Hinge In Stock WCI 240327207 $36.72

38#

Board-power WCI 241527607 Contact Us For Availability

39

240367602 Frigidaire Refrigerator Shelf Trim In Stock WCI 240367602 $28.99

39

241690501 Frigidaire Refrigerator Screw Backorder WCI 241690501 $10.41

41

241550801 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550801 $37.63

41

241885001 Frigidaire Refrigerator Ice Crusher In Stock WCI 241885001 $47.97

41*

241550701 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550701 $10.85

42

218515403 Frigidaire Refrigerator Grille Clip Backorder WCI 218515403 $18.56

42

240356501 Frigidaire Tray Hanger Pan In Stock WCI 240356501 $33.78

42

240578902 Frigidaire Screw Mounting Hinge In Stock WCI 240578902 $9.04

42A

240349701 Frigidaire Refrigerator Left Hand M In Stock WCI 240349701 $36.75

43

Screw, plask h/l, #6 x 3/8 WCI 5304455699 Contact Us For Availability

45

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $2.72

45#

241675704 Frigidaire Refrigerator Solenoid As In Stock WCI 241675704 $53.06

45A

241675902 Frigidaire Refrigerator Solenoid Sp Backorder WCI 241675902 $4.07

45B

241676001 Frigidaire Refrigerator E-Ring Sole Backorder WCI 241676001 $44.35

45C

241676101 Frigidaire Refrigerator Solenoid-Ac In Stock WCI 241676101 $40.78

46

Control Rod WCI 5304404341 Contact Us For Availability

47

Channel-shelf mtg, side, (2) WCI 240349402 Contact Us For Availability

47

Spring-control rod WCI 5304404342 Contact Us For Availability

47A

240350603 Frigidaire Glass Shelf In Stock WCI 240350603 $73.07

48

241684602 Frigidaire Refrigerator Control Rod Backorder WCI 241684602 $67.69

48*

Screw-bracket WCI 5304404364 Contact Us For Availability

49

Rail Assy WCI 5304404329 Contact Us For Availability

49B

Basket-sliding, upper, full WCI 240530504 Contact Us For Availability

50

241675601 Frigidaire Refrigerator Solenoid Gu Backorder WCI 241675601 $50.64

50

Housing-control, apollo lighting WCI 241635501 Contact Us For Availability

51

240343002 Frigidaire Hanger Basket In Stock WCI 240343002 $38.55

51

241796407 Frigidaire Refrigerator Fill Water In Stock WCI 241796407 $12.67

51

Rotation Stop WCI 5304404336 Contact Us For Availability

51A

240395502 Frigidaire Refrigerator Basket Hang Backorder WCI 240395502 $46.16

51C

240579821 Frigidaire Refrigerator Basket Hang Backorder WCI 240579821 $79.31

51D

240579822 Frigidaire Refrigerator Basket Hang Backorder WCI 240579822 $64.53

52

240343102 Frigidaire Basket Hanger In Stock WCI 240343102 $41.24

52

241684901 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684901 $18.12

52A

240395602 Frigidaire Refrigerator Basket Hang Backorder WCI 240395602 $38.97

53

241690402 Frigidaire Refrigerator Spiral Pin Backorder WCI 241690402 $12.20

54

241685001 Frigidaire Auger Nut Backorder WCI 241685001 $12.67

55

241690306 Frigidaire Refrigerator Washer Backorder WCI 241690306 $31.71

55#

242252702 Frigidaire Refrigerator Water Inlet In Stock WCI 242252702 $44.58

55*

218709101 Frigidaire Refrigerator Handle Moun Backorder WCI 218709101 $4.09

55*

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $8.14

55*

240542901 Frigidaire Water Valve Cap Backorder WCI 240542901 $11.33

56

241690201 Frigidaire Refrigerator E-Ring Backorder WCI 241690201 $12.22

58

Screw-solenoid WCI 5304404331 Contact Us For Availability

59*

240346701 Frigidaire Refrigerator Foam Seal T In Stock WCI 240346701 $19.01

60

218362501 Frigidaire Refrigerator Screw Backorder WCI 218362501 $7.71

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

66

Bracket-ice maker WCI 5304436611 Contact Us For Availability

66*

240518802 Frigidaire Refrigerator Push Pin In Stock WCI 240518802 $10.41

67

5304465210 Frigidaire Refrigerator Switch Kit Backorder WCI 5304465210 $134.77

68

241525101 Frigidaire Refrigerator Ice Chute Backorder WCI 241525101 $48.59

70

Plate-mounting WCI 241561502 Contact Us For Availability

70*

215005101 Frigidaire Refrigerator Screw In Stock WCI 215005101 $9.50

70*

Screw, hex head, 8-18B x 0.875 WCI 241551601 Contact Us For Availability

73

Screw, 10-32 x 1/2 WCI 241548002 Contact Us For Availability

80

218755504 Frigidaire Refrigerator Shoulder Sc In Stock WCI 218755504 $8.60

81

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $30.80

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.60

97

240545302 Frigidaire Water Reservoir Assembly Backorder WCI 240545302 $167.84

101

218493101 Frigidaire Refrigerator Screw In Stock WCI 218493101 $8.58

101

241637202 Frigidaire Refrigerator Screw Backorder WCI 241637202 $3.16

120

241691901 Frigidaire Refrigerator Ice Cream S Backorder WCI 241691901 $47.05

121

241561001 Frigidaire Refrigerator Ice Cream S Backorder WCI 241561001 $60.06

122

241692001 Frigidaire Refrigerator Ice Cream S Backorder WCI 241692001 $50.62

126

241674401 Frigidaire Refrigerator Channel Backorder WCI 241674401 $30.36

126

241674402 Frigidaire Refrigerator Channel Backorder WCI 241674402 $27.62

136

241657702 Frigidaire Refrigerator Rack Backorder WCI 241657702 $47.20

137#

Frigidaire WF2CB PureSource Water Filter In Stock WCI WF2CB $42.87

138

Button-filter release WCI 240397301 Contact Us For Availability

139

240396002 Frigidaire Refrigerator Primary Bas In Stock WCI 240396002 $81.14

140

240430501 Frigidaire Refrigerator Channel Backorder WCI 240430501 $61.86

151

Filter housing WCI 241526001 Contact Us For Availability

155#

Motor-air filter WCI 241526102 Contact Us For Availability

198

240397401 Frigidaire Refrigerator Retainer As Backorder WCI 240397401 $37.63

199

Rod WCI 240397501 Contact Us For Availability

199*

240398401 Frigidaire Refrigerator Filter Rele Backorder WCI 240398401 $35.32

205

Air Filter Door WCI 241525901 Contact Us For Availability

206

AFCB Frigidaire Refrigerator Air Filter In Stock WCI AFCB $16.18
