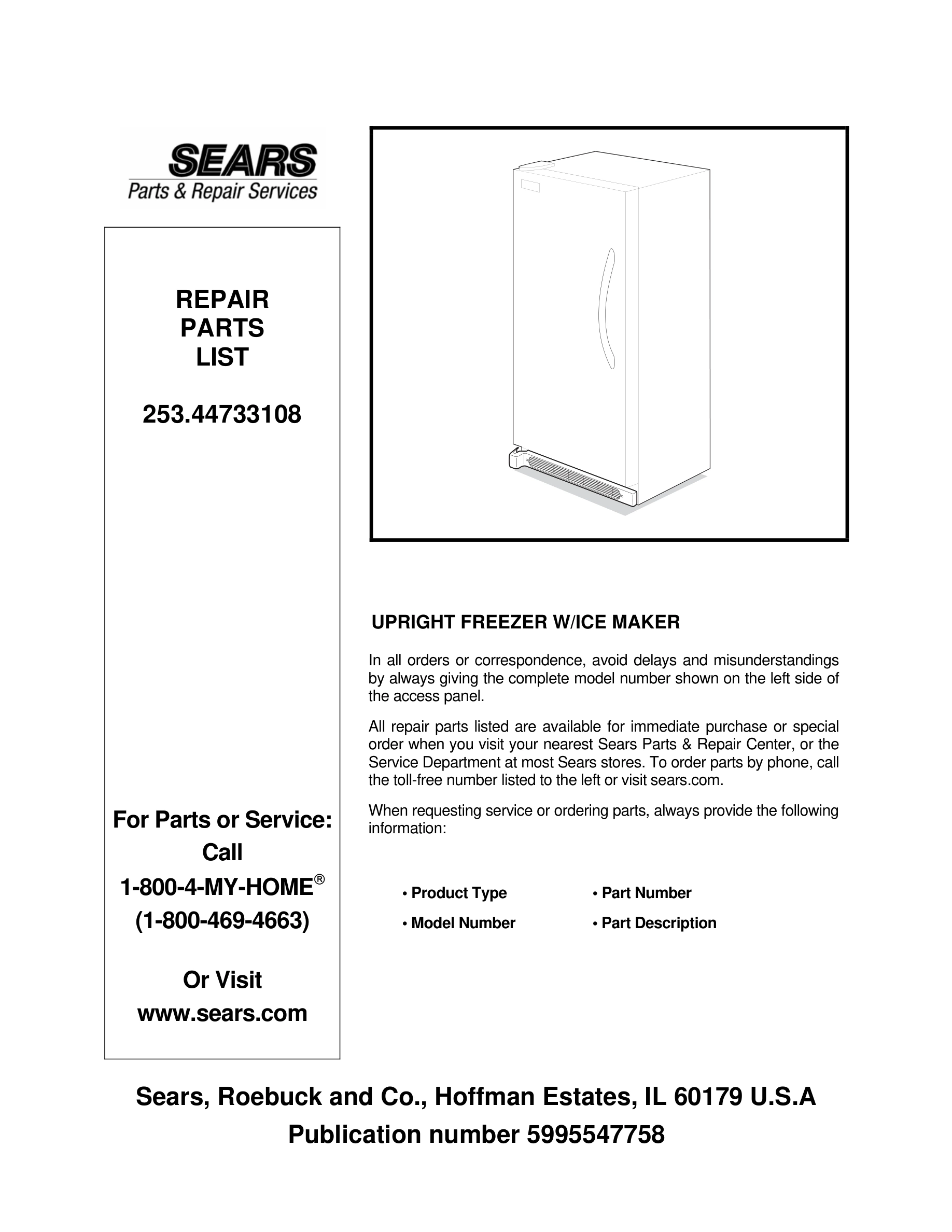

Model Kenmore 253.44733108 FREEZER – Common Parts & Diagrams

*
Insulation, 24", drain tube
Insulation, 24", drain tube WCI 297001704 Contact Us For Availability
View on Model
*
Sleeve, suction line
Sleeve, suction line WCI 216502500 Contact Us For Availability
View on Model
5
Fan Blade, evaporator
Fan Blade, evaporator WCI 297259600 Contact Us For Availability
View on Model
11

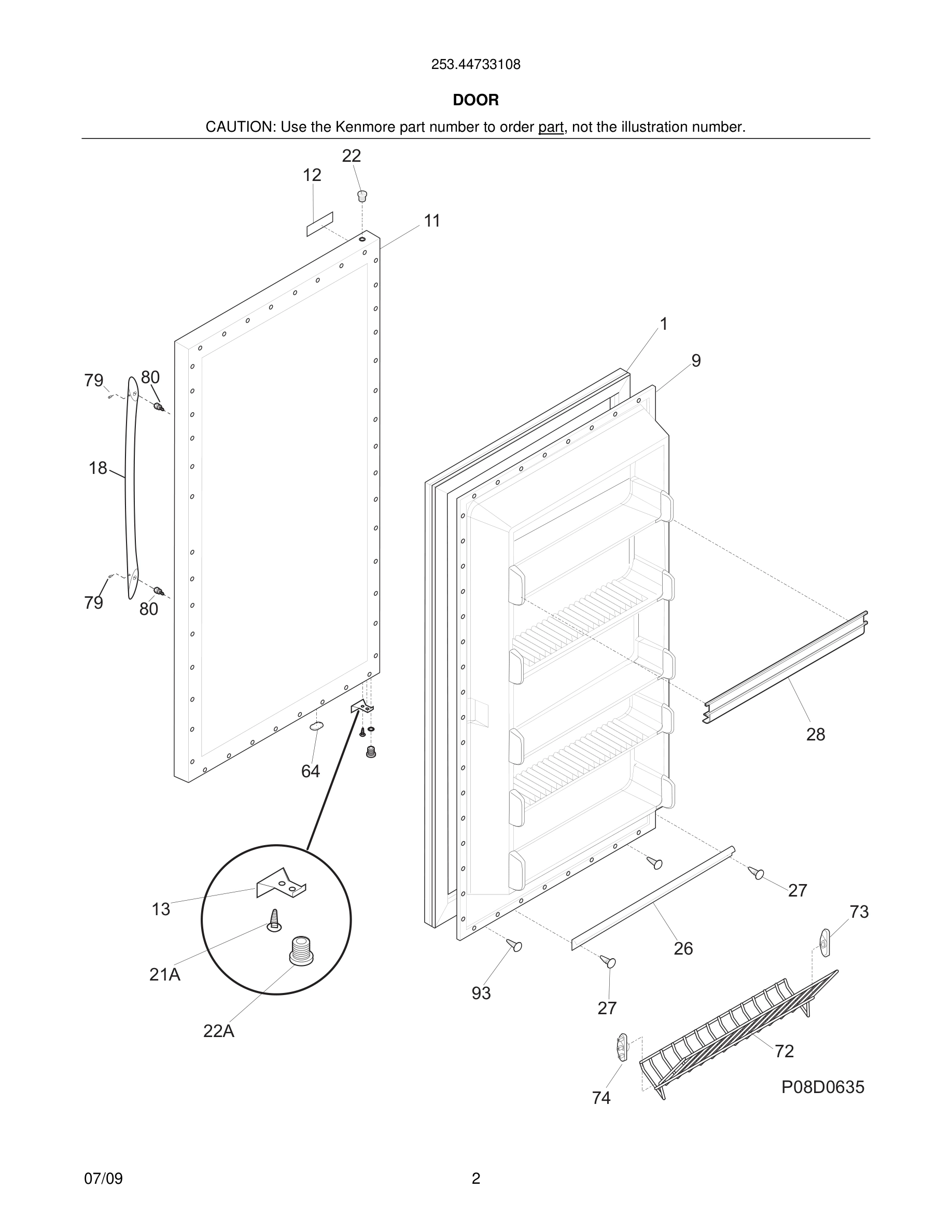

Panel-outer door, stainless
Panel-outer door, stainless WCI 297316518 Contact Us For Availability
View on Model
19
Insulator-evap, styrofoam, LH
Insulator-evap, styrofoam, LH WCI 297078801 Contact Us For Availability
View on Model
22
Clamp, cap tube, cold control
Clamp, cap tube, cold control WCI 216823500 Contact Us For Availability
View on Model
24A
Guard, timer
Guard, timer WCI 297207900 Contact Us For Availability
View on Model
25
Cover-evaporator
Cover-evaporator WCI 297099253 Contact Us For Availability
View on Model
25
Screw, M 4x12.8 #2, lever arm/sprt
Screw, M 4x12.8 #2, lever arm/sprt WCI 5304456676 Contact Us For Availability
View on Model
26
Ramp, door closer, LH
Ramp, door closer, LH WCI 297248200 Contact Us For Availability
View on Model
26
Screw, plask, 4-14 x 3/8
Screw, plask, 4-14 x 3/8 WCI 5304455680 Contact Us For Availability
View on Model
27
Screw, M 3x25 #3, hold switch mtg, (2)
Screw, M 3x25 #3, hold switch mtg, (2) WCI 5304456677 Contact Us For Availability
View on Model
28
Hinge-bottom, stepped pin, LH
Hinge-bottom, stepped pin, LH WCI 297283901 Contact Us For Availability
View on Model
28
Rack-door, contour, (3)
Rack-door, contour, (3) WCI 216806100 Contact Us For Availability
View on Model
28
Screw, M 4x6 #2
Screw, M 4x6 #2 WCI 5304456660 Contact Us For Availability
View on Model
29
Screw, M 3x12 #3, (2)
Screw, M 3x12 #3, (2) WCI 5304456678 Contact Us For Availability
View on Model
30
Controller, compressor
Controller, compressor WCI 216954216 Contact Us For Availability
View on Model
30
Screw-timing adj, M 4x25 #3
Screw-timing adj, M 4x25 #3 WCI 5304456679 Contact Us For Availability
View on Model
31
Insulator
Insulator WCI 5304456680 Contact Us For Availability
View on Model
33
Spring, timing adjust
Spring, timing adjust WCI 5304456682 Contact Us For Availability
View on Model
35
Screw-compressor mtg, 1/4-28 x 1.16, (4)
Screw-compressor mtg, 1/4-28 x 1.16, (4) WCI 240491503 Contact Us For Availability
View on Model
36

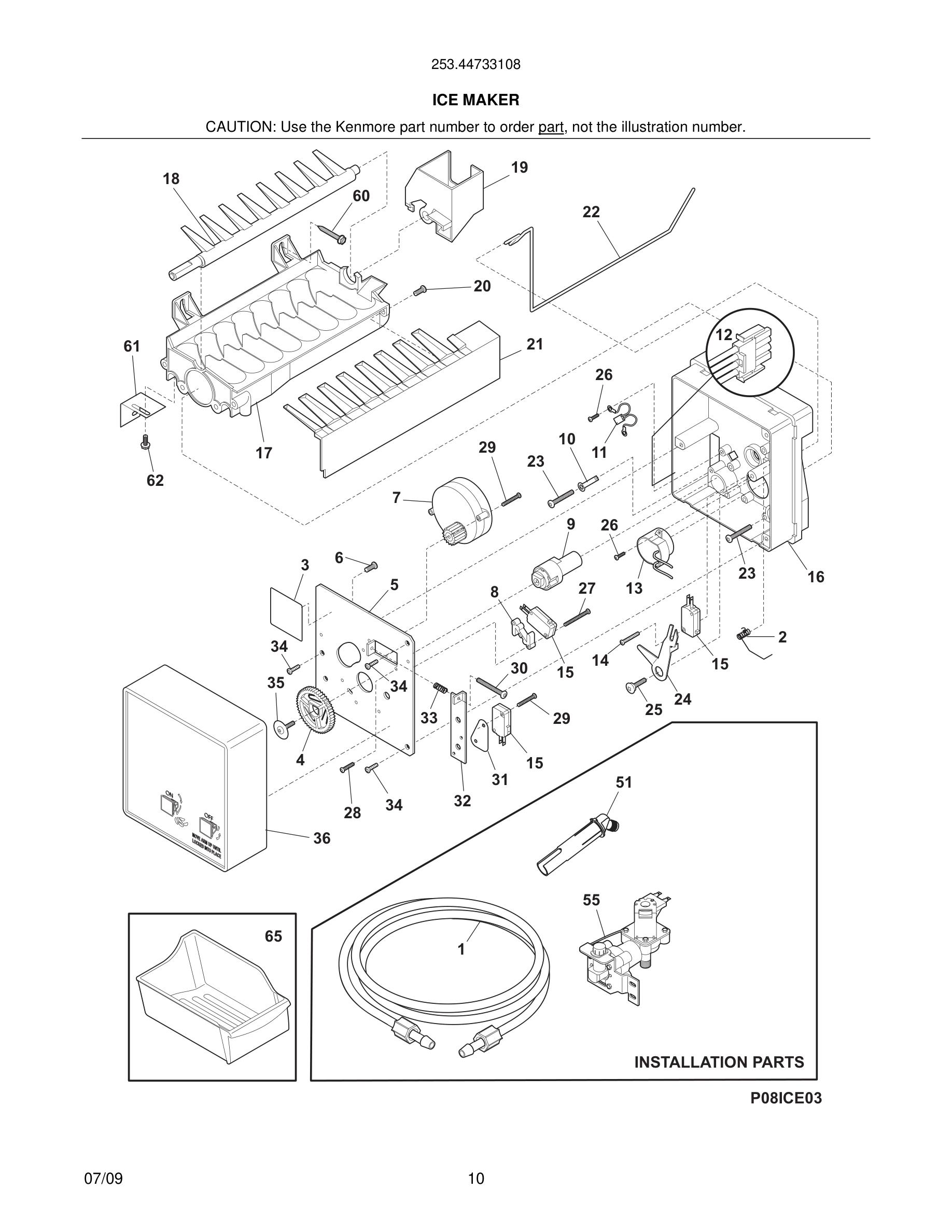

Cover-ice maker
Cover-ice maker WCI 5304456685 Contact Us For Availability
View on Model
51
Tube, water, ice maker
Tube, water, ice maker WCI 216887500 Contact Us For Availability
View on Model
60
Slide-basket, RH, (2), w/clips
Slide-basket, RH, (2), w/clips WCI 297054200 Contact Us For Availability
View on Model
60
Slide-basket, LH, (2), w/clips
Slide-basket, LH, (2), w/clips WCI 297054201 Contact Us For Availability
View on Model
62
Screw-IM brkt mtg, pan hd phillips, 8-32T x 0
Screw-IM brkt mtg, pan hd phillips, 8-32T x 0 WCI 5304456687 Contact Us For Availability
View on Model
64
Plug-button, hole filler, door base
Plug-button, hole filler, door base WCI 216403700 Contact Us For Availability
View on Model
107
Shield, compressor, Compartment
Shield, compressor, Compartment WCI 297165400 Contact Us For Availability
View on Model
137B
Frame-shelf, sliding
Frame-shelf, sliding WCI 297007600 Contact Us For Availability
View on Model
138A
Trim-shelf, side
Trim-shelf, side WCI 216983601 Contact Us For Availability
View on Model
139
Trim-shelf, rear, (2)
Trim-shelf, rear, (2) WCI 297050800 Contact Us For Availability
View on Model
146
Shroud-fan orfice
Shroud-fan orfice WCI 297164000 Contact Us For Availability
View on Model
