Model Kenmore 253.44733105 FREEZER – Common Parts & Diagrams

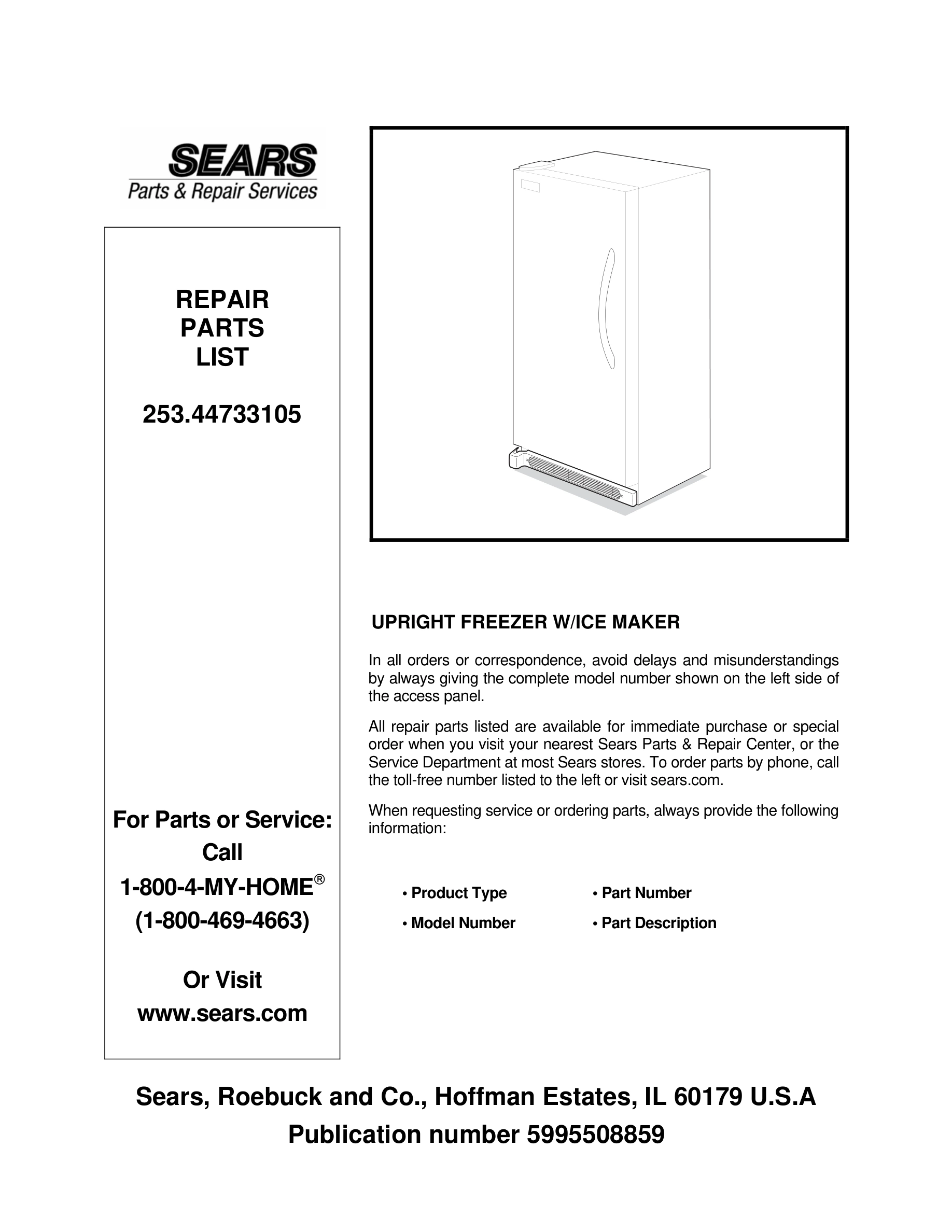

01 - COVER

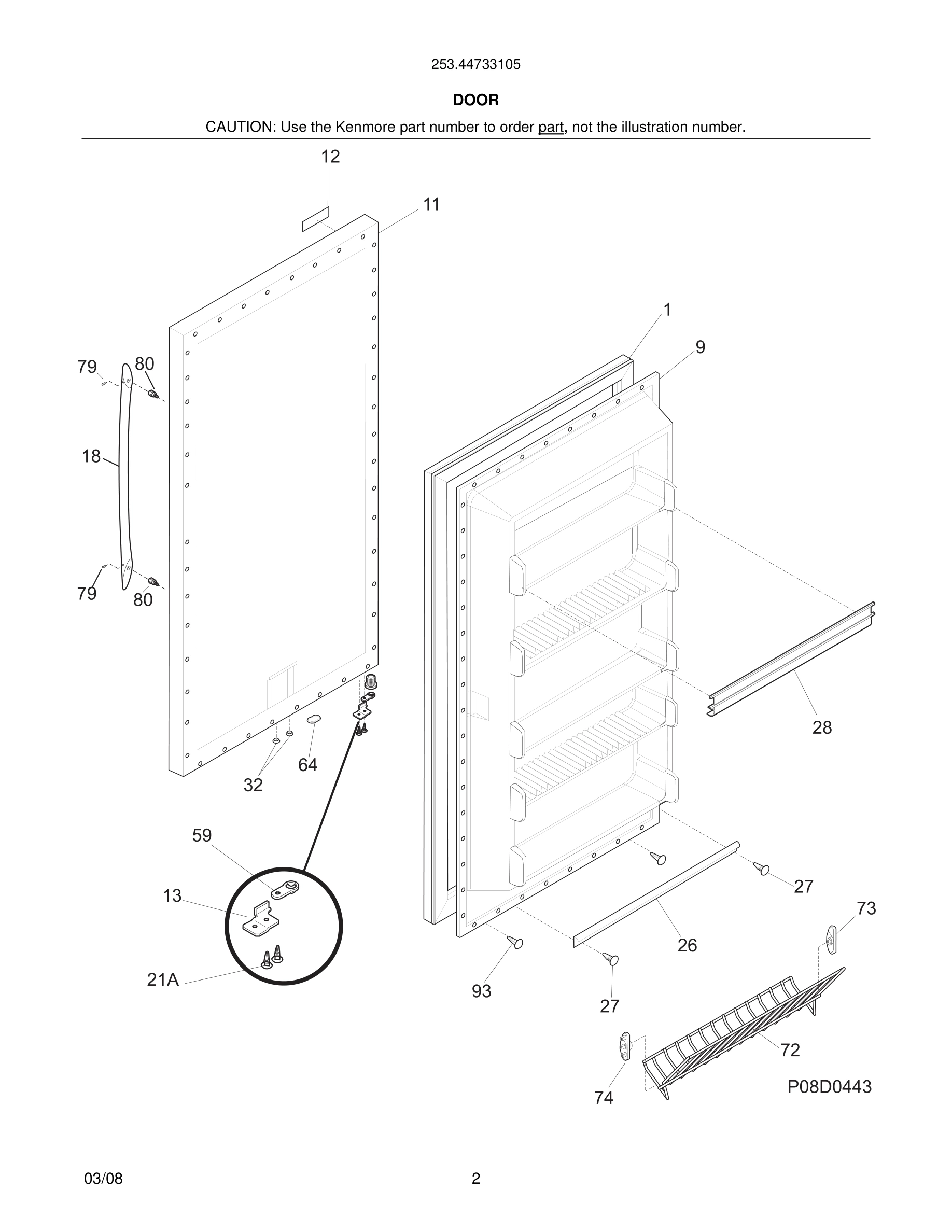

03 - DOOR
05 - CABINET
07 - CABINET
09 - SYSTEM
11 - ICE MAKER
Common parts from model Kenmore 253.44733105 FREEZER
*
Insulation, 24", drain tube WCI 297001704 Contact Us For Availability
*
Sleeve, suction line WCI 216502500 Contact Us For Availability
*
Spacer-tube WCI 297102800 Contact Us For Availability
1
Tube-water inlet, inlet valve, to ice maker WCI 297044900 Contact Us For Availability
7*
Spring Beam WCI 5304445223 Contact Us For Availability
8
Spacer-hold switch WCI 5304456661 Contact Us For Availability
9
Cam WCI 5304456662 Contact Us For Availability
11#
Thermal Cutoff, ice maker, complete assy WCI 5304456663 Contact Us For Availability
13
Door Stop WCI 216974400 Contact Us For Availability
14
Screw, plask, 4x14x3/4 WCI 5304455676 Contact Us For Availability
18
Insulator-evap, styrofoam WCI 297078700 Contact Us For Availability
18
Ejector-ice WCI 5304456670 Contact Us For Availability
18*
Wiring Harness, internal, wiring harness WCI 240352602 Contact Us For Availability
19
Insulator-evap, styrofoam WCI 297078800 Contact Us For Availability
22
Clamp, cap tube, cold control WCI 216823500 Contact Us For Availability
22
Shut-off Arm WCI 5304456673 Contact Us For Availability
23
Screw, M 4x25 #2, mold-to-support, (2) WCI 5304456674 Contact Us For Availability
24A
Guard, timer WCI 297207900 Contact Us For Availability
25
Cover-evaporator WCI 297099253 Contact Us For Availability
25
Screw, M 4x12.8 #2, lever arm/sprt WCI 5304456676 Contact Us For Availability
26
Screw, plask, 4-14 x 3/8 WCI 5304455680 Contact Us For Availability
27
Screw, M 3x25 #3, hold switch mtg, (2) WCI 5304456677 Contact Us For Availability
28
Rack-door, contour, (3) WCI 216806100 Contact Us For Availability
28
Screw, M 4x6 #2 WCI 5304456660 Contact Us For Availability
29
Screw, M 3x12 #3, (2) WCI 5304456678 Contact Us For Availability
30
Controller, compressor WCI 216954216 Contact Us For Availability
30
Screw-timing adj, M 4x25 #3 WCI 5304456679 Contact Us For Availability
31
Insulator WCI 5304456680 Contact Us For Availability
32
Valve, breather WCI 5309950074 Contact Us For Availability
32
Plate-valve switch WCI 5304456681 Contact Us For Availability
33
Spring, timing adjust WCI 5304456682 Contact Us For Availability
36
Cover-ice maker WCI 5304456685 Contact Us For Availability
51
Tube, water, ice maker WCI 216887500 Contact Us For Availability
59
Bearing, door closer WCI 216974500 Contact Us For Availability
60
Slide-basket, RH, (2), w/clips WCI 297054200 Contact Us For Availability
60
Slide-basket, LH, (2), w/clips WCI 297054201 Contact Us For Availability
62
Screw-IM brkt mtg, pan hd phillips, 8-32T x 0 WCI 5304456687 Contact Us For Availability
64
Plug-button, hole filler, door base WCI 216403700 Contact Us For Availability
107
Shield, compressor, Compartment WCI 297165400 Contact Us For Availability
137B
Frame-shelf, sliding WCI 297007600 Contact Us For Availability
138A
Trim-shelf, side WCI 216983601 Contact Us For Availability
139
Trim-shelf, rear WCI 297050800 Contact Us For Availability
146
Shroud-fan orfice WCI 297164000 Contact Us For Availability
152
Bearing, hinge closer WCI 216974600 Contact Us For Availability
× ![]()
