Model Kenmore 253.44733103 FREEZER – Common Parts & Diagrams

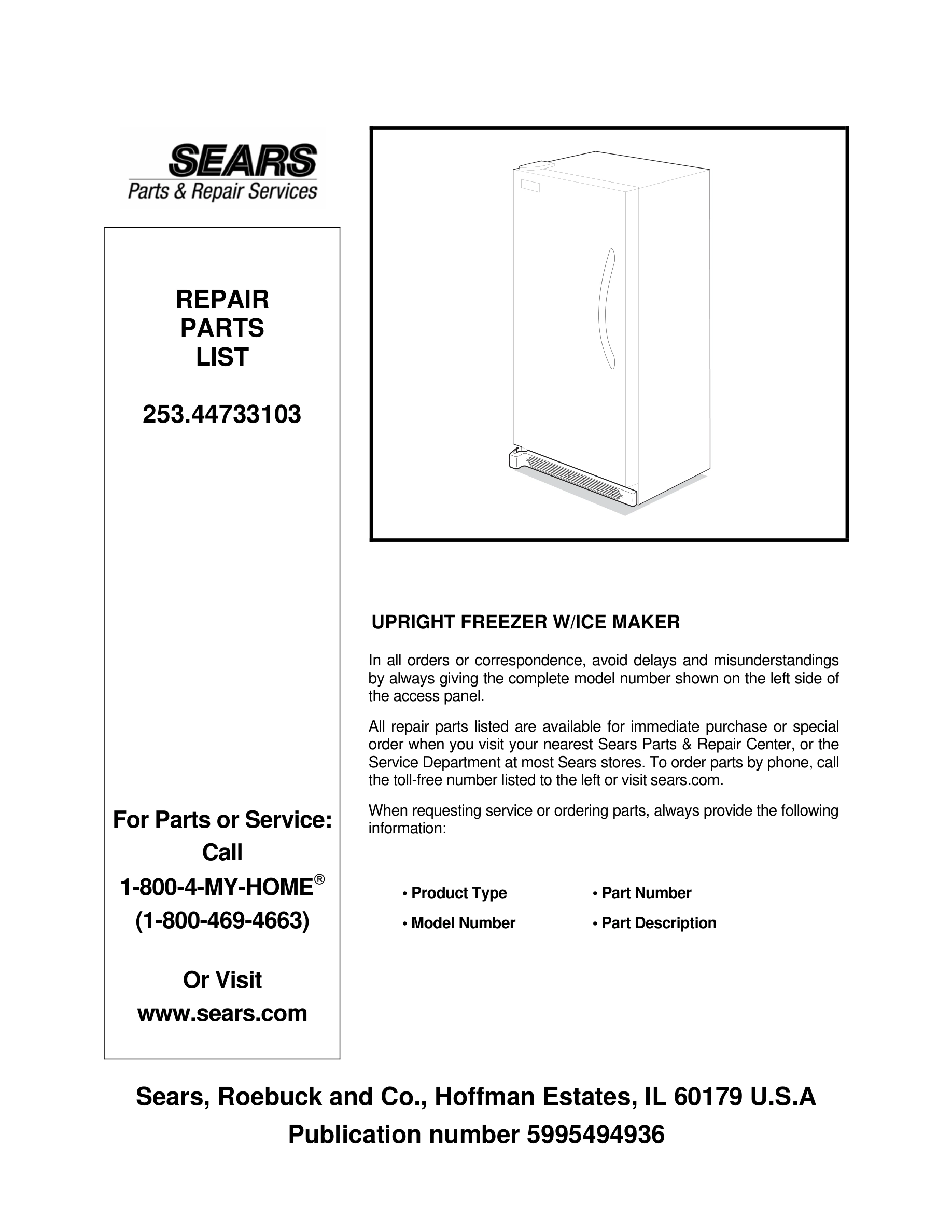

01 - COVER

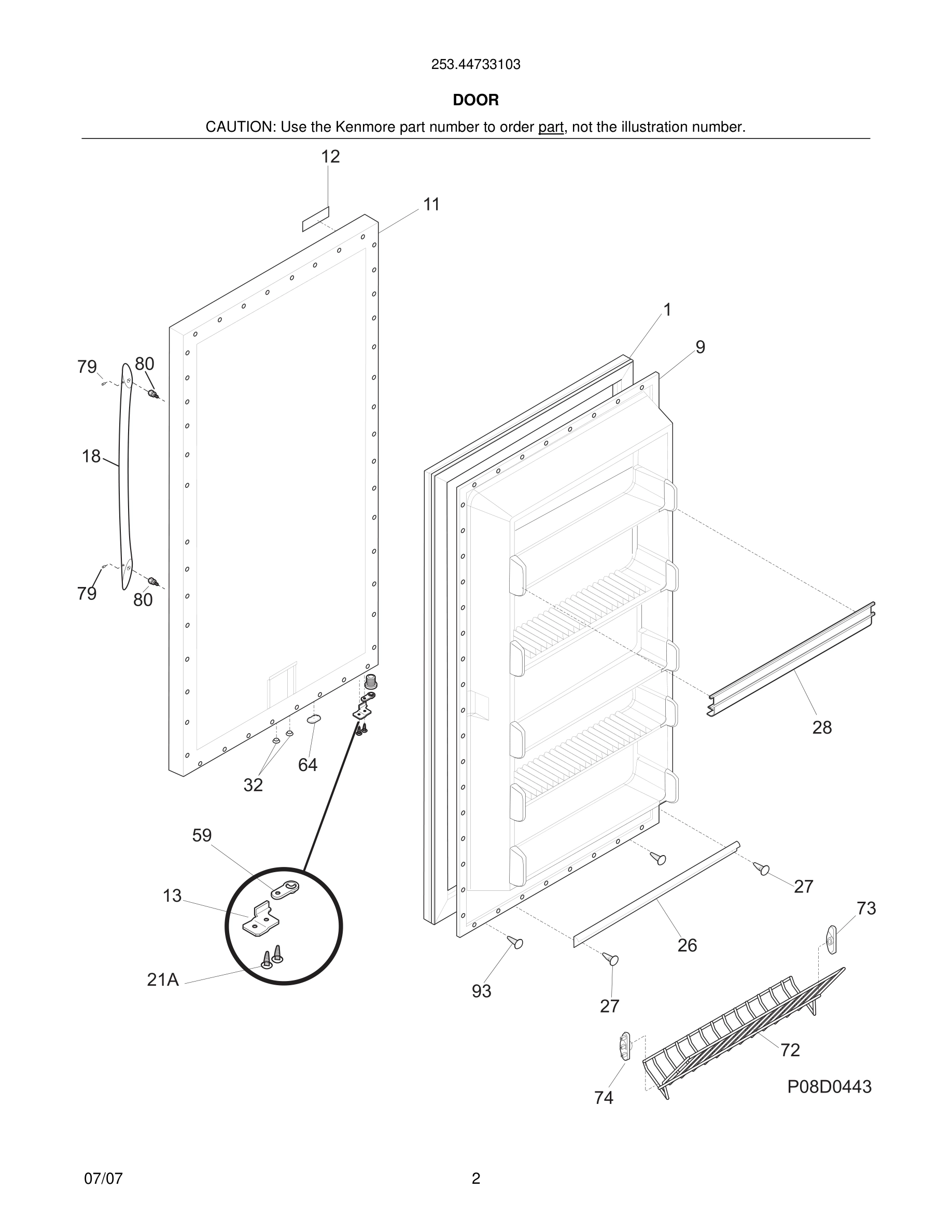

03 - DOOR
05 - CABINET

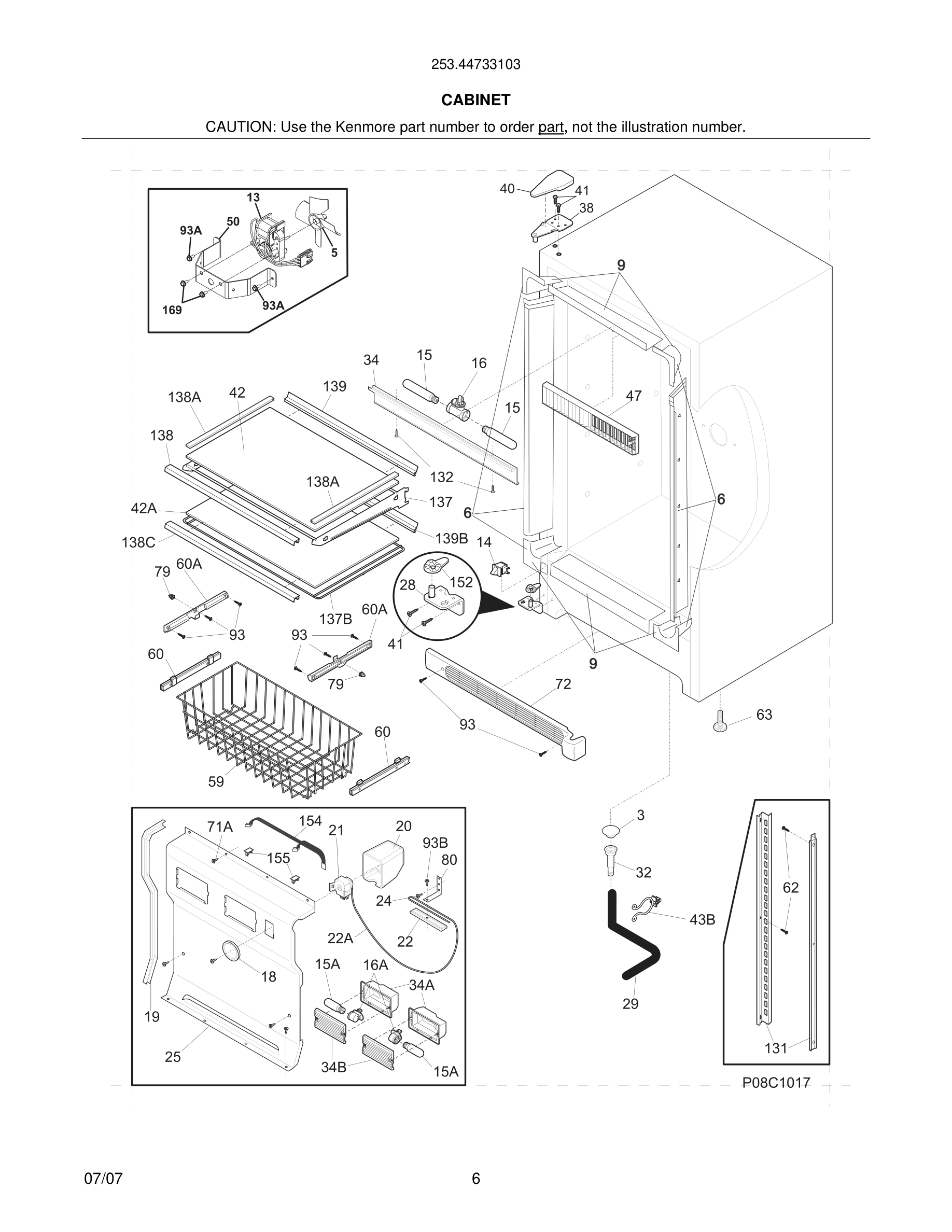

07 - CABINET

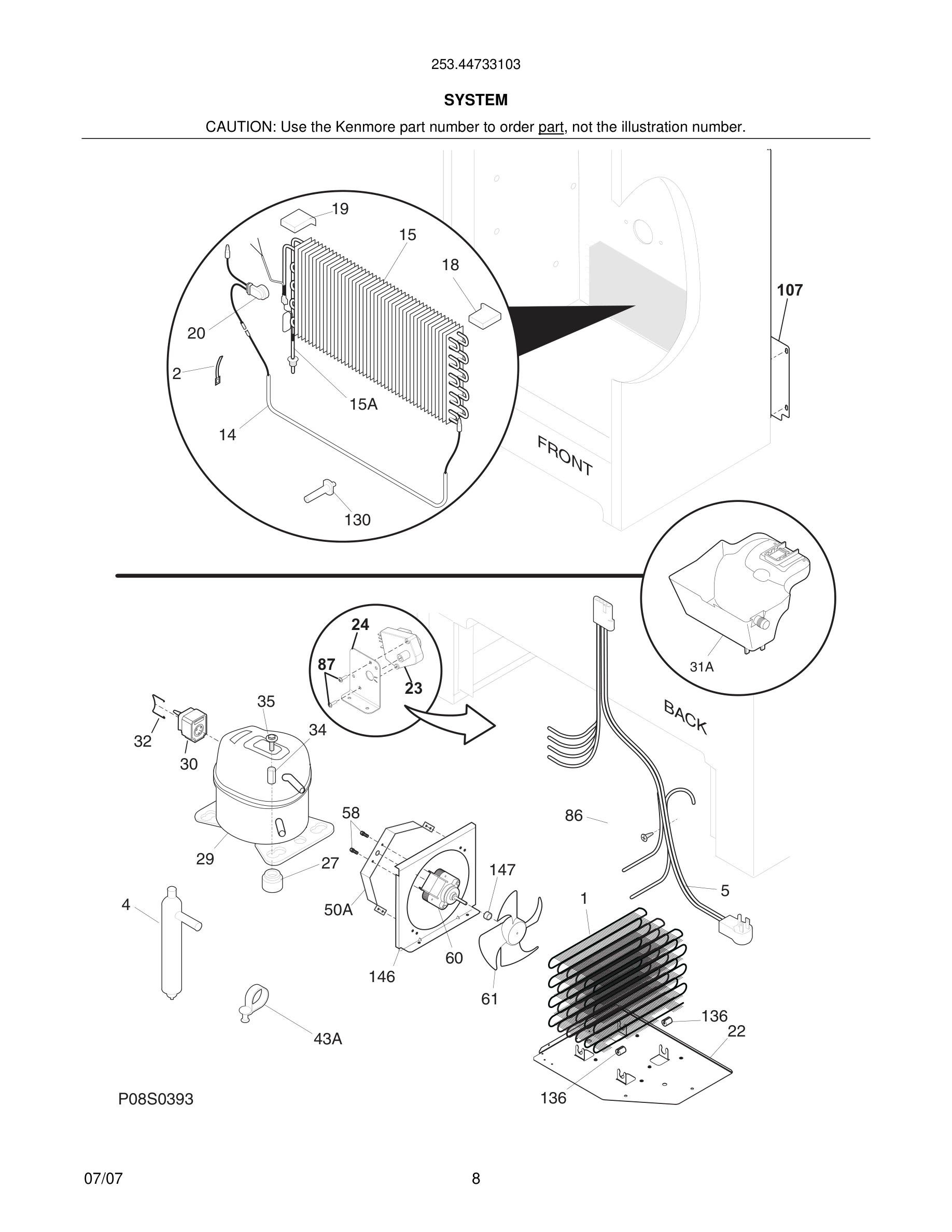

09 - SYSTEM

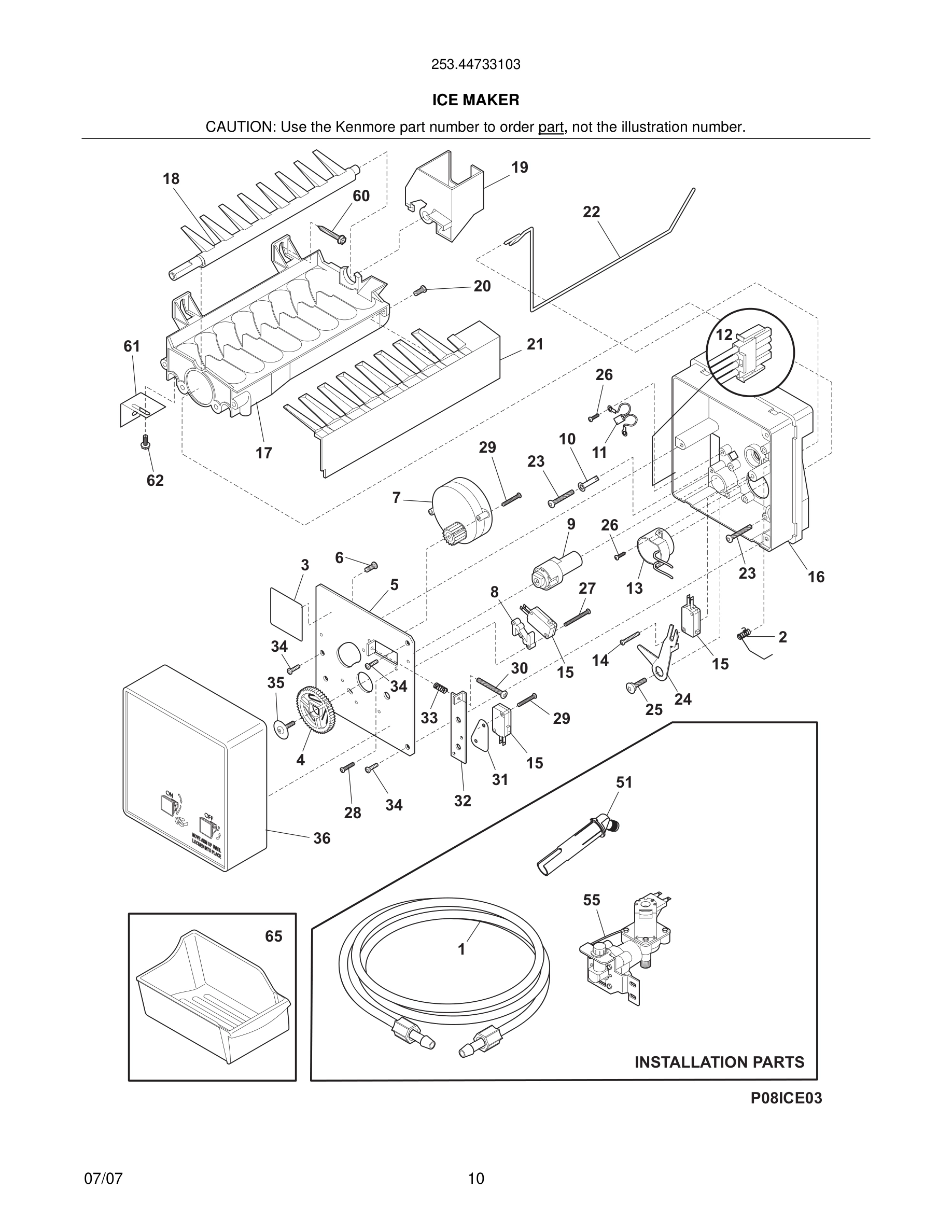

11 - ICE MAKER
Common parts from model Kenmore 253.44733103 FREEZER
*
Insulation, 24", drain tube WCI 297001704 Contact Us For Availability
*
Sleeve, suction line WCI 216502500 Contact Us For Availability
*
Spacer-tube WCI 297102800 Contact Us For Availability
*
Harness-wiring Svo WCI 241642601 Contact Us For Availability
*
Screw, M 3x20 #2, (6) WCI 5304456666 Contact Us For Availability
*
Terminal WCI 5304456688 Contact Us For Availability
1
Tube-water inlet, inlet valve, to ice maker WCI 297044900 Contact Us For Availability
2
Spring-shutoff arm, ICE MAKER WCI 5304456650 Contact Us For Availability
6
Screw, M 3x20 #3, valve plate WCI 5304456691 Contact Us For Availability
8
Spacer-hold switch WCI 5304456661 Contact Us For Availability
9
Cam WCI 5304456662 Contact Us For Availability
11#
Thermal Cutoff, ICE MAKER WCI 5304456663 Contact Us For Availability
13
Door Stop WCI 216974400 Contact Us For Availability
14
Screw, plask, 4x14x3/4 WCI 5304455676 Contact Us For Availability
18
Insulator-evap, styrofoam WCI 297078700 Contact Us For Availability
18
Ejector-ice WCI 5304456670 Contact Us For Availability
18*
Harness-wiring, icmkr/container WCI 240352602 Contact Us For Availability
19
Insulator-evap, styrofoam WCI 297078800 Contact Us For Availability
22
Clamp, cap tube, cold control WCI 216823500 Contact Us For Availability
22
Shut-off Arm WCI 5304456673 Contact Us For Availability
25
Screw, M 4x12.8 #2, lever arm/sprt WCI 5304456676 Contact Us For Availability
27
Screw, M 3x25 #3, hold switch mtg, (2) WCI 5304456677 Contact Us For Availability
28
Rack-door, contour, (3) WCI 216806100 Contact Us For Availability
31
Insulator WCI 5304456680 Contact Us For Availability
32
Valve, breather WCI 5309950074 Contact Us For Availability
32
Clamp, elec cont mtg, compressor WCI 297051100 Contact Us For Availability
33
Spring, shut-off arm WCI 5304456682 Contact Us For Availability
34
Sleeve-compressor WCI 5306594529 Contact Us For Availability
35
Screw, Ind hex sems, 1/4-28 unfx, compressor WCI 5303272328 Contact Us For Availability
36
Cover-ice maker WCI 5304456685 Contact Us For Availability
38
Hinge-upper WCI 216939100 Contact Us For Availability
40
Cover-upper hinge, black WCI 216809001 Contact Us For Availability
50A
Bracket, fan motor mount WCI 240524001 Contact Us For Availability
51
Tube, water, ICE MAKER WCI 216887500 Contact Us For Availability
59
Bearing, door closer WCI 216974500 Contact Us For Availability
60
Slide-basket, RH, (2), w/4 clips WCI 297054200 Contact Us For Availability
60
Slide-basket, LH, (2), w/4 clips WCI 297054201 Contact Us For Availability
62
Screw-IM brkt mtg, special, 8-32D x 0.375 WCI 5304456687 Contact Us For Availability
64
Plug-button, hole filler, door base WCI 216403700 Contact Us For Availability
87
Screw, ph truss head, 6-32(T) x 0.500, thread WCI 08037849 Contact Us For Availability
107
Panel, access WCI 297124500 Contact Us For Availability
137B
Frame-shelf, sliding WCI 297007600 Contact Us For Availability
138A
Trim-shelf, side WCI 216983601 Contact Us For Availability
139
Trim-shelf, rear WCI 297050800 Contact Us For Availability
146
Shroud-fan orfice WCI 216970200 Contact Us For Availability
152
Bearing, hinge closer WCI 216974600 Contact Us For Availability
× ![]()
