Model Kenmore 253.44733102 FREEZER – Common Parts & Diagrams
01 - COVER
03 - DOOR
05 - CABINET

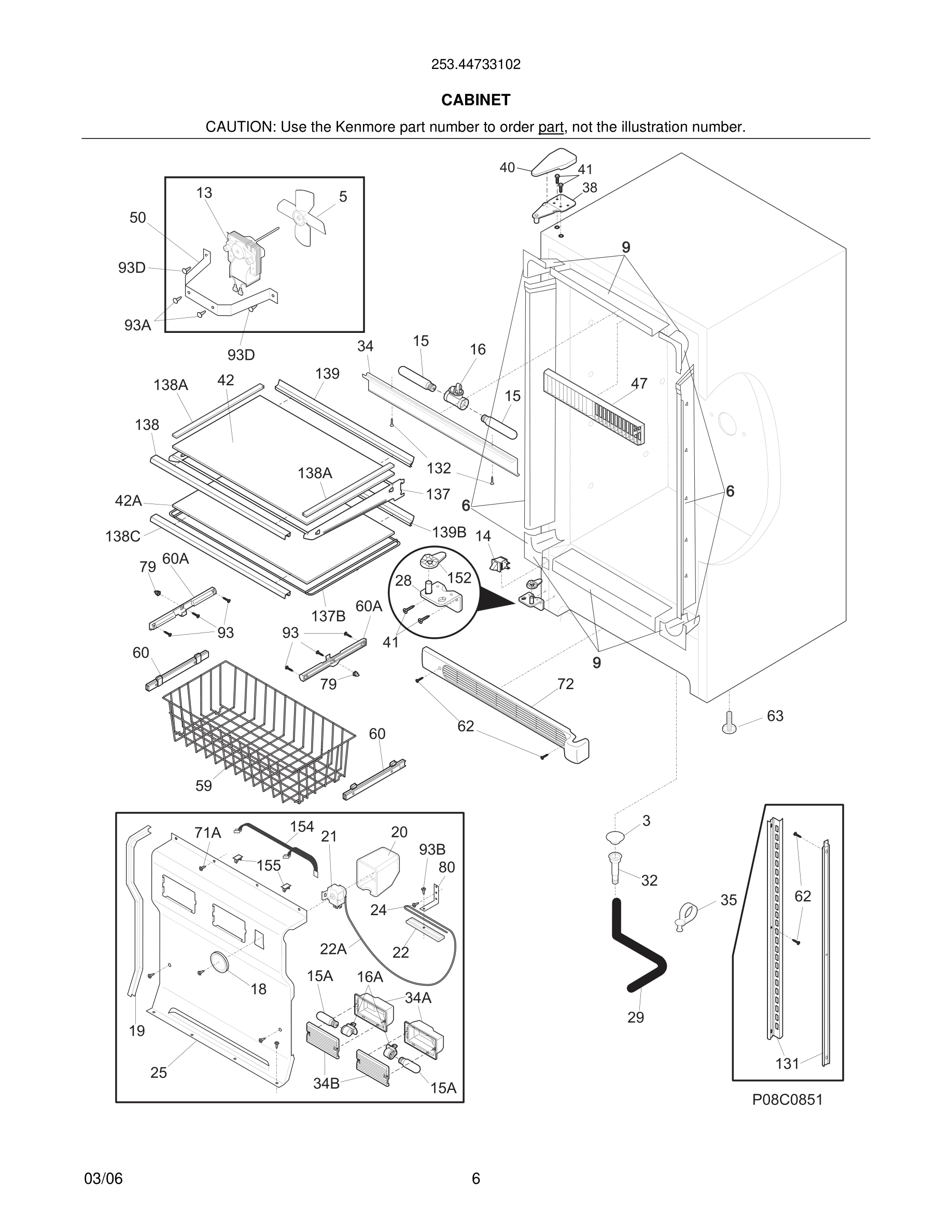

07 - CABINET

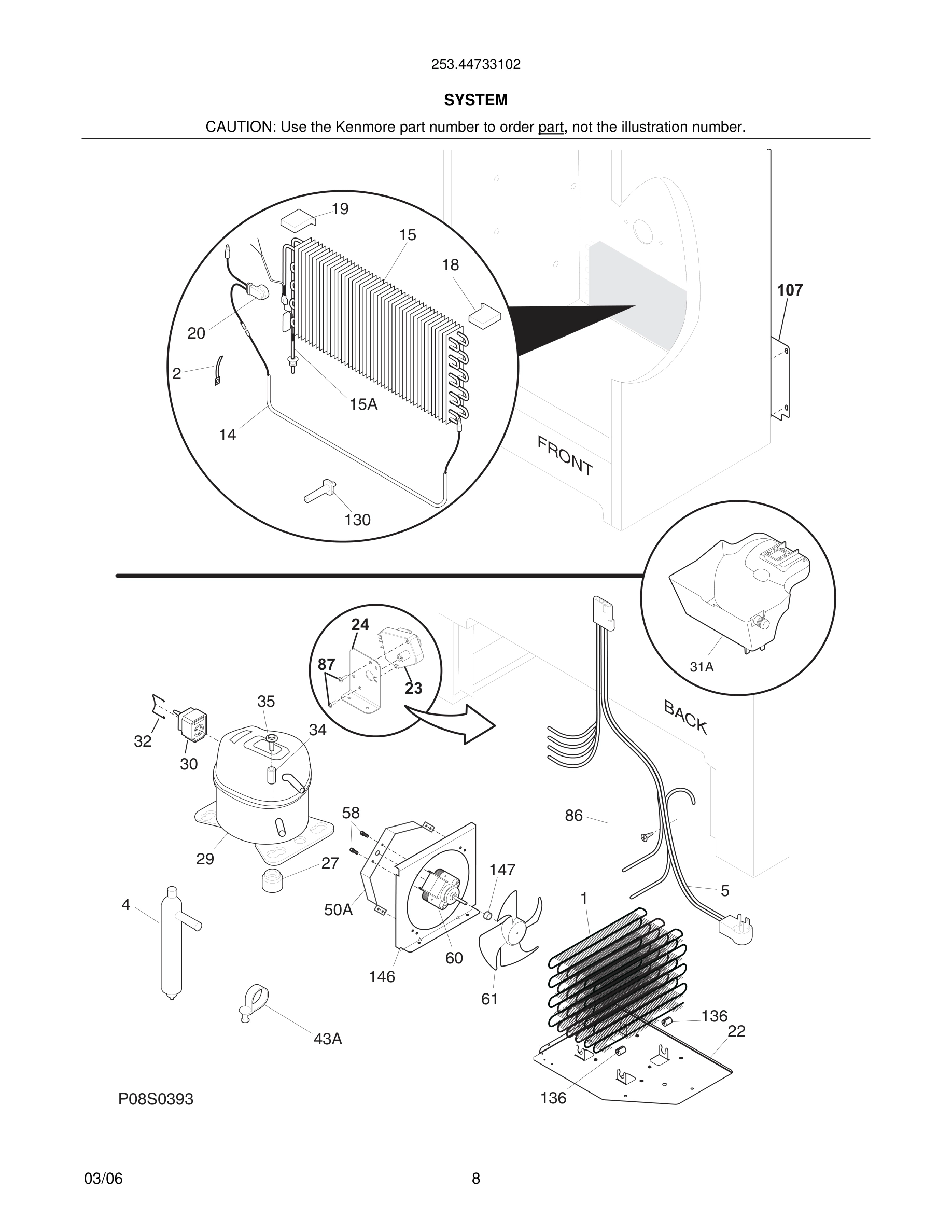

09 - SYSTEM

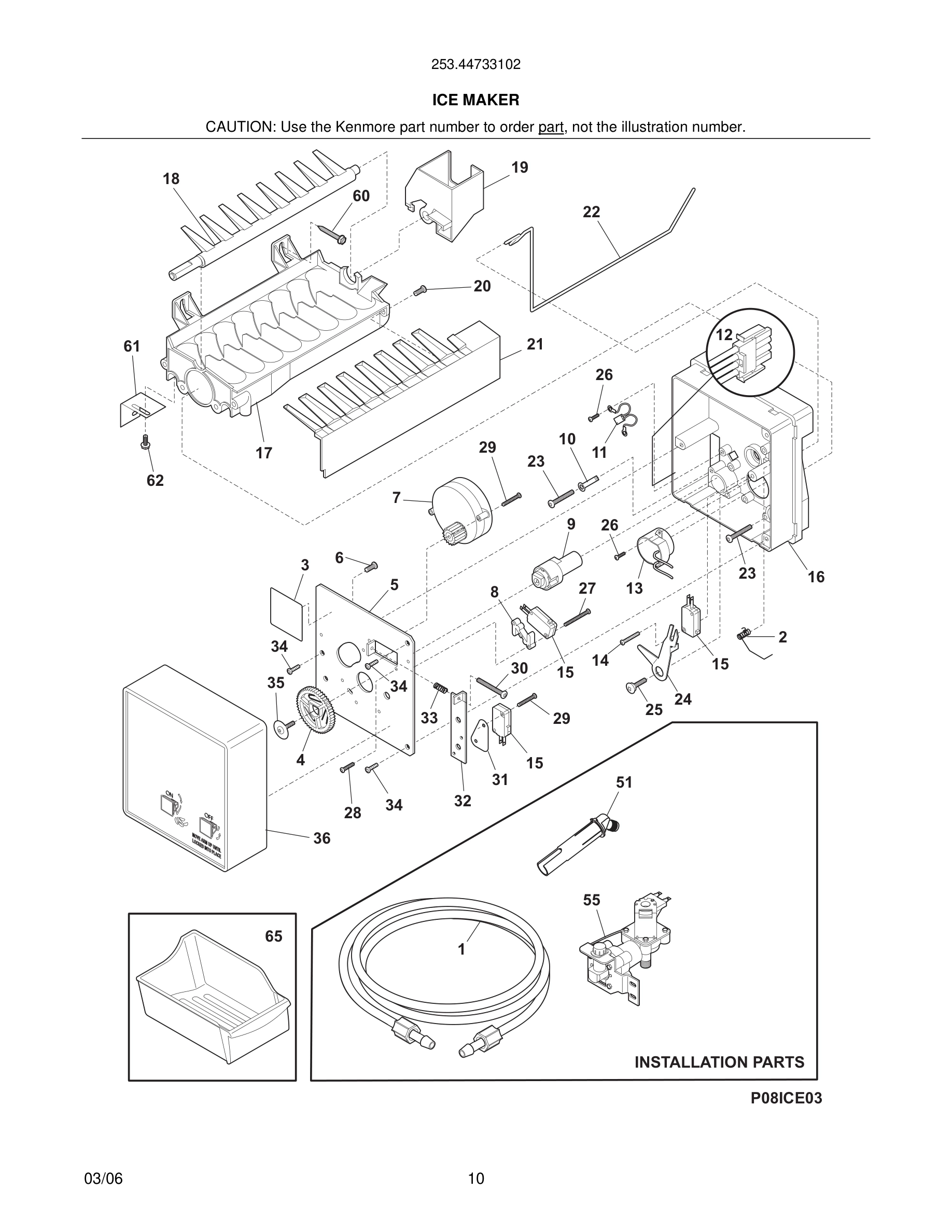

11 - ICE MAKER
Common parts from model Kenmore 253.44733102 FREEZER
*
Insulation, 24", drain tube WCI 297001704 Contact Us For Availability
*
Adapter-water supply, nut & sleeve, compressi WCI 218888001 Contact Us For Availability
*
Sleeve, suction line WCI 216502500 Contact Us For Availability
*
Screw, anchor, #8, white WCI 297048000 Contact Us For Availability
1
Tube-water inlet, inlet valve, to ice maker WCI 297044900 Contact Us For Availability
2
Spring, shut-off arm WCI 5304420650 Contact Us For Availability
3
Label, ID plate WCI 3206299 Contact Us For Availability
5
Plate-mounting WCI 3206303 Contact Us For Availability
8
Spacer-hold switch WCI 3206312 Contact Us For Availability
9
Cam WCI 3206313 Contact Us For Availability
10
Clamp WCI 3206315 Contact Us For Availability
12#
Wiring Harness, ICE MAKER, internal, with plu WCI 5304420651 Contact Us For Availability
13
Door Stop WCI 216974400 Contact Us For Availability
13#
Thermostat Assy, ICE MAKER WCI 3206322 Contact Us For Availability
14
Screw, 4 x 0.750, switch mtg. WCI 5304420652 Contact Us For Availability
16
Support, phenolic WCI 5304420653 Contact Us For Availability
18
Ejector-ice WCI 3206328 Contact Us For Availability
19
Bearing & Inlet WCI 3206330 Contact Us For Availability
20
Screw, 8-32 x 0.375 WCI 5304408581 Contact Us For Availability
21
Ice Stripper WCI 3206332 Contact Us For Availability
22
Clamp, cap tube, cold control WCI 216823500 Contact Us For Availability
22
Shut-off Arm WCI 3206333 Contact Us For Availability
23
Screw, 8-32 x 0.875, mold-to-support, (3) WCI 5304408582 Contact Us For Availability
24
Bracket-timer WCI 216968500 Contact Us For Availability
25
Screw, 8-18 x 0.562, lever arm/sprt WCI 3206336 Contact Us For Availability
26
Screw-thermo/sprt, 4-24 x 0.375, (4) WCI 5304420654 Contact Us For Availability
27
Screw, 4-40 x 1.000, hold switch mtg, (2) WCI 3206338 Contact Us For Availability
28
Rack-door, contour, (3) WCI 216806100 Contact Us For Availability
28
Screw-timing stop, 4-40 x 0.375 WCI 3206339 Contact Us For Availability
29
Screw, 4-24 x 0.750, (6) WCI 3206323 Contact Us For Availability
30
Controller, compressor WCI 297051000 Contact Us For Availability
30
Screw-timing adj, 8-32 x 1.000 WCI 3206341 Contact Us For Availability
31
Insulator WCI 3206342 Contact Us For Availability
32
Valve, breather, door base WCI 5309950074 Contact Us For Availability
32
Clamp, elec cont mtg, compressor WCI 297051100 Contact Us For Availability
32
Plate-valve switch WCI 3206343 Contact Us For Availability
33
Spring-timing adj WCI 5304408583 Contact Us For Availability
34
Sleeve-compressor WCI 5306594529 Contact Us For Availability
34
Screw, plazscrew, 8-10, (3) WCI 5304420655 Contact Us For Availability
35
Screw, Ind hex sems, 1/4-28 unfx, compressor WCI 5303272328 Contact Us For Availability
35
Screw WCI 5304408585 Contact Us For Availability
36
Cover-ice maker WCI 3206347 Contact Us For Availability
38
Hinge-upper WCI 216939100 Contact Us For Availability
40
Cover-upper hinge, black WCI 216809001 Contact Us For Availability
50A
Bracket, fan motor mount WCI 240524001 Contact Us For Availability
51
Tube, water, ICE MAKER WCI 216887500 Contact Us For Availability
59
Bearing, door closer WCI 216974500 Contact Us For Availability
60
Slide-basket, RH, (2), w/4 clips WCI 297054200 Contact Us For Availability
60
Slide-basket, LH, (2), w/4 clips WCI 297054201 Contact Us For Availability
64
Plug-button, hole filler, door base WCI 216403700 Contact Us For Availability
72
Shelf, tilt out, wire, (2) WCI 216514100 Contact Us For Availability
87
Screw, ph truss head, 6-32(T) x 0.500, thread WCI 08037849 Contact Us For Availability
107
Shield, compressor, Compartment WCI 297001900 Contact Us For Availability
137B
Frame-shelf, sliding WCI 297007600 Contact Us For Availability
138A
Trim-shelf, side WCI 216983601 Contact Us For Availability
139
Trim-shelf, rear WCI 297050800 Contact Us For Availability
146
Shroud-fan orfice WCI 216970200 Contact Us For Availability
152
Bearing, hinge closer WCI 216974600 Contact Us For Availability
× ![]()
