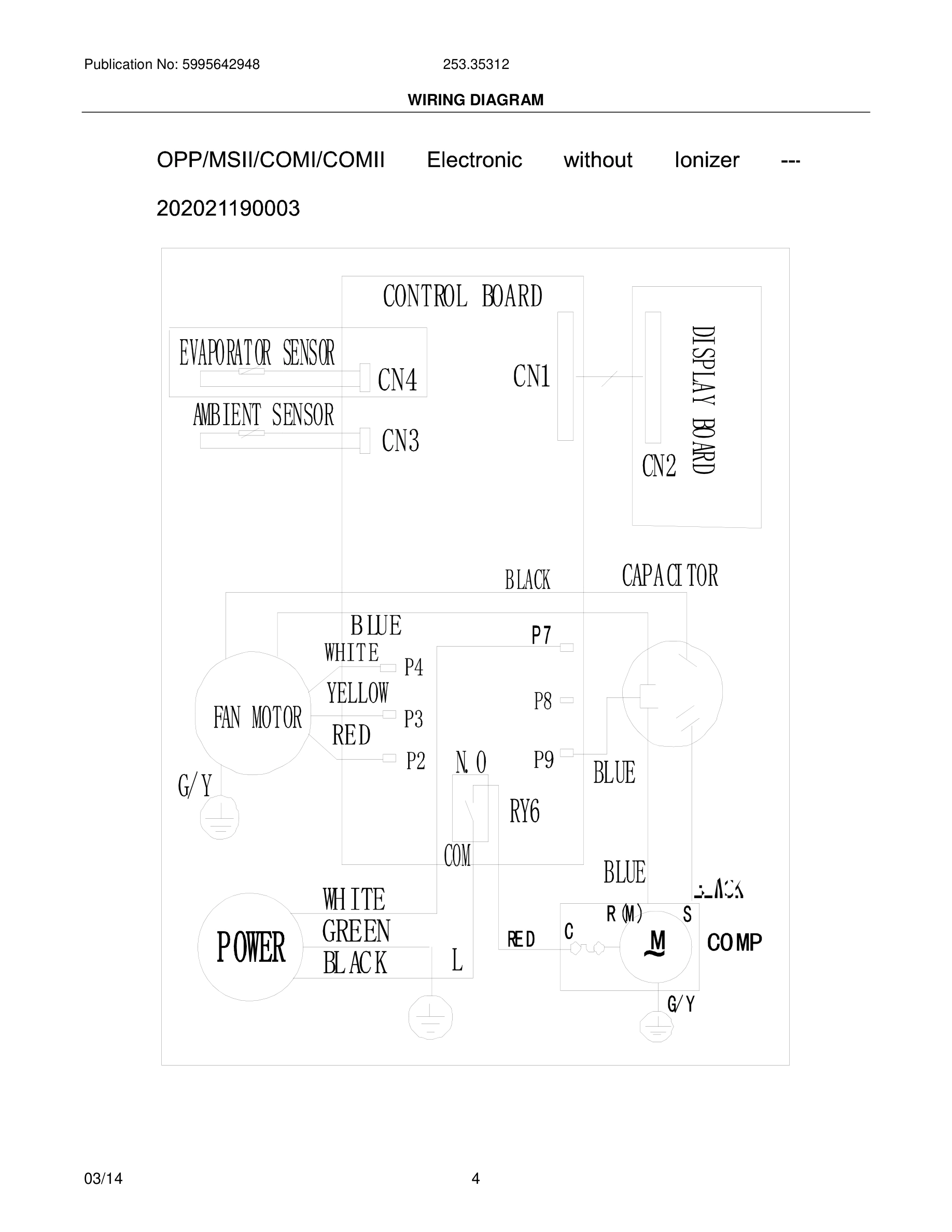

Model Kenmore 253.35312411 ROOM AIR CONDITIONER – Common Parts & Diagrams

Common parts from model Kenmore 253.35312411 ROOM AIR CONDITIONER

01 - COVER

Print

• This Diagram
• All Diagrams

3#

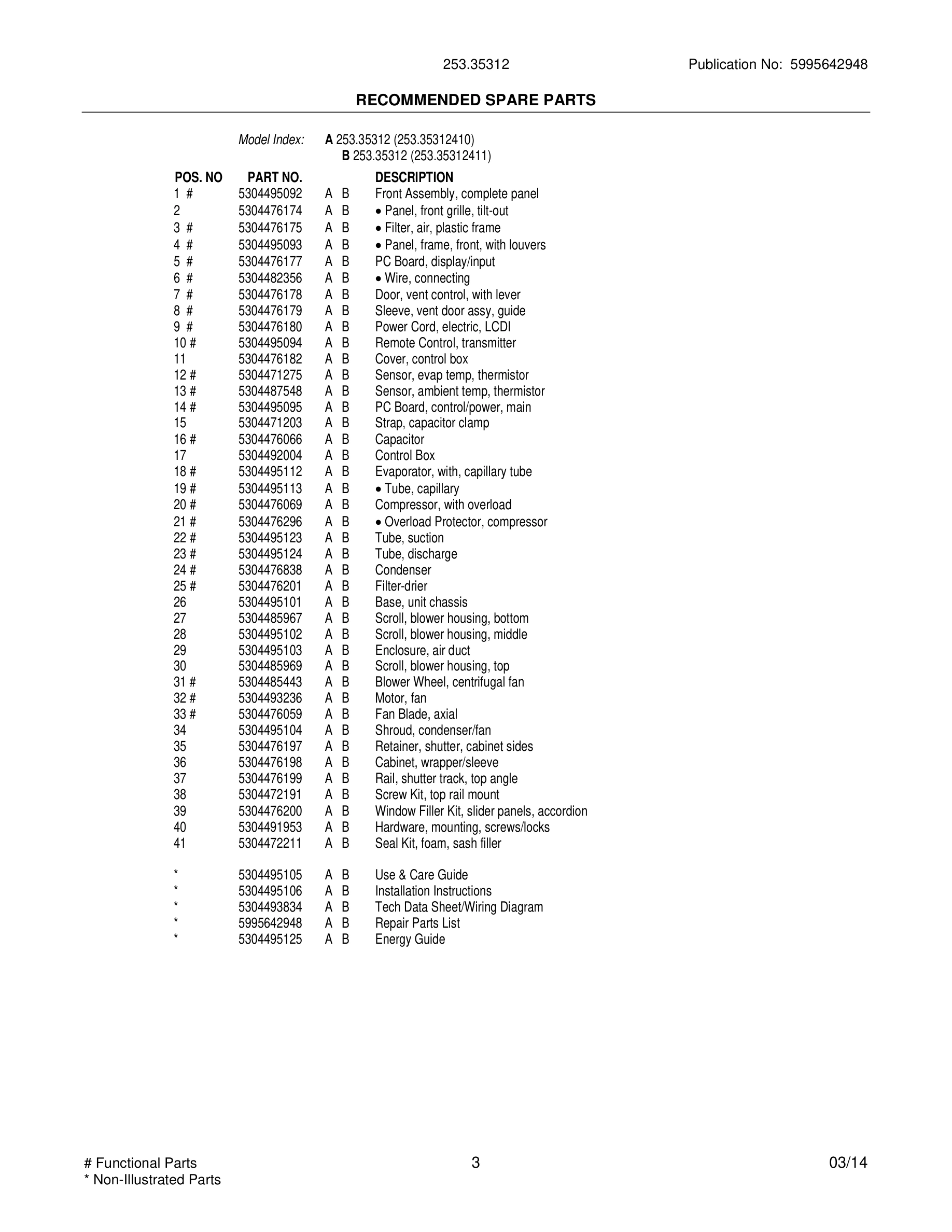

• Filter, air, plastic frame WCI 5304476175 Contact Us For Availability

View on Model

5#

5304536384 Frigidaire Electrical Control Backorder WCI 5304536384 View Details $20.71

View on Model

7#

5304476178 Frigidaire Air Conditioner Door As Backorder WCI 5304476178 View Details $14.50

View on Model

9#

5304476180 Frigidaire Power Cord Air Conditio Backorder WCI 5304476180 View Details $123.75

View on Model

12#

5304471275 Frigidaire Air Conditioner Sensor Backorder WCI 5304471275 View Details $25.35

View on Model

13#

5304504724 Frigidaire Sensor In Stock WCI 5304504724 View Details $12.67

View on Model

16#

5304476066 Frigidaire Air Conditioner Capacit Backorder WCI 5304476066 View Details $96.81

View on Model

17

Control Box WCI 5304492004 Contact Us For Availability

View on Model

18#

Evaporator, with, capillary tube WCI 5304495112 Contact Us For Availability

View on Model

19#

• Tube, capillary WCI 5304495113 Contact Us For Availability

View on Model

20#

Compressor, with overload WCI 5304476069 Contact Us For Availability

View on Model

21#

• Overload Protector, compressor WCI 5304476296 Contact Us For Availability

View on Model

22#

Tube, suction WCI 5304495123 Contact Us For Availability

View on Model

23#

Tube, discharge WCI 5304495124 Contact Us For Availability

View on Model

24#

Condenser WCI 5304476838 Contact Us For Availability

View on Model

25#

5304476201 Frigidaire Air Conditioner Filter Backorder WCI 5304476201 View Details $24.91

View on Model

26

Base, unit chassis WCI 5304495101 Contact Us For Availability

View on Model

27

Scroll, blower housing, bottom WCI 5304485967 Contact Us For Availability

View on Model

28

Scroll, blower housing, middle WCI 5304495102 Contact Us For Availability

View on Model

29

Enclosure, air duct WCI 5304495103 Contact Us For Availability

View on Model

30

Scroll, blower housing, top WCI 5304485969 Contact Us For Availability

View on Model

31#

5304485443 Frigidaire Air Conditioner Blower Backorder WCI 5304485443 View Details $46.18

View on Model

32#

Motor, fan WCI 5304493236 Contact Us For Availability

View on Model

33#

5304476059 Frigidaire Air Conditioner Fan Bla Backorder WCI 5304476059 View Details $68.57

View on Model

34

Shroud, condenser/fan WCI 5304495104 Contact Us For Availability

View on Model

35

Retainer, shutter, cabinet sides WCI 5304476197 Contact Us For Availability

View on Model

36

Cabinet, wrapper/sleeve WCI 5304476198 Contact Us For Availability

View on Model

37

Rail, shutter track, top angle WCI 5304476199 Contact Us For Availability

View on Model

38

Screw Kit, top rail mount WCI 5304472191 Contact Us For Availability

View on Model

39

5304476200 Frigidaire Air Conditioner Window In Stock WCI 5304476200 View Details $70.82

View on Model

40

5304491953 Frigidaire Air Conditioner Hardwar Backorder WCI 5304491953 View Details $12.22

View on Model

41

Seal Kit, foam, sash filler WCI 5304472211 Contact Us For Availability

View on Model

×
