Model Kenmore 253.35022010 ROOM AIR CONDITIONER – Common Parts & Diagrams

*
Use & Care Guide, English
Use & Care Guide, English WCI 5304480896 Contact Us For Availability
View on Model
*
Use & Care Guide, French
Use & Care Guide, French WCI 5304480897 Contact Us For Availability
View on Model
*
Installation Instructions
Installation Instructions WCI 5304480898 Contact Us For Availability
View on Model
*

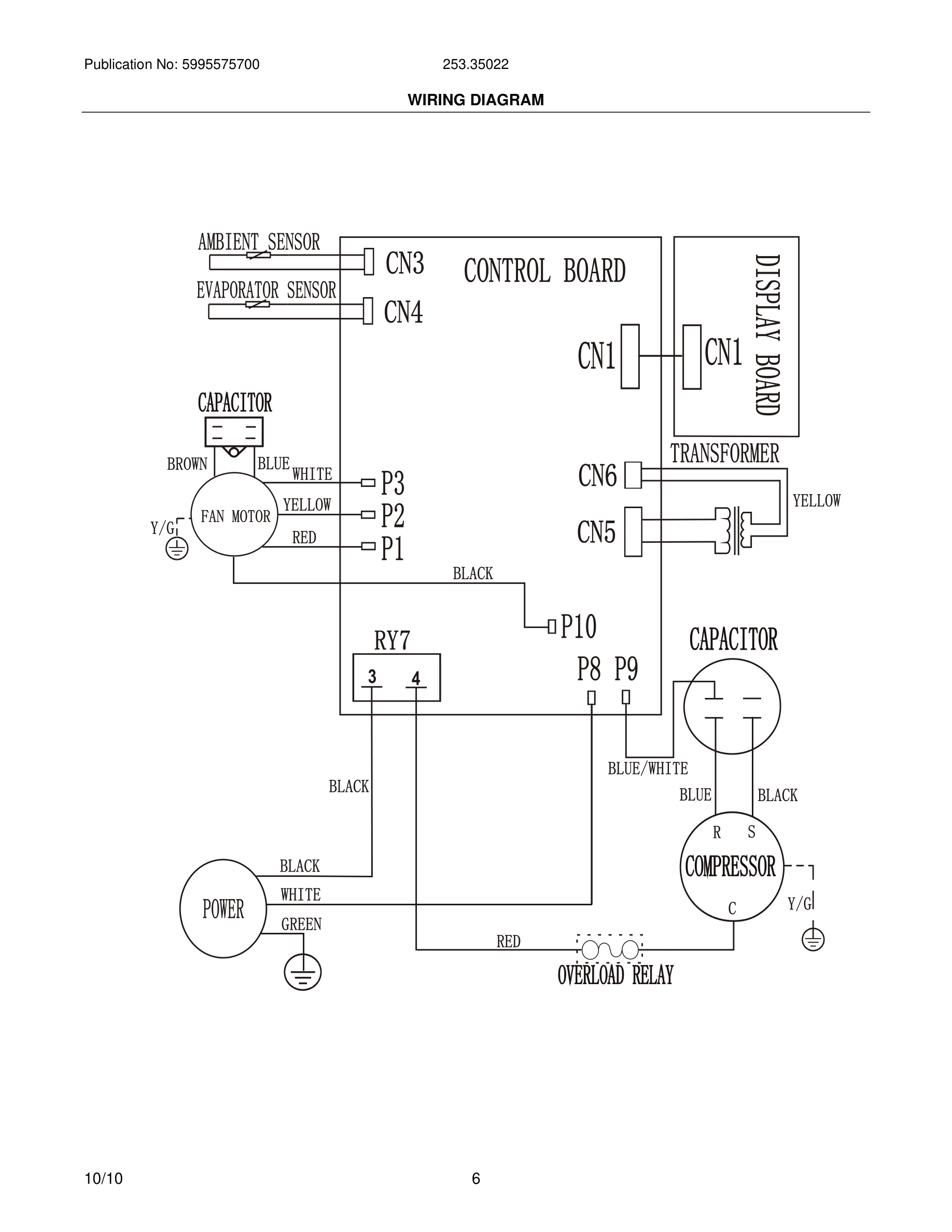

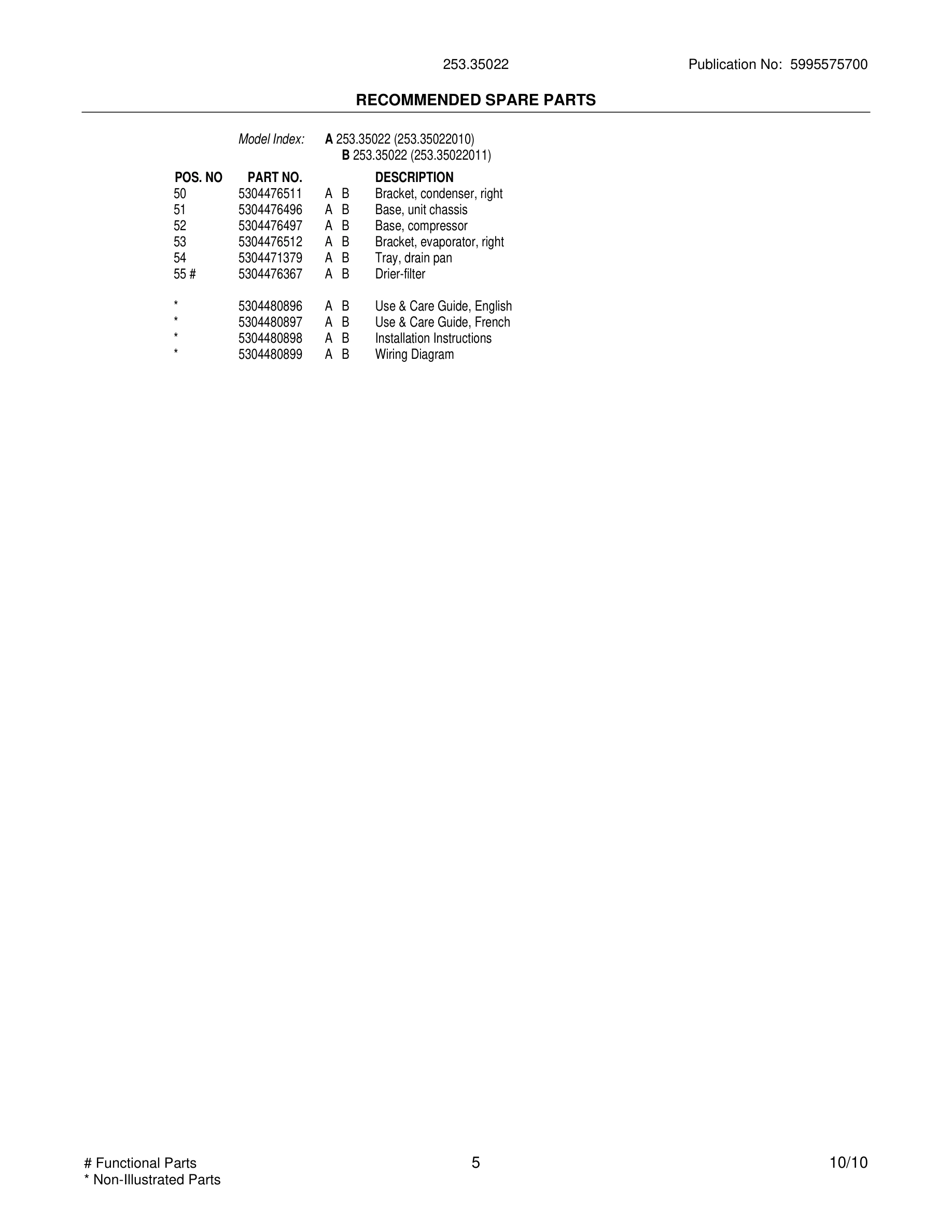

Wiring Diagram
Wiring Diagram WCI 5304480899 Contact Us For Availability
View on Model

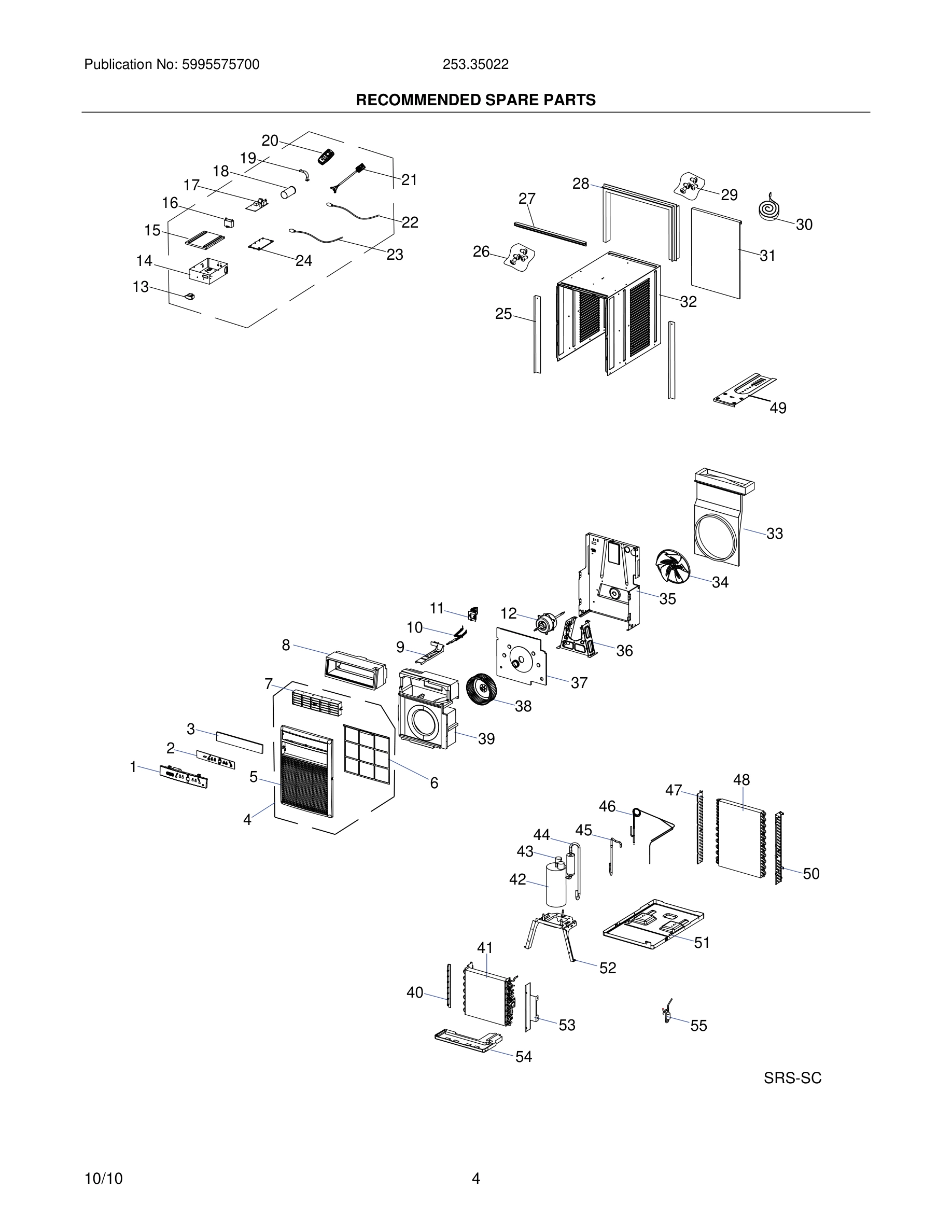

1#
Control Panel, with overlay
Control Panel, with overlay WCI 5304476499 Contact Us For Availability
View on Model
12#
Motor, fan
Motor, fan WCI 5304475761 No Longer Available
View on Model
16#
Capacitor, fan motor
Capacitor, fan motor WCI 5304471221 Contact Us For Availability
View on Model
24
Holder, mounting plate, control
Holder, mounting plate, control WCI 5304476251 Contact Us For Availability
View on Model
25
Channel, side mount, slide
Channel, side mount, slide WCI 5304476474 Contact Us For Availability
View on Model
27
Rail, shutter track, top channel
Rail, shutter track, top channel WCI 5304476475 Contact Us For Availability
View on Model
28
Frame, window panel, seal
Frame, window panel, seal WCI 5304476476 Contact Us For Availability
View on Model
30
Seal Kit, window, foam strips
Seal Kit, window, foam strips WCI 5304471646 Contact Us For Availability
View on Model
31
Grille, rear
Grille, rear WCI 5304476477 Contact Us For Availability
View on Model
32
Cabinet, wrapper/sleeve
Cabinet, wrapper/sleeve WCI 5304476503 Contact Us For Availability
View on Model
33
Shroud, fan housing, condenser
Shroud, fan housing, condenser WCI 5304471367 Contact Us For Availability
View on Model
35
Bulkhead, partition, front
Bulkhead, partition, front WCI 5304476479 Contact Us For Availability
View on Model
36
Support, fan motor mount
Support, fan motor mount WCI 5304476480 Contact Us For Availability
View on Model
37
Panel, scroll, rear
Panel, scroll, rear WCI 5304471361 Contact Us For Availability
View on Model
38#
Blower Wheel, centrifugal fan
Blower Wheel, centrifugal fan WCI 5304471360 Contact Us For Availability
View on Model
39
Scroll, blower housing
Scroll, blower housing WCI 5304471359 Contact Us For Availability
View on Model
40
Bracket, evaporator, left
Bracket, evaporator, left WCI 5304476504 Contact Us For Availability
View on Model
41#
Evaporator
Evaporator WCI 5304476505 Contact Us For Availability
View on Model
42#
Compressor, with overload
Compressor, with overload WCI 5304475760 Contact Us For Availability
View on Model
43#
Overload Protector, compressor
Overload Protector, compressor WCI 5304476297 Contact Us For Availability
View on Model
44#
Tube, suction
Tube, suction WCI 5304476506 Contact Us For Availability
View on Model
45#
Tube, discharge
Tube, discharge WCI 5304476507 Contact Us For Availability
View on Model
46#
Tube, capillary
Tube, capillary WCI 5304476508 Contact Us For Availability
View on Model
47
Bracket, condenser, left
Bracket, condenser, left WCI 5304476509 Contact Us For Availability
View on Model
48#
Condenser
Condenser WCI 5304476510 Contact Us For Availability
View on Model
49
Platform, unit support
Platform, unit support WCI 5304476494 Contact Us For Availability
View on Model
50
Bracket, condenser, right
Bracket, condenser, right WCI 5304476511 Contact Us For Availability
View on Model
51
Base, unit chassis
Base, unit chassis WCI 5304476496 Contact Us For Availability
View on Model
52
Base, compressor
Base, compressor WCI 5304476497 Contact Us For Availability
View on Model
53
Bracket, evaporator, right
Bracket, evaporator, right WCI 5304476512 Contact Us For Availability
View on Model
54
Tray, drain pan
Tray, drain pan WCI 5304471379 Contact Us For Availability
View on Model
