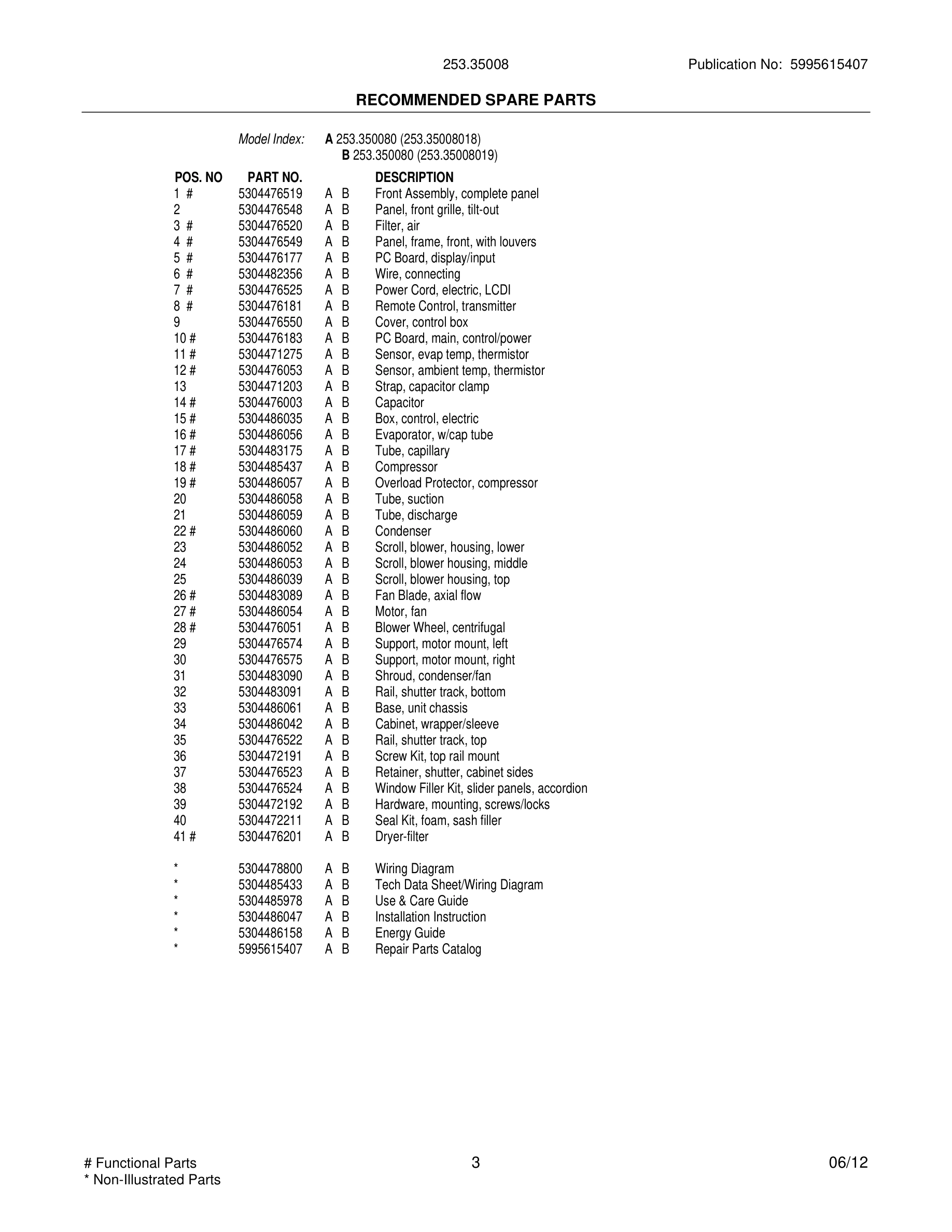

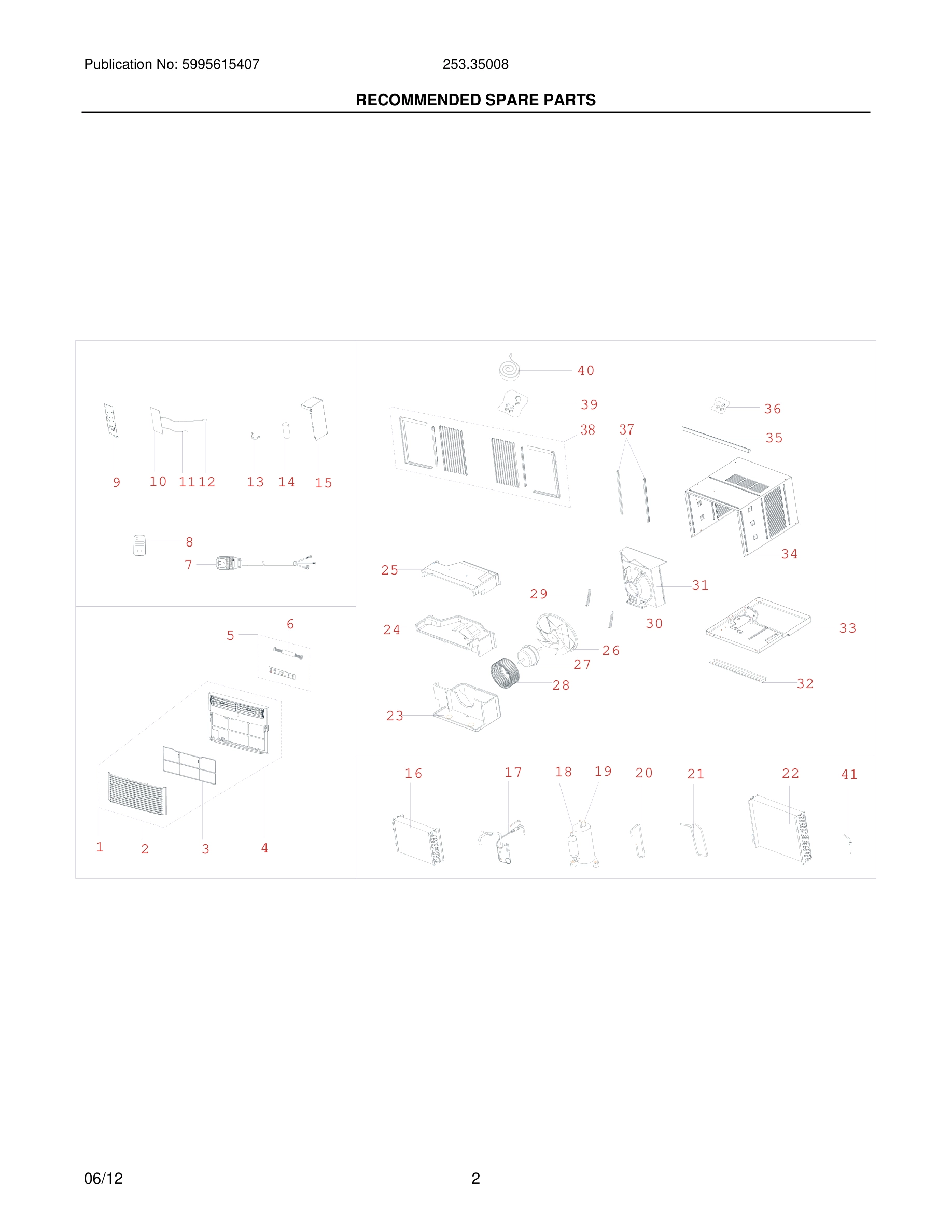

Model Kenmore 253.35008018 ROOM AIR CONDITIONER – Common Parts & Diagrams

3#
Filter, air
Filter, air WCI 5304476520 Contact Us For Availability
View on Model
7#
Power Cord, electric, LCDI
Power Cord, electric, LCDI WCI 5304476525 Contact Us For Availability
View on Model
10#
PC Board, main, control/power
PC Board, main, control/power WCI 5304476183 Contact Us For Availability
View on Model
12#
Sensor, ambient temp, thermistor
Sensor, ambient temp, thermistor WCI 5304476053 Contact Us For Availability
View on Model
13
Strap, capacitor clamp
Strap, capacitor clamp WCI 5304471203 Contact Us For Availability
View on Model
14#
Capacitor
Capacitor WCI 5304476003 Contact Us For Availability
View on Model
15#
Box, control, electric
Box, control, electric WCI 5304486035 Contact Us For Availability
View on Model
16#
Evaporator, w/cap tube
Evaporator, w/cap tube WCI 5304486056 Contact Us For Availability
View on Model
17#
Tube, capillary
Tube, capillary WCI 5304483175 Contact Us For Availability
View on Model
18#
Compressor
Compressor WCI 5304485437 Contact Us For Availability
View on Model
19#
Overload Protector, compressor
Overload Protector, compressor WCI 5304486057 Contact Us For Availability
View on Model
20
Tube, suction
Tube, suction WCI 5304486058 Contact Us For Availability
View on Model
21
Tube, discharge
Tube, discharge WCI 5304486059 Contact Us For Availability
View on Model
22#
Condenser
Condenser WCI 5304486060 Contact Us For Availability
View on Model
23
Scroll, blower, housing, lower
Scroll, blower, housing, lower WCI 5304486052 Contact Us For Availability
View on Model
24
Scroll, blower housing, middle
Scroll, blower housing, middle WCI 5304486053 Contact Us For Availability
View on Model
25
Scroll, blower housing, top
Scroll, blower housing, top WCI 5304486039 Contact Us For Availability
View on Model
27#
Motor, fan
Motor, fan WCI 5304486054 Contact Us For Availability
View on Model
28#
Blower Wheel, centrifugal
Blower Wheel, centrifugal WCI 5304476051 Contact Us For Availability
View on Model
29
Support, motor mount, left
Support, motor mount, left WCI 5304476574 Contact Us For Availability
View on Model
30
Support, motor mount, right
Support, motor mount, right WCI 5304476575 Contact Us For Availability
View on Model
31
Shroud, condenser/fan
Shroud, condenser/fan WCI 5304483090 Contact Us For Availability
View on Model
32
Rail, shutter track, bottom
Rail, shutter track, bottom WCI 5304483091 Contact Us For Availability
View on Model
33
Base, unit chassis
Base, unit chassis WCI 5304486061 Contact Us For Availability
View on Model
34
Cabinet, wrapper/sleeve
Cabinet, wrapper/sleeve WCI 5304486042 Contact Us For Availability
View on Model
35
Rail, shutter track, top
Rail, shutter track, top WCI 5304476522 Contact Us For Availability
View on Model
36
Screw Kit, top rail mount
Screw Kit, top rail mount WCI 5304472191 Contact Us For Availability
View on Model
37
Retainer, shutter, cabinet sides
Retainer, shutter, cabinet sides WCI 5304476523 Contact Us For Availability
View on Model
38
Window Filler Kit, slider panels, accordion
Window Filler Kit, slider panels, accordion WCI 5304476524 Contact Us For Availability
View on Model
39
Hardware, mounting, screws/locks
Hardware, mounting, screws/locks WCI 5304472192 Contact Us For Availability
View on Model
40
Seal Kit, foam, sash filler
Seal Kit, foam, sash filler WCI 5304472211 Contact Us For Availability
View on Model
