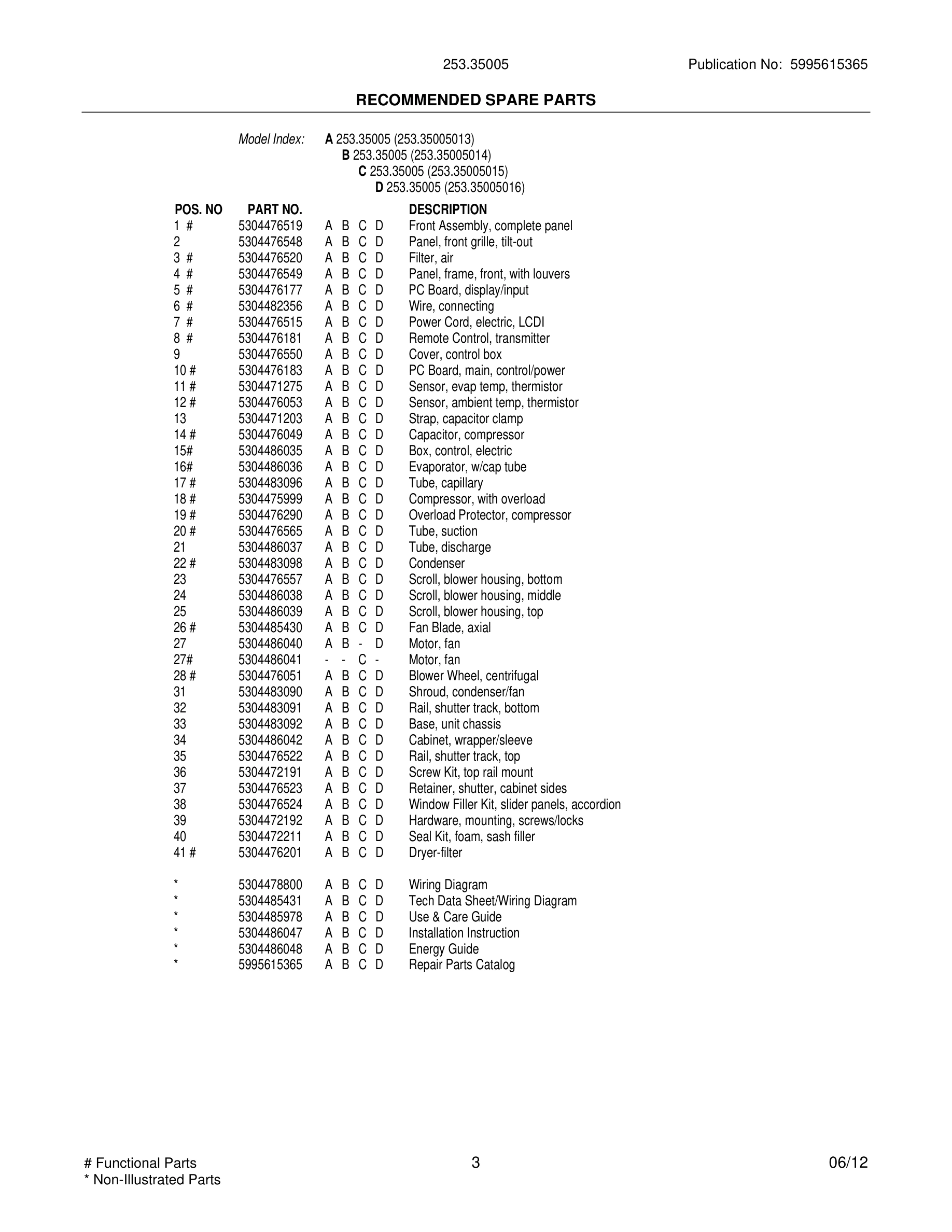

Model Kenmore 253.35005013 ROOM AIR CONDITIONER – Common Parts & Diagrams

3#
Filter, air
Filter, air WCI 5304476520 Contact Us For Availability
View on Model
4#
Panel, frame, front, with louvers
Panel, frame, front, with louvers WCI 5304476549 Contact Us For Availability
View on Model
7#
Power Cord, electric, LCDI
Power Cord, electric, LCDI WCI 5304476515 Contact Us For Availability
View on Model
9
Cover, control box
Cover, control box WCI 5304476550 Contact Us For Availability
View on Model
10#
PC Board, main, control/power
PC Board, main, control/power WCI 5304476183 Contact Us For Availability
View on Model
13
Strap, capacitor clamp
Strap, capacitor clamp WCI 5304471203 Contact Us For Availability
View on Model
15#
Box, control, electric
Box, control, electric WCI 5304486035 Contact Us For Availability
View on Model
16#
Evaporator, w/cap tube
Evaporator, w/cap tube WCI 5304486036 Contact Us For Availability
View on Model
17#
Tube, capillary
Tube, capillary WCI 5304483096 Contact Us For Availability
View on Model
18#
Compressor, with overload
Compressor, with overload WCI 5304475999 Contact Us For Availability
View on Model
19#
Overload Protector, compressor
Overload Protector, compressor WCI 5304476290 Contact Us For Availability
View on Model
20#
Tube, suction
Tube, suction WCI 5304476565 Contact Us For Availability
View on Model
21
Tube, discharge
Tube, discharge WCI 5304486037 Contact Us For Availability
View on Model
22#
Condenser
Condenser WCI 5304483098 Contact Us For Availability
View on Model
23
Scroll, blower housing, bottom
Scroll, blower housing, bottom WCI 5304476557 Contact Us For Availability
View on Model
24
Scroll, blower housing, middle
Scroll, blower housing, middle WCI 5304486038 Contact Us For Availability
View on Model
25
Scroll, blower housing, top
Scroll, blower housing, top WCI 5304486039 Contact Us For Availability
View on Model
26#
Fan Blade, axial
Fan Blade, axial WCI 5304485430 Contact Us For Availability
View on Model
27
Motor, fan
Motor, fan WCI 5304486040 Contact Us For Availability
View on Model
27#
Motor, fan
Motor, fan WCI 5304486041 Contact Us For Availability
View on Model
28#
Blower Wheel, centrifugal
Blower Wheel, centrifugal WCI 5304476051 Contact Us For Availability
View on Model
31
Shroud, condenser/fan
Shroud, condenser/fan WCI 5304483090 Contact Us For Availability
View on Model
32
Rail, shutter track, bottom
Rail, shutter track, bottom WCI 5304483091 Contact Us For Availability
View on Model
33
Base, unit chassis
Base, unit chassis WCI 5304483092 Contact Us For Availability
View on Model
34
Cabinet, wrapper/sleeve
Cabinet, wrapper/sleeve WCI 5304486042 Contact Us For Availability
View on Model
35
Rail, shutter track, top
Rail, shutter track, top WCI 5304476522 Contact Us For Availability
View on Model
36
Screw Kit, top rail mount
Screw Kit, top rail mount WCI 5304472191 Contact Us For Availability
View on Model
37
Retainer, shutter, cabinet sides
Retainer, shutter, cabinet sides WCI 5304476523 Contact Us For Availability
View on Model
38
Window Filler Kit, slider panels, accordion
Window Filler Kit, slider panels, accordion WCI 5304476524 Contact Us For Availability
View on Model
39
Hardware, mounting, screws/locks
Hardware, mounting, screws/locks WCI 5304472192 Contact Us For Availability
View on Model
40
Seal Kit, foam, sash filler
Seal Kit, foam, sash filler WCI 5304472211 Contact Us For Availability
View on Model
