Model Electrolux 253.29111990 Upright Freezer (Kenmore 25329111990) – Common Parts & Diagrams
All Parts

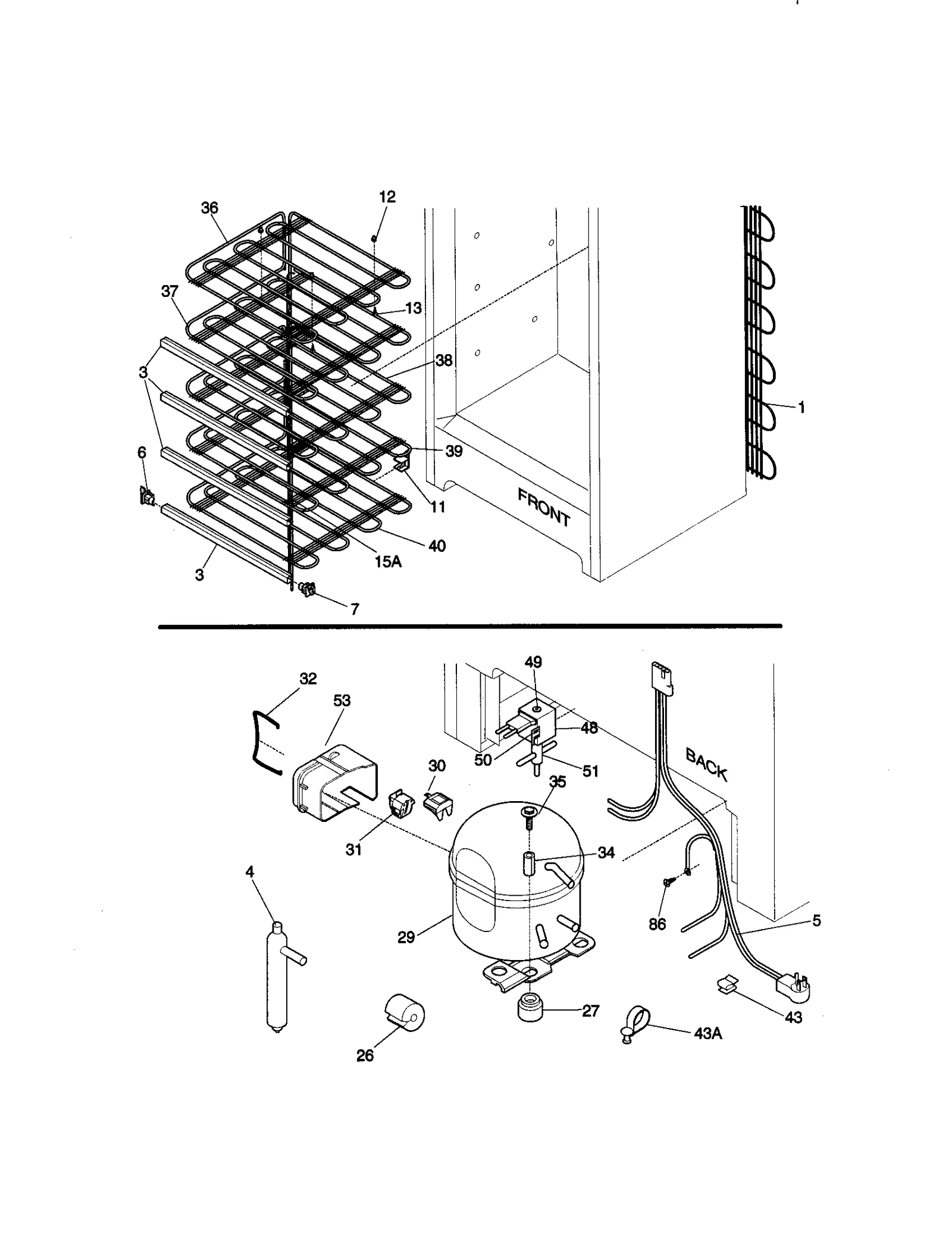

SYSTEM
DOOR
CABINET
Common parts from model Electrolux 253.29111990 Upright Freezer (Kenmore 25329111990)
2
Freezer Drain Hose Adapter WCI 216269500 Contact Us For Availability
2
Lock WCI 5303925107 Contact Us For Availability
3
Freezer Drain Plug WCI 216502600 Contact Us For Availability
6
Washer WCI 5303269745 Contact Us For Availability
6
Breaker Kit WCI 216604100 Contact Us For Availability
7
Breaker Kit WCI 216603600 Contact Us For Availability
9
Inner Panel WCI 216528102 Contact Us For Availability
9
Freezer Horizontal Trim Assembly WCI 216603300 Contact Us For Availability
11
Freezer Shelf Support WCI 216474600 Contact Us For Availability
11
Out Drive Panel WCI 5303925452 Contact Us For Availability
12
Freezer Door Hinge Bearing WCI 216225700 Contact Us For Availability
13
Freezer Door Stop WCI 08016354 Contact Us For Availability
14
Washer WCI 5303313518 Contact Us For Availability
16
Freezer Light Socket WCI 5300136117 Contact Us For Availability
18
Freezer Door Handle WCI 216206900 Contact Us For Availability
18
Knob WCI 216591802 Contact Us For Availability
20
Housing WCI 5303288184 Contact Us For Availability
21
Thermostat WCI 216150400 Contact Us For Availability
21A
Screw WCI 08005520 Contact Us For Availability
22
Freezer Door Hinge Bearing WCI 216443600 Contact Us For Availability
22
Clamp WCI 08037931 Contact Us For Availability
23
Signal Light WCI 216511700 Contact Us For Availability
24
Screw WCI 5300052943 Contact Us For Availability
25
Freezer Door Inner Liner Screw WCI 216022800 Contact Us For Availability
26
Freezer Door Closer Bearing WCI 216503300 Contact Us For Availability
27
Refrigeration Appliance Screw, 1/4-20 x 1-in WCI 5303205738 Contact Us For Availability
28
Hinge WCI 216247400 Contact Us For Availability
32
Freezer Breather Valve WCI 5309950074 Contact Us For Availability
33
Bracket WCI 216511601 Contact Us For Availability
34
Sleeve WCI 5306594529 Contact Us For Availability
34
Light Shield WCI 216557609 Contact Us For Availability
35
Freezer Compressor Mounting Screw WCI 5303272328 Contact Us For Availability
38
Hinge WCI 5303925086 Contact Us For Availability
39
Nut Insert WCI 5303294372 Contact Us For Availability
40
Hinge Cover (White) WCI 5303212912 Contact Us For Availability
41
Screw WCI 5303212937 Contact Us For Availability
54
Kick Plate WCI 216077201 Contact Us For Availability
56
Screw WCI 09950853 Contact Us For Availability
57
Decorative Overlay WCI 216508300 Contact Us For Availability
59
Basket WCI 216157200 Contact Us For Availability
59A
Stop WCI 09948791 Contact Us For Availability
64
Freezer Breather Valve WCI 216403700 Contact Us For Availability
66
Buzzer WCI 5303212697 Contact Us For Availability
67
Freezer Quick-Freeze Switch WCI 5303212703 Contact Us For Availability
72
Freezer Tilt-Out Shelf WCI 216514100 Contact Us For Availability
72
Kick Plate WCI 216511500 Contact Us For Availability
95
Label-rapid WCI 216655700 Contact Us For Availability
97
Screw WCI 09037849 Contact Us For Availability
102
Support WCI 08016352 Contact Us For Availability
132
Screw WCI 5303283898 Contact Us For Availability
NI
Freezer Breaker Strip Insulation WCI 5303925098 Contact Us For Availability
NI
Freezer Drain Tube Insulation WCI 09948773 Contact Us For Availability
× ![]()
