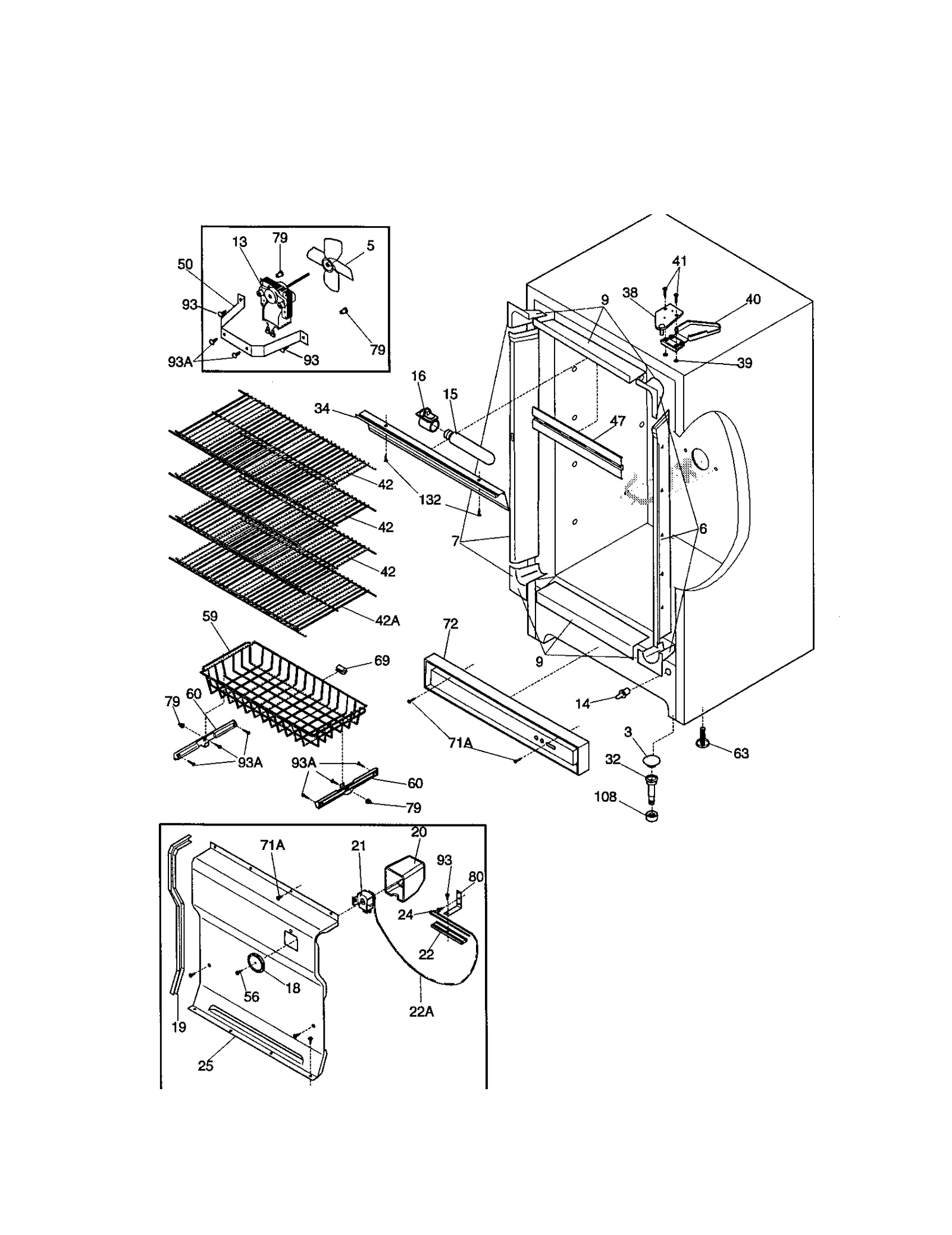

Model Electrolux 253.29101994 Upright Freezer (Kenmore 25329101994) – Common Parts & Diagrams

6
Breaker Kit
Breaker Kit WCI 216604400 Contact Us For Availability
View on Model
9
Wire Harness
Wire Harness WCI 216803400 Contact Us For Availability
View on Model
13
Freezer Door Stop
Freezer Door Stop WCI 08016354 Contact Us For Availability
View on Model
19
Refrigerator Evaporator Cover Seal
Refrigerator Evaporator Cover Seal WCI 216204900 Contact Us For Availability
View on Model
20
Freezer Temperature Control Thermostat Cover
Freezer Temperature Control Thermostat Cover WCI 216230300 Contact Us For Availability
View on Model
21
Cold Control
Cold Control WCI 216788000 No Longer Available
View on Model
22
Clamp
Clamp WCI 05878562 Contact Us For Availability
View on Model
24
Screw
Screw WCI 5300052943 Contact Us For Availability
View on Model
25
Evaporator Cover
Evaporator Cover WCI 216737000 Contact Us For Availability
View on Model
26
Freezer Door Closer Bearing
Freezer Door Closer Bearing WCI 216503300 Contact Us For Availability
View on Model
27
Refrigeration Appliance Screw, 1/4-20 x 1-in
Refrigeration Appliance Screw, 1/4-20 x 1-in WCI 5303205738 Contact Us For Availability
View on Model
28
Hinge
Hinge WCI 216247400 Contact Us For Availability
View on Model
32
Freezer Breather Valve
Freezer Breather Valve WCI 5309950074 Contact Us For Availability
View on Model
34
Sleeve
Sleeve WCI 5306594529 Contact Us For Availability
View on Model
34
Light Shield
Light Shield WCI 216557500 Contact Us For Availability
View on Model
35
Freezer Compressor Mounting Screw
Freezer Compressor Mounting Screw WCI 5303272328 Contact Us For Availability
View on Model
38
Hinge
Hinge WCI 5303925086 Contact Us For Availability
View on Model
39
Nut Insert
Nut Insert WCI 5303294372 Contact Us For Availability
View on Model
40
Hinge Cover (White)
Hinge Cover (White) WCI 5303212912 Contact Us For Availability
View on Model
41
Screw
Screw WCI 5303212937 Contact Us For Availability
View on Model
42
Shelfs
Shelfs WCI 216546200 Contact Us For Availability
View on Model
42A
Shelf
Shelf WCI 216641000 Contact Us For Availability
View on Model
43
Clip
Clip WCI 09950610 Contact Us For Availability
View on Model
50
Motor Bracket
Motor Bracket WCI 216394000 Contact Us For Availability
View on Model
53
Cover
Cover WCI 216347800 Contact Us For Availability
View on Model
59
Basket
Basket WCI 29711890 Contact Us For Availability
View on Model
64
Freezer Breather Valve
Freezer Breather Valve WCI 216403700 Contact Us For Availability
View on Model
80
Freezer Temperature Control Thermostat Tube B
Freezer Temperature Control Thermostat Tube B WCI 06594601 Contact Us For Availability
View on Model
87
Screw
Screw WCI 08037849 Contact Us For Availability
View on Model
93A
Refrigeration Appliance Screw
Refrigeration Appliance Screw WCI 5303302760 Contact Us For Availability
View on Model
108
Freezer Drain Trap
Freezer Drain Trap WCI 216388600 Contact Us For Availability
View on Model
130
Support Evaporator
Support Evaporator WCI 216730400 Contact Us For Availability
View on Model
132
Screw
Screw WCI 5303283898 Contact Us For Availability
View on Model
NI
Freezer Drain Tube Insulation
Freezer Drain Tube Insulation WCI 09948773 Contact Us For Availability
View on Model
NI
Refrigerator Suction Line Sleeve
Refrigerator Suction Line Sleeve WCI 216502500 Contact Us For Availability
View on Model
NI
Service Data Sheet
Service Data Sheet WCI 216758300 Contact Us For Availability
View on Model
NI
Parts List
Parts List WCI 5995347092 Contact Us For Availability
View on Model
