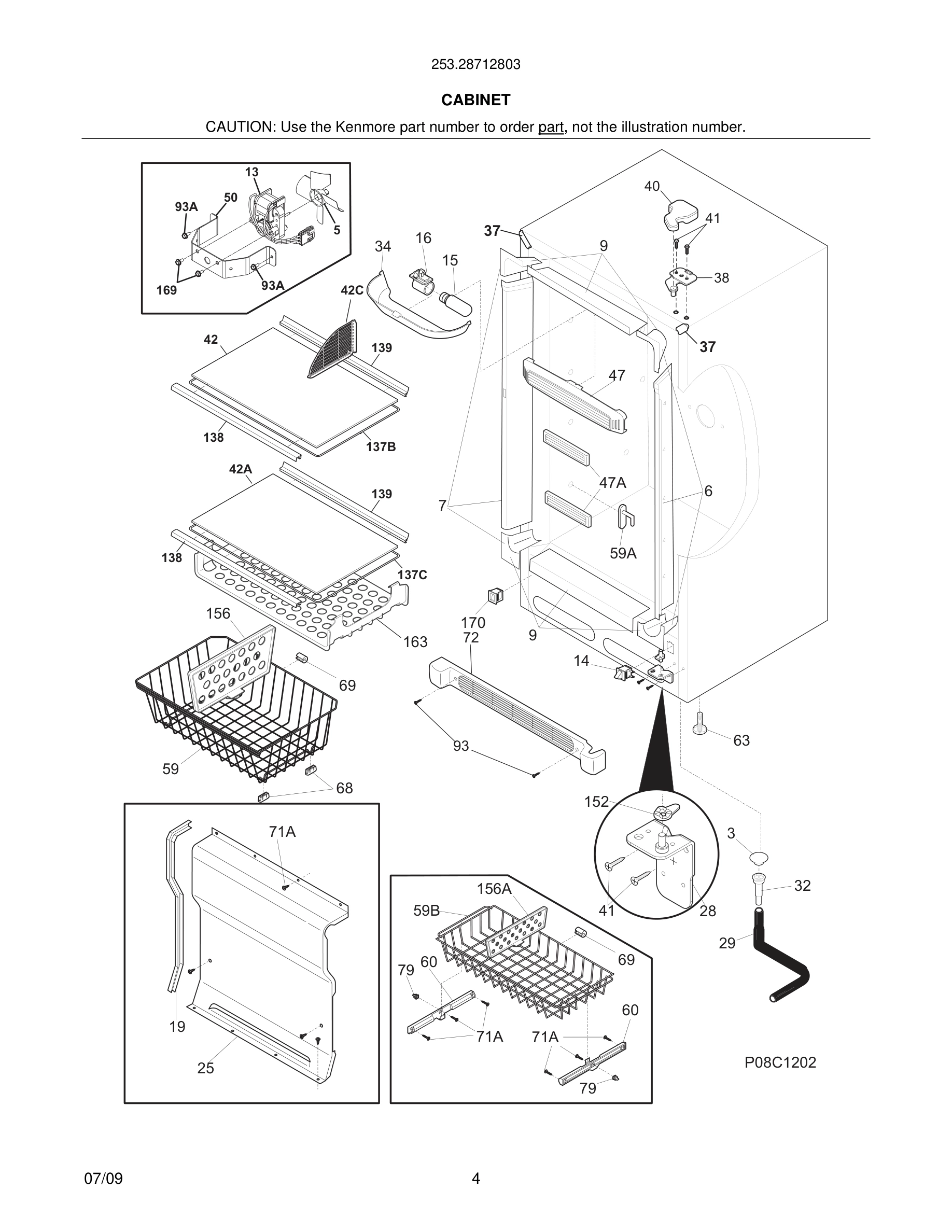

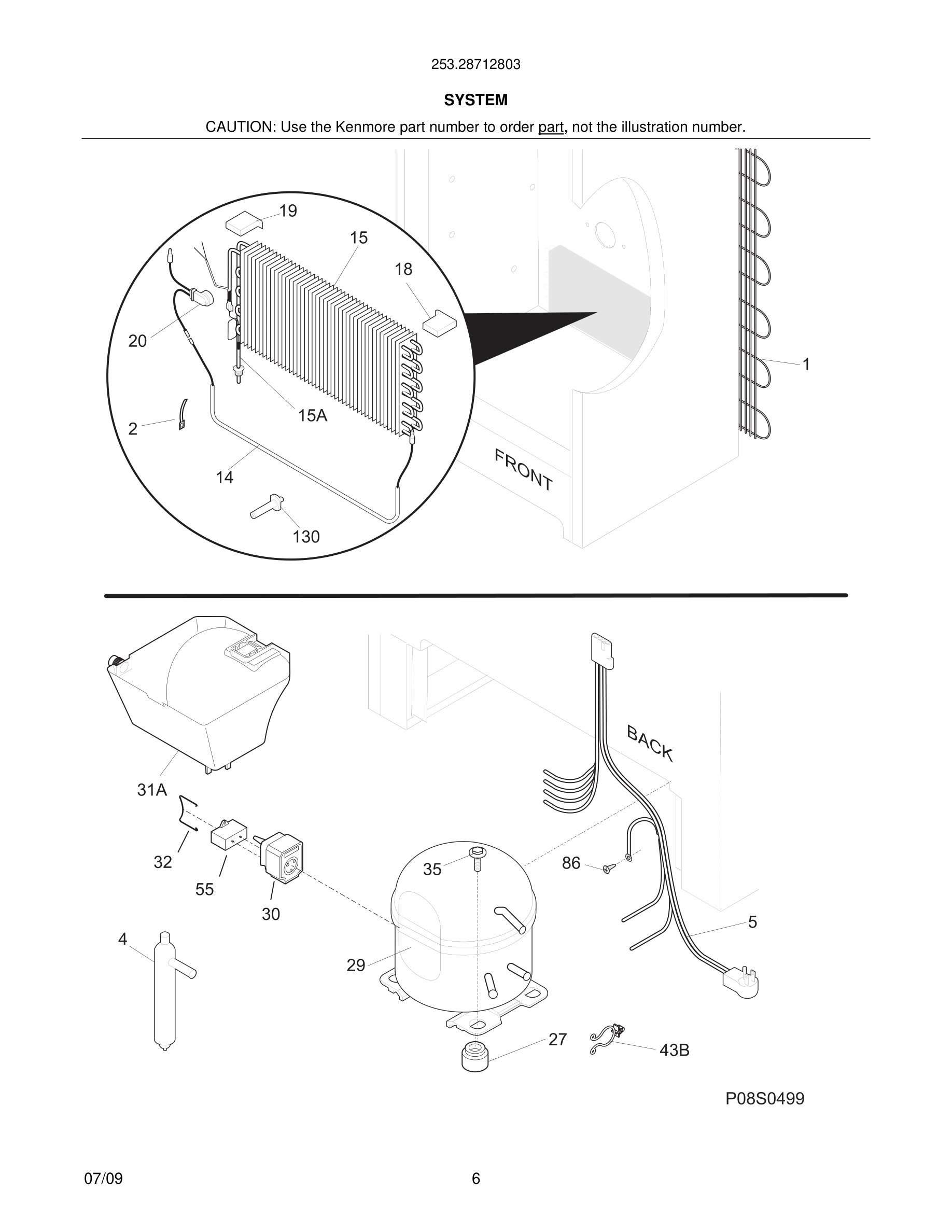

Model Kenmore 253.28712803 FREEZER – Common Parts & Diagrams

*
Insulation, 24", drain tube
Insulation, 24", drain tube WCI 297001704 Contact Us For Availability
View on Model
*
Sleeve, suction line
Sleeve, suction line WCI 216502500 Contact Us For Availability
View on Model
9
Panel-inner door, frzr
Panel-inner door, frzr WCI 297185800 Contact Us For Availability
View on Model
15A
Heat Exchanger
Heat Exchanger WCI 297238700 Contact Us For Availability
View on Model
19
Gasket, evap cover
Gasket, evap cover WCI 216204900 Contact Us For Availability
View on Model
19
Insulator-evap, styrofoam, LH
Insulator-evap, styrofoam, LH WCI 297078801 Contact Us For Availability
View on Model
28
Hinge, bottom/RH
Hinge, bottom/RH WCI 297179300 Contact Us For Availability
View on Model
34
Shield-light
Shield-light WCI 297184400 Contact Us For Availability
View on Model
38
Hinge-upper
Hinge-upper WCI 297154600 Contact Us For Availability
View on Model
42
Glass-shelf
Glass-shelf WCI 297166800 Contact Us For Availability
View on Model
47A
Diffuser, air, blue, (2)
Diffuser, air, blue, (2) WCI 297205801 Contact Us For Availability
View on Model
59
Bearing, door closer
Bearing, door closer WCI 216974500 Contact Us For Availability
View on Model
59A
Stop-basket, (2)
Stop-basket, (2) WCI 216486500 Contact Us For Availability
View on Model
64
Plug-button, hole filler, door base
Plug-button, hole filler, door base WCI 216403700 Contact Us For Availability
View on Model
72
Grille/Kickplate, 32", white
Grille/Kickplate, 32", white WCI 297198900 Contact Us For Availability
View on Model
152
Bearing, hinge closer
Bearing, hinge closer WCI 216974600 Contact Us For Availability
View on Model
