Model Kenmore 253.24212101 FREEZER – Common Parts & Diagrams
01 - COVER
03 - DOOR

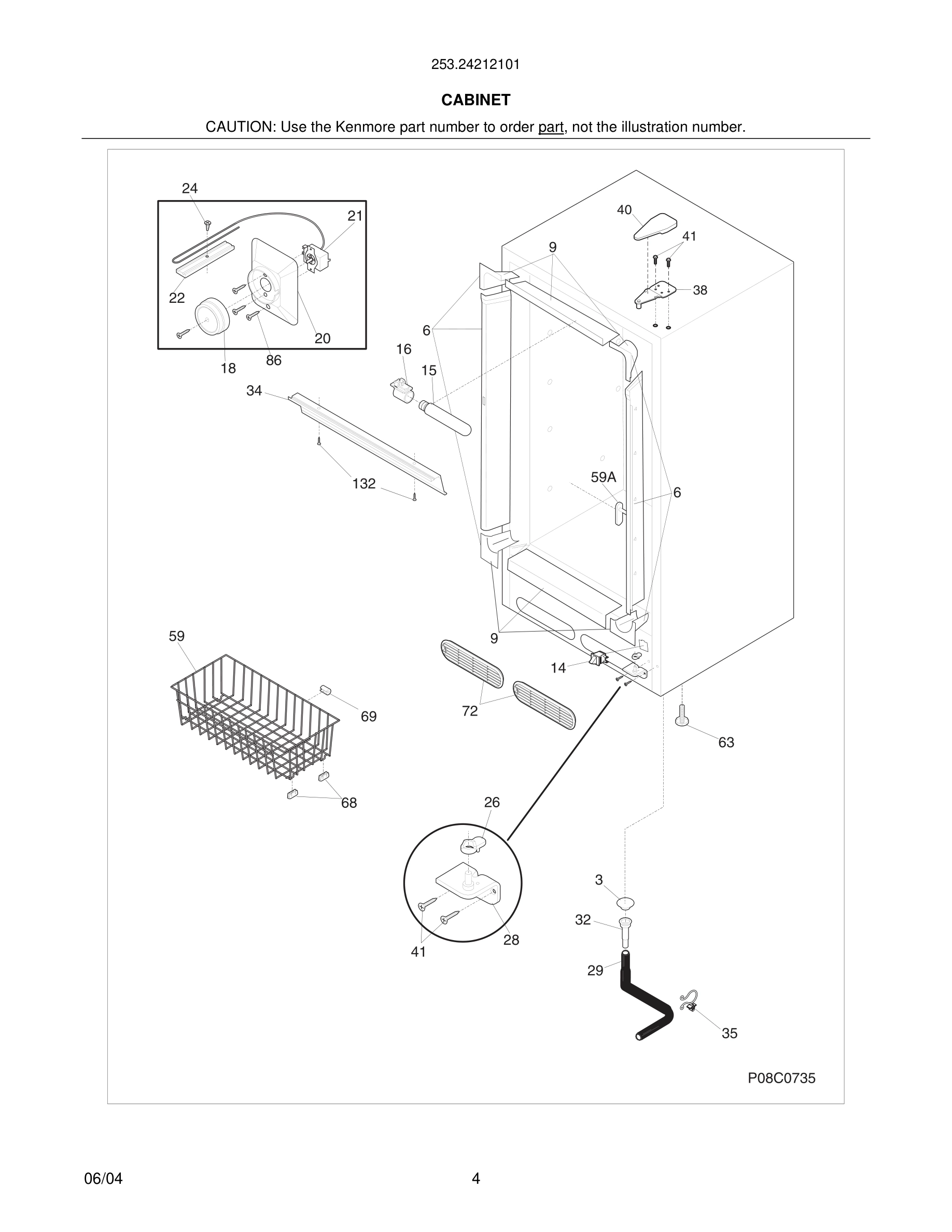

05 - CABINET

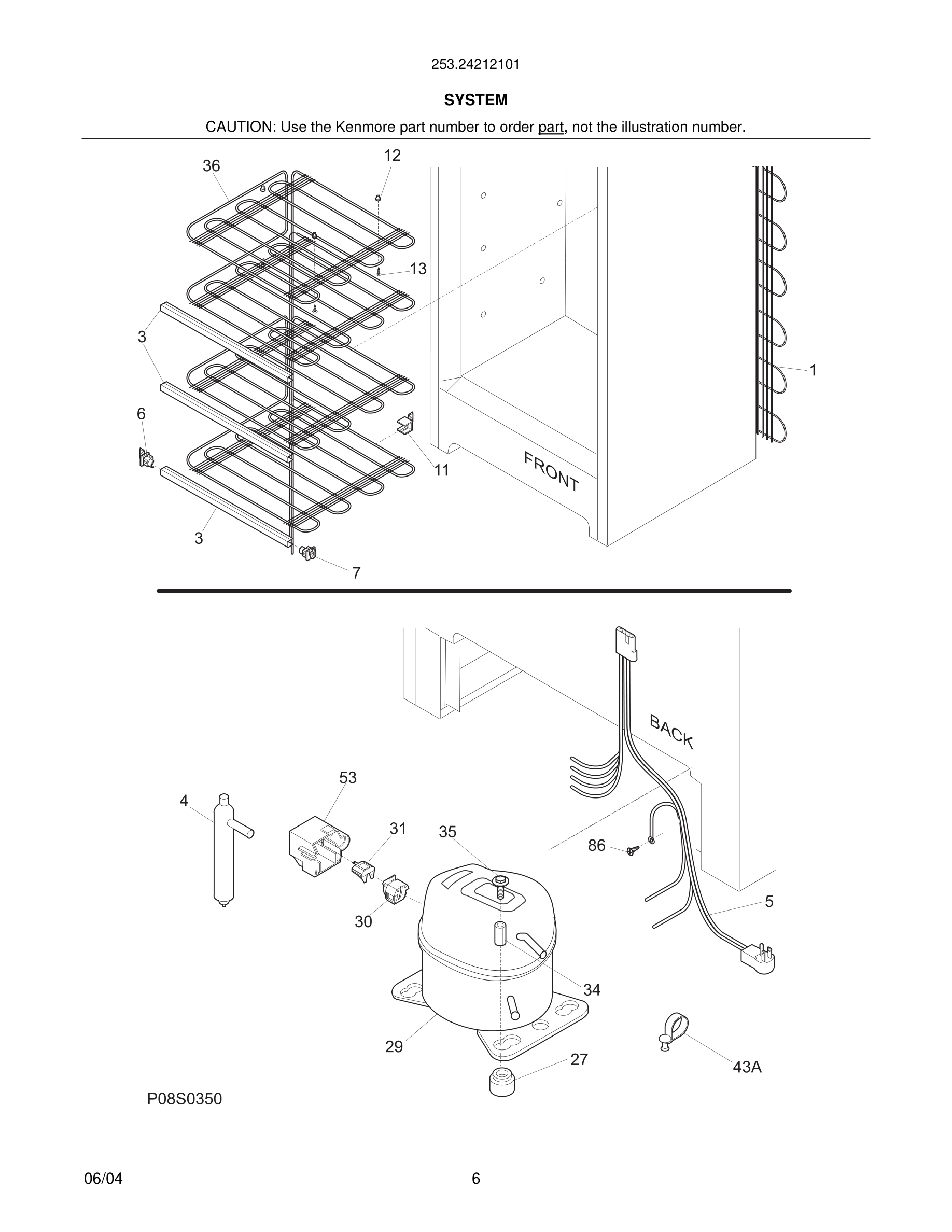

07 - SYSTEM
Common parts from model Kenmore 253.24212101 FREEZER
*
Adapter, drain hose WCI 216269500 Contact Us For Availability
*
Insulation, drain tube WCI 09948773 Contact Us For Availability
*
Sleeve, suction line WCI 216502500 Contact Us For Availability
3
Plug, drain, interior WCI 216502600 Contact Us For Availability
5#
Harness-main WCI 216943100 Contact Us For Availability
11
Support-rear shelf WCI 216474600 Contact Us For Availability
12
Grommet-spacer WCI 216225700 Contact Us For Availability
13
Door Stop WCI 08016354 Contact Us For Availability
13
Screw, hex sems, 8-18AB x 1.00, evap WCI 216138900 Contact Us For Availability
22
Clamp, cap tube, cold control WCI 216823500 Contact Us For Availability
26
Ramp, door closer WCI 216503300 Contact Us For Availability
32
Valve, breather, door base WCI 5309950074 Contact Us For Availability
34
Sleeve-compressor, (3) WCI 5306594529 Contact Us For Availability
35
Screw, Ind hex sems, 1/4-28 unfx, compressor, WCI 5303272328 Contact Us For Availability
36#
Evaporator, tubing assy, white WCI 216940100 Contact Us For Availability
38
Hinge-upper WCI 216939100 Contact Us For Availability
53
Cover terminal, cover-comp term WCI 216347800 Contact Us For Availability
59A
Stop-basket WCI 216486500 Contact Us For Availability
64
Plug-button, hole filler, door base WCI 216403700 Contact Us For Availability
72
Grille/guard, (2) WCI 216952700 Contact Us For Availability
132
Screw, 6-20AB x 3/8 WCI 5303283898 Contact Us For Availability
× ![]()
