Model Kenmore 253.22402100 FREEZER – Common Parts & Diagrams

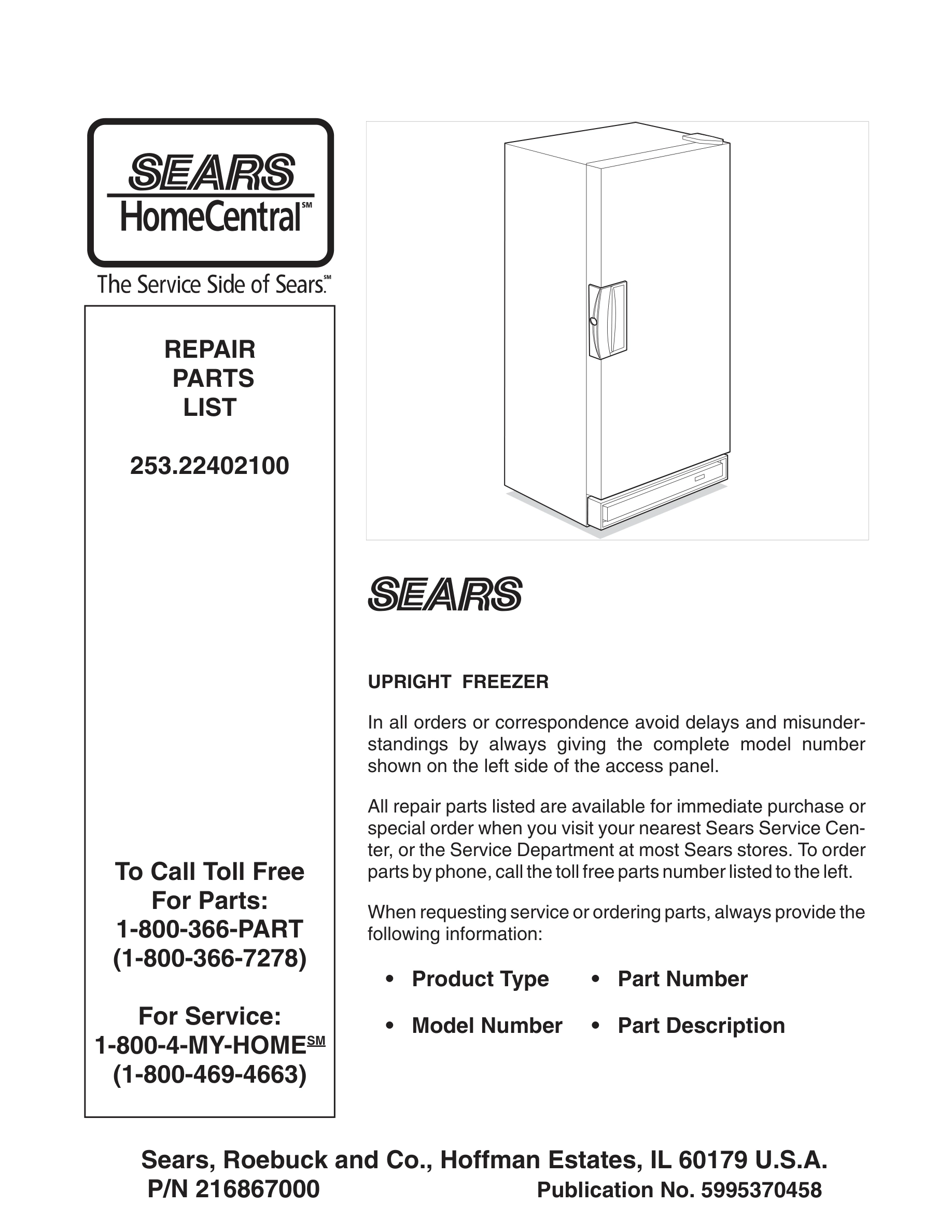

01 - COVER

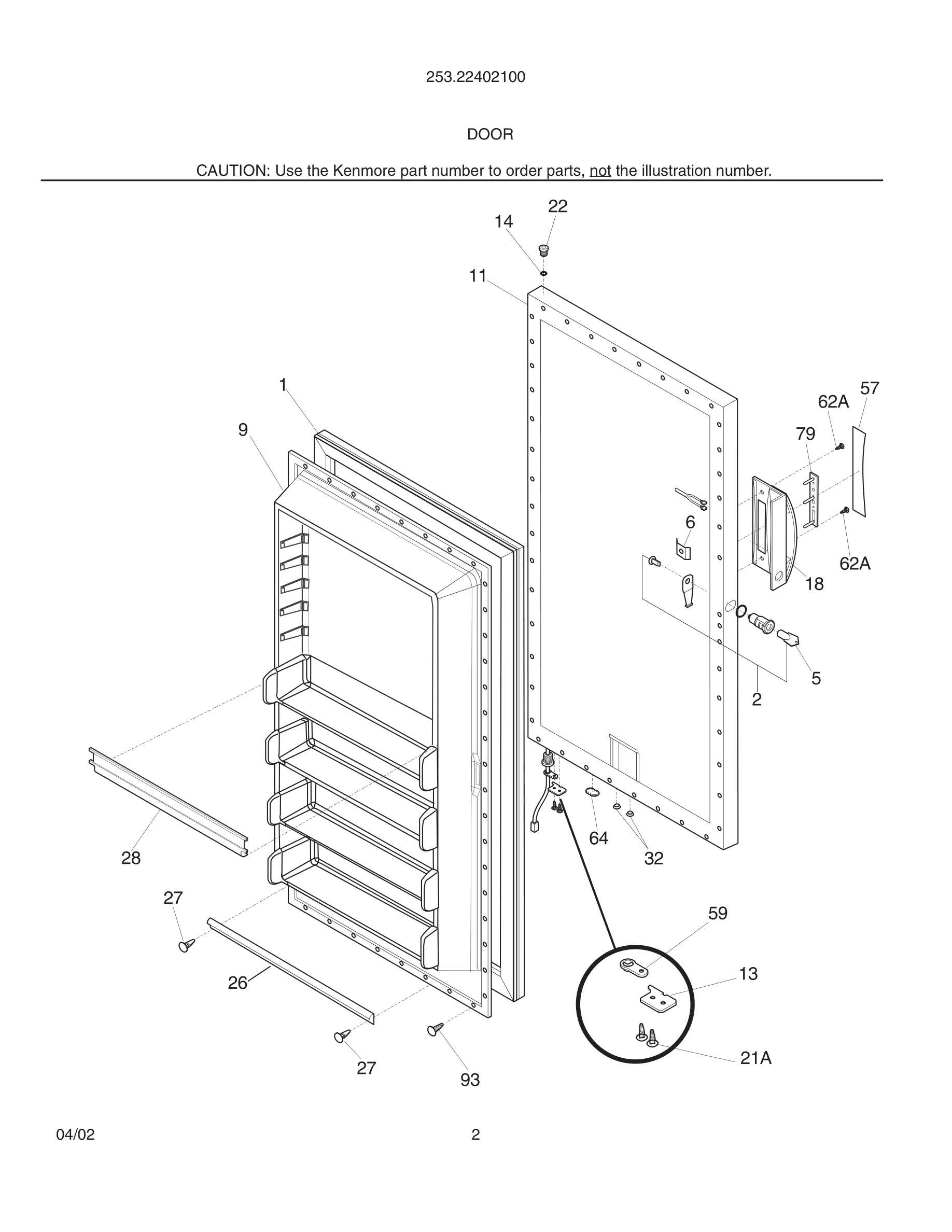

03 - DOOR
05 - CABINET
07 - SYSTEM
Common parts from model Kenmore 253.22402100 FREEZER
*
Insulation,drain tube WCI 09948773 Contact Us For Availability
3
Plug-drain,interior ,interior WCI 216502600 Contact Us For Availability
5
Harness-main WCI 216854900 Contact Us For Availability
11
Support-rear shelf WCI 216474600 Contact Us For Availability
12
Grommet-spacer WCI 216225700 Contact Us For Availability
13
Door Stop WCI 5303271076 Contact Us For Availability
13
Screw,hex sems ,8-18AB x 1.00 ,evap WCI 216138900 Contact Us For Availability
15A
Heat Exchanger WCI 216404900 Contact Us For Availability
21#
Control-temperature WCI 216844500 Contact Us For Availability
26
Ramp,closer ,door WCI 216503300 Contact Us For Availability
29#
Compressor,w/o electricals WCI 216784300 Contact Us For Availability
32
Valve-breather WCI 5309950074 Contact Us For Availability
34
Sleeve-compressor WCI 5306594529 Contact Us For Availability
35
Screw,Ind hex sems ,1/4-28 unfx ,Compressor WCI 5303272328 Contact Us For Availability
38
Hinge-upper WCI 216808900 Contact Us For Availability
40#
Shelf-bottom evaporator WCI 216070400 Contact Us For Availability
54#
Electronics,high voltage WCI 216844900 Contact Us For Availability
57
Overlay,decorative WCI 216866700 Contact Us For Availability
64
Plug-button,door base WCI 216403700 Contact Us For Availability
72
Grille/Kickplate,assy WCI 216866600 Contact Us For Availability
79
Electronics,low voltage WCI 216845100 Contact Us For Availability
101
Kit-top hinge WCI 216835200 Contact Us For Availability
150
Thermistor,defrost sensor WCI 216843804 Contact Us For Availability
151
Clip,retainer ,thermistor ,(2) WCI 216420000 Contact Us For Availability
× ![]()
